Overland Vehicle Systems Bed Extension for Pick Up Trucks - Short Bed
Overland Vehicle Systems Bed Extension for Pick Up Trucks - Short Bed
SKU: 21010550
















































Overland Vehicle Systems Bed Extension for Pick Up Trucks - Short Bed
SKU: 21010550
$1,299.99
Overland Vehicle Systems Bed Extension for Pick Up Trucks - Short Bed
For truck owners, space is everything. Whether you're hauling tools to the jobsite, loading up gear for a weekend adventure, or organizing equipment for daily tasks, having easy access to your cargo is crucial. Bed extensions are a game-changing solution that let you do more with the truck you already own—without the hassle of unloading everything just to reach what's in the back.

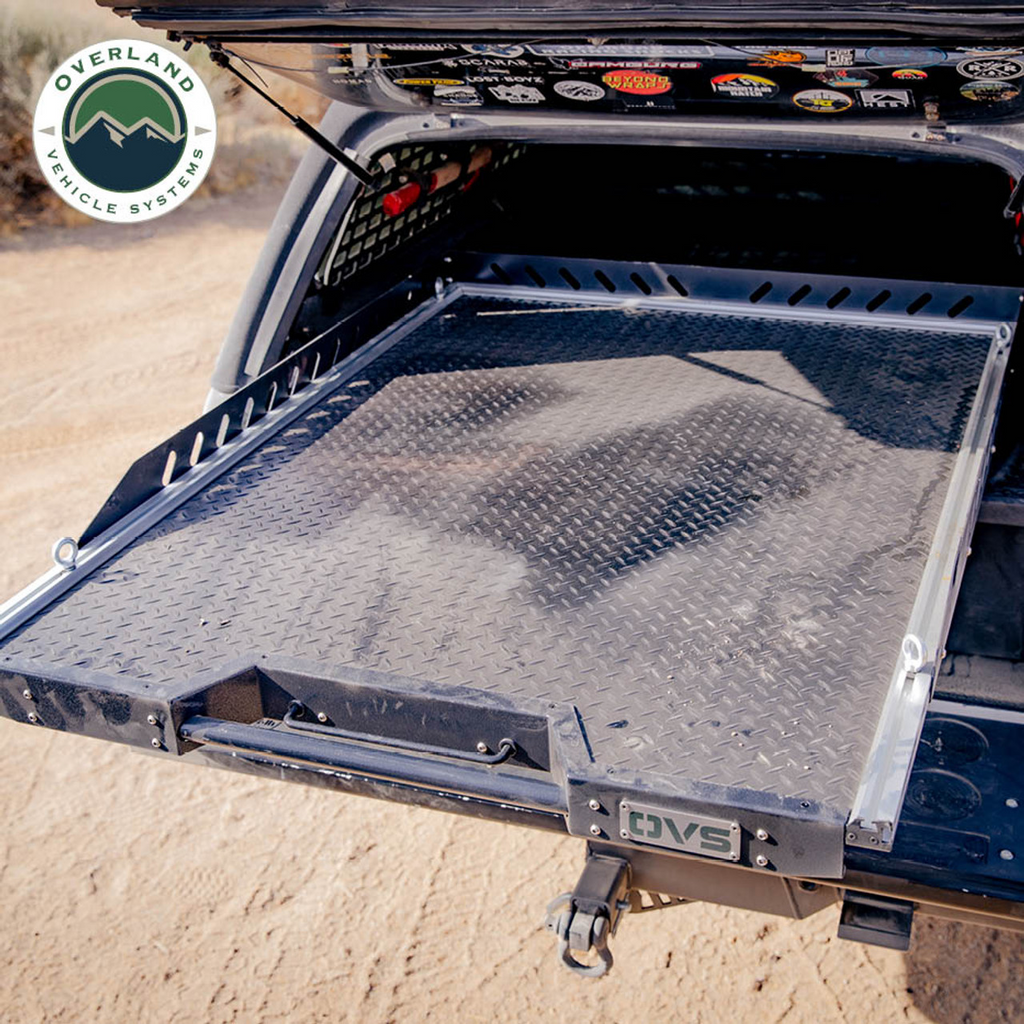

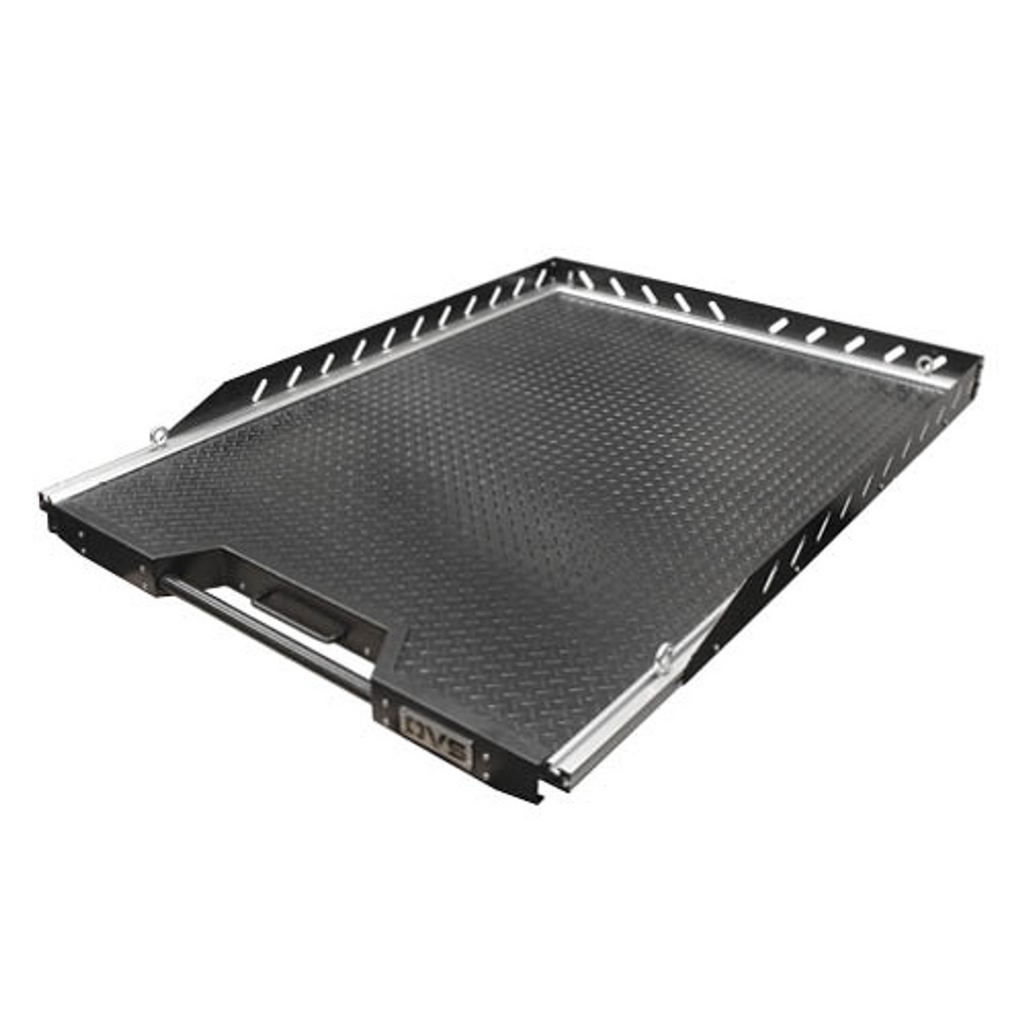

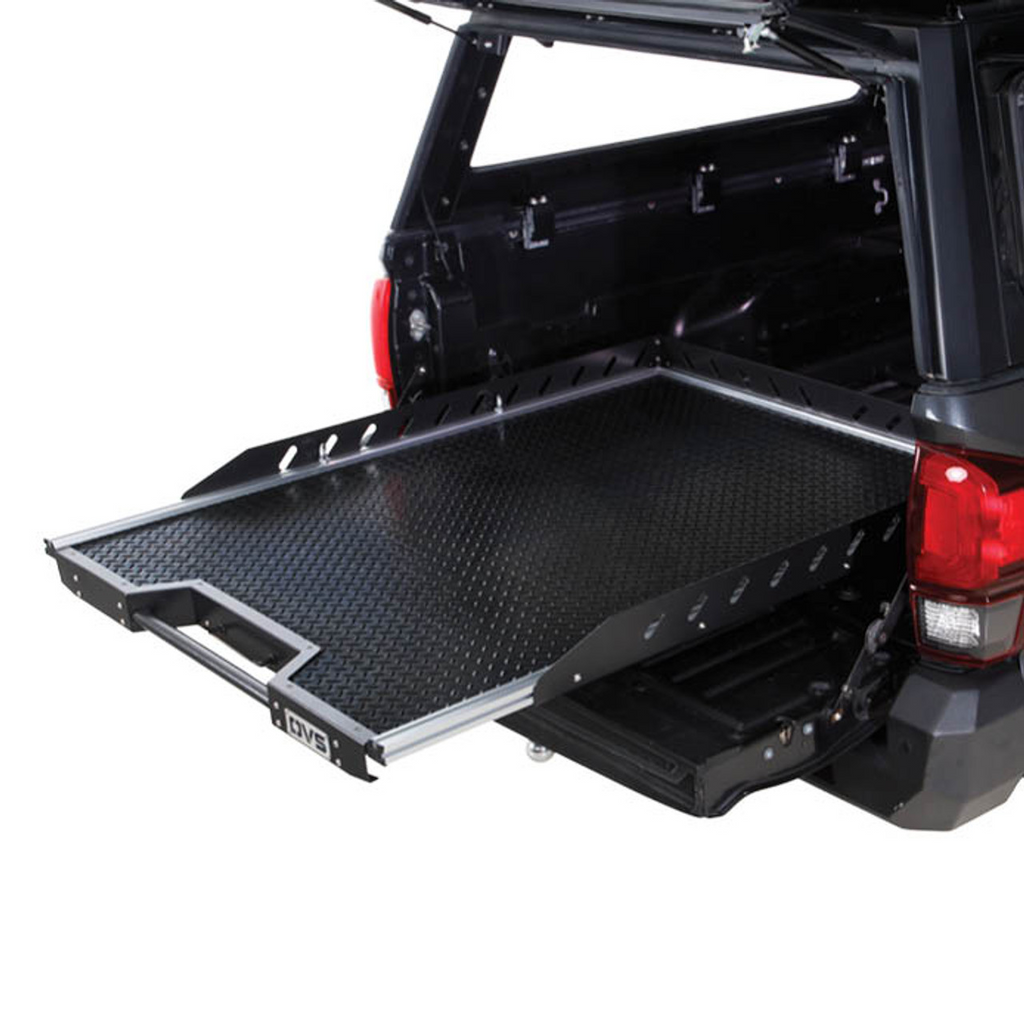

The Bed Extension for Pickup Trucks transforms your short bed into a highly functional, extended cargo platform. Built tough and loaded with practical features, it gives you 75% extension, multiple locking positions, and up to 1250 lbs. of support. Designed to fit most mid-size and full-size short bed trucks, it makes your truck more efficient, more organized, and ready for any task you throw its way.
OVS Bed Extension
Maximum Access, Minimal Effort

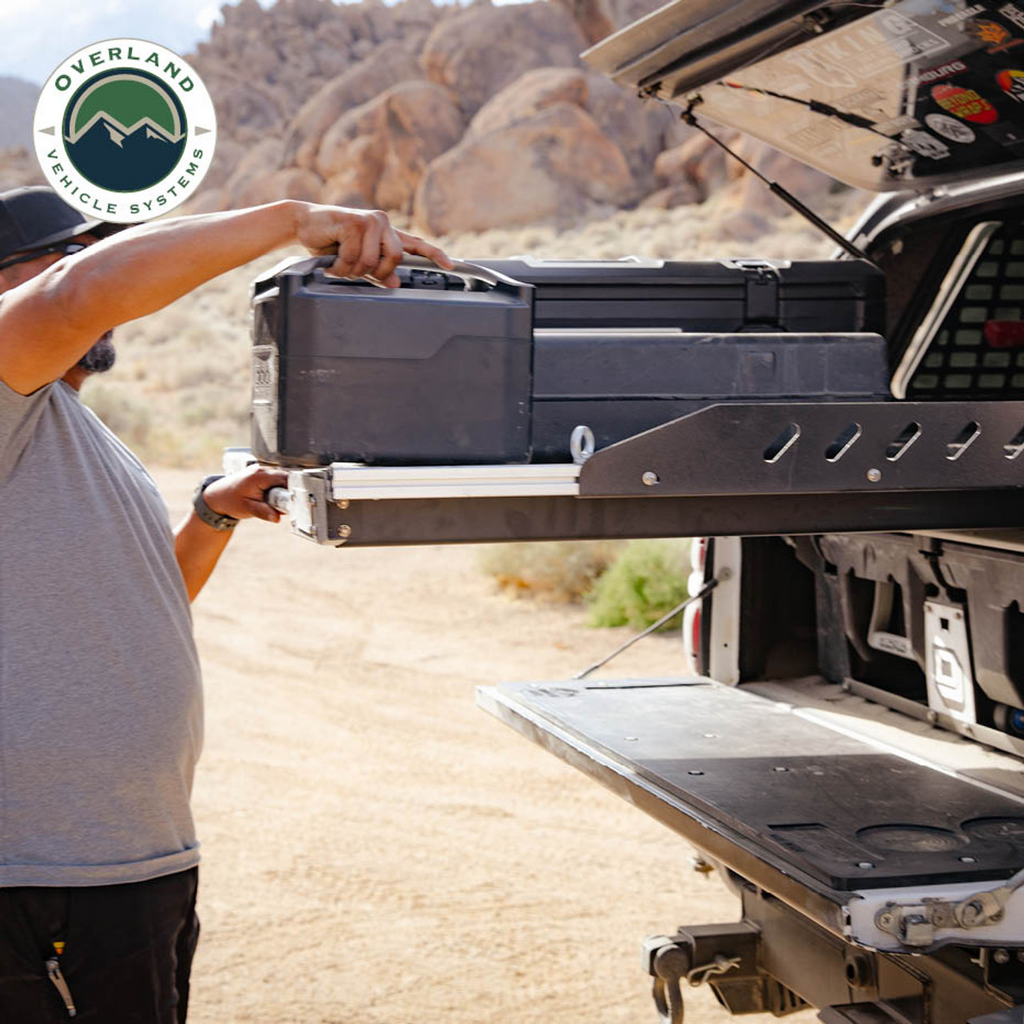

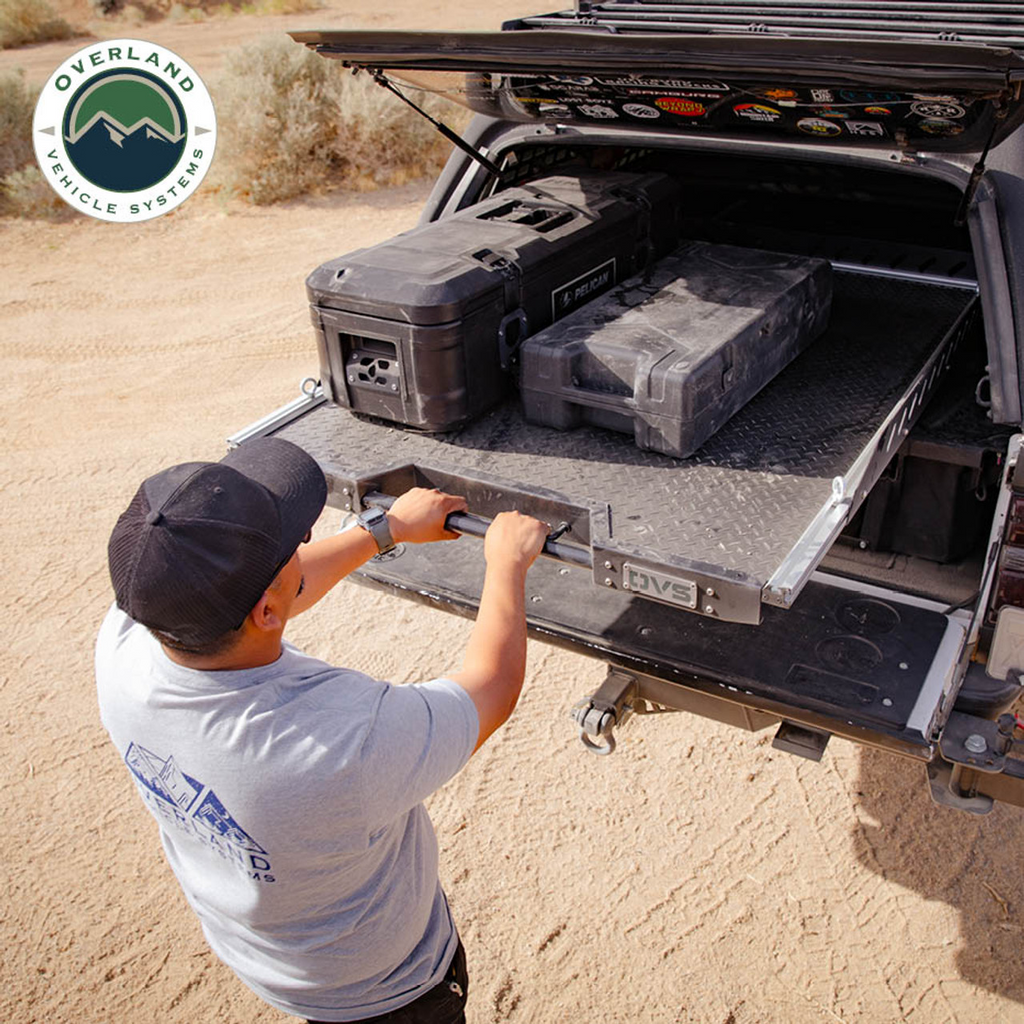

Tired of climbing into your truck bed or unloading gear just to reach the back? With 75% extension, this bed slide brings everything within easy reach. From jobsite essentials to weekend gear, access your entire load effortlessly.
Engineered for Heavy-Duty Performance

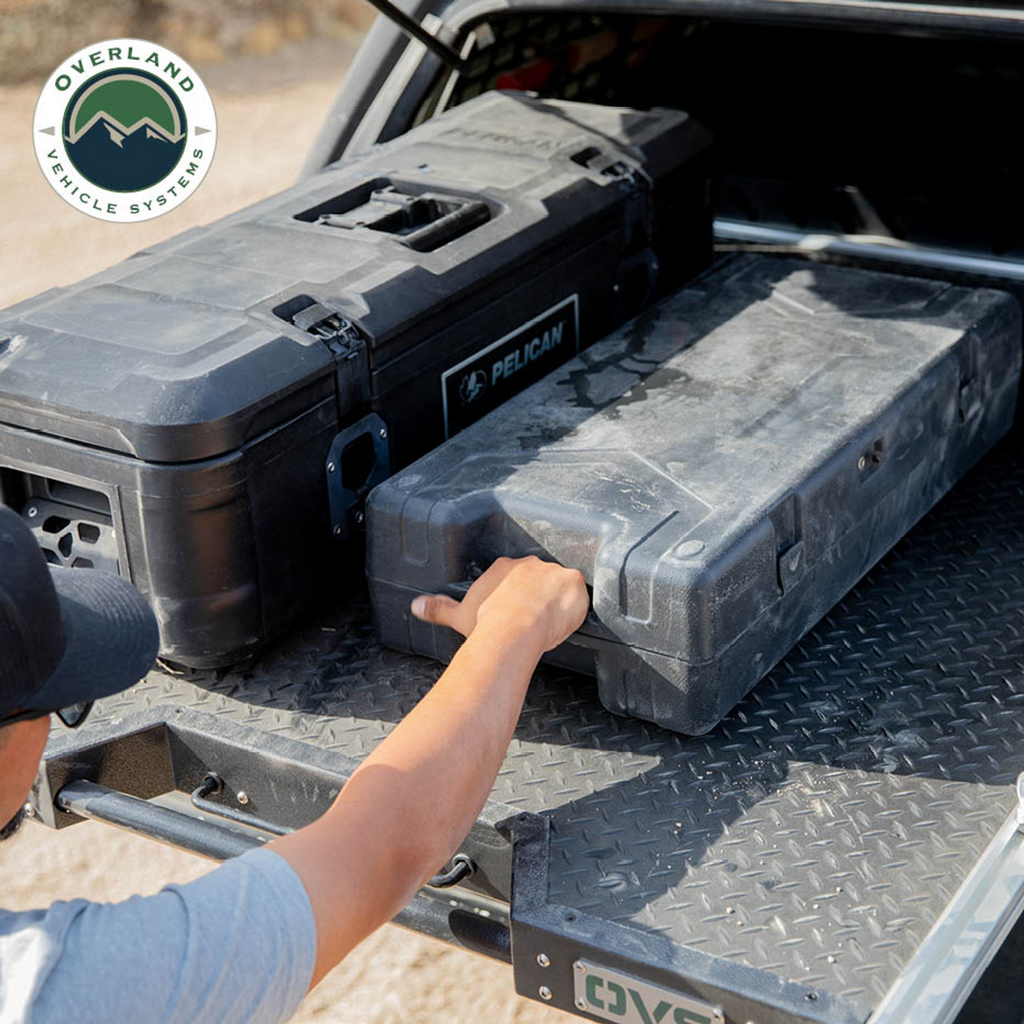

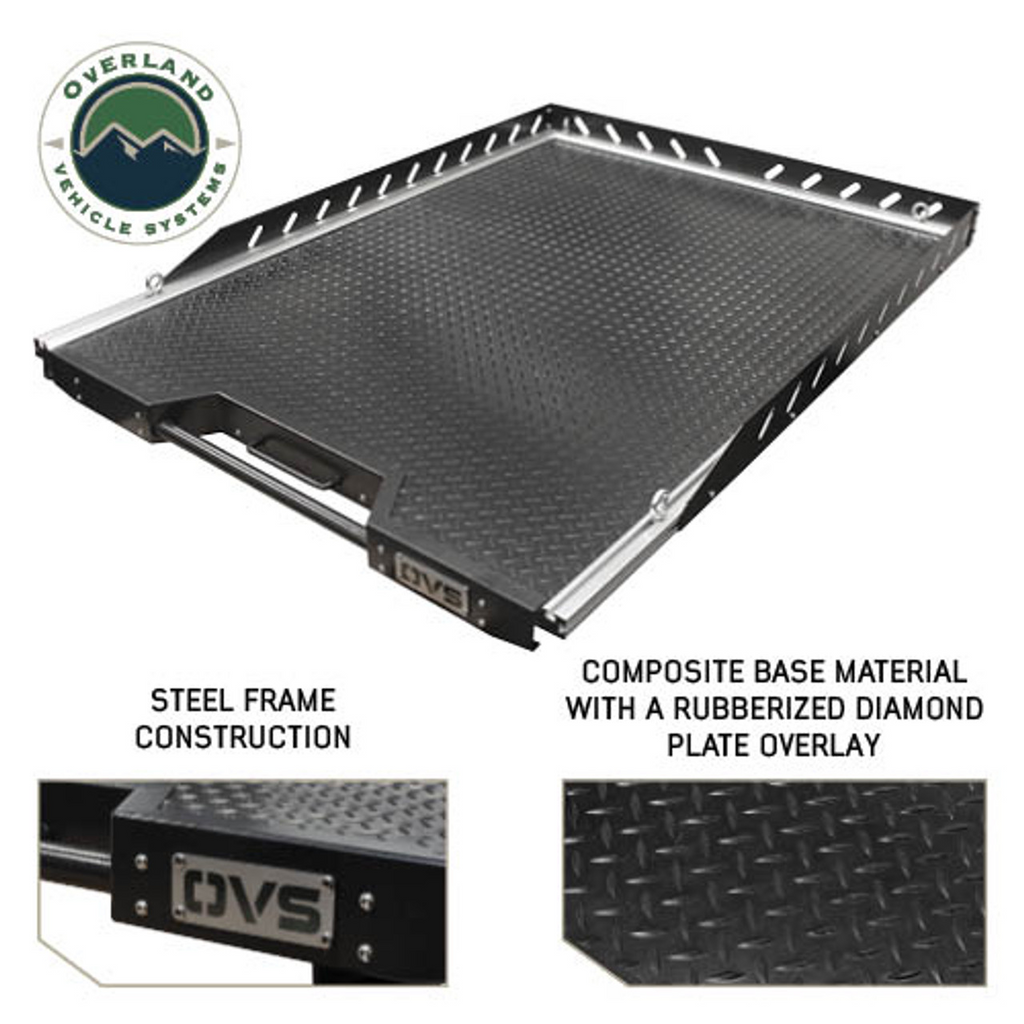

This isn’t just a convenience upgrade—it’s built to work. With a 1250 lb. max load capacity and a heavy-duty steel frame, it handles your heaviest cargo with ease. The composite base with rubberized diamond plate overlay provides both strength and grip.

Smart, Secure, and Adaptable
Multiple anchor points, adjustable tie-down rings via the integrated T-rail system, and a removable guard rail give you total control over cargo management. Lock your gear in, lock the bed slide in position, and drive with confidence.

Built-In Convenience, Right Out of the Box

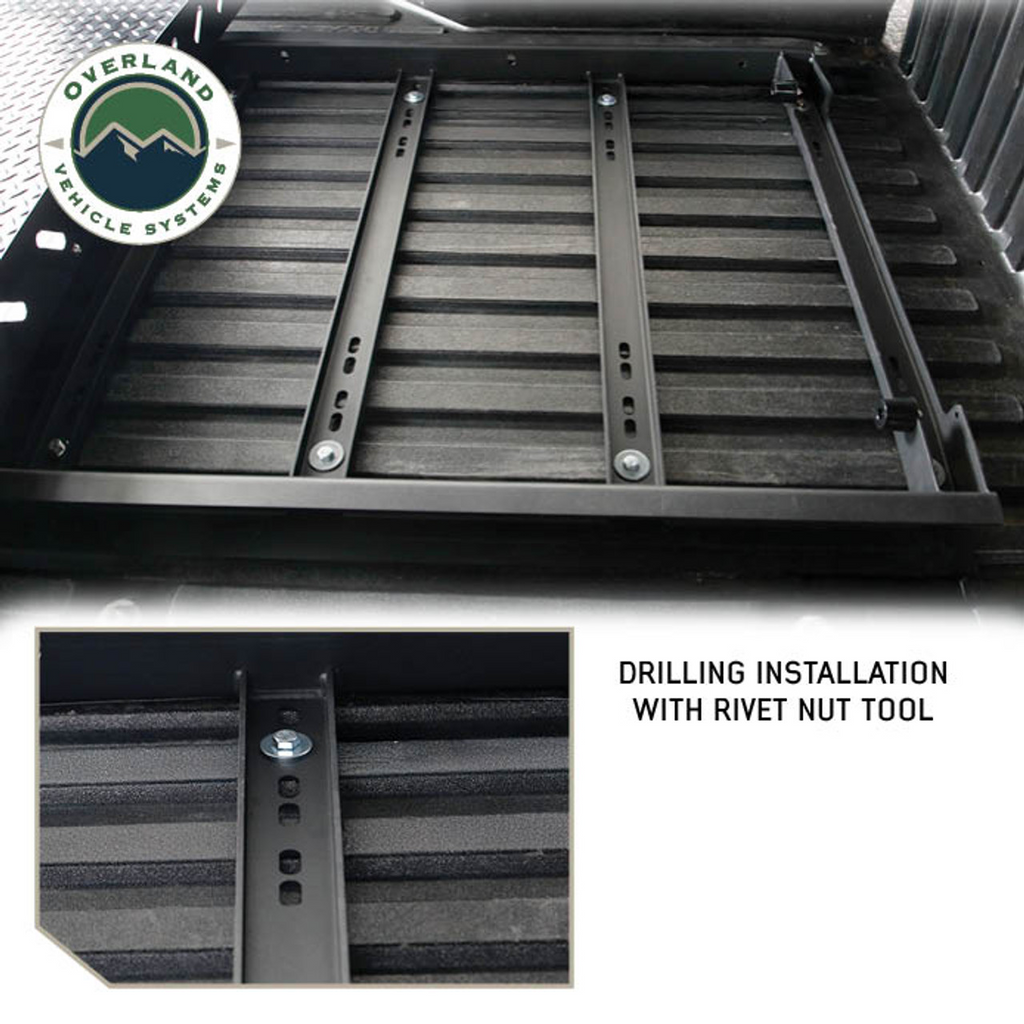

The unit comes pre-assembled to save time and hassle. Installation is quick, and once it’s in, the ergonomic handle allows for single-handed operation. It’s smart design with the everyday user in mind.

Universal Fit for Mid and Full-Size Trucks
Whether you're driving a Tacoma, F-150, Silverado, or another popular pickup model, this bed extension is built to fit. Simply select the right size for your truck bed length—5.0', 5.5', or 6.5'—and you're ready to roll.



Durability You Can Count On

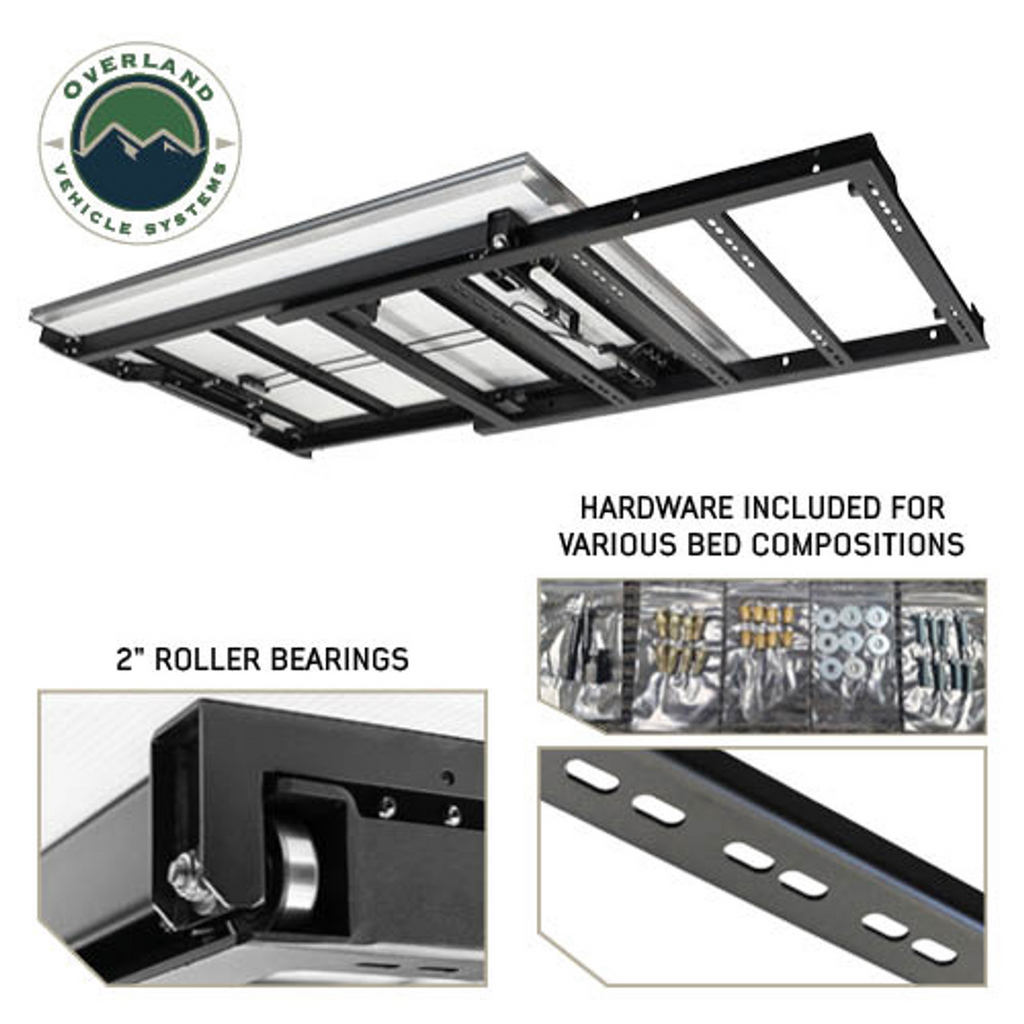

With 304 stainless steel hardware, dual-spring latch pins, and 2” roller bearings, this bed extension is built to last in real-world conditions. Whether it’s exposed to rain, dust, or daily wear and tear, it’s made to keep performing.


Features

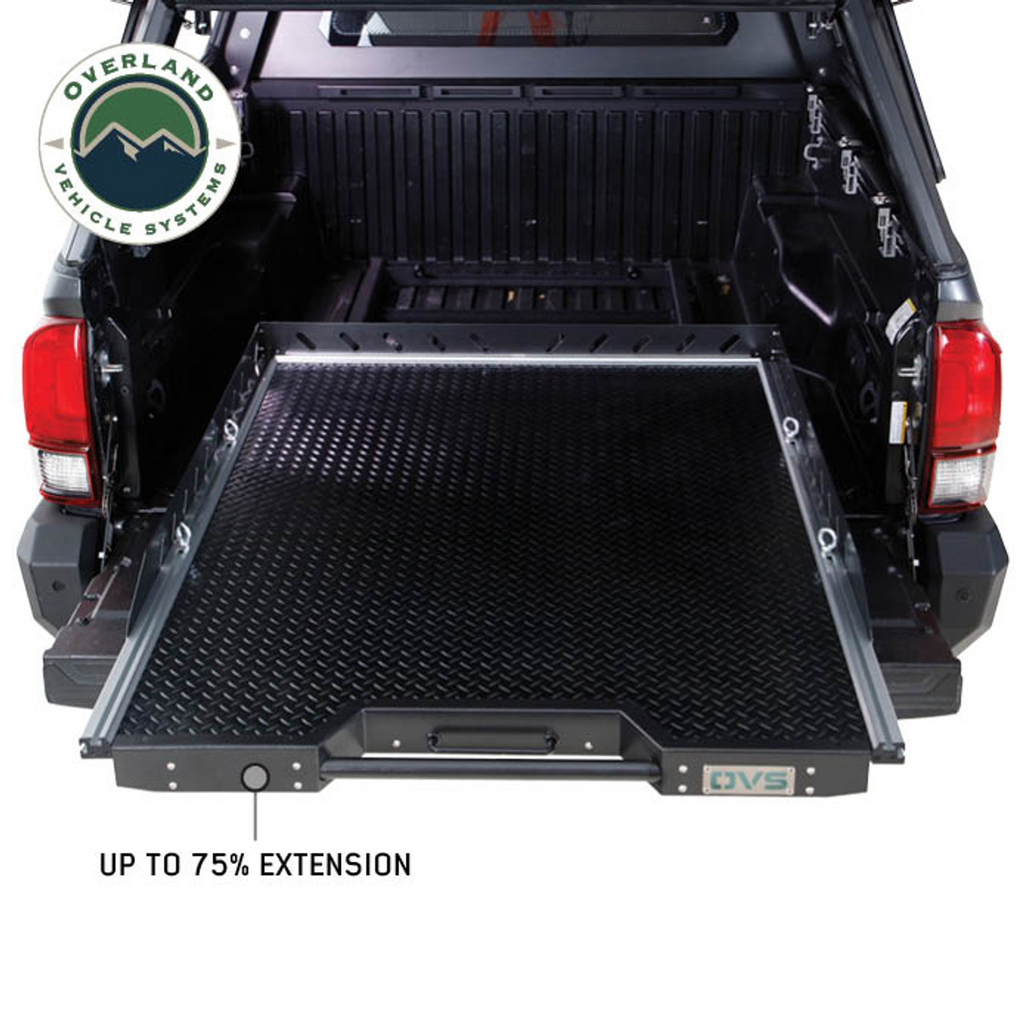

- 75% bed slide extension for maximum access

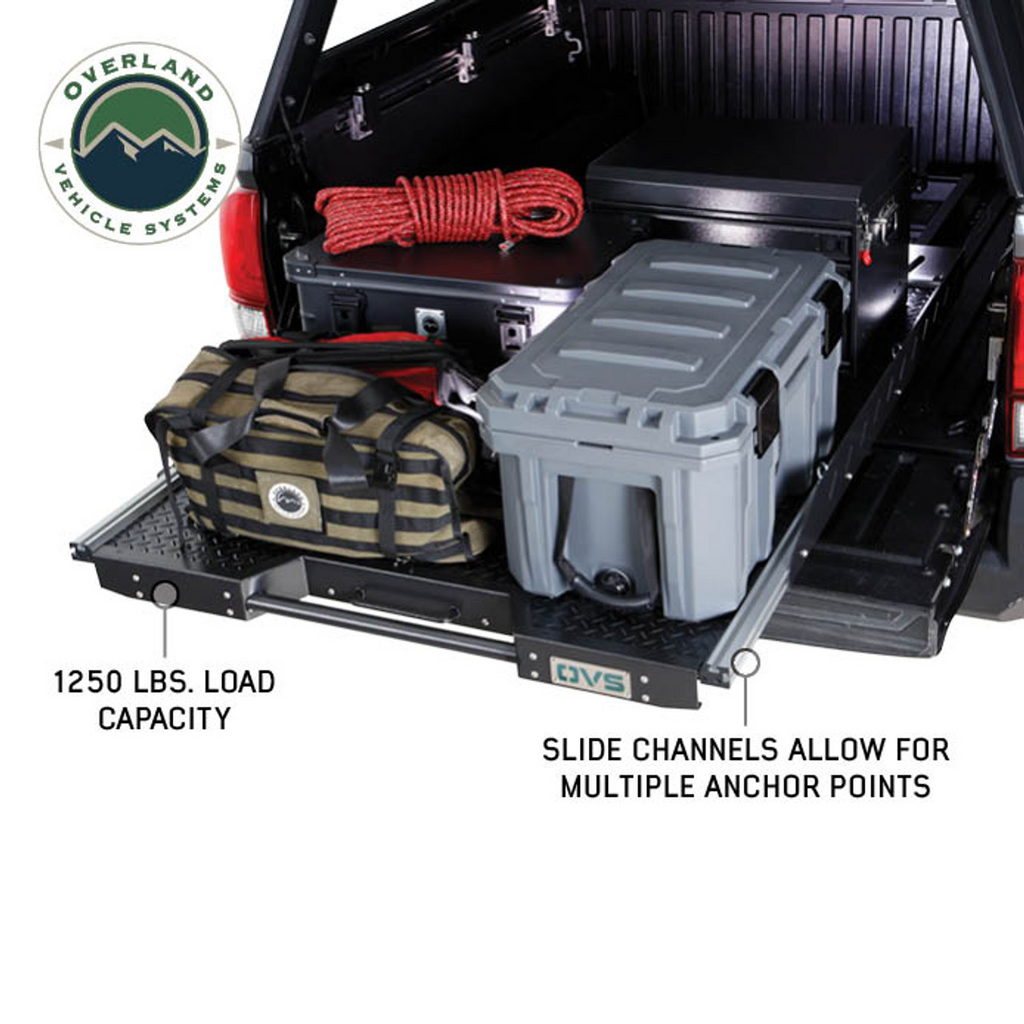

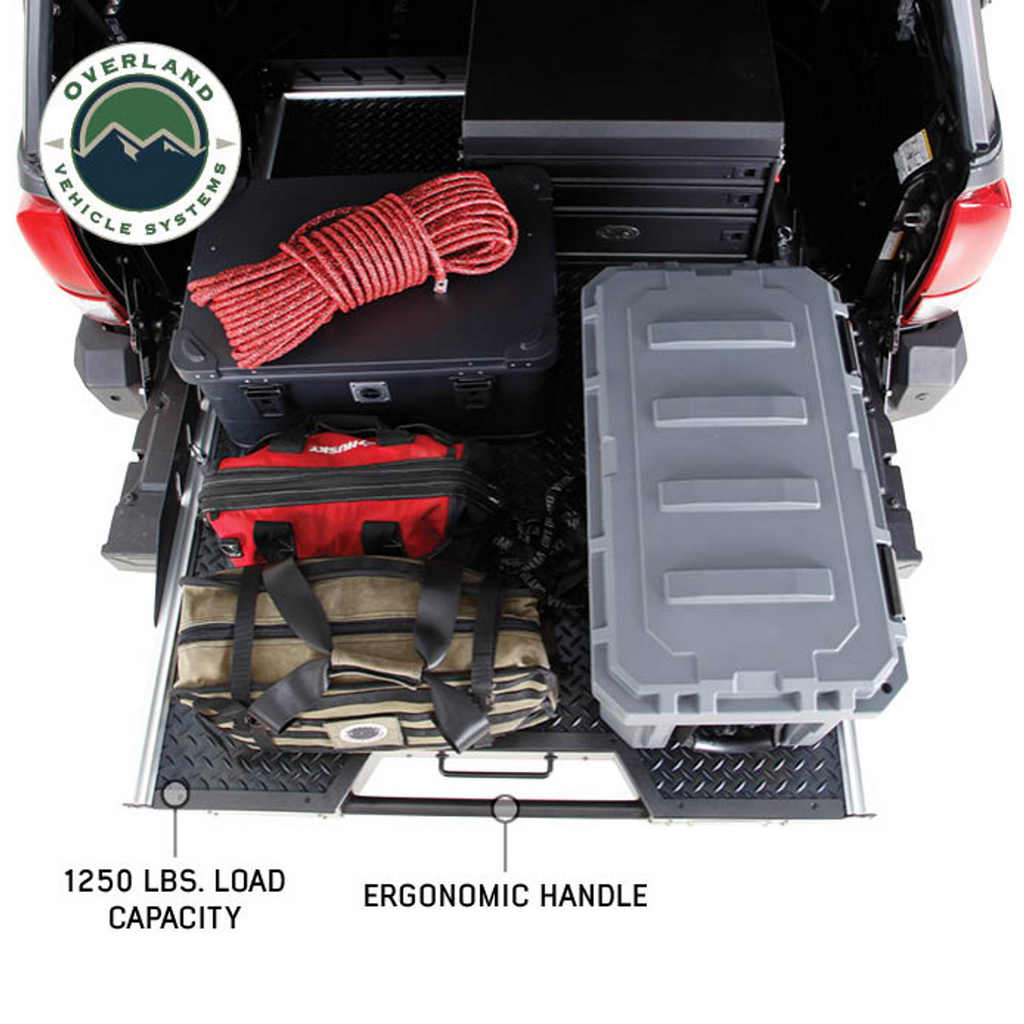

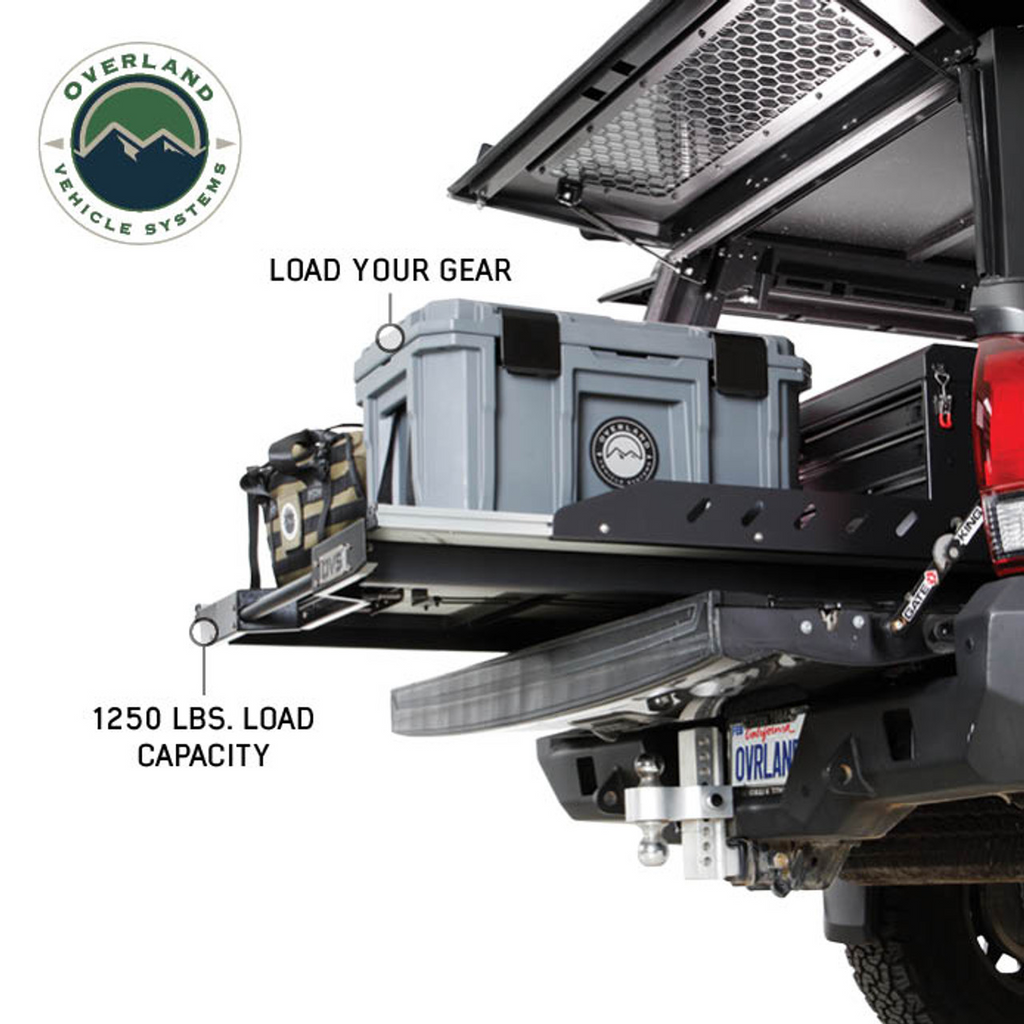

- 1250 lbs. max load capacity
- Steel frame with composite base and rubberized diamond plate overlay

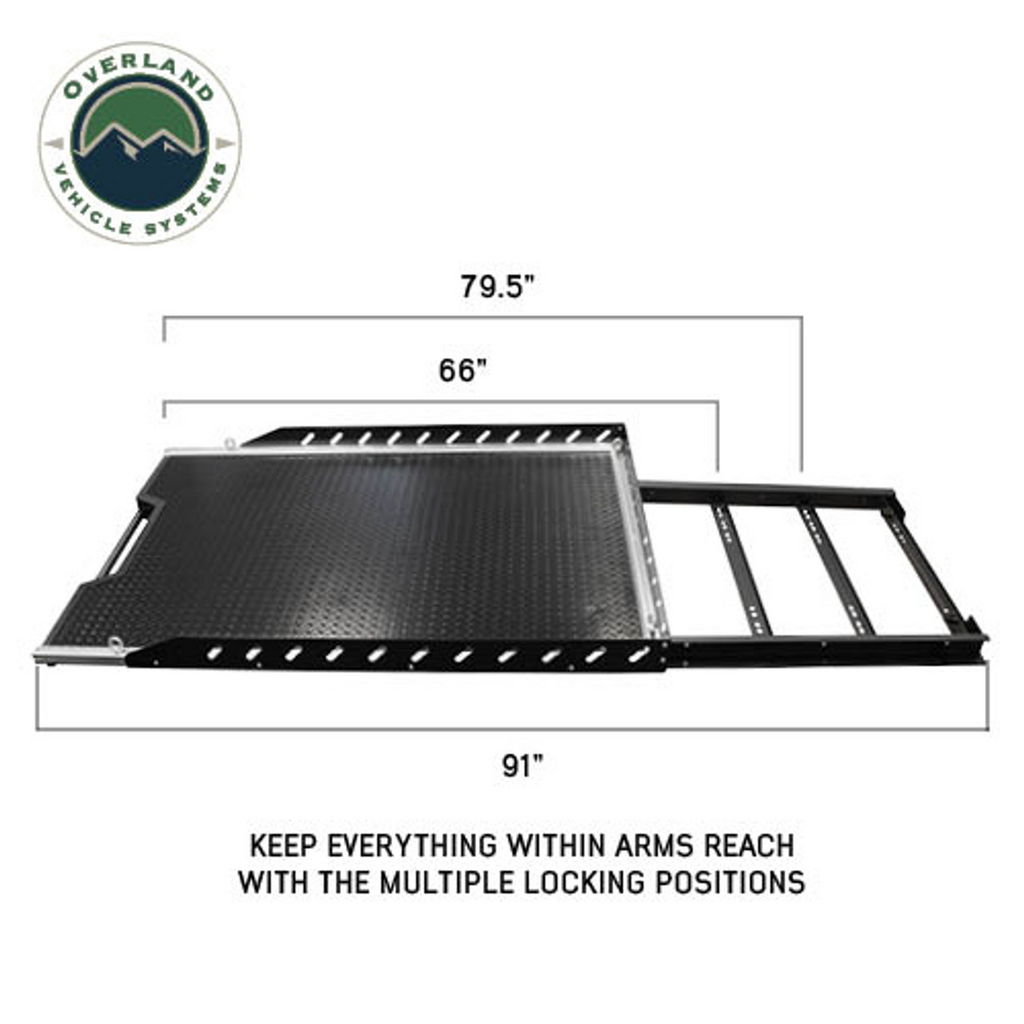

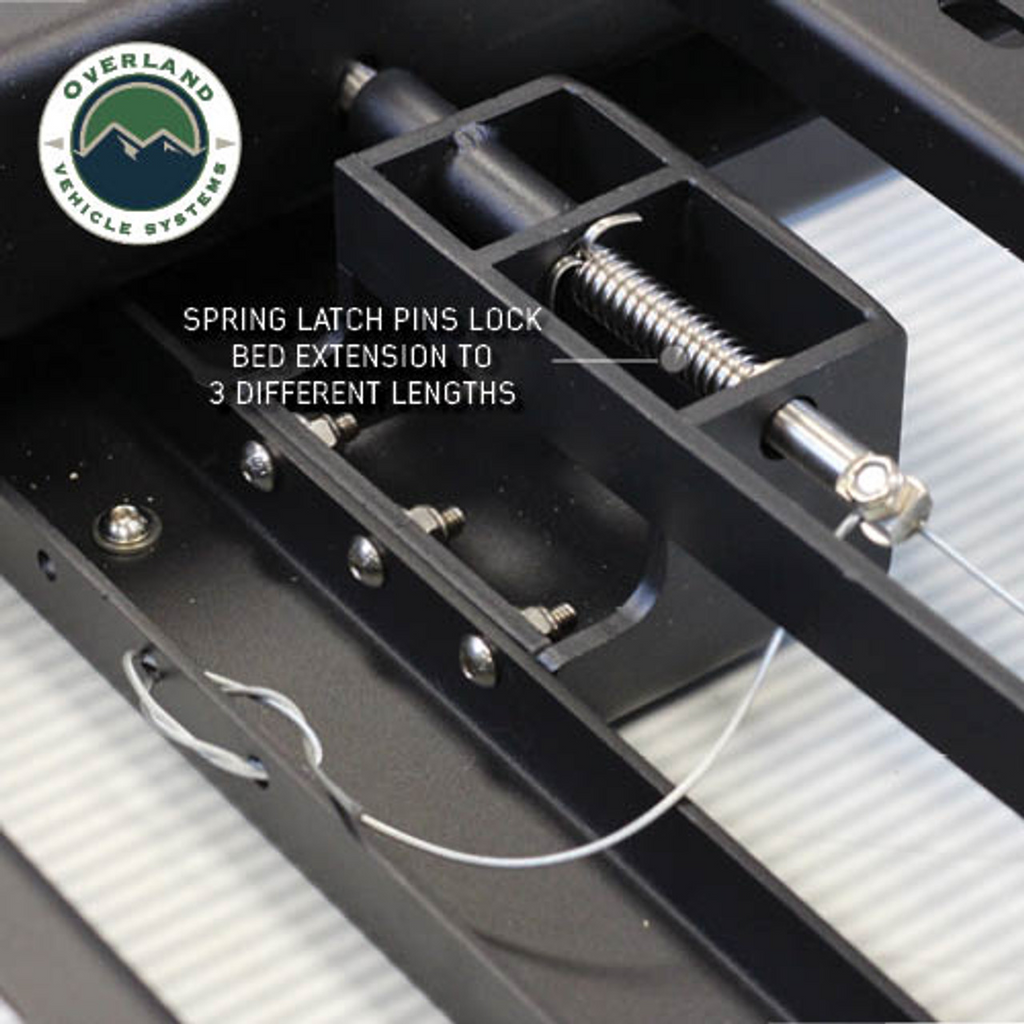

- Dual-spring latch pins lock into 3 positions

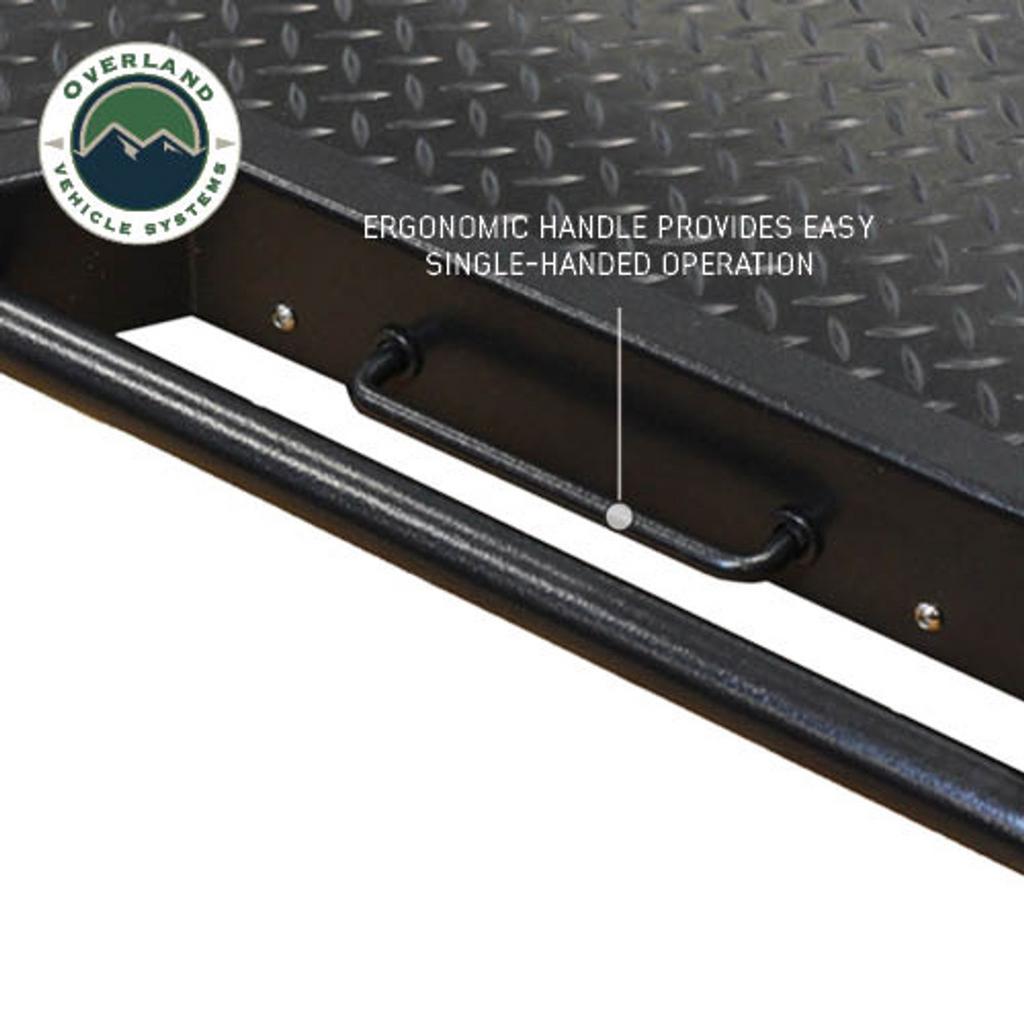

- Ergonomic handle allows for one-handed operation

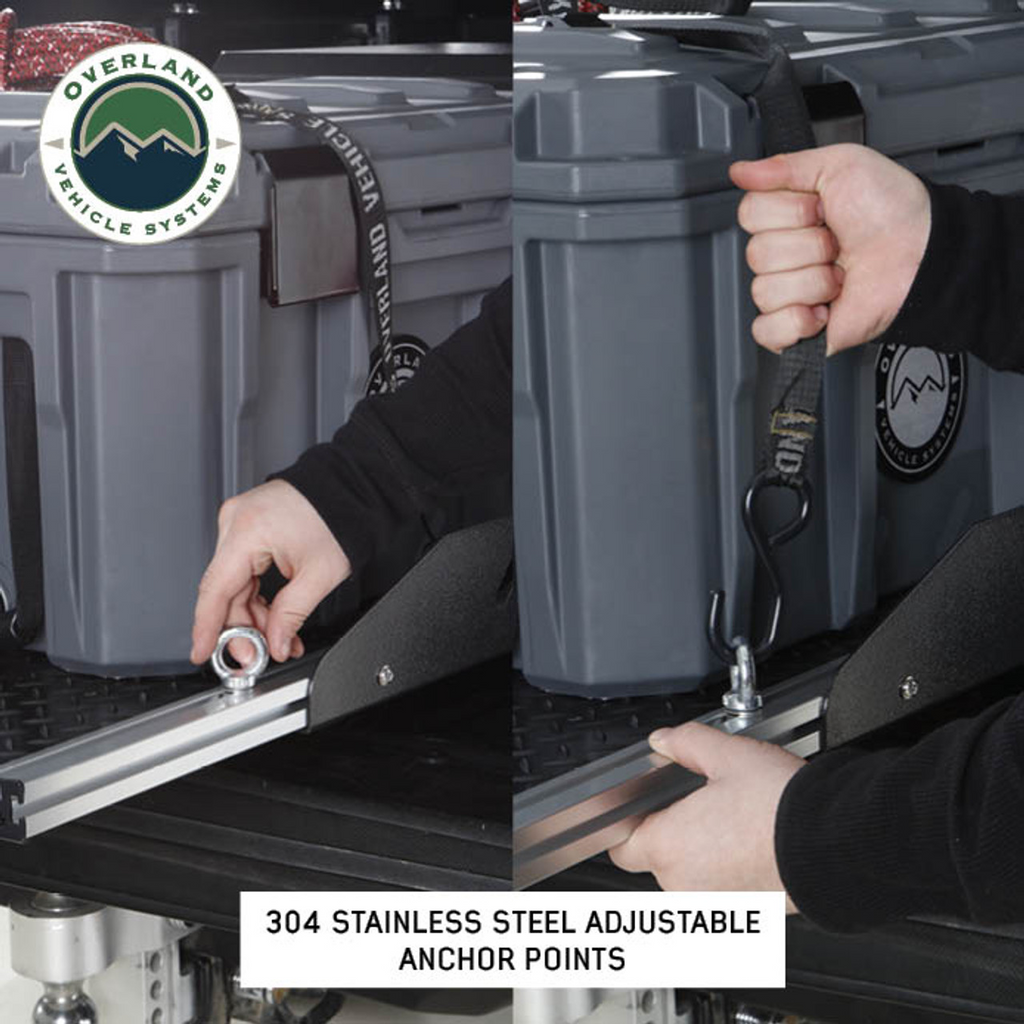

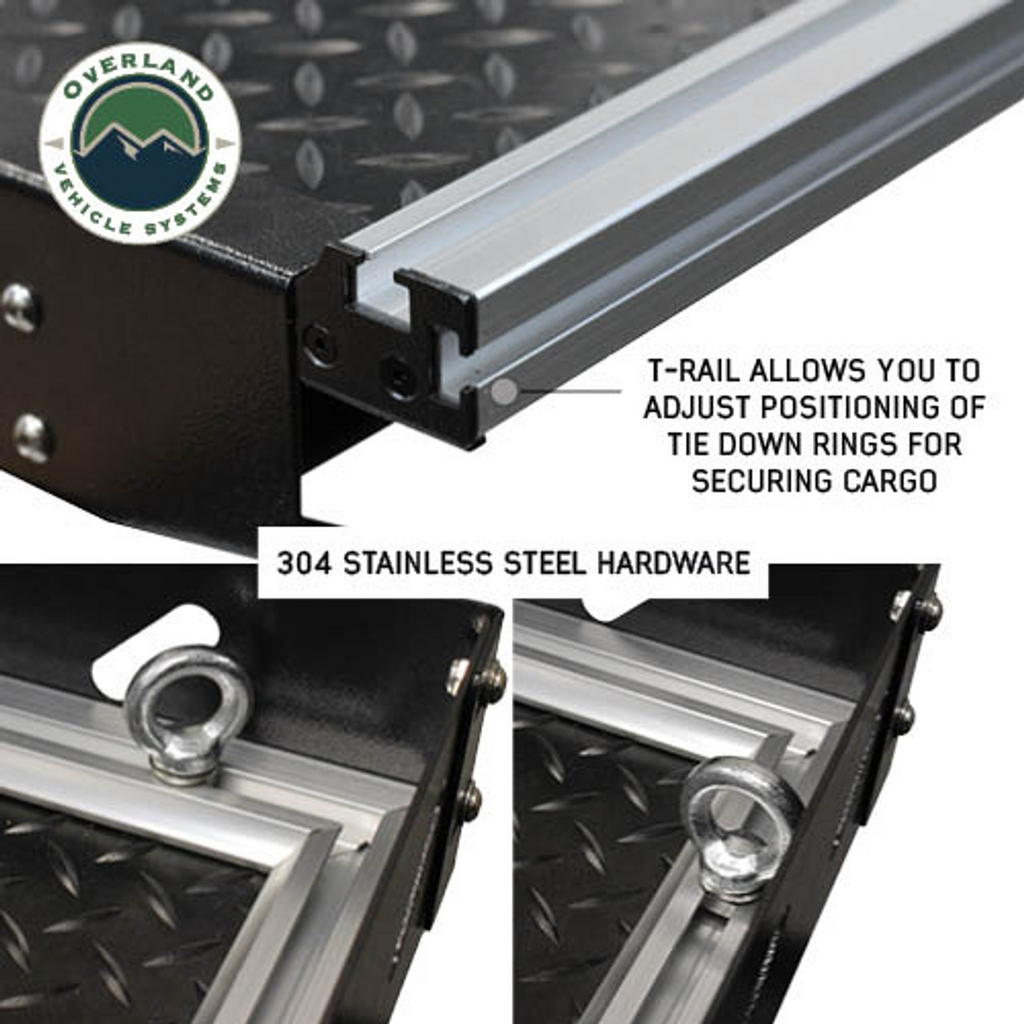

- T-rail system with adjustable tie-down rings

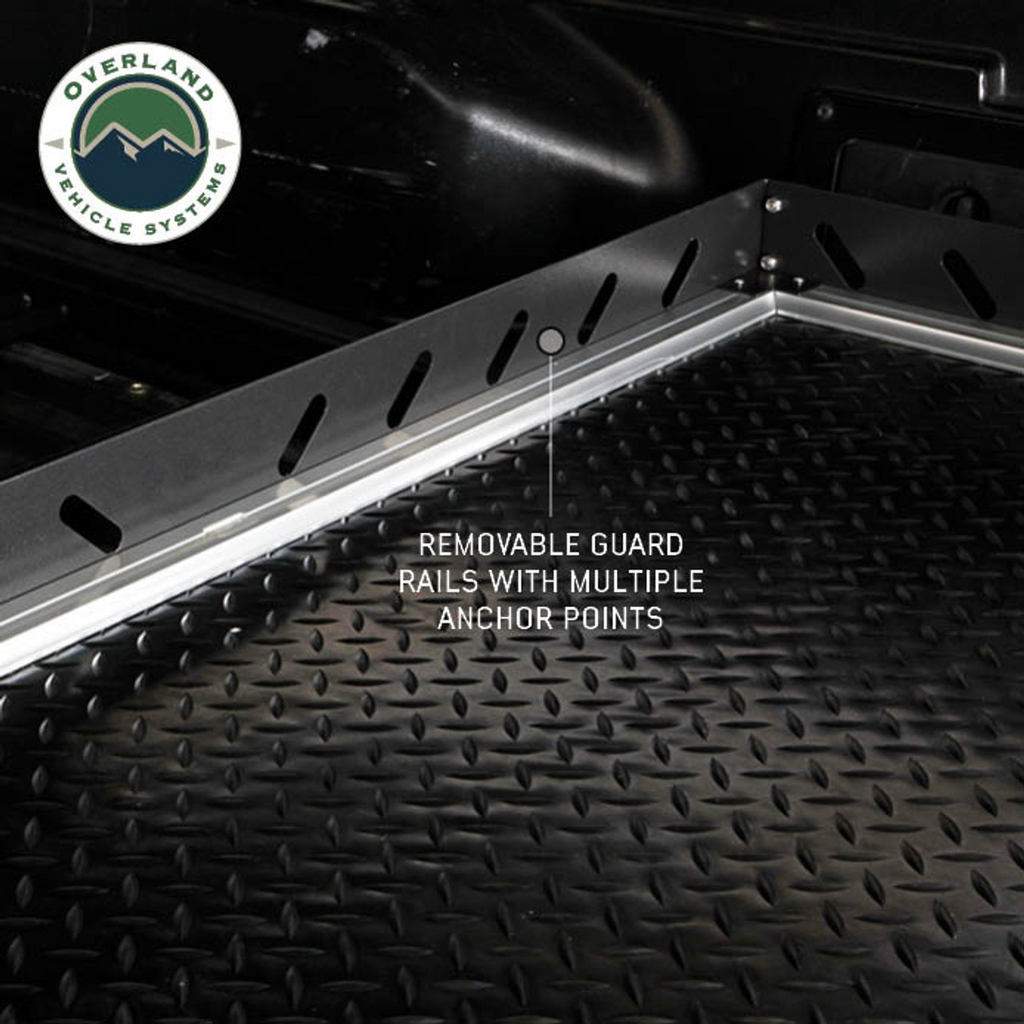

- Removable guard rail with multiple tie-down points

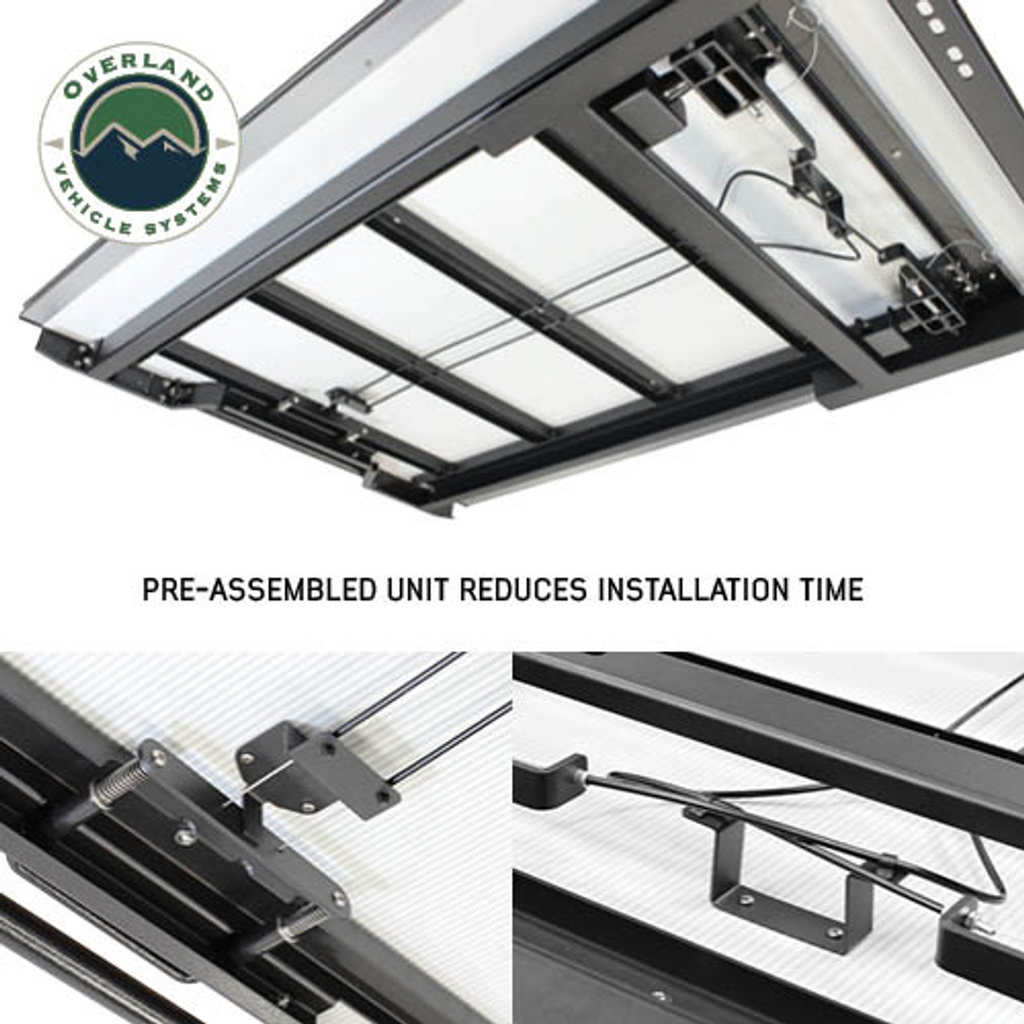

- Pre-assembled for quicker installation
- 2” roller bearings for smooth slide action
- 304 stainless steel hardware for long-term durability
- Universally sized for mid-size and full-size short bed trucks

Specifications
Extension | 75% Bed Slide Extension |
Max Load Capacity | 1250 lbs. |
Frame Material | Steel |
Base Material | Composite with Rubberized Diamond Plate Overlay |
Latching System | Dual-Spring Latch Pins (3 Locking Positions) |
Handle | Ergonomic, Single-Handed Operation |
Tie-Down System | T-Rail w/ Adjustable Tie-Down Rings |
Guard Rail | Removable, Multiple Tie-Down Points |
Roller Bearings | 2" Bearings for Smooth Slide |
Hardware | 304 Stainless Steel |
Pre-Assembled | Yes |
Fitment | Mid-Size & Full-Size Short Bed Trucks |
Sizes Available | 5.0', 5.5', 6.5', 8.0' |
Weights | 5.0' – 140 lbs; 5.5' – 160 lbs; 6.5' – 180 lbs; 8.0' – 220 lbs |
Dimensions (5.0') | 57.08" x 42.12" x 7.28" |
Dimensions (5.5') | 64.96" x 48.50" x 7.28" |
Dimensions (6.5') | 75" x 48.03" x 7.28" |
Shipping Weight | 150 lbs. |
Shipping Dimensions | 60" (L) x 41" (W) x 9" (H) |
Part Numbers | 5.0': 21010550 / 5.5': 21010551 / 6.5': 21010552 |
UPC Codes | 5.0': 810038739397 / 5.5': 810038739403 / 6.5': 810038739410 |

Overland Vehicle Systems Bed Extension Video:
Overland Vehicle Systems Bed Extension Installation Manual:
