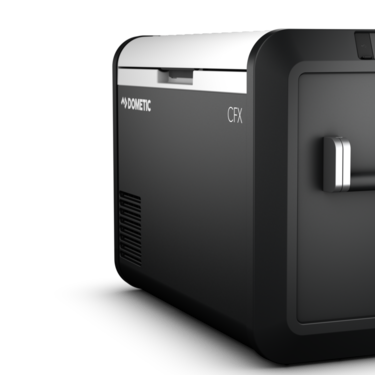

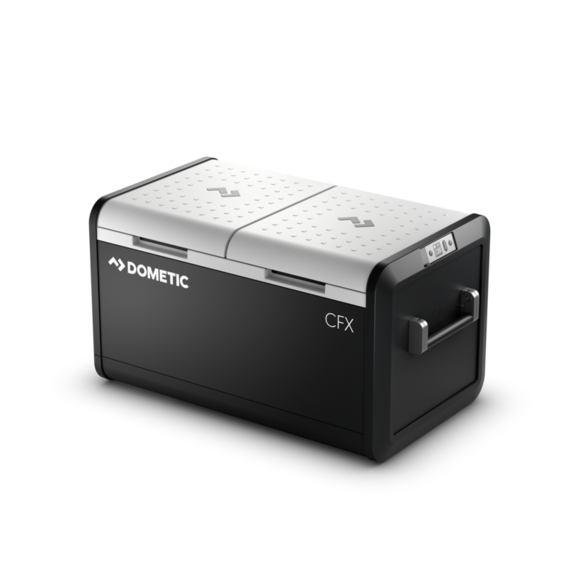

CFX 75DZW Fridge/Freezer - 70 L Capacity - by Dometic
This is an outstanding frige freezer or electric cooler by Dometic. The CFX 75DZW electric portable fridge not only comes with two separate doors for the separat comparments, but it can simultaneously freeze and cool.
It has a 70 liter capacity, meaning that a large amount of food, drinks or anything you'll need to keep cool will likely fit inside of it.
It is built with extremely rugged materials, meaning that it will last for a very long time, making it worth your investment!
Download HERE The Product Manual
We offer FREE Shipping!
- 113 Can/70l Capacity, deep-freeze to -7°, dual zone cooling compartment
- Dimensions: 18.6"H x 34.9"W x 19.5"D

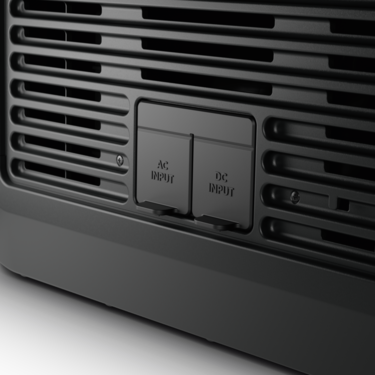

- Advanced compressor electronics ensure ultra-low power consumption using AC, DC, and solar power - enjoy the freedom to go off-grid!
- Enjoy 60% more storage capacity in the same exterior space! Compared to similar capacity ice chest using recommended ice/content ratio.
- 3 Stage Dynamic Battery Protection System automatically shuts the product off to prevent a dead car starter battery and improves car battery performance.

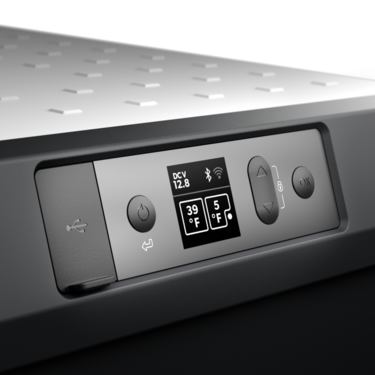

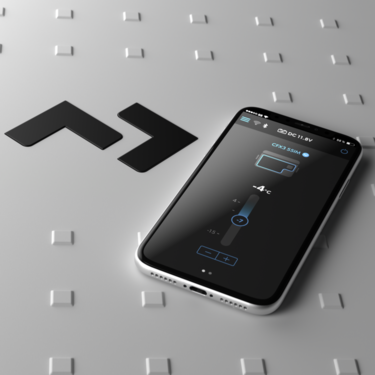

- Precisely control and monitor temperature +/- 2°F via a digital display or WiFi App.

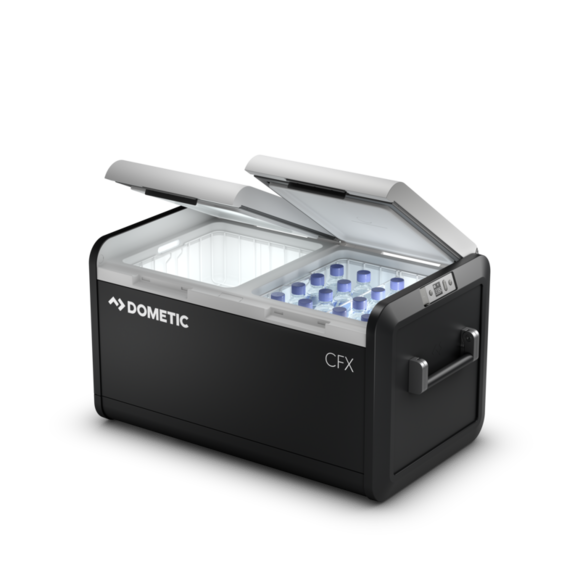

- Dual Zone (DZ) models enable independently variable temperature control so you can cool and freeze simultaneously.
SKU number 9600001411

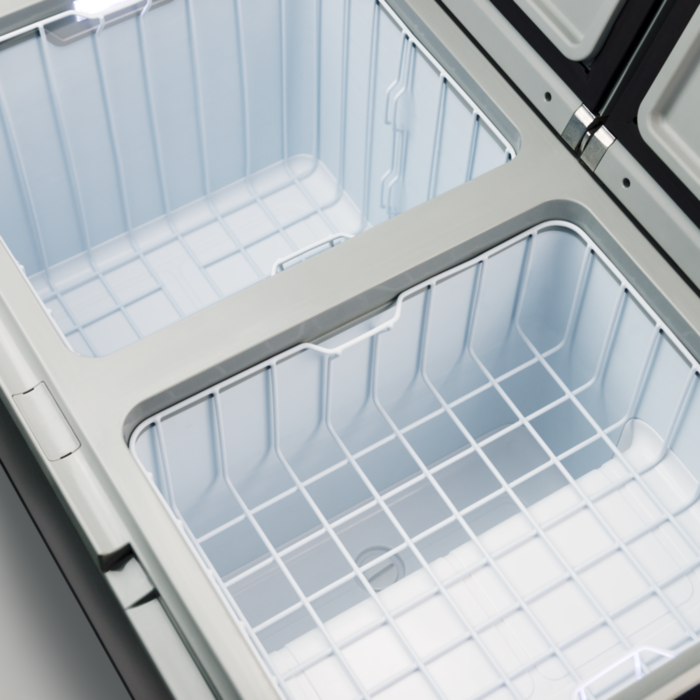

Scope of delivery 1 cooler, 1 manual, 1 DC cable, 1 AC cable, 2 baskets
Single or Dual Zone Dual
Product Description Electric Cooler
- Refrigeration technology Compressor
- Input voltage (AC) 120-240 V
- Input voltage (DC) 12/24 V
- Rated input current (AC) 0.74 A
- Rated input current (DC) 7.9 A
- Input frequency 50/60 Hz
- Energy Consumption 12VDC (Ambient@90F, Internal@41F) 1.30 Ah/h
- Refrigerant, type R134a
- Refrigerant amount 57 g
- Noise (DIN60704-1 & 60704-2-14) 37.00 dB(A)
- Climate class (EN 62552) N/T
- Temperature Range -7°F to +50°F
- Insulation Thickness 55.00 mm
- Insulation Type PU (Polyurethane)
- Color Smokey Gray
- USB Port 5V, 500 mA
- WIFI Capability Yes
- Basket Yes
- Threaded inserts in base for mounting M6
- Drain plug Yes

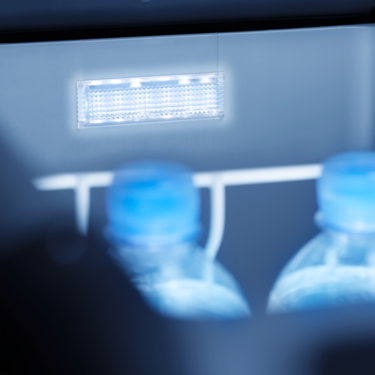

- Interior light Yes, LED
- Certificates UL
- Dimensions product depth 34.92 "
- Dimensions product height 18.58 "
- Dimensions product width 19.49 "
- Product depth w/out handle 32.80 "
- Net weight 68.34 lbs
- Storage volume - total (EN 62552) 70.00 l
- Amount of Cans 113 cans
Dometic CFX75DZW Portable Cooler Video:
