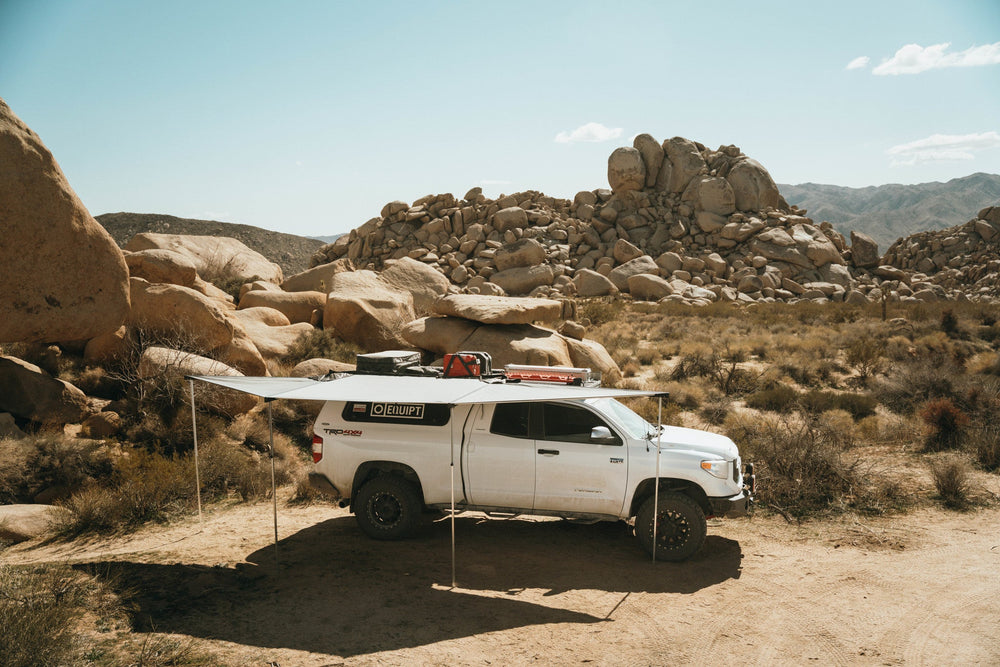

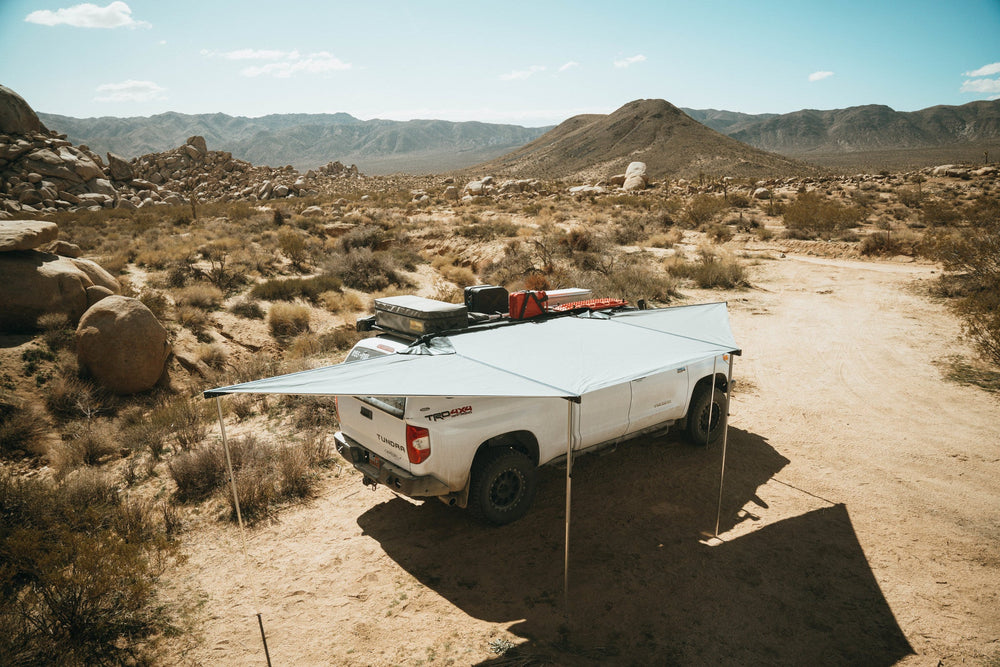

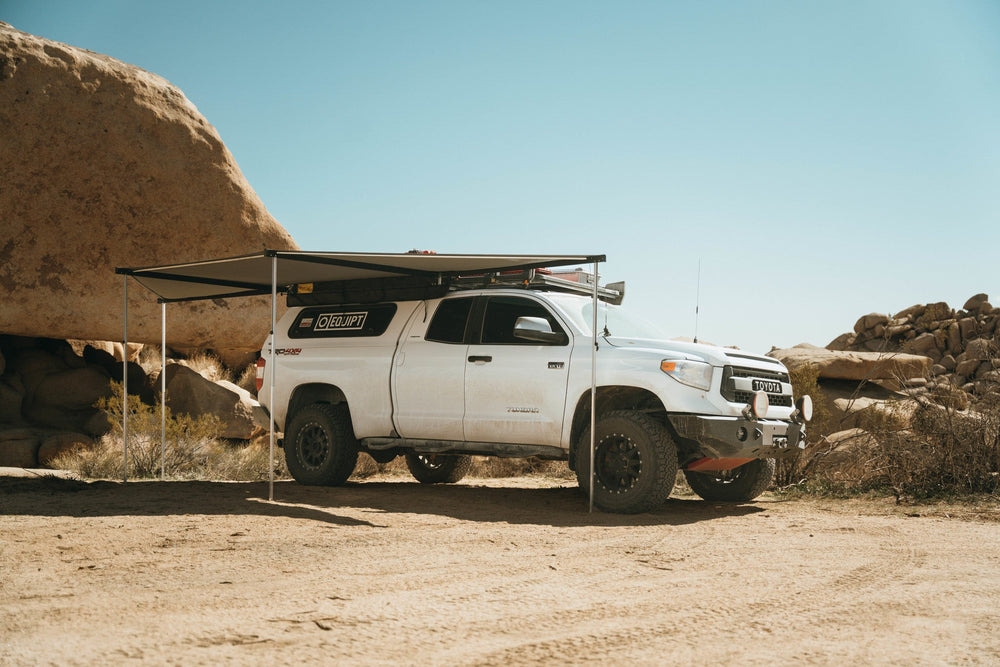

The Eezi-Awn Dragonfly 180 Awning is a freestanding 180° bag awning that delivers 97.5 ft² of wrap-around coverage to the side and rear of your vehicle — the largest coverage area of any Eezi-Awn bag awning at 180°. The self-contained aluminum framework locks into position with a simple twist and deploys in under a minute. Built from 260 gram waterproof UV ripstop canvas with a 700 gram UV-resistant PVC cover, and made at Eezi-Awn's Johannesburg facility. Available in Grey or Beige for left or right side mounting.

SPECIFICATIONS

Coverage: 97.5 ft² (9.05 m²)
Weight: 55 lbs (25 kg)

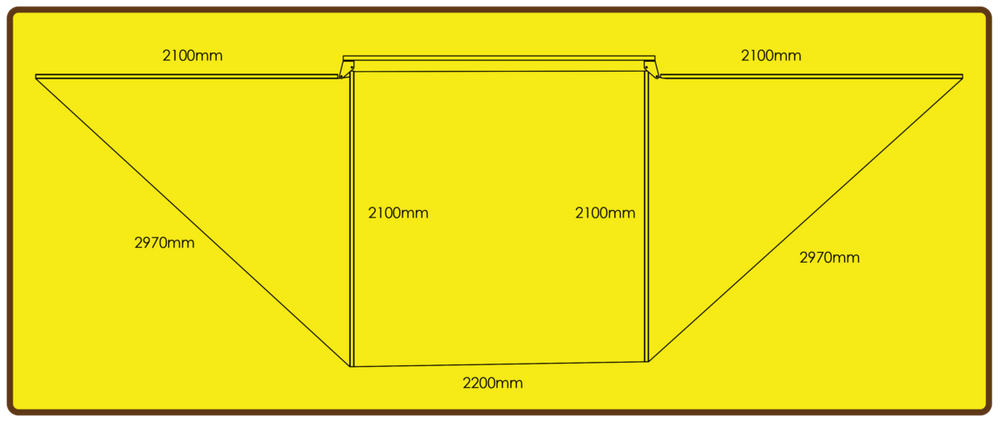

Open Dimensions: (2) Triangular Panels — 117" × 83" × 83" (2970mm × 2100mm × 2100mm); (1) Rectangle Panel — 83" × 86" (2100mm × 2200mm)
Closed Dimensions: 97" L × 7" W × 8" H (2465mm × 150mm × 200mm)
Mounting Extrusion: 90" L × 5" H (2285mm × 125mm)
Leg Height (Fully Extended): 92" (2330mm)
Awning Material: 260 gram Waterproof UV Ripstop Canvas
Cover Material: Black, 700 gram UV-Resistant Heavy Duty PVC
Color Options: Grey or Beige
Origin: Johannesburg, South Africa

Note: Freestanding in no wind conditions. Staking down at the base of legs in an X pattern is strongly recommended at all times.

KEY FEATURES

180° Wrap-Around Coverage: Two triangular panels and one rectangle panel create a half-wrap footprint around the side and rear of the vehicle — covering the cooking zone and camp area from a single mount point without the vehicle orientation constraints of a 270° awning.
Largest 180° Footprint in the Line: At 97.5 ft², the Dragonfly 180 covers more ground than any other Eezi-Awn 180° awning — nearly matching the Manta 270's coverage with a simpler deployment geometry.
Twist-Lock Self-Contained Framework: The aluminum frame rolls out and locks in one motion — same mechanism as the Lite Awning but scaled up to the full Dragonfly footprint. No secondary parts or assembly steps.
Freestanding with Adjustable Legs: Integrated legs extend to 92" (2330mm) and are stake-compatible — the Dragonfly stands independently on any terrain without leaning against the vehicle.
260 Gram Waterproof UV Ripstop Canvas: Same construction as the Bat 270 and Manta 270 — waterproof, UV-resistant, and built for extended use across varied climates.

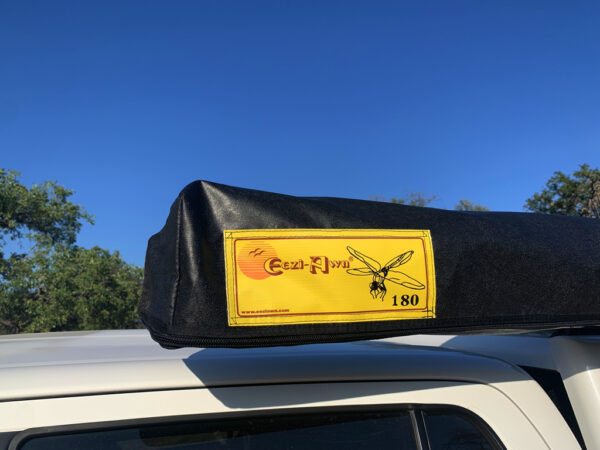

700 Gram PVC Cover: Heavyweight tonneau-grade bag protects the rolled canopy during travel.

IDEAL FOR

Overlanders who want near-270° coverage without committing to a 270° awning — the Dragonfly 180's 97.5 ft² rivals the Bat 270 from a 180° geometry.
Vehicles where side and rear coverage is the priority but a 270° wrap would interfere with rear door access or campsite layout.
Multi-day base camps for two to four people where the full 180° footprint creates a defined cooking and living space behind the vehicle.
Builds running a K9 Roof Rack or compatible rack with a vertical mounting surface.

IN THE BOX

Dragonfly 180 Awning (canopy, PVC cover, rafter arms, and adjustable legs)

Additional mounting hardware may be required depending on your roof rack. See the Eezi-Awn Bat/Manta/Swift/Lite/Dragonfly Awning Mount for compatible options.

COMPATIBILITY

The Dragonfly 180 mounts to a vertical surface. Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). Orientation (Left or Right) must be selected at purchase.
