Front Runner Slimline 3 3/4 Roof Rack Kit for Ineos Grenadier
Front Runner Slimline 3 3/4 Roof Rack Kit for Ineos Grenadier

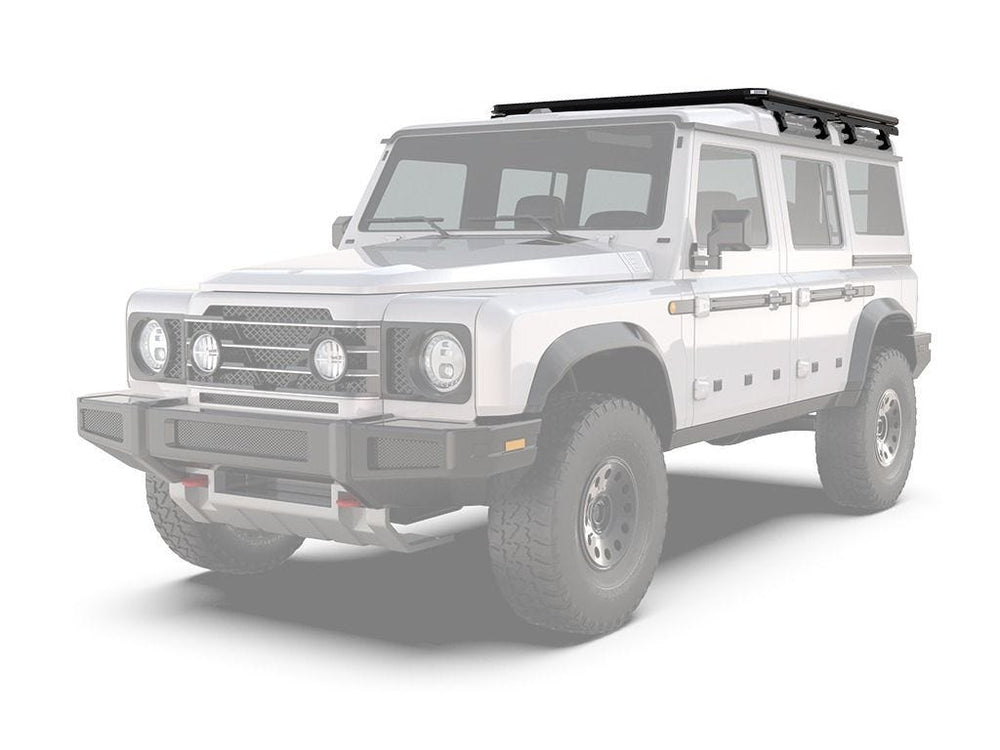

Not every Grenadier build needs nine feet of platform. Plenty of owners want a serious tray for a tent and gear while keeping weight down and the back of the roof clear. This is the three quarter Grenadier roof rack from Dometic Front Runner, purpose-built rather than adapted from a universal mount.

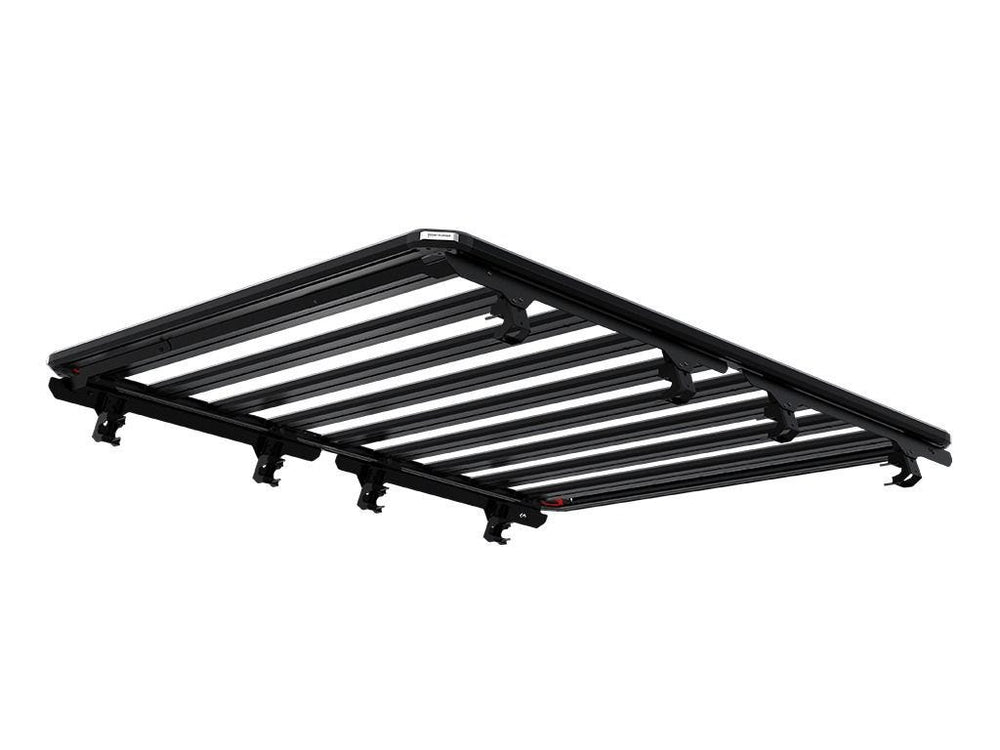

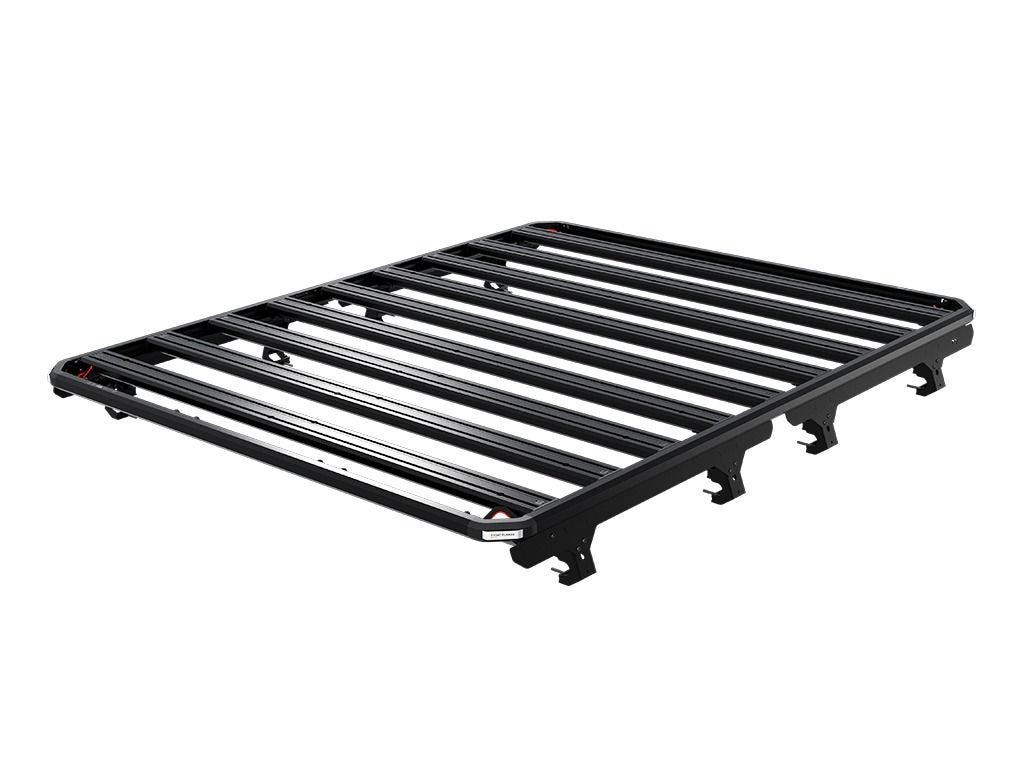

This Ineos Grenadier roof rack measures 76.2 inches long by 61.4 inches wide and the mounting system is height adjustable: 2.4 inches in the low position or 3.5 inches in the high. Either way it is 20% lower than the Slimline II, cutting drag, wind noise and fuel consumption. Slats move individually without dismantling the rack, dual T-slot channels take accessories at multiple pitches, and all four corners carry integrated tie-down points. Wiring for lights routes through concealed channels in the side profiles. Heat-treated aluminium and high-strength 3CR12 stainless steel, black powder coated, with stainless fasteners. Limited Lifetime Warranty.
Three Quarter or Full Length?
There are two Slimline 3 kits to choose between. Both are a purpose-built Grenadier roof rack sharing the same tray design and the same height-adjustable mounting system. The difference is how much roof they cover.
| Three Quarter (this kit) | Full Length | |
|---|---|---|
| Platform Length | 76.2" | 108" |
| Platform Width | 61.4" on both | |
| Net Weight | 75.63 lbs | 100.17 lbs |
| Mounting Heights | 2.4" low or 3.5" high on both | |
| Rear of Roof | Left clear | Covered |
| Tray Part | MRSTP09 | MRSTP13 |
| Best For | Tent plus gear, lighter build, rear clear | Everything at once, long expedition loads |
Choose three quarter if you want a working platform that keeps nearly 25 lbs off the roof and leaves the rear of the vehicle alone.
Choose the full-length version if you want a tent and an awning and boards and cargo all laid out at once, or you carry long loads that need support along their length.
Safari Windows: Worth a Quick Call
Dometic notes that the safari windows cannot fully open with the full-length Grenadier rack installed. They do not list that limitation for this three quarter version, which stops short of the rear. We would rather you confirm than assume, so if you use your safari windows, call us at 844-200-3979 before ordering and we will check it against your specific vehicle.

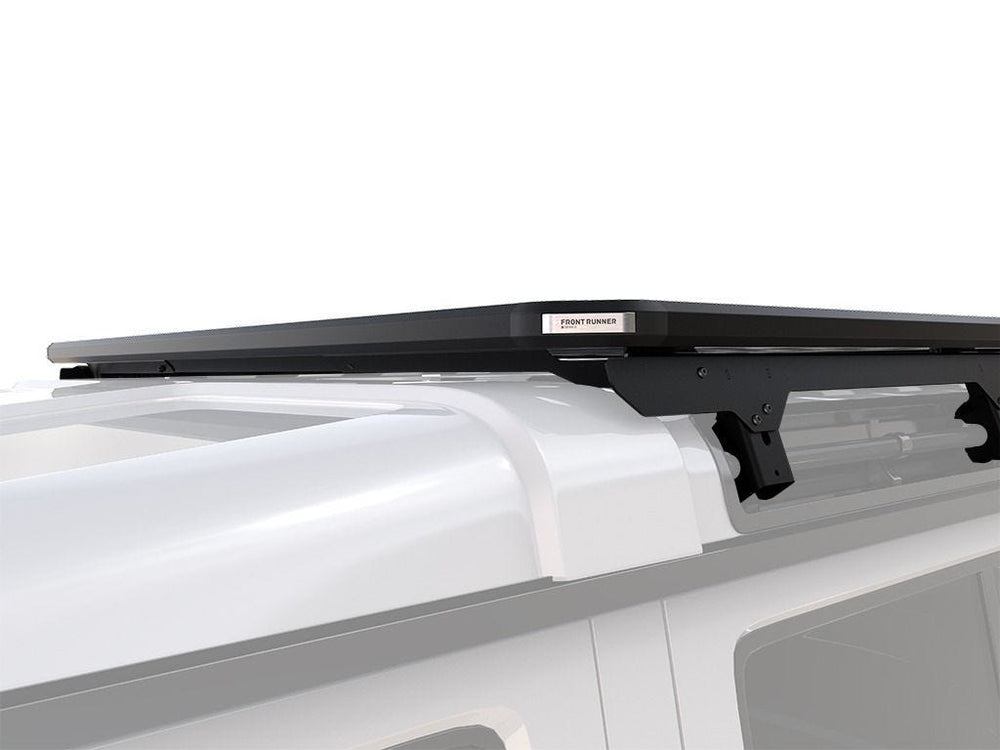

Two Mounting Heights, One Rack
The Grenadier kits are the only Slimline 3 racks with a height-adjustable mounting system, so you choose where the platform sits.
Low: 2.4 Inches
The cleanest profile, least wind noise, and the best overhead clearance. Most people choose this.
High: 3.5 Inches
Buys clearance underneath the tray, which helps if you are routing accessory hardware or want air space above the roof.
Changeable Later
You decide at install, and it is not permanent. If the build changes, the height can change with it.
Move Slats Without Dismantling Anything
On the Slimline 3 you can add, remove, or shift individual slats without taking the rack apart. Fitting a new accessory no longer means pulling the tray down and rebuilding it around the mount. Slide the slats to where the gear needs them and carry on, which saves an afternoon every time the build changes.

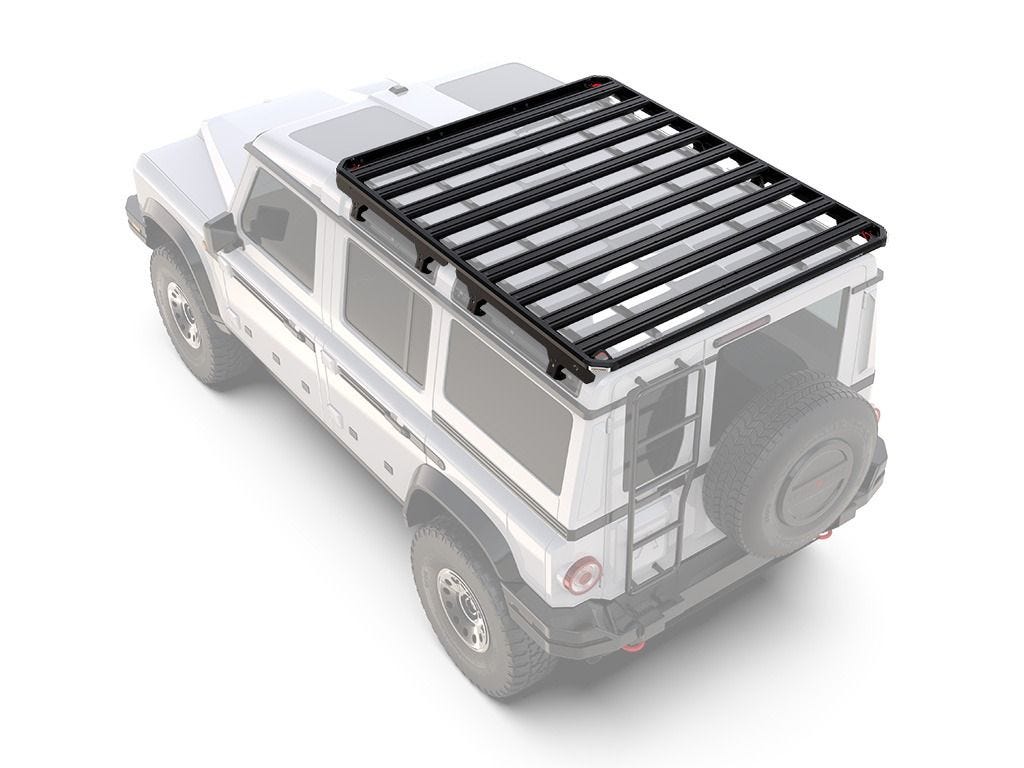

Full Width, Shorter Length
Worth noticing: the three quarter kit is exactly as wide as the full-length version at 61.4 inches. Only the length changes.
That matters more than it sounds. 61.4 inches is wider than most platform racks on the market, so a rooftop tent, an awning and a set of boards can sit side by side rather than end to end. On 76.2 inches of length you still have room to lay out a tent and keep the front section free. You are giving up the rear overhang, not the usable area.
Lower, Quieter, Cheaper to Run
The Slimline 3 tray is 20% lower than the Slimline II in either mounting position.
Less Drag
A lower platform presents less frontal area, which shows up in fuel consumption on a vehicle that is not aerodynamic to begin with.
Less Wind Noise
The most common complaint about any platform rack, and the low mounting position is the most effective fix.
Better Clearance
A Grenadier is already tall. Choosing the low position buys back over an inch against the high.

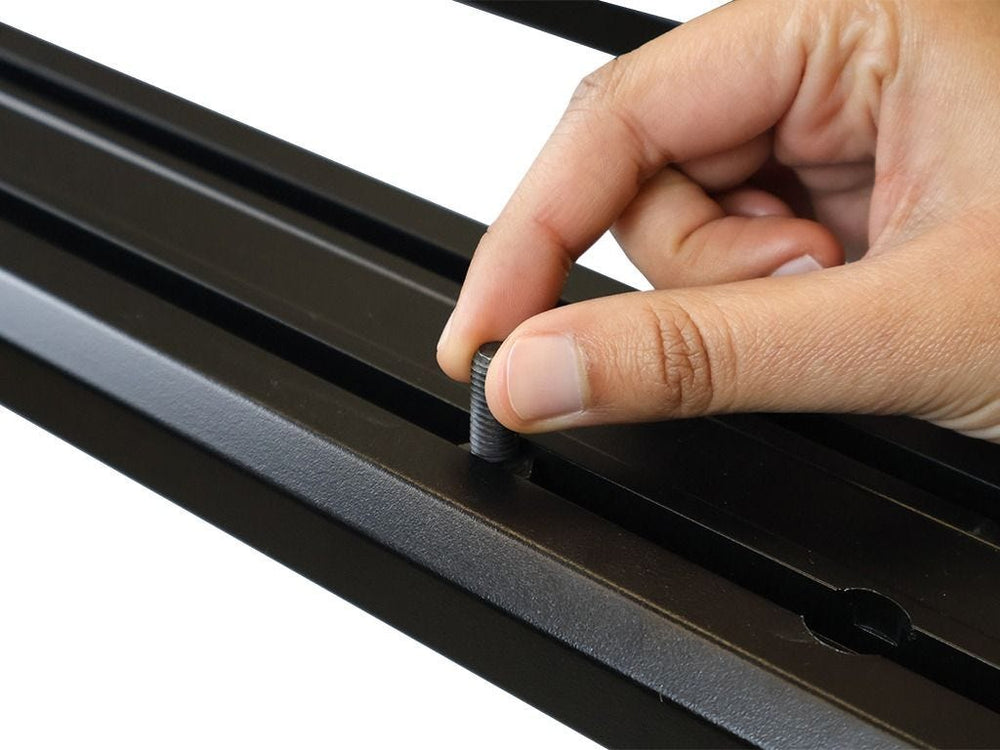

Dual T-Slots and Staggered Insertion
Each slat carries dual T-slot channels with multiple staggered insertion points along its length, and slats can be set to different mounting pitches.
That means you can insert hardware at several points rather than threading it from one end, and you can change spacing to suit what you are mounting. A rooftop tent wants different pitch to a pair of recovery boards, and the Slimline 3 lets you set each without compromise.
Details That Show Up in Daily Use

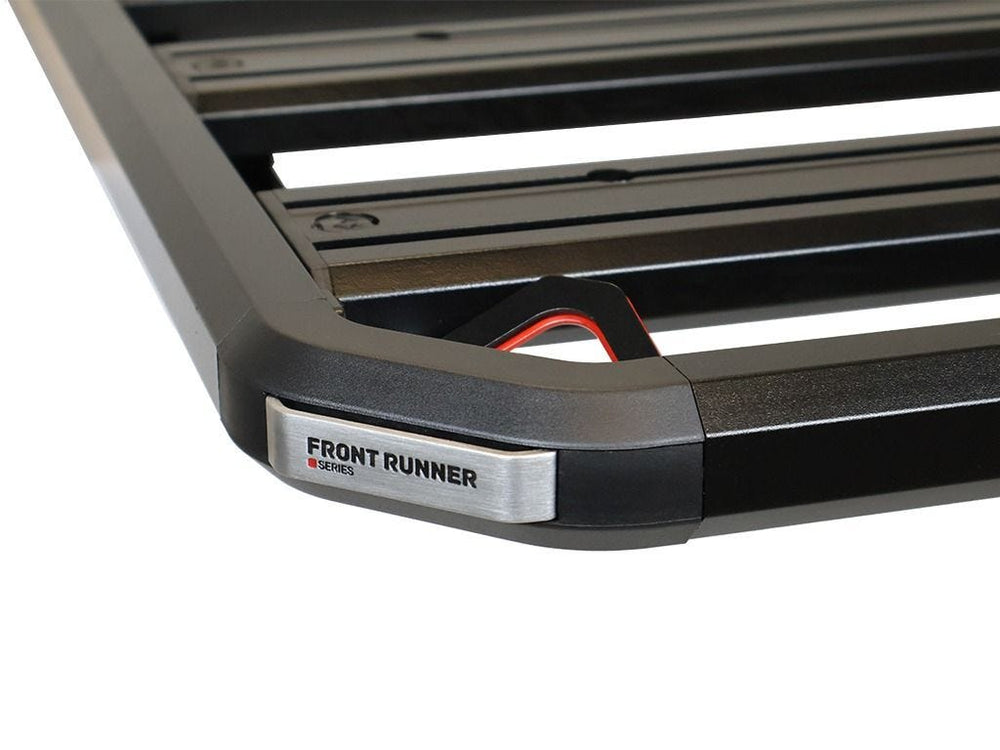

Integrated Tie-Down Points
All four corners have built-in tie-down points compatible with Stratchits, Stratchit shorties, and other lightweight securing straps. No add-on brackets needed for the strapping most people do most often.
Concealed Wire Routing
Dedicated channels within the side profiles let you route wiring for lights and other electrical accessories out of sight. Corner sections include built-in pass-throughs and breakout tabs, so wires enter and exit cleanly rather than being cable-tied along the outside of the rack.
Full Accessory Compatibility
Every Front Runner top-mount accessory works with the Slimline 3. That matters more on a Grenadier than most vehicles, since dedicated Ineos Grenadier accessories are still thin on the ground. The Front Runner ecosystem gives you a catalogue to build from immediately.
Built for Weather and Abuse
- Heat-treated aluminium for the tray and slats, keeping weight down without giving up strength.
- High-strength 3CR12 stainless steel in the structural components, chosen for corrosion resistance in wet and salty environments.
- Weather-resistant black powder-coated finish over the top.
- Stainless steel fasteners as standard, not an upgrade.
Specifications
| Vehicle | Ineos Grenadier |
| Coverage | Three quarter length |
| Platform Dimensions | 76.2" L x 61.4" W (1936mm x 1560mm) |
| Platform Height | 2.4" (60mm) low position or 3.5" (90mm) high position |
| Overall Product Height | 7.4" (including mounting system) |
| Net Weight | 75.63 lbs |
| Tray Material | Heat-treated aluminium |
| Structural Material | High-strength 3CR12 stainless steel |
| Fasteners | Stainless steel |
| Finish | Weather-resistant black powder coat |
| Slat System | Movable slats, dual T-slot channels, staggered insertion points, adjustable pitch |
| Tie-Down Points | Integrated at all four corners |
| Wire Routing | Concealed side channels with corner pass-throughs and breakout tabs |
| Accessory Compatibility | All Front Runner top-mount accessories |
| SKU | KRIG101T |
| Warranty | Limited Lifetime Warranty |
What's Included
Slimline 3 Tray, 1560mm W x 1936mm L
Ineos Grenadier ¾ Mounting System
Ships as a complete kit. Both part numbers have their own install guide below.
📄 Installation Instructions
Two guides, one for the tray and one for the Grenadier ¾ mounting system. The mount guide covers both height positions.
Pros
- Height adjustable, 2.4 inches low or 3.5 inches high, changeable later
- Nearly 25 lbs lighter than the full-length Grenadier kit
- Full 61.4 inch width, same as the full-length version
- Leaves the rear of the roof clear
- 20% lower than the Slimline II in either position
- Slats move individually without dismantling the rack
- Integrated corner tie-downs and concealed wire routing
- Opens up the full Front Runner catalogue where dedicated Grenadier accessories are still scarce
- Limited Lifetime Warranty
Cons
- Three quarter length, so it does not cover the full roof
- At around 76 lbs it is still a substantial addition to roof weight
- Dometic does not publish a load rating for this kit
- Safari window clearance is not documented for this version, so confirm before ordering
- Slimline II accessories that rely on the older slat spacing may need checking
Frequently Asked Questions
Should I get the three quarter or the full length?
Three quarter at 76.2 inches if you want a serious platform while keeping nearly 25 lbs off the roof and leaving the rear clear. The full-length version at 108 inches if you want a tent, an awning, boards and cargo all laid out at once, or you carry long loads. Width, height options and features are identical on both.
Will my safari windows still open?
Dometic lists a safari window limitation for the full-length Grenadier rack but not for this three quarter version, which stops short of the rear. We are not going to claim it clears when the manufacturer has not stated it. If you use your safari windows, call us at 844-200-3979 before ordering and we will confirm against your specific vehicle rather than guess.
Which mounting height should I choose?
The low position at 2.4 inches gives the cleanest profile, the least wind noise, and the best overhead clearance. The high position at 3.5 inches buys you clearance underneath the tray, which helps if you are routing accessory hardware or want air space above the roof. Most people choose low unless they have a specific reason not to, and it can be changed later.
Can I mount a rooftop tent on it?
Yes. At 76.2 by 61.4 inches there is room for a tent with the front section left free for an awning and boards, and the full width means things can sit side by side rather than end to end. Dometic does not publish a load rating for this kit, so check your tent's weight against the Grenadier's roof load limit. Call us at 844-200-3979 with the tent you are considering. Browse rooftop tents here.
Is it narrower than the full-length rack?
No. Both Grenadier kits are 61.4 inches wide, which is wider than most platform racks on the market. Only the length differs, 76.2 inches here against 108 inches on the full version. So you keep the full usable width and give up rear overhang rather than working area.
Can I run wiring for lights through it?
Yes, and cleanly. Dedicated channels inside the side profiles carry wiring for lights and other electrical accessories out of sight, and the corner sections have built-in pass-throughs and breakout tabs so wires enter and exit where you need them. No cable ties along the outside of the rack.
