Front Runner Slimline II Load Bed Rack Kit For Chevy COLORADO Roll Top 5.1' (2015-Current)
Front Runner Slimline II Load Bed Rack Kit For Chevy COLORADO Roll Top 5.1' (2015-Current)
SKU: KRCC006T
Front Runner Slimline II Load Bed Rack Kit For Chevy COLORADO Roll Top 5.1' (2015-Current)
SKU: KRCC006T
$1,422.00

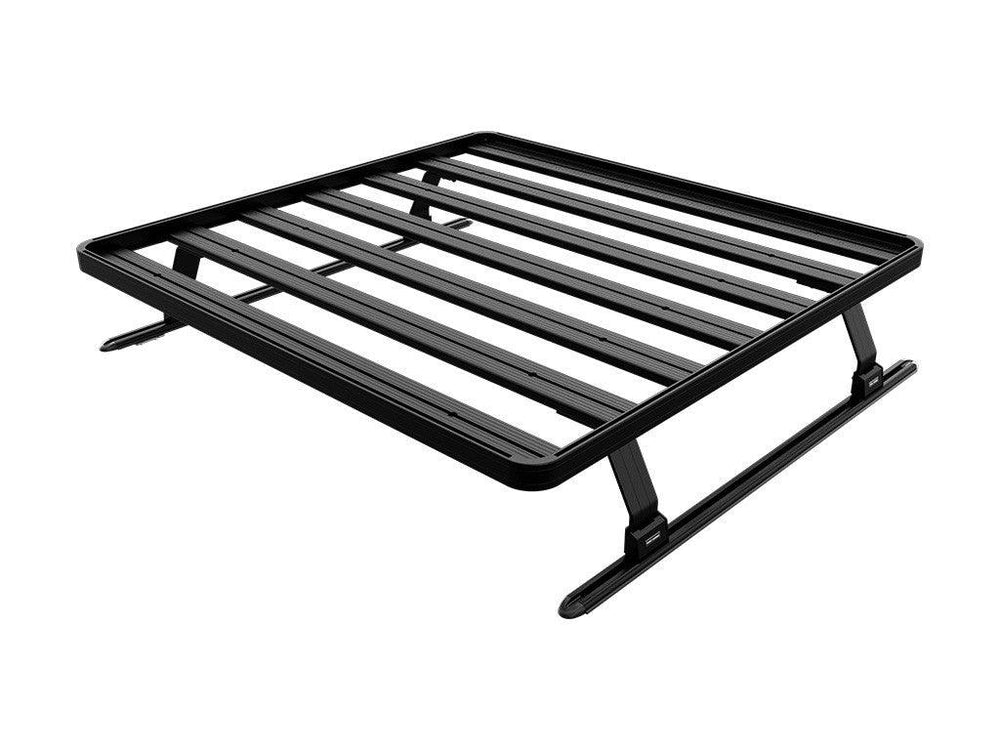

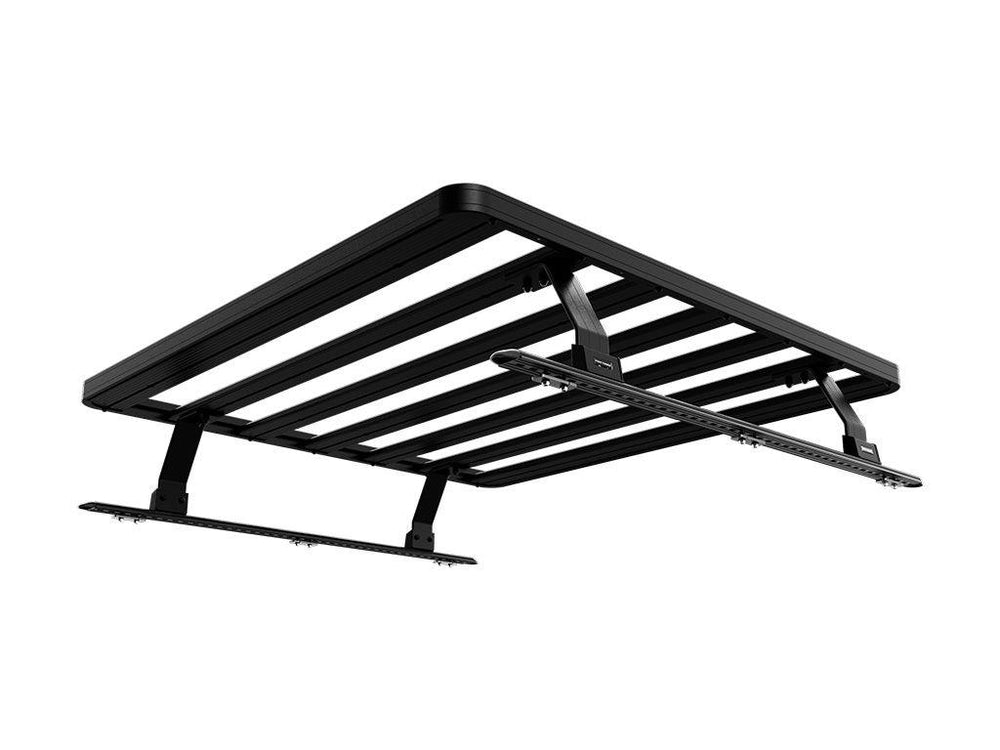

Slimline II Load Bed Rack Kit For Chevy COLORADO Roll Top 5.1' (2015-Current) - by Front Runner Outfitters
The Chevrolet Colorado Roll Top has been gaining popularity as one of the best trucks in USA. Not for nothing, it's normal to see it paired or equipped with the best accessories available.
One of them is this Front Runner Slimline II Load Bed Rack Kit. It has a 660 lbs load rating, as well a durability and endurance that are out fo question.
This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, 2 Pick-Up Truck Bed Universal Legs that fit into the Tracks, and 2 Pick-Up Roll Top Leg Mounts.
Drilling is required for installation.
This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
In order to mount this rack, s load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm - 1600mm is required to mount Front Runner tracks.
Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge. This applies when the leg is fitted to a Front Runner Track or other Roll Top channel.
For further information on installation, please see the fitment instructions below!
We offer FREE shipping!
Consists Of:
- 2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
- 2 x LASS028 - Pick-Up Roll Top Leg Mount - by Front Runner
- 1 x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
- 1 x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L) - by Front Runner
- 1 x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L) - by Front Runner
Materials Used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
How To Install It:
- Read HERE the Load Bed & Tray Installation Instructions
- Read HERE the Load Bed Legs Installation Guide
- Read HERE the Slimline II Tray Instruction Manual
- Read HERE the Pick-Up Roll Top Leg Mount

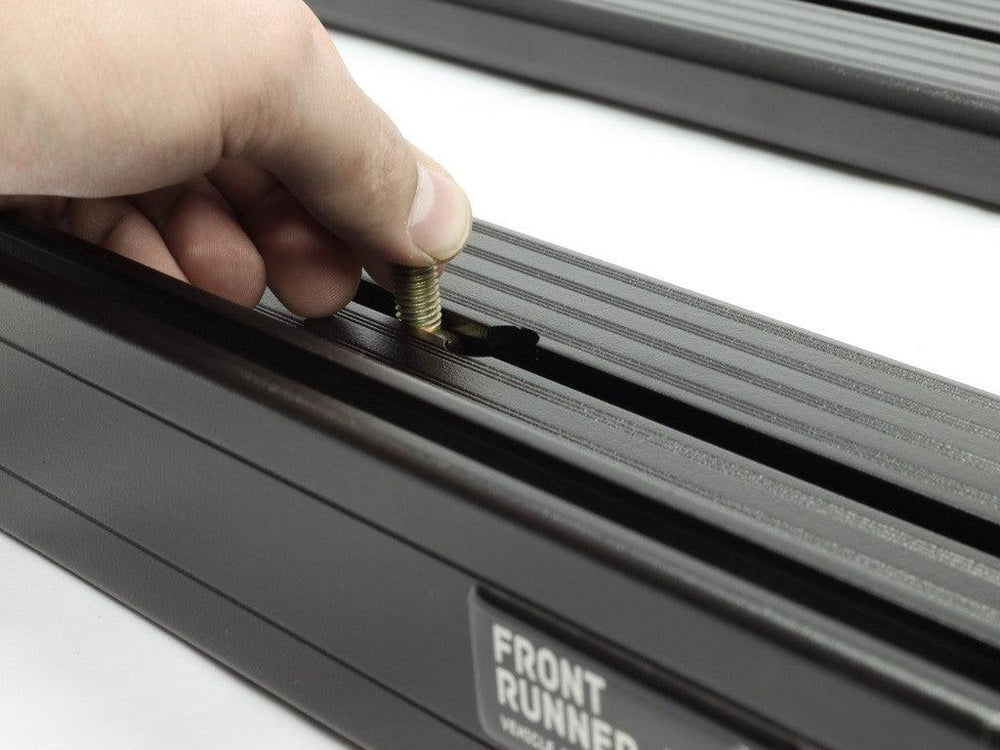

- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
- To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Dimensions:
- Width 455mm (18")
- Length 1620mm (64")
- Height 270mm (11")
- proximate Installed Weight 30kg (65lbs)
Slimline II Bed Rack Video:
