Slimline II Load Bed Rack For Chevrolet Colorado Pick-Up Truck (2004-Current) - Front Runner Outfitters

If you own a Chevy Colorado from 2004 onwards, you'll want the best bed rack possible, and this Slimline II Front Runner Bed Rack Kit fits the definition.

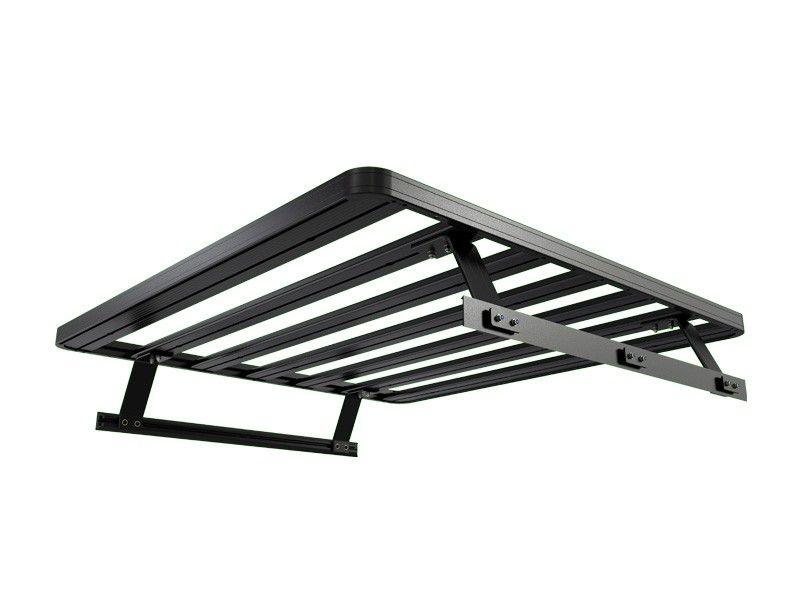

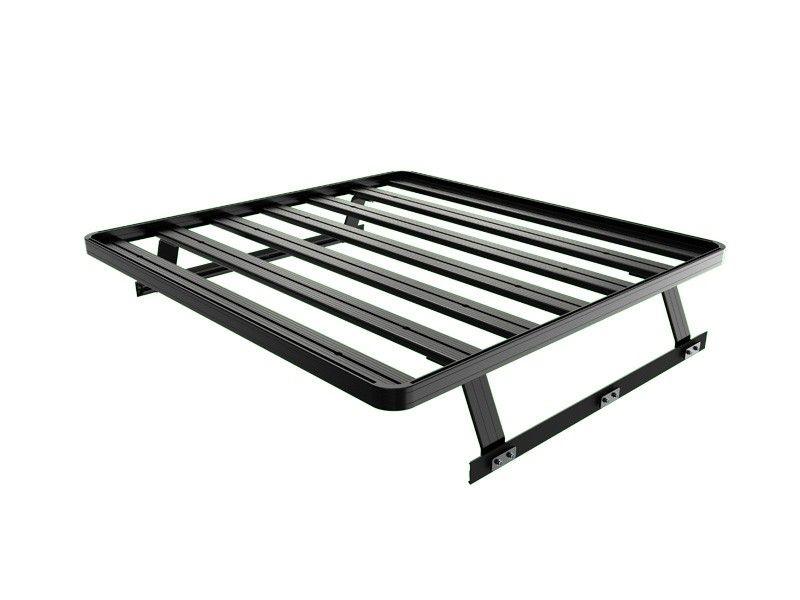

This kit creates a full size rack that sits above your Chevrolet Colorado's 2004+ truck bed.

This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, and 4 Pick-Up Truck Bed Universal Legs that fit into the Tracks. Drilling may be required for installation.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions below for further details.

We offer FREE Shipping!

This Bed Rack Kit Consists Of:

2 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner
1 x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L) - by Front Runner
1 x TRBU001 - Pick-Up Load Bed Tracks / 1000mm(L) - by Front Runner

Materials Used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

How To Install It:

Read HERE the Load Bed Installation Guide
Read HERE the Slimline II Tray Installation Guide
Read HERE the Tray & Load Bed Guide

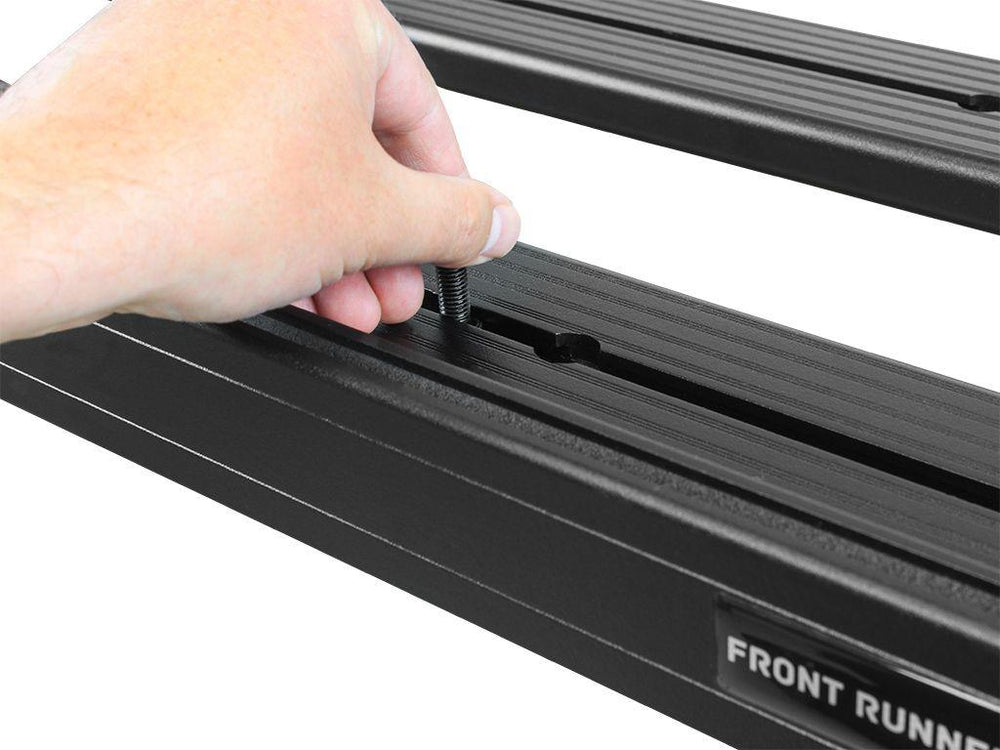

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Dimensions:

Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")
Approximate Installed Weight 26kg (58lbs)

FAQs:

Does the Chevrolet Colorado Bed Rack Kit require drilling to be installed? Yes, the Bed Rack Kit for the Chevy Colorado requires drilling into the vertical face of the bed rail so that you can mount tracks along the sides. Once the tracks are installed, the legs and rack simply bolt on!
Will it fit the new 2017 Generation? Yes.
What is the load rating? The rack itself is rated to hold up to 660 lbs. For the vehicle load rating you will have to contact the vehicle manufacture.
