FSR 180 Awning V2 - Full Side Coverage, Rear Hatch Clear
FSR 180 Awning V2 - Full Side Coverage, Rear Hatch Clear

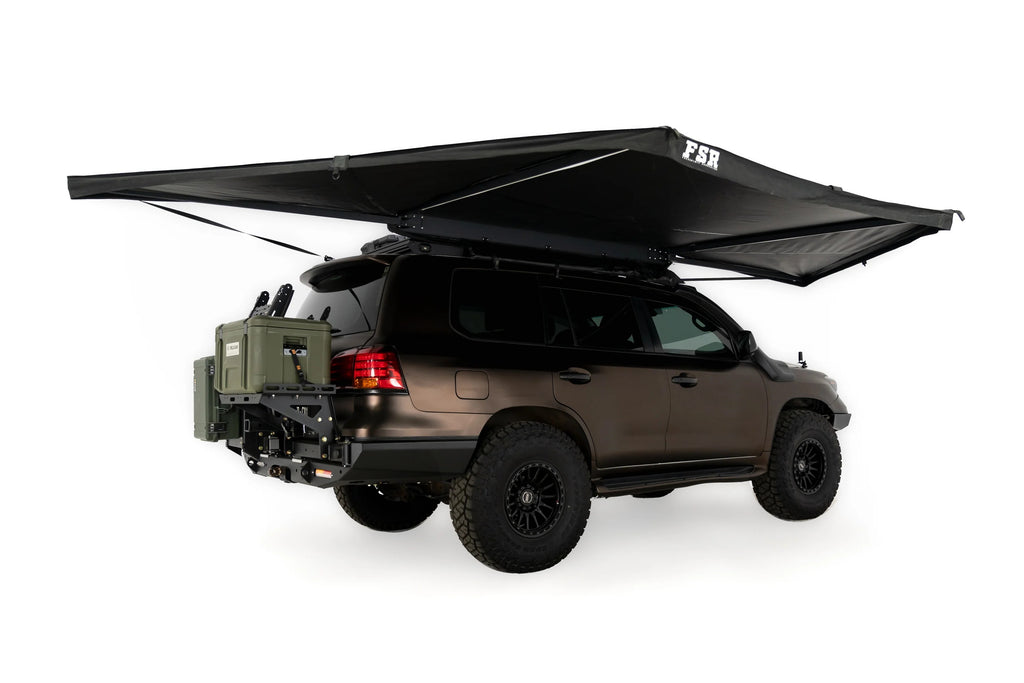

The 180 awning is the right call when your rear door needs to stay in play. It extends along the full side of your vehicle without wrapping the rear, creating a wide arc of covered space, 90 square feet of it, while leaving your hatch completely unobstructed.
Deploy from the back, grab gear from the side, cook under shade. Nothing has to move to make something else work. As a car side awning it puts every square foot where you are actually sitting. The rigid arm design carries the whole canopy with no ground poles, so setup is swing, lock, done. Built from 600D Oxford Ripstop with a 3000PU waterproof coating, with dual-color dimmable LED strips running along the arms and a keder rail for accessories or full awning walls. Available in driver or passenger side mounting, roughly 43 lbs, universal brackets included.
Why the Rear Hatch Matters
This is the whole reason to choose a 180 degree awning over a wraparound. A 270 covers your rear corner, which is great until you need the hatch open, a bike rack swung out, a rear-mounted spare accessed, or a tailgate tent deployed. Then the awning arm is in the way.
The 180 runs the full length of the vehicle side and stops there. Your back door opens fully. Your rear-mounted gear stays reachable. If you run a drawer system, a fridge slide, or a rear kitchen, you keep all of it working while still having a large covered area alongside the rig.
Here is the part people miss: the 180 actually covers more area than the 270, at 90.4 square feet versus 80.7. A wraparound spends some of its arc turning the corner. A straight side awning puts all of it along the flank, where you are setting up chairs and a table. More usable shade, and the hatch still works.
Swing, Lock, Done
The rigid arm design supports the entire canopy without ground poles. No guy lines to run, no staking, no setup routine to memorize. For a pull out awning covering 90 square feet, that is genuinely unusual. Arms extend 7.5 feet away from the vehicle, and closed the unit measures 90.5 by 5.9 by 5.9 inches. Guy lines and stakes are included, and FSR recommends using them in any degree of wind or when running awning walls. For a still evening you will not need them, but a 90 square foot canopy is a large sail, so read the weather.
Lighting Built Into the Arms

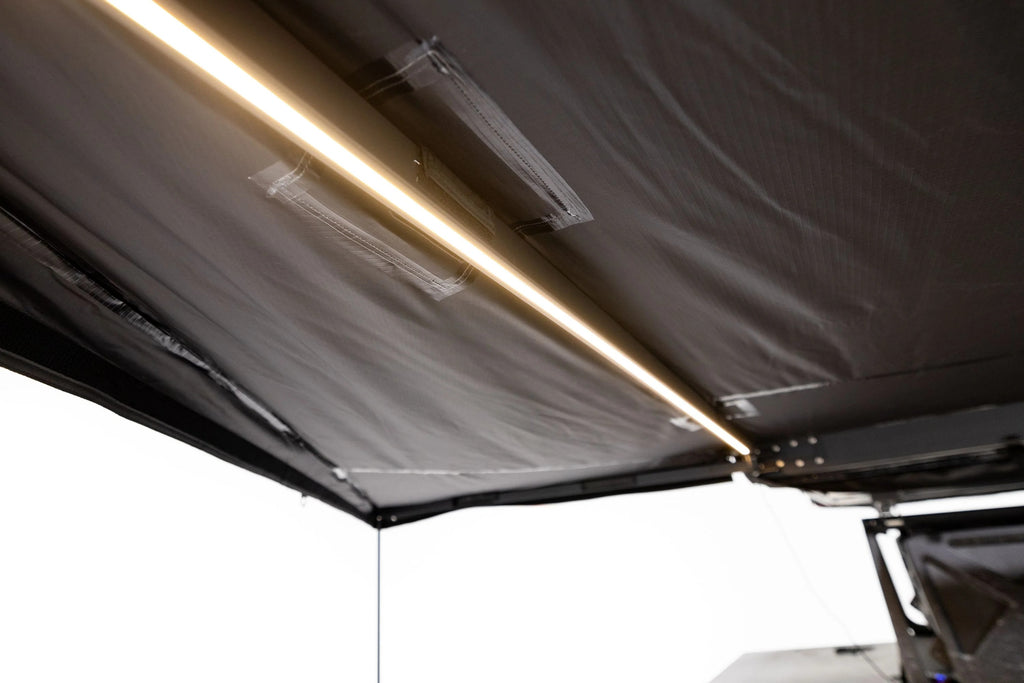

Dual-color dimmable LED strips run along the main arms, throwing warm light across the entire coverage area instead of a hot spot from one lantern. USB powered, so connect a battery bank and you have a fully lit camp without a separate lighting system, extra poles, or cable strung between trees. Bright for cooking, low for sitting out afterwards. A dimmable light switch is included in the box; the battery bank is sold separately.
Built for Weather, Not Just Shade
600D Oxford Ripstop
With a 3000PU waterproof coating. Rain-rated fabric, the same spec FSR uses on the 270, not a light shade cloth that wets through in a downpour.

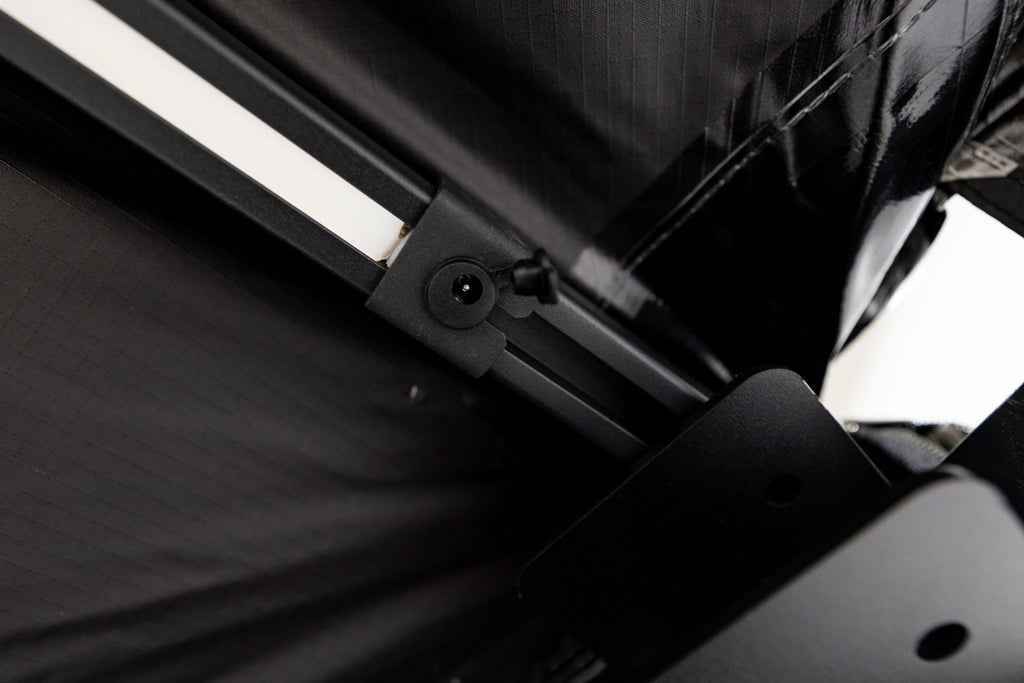

Redesigned Swing Hinges
The V2 revision added support at the hinges over the original, which is the joint that carries the load every time you deploy.

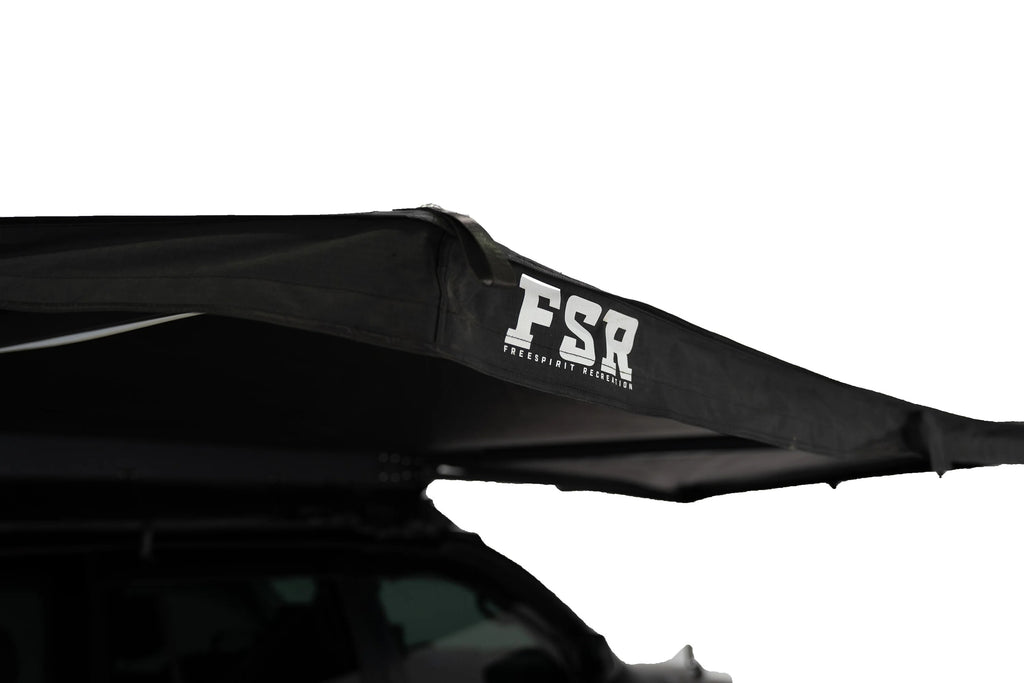

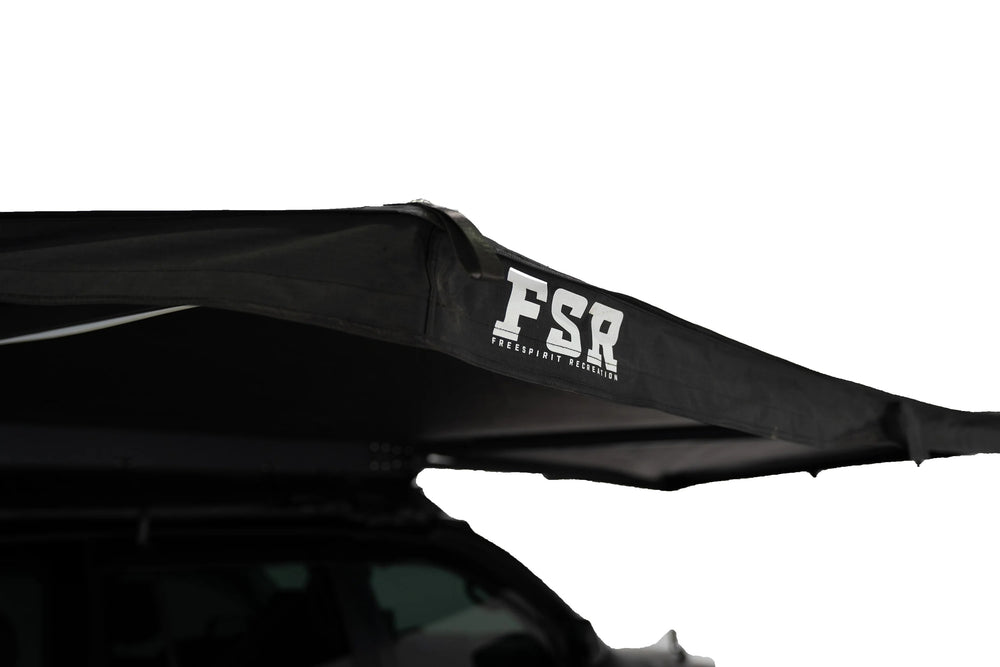

Improved Canvas Cover

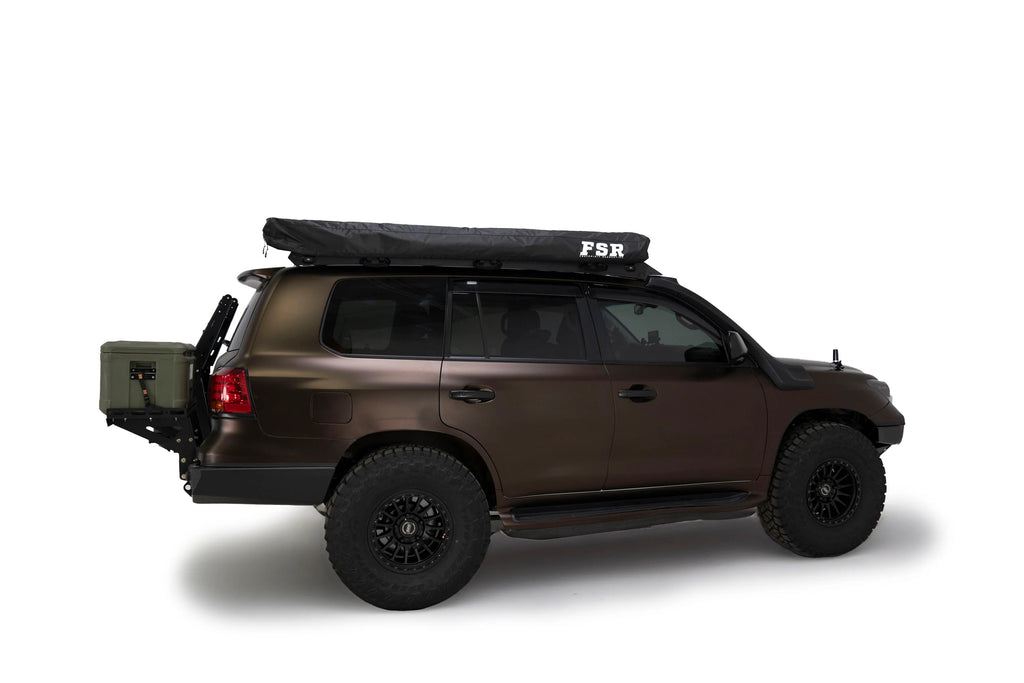

Protects the mechanism from low-hanging branches on the trail. The other place awnings fail is the folded canopy catching something at speed.
Integrated Keder Rail
A keder rail on the arms lets you swap between the included gear grid, support pole bag, and small accessory bag. It also accepts awning walls, which fully enclose the covered space and turn it into a private room at camp. That is the upgrade path if you start using the area as a changing space, a shower enclosure, or extra sleeping room. Walls are sold separately.
Mounting and Rooftop Tent Pairing

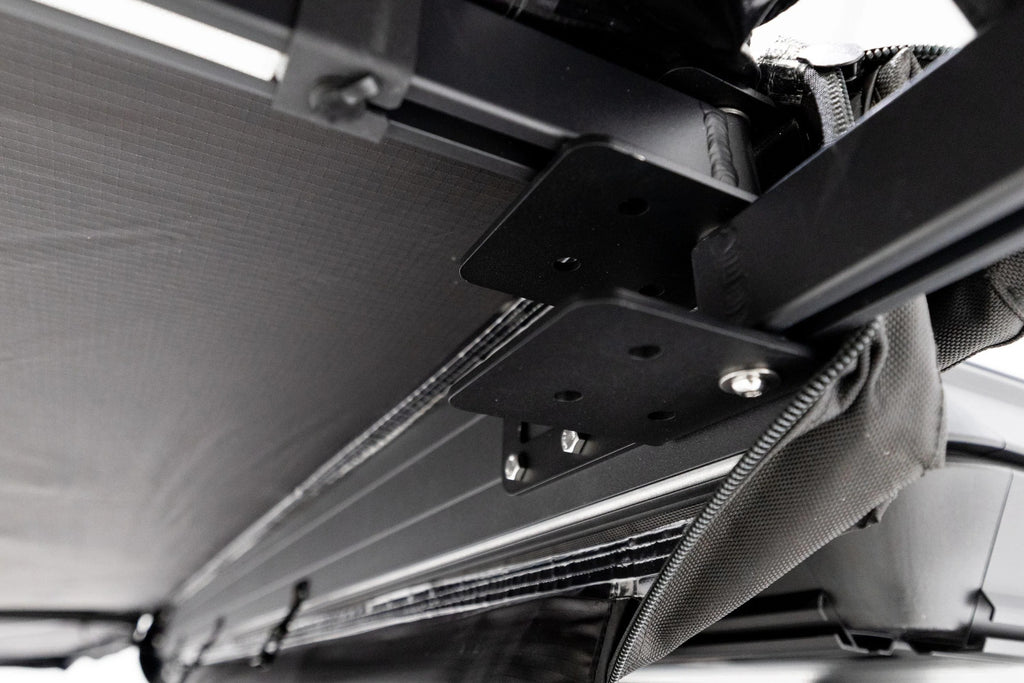

Choose driver side or passenger side at checkout. Universal brackets are included and the mounting backplate uses 2 inch spacing track-to-track. As a roof rack awning it mounts to your rack rail rather than the vehicle body, so nothing gets drilled.

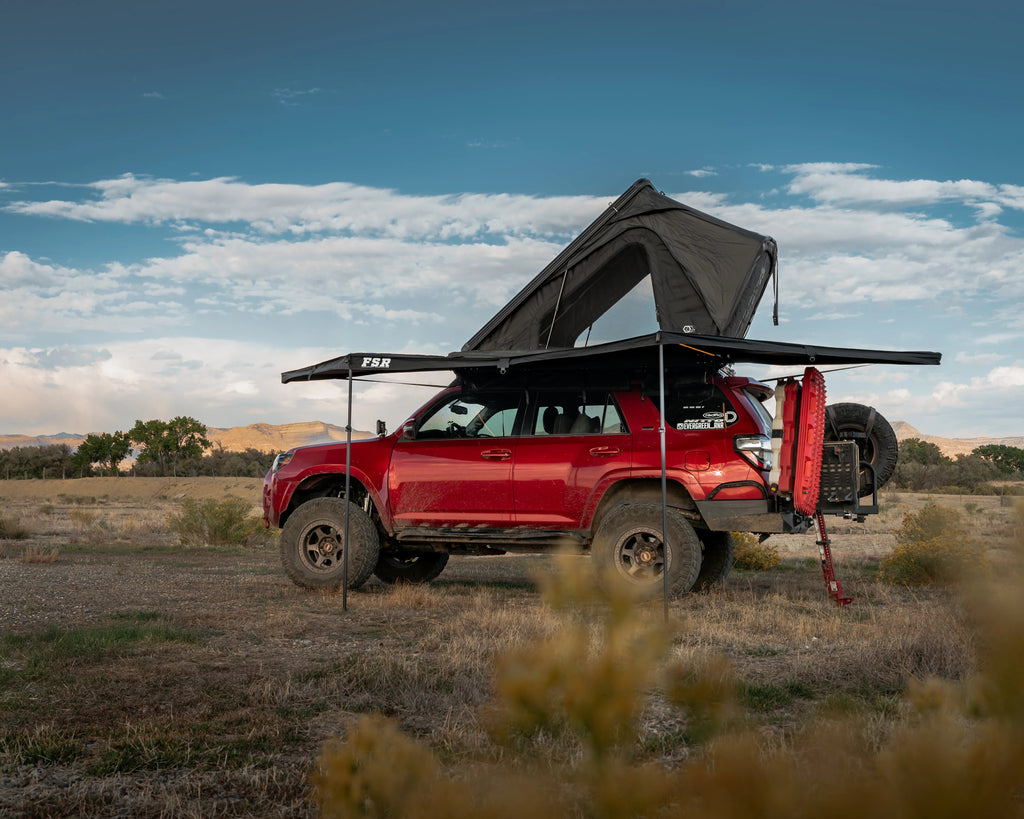

If you run an FSR Evolution or Aspen rooftop tent, the 180 pairs directly using FSR's rooftop tent awning bracket system, with no drilling and no improvised hardware. It is a common choice as an awning for Jeep, 4Runner, and Bronco builds where the rear swing gate carries a spare. Sleeping above and living underneath is the most common overland setup we sell. It also works well as a retractable awning for SUV and hatchback builds, where the unobstructed rear is worth more than a wraparound.
Before you order: confirm your rack has a dynamic load rating covering the awning's 43 lbs alongside anything else you carry, and that you have 90.5 inches of usable rail length on the side you are mounting. Call us at 844-200-3979 and we will check it with you.
180 or 270? The Honest Comparison
Same weight, same closed length, same fabric, same deployment. The difference is where the coverage goes and what stays accessible.
| 180 Awning V2 | 270 Awning V2 | |
|---|---|---|
| Coverage Area | 90.4 sq ft | 80.7 sq ft |
| Coverage Shape | Full side arc | Side + rear wrap |
| Rear Hatch | Completely clear | Covered, arm in the way |
| Arm Reach | 7.5 feet | Varies by section |
| Weight | ~43 lbs | ~43 lbs |
| Closed | 90.5" x 5.9" x 5.9" | 90.5" x 5.9" x 5.9" |
| Best For | SUVs, hatchbacks, rear access | Tailgate kitchens, full wrap |
Choose the 180 if your rear door, bike rack, spare tire carrier, or rear kitchen needs to stay usable, or if you simply want the most covered square footage along the side.
Choose the 270 Awning V2 if your camp life revolves around the tailgate and you want the rear corner sheltered too.
Want rear coverage without giving up the side? The 180 Tailgate Awning is a separate 30 lb unit that mounts off the back, and plenty of builds run it alongside a side awning.
Specifications
| Coverage | 180 degree full side arc, rear hatch unobstructed |
| Coverage Area | 90.4 sq ft |
| Closed Dimensions | 90.5" x 5.9" x 5.9" |
| Open Dimensions | 7.5' extended arms away from vehicle |
| Weight | ~43 lbs |
| Fabric | 600D Oxford Ripstop with 3000PU waterproof coating |
| Support | Freestanding rigid arms, no ground poles required |
| Lighting | Integrated dual-color dimmable LED, USB powered (battery sold separately) |
| Mounting Backplate | 2" spacing track-to-track |
| Mounting Side | Driver side or passenger side |
| Accessory Rail | Integrated keder rail for gear grid, bags, or awning walls |
| Deployment | Swing and lock, no setup routine |
What's Included
Sold separately: USB battery bank for the LED lighting, awning walls, and the rooftop tent awning bracket system if you are pairing with an FSR tent.
📄 Instruction Manual
Download the FSR 180 and 270 awning V2 instruction manual covering mounting, deployment, and takedown.
Pros
- 90.4 sq ft of coverage, roughly 10 sq ft more than the 270 because none of the arc is spent turning the corner
- Rear hatch stays completely unobstructed, so bike racks, spare carriers, and rear kitchens keep working
- Freestanding on rigid arms with 7.5 feet of reach, no ground poles for calm conditions
- 600D Oxford Ripstop with 3000PU coating, rated for rain not just shade
- Dual-color dimmable LED built into the arms, USB powered
- V2 redesigned swing hinges and an improved canvas cover that protects the mechanism on trail
- Keder rail accepts the gear grid, accessory bags, or full awning walls
- Driver or passenger side mounting, universal brackets included, no drilling
Cons
- No rear coverage. If your camp revolves around the tailgate, the 270 or the 180 Tailgate Awning is the better fit
- A 90 sq ft canopy is a large sail. FSR recommends staking and guying in any degree of wind
- Mounting side is chosen at purchase, so decide which side of the vehicle your camp lives on
- Needs 90.5 inches of usable rail length closed, which is a lot on a shorter rack already carrying a tent
- USB battery bank and awning walls are both sold separately
Frequently Asked Questions
Why does the 180 cover more than the 270?
Because none of its arc is spent turning the corner. The 180 runs a full semicircular arc along the vehicle side at 90.4 square feet. The 270 covers 80.7 square feet but splits that between the side and the rear wrap. If your priority is the largest covered area alongside the rig for chairs, a table, and a cooking setup, the 180 gives you more of it. If you want the tailgate sheltered, the 270 trades some side coverage for that.
Will my rear hatch still open?
Yes, completely. That is the defining feature of this awning. The canopy extends along the vehicle side and stops, so the rear stays clear. Your hatch opens fully, a swing-out bike rack or spare tire carrier still works, and a rear drawer or fridge slide stays reachable. For SUV and hatchback builds where rear access is how you live out of the vehicle, this matters more than wrapping the corner.
Does it really need no poles?
In calm conditions, no. The rigid arms carry the whole canopy, so you swing it out, lock it, and you are done. Telescoping aluminum support poles, guy lines, and stakes are all included, and FSR recommends using them in any degree of wind or when running awning walls. A 90 square foot canopy catches a lot of air, so the honest advice is to stake it whenever there is a breeze. Freestanding is a convenience for still evenings, not a reason to skip securing it.
Driver side or passenger side?
You choose at purchase. Most people mount passenger side so camp sets up away from traffic when parked roadside and the driver door stays clear. Mount driver side if your kitchen slide, fridge, or drawer system lives on that side and you want the awning over your working area. Unlike the 270, the 180 does not cover the rear either way, so the side you pick determines all of your covered space.
Will it work with my rooftop tent?
Yes. The 180 pairs directly with FSR Evolution and Aspen rooftop tents using FSR's rooftop tent awning bracket system, with no drilling and no improvised hardware. Sleeping above and living underneath is the most common overland setup we sell. If you run a different tent or rack, universal brackets are included. Call us at 844-200-3979 with your tent and rack and we will confirm fitment.
How much rack space does it need?
Closed it measures 90.5 by 5.9 by 5.9 inches, so you need just over 90 inches of usable rail length on the mounting side. Weight is roughly 43 lbs. Check that against your rack's dynamic load rating alongside anything else you carry, especially if a rooftop tent is already up there. The mounting backplate uses 2 inch spacing track-to-track, and it mounts to the rack rather than the vehicle body so nothing gets drilled.
Complete Your Camp
180 or 270 for Your Build?
Tell us your vehicle, rack, and how you use the back of your rig. We will help you pick the right coverage.
844-200-3979
