National Luna Portable Power Pack
National Luna Portable Power Pack
SKU: BMS-20102
National Luna Portable Power Pack
SKU: BMS-20102
$490.00
Overlanding Portable Power Pack - by National Luna

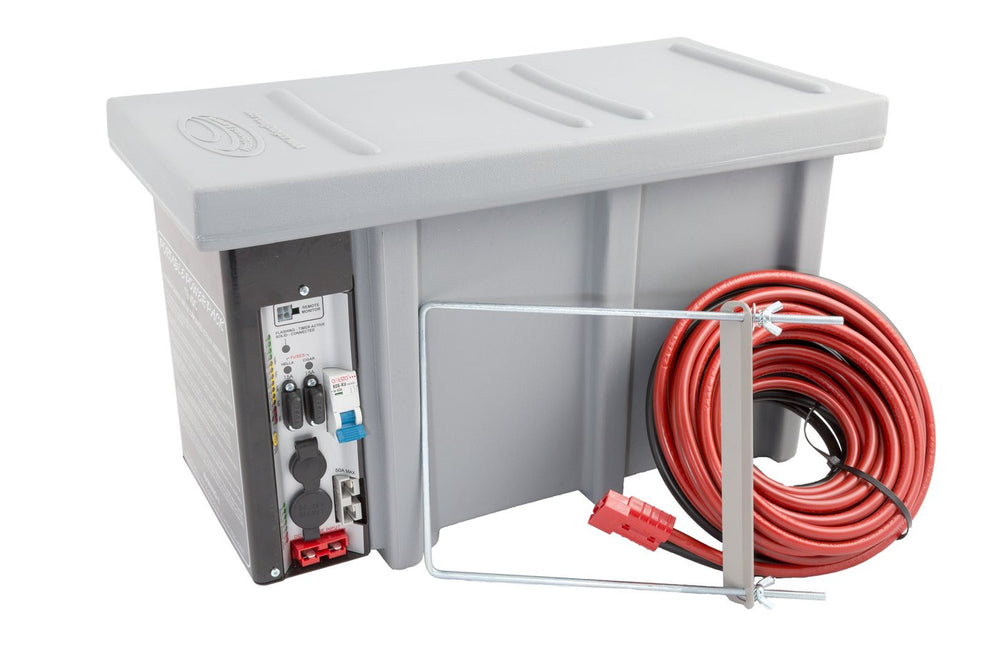

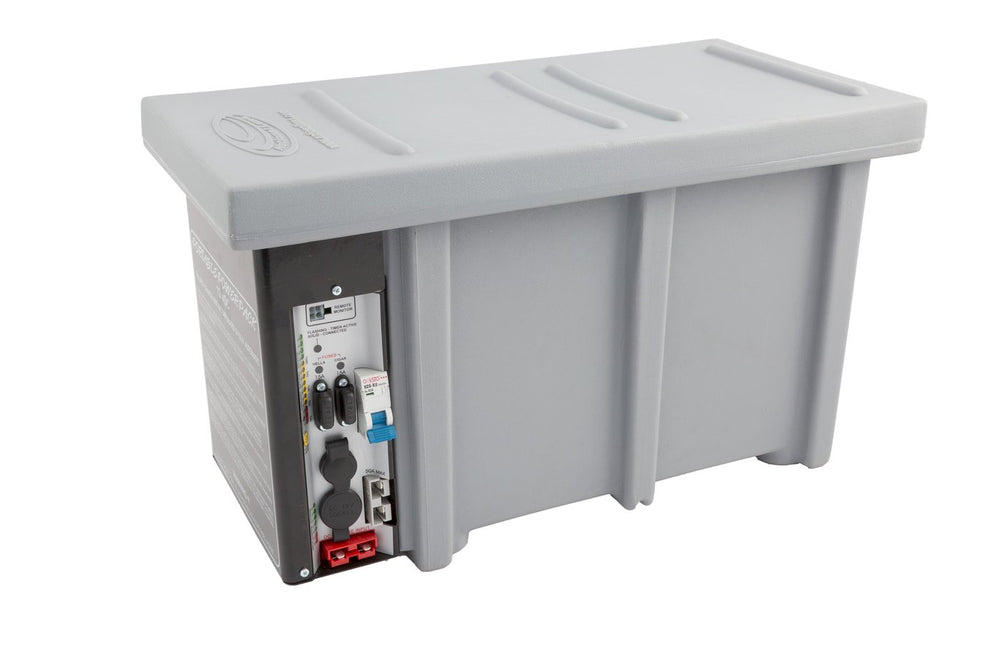

This Portable Power Pack is a compact battery box that is completely removable, and includes a built-in split-charge isolator, working as a standby power pack for 12-volt appliances.
This Power Pack by National Luna will suit modern vehicles that aren't able to accommodate a second battery in the engine compartment.
It includes fused accessory plugs, a polarized high-power plug, a built-in monitor with low-battery and over-charge warnings, USB charge ports, additional DC output, and a National Luna 5 charger input.
The built-in plugs can be used for low-power accessories such as fridges, pumps, compressors, lights, or other 12-volt electronic devices.
The high-current input-output can be used for higher power requirements, such as invertors or battery chargers.
The built-in split-charge isolator is fully automatic and does not require additional hardware in the application vehicle. You do not need to purchase a separate Cable Kit; it is already included.
National Luna Portable Power Pack Features:
- Simple Installation
- Removable & Portable
- Built-In Battery Monitor & Input Voltage Monitor
- Slide-Lock Lid
- Bolt-Down or Strap-Down Design
- Can Accommodate Standard Automotive Battery Types
- Fuse-Protected Plugs & Connections
- Fully-Automatic Split-Charge Isolator
- 3-Year Comprehensive Warranty
- Additional Battery Terminals & Hardware Supplied
- Additional Cables, Hardware, & Monitors Sold Separately
- USB Charge Ports, Additional DC Output, NL5 Charger Input
National Luna Portable Power Pack Specifications:
Dimensions | 20" L x 10" W x 12" H | 500mm L x 250mm W x 300mm H |
Weight (Excluding Battery & Cables) | 12 lbs | 5.5 kg |
Split-Charge Input | 50 amp Red Anderson Charge Input |
Coupler | 50 amp Grey Anderson Input-Output Coupler (60A Fused) |
Connectors | Hella Style Output (15A fused) |
Remote Port | Suits Removable Data Cable for Dual Battery Controller |
Battery Monitors (Built-In) | 14-Stage Auxiliary Monitor (11.4V - 14.2V) & 7-Stage Input Voltage Monitor (12.6V - 14.2V) |
Power Supply | 8Vdc - 15Vdc (Display Range Only : 11.4V - 14.2V) |
Power Consumption (Average) | 60mA (On Standby) |
Power Consumption (Max) | 780mA (When Solenoid Is Engaged) |
Switched Current (Continuous) | 85 amp |
Switched Current (Peak) | 400 amp |
Cables | (1) 23' Red + (1) 23' Black with Connector |
Portable Power Pack Video:
