Sherpa Diablo Roof Rack for 2019-2026 RAM 2500 & 3500
Sherpa Diablo Roof Rack for 2019-2026 RAM 2500 & 3500
Read Before Ordering
- Drilling is required: 8 holes at 3/16 inch in the cab roof. A rivet tool is required and professional installation is recommended.
- The fairing may interfere with XM radio reception. If satellite radio is important to you, know this before you order.
- Choose your cab. Crew Cab gets 6 crossbars, Mega Cab gets 7. They are different lengths.

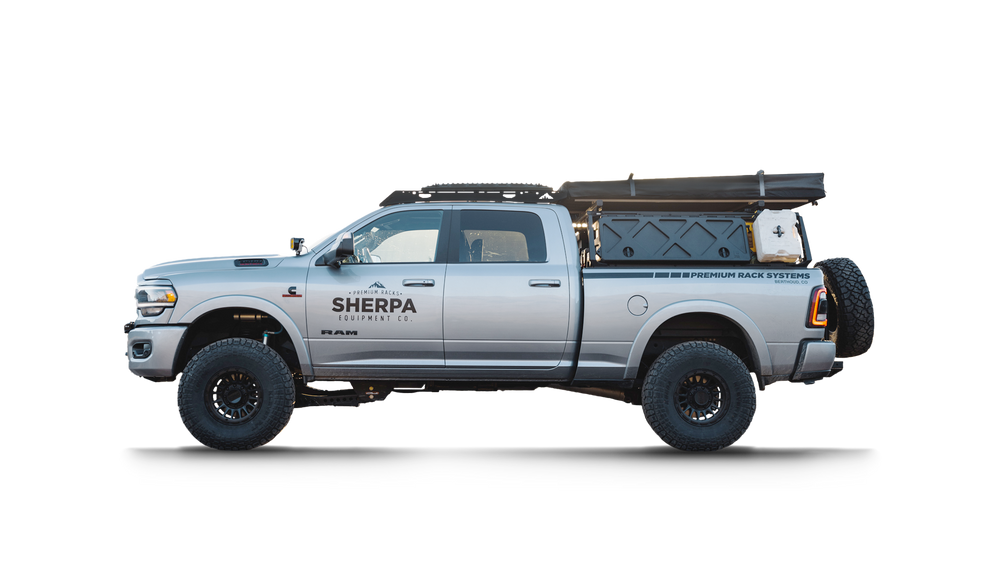

Heavy duty trucks have a storage problem nobody talks about. The bed is full, or it is taken up by a fifth wheel hitch, and suddenly there is nowhere to put the gear. The Diablo is the Sherpa PEAK RAM 2500 roof rack that solves it, covering 2019 through 2026 in both Crew Cab and Mega Cab.
This Dodge RAM roof rack carries 300 lbs dynamic and 700 lbs static on 1/4 inch aircraft-grade aluminum side panels with stainless steel hardware, at roughly 55 lbs. Bolt into the extrusion crossbars or strap gear directly to the side plates. The Crew Cab version is 64 inches long with 6 crossbars; the Mega Cab version is 74.5 inches with 7. Black textured powder coat, black anodized crossbars, black oxide stainless hardware. Choose a Full Height wind fairing or a Half Height fairing sized for a single-row light bar. Manufactured in Colorado. Lifetime Warranty.
Storage When the Bed Is Already Spoken For
This is the case the Diablo was made for. A fifth wheel hitch or a gooseneck setup takes the middle of the bed, a toolbox takes the front, and whatever is left gets filled by the job or the trip. On a truck this size, running out of space feels absurd, but it happens constantly.
A RAM 2500 roof rack gives you back a full-width platform above everything. Camping gear, luggage, lumber, ladders, recovery equipment, traction boards, a rooftop tent, whatever the bed cannot take. Among RAM 2500 accessories, a cab rack is one of the few that adds capacity rather than just capability.
How the Diablo Installs

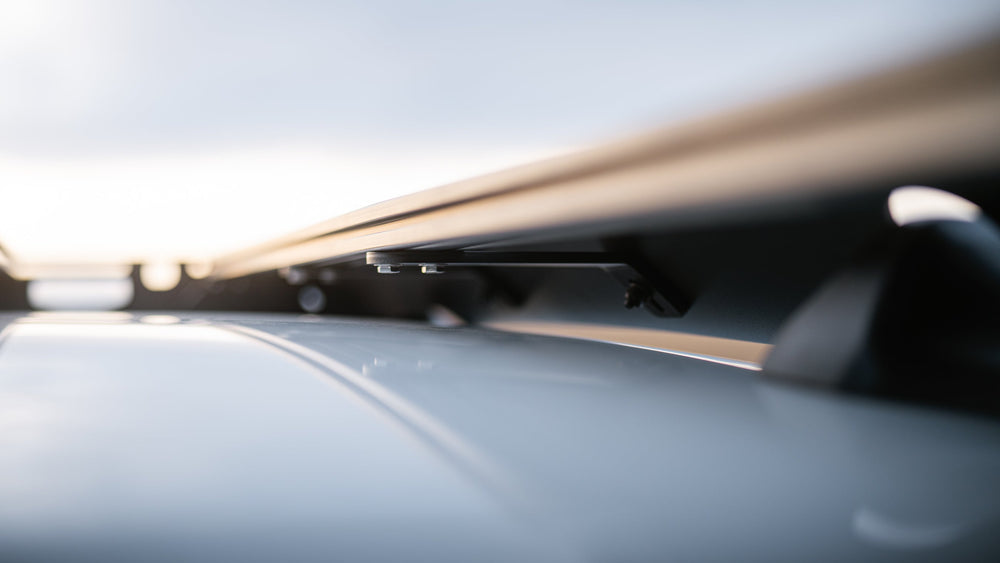

Most PEAK racks bolt to factory hardpoints with no drilling. The RAM heavy duty cab does not offer them, so the Diablo mounts with eight 3/16 inch holes drilled into the cab roof, secured with rivets. A rivet tool is required.
Sherpa recommends professional installation, and we agree. Hole placement, rivet setting, and sealing all matter on a roof that needs to stay watertight for the working life of the truck. A good shop will have it done cleanly in a few hours. Four mounting brackets ship with rubber seals, and if you are comfortable with rivets and sealing roof penetrations, the install guide covers every step.
One Thing to Know About XM Radio
The fairing may interfere with XM satellite radio reception. Sherpa flags this, and we would rather you hear it from us before install than discover it on the highway. If satellite radio matters on long hauls, call us at 844-200-3979 and we will talk through your options first.
Crew Cab or Mega Cab
RAM's two heavy duty cab lengths get different racks. Pick the one that matches your truck.
| Crew Cab | Mega Cab | |
|---|---|---|
| Rack Dimensions | 64" x 55.5" x 2.5" | 74.5" x 55.5" x 2.5" |
| Crossbars | 6 | 7 |
| Load Rating | 300 lbs dynamic / 700 lbs static | |
| Weight | ~55 lbs | |
Either way it is the same RAM truck roof rack design. The Mega Cab's extra 10.5 inches of roof means an extra crossbar and more usable platform. Width, load rating, and profile height are identical on both.
The PEAK Series
Industry leading premium roof rack systems. The PEAK series is the go-to for a premium aluminum roof rack. It is the line that Sherpa built its name on, and for years it has carried the gear of the most extreme adventurers. Sherpa believes in the constant evolution of their products, building the toughest systems on the market. From industry-leading alloys to uncompromising mounts with rubber seals, you will always Adventure with Confidence.
Crafted

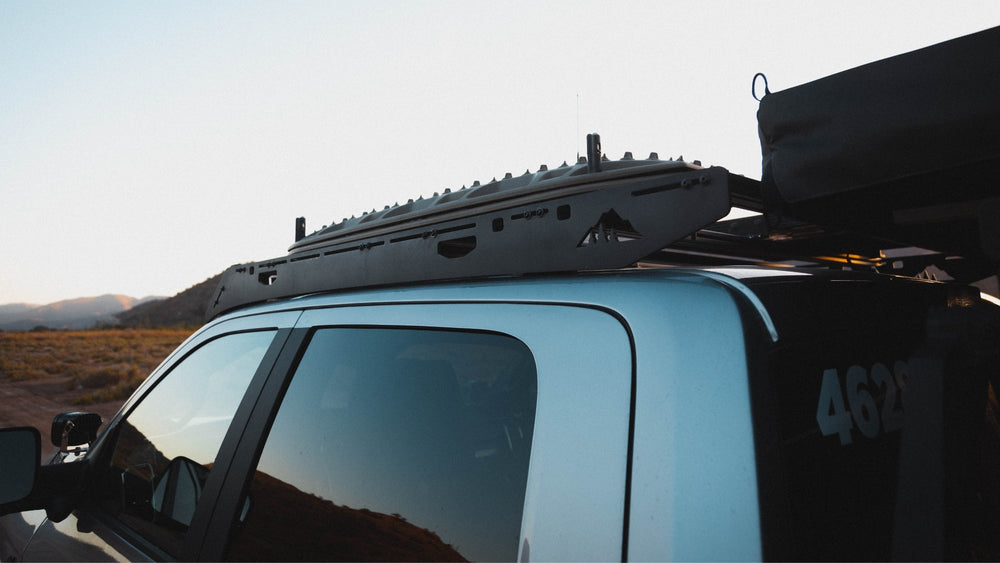

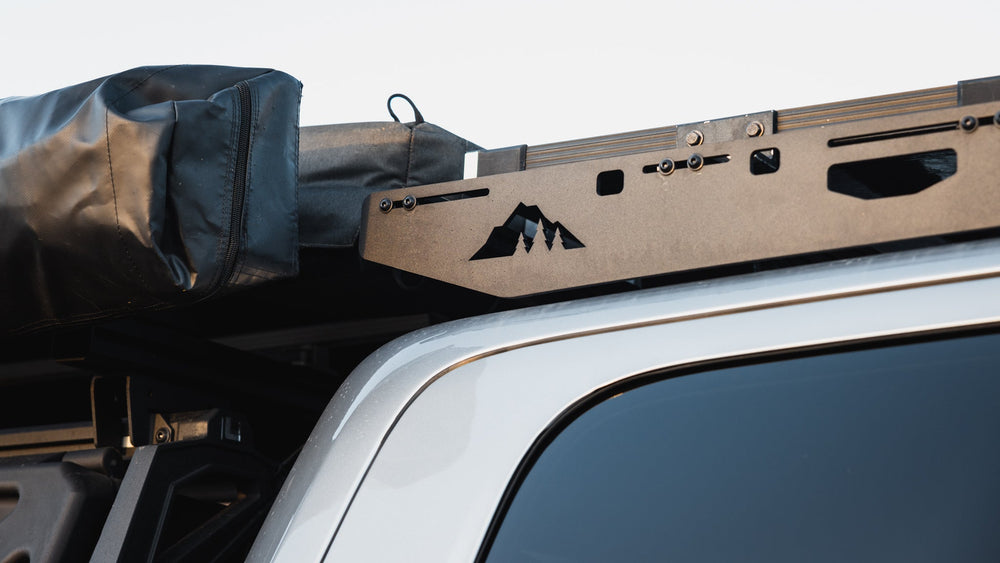

Manufactured in Colorado with precision laser-cut 1/4" aluminum sideplates formed with CNC accuracy by Sherpa's team of professionals. They have created a very stout mounting structure, secured with stainless steel hardware, that will keep your gear where you need it. The 1/4 inch aircraft-grade aluminum is thicker than most competing racks, which is where the strength comes from without the weight penalty of steel.
Adaptable

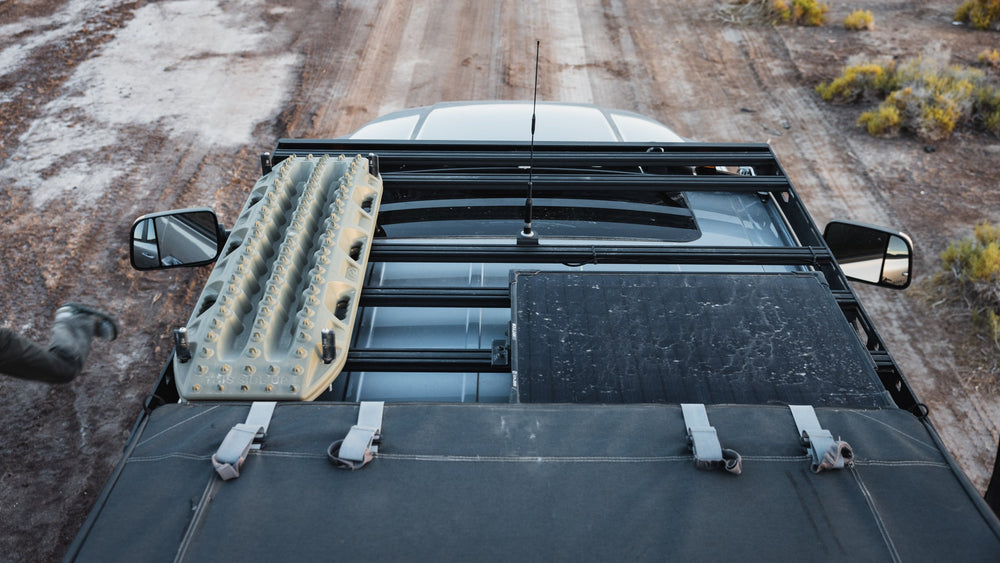

Sherpa knows the importance of mounting all of your goodies on your rig. With the PEAK Series, you have the ability to mount just about anything, anywhere. With slots and holes all over the rack, plus Sherpa's line of accessories, you will never find yourself wishing you could mount something. Bolt into the crossbars, or strap long loads like ladders and lumber straight to the side plates.
Durable
Strength is built into Sherpa's brand and the PEAK System is what they built their name on. Using the best in materials and hardware, you can beat on this system every weekend and trust it to show up to work on Monday. On a heavy duty RAM, Monday is usually a work day, and this rack is built for that rhythm. All backed by Sherpa's Lifetime Warranty.

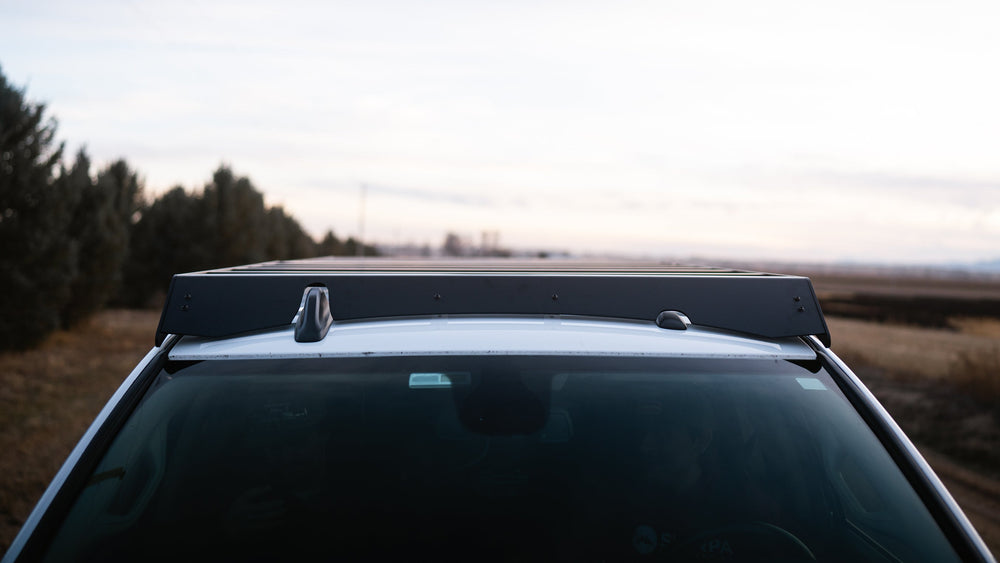

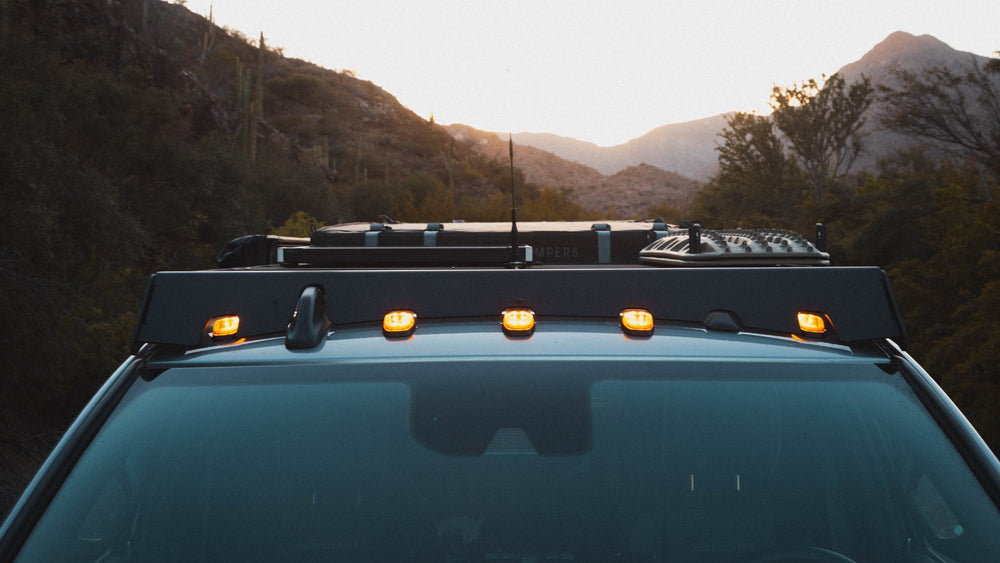

Which Fairing Is Right for You?

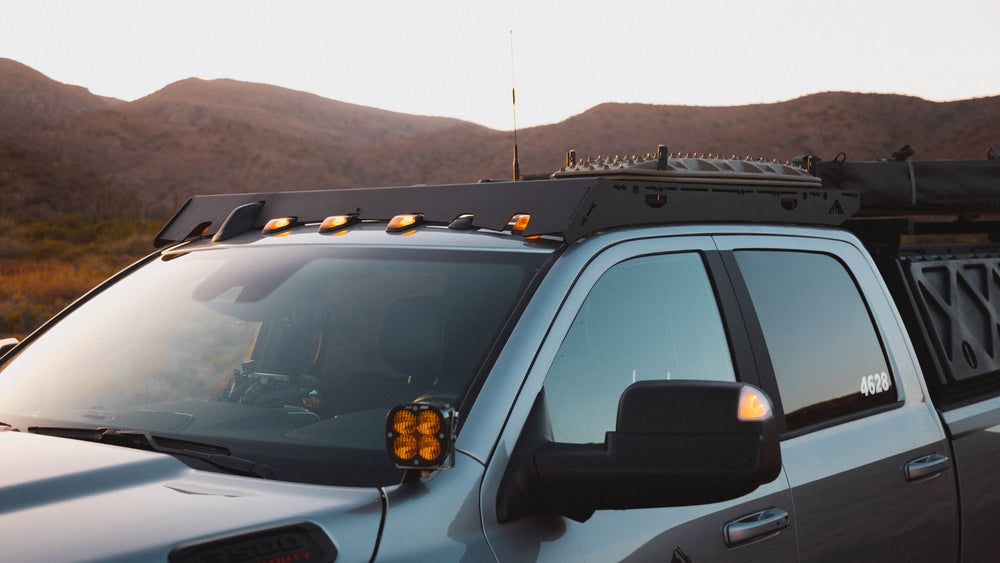

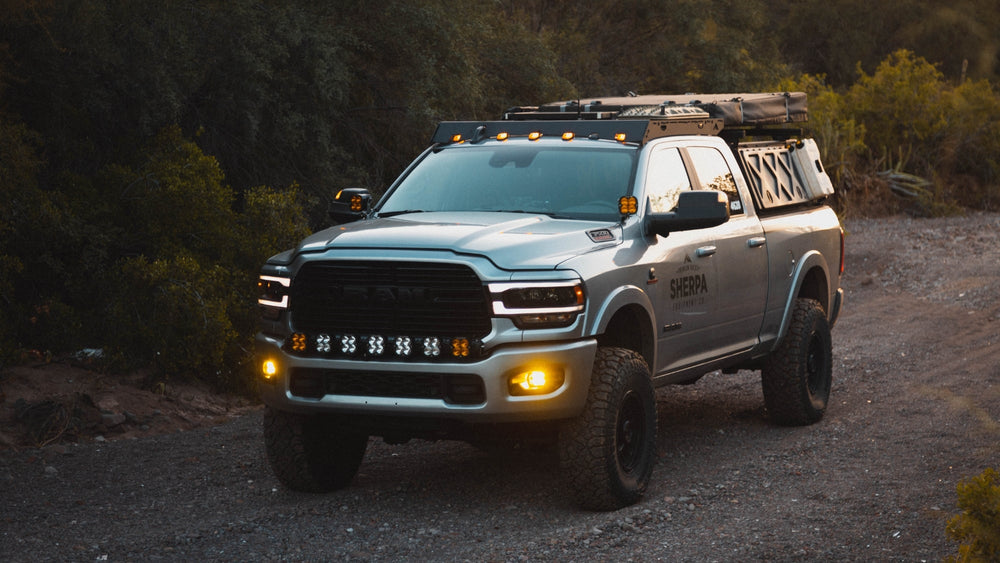

Sherpa's full height fairing is built for people who do not want to put a light bar on their rack. The half height fairing is made so you can fit a single row light bar while keeping everything flush. Both cost the same, so this is purely a build decision.
Specifications
| Vehicle | 2019-2026 RAM 2500 / 3500, Crew Cab and Mega Cab |
| Weight | ~55 lbs |
| Crossbars | 6 (Crew Cab) or 7 (Mega Cab) |
| Rack Dimensions | 64" x 55.5" x 2.5" (Crew Cab) or 74.5" x 55.5" x 2.5" (Mega Cab) |
| Dynamic Load Rating | 300 lbs |
| Static Load Rating | 700 lbs |
| Sideplate Material | 1/4" aircraft-grade aluminum |
| Mounting | 4 brackets with rubber seals, 8 x 3/16" drilled holes with rivets |
| Installation | Drilling and a rivet tool required. Professional installation recommended |
| XM Radio | Fairing may interfere with reception |
| Finish | Black textured powder coat |
| Crossbar Finish | Black anodized |
| Hardware | Black oxide stainless steel |
| Fairing Options | Full Height (no light bar) or Half Height (single row light bar) |
| Manufactured | Colorado, USA |
| SKU | 140744 |
| Warranty | Lifetime |
What's Included
Not included: the rivet tool required for installation.
📄 Installation Instructions
Download the Diablo install guide, including hole placement and rivet steps. Professional installation recommended.
Pros
- A RAM 2500 roof rack that adds full-width storage when the bed is taken by a fifth wheel, gooseneck, or a full load
- 700 lbs static and 300 lbs dynamic on a heavy duty cab
- Sized correctly as a RAM Mega Cab roof rack and a Crew Cab rack, rather than one compromise fit
- About 55 lbs, which leaves payload for the work the truck is actually doing
- 1/4" aircraft-grade aluminum sideplates, thicker than most competing racks
- Strap long loads like ladders and lumber straight to the side plates
- Choice of Full or Half Height fairing at the same price
- Made in Colorado with a Lifetime Warranty
Cons
- Requires drilling 8 holes in the cab roof and setting rivets. This is a permanent modification
- A rivet tool is required and is not included
- Professional installation recommended, which adds cost
- The fairing may interfere with XM satellite radio reception
- Fairing choice is made at purchase, so switching later means buying the other fairing separately
Frequently Asked Questions
Does it require drilling?
Yes. Installation requires drilling eight 3/16 inch holes in the cab roof and setting rivets, which means a rivet tool is needed and is not included. The RAM heavy duty cab does not have the factory hardpoints that allow a drill-free mount. Sherpa recommends professional installation, since hole placement and sealing determine whether the roof stays watertight. The install guide above covers every step.
Will it affect my XM radio?
It may. Sherpa notes that the fairing can interfere with XM satellite radio reception, since the antenna sits on the cab roof where the rack mounts. If satellite radio matters to you on long hauls, call us at 844-200-3979 before ordering and we will talk through it. We would rather flag it now than have you find out on the highway.
Crew Cab or Mega Cab, which do I need?
Whichever your truck has. The Crew Cab rack is 64 inches long with 6 crossbars, and the Mega Cab rack is 74.5 inches with 7. Width, height, and load rating are identical. The Mega Cab's longer roof gives you an extra crossbar and more usable platform. If you are not certain which cab you have, call us at 844-200-3979 with your year and trim.

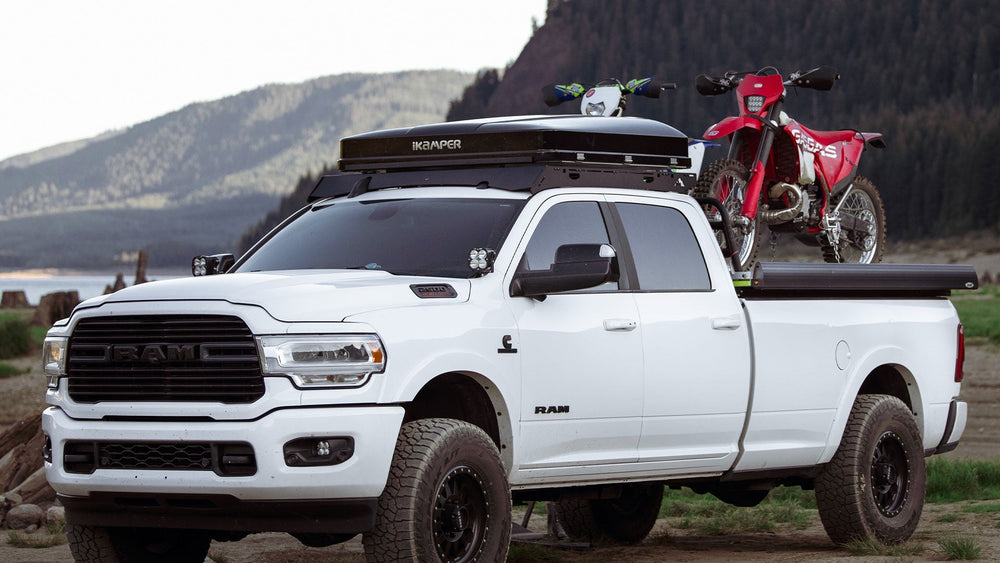

Can I mount a rooftop tent on it?
Yes. 300 lbs dynamic covers the tent plus accessories while driving, and 700 lbs static covers the tent plus occupants once parked. A cab rack is a common choice on heavy duty trucks where the bed is occupied by a fifth wheel or a load. Longer tents will overhang the cab, so check dimensions against the 64 or 74.5 inch platform. Browse our rooftop tent collection here.
Will it fit my RAM 3500?
Yes. This is a RAM 3500 roof rack as much as a 2500 one: the two share the same cab, so this works as a RAM 3500 roof rack exactly as it does on the 2500, in both Crew Cab and Mega Cab, across 2019 through 2026. Call us at 844-200-3979 with your year and cab style if you want confirmation before ordering.
Which fairing should I choose?
Choose Full Height if you are not running a light bar, since it deflects the most air for the quietest ride. Choose Half Height if you want a single-row light bar to sit flush with the fairing line. Both cost the same. If a light bar is anywhere in your plans, Half Height saves you buying a second fairing later.
