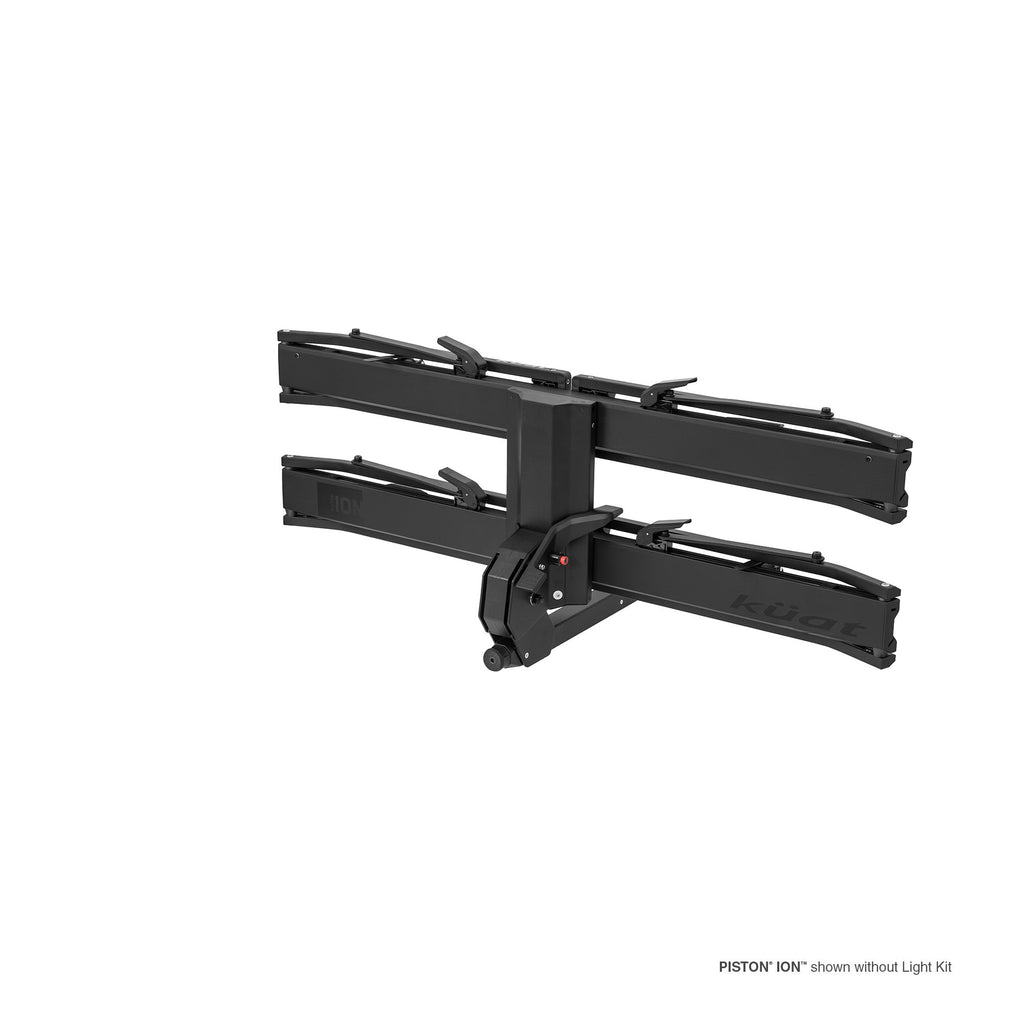

Kuat Piston ION e-bike hitch bike rack – front three-quarter view

Kuat Piston ION e-bike rack – rear view loaded

Kuat Piston ION – aluminium loading ramp in use

Kuat Piston ION – FastFit wheel chock system detail

Kuat Piston ION – PedalPivot foot pedal fold mechanism

Kuat Piston ION – Flatlock hitch cam system detail

Kuat Piston ION – integrated cable lock detail

Kuat Piston ION – tray and wheel stabiliser system

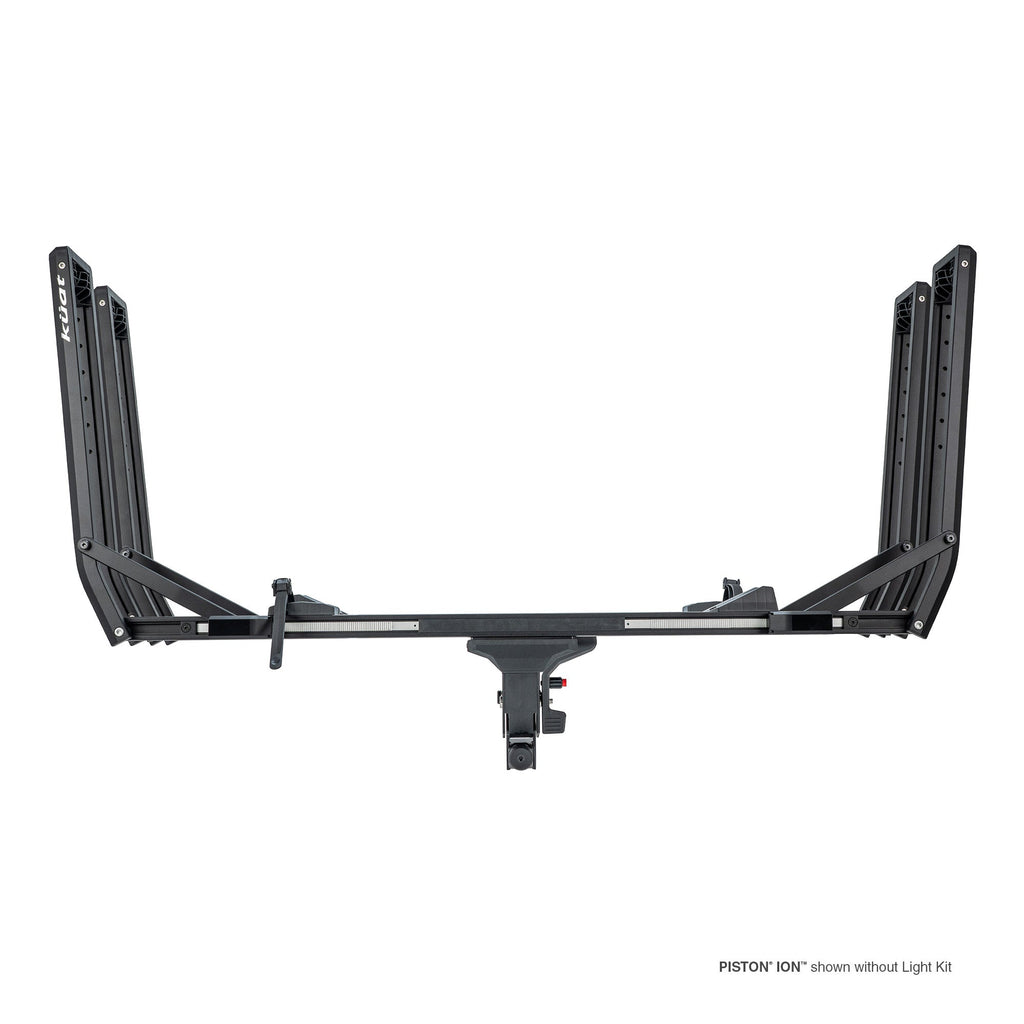

Kuat Piston ION – rack folded up on vehicle

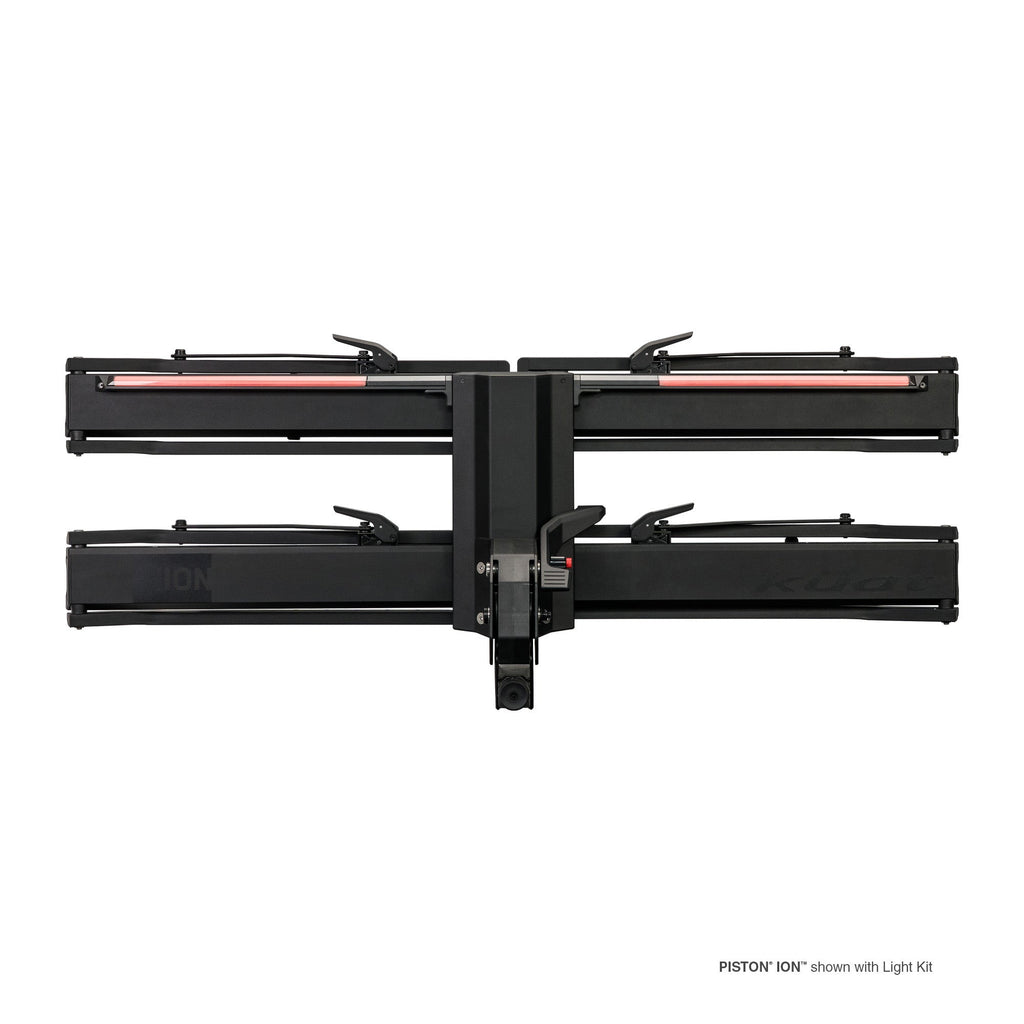

Kuat Piston ION with optional LED light kit installed

Kuat Piston ION LED light kit – lifestyle view

Kuat Piston ION with light kit and license plate mount installed

Kuat Piston ION light kit and license plate mount – lifestyle view

Kuat Piston ION – Premium E-Bike Hitch Bike Rack

SKU: ION22B

$1,289.00

Without Lights

With Lights

With Light Kit + License Plate Mount

Style

$1,289.00

Call Our Experts: (844) 200-3979

Easy Financing

60 Days Returns!

Safe & Secure Checkout

Call Our Experts: (844) 200-3979

Easy Financing

60 Days Returns!

Safe & Secure Checkout

Built for E-Bikes. Ready for Everything Else.

The Kuat Piston ION is a purpose-built e-bike rack that doesn't ask you to compromise. It carries two bikes at 100 lbs per tray, loads without a struggle thanks to the included aluminium ramp, and locks down to your 2" hitch with Kuat's patented Flatlock™ Hitch Cam — no tools, no wobble. It's also RV-rated and off-road approved, making it one of the most versatile hitch bike racks on the market.

Most hitch racks were designed for lightweight road bikes and retrofitted for e-bikes as an afterthought. The Piston ION was engineered the other way around — starting with the weight, wheel size, and tire width demands of modern cargo e-bikes and e-MTBs, then building everything else around that. The result is a rack that handles your heaviest ride and works just as well with your lightest one.

If you're researching electric bike racks and want to understand exactly what separates a genuine e-bike hitch rack from a standard hitch bike rack with a higher weight rating, this page covers it all — features, specs, variant options, and the honest pros and cons.

What Makes an E-Bike Rack Different From a Standard Hitch Rack?

Worth covering this before the features, because it's the question most buyers are really asking when they land on a product like this.

Weight capacity alone isn't the answer. A lot of standard hitch racks claim high weight limits but use wheel cradles, frame hooks, and tray designs that weren't built for the geometry of today's e-bikes — wide tires, long wheelbases, integrated batteries, step-through frames. Loading a 75-lb cargo e-bike onto a rack designed for a 20-lb road bike is a bad experience even if the weight number technically allows it.

A proper e-bike rack addresses three things standard racks don't: a loading solution for heavy bikes (the ION's aluminium ramp), a tray and stabiliser system designed around wide tires and long wheelbases (FastFit™ wheel chock, front and rear stabilisers), and no-frame-contact carrying so battery housings and irregular frames aren't under stress during transport. The Piston ION handles all three.

How the Kuat Piston ION Compares

Feature	Kuat Piston ION	Typical Hitch Bike Rack
Weight Capacity	100 lbs per tray (standard)	60–75 lbs per tray
Loading System	Aluminium ramp included	Lift-on only
Frame Contact	Zero — wheel-on cradle system	Often uses frame hooks or arms
Tire Width	Up to 4.8" (with Strap Extender)	Typically 3" max
Wheelbase	Up to 57"	Usually 48–50"
RV Rated	Yes (80 lbs/tray on chassis hitch)	Rarely
Off-Road Rated	Yes (50 lbs/tray)	Rarely
Fold-Up System	PedalPivot™ foot pedal with locking mechanism	Manual fold, varies
Hitch Security	Patented Flatlock™ cam + stainless barrel lock	Standard cam or bolt
Cable Lock	Semi-integrated 12mm high-strand	Usually sold separately

Key Features of the Kuat Piston ION

Included Aluminium E-Bike Loading Ramp

This is the feature that separates the ION from most competing electric bike racks. The lightweight all-aluminium ramp hooks directly onto the ION tire arm joints and telescopes to the right length for your terrain — whether you're loading in a car park, on gravel, or at a trailhead with uneven ground. When you're done, it stows in your boot or truck bed. No permanent attachment, no awkward storage. For anyone who's tried to muscle a 70-lb cargo e-bike onto a standard hitch rack, this is a game-changer.

100 lbs Per Tray — Genuine E-Bike Capacity

Each tray handles up to 100 lbs in standard use, 80 lbs per tray when mounted to a chassis-mounted RV hitch, and 50 lbs per tray for off-road use. Front and rear wheel stabilisers keep heavy bikes locked in position regardless of road conditions. If your bike is over 70 lbs, has a wheelbase over 53 inches, uses fenders, or you're on an RV or off-road — use the included rear tire strap for added security.

Zero Frame Contact

The ION uses a wheel-on tray system throughout. Your frame never touches the rack — which matters enormously for e-bikes with integrated batteries, carbon fibre frames, or step-through geometry that doesn't work with traditional frame-hooking designs. Every bike sits on its tyres, full stop.

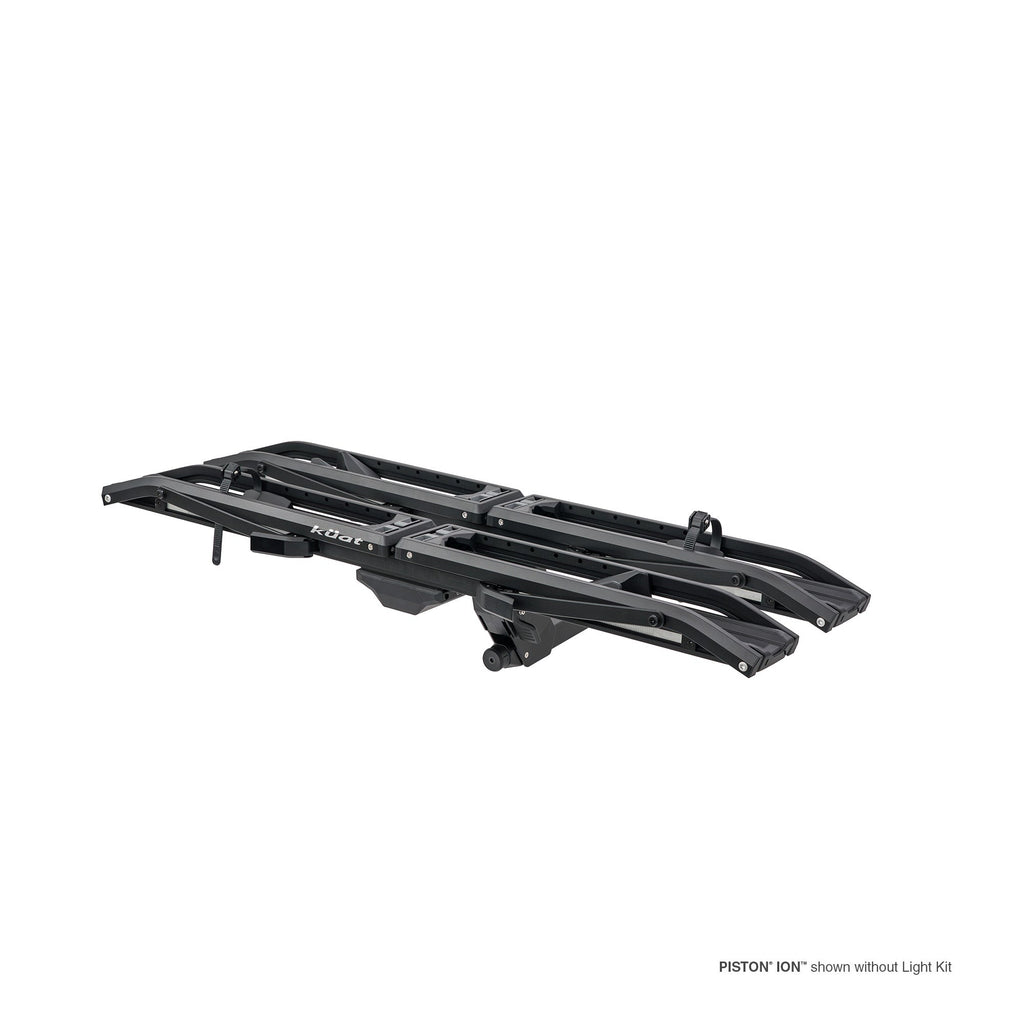

FastFit™ Wheel Chock System

Slide the wheel chock to the right position for your wheel size and it locks there. Works with wheels from 18" to 29" and tyres up to 4.8" wide with the optional Strap Extender Kit. Fender-compatible — adjust the chock position to clear fenders without compromising grip.

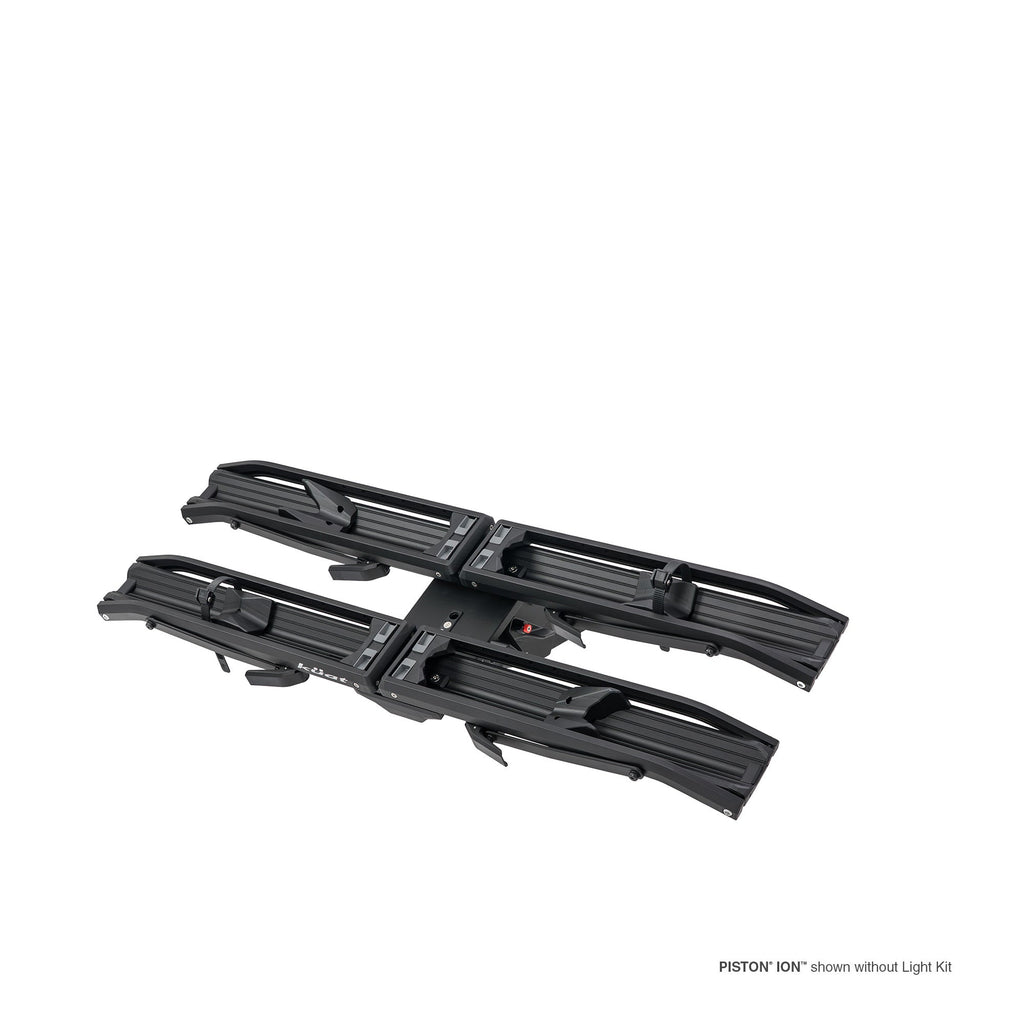

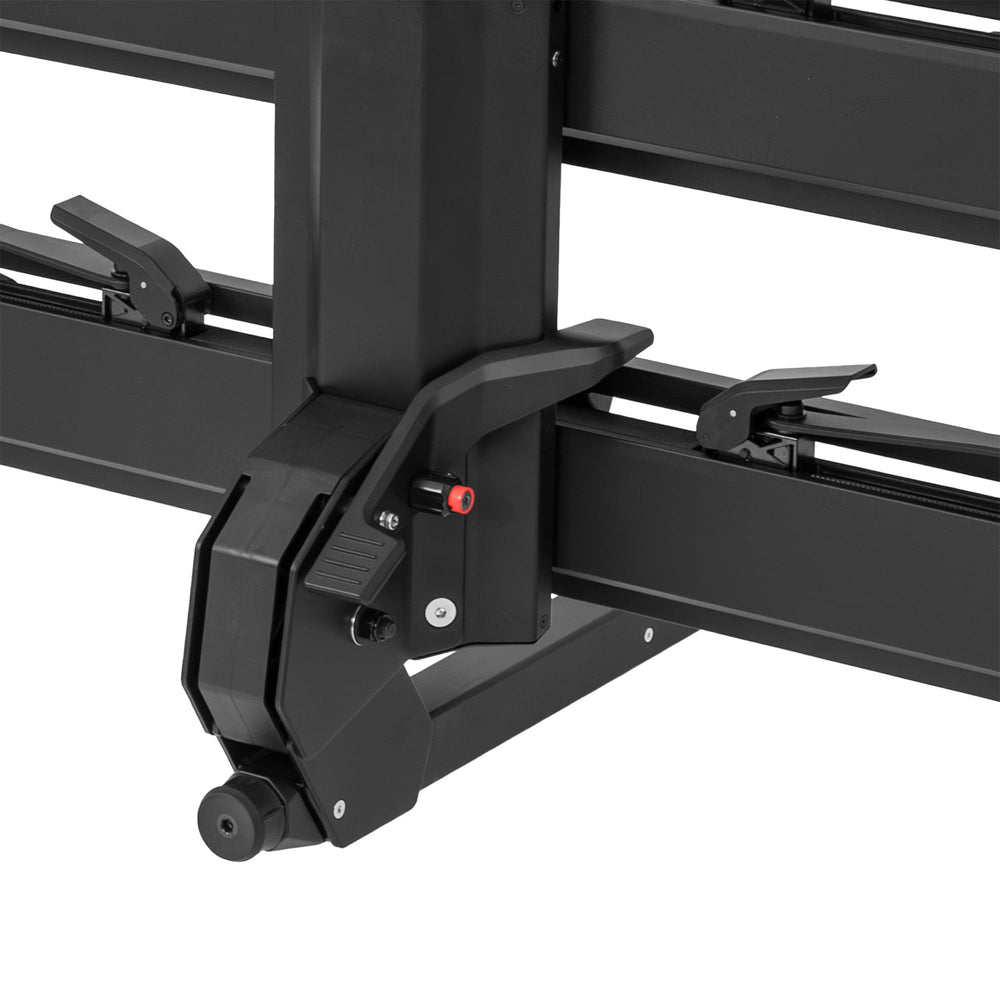

PedalPivot™ Foot Pedal with Locking Mechanism

Fold the rack up or down with your foot — no bending over, no reaching under a loaded rack. The new Foot Pedal Lock engages with a knob twist (red showing means disengaged — always check before loading). This is a safety mechanism; the lock must be fully engaged every time you use the rack.

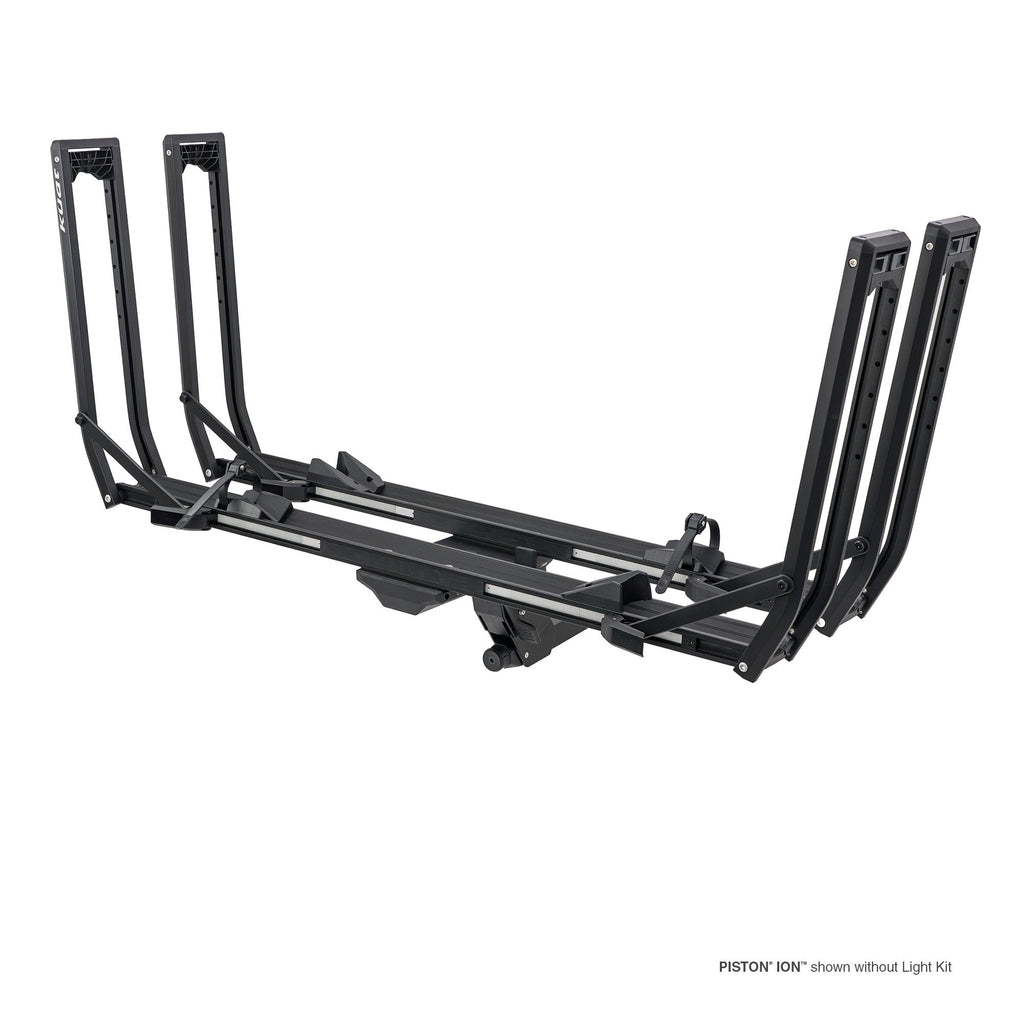

Patented Flatlock™ Hitch Cam System

Kuat's patented Flatlock cam system delivers a wobble-free fit in your 2" hitch receiver with hand-tightening only — no tools needed. Paired with a stainless steel barrel hitch lock included in the box, your rack is secured to the vehicle and your bikes are secured to the rack without needing to source separate hardware.

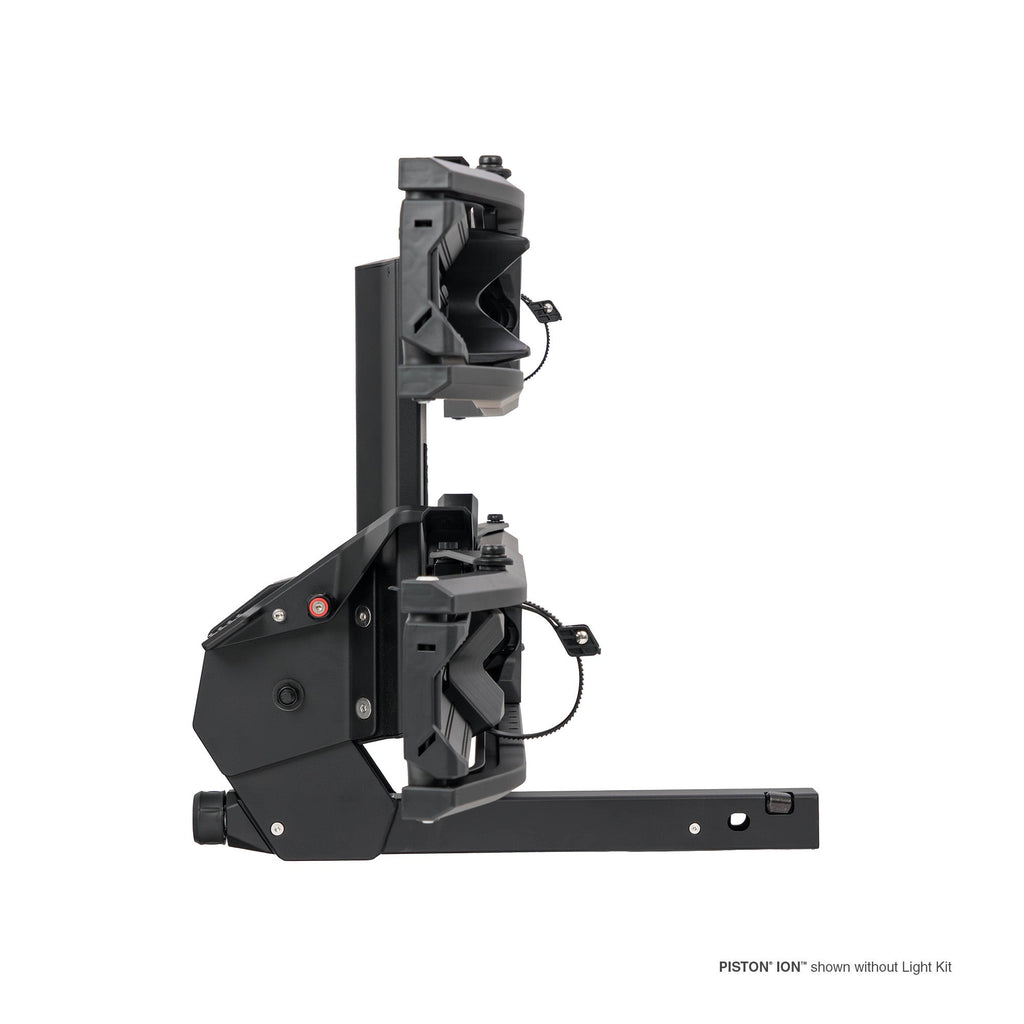

Semi-Integrated 12mm High-Strand Cable Lock

A proper cable lock built into the rack itself. Loop it through both bike frames and the rack — it's there when you need it, out of the way when you don't. 12mm high-strand construction provides meaningful theft deterrence rather than just the appearance of security.

RV Rated and Off-Road Approved

Most hitch bike racks void their warranty the moment you take them off-road or mount them to an RV hitch. The Piston ION is explicitly rated for both — 80 lbs per tray on a chassis-mounted RV hitch (not bumper-mounted), and 50 lbs per tray for off-road use. That opens up routes and rigs that other racks simply can't handle.

No-Fade Powder Coat and Premium Hardware

Finished in no-fade powder coat with stainless steel and automotive-grade hardware throughout. The ION is built to stay looking sharp through UV, trail dust, rain, and road salt — not just in the car park on day one.

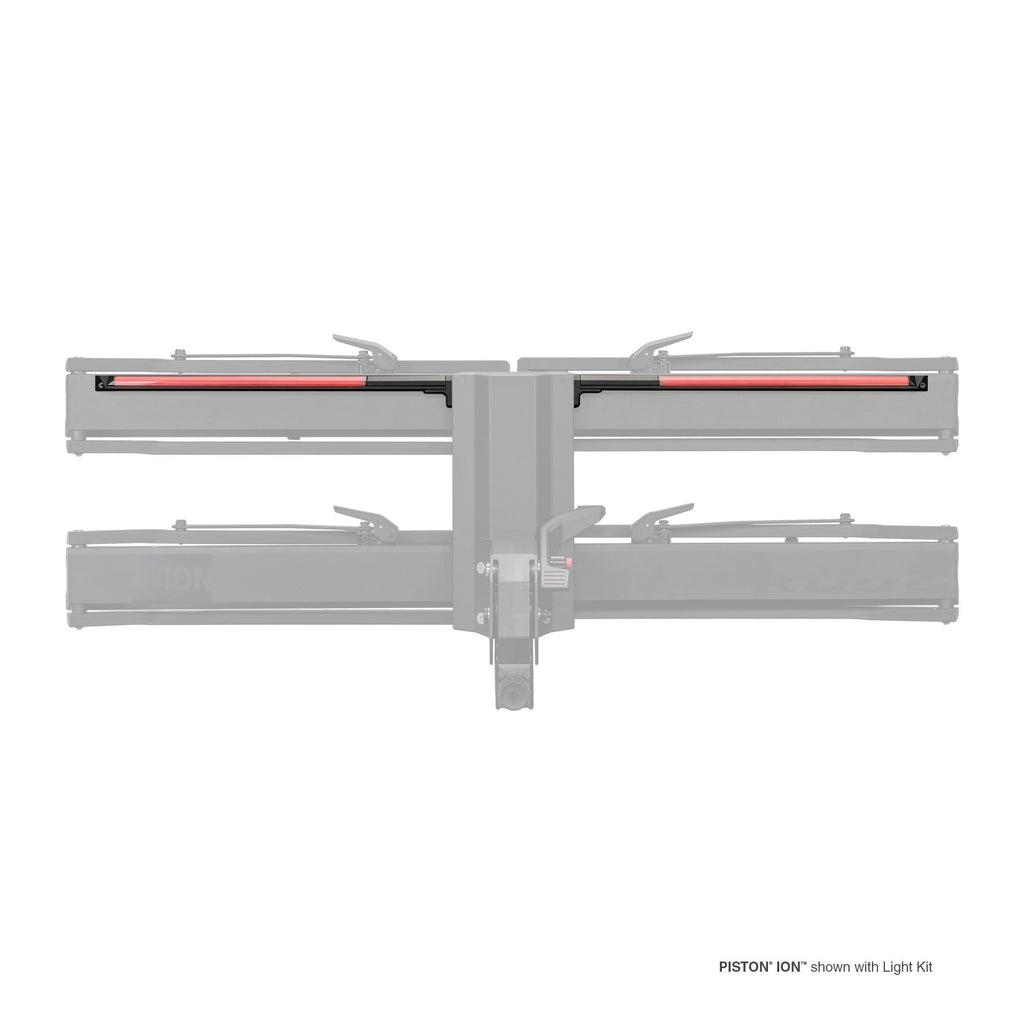

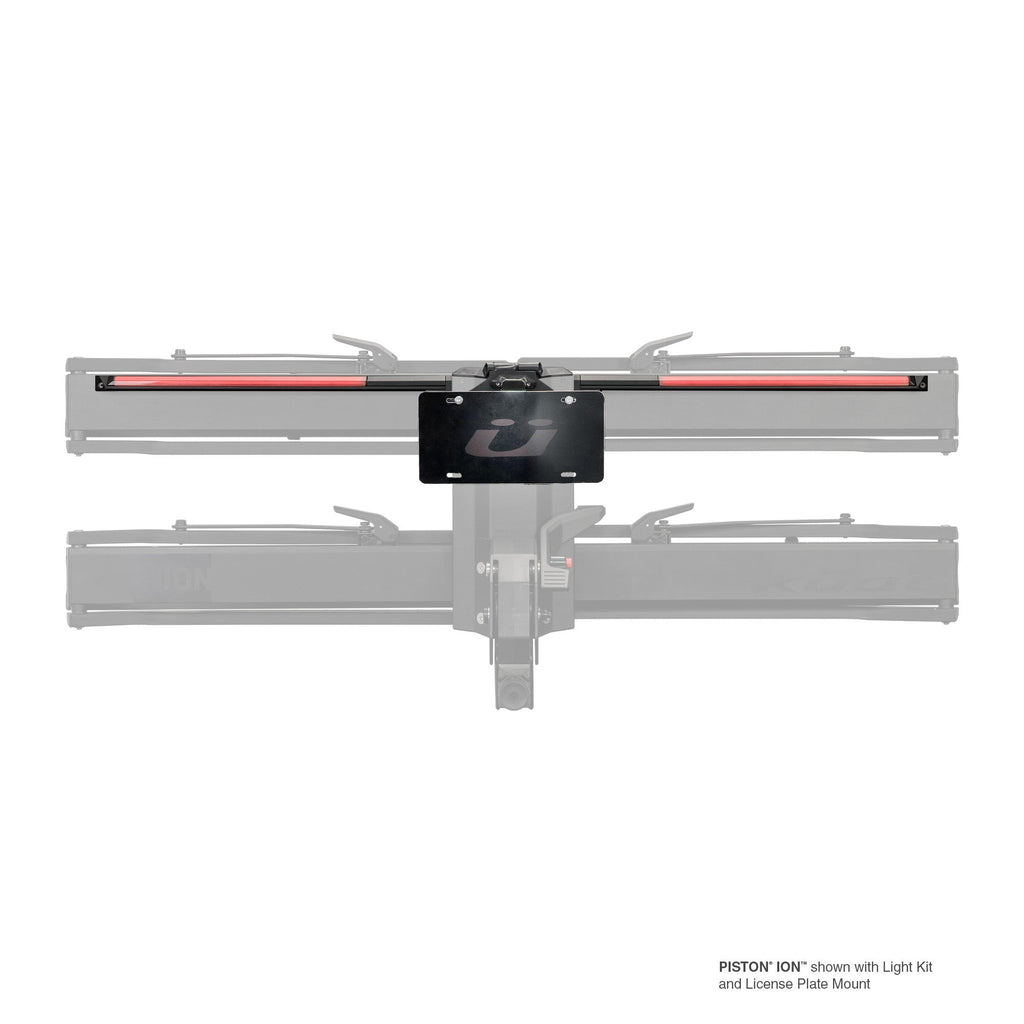

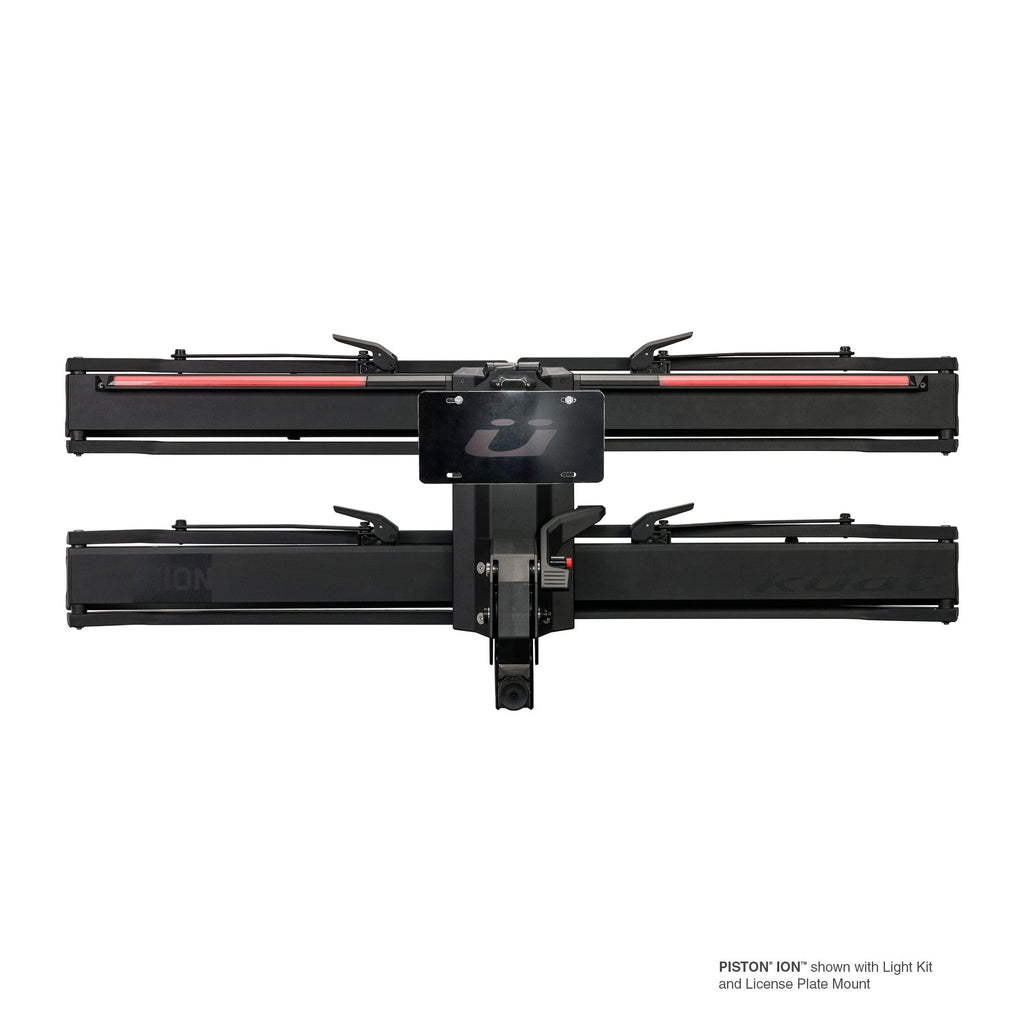

Optional Light Kit and License Plate Mount

The base rack (this listing) comes without lights. If you need rear visibility compliance or want to keep your license plate visible with bikes loaded, the Piston ION Light Kit ($149) and License Plate Mount ($49) are available separately — or as a bundle variant on this page.

Full Specifications

SKU	ION22B
Price (Without Lights)	$1,289.00
Bike Capacity	2 Bikes
Weight Capacity (Standard)	100 lbs per tray
Weight Capacity (RV — Chassis Hitch)	80 lbs per tray
Weight Capacity (Off-Road)	50 lbs per tray
Rack Weight	68 lbs
Hitch Size	2" Only
Wheelbase Range	Up to 57"
Wheel Size Range	18" – 29"
Max Tire Width	4.8" (with Strap Extender Kit)
Frame Contact	None — wheel-on tray system
Hitch Cam	Patented Flatlock™ — hand-tight, no tools
Fold Mechanism	PedalPivot™ foot pedal with Foot Pedal Lock
Cable Lock	Semi-integrated 12mm high-strand
Hitch Lock	Stainless steel barrel lock included
Ramp	Aluminium telescoping ramp included
RV Compatible	Yes (chassis-mounted 2" hitch only)
Off-Road Rated	Yes
Shipping Weight	92 lbs
Shipping Dimensions	62" × 14" × 7"
Warranty	No Worries Limited Warranty

What's in the Box

Kuat Piston ION Hitch Bike Rack (2-bike, 2" hitch)
Aluminium telescoping e-bike loading ramp
Semi-integrated 12mm high-strand cable lock
Stainless steel barrel hitch lock
Fender Strap Kit (2 straps included)
FastFit™ wheel chock system (pre-installed)
Rear tire strap kit (pre-installed on tray)

Pros & Cons

Pros

100 lbs per tray capacity is among the highest available on a 2-bike hitch rack — genuinely rated for cargo e-bikes, not just labelled for them
Included aluminium ramp makes loading heavy e-bikes solo a realistic proposition — something most competing electric bike racks don't address at all
RV-rated and off-road approved opens up use cases that void the warranty on most other hitch bike racks
Zero frame contact throughout means no risk to integrated batteries, carbon frames, or step-through geometry

Cons

At $1,289 (without lights) it's a premium investment — buyers wanting lights and a license plate mount are looking at $1,487 for the full kit variant
2" hitch only — no 1.25" adapter compatibility, so verify your vehicle's hitch class before ordering

Frequently Asked Questions

1. Can the Kuat Piston ION carry regular (non-electric) bikes?

Absolutely. The 100 lbs per tray capacity is a ceiling, not a requirement. The ION handles road bikes, gravel bikes, mountain bikes, and kids' bikes with wheel sizes down to 18" just as well as it handles e-bikes. It's purpose-built for heavy e-bikes but works with virtually any ride.

2. What's the difference between the three variants — without lights, with lights, and with lights + license plate mount?

All three are the same rack. The base variant (this listing, $1,289) has no lighting. The with-lights variant ($1,438) includes the Piston ION LED Light Kit for rear visibility. The top variant ($1,487) adds the License Plate Mount as well, keeping your plate visible when bikes are loaded. If you primarily drive at night or in areas where rear lighting is required by law, we'd recommend the lights variant at minimum.

3. Is the Piston ION compatible with my RV?

Yes — but only with a chassis-mounted 2" hitch receiver. Bumper-mounted hitches are not supported. Capacity drops to 80 lbs per tray on an RV hitch. Hitch extenders and adapters should not be used in RV applications. Check Kuat's RV & Off-Road Limitations page for full details, or call us and we'll confirm your setup.

4. How does the aluminium loading ramp work?

The ramp hooks onto the ION tire arm joints and telescopes to the length you need. Ride or wheel your e-bike up the ramp onto the tray, position the wheel in the chock, and strap it down. When you're done, the ramp detaches and stows in your boot or truck bed — it doesn't stay permanently on the rack. Kuat has a load/unload video linked in the resources section above if you want to see it in action before buying.

5. Does the Foot Pedal Lock have to be used every single time?

Yes — this is non-negotiable. The Foot Pedal Lock must be fully engaged (knob turned clockwise, no red showing) every time the rack is in use. It's a safety mechanism, and failure to engage it properly can void your No Worries Limited Warranty. It takes two seconds and becomes second nature after a couple of trips.

The Bottom Line

The Kuat Piston ION is the hitch bike rack we'd recommend to anyone running an e-bike who wants to actually enjoy the loading process rather than dread it. The ramp, the 100-lb capacity, the RV and off-road ratings, and the zero-frame-contact tray design make it a genuinely complete solution — not a standard rack with a higher weight sticker. Browse our full range of hitch racks and e-bike racks, or give us a call at (844) 200-3979 and we'll help you find the right fit for your vehicle and your bikes.
