Sherpa Sunlight Drill-Free Roof Rack for 2020-2026 Jeep Gladiator JT
Sherpa Sunlight Drill-Free Roof Rack for 2020-2026 Jeep Gladiator JT
Planning a Rooftop Tent? Read This First.
The Sunlight is rated 150 lbs dynamic and 300 lbs static, because it mounts to the hardtop gutters rather than the roll cage. That suits bikes, boards, cargo, and light gear. It is not the right rack for most rooftop tents. For a tent, look at the Sherpa JT QDHD at 500 lbs dynamic and 1,200 lbs static.

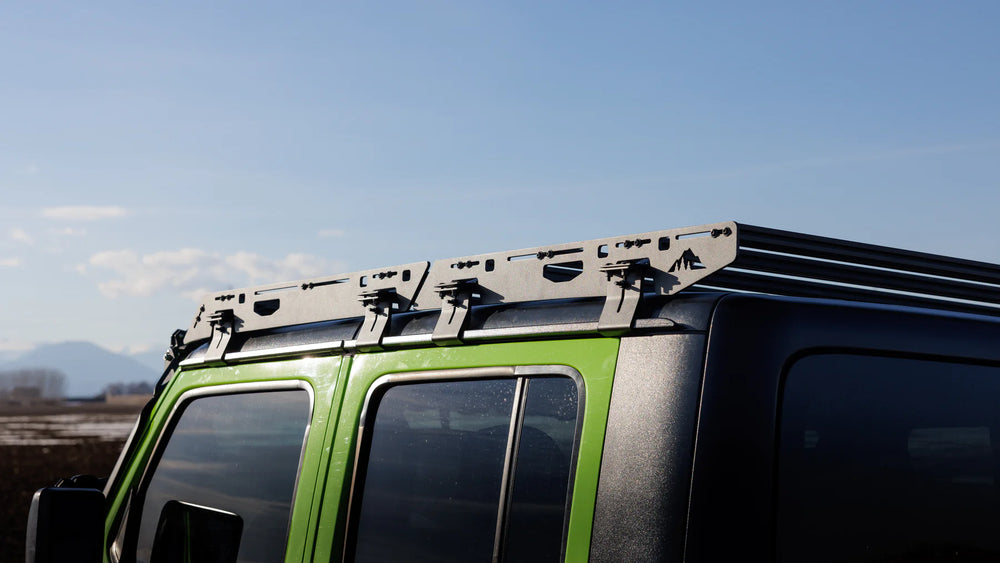

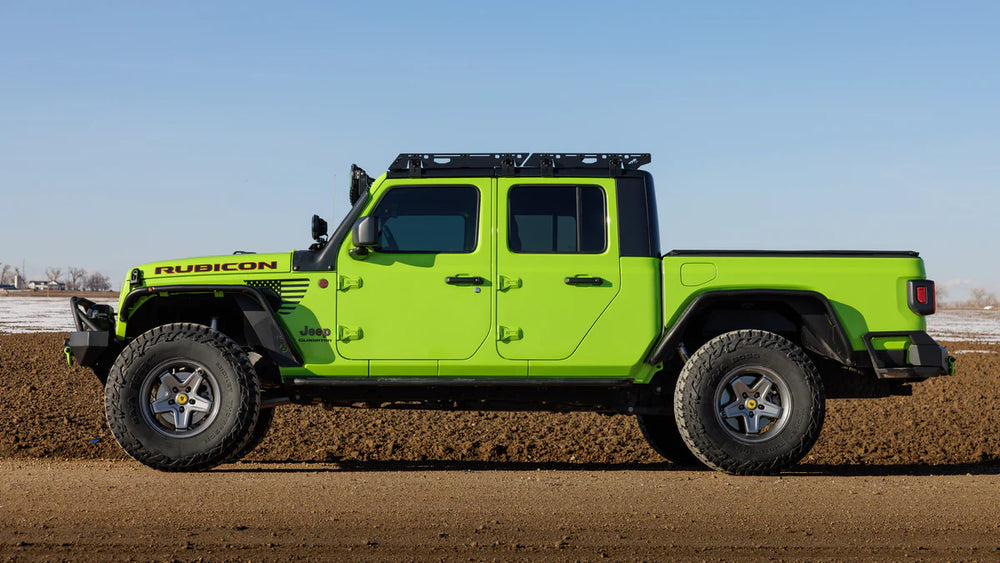

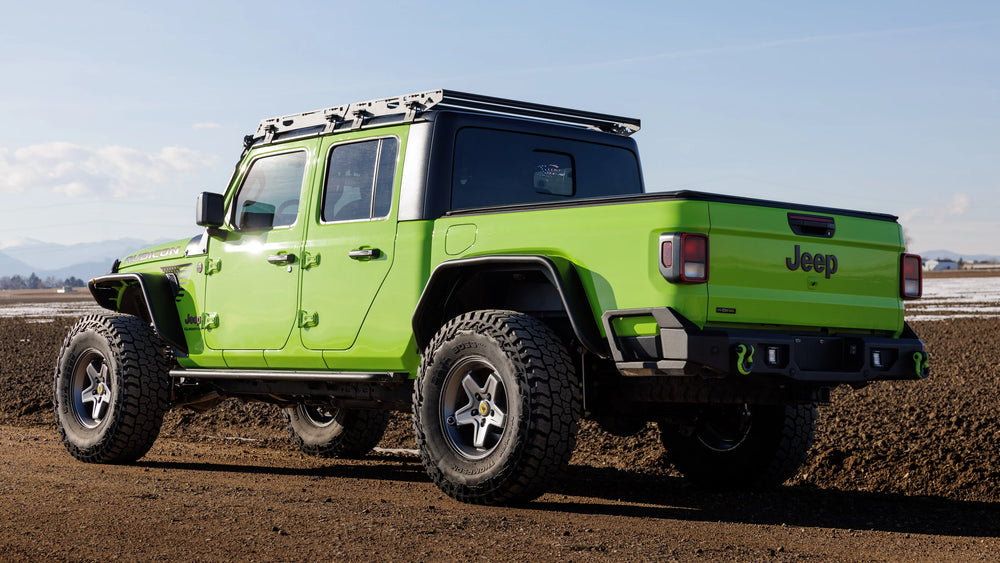

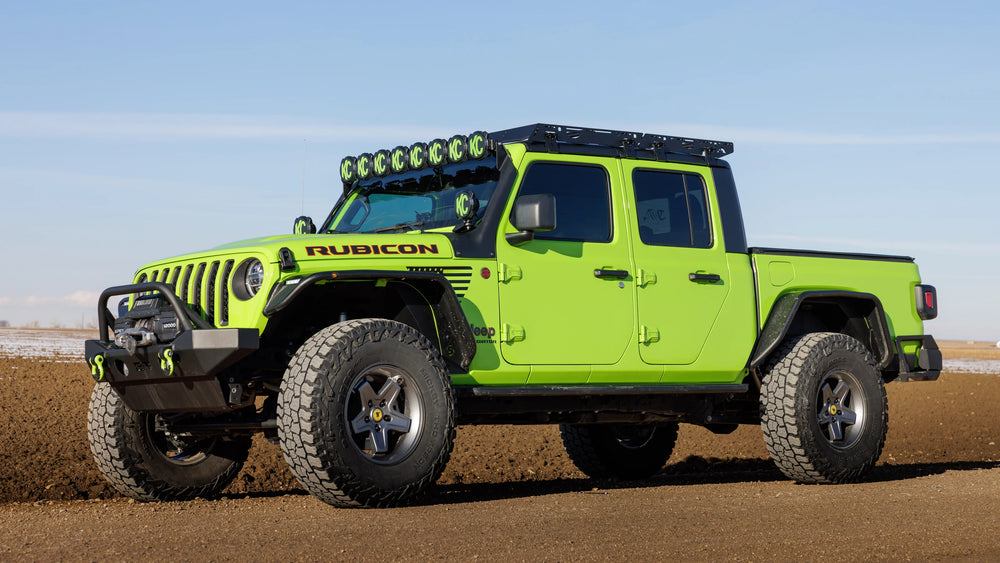

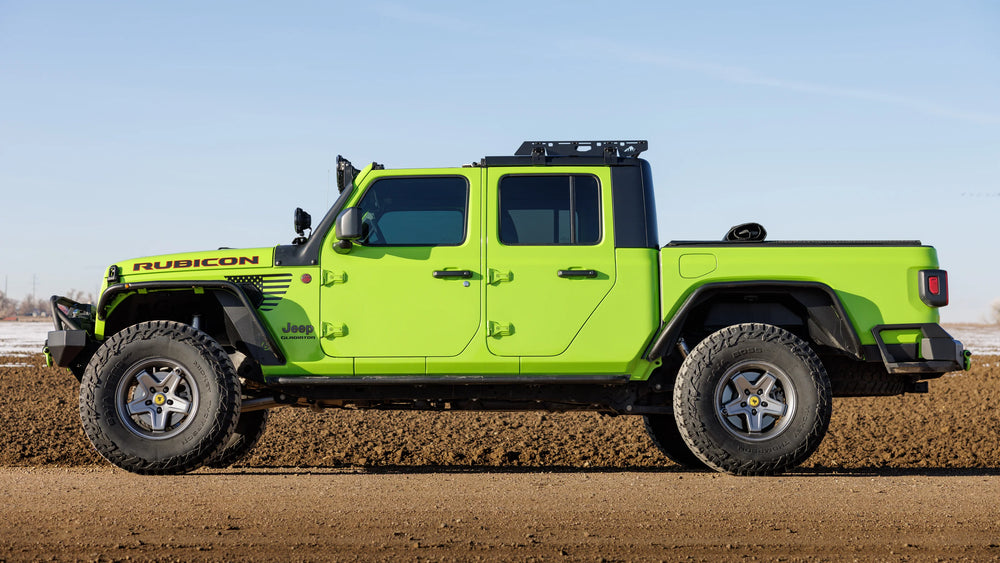

Not every Gladiator owner wants to drill through their hardtop. The Sunlight is the Sherpa PEAK Jeep Gladiator roof rack for 2020-2026 JT models that requires zero drilling and zero modification. It clamps to the hardtop gutters with eight 3/16 inch steel mounts, and it comes off leaving the top exactly as it was.
It spans 66 inches with 8 extrusion crossbars and is built in two separate sections, so you can pull the Freedom Top panels and keep a working rack on the rear of the top. Side panels are 1/4 inch aircraft-grade aluminum. At roughly 55 lbs and only 2 inches tall, it is light and low. Secure gear by bolting into the crossbars or strapping directly to the side plates. Black textured powder coat, black anodized crossbars, black oxide stainless hardware. Choose a Full Height wind fairing or a Half Height fairing sized for a single-row light bar. Manufactured in Colorado. Lifetime Warranty.
Sunlight or QDHD? The Real Decision
Sherpa makes two Gladiator roof rack options, and they answer different questions. The Sunlight asks nothing of your hardtop. The QDHD bolts through it into the roll cage. That single difference sets everything else.
| Sunlight | JT QDHD | |
|---|---|---|
| Mounting | Hardtop gutters | Through hardtop into roll cage |
| Drilling | None | Required |
| Dynamic Rating | 150 lbs | 500 lbs |
| Static Rating | 300 lbs | 1,200 lbs |
| Weight | ~55 lbs | 72 lbs |
| Freedom panels out | Yes, two-section design | Yes |
| Top off entirely | No, rack rides on the top | Yes, rack stays on the cage |
| Best For | Bikes, boards, cargo, no modification | Rooftop tents, heavy loads |
Choose the Sunlight if you want a JT roof rack that leaves the hardtop untouched, you are carrying bikes, boards, a cargo box, or light recovery gear, and weight on the roof matters to you.
Choose the JT QDHD if you plan to run a rooftop tent, carry heavy loads, or want to take the whole hardtop off while keeping the rack mounted.
Why the Load Rating Is Lower
Load rating is set by what the rack attaches to, not by the rack itself. The Sunlight's side plates are the same 1/4 inch aluminum as every PEAK rack. What limits it is the mounting point: the gutters on a Jeep hardtop are a composite panel, not a structural steel roll cage.
That is the trade Sherpa made deliberately. Clamping to the gutters is what makes the Sunlight drill-free and removable without a trace. Bolting to the cage is what gives the QDHD its 1,200 lb static figure. Neither approach gets you both, and it is worth choosing with that in mind rather than discovering it after the rack is on.
Two Sections for Freedom Top Driving
The Sunlight is built as two separate sections. Pull the front section with the Freedom Top panels and the rear section stays in place on the back of the hardtop, still carrying gear. Open-air front seats, loaded rack behind them.
What it does not do is let you remove the entire hardtop with the rack still mounted, since the rack rides on the top itself. If full topless driving with a loaded rack matters to you, that is exactly what the QDHD's roll cage mount is for.
Cab Rack, Bed Free
Most Jeep Gladiator accessories work around one advantage the truck has over a Wrangler: you still have a bed. The Sunlight covers the cab, which leaves the bed entirely open for a bed rack, a tonneau, a camper, or just cargo.
That is a useful split on a truck where the 150 lb dynamic limit means a tent is off the table up top. Put the tent over the bed on a bed rack, and use the cab rack for an awning, boards, lighting, and the gear you want out of the bed. Among Jeep Gladiator accessories, that cab and bed combination is one of the most practical ways to build the truck out.
The PEAK Series
Industry leading premium roof rack systems. The PEAK series is the go-to for a premium aluminum roof rack. It is the line that Sherpa built its name on, and the Sunlight brings it to the Gladiator. Sherpa believes in the constant evolution of their products, building the toughest systems on the market. From industry-leading alloys to uncompromising mounts, you will always Adventure with Confidence.
Crafted
Manufactured in Colorado with precision laser-cut 1/4" aluminum sideplates formed with CNC accuracy by Sherpa's team of professionals. They have created a very stout mounting structure, secured with stainless steel hardware, that will keep your gear where you need it. The gutter mounts are 3/16 inch steel, since that is the interface taking the clamping load.
Adaptable
Sherpa knows the importance of mounting all of your goodies on your rig. With the PEAK Series, you have the ability to mount just about anything, anywhere. With slots and holes all over the rack, plus Sherpa's line of accessories, you will never find yourself wishing you could mount something. Eight 56 inch crossbars span the full width of the Gladiator top.
Durable
Strength is built into Sherpa's brand and the PEAK System is what they built their name on. Using the best in materials and hardware, you can beat on this system every weekend and trust it to show up to work on Monday. Load it within its rating and it will outlast the Jeep. All backed by Sherpa's Lifetime Warranty.
Which Fairing Is Right for You?

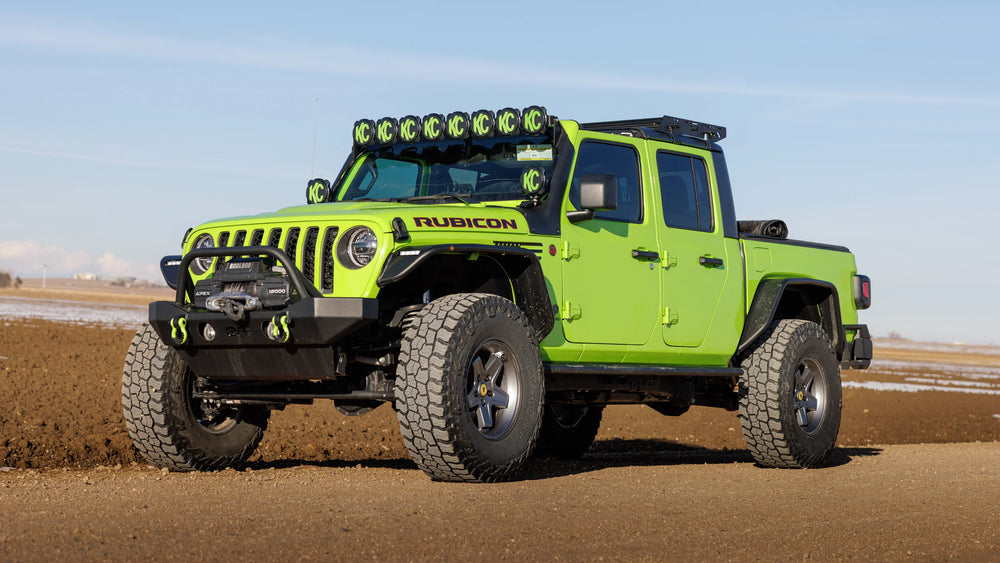

Sherpa's full height fairing is built for people who do not want to put a light bar on their rack. The half height fairing is made so you can fit a single row light bar while keeping everything flush. Both cost the same, so this is purely a build decision.
Specifications
| Vehicle | 2020-2026 Jeep Gladiator JT with hardtop |
| Weight | ~55 lbs |
| Crossbars | 8 x 56" |
| Rack Dimensions | 66" x 56.5" x 2" |
| Dynamic Load Rating | 150 lbs |
| Static Load Rating | 300 lbs |
| Sideplate Material | 1/4" aircraft-grade aluminum |
| Mounting | 8 x 3/16" steel gutter mounts on the hardtop |
| Design | Two separate sections for Freedom Top removal |
| Finish | Black textured powder coat |
| Crossbar Finish | Black anodized |
| Hardware | Black oxide stainless steel |
| Installation | Drill-free. Zero vehicle modification |
| Fairing Options | Full Height (no light bar) or Half Height (single row light bar) |
| Manufactured | Colorado, USA |
| SKU | 132744 |
| Warranty | Lifetime |
What's Included
📄 Installation Instructions
Download the Sunlight install guide. No drilling required, and all hardware is included.
Pros
- The only Sherpa Gladiator roof rack that is completely drill-free. Your hardtop stays exactly as it came
- Two-section design lets you pull the Freedom Top panels and keep the rear rack loaded
- Only 2 inches tall, so it adds very little height
- Eight 3/16" steel gutter mounts spread the load along both gutters
- 1/4" aircraft-grade aluminum sideplates
- Leaves the bed completely free for a bed rack or camper
- Choice of Full or Half Height fairing at the same price
- Made in Colorado with a Lifetime Warranty
Cons
- 150 lbs dynamic and 300 lbs static. Not suitable for most rooftop tents
- The rack rides on the hardtop, so you cannot remove the whole top with the rack mounted
- Requires a hardtop with intact gutters. Soft top Gladiators are not compatible
- Fairing choice is made at purchase, so switching later means buying the other fairing separately
Frequently Asked Questions
Can I put a rooftop tent on the Sunlight?
For most tents, no. The Sunlight is rated 150 lbs dynamic, and the majority of rooftop tents weigh more than that on their own before any other gear. It is built for bikes, boards, cargo boxes, and light recovery gear. On a Gladiator you have a better option anyway: put the tent on a bed rack over the bed, and use the Sunlight for everything else. For a tent on the cab, the Sherpa JT QDHD is the right rack.
Does it really need no drilling?
Correct. Eight 3/16 inch steel gutter mounts clamp to the hardtop gutters. Nothing is drilled, cut, or modified, and when the rack comes off the top is exactly as it was. That is the main reason to choose the Sunlight over the QDHD, which bolts through the hardtop into the roll cage.
Can I still take the Freedom panels off?
Yes. The rack is built as two separate sections, so you remove the front section with the Freedom Top panels and the rear section stays mounted and loaded. What you cannot do is remove the entire hardtop with the rack still on it, since the rack rides on the top. If that matters to you, the QDHD mounts to the roll cage and stays put with the top off.
Why is the load rating so much lower than the QDHD?
Because of what it attaches to. Both racks use 1/4 inch aluminum side plates. The Sunlight clamps to the hardtop gutters, which are part of a composite panel. The QDHD bolts into the steel roll cage. The mounting point sets the rating, and the cage can simply carry far more. It is the direct trade-off for being drill-free.
Does it work with a bed rack?

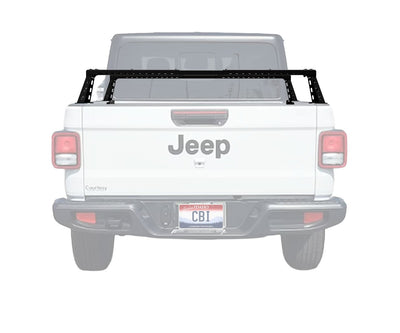

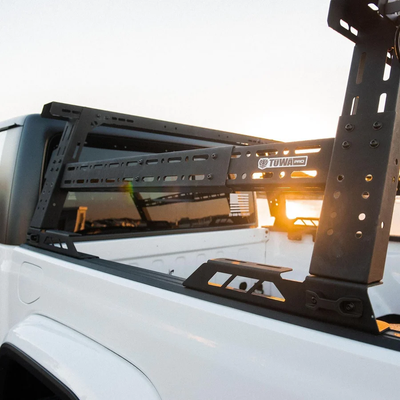

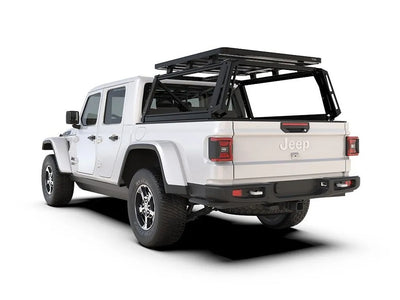

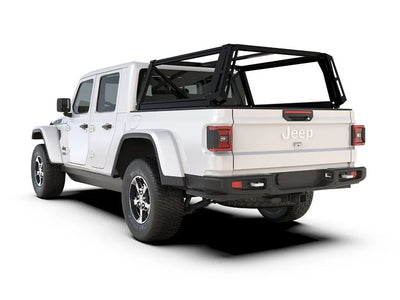

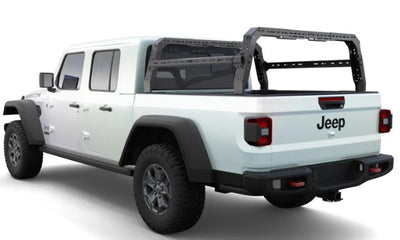

Yes, and that is a smart way to build a Gladiator. The Sunlight covers the cab and leaves the bed entirely free, so a bed rack handles the heavy items like a rooftop tent while the cab rack carries an awning, boards, lighting, and anything you want out of the bed. Browse our bed racks here, or call us at 844-200-3979 and we will help you plan the combination.
Will it fit a soft top Gladiator?
No. This Jeep Gladiator roof rack needs a hardtop with gutters for the mounts to clamp to, so soft top Gladiators are not compatible. It fits 2020 through 2026 JT models with a hardtop. If you run a soft top, call us at 844-200-3979 and we will point you toward an option that works.
