Sherpa JLU QDHD Full Rack for 2018-2026 Jeep Wrangler
Sherpa JLU QDHD Full Rack for 2018-2026 Jeep Wrangler
This is the full-length Jeep Wrangler roof rack that does not make you choose between a rack and open-air driving. The JLU QDHD mounts through the factory hard top directly into the roll cage, which is why it carries 500 lbs dynamic and 1,200 lbs static, numbers no rain-gutter or track-mounted rack gets close to.
As a JLU roof rack it spans the full roof: 1/4 inch aluminum side plates with stainless steel hardware, 93 inches long, with 11 adjustable crossbars. The modular two-piece design lets you pull the front section and run with no freedom panels, and billet quick release knobs let you detach the entire rack without tools in minutes. Take the top off, put the rack and your gear back on, and be driving again in under 10 minutes. Finished in black textured powder coat with black anodized crossbars and black oxide stainless hardware. Drilling is required and all mounting hardware is included. Compatible with the 2024+ Rollbar Airbag System. Lifetime Warranty.
Roll Cage Mounted, Not Gutter Mounted
This is where the load rating comes from. Most jeep roof rack systems clamp to rain gutters, factory tracks, or the hard top itself, and their ratings reflect that: typically 300 lbs dynamic and 600 to 700 static. The QDHD passes through the hard top and bolts into the roll cage, so loads go into the vehicle's structural cage rather than into sheet metal or plastic.
The result is 500 lbs dynamic and 1,200 lbs static, which is why this JL roof rack outperforms the clamp-on alternatives by roughly double. That static figure is what matters if you sleep up there: it covers a rooftop tent plus two or three occupants plus gear, with real margin. It also means kayaks, a full recovery load, or a rooftop tent alongside traction boards and fuel cans is not a calculation you have to sweat.
The tradeoff is honest and worth stating plainly: drilling is required. You are making a permanent change to the hard top. That is the price of a structural mount, and all the mounting hardware is included.
The QDHD Series
Industry leading premium roof rack systems. The QDHD line is all about rugged versatility without the hassle. With quick-detach mounts, you can pull the entire rack off in minutes, no special tools and no drama. Want to take off the top and enjoy open-air driving? No problem. The QDHD system lets you take off your Jeep's roof and get the rack and your gear back on in under 10 minutes, so you are never stuck choosing between utility and freedom. Wherever the trail takes you, Adventure with Confidence.

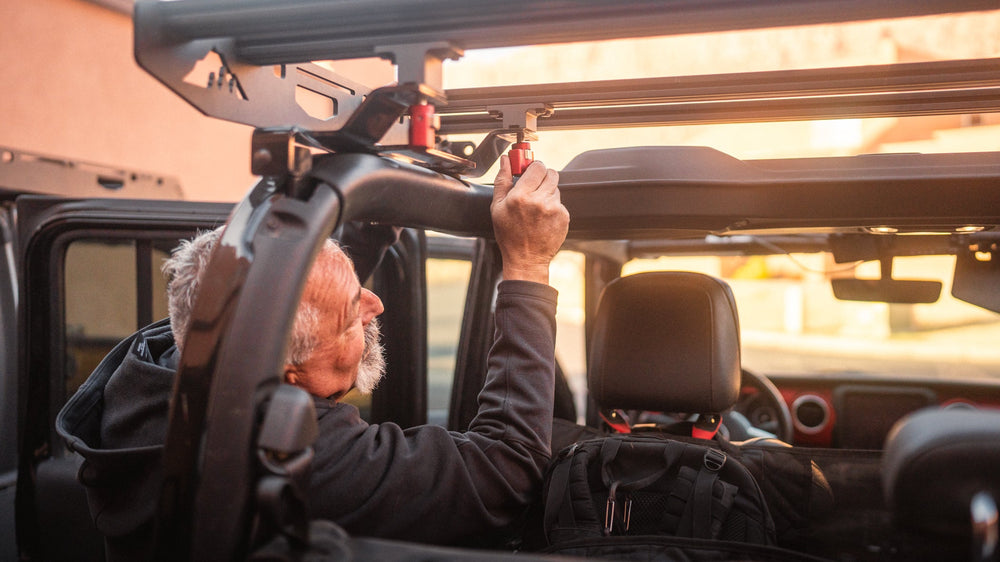

Quick Detach
Six billet quick-release knobs hold the rack to the arch brackets. Spin them off and the entire rack lifts away, no special tools and no drama. That is what makes this a genuine quick release roof rack rather than a rack you technically could remove if you set aside an afternoon. Pull the top for open-air driving, get the rack and your gear back on, and be moving again in under 10 minutes.
Adaptable
Eleven adjustable crossbars across a 93 inch platform is a lot of mounting positions, and they slide to whatever spacing your gear needs rather than sitting at fixed points. Rooftop tents, awnings, kayaks, bikes, surfboards, traction boards, fuel and water cans, light bars, cargo boxes, ladders. With 1,200 lbs of static capacity behind it, the limiting factor is usually your imagination rather than the rack.

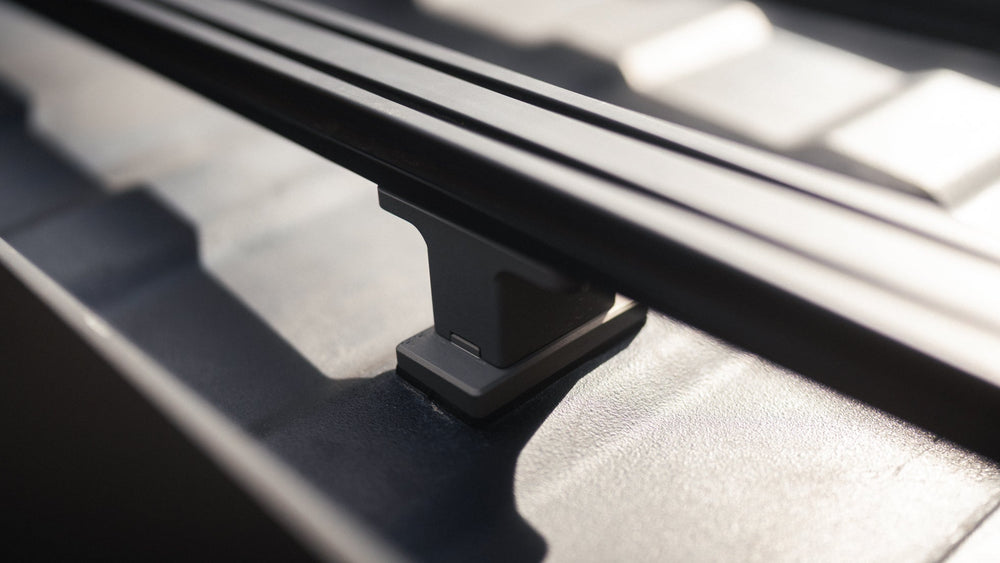

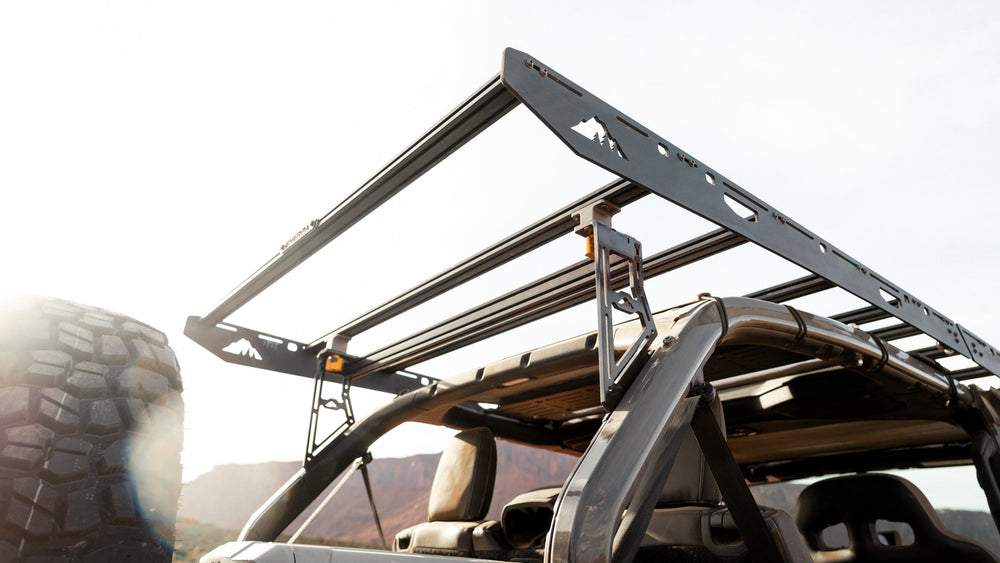

Heavy Duty
Mounting through the hard top into the roll cage is what separates HD from everything else. Six mounting brackets, six arch brackets, and six sets of sandwich plates spread the load across the cage structure rather than concentrating it. That is how a 100 lb aluminum rack ends up rated for 1,200 lbs static. Beat on it every weekend and trust it to show up to work on Monday.

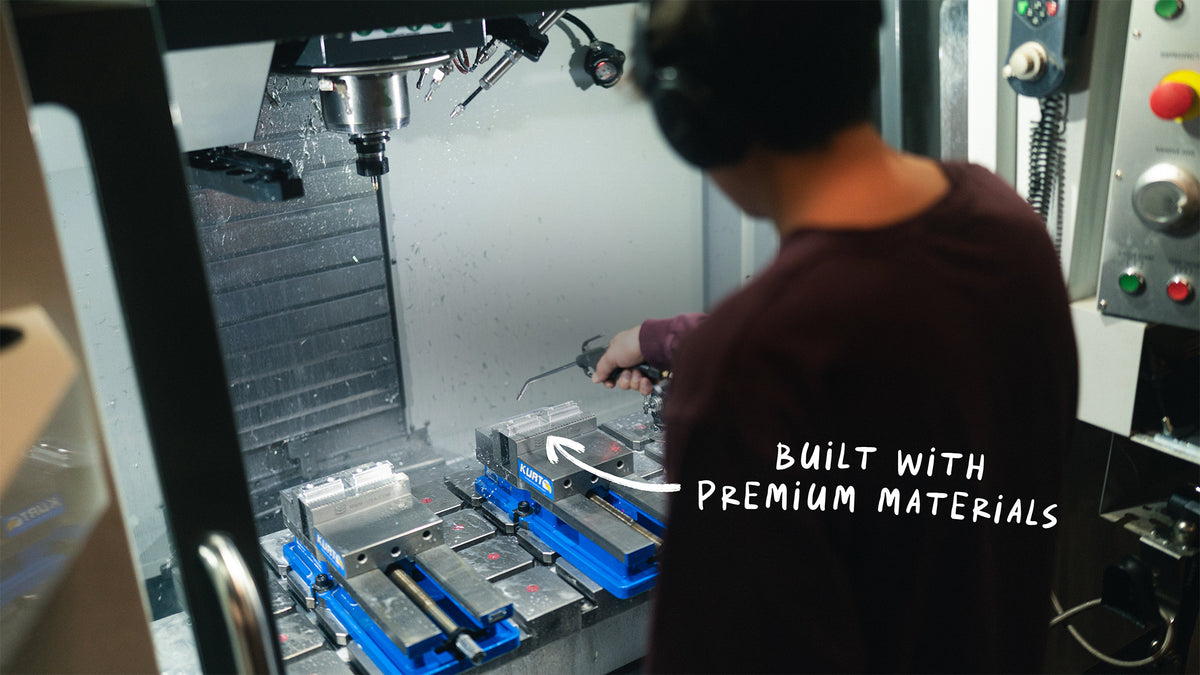

Crafted
Precision 1/4 inch aluminum side plates finished with stainless steel hardware, in black textured powder coat with black anodized crossbars and black oxide stainless fasteners. Quarter-inch aluminum is thicker than most competing racks use, which is where the strength comes from without the weight penalty of steel. Made in the USA and backed by Sherpa's Lifetime Warranty.
Go Topless
The QDHD line is built for your lifestyle, whether you are running your Jeep with the hardtop on or off. The rack mounts directly to the roll cage. Take your factory top off for open-air cruising or keep it on when the weather is not prime. With tool-less quick-detach hardware, switching configurations takes minutes, not hours.

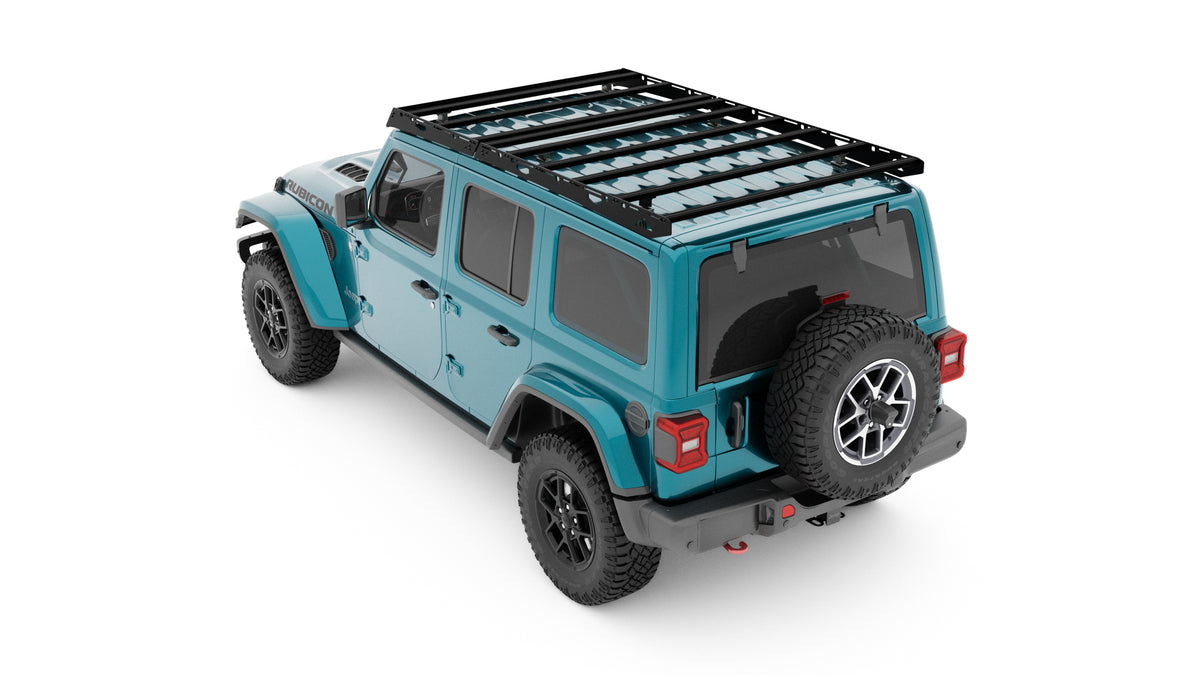

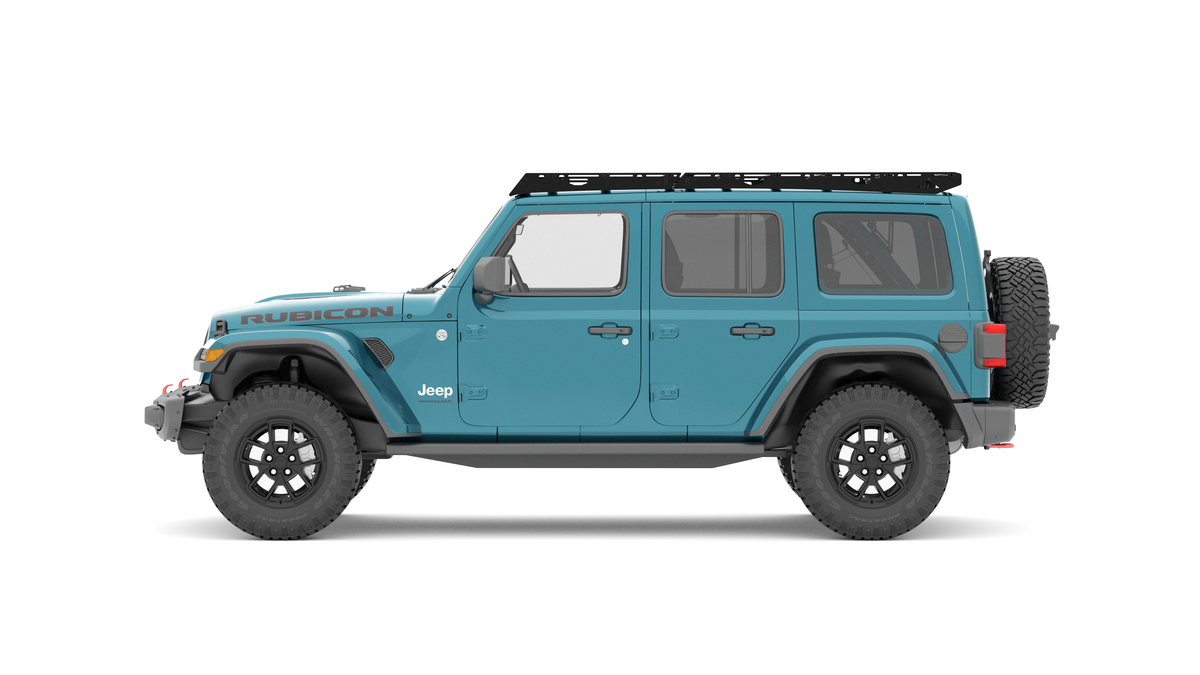

Top On. Rack On.
Full weather protection with the factory hard top in place, rack loaded and ready.

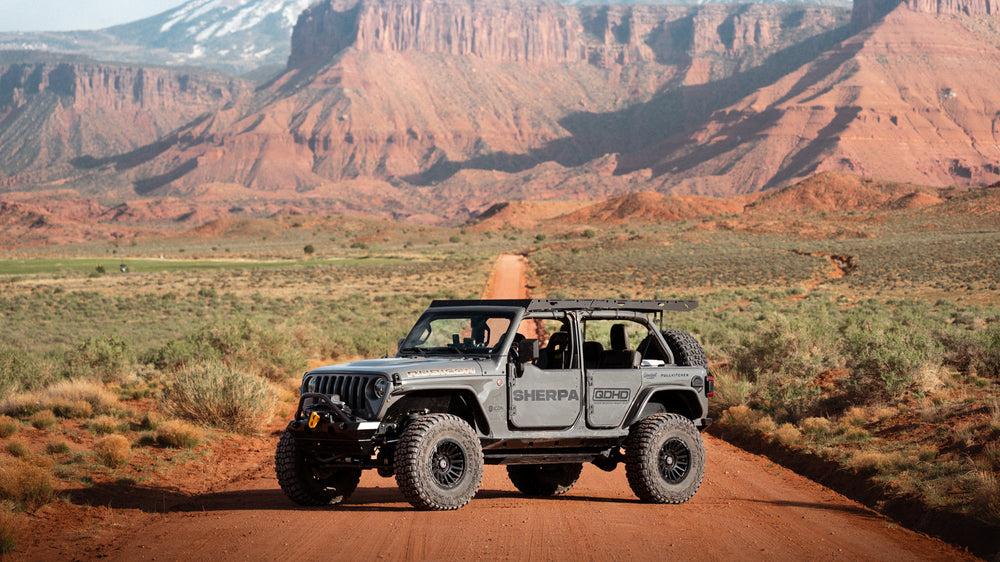

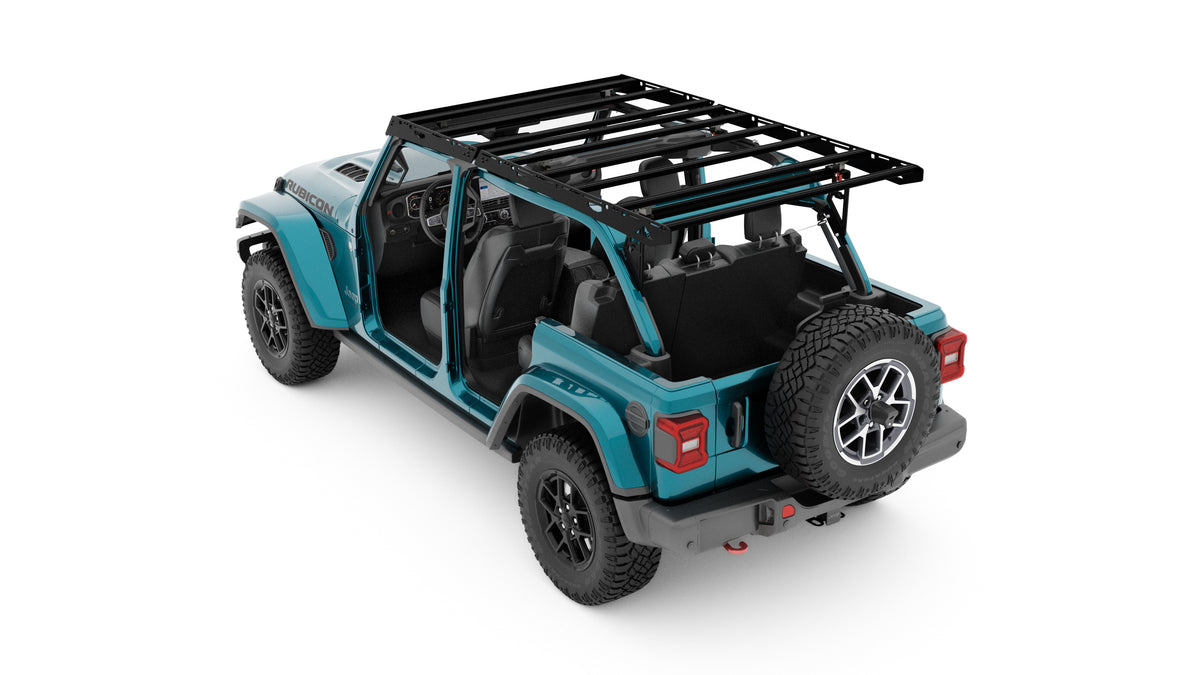

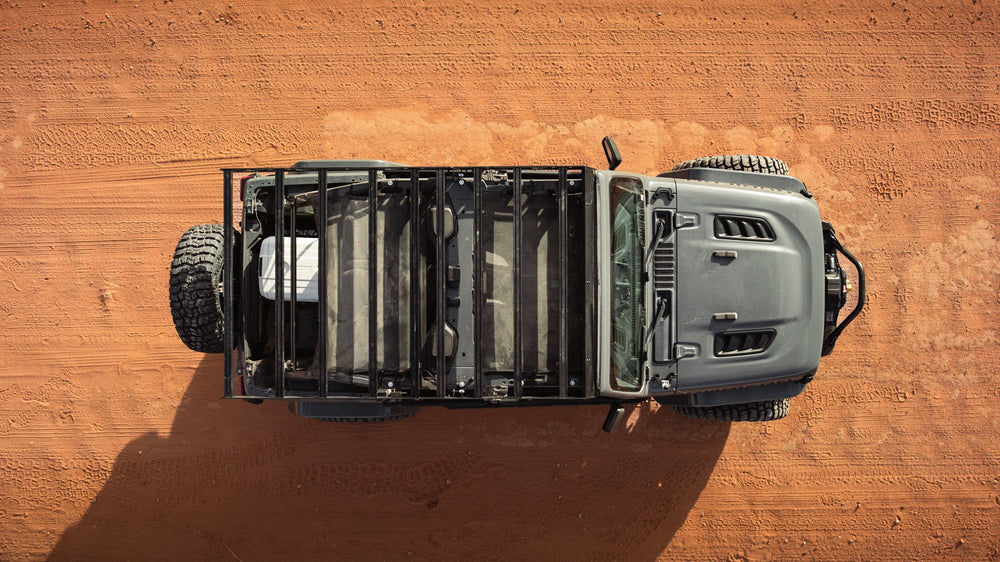

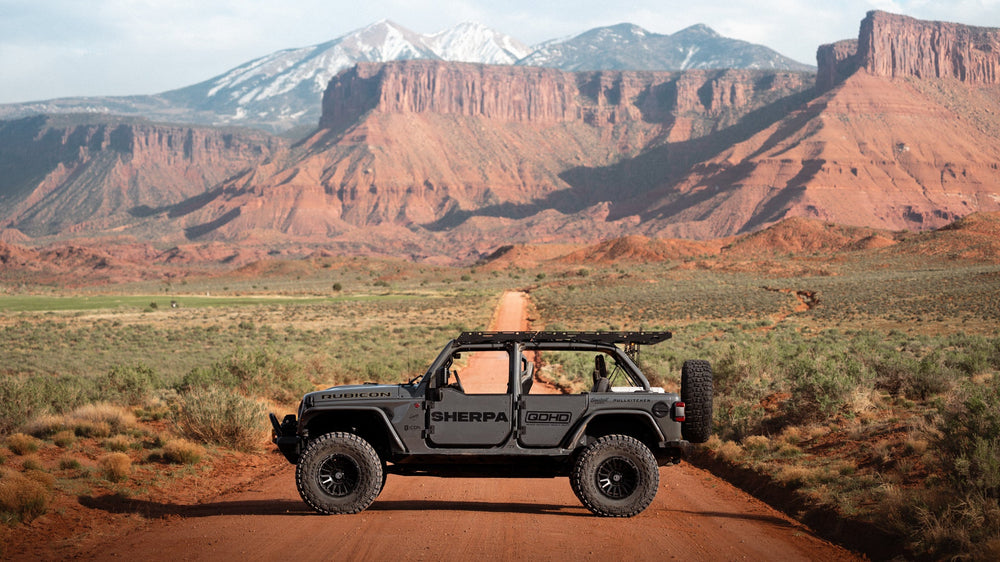

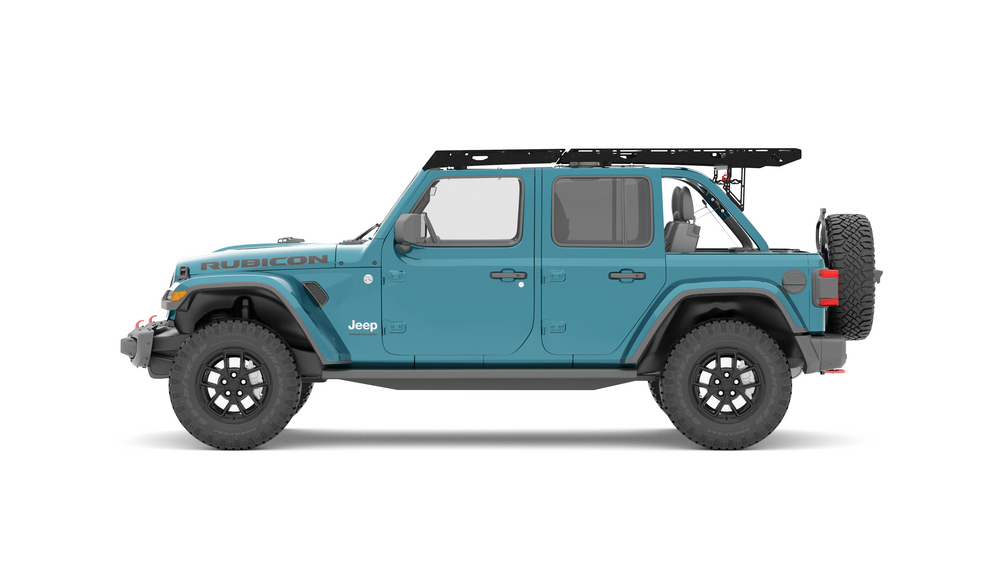

Top Off. Rack On.
Open-air driving with the rack still mounted to the roll cage and your gear still up there.
The Two-Piece Modular Design
There is a second layer to this. The rack is built in two pieces, so you can remove just the front section and run with no freedom panels while the rest of the rack stays put. That means three real configurations rather than the usual on-or-off binary: full rack with the top on, full rack with the top off, or front section removed for freedom-panel-out driving with the rear rack still carrying gear.
Installation
A full walkthrough covering bracket placement, drilling, and assembly. Drilling into the hard top is required, so watch this before you start.
Full Rack or Half Rack?
Sherpa builds the JLU QDHD in two lengths. Same mounting method, same load rating, same quick-detach hardware. The difference is coverage and weight.
| JLU QDHD Full Rack | JLU QDHD Half Rack | |
|---|---|---|
| Rack Length | 93" | 59.5" |
| Crossbars | 11 (10x56" + 1x43") | 7 (6x56" + 1x43") |
| Weight | 100 lbs | 72 lbs |
| Load Rating | Identical: 500 lbs dynamic / 1,200 lbs static | |
| Two-Piece Modular | Yes | Not applicable |
| SKU | 172844 | 178844 |
| Best For | Max gear, tent plus accessories | Lighter builds, rear-only coverage |
Choose the Full Rack if you want the whole roof usable, or if you are running a rooftop tent alongside boards, boats, or recovery gear. The two-piece modular design is exclusive to this version.
Choose the Half Rack if 28 lbs matters to you, or if you only need coverage over the rear and want to keep the front of the roof clear.
Specifications
| Vehicle | 2018-2026 Jeep Wrangler JLU (4 door). Also searched as Jeep Wrangler JL roof rack |
| Weight | 100 lbs |
| Crossbars | 10 x 56" and 1 x 43" (11 total) |
| Rack Dimensions | 93" x 56.5" x 2.5" |
| Dynamic Load Rating | 500 lbs |
| Static Load Rating | 1,200 lbs |
| Mounting | Through the factory hard top into the roll cage |
| Sideplate Material | 1/4" aluminum |
| Design | Modular two-piece, front section removable |
| Quick Release | Billet QDHD knobs, tool-free removal |
| Finish | Black textured powder coat |
| Crossbar Finish | Black anodized |
| Hardware | Black oxide stainless steel |
| Installation | Drilling required. All mounting hardware included |
| Airbag Compatibility | Compatible with 2024+ Rollbar Airbag System |
| Manufactured | USA |
| SKU | 172844 |
| Warranty | Lifetime |
What's Included
📄 Installation Instructions
Download the full JLU QDHD install guide. Drilling is required, and all hardware is included.
Pros
- 1,200 lbs static and 500 lbs dynamic, roughly double what gutter and track mounted racks manage
- Mounts into the roll cage, so loads go into vehicle structure rather than sheet metal
- Billet quick-detach knobs remove the entire rack in minutes with no tools
- Top off, rack and gear back on, driving again in under 10 minutes
- Two-piece modular design lets you pull just the front for freedom-panel-out driving
- 11 adjustable crossbars across a 93 inch platform
- 1/4" aluminum sideplates, thicker than most competing racks
- Compatible with the 2024+ Rollbar Airbag System
- Made in the USA with a Lifetime Warranty
Cons
- Drilling into the hard top is required. This is a permanent modification, and it is the price of a structural roll cage mount
- At 100 lbs the rack itself is heavier than a lighter track-mounted system, though the load rating more than accounts for it
- This is a 4 door jeep roof rack. Two door JL owners need a different rack
- Install is more involved than a clamp-on rack. Watch the video and read the PDF before starting, or book a professional install
Frequently Asked Questions
Do I have to drill my hard top?
Yes. The QDHD passes through the factory hard top and bolts into the roll cage, and that requires drilling. All mounting hardware is included. It is worth being clear that this is a permanent modification to the top, and it is also exactly why the rack carries 1,200 lbs static rather than the 600 to 700 typical of racks that clamp to gutters or tracks. If you are not comfortable drilling, we can point you toward a professional installer.
Can I still take my top off?
Yes, and this is the whole point of the QDHD line. Because the rack mounts to the roll cage rather than the top, the top comes off independently. Six billet quick-detach knobs let you lift the rack away without tools when you need to, and Sherpa's own figure is that you can pull the top and have the rack and your gear back on in under 10 minutes. You are never choosing between a loaded rack and open-air driving.
Can I run freedom panels out?
Yes. The Full Rack uses a modular two-piece design specifically for this. Remove just the front section and the freedom panels come out while the rear section stays mounted and loaded. That gives you three configurations rather than two: full rack with the top on, full rack with the top off, or front section off for freedom-panel driving with gear still on the back.
Can I mount a rooftop tent?
Comfortably. 1,200 lbs of static capacity covers a rooftop tent plus two or three occupants plus gear with real margin, and 500 lbs dynamic handles the tent plus accessories while driving. That is roughly double what most Jeep racks allow, so you can run a tent alongside traction boards, fuel cans, and a light bar without doing arithmetic. Browse our rooftop tent collection here.
Will it work with the 2024+ airbag system?
Yes. Sherpa confirms the JLU QDHD is compatible with the 2024 and newer Rollbar Airbag System. That matters because a roll cage mounted rack on a newer JLU has to work around the airbag hardware, and not every rack does. If you have a 2024 or later Wrangler, call us at 844-200-3979 and we will confirm your specific configuration before you order.
Full Rack or Half Rack?
Both mount to the roll cage and both carry 500 lbs dynamic and 1,200 lbs static. The Full Rack spans 93 inches with 11 crossbars at 100 lbs, and it is the only one with the two-piece modular design for freedom-panel driving. The Half Rack spans 59.5 inches with 7 crossbars at 72 lbs. Choose Full if you want the whole roof usable or are running a tent plus other gear. Choose Half if the 28 lb saving matters or you only need rear coverage.
Complete Your Build
Questions Before You Drill?
Tell us your JLU year and whether you have the 2024+ airbag system. We will confirm fitment and talk you through the install.
844-200-3979
