Sherpa The JLU QDHD Half Rack
Sherpa The JLU QDHD Half Rack

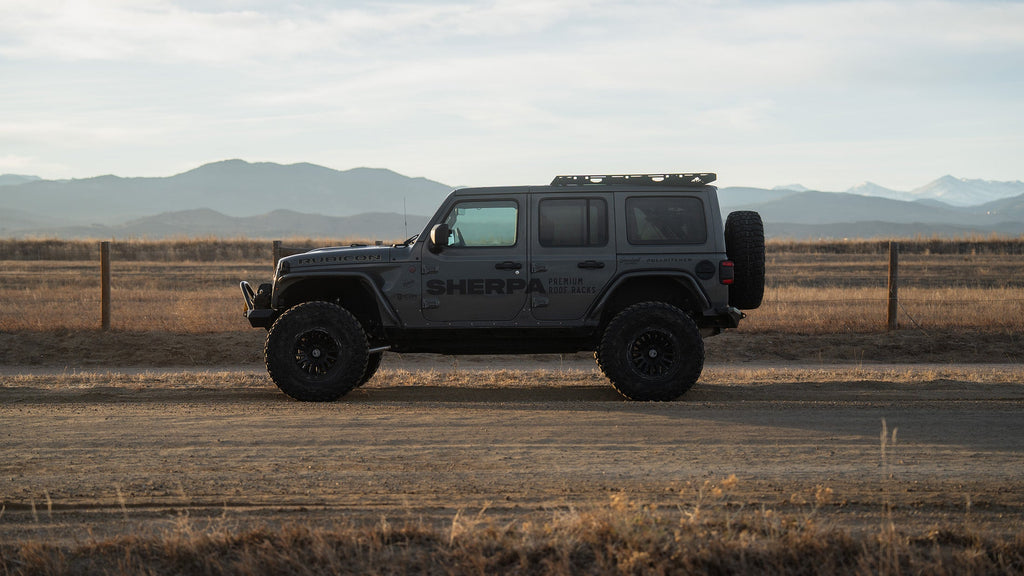

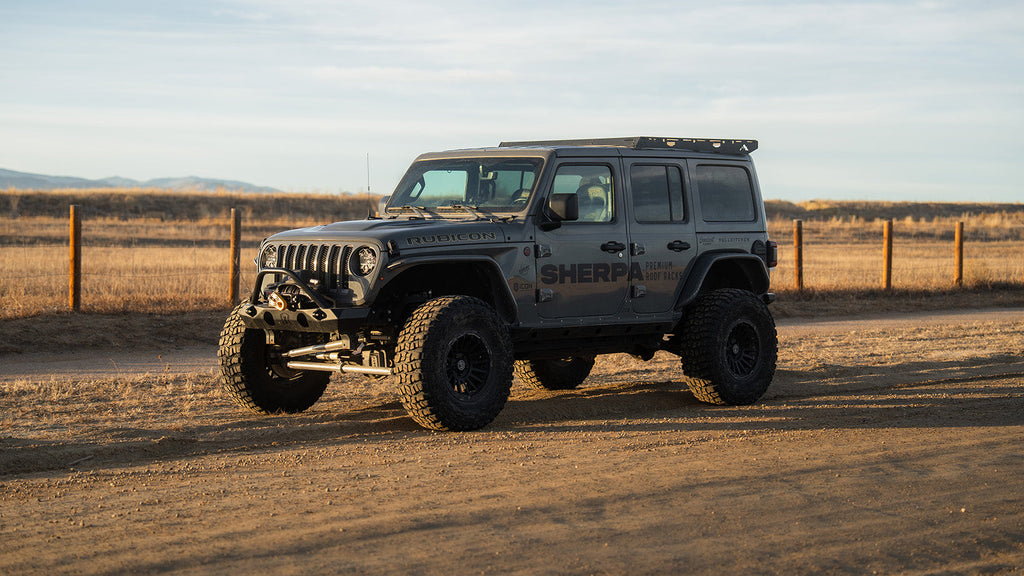

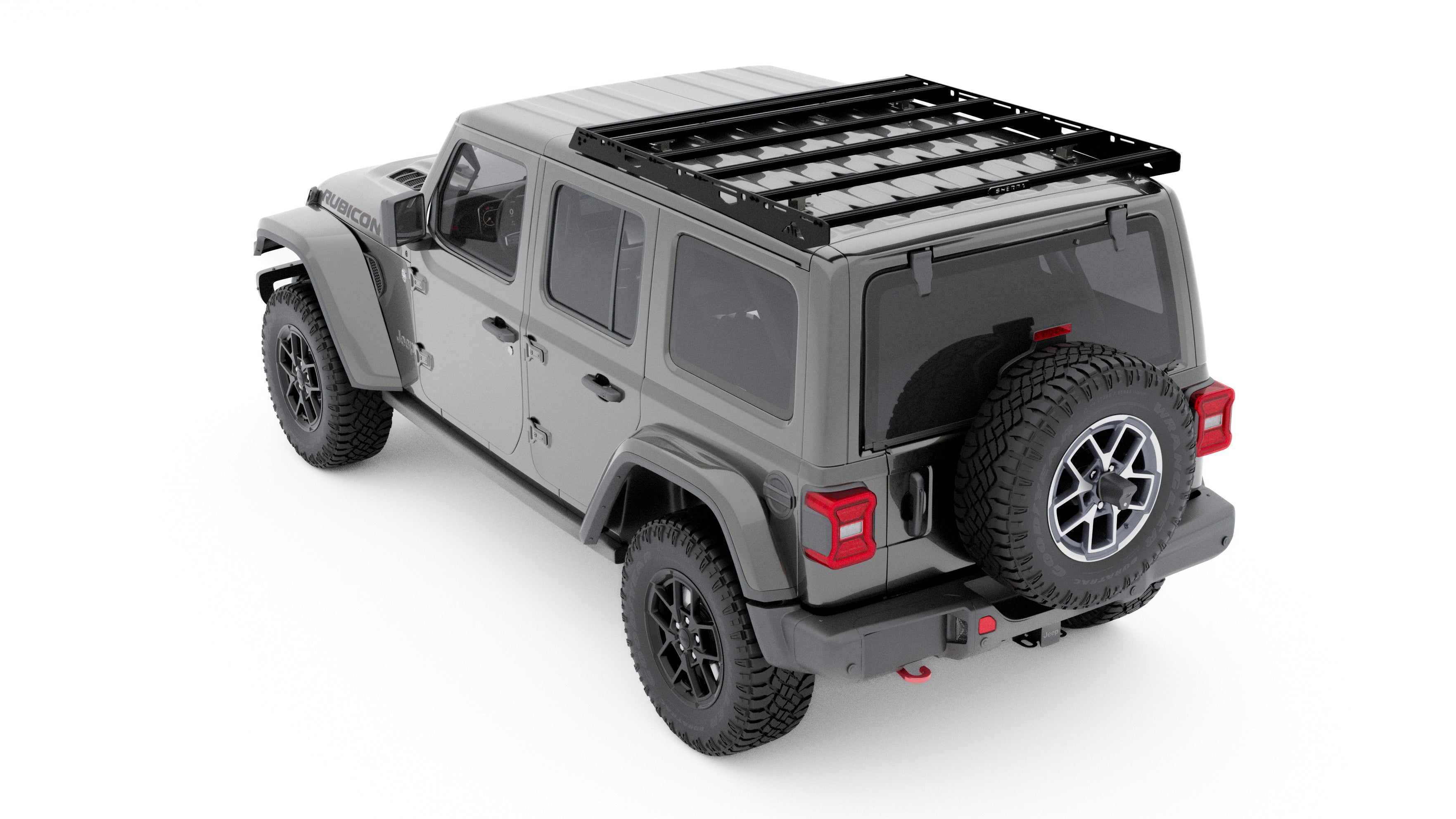

The Sherpa JLU QDHD Half Rack is designed for Jeep Wrangler JLU owners (2018-2026) who want serious cargo capacity without giving up instant open-air freedom. Unlike the full-length QDHD rack that covers the entire roof, the Half Rack sits further back on the hard top. This allows you to pop your Freedom Panels off in seconds and snap them back on just as fast without ever touching, adjusting, or removing your roof rack. You get cargo utility and topless driving without compromise.
The rack mounts directly through the factory hard top into the roll cage, providing a rock-solid 500 lb dynamic and 1,200 lb static load rating. Seven crossbars (6 at 56" and 1 at 43") span a 59.5" x 56.5" footprint at just 72 lbs. Billet quick-release QDHD knobs let you detach the entire rack in minutes without tools. Constructed from 1/4" aluminum side plates with stainless steel hardware and a durable black textured powder coat finish. Compatible with the 2024+ Rollbar Airbag System. Drilling is required. Lifetime Warranty.
Installation Notice
Drilling Required: This rack mounts through the factory hard top into the roll cage. Drilling is required. All mounting hardware is included. Once installed, the QDHD knobs allow you to detach and reattach the rack without tools whenever you want.

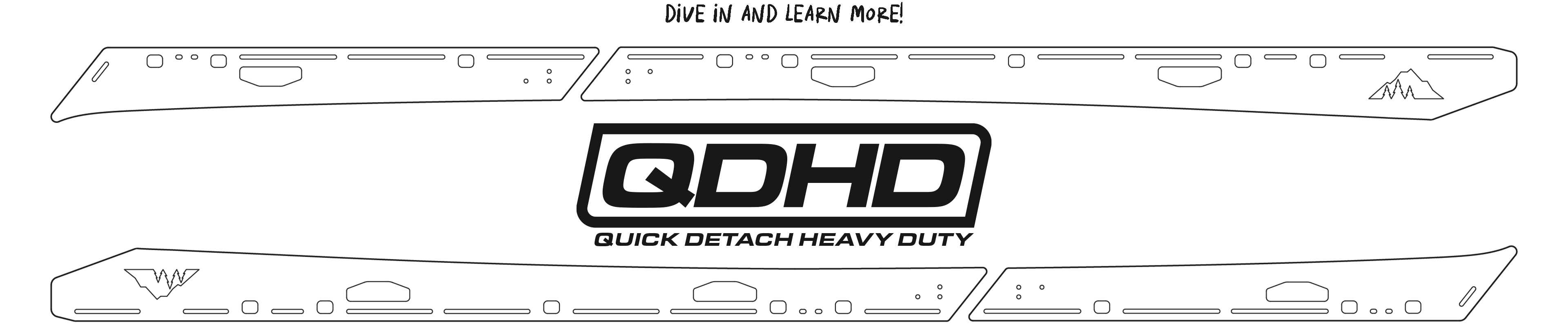

The QDHD Series
Industry leading premium roof rack systems. The QDHD line is all about rugged versatility without the hassle. With quick-detach mounts, you can pull the entire rack off in minutes. No special tools, no drama. The QDHD system lets you take off your Jeep's roof and get the rack and your gear back on in under 10 minutes, so you are never stuck choosing between utility and freedom. Adventure with Confidence.
Quick Detach: Off in Minutes
Billet quick-release QDHD knobs let you detach the entire rack without any tools. Twist the knobs, lift the rack off, and you are done. This is the feature that separates the QDHD from every other Jeep rack on the market. Most racks require a socket set and 30+ minutes to remove. The QDHD comes off in minutes and goes back on just as fast. The mounting brackets stay in place permanently. Only the rack comes on and off.
Adaptable: Freedom Panels Stay Free

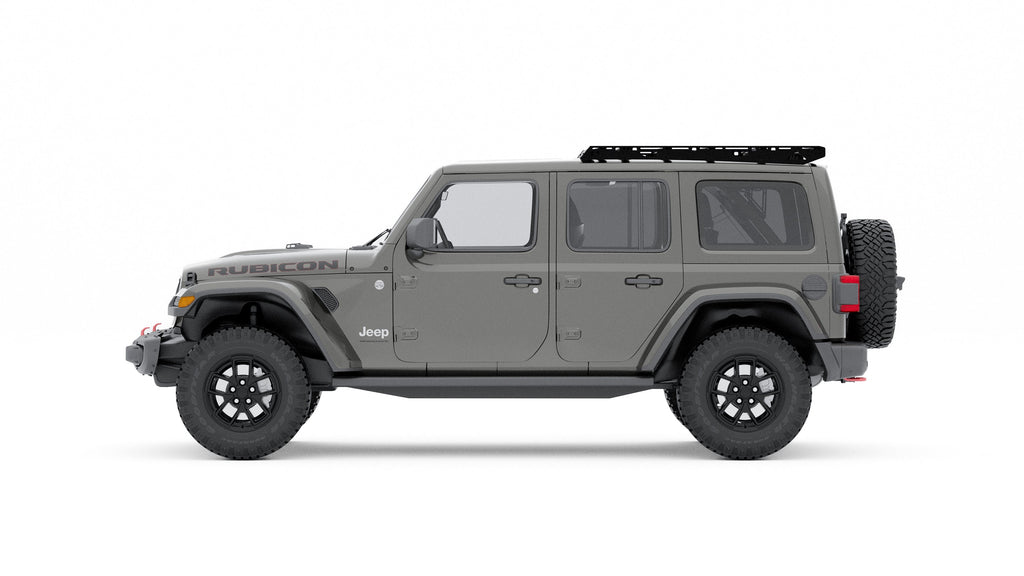

The Half Rack sits further back on the hard top than the full-length QDHD. This is the key difference. Your Freedom Panels (the removable roof panels above the front seats) pop on and off without interfering with the rack. You never have to touch the rack to enjoy open-air driving over the front seats. Seven crossbars (6 at 56" and 1 at 43") still provide serious mounting coverage across the 59.5" x 56.5" footprint for a rooftop tent, gear, bikes, or cargo. Need full-length coverage? See the QDHD Full Rack.
Heavy Duty: 500 lbs Dynamic. 1,200 lbs Static.
The "HD" in QDHD stands for Heavy Duty. This rack mounts directly through the factory hard top into the roll cage, not just to the roof skin. That roll cage connection is what enables the 500 lb dynamic and 1,200 lb static load ratings. These are numbers that most roof-mounted racks cannot match because they are limited by the roof panel's strength. By going through the hard top into the cage, the QDHD transfers load directly into the vehicle's structural backbone. Run a full-size rooftop tent with occupants and gear with total confidence.
Crafted with Premium Materials

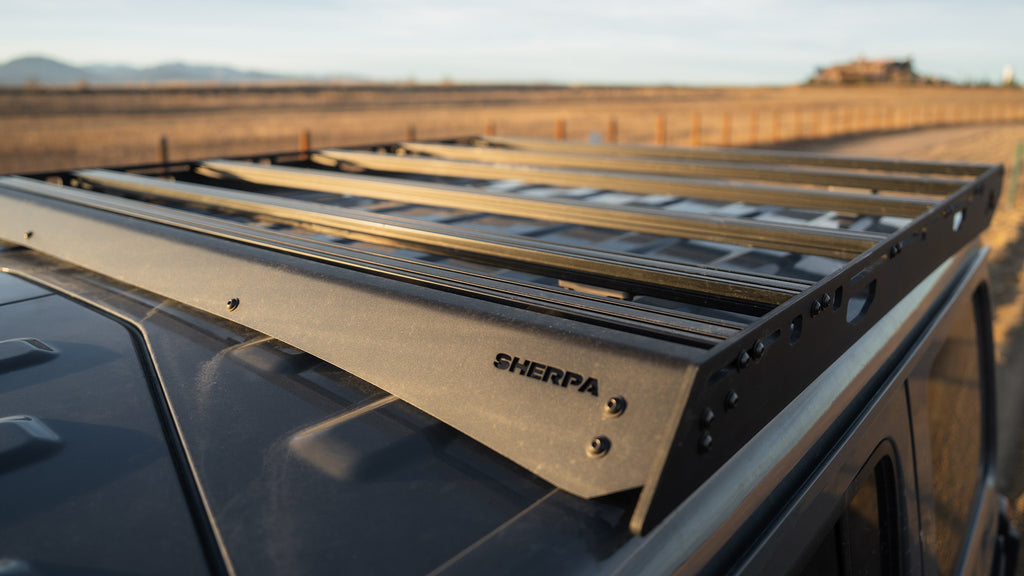

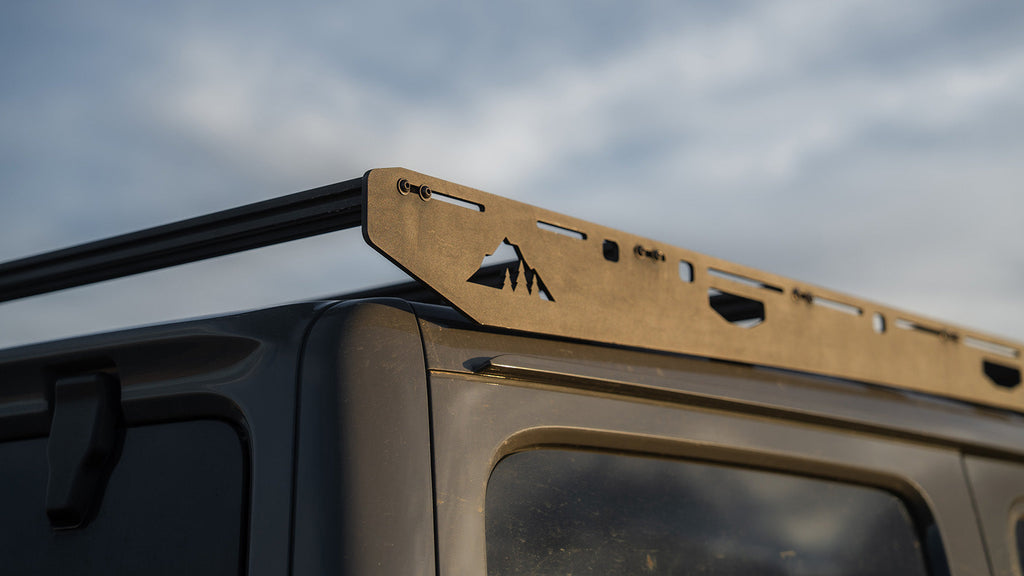

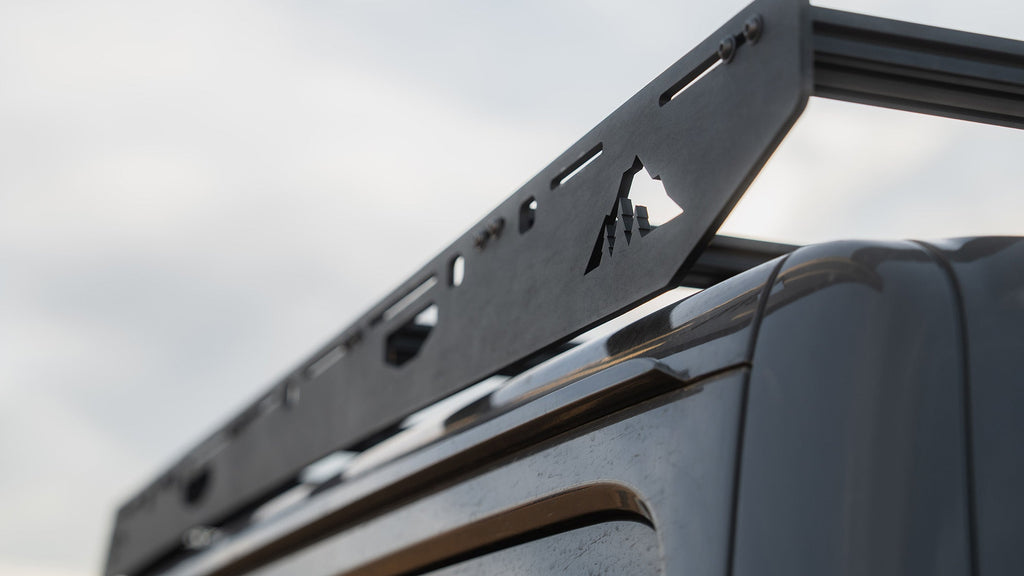

Constructed from 1/4" aluminum side plates with stainless steel hardware throughout. The black textured powder coat finish resists chips and scratches. Black anodized crossbars resist corrosion. Black oxide stainless steel hardware handles any environment from salt air to snow to mud. Sandwich plates distribute load evenly at each mounting point. The arch brackets and mounting brackets are engineered specifically for the JLU's hard top and roll cage geometry. Compatible with the 2024+ Rollbar Airbag System.

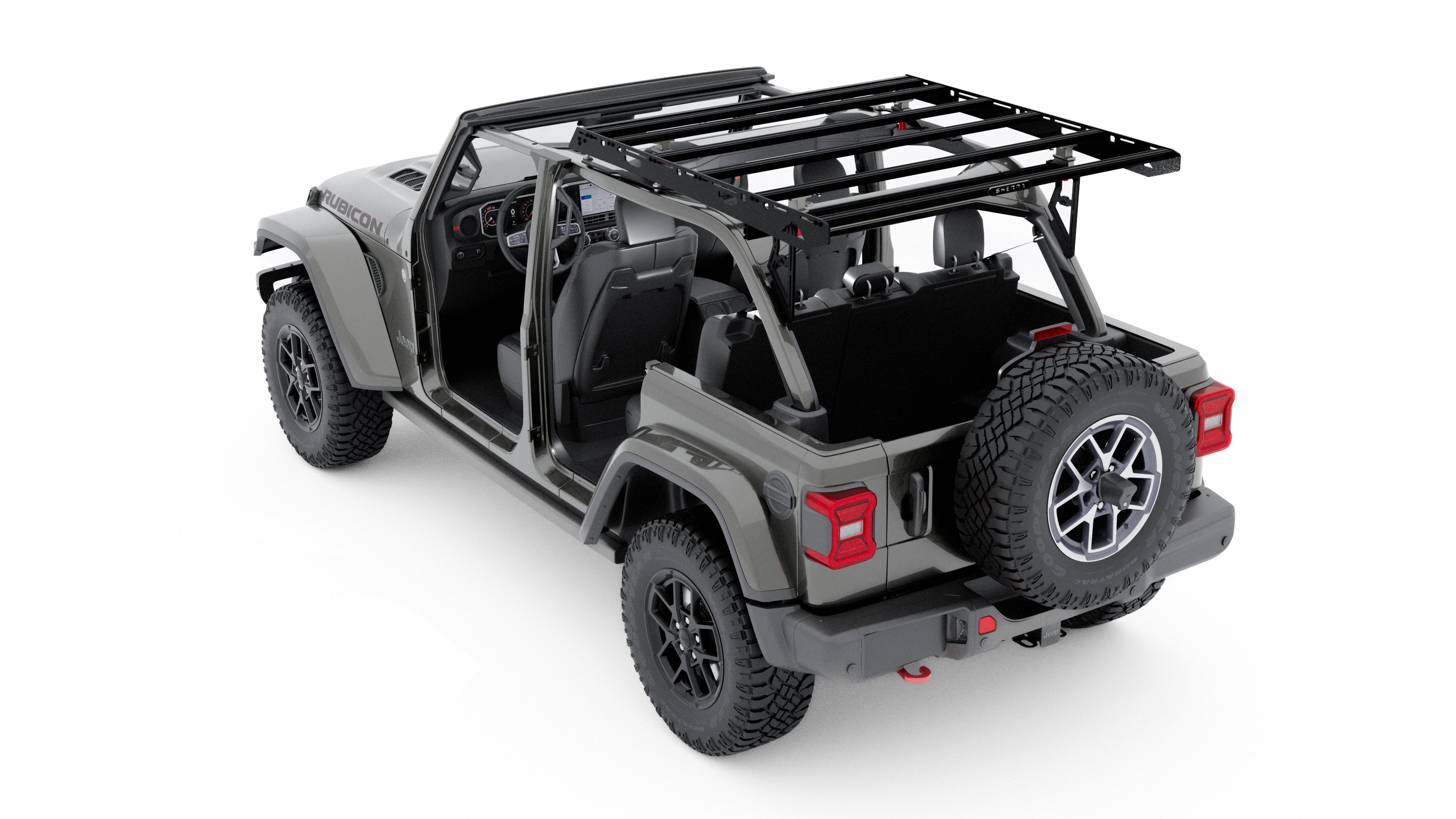

Go Topless.

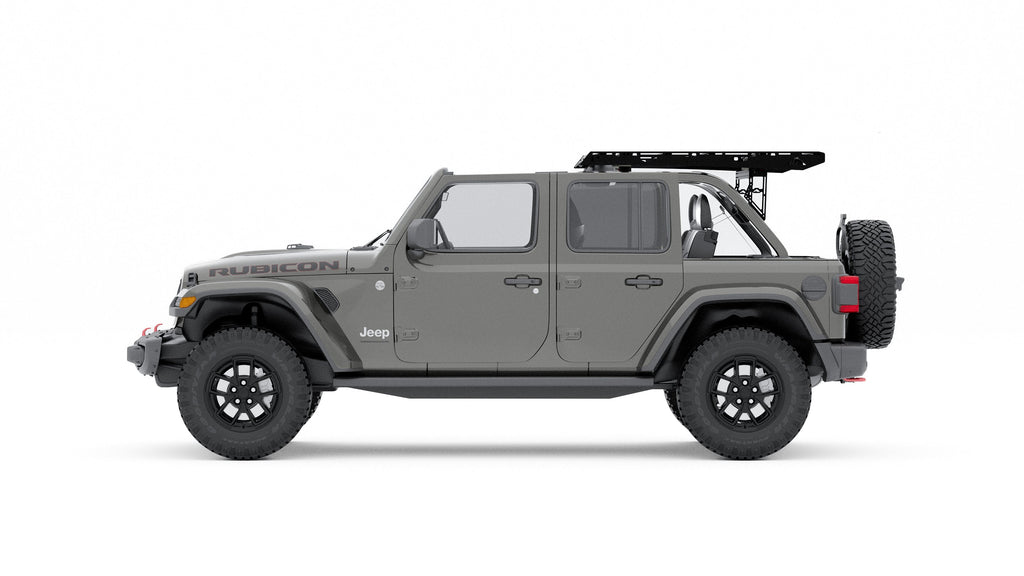

The QDHD line is built for your lifestyle, whether you are running your Jeep with the hardtop on or off. The rack mounts directly to the roll cage. Take your factory top off for open-air cruising or keep it on when the weather is not prime. With tool-less quick-detach hardware, switching configurations takes minutes, not hours.
Half Rack vs Full Rack: Which QDHD?
Both racks are part of the Sherpa QDHD Series for the 2018-2026 JLU. Both mount to the roll cage with the same quick-detach system. The difference is coverage and Freedom Panel access.
| QDHD Half Rack | QDHD Full Rack | |
| Freedom Panel Access | Yes (no rack removal needed) | Requires removing front section |
| Rack Dimensions | 59.5" x 56.5" x 2.5" | 93" x 56.5" x 2.5" |
| Crossbars | 7 (6x56" + 1x43") | 11 (10x56" + 1x43") |
| Weight | 72 lbs | 100 lbs |
| Load Rating | 500 dynamic / 1,200 static | 500 dynamic / 1,200 static |
| Quick Detach | Yes (QDHD knobs) | Yes (QDHD knobs) |
| Best For | Open-air driving priority | Maximum cargo capacity |
Choose the Half Rack if you frequently pop your Freedom Panels and want instant access without touching the rack. Choose the Full Rack if you need maximum cargo coverage across the entire roof and do not mind removing the front section for Freedom Panel access.
Specifications
| Vehicle | 2018-2026 Jeep Wrangler JLU |
| Weight | 72 lbs |
| Rack Dimensions | 59.5" x 56.5" x 2.5" |
| Crossbars | 6 x 56" + 1 x 43" (7 total) |
| Dynamic Load Rating | 500 lbs |
| Static Load Rating | 1,200 lbs |
| Sideplate Material | 1/4" aluminum |
| Finish | Black textured powder coat |
| Crossbar Finish | Black anodized |
| Hardware | Black oxide stainless steel |
| Quick Detach | Billet QDHD knobs (tool-free removal) |
| Mounting | Through factory hard top into roll cage. Drilling required. |
| Freedom Panel Access | Yes (no rack removal needed) |
| 2024+ Airbag Compatibility | Compatible with Rollbar Airbag System |
| SKU | 178844 |
| Warranty | Lifetime |
What's Included
📄 Installation Instructions
Download the JLU QDHD Half Rack install guide. Drilling into the hard top is required. All mounting hardware included.
Pros
- Freedom Panels pop on and off without touching the rack. Instant open-air driving access
- Quick-detach billet QDHD knobs let you remove the entire rack in minutes without tools
- 500 lbs dynamic / 1,200 lbs static load rating thanks to roll cage mounting
- 28 lbs lighter than the Full Rack (72 vs 100 lbs) while maintaining the same load ratings
- 7 crossbars across a 59.5" x 56.5" footprint still provide serious mounting coverage
- 1/4" aluminum side plates with stainless steel hardware for durability in any environment
- Compatible with 2024+ Rollbar Airbag System. Lifetime Warranty.
Cons
- Drilling through the hard top is required. This is a permanent modification to the hard top (though not the vehicle body)
- Smaller footprint than the Full Rack (59.5" vs 93" length). If you need maximum cargo coverage across the entire roof, the QDHD Full Rack provides more surface area
Frequently Asked Questions
Can I use my Freedom Panels without removing the rack?
Yes. That is the primary advantage of the Half Rack over the Full Rack. The Half Rack sits further back on the hard top, behind the Freedom Panels. Pop the panels off in seconds and snap them back on without ever touching, adjusting, or removing the rack. You get cargo utility and topless driving without compromise.
Can I still remove the hard top entirely?
Yes. Remove the rack with the QDHD quick-detach knobs (no tools, minutes), then remove the hard top as normal. When you are ready, reinstall the top and pop the rack back on. The rack mounts to the roll cage through the hard top, so the top can come on and off as usual.
Can I mount a rooftop tent on the Half Rack?
Yes. With 500 lbs of dynamic load capacity and 1,200 lbs of static capacity, the Half Rack handles any rooftop tent plus occupants and gear. The roll cage mounting provides a significantly stronger foundation than roof-skin-mounted racks. The 59.5" x 56.5" footprint accommodates most hardshell and wedge-style tents. Browse our rooftop tent collection here.
Half Rack or Full Rack?
Choose the Half Rack if you frequently use your Freedom Panels and want instant open-air access without removing the rack. Choose the Full Rack if you need maximum cargo coverage across the entire roof and do not mind removing the front section for Freedom Panel access. Both have the same 500/1,200 lb load ratings and the same quick-detach knob system.
Is this compatible with the 2024+ airbag system?
Yes. The JLU QDHD Half Rack is compatible with the 2024+ Rollbar Airbag System. Both the older (2018-2023) and newer (2024-2026) JLU models are supported.
