Eezi-Awn K9 Roof Rack Kit For Toyota Land Cruiser Series 70
Eezi-Awn K9 Roof Rack Kit For Toyota Land Cruiser Series 70
SKU: EezK9RRTLC70
Eezi-Awn K9 Roof Rack Kit For Toyota Land Cruiser Series 70
SKU: EezK9RRTLC70
$1,275.00
K9 Roof Rack Kit For Toyota Land Cruiser Series 70 - 6 Different Lengths - Thule & Yakima Compatible - by Eezi-Awn
If you're after a rack that's easy to install, compatible with other after market accessories and reliable then the K9 rack kit by Eezi-Awn can easily be your best fit.
This excellent South-African made rack has 5 different lengths and will easily adapt to the needs of your Toyota 70 Series Land Cruiser.
Sizes:

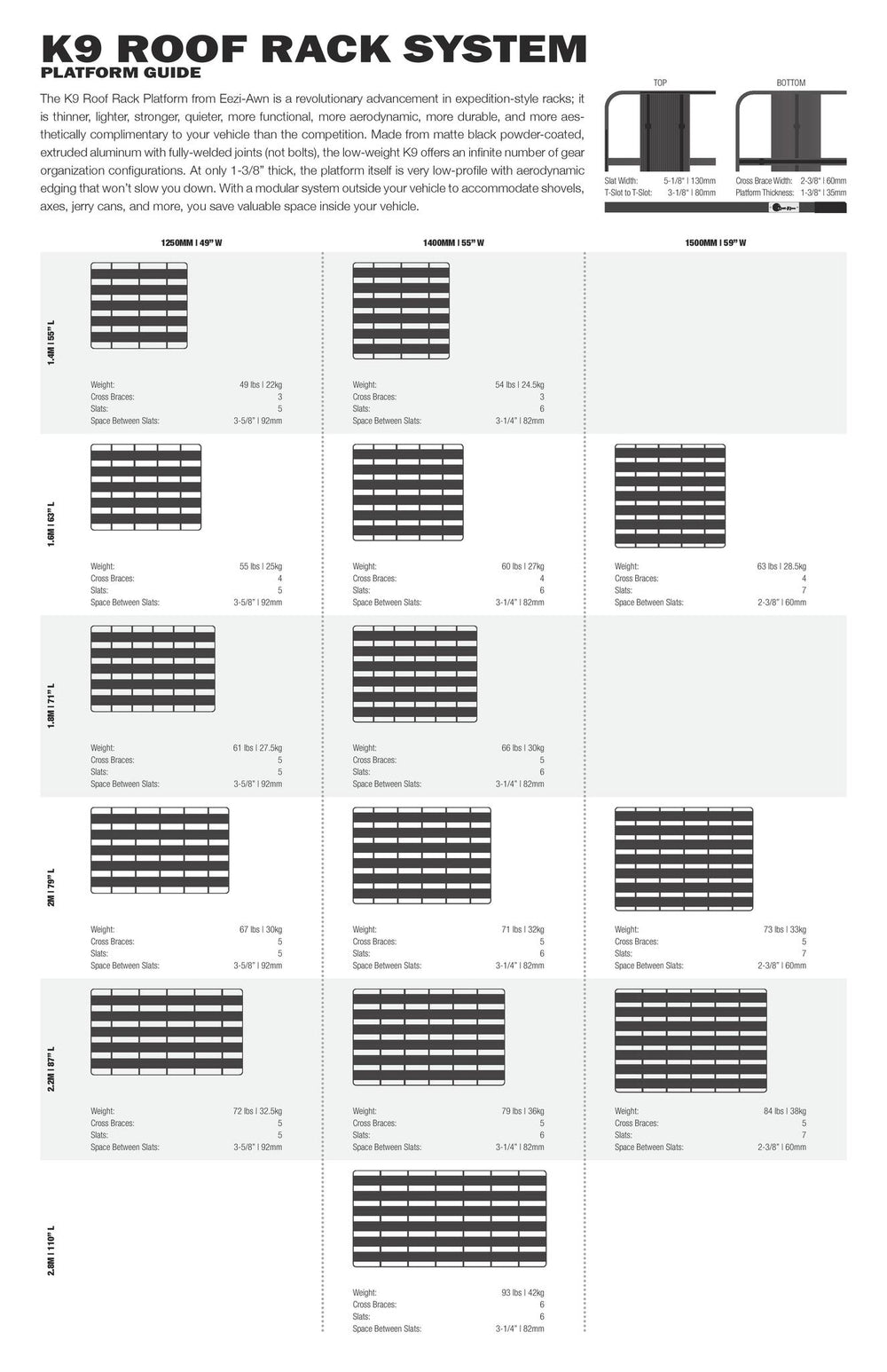

The K9 systems for the Toyota 70 Series Land Cruiser comes in the 1400mm (55") width, with 6 different lengths.

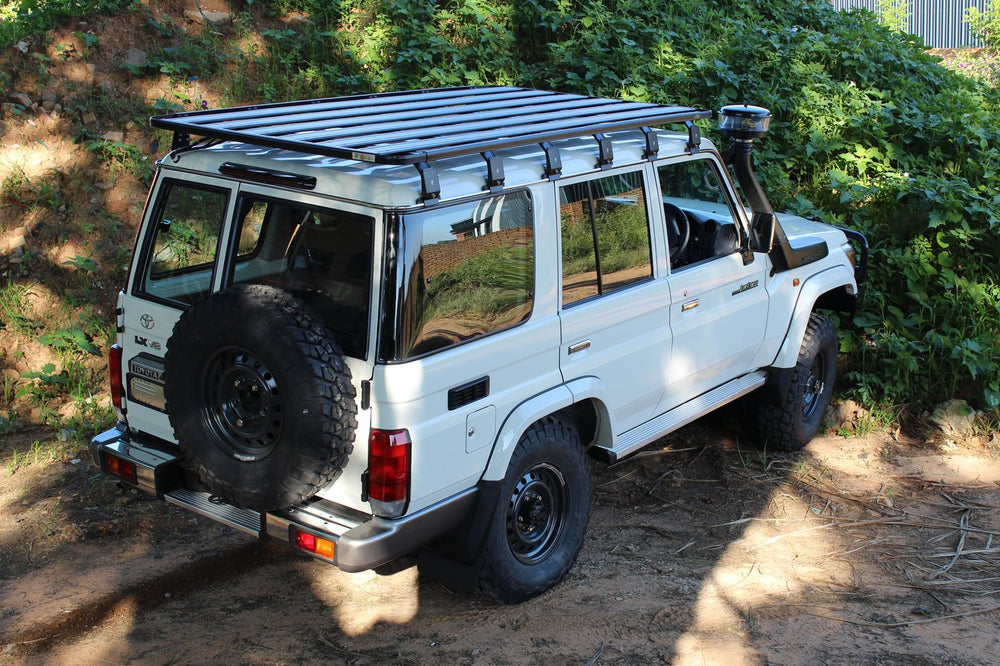

Far and away the most popular model is the 2.2M (87") long rack that starts a few inches behind the windshield and finishes an inch in front of the rear hatch. This rack maximizes your roof top capacity.
The 1.6M (62") version is a great choice if you want to maintain the use of your sunroof. It starts just behind the sunroof and finishes an inch in front of the rear hatch.
Heights:

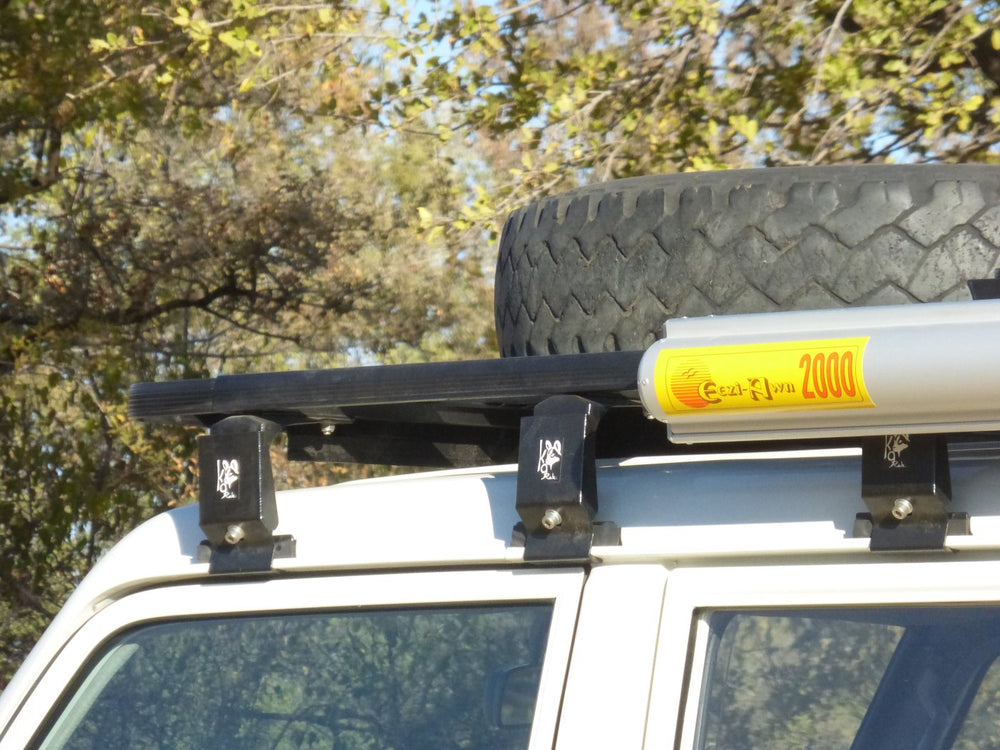

The 70 Series Land Cruiser rack uses our standard height rack which measures 5" high, from above the second row doors, measured at the pinch weld trim. It uses 65mm tall feet, and allows enough room for options on the bottom of the platform.
Capacity:
As with all roof racks, the weight capacity of the K9 roof rack system is broken into two measurements: static weight and dynamic weight.
Static is when the vehicle is stationary, not in motion. Dynamic is when the vehicle is in motion.

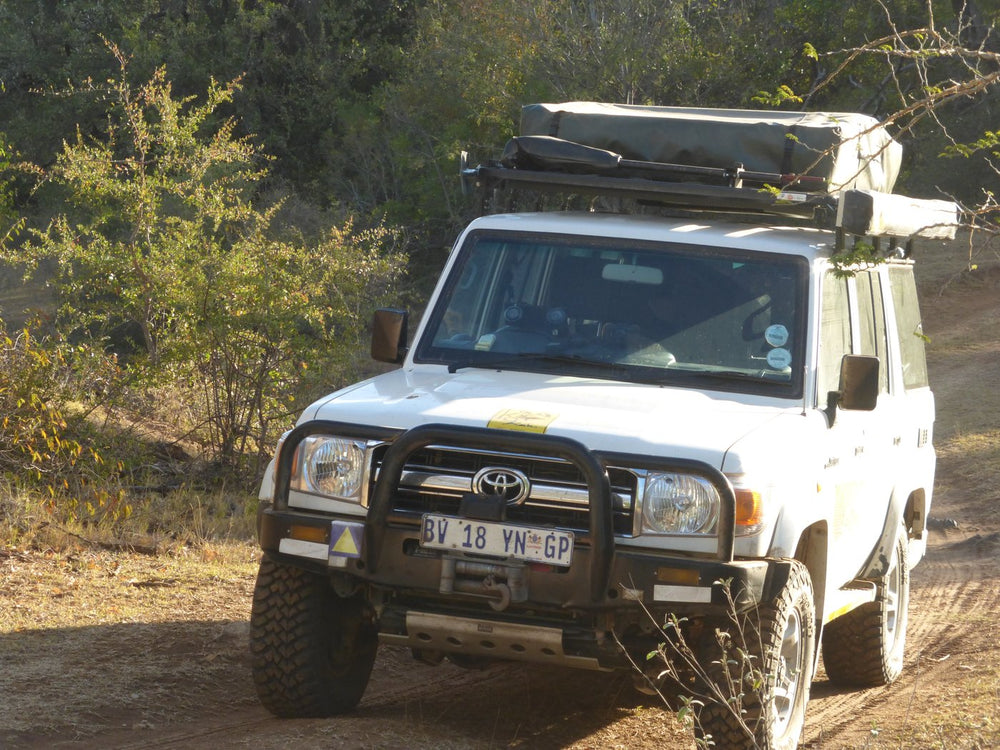

After running tests, it was determined that a dynamic capacity in the range of 500 pounds is possible. That load included a Roof Top Tent, awning, dual fuel can holder, aluminum storage case with recovery gear, shovel, axe, under mount table, light bar, etc on a 2.2M long rack.
A static capacity of 1000 pounds is possible. An example of static load increase would be adding people in the tent on the roof. Please understand these capacities are on vehicles that have modified suspensions designed to manage this amount of weight. They are not a warrantied or guaranteed capacity. Your load capacity will vary.
No Drilling Required:
The K9 Roof Rack System for the 70 Series Land Cruiser requires no drilling at all for any size rack. The proprietary mounting rail mounts right over the roof pinch weld trim and utilizes the OEM roof rack mounting points.
Rack Kit Includes:
The components used on the 70 Series Land Cruiser rack systems include a pair of mounting rail, a set of K9 feet (2 per platform cross brace), and a platform.
Rack Accessories:

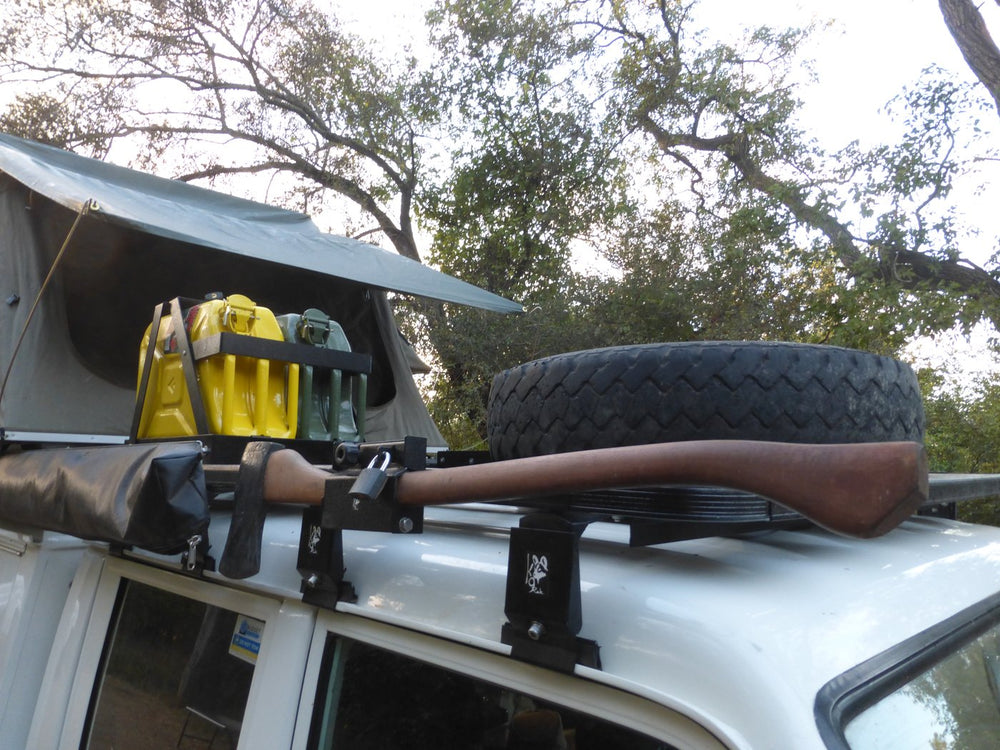

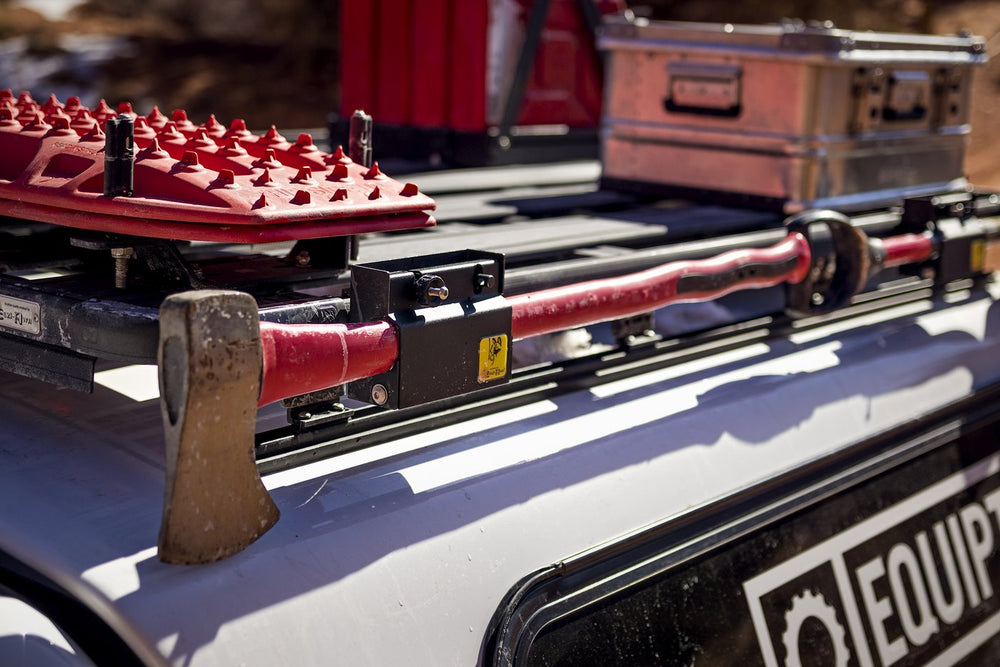

The Eezi-Awn K9 Roof Rack System comes with a complete array of bolt on accessories. Jerry Can holders, Axe mounts, Shovel mounts, Hi-Lift Mounts, Max Trax Mounts, Awning Mounts, Under Rack Table mounts, and much more.
Thule & Yakima Compatible:
The K9 Roof Rack is also the only overlanding rack on the market that is easily compatible with your existing Thule or Yakima sports bar mounts for bikes, kayaks, etc. With store-accessible 6mm hardware that attaches to the K9's perimeter, your hobbies won't become obsolete with your "old gear.
K9 Roof Rack Features:

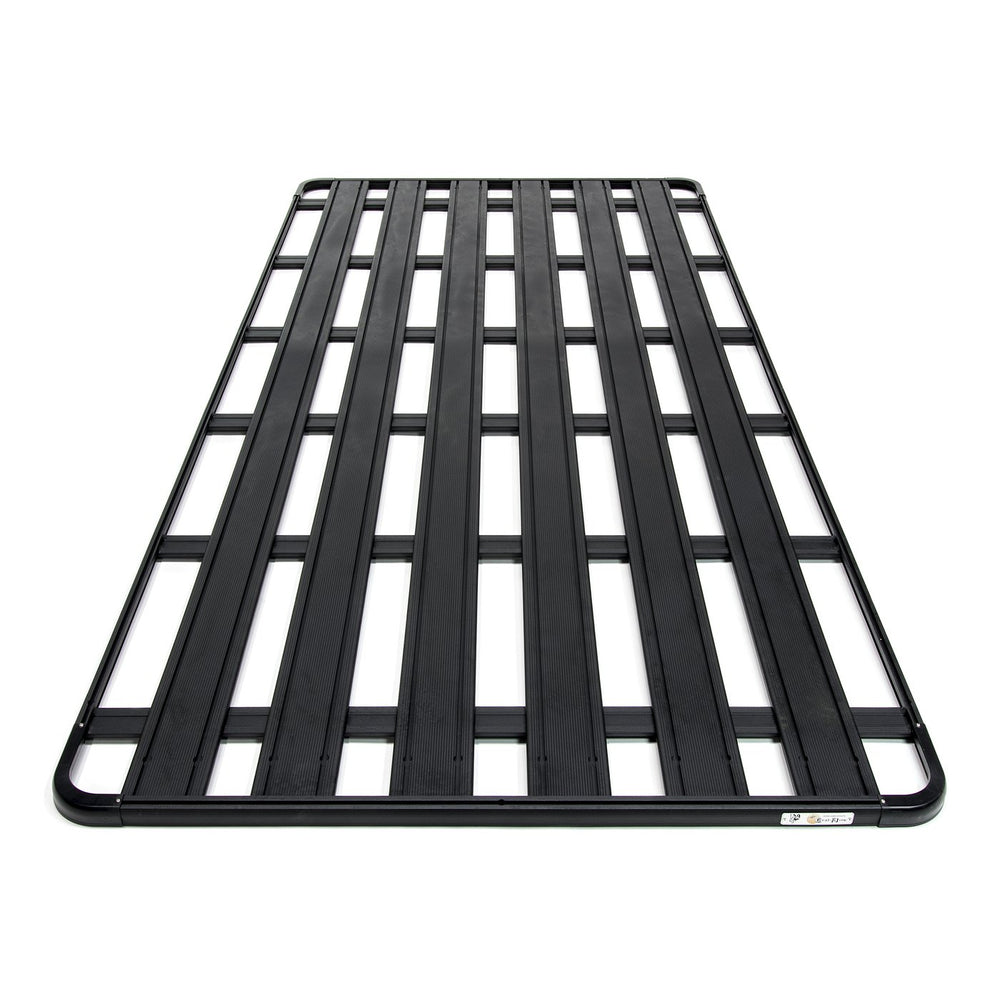

- Fully Welded 1-3/8"H Low-Profile Platform
- Light Weight All Aluminum Construction
- All Components Are Anodized And Powder Coated Matte Black
- 5-1/8" Wide M8 T-Slot Slats, Running Front to Back
- Semi-Elliptical Bottom Cross Braces To Reduce Wind Noise
- M6 T-Slot Around Top Perimeter With Rounded Top Edge
- 5 Lengths and 3 Widths Of Platform Available
- Multiple Mounting Configurations Including Gutterless/Gutter/OEM Rack Mounts
- Full Compliment of K9 Roof Rack Accessories For Top/Bottom/Side Mount
- Infinite Gear Organization Configurations
- Includes All Installation Components & Hardware
Installation Instructions:
Installation of this rack system can be done by one person in approximately 1-1/2 hours. Please click HERE to download the instructions.
Help lifting the platform on the roof would be appreciated. You start by removing the factory roof rack, then attach the K9 mounting rail to the roof, followed by a full set of feet, and finally a platform on top.
Eezi-Awn K9 Roof Rack Installation Video:
