Eezi-Awn K9 Roof Rack Kit For Toyota 4Runner 3rd Gen

Roof Rack

EezKT4R3-1

$995.00
Size
Shipping
-
+
$995.00

Do You Have A Question? Call Us: 844-200-3979

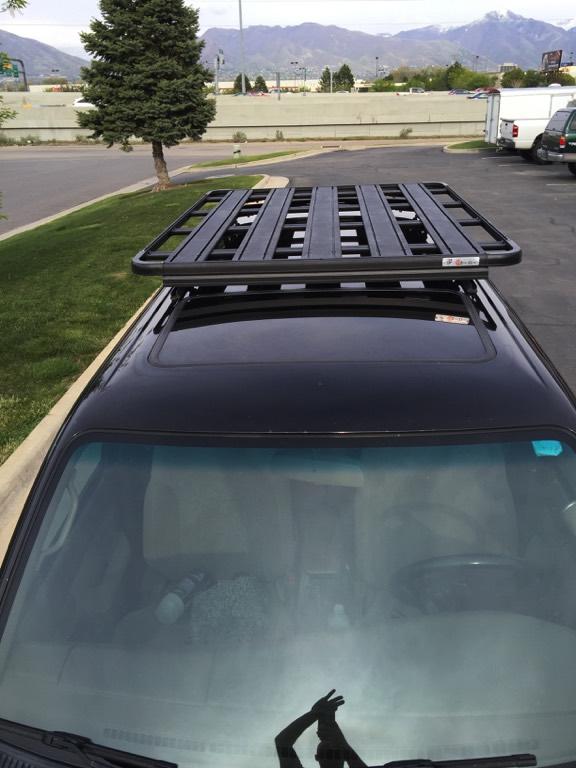

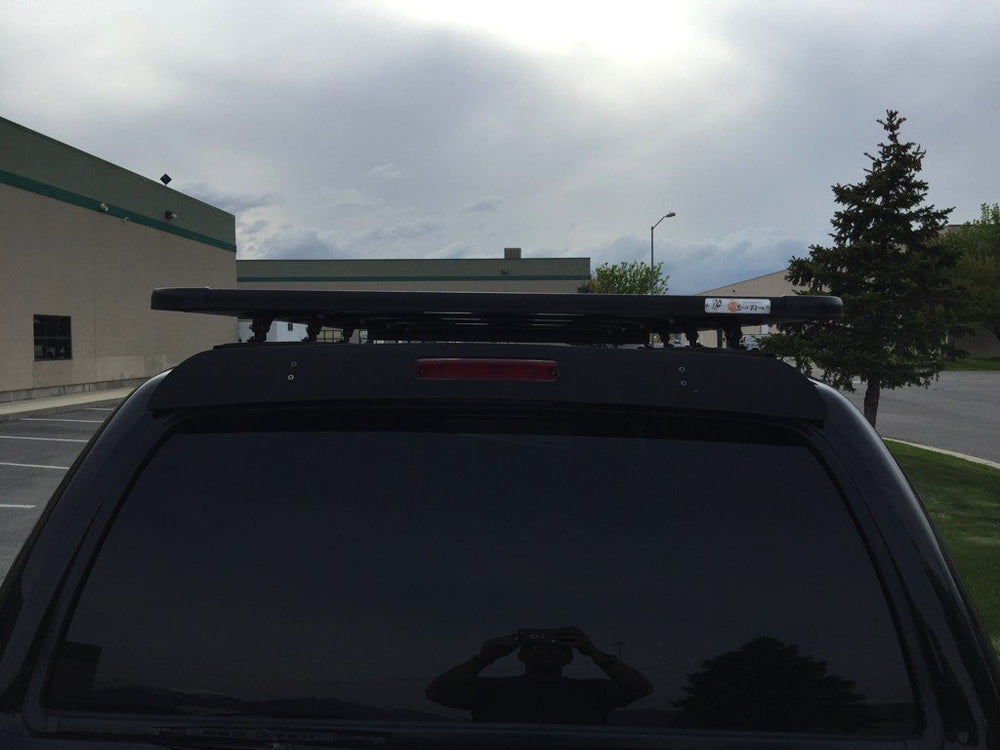

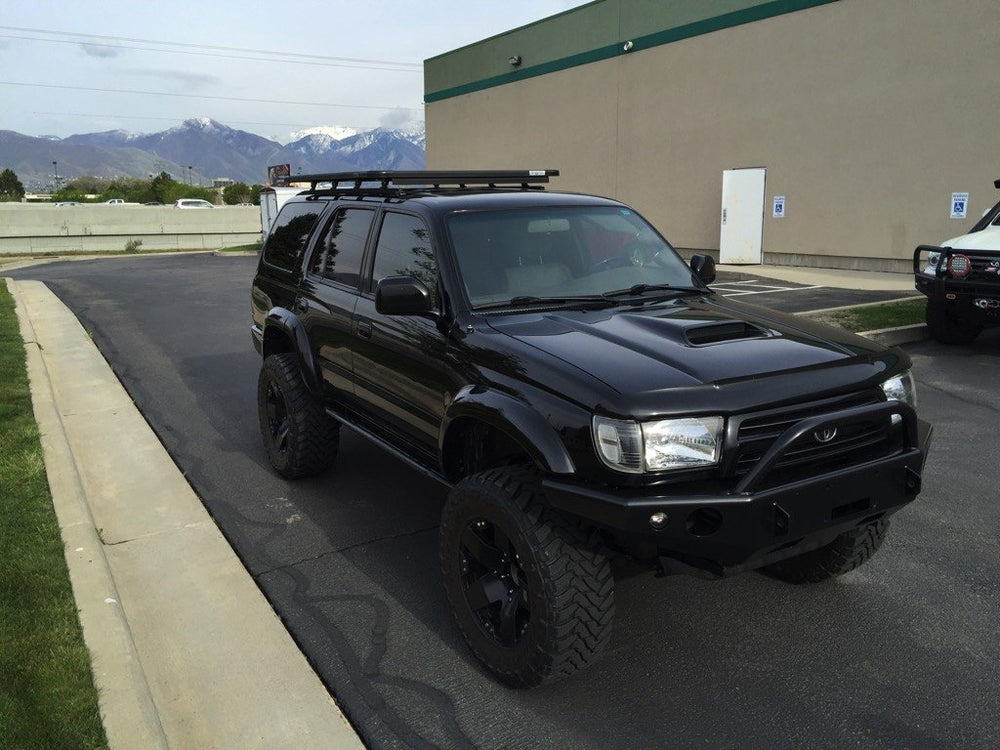

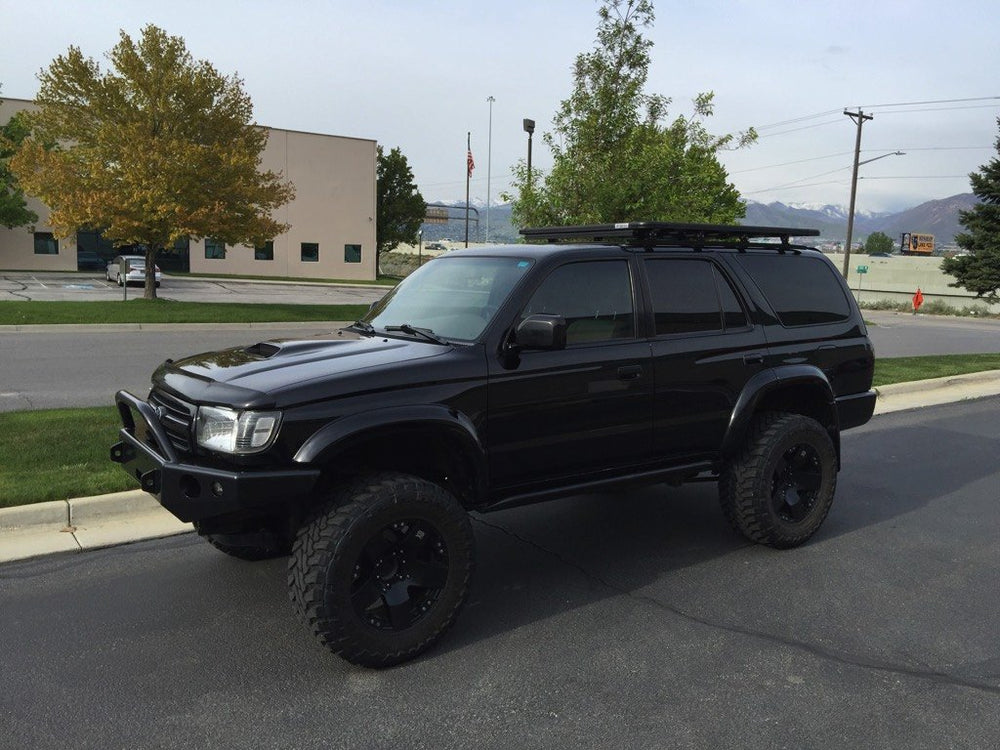

K9 Roof Rack Kit For Toyota 4Runner 3trd Gen - 2 Different Lengths - Thule & Yakima Compatible - by Eezi-Awn

If you're after a slim, slick, reliable and easy to install roof rack for your Toyota 4Runner 3rd Gen, then the K9 rack kit by Eezi-Awn can easily be your best fit.

This excellent South-African made rack has 2 different lengths, ideal to adapt to your needs, with an easy installation that requires no drilling.

SHIPPING:

Due to the size and weight of this item, we will only ship within the continental U.S. using truck freight.

COMMERCIAL FREIGHT & FREIGHT CENTER SHIPPING ONLY:

Please note that free shipping only applies to delivery at a commercial address or your nearest freight center. No residential delivery.

Sizes:

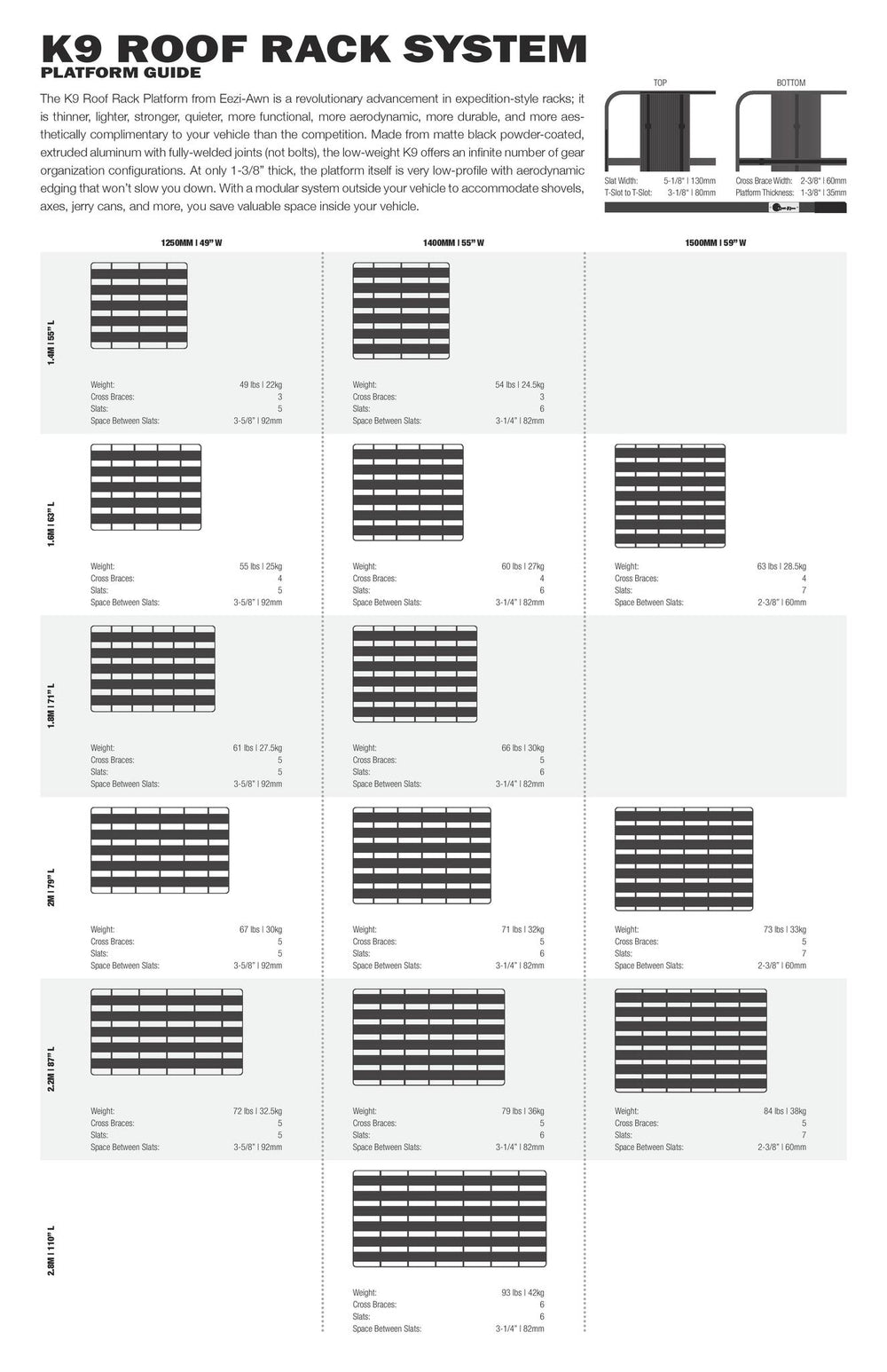

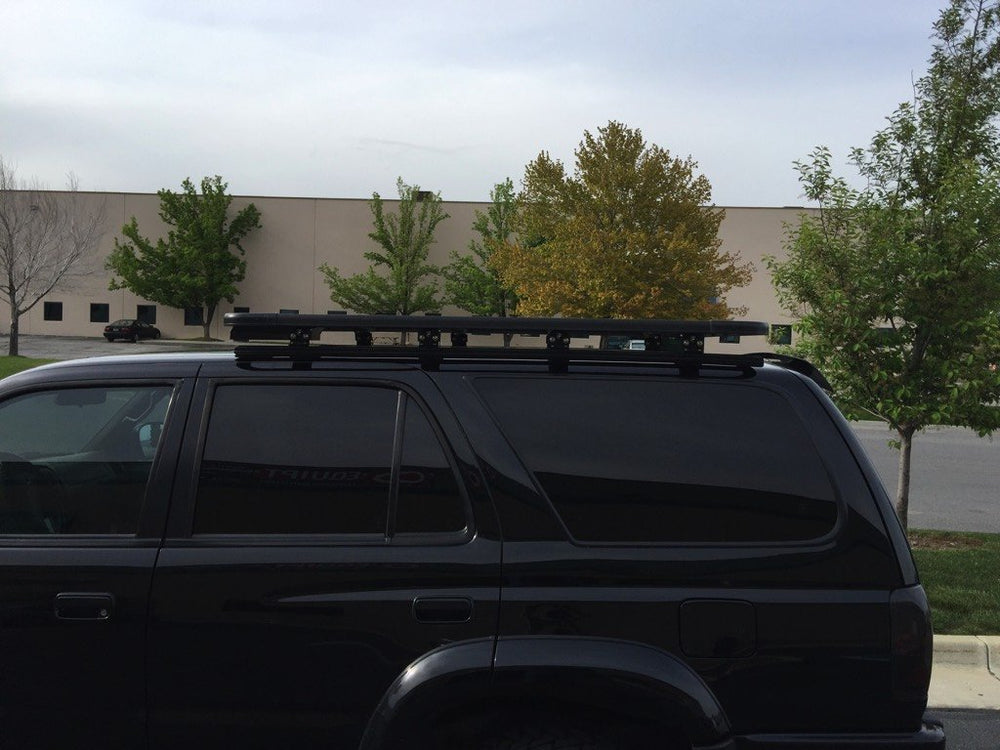

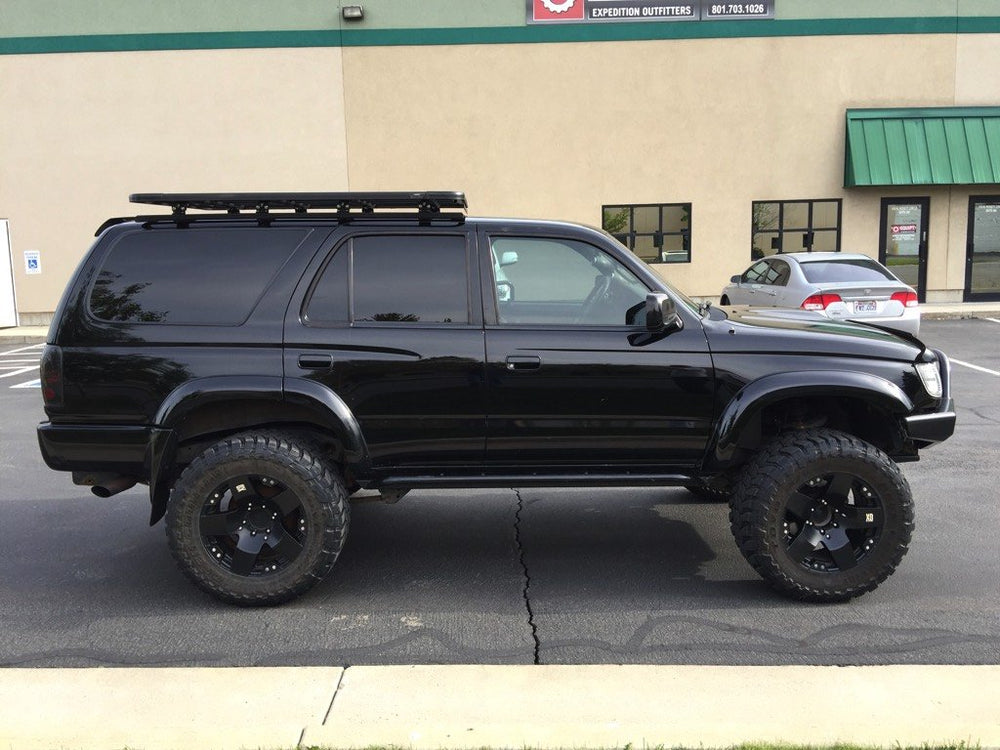

The K9 systems for the 3rd Gen 4Runner come in come in 1250mm (49") width, and 2 different lengths.  The most popular model is the 1.6M (62") long rack that starts a few inches behind the sunroof and finishes an inch in front of the rear hatch.  This rack replaces the factory rack, leaves the sunroof complete uncovered, and requires no drilling.

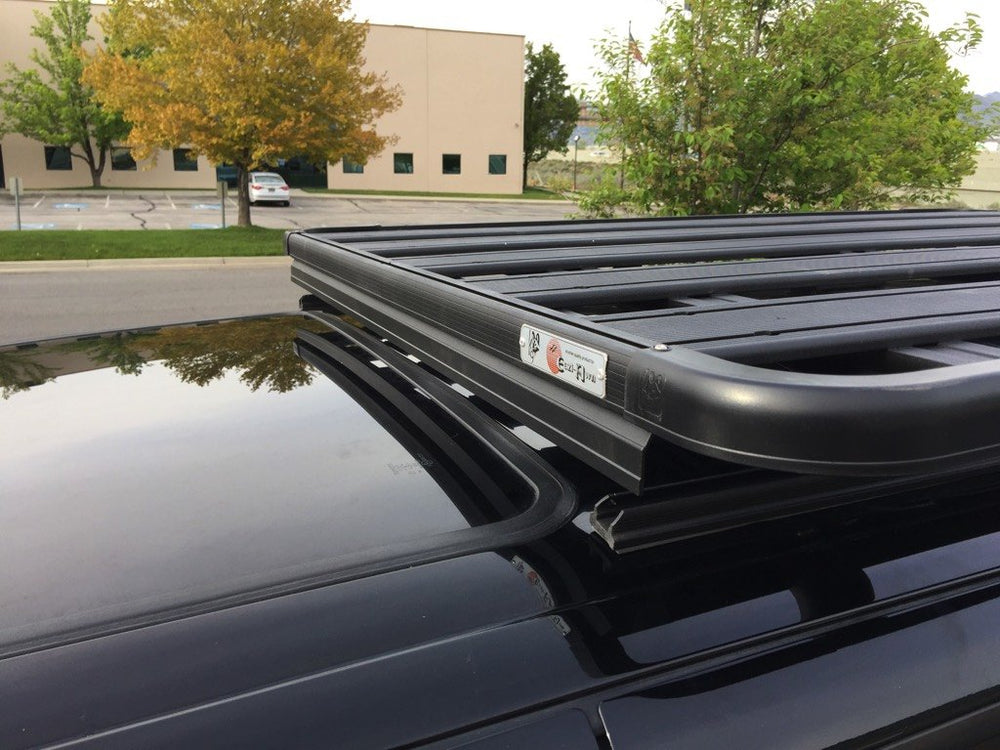

If what you want is to maintain the sun roof, then the 1.6M (62") version is a great choice. It starts just behind the sunroof and finishes an inch in front of the rear hatch.

Heights:

The 3rd Gen 4Runner uses our standard height rack which measures 5" high, from above the second row doors, measured at the pinch weld trim.  It uses 65mm tall feet, and allows enough room for options on the bottom of the platform.

Capacity:

As with all roof racks, the weight capacity of the K9 roof rack system is broken into two measurements: static weight and dynamic weight.

Static is when the vehicle is stationary, not in motion.  Dynamic is when the vehicle is in motion.

After running tests, it was determined that a dynamic capacity in the range of 500 pounds is possible. That load included a Roof Top Tent, awning, dual fuel can holder, aluminum storage case with recovery gear, shovel, axe, under mount table, light bar, etc on a 2.2M long rack.

A static capacity of 1000 pounds is possible. An example of static load increase would be adding people in the tent on the roof.  Please understand these capacities are on vehicles that have modified suspensions designed to manage this amount of weight. They are not a warrantied or guaranteed capacity.  Your load capacity will vary.

No Drilling Required:

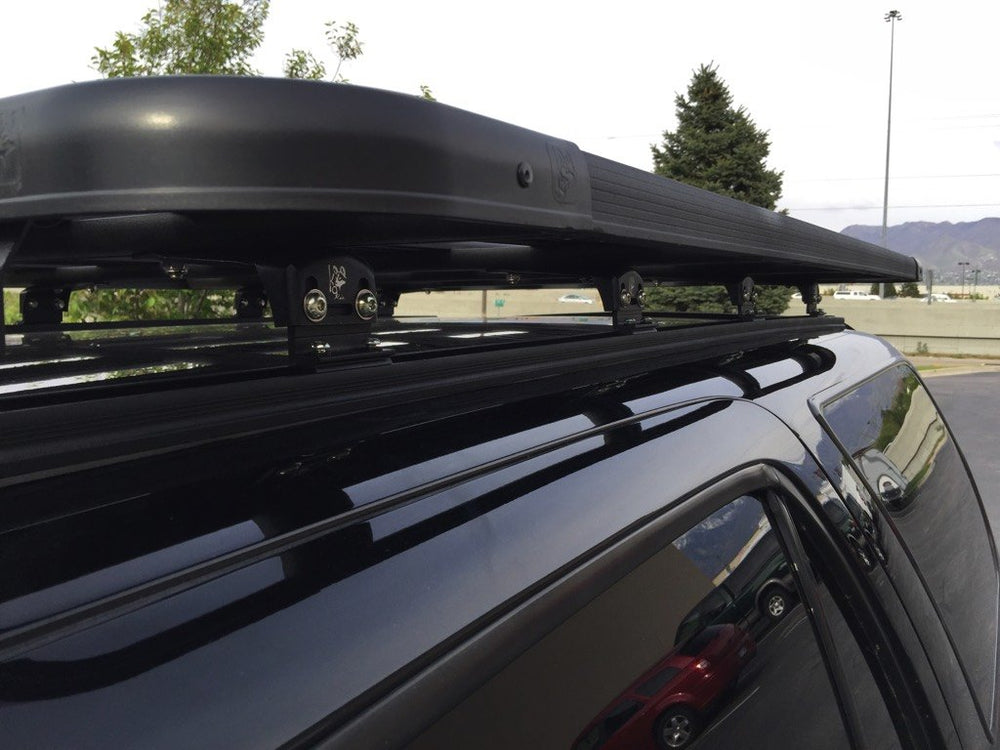

The K9 Roof Rack System for the 3rd Gen 4Runner requires no drilling at all for any size rack. The proprietary mounting rail mounts right over the roof pinch weld trim and utilizes the OEM roof rack mounting points.

Rack Kit Includes:

The components used on the 3rd Generation 4Runner rack systems include a pair of mounting rail, a set of K9 feet (2 per platform cross brace), and a platform.

Rack Accessories:

The Eezi-Awn K9 Roof Rack System comes with a complete array of bolt on accessories.  Jerry Can holders, Axe mounts, Shovel mounts, Hi-Lift Mounts, Max Trax Mounts, Awning Mounts, Under Rack Table mounts, and much more.  Take a look at the accessories page to see all our options.

Thule & Yakima Compatible:

The K9 Roof Rack is also the only overlanding rack on the market that is easily compatible with your existing Thule or Yakima sports bar mounts for bikes, kayaks, etc. With store-accessible 6mm hardware that attaches to the K9's perimeter, your hobbies won't become obsolete with your "old gear.

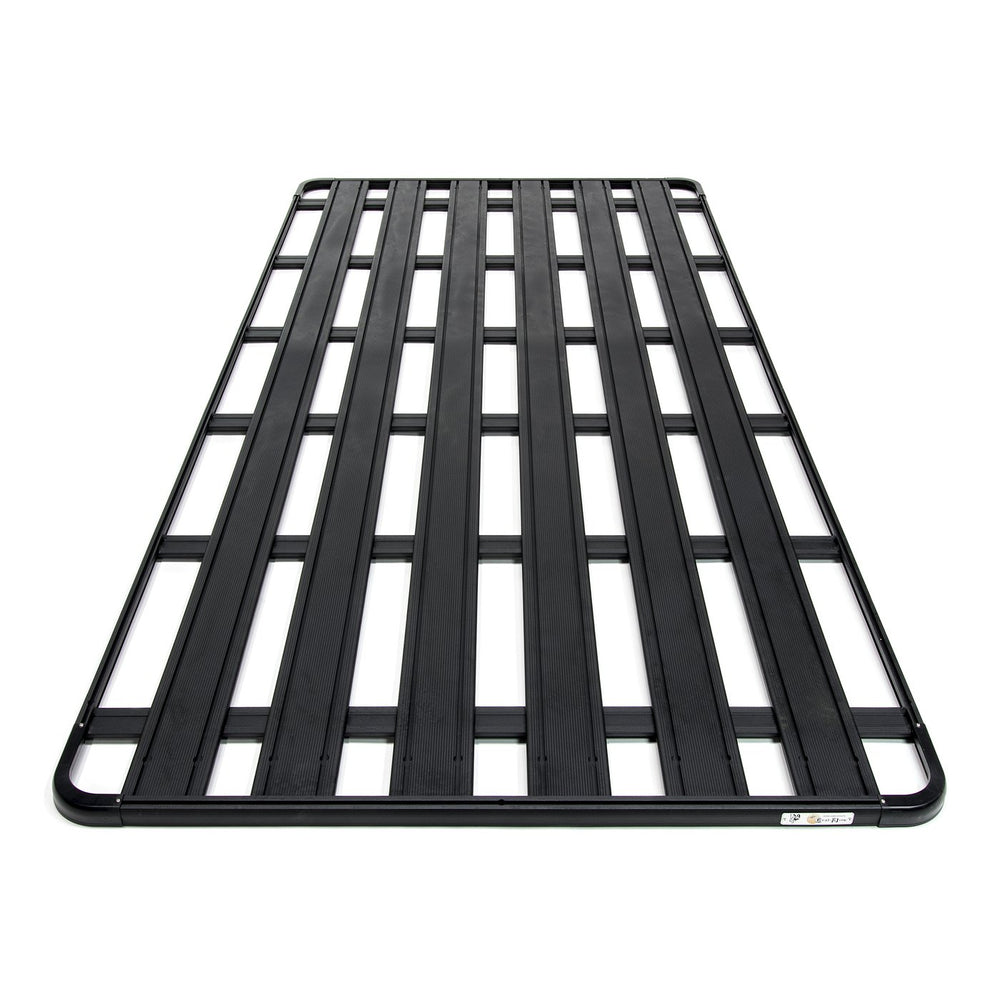

K9 Roof Rack Features:

  • Fully Welded 1-3/8"H Low-Profile Platform
  • Light Weight All Aluminum Construction
  • All Components Are Anodized And Powder Coated Matte Black
  • 5-1/8" Wide M8 T-Slot Slats, Running Front to Back
  • Semi-Elliptical Bottom Cross Braces To Reduce Wind Noise
  • M6 T-Slot Around Top Perimeter With Rounded Top Edge
  • 5 Lengths and 3 Widths Of Platform Available
  • Multiple Mounting Configurations Including Gutterless/Gutter/OEM Rack Mounts
  • Full Compliment of K9 Roof Rack Accessories For Top/Bottom/Side Mount
  • Infinite Gear Organization Configurations
  • Includes All Installation Components & Hardware

Installation Instructions:

Installation of this rack system can be done by one person in approximately 1-1/2 hours.  Please click HERE to download the instructions.

K9 2M / 2.5M x 1250mm ROOF RACK FOR TOYOTA 5TH GEN 4RUNNER

A proper installation of the longer 2M and 2.2M K9 Roof Racks on the Toyota 3rd Gen 4Runner takes a sequence of actions to ensure that the rail on the roof line lays flat to the roof. When installed correctly, the rail will hold tight to the roof.

STEP BY STEP:

  1. Remove the factory roof rack from the vehicle, and leave the black plastic trim in place on the roof. This trim covers what they call the pinch weld, which is where the sides of the vehicle are welded to the roof. It is also where the OEM mounting points are located.
  2. Lay down the supplied K9 Roof Rack round aluminum spacers over the OEM mounting points. The goal of the spacers is to level the gap in the plastic trim to the top of the trim.
  3. Lay the mounting rail on top of the trim, and over the top of the spacers. The mounting rail is the same width as the trim.
  4. Insert and hand tighten the mounting rail bolts through the mounting rail and spacers into the OEM threads. The goal here is to make the mounting rail run smoothly across the roof of your truck. Tighten all bolts in place.

NOTE : Depending on the day the 4Runner was made, the height of the OEM mounting threads can be plus or minus a millimeter. Eezi-Awn provides the shortest spacer they have come across needing for the installation of the rail. When you tighten the bolts down, if you notice the rail recessing a bit to tighten, it will be necessary to add a flat washer (or two) to the top of the spacer to increase the thickness of the spacer under the mounting rail.

  1. At this point, the front end of the mounting rail will sit proud of the roof line a bit at the front. This is okay, and we will address resolving this in a moment. Understand that there is about a foot and a half of rail that is in front of the forward OEM mounting points. Our goal here is to securely mount the rail to the front without requiring drill holes in the roof. When installed properly, the K9 Roof Rack System does not require drilling, but it does require tightening the components in a sequence to ensure the rail sits tight on the roof.
  2. The next step is the installation of the feet to the mounting rail. Both the 2M and 2.5M K9 Roof Racks come with ten (10) feet, designed to be used as five (5) per side. Turn the rack platform upside down. Measure the distances from the back of the platform and each of the cross braces, then space the feet in the mounting rail to roughly coincide with the measurements you took.
  3. Install the wind deflector while the platform is upside down. This will be much easier at this point rather than later.
  4. Invert the platform right side up again, and lift onto the top of the feet.
  5. Install hardware between feet and platform. Start to tighten all the hardware on the feet, but leave loose enough for adjustment.

NOTE : The sequence of tightening the feet to the mounting rail and platform is the key step to the mounting rail laying down on the roof. The logic here is to use the center feet as a fulcrum, the rear feet as an upward force and the front feet as a downward force. The goal is to use the rack components to push the front rail to the roof.

  1. As mentioned before, there are five (5) feet on each side of the rack. Foot #1 should sit at the front and foot #5 should sit at the back with Feet #2, #3, and #4 between.
  2. Go to Foot #3. Lower the mounting as low as you can. Tighten in place. Repeat on other side. This is our fulcrum.
  3. Go to the rear most foot (Foot #5). Raise that foot as high as you can. Tighten in place. Repeat on other side. This creates an upward force on the back of the fulcrum, aiding in the downward force at the front of the rack.
  4. Go to the forward most foot (Foot #1). Raise that foot as high as you can and tighten in place. This action will create even more downward force at the front of the rack, and will hold the front edge of the mounting rail down to the plastic trim on the roof.
  5. Tighten Feet #2 and Feet #4 on both sides in their positions.

Eezi-Awn K9 Roof Rack Installation Video:

Order Confirmation:

The moment you place your order you will receive order confirmation e-mail. This means that we have received your order in our system and pre-authorized your credit card for the purchase.

As soon as we receive your order we automatically check to confirm that your order is in stock and available for immediate shipment. If your item is on back-order or unavailable we will void the pre-authorization and reach out to you via e-mail or phone to see if alternate arrangements can be made.

If your item(s) are available for immediate shipment (within 5 business days) we will process the charges and get to work preparing your order for shipment.


Order Shipment:

If your order is in stock and we process the charges to your credit card it will ship within seven business days from the date of your order.

We will send you shipping confirmation within 24 hours of your order leaving the warehouse to the e-mail address you provided when checking out.

From brand to brand shipping times may vary. However, you order will most likely be at your place between 5 to 14 days after you placed it.

If you do not receive shipping confirmation from us within six business days of your order feel free to follow up with us at support@offroadtents.com


Damages:

What To Do Before Accepting Shipment?

If your order has shipped please note that the tracking number may not be active until it reaches a freight terminal. This could take 1 to 2 business days from the date of this email.

Please inspect your package for damage prior to signing for it.

Off Road Tents takes pride in its products and packaging. Every tent that we ship out is properly classified, packaged, marked and labeled. Also each package is in the proper condition for transportation according to applicable regulations of the U.S. Department of Transportation and/or international agencies.

Once your order is signed for at the delivery point, the package becomes your property and thus, our liability ends as far as shipping damage is concerned. Help protect yourself from loss or damage, or an uncomfortably painful claims process by:

1. Before Signing for your order, inspect the box or boxes for freight loss or damage. Red flags are punctures or any sign of forklift damage.

2. If any of the product(s) appear to be damaged or crushed do not accept delivery. Refuse the shipment and it will be sent back for processing.

3. It is extremely important that you inspect the box and tent (in case the item purchased is a tent) for damage BEFORE you sign to receive the tent. Please take photos of the box on the pallet exactly as it arrives. Please note, the driver will not help with damage inspection. IF you even suspect there could be damage to your item, please take pictures of the damage and REFUSE the delivery. That way the carrier will send it back to us and we'll process a new shipment.

4. Get a copy of the signed delivery receipt that shows the freight loss or damage notation, and send it to us: support@offroadtents.com

5. Contact Off Road Tents immediately at 1.844.200.3979

If you accept a damaged delivery, and/or there is freight loss and/or the damage is not noted at the time of delivery, Off Road Tents cannot be held liable for any replacement costs related to the shipment. Protect yourself from this by examining before you sign. Refusing delivery when damaged helps Off Road Tents win the case against the carrier, and replacing your item.

Why Shop With Us

We understand you've got alot of choice when it comes to Roof Top Tents and overlanding retailers online. But here's why we think you should shop with us at Off Road Tents

We aim to offer the BEST customer service. Got any doubts? Call us at any time.

Every order above $300 gets Free Shipping, and No Taxes. The price you see is the price you get.

Safe And Secure Shopping. We offer an SSL Service which will protect your credit card from any risks.

Step-By-Step Guide On How To Mount A Roof Top Tent:

  1. All tents have a similar installation process, but they might vary a little, that is why we recommend you reading carefully THROUGH EACH PRODUCT MANUAL, as well as watching their videos (most are online, or you can ask us to send them to you).

  1. Tools needed: A Phillips head screwdriver, a box cutter, a second 13 mmm ratcheting wrench, a 10mm ratcheting wrench and a heck saw.

  1. Before mounting them onto a roof rack, flat rack or crossbar, the first step is removing your newly bought RTT from the box, as well as all the bits and pieces included (all RTTs WILL include all the necessary installation parts and a manual).

  1. Take the tent out of the box and place it on a clean surface with the straps faced DOWN. Set aside the mounting racks. Remove the protective plastic from the tent with the box cutter. Undo the straps from the sides of the tent and across the base.


  2. Open the tent, and take from inside of it all the contents. Most brands will include a tent cover, rainfly, ladder, mattress, and a pouch with the hardware, tools and parts.

  1. Most RTTs will include the following tools and hardware (see Image as an example): 2 bungees, 2 ladder brackets, 8 aluminum channel sliders with bolts and nuts, 4 end caps, four steel mounting plates, the needed wrenches, and four medium sized bolts with washers.

    tools included inside roof top tents
  1. Then, time for the action. Grab the mounting tracks of the RTT; place them on the tent base parallel to the hinges, aligning the holes in the tracks with the holes in the base.


  2. Grab the nuts, remove them from the four medium sized bolts and slide them into the mounting channels, as to align them to the holes in the base.


  3. Then take the bolts each with two washers, and slide them between the mattress and the tent base.


  4. Screw them into the pre drilled holes and the nuts you just put in the tracks.


  5. Once the tracks are on, you need turn/flip the tent over to install the ladder.


  6. Grab the Ladder Brackets and unscrew the bolts on each bracket, so that you can position over the pre-drilled holes at the edge of the tent base.


  7. Take the longer bolts each with the washer, and slide them between the mattress and the tent base, into the pre-drilled holes and up through the ladder bracket.

  1. Attach each one with a nut and leave them loose.

  1. Then grab the ladder and through the holes at the end of it, join it to the by passing the remaining length of the bolt through the holes in the ladder end. Then add another nut and tighten it on both sides.

  1. Then rotate the ladder a few times, before tightening the bolts of the brackets to the base.

  1. Then secure the ladder with the straps (most tents should have them), and then reattach the side straps of the tent to secure it.

  1. Once all the parts have been installed, make sure you put the travel cover on top of the tent. It is a very easy process that barely needs explanation; just make sure you close the zippers carefully to prevent the tent fabric catching to the zipper.

  1. Time to place the tent on top of the vehicle. Since they weigh over 120 lbs, you will want the help of someone to do it.

  1. Mounting the tent mounting tracks depends on whether you have side rails or cross bars, and if you want the tent to open towards the side of the car or towards the back. In this step-by-step guide we will use a side mounting as an example on top of cross bars.

  1. Place the mounting racks in the base of the tent, PERPENDICULAR to your roof rack bars.

  1. Then, fit two aluminum channel sliders and bolts into each end of the mounting track, so that there is a bolt on either side of the roof rack bar. Repeat this process at each of the 4 points where the racks and mounting racks cross.

  1. Once this is done, fit a steel mounting plate on the bolts and under the roof rack bar, and secure them with nuts and tighten them with a wrench.

  1. Insert the rubber end caps into the end of the mounting tracks to avoid water or other materials going in there. You might need to hammer them in, but don’t be too aggressive.

  1. It is INSTALLED!

How To Open The Roof Top Tent:

  1. Now, to open it, release the side straps, pull back the ladder until it locks out and use it as leverage to open the tent.



  1. Make sure all rungs of the ladder are locked into the edge.



  1. Before getting into the tent, make sure the hinges are properly engaged.



  1. Then unclasp the awnings and find the predrilled holes for the rainfly rods.



  1. Insert at a 45-degree angle and hook through the grommet.



  1. You are READY!
