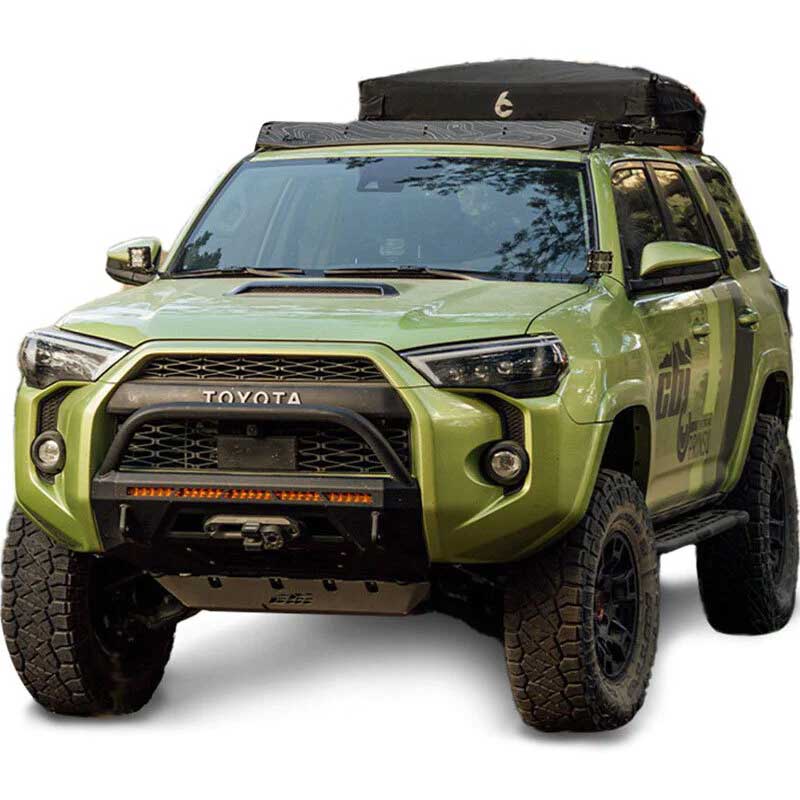

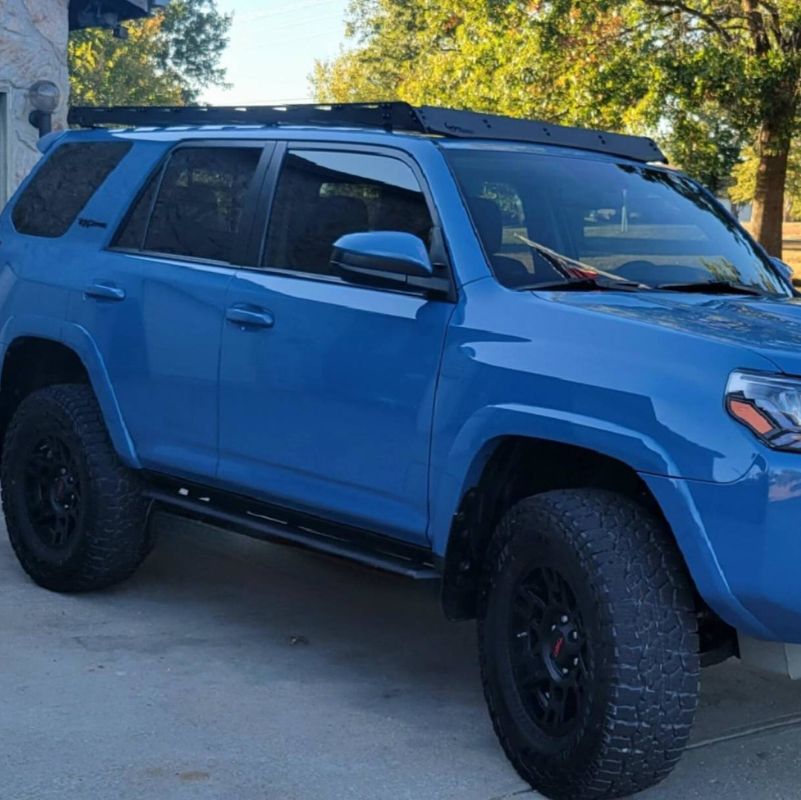

Prinsu Roof Rack 4Runner 5th Gen Full Non Drill 2010-2024

Prinsu Roof Rack 4Runner 5th Gen 2010-2024 Full Roof Rack No Drill

This Prinsu 4Runner 5th Gen roof rack is the best upgrade you can give to your rig. An aftermarket roof rack solution to take the cargo carrying capacity and functionality of your 4Runner 5th Gen to another level, thanks to a 1000 lbs weight capacity, numerous tie-down solutions and accessories, as well as a reliable American craftsmanship.

Thanks to a drill-free installation, you can have this rack installed and ready in less than an hour, with the next adventure in mind. As to quality, look no further, made in America, directly in Idaho, this Prinsu rack is top quality.

NOTE: This rack will include our all-black stainless steel hardware kit and upgraded Prinsu Pro crossbars

IN STOCK - SHIPS FREE

4Runner Prinsu Rack Advantages

Easy installation, no drilling required
Installation in less than 40 minutes, bolts into existing factory mounting points
1,000 lbs of static load rating (when the vehicle is parked)
Ideal for roof top tents, RotoPax, MaxTrax, water tanks, cargo boxes, fishing rods, and more.
Low profile
Noise reducing trim included, barely any wind resistance
Works with all sunroof and no sunroof 4runner 5th Gen models
Limited Lifetime Warranty

How Much Weight Can A Prinsu 4Runner Roof Rack Hold?

The Prinsu 5th Gen 4Runner roof rack can hold up to 1,000 lbs of weight when parked. Essentially it has a 1000 pounds static load rating. If you were wodnering, it'ss capable of carrying all your overlanding gear, from roof top tents to kayaks, boards, you name it.

Another great feature of this roof rack is that it comes with a wind deflector to help the vehicle with aerodynamics and lower the wind noise. Plus, it's really low profile compared to other models, adding just 1.75" more to the height of your Toyota 4Runner 5th Gen, meaning you can still park anywhere.

Prinsu Roof Rack 4Runner With Sunroof

One of the good things about this Prinsu 4runner rack is the fact that it works even of you're 4Runner has a sunroof. You can tilt open the sunroof with the rack on, and if you actually want to use fully the sunroof, you could remove just the slats right above it. Be advised, that whenever you use the sunroof, if there aren't items on top of the rack, wind will collide against the slats and it will likely come into the vehicle. It's not a big deal, but it's better if you are aware of it!

4Runner Modular Roof Rack

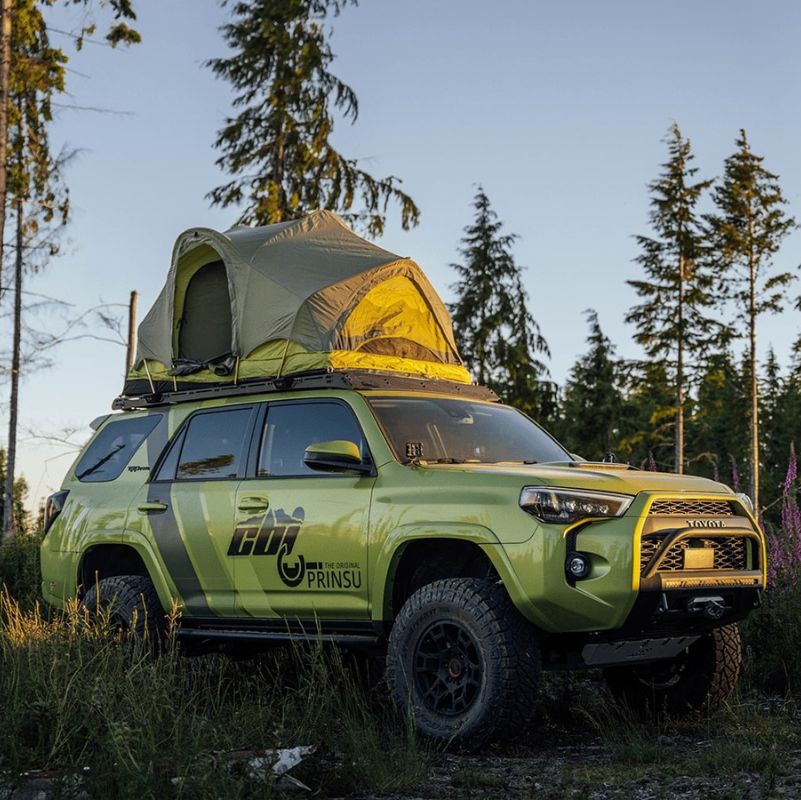

Prinsu Roof Rack 4Runner 5th Gen Full Non Drill 2010-2024 with softhshell roof top tent open

This Prinsu roof rack for the 4Runner 5th Gen is a completely modular roof rack. What does that mean? Simple, this rack allows you to remove or add more slats onto it for your own convenience. You can also add other accessories to it, such as load panels, and treat it pretty much as if it was your own toy to build, shift and test parts on.

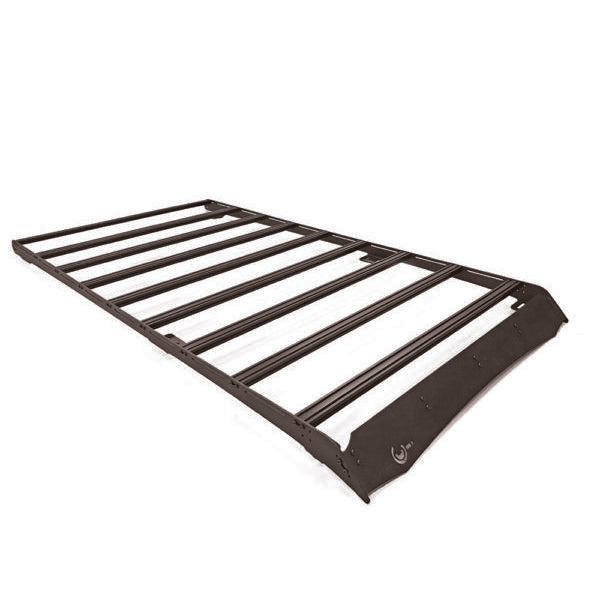

The roof rack itself has 2 laser cut side rails constructed of 1/4″ 5052 aluminum plate and is also black powder coated to prevent it from eroding or rusting under any weather condition. From Arizona to the Pacific North West, it can take whatever element you throw at it.

This 4Runner Prinsu rack comes with 9 crossbars and you can choose how many you want to mount depending on how heavy the cargo you are hauling on top of it is. You may also choose to install all 9 of them if you want to mount a roof top tent on top of it. The more crossbars or slats (another name for the bars going from side to side), the higher the weight rating of the roof rack.

The removable slats or crossbars are made of 1" x 2" aluminum extrusion each with two top facin t-slot channels, a fore and aft channel and another two bottom facing channels. Thanks to these channels, it's simple and easy to add any accessories such as mounts or lighting, as well as adding more tie-down options and solutions. The whole rack comes powder coated entirely in black, including the hardware which comes in a black zinc.

Installing the 4Runner Prinsu rack is pretty straightforward because it is a no-drill roof rack that bolts directly into the existing roof factory mounting points, meaning you don't have to use power tools and manipulate the roof of your vehicle. Instead, is simpler, faster, and requires just bolts and a screwdriver.

Pro tip: It's better to install the side rails on the roof first then install the middle/end/ and front cross-bars after.

Prinsu Roof Rack 4Runner Light Bar

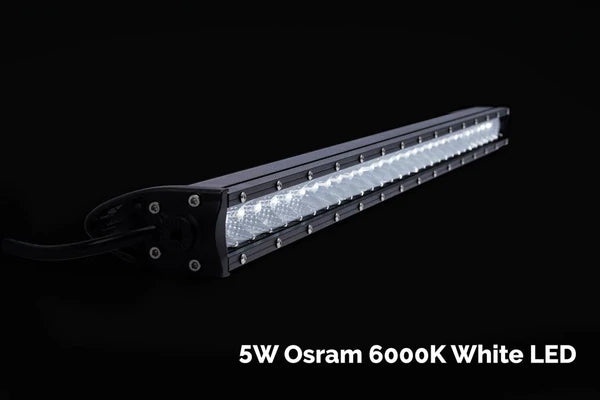

NOTE: Cali Raised LED 42" Lightbars are offered in case you'd like to pair your Prinsu rack with an amazing and solid light bar. Make sure to select yours when choosing the product's variants.

In case you'd like to know more about the lightbars:

Cali Raised LED 42" Slim Single Row LED Light bar. Click HERE

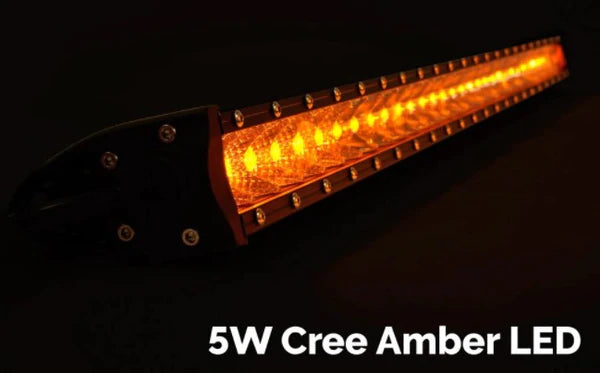

Cali Raised LED 42" Slim Single Row LED Lightbar (Amber). Click HERE

IMPORTANT: LP4 Light Pod Cut Out if offered as an option for the Prinsu Rack. We also carry the respective Baja Designs LP4 lights. Each Wind Deflector can accommodate a total of 7 LP4's.

In case you'd like to read about the Baja Designs LP4 Pro LED Lights and add them to your order Click HERE!

Prinsu Roof Rack 4Runner Dimensions:

Installed Weight	50 lbs
Overall Length	92"
Dynamic Weight Capacity	600 lbs
Static Weight Capacity	1000 lbs
Side Rail Height*	2"
Height Added To Roof**	1.75"
Clearance Between Roof & Rack	0.625"
Width	47"
Years Compatible	2010 to 2023
Sunroof Functional	YES
Warranty	Limited Lifetime

*As measured at the center of the side rail

**As measured from the center point of the roof

Features Of Prinsu Rack 4Runner:

Made in America
2 laser cut side rails constructed of 1/4″ 5052 aluminum plate
These rails have 3 mounting tabs each allowing you to bolt the rack into the 4 factory mounting holes and 3m Industrial Adhesive on each side of the roof
No drilling required
Crossbars made from a 1" x 2" aluminum extrusion that has 2 top facing T-slot channel, a fore and aft channel and 2 bottom face channels
Powder coated in a satin black texture with black anodized aluminum cross-bar extrusions
One cross bar will not be anodized - it is intended to sit behind the wind deflector
All product comes in black
All assembly hardware comes in a black zinc finish to match a black paint, or powder coat finish
All mounting hardware is either stainless steel or high-quality zn plated
The rack also includes a 1/8″ 5052 aluminum plate wind deflector to help with aerodynamics and prevent wind noise
Comes standard with 9 cross bars for cargo and 1 additional for mounting of a wind deflector, lightbar or combination of the two.

*** Includes a noise-reducing trim for better airflow and less noise while driving ***

Prinsu 5th Gen 4Runner Roof Rack Fits:

Toyota 4Runner 5th Gen: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

Prinsu Roof Rack 4Runner Instructions:

View the Prinsu Roof Rack 4Runner Install manual HERE

5th Gen 4Runner Prinsu Review:

Compatible 4Runner Prinsu Roof Rack Accessories:

Prinsu Tent Mounting Feet: CLICK HERE

Prinsu Ridgeline Handles: CLICK HERE

Prinsu Awning Mount Brackets: CLICK HERE

Prinsu Load Panel: CLICK HERE

Prinsu GoPro Mount: CLICK HERE

Prinsu 4Runner Roof Rack FAQs:

What is the Prinsu Roof Rack 4Runner weight limit?

The Prinsu 5th Gen 4Runner roof rack has a dynamic weight limit of 600 lbs. That means that when you are driving or the car is in motion, the roof rack can hold up to 600 lbs. The static weight limit is 1000 lbs. That means that when the car is parked, the roof rack can hold up to 1000 lbs.

What is the Prinsu roof rack bolt size?

The 4Runner 5th Gen Prinsu roof rack comes with a series of different bolts, most of them being 1/4" bolts.

When assembling the roof rack, all bolts must be installed with the right thread locker or anti seize. When torquing all bolts, use an appropriate wrench and secure them to 67 lbs.

Is this the Prinsu full roof rack 4runner?

Yes, the model you are looking at is the Prinsu full roof rack 4runner 5th Gen model.

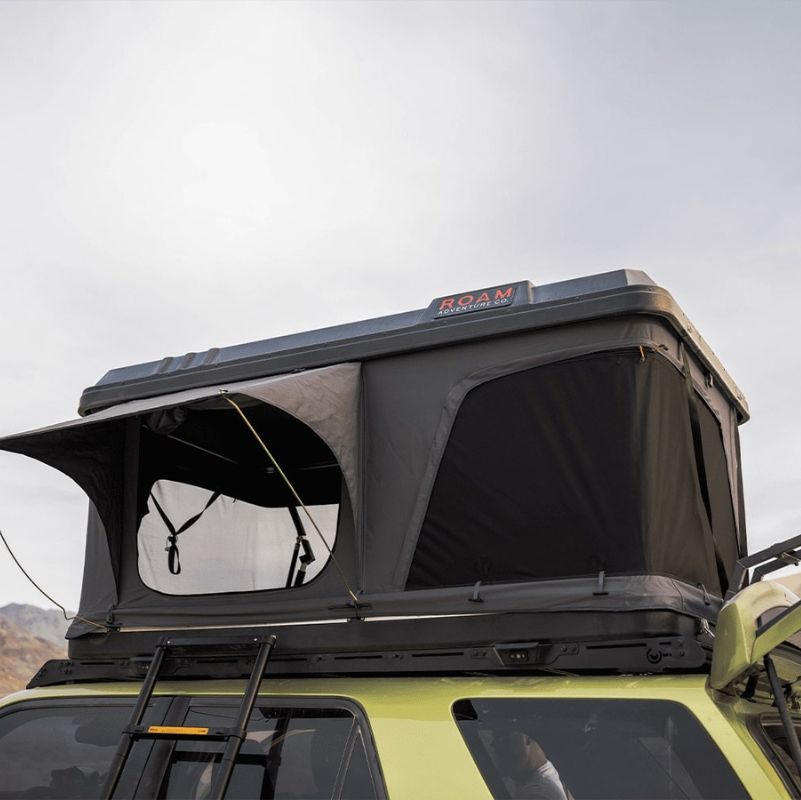

Can you put a tent on a Prinsu roof rack?

Yes you can. This Prinsu 5th Gen 4Runner full rack has a 1000 lbs static load rating, which means it can easily and safely carry any roof top tent in the market.
