FSR 270 Awning V2 - Wraparound Side & Rear Vehicle Coverage
FSR 270 Awning V2 - Wraparound Side & Rear Vehicle Coverage

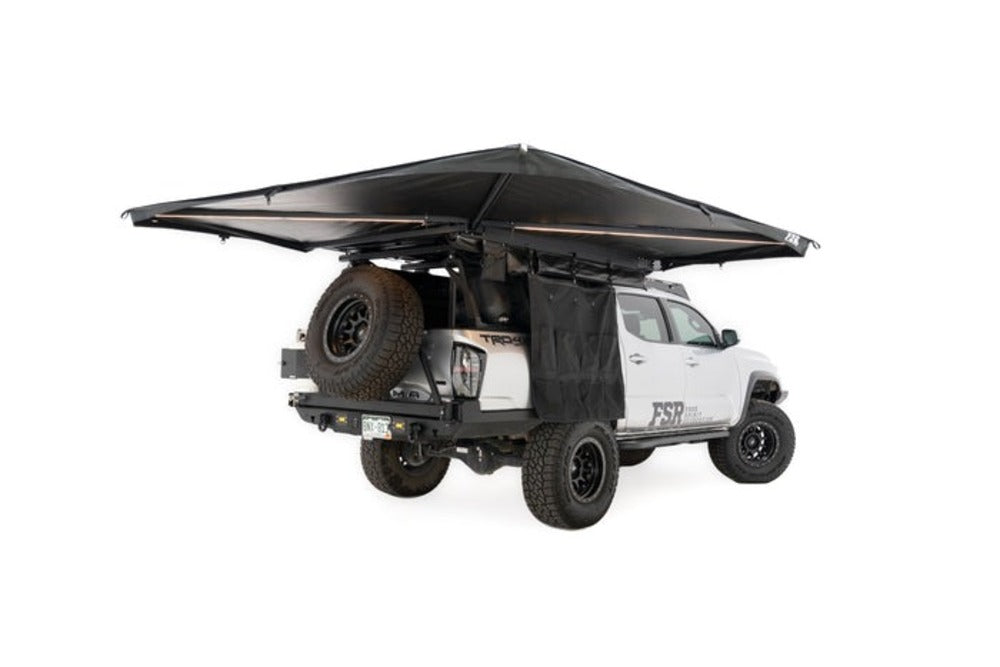

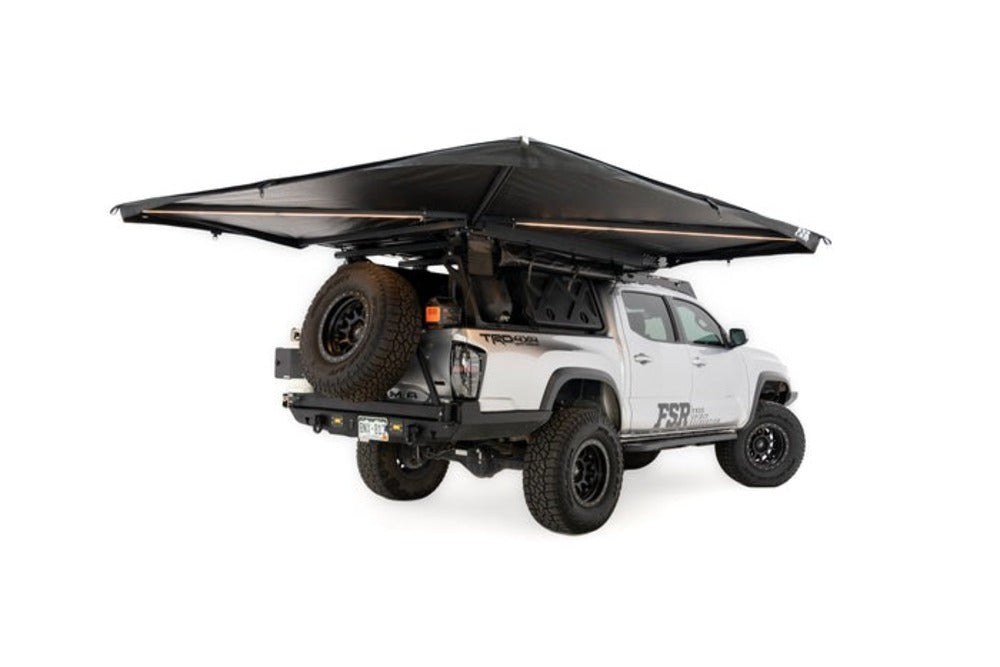

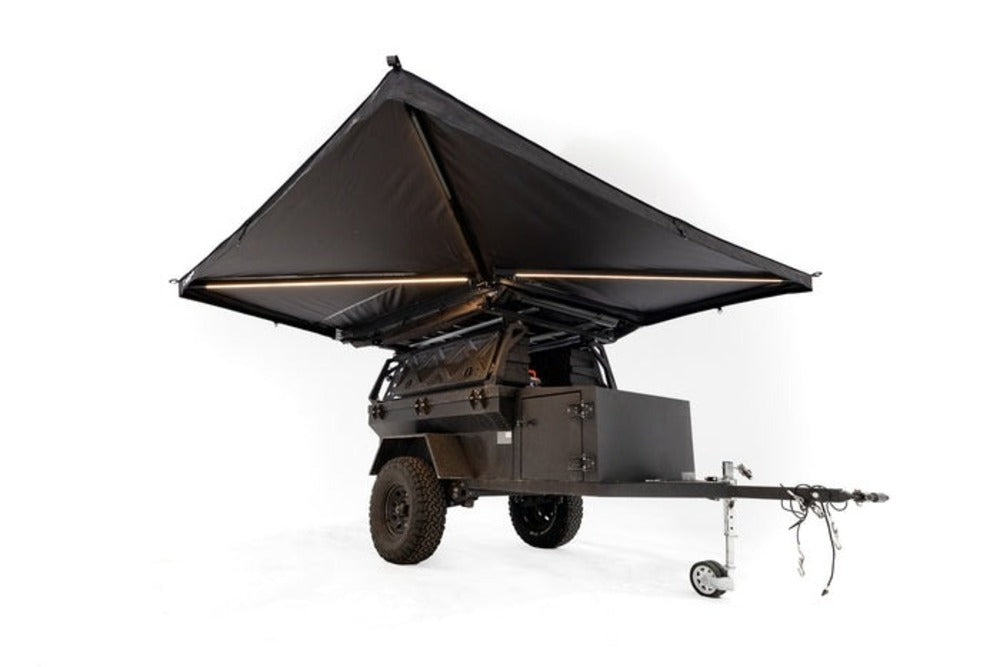

Most awnings give you coverage on one side and leave the rest of camp exposed. The 270 awning wraps around, extending along the full side of your vehicle and across the rear at the same time, with a squared-off rear panel that keeps coverage consistent all the way to the corner.
That geometry matters most at the tailgate. It turns your cook setup into a sheltered workspace, keeps gear dry from multiple directions, and creates a defined camp area you can actually use in the rain rather than a strip of shade you keep chasing. Over 80 square feet of it, deployable in under a minute, without a single support pole touching the ground. As a car awning or a truck awning it does the same job: one swing and your camp has a roof. Built from 600D Oxford Ripstop with a 3000PU waterproof coating and UPF 50+ protection, with dual-color dimmable LED strips running along the arms. Available in driver or passenger side mounting, and universal brackets are included.
Freestanding Means Freestanding
The rigid arm design supports the entire canopy without ground poles. No guy lines to run, no staking, no setup routine to memorize. Swing it out, lock it, done. For a freestanding awning covering 80 square feet, that is genuinely unusual, and it is the difference between pulling into a site and having shelter in under a minute versus spending ten minutes tensioning lines.
Guy lines and stakes are included, and FSR recommends using them in any degree of wind, or when you pair the awning with walls. For everyday camp use in calm conditions you will not need them. But an 80 square foot canopy is a large sail, so read the weather and stake it when there is any breeze at all.

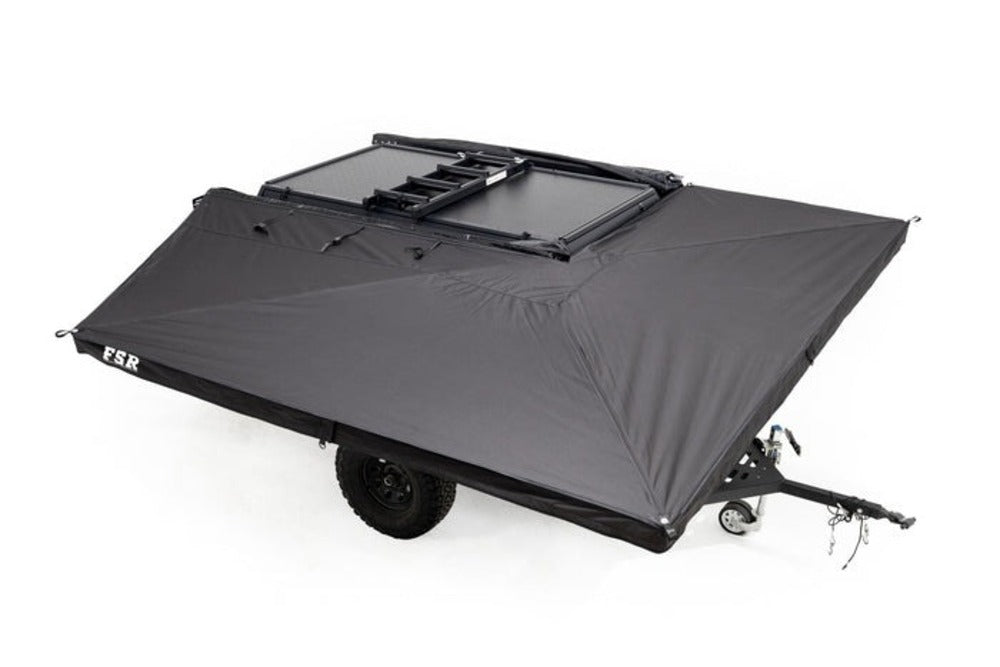

The Squared-Off Rear Is the Point
Plenty of 270 degree awning designs taper toward the back, which leaves a triangle of exposed ground exactly where your tailgate is. FSR squared this one off. The vehicle side covers 72 by 112 inches and the rear section covers 52 by 126 inches, so coverage stays consistent right into the corner. That is the area where you are actually working: cooking on the tailgate, sorting gear out of the back, standing around with a coffee while it rains. Square corners there are worth more than an extra few square feet somewhere you never stand.

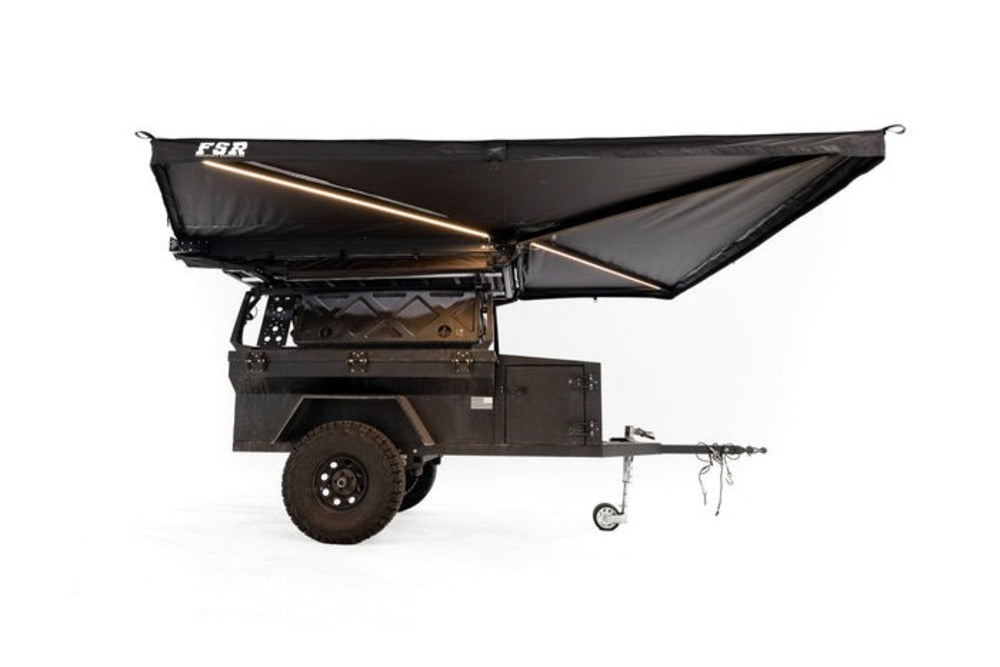

Lighting Built Into the Arms
Dual-color dimmable LED strips run along the main arms, throwing warm light across the entire coverage area rather than a hot spot from one lantern. It is USB powered, so connect a battery bank and you have a fully lit camp without a separate lighting system, extra poles, or cable strung between trees. The dimmer means you can run it bright for cooking and low for sitting out afterwards. A dimmable light switch is included in the box; the battery bank is sold separately.
Built for Weather, Not Just Shade
600D Oxford Ripstop
With a 3000PU waterproof coating. This is rain-rated fabric, the same spec FSR uses on the 180, not a light shade cloth that wets through in a downpour.
UPF 50+
Full sun protection, so the shade is genuinely shade rather than filtered UV. Matters more than people expect on multi-day desert trips.
Rain, Sun, Snow
FSR rates it across the range. Combined with the wraparound geometry, you get a defined camp area that stays usable when the weather turns.

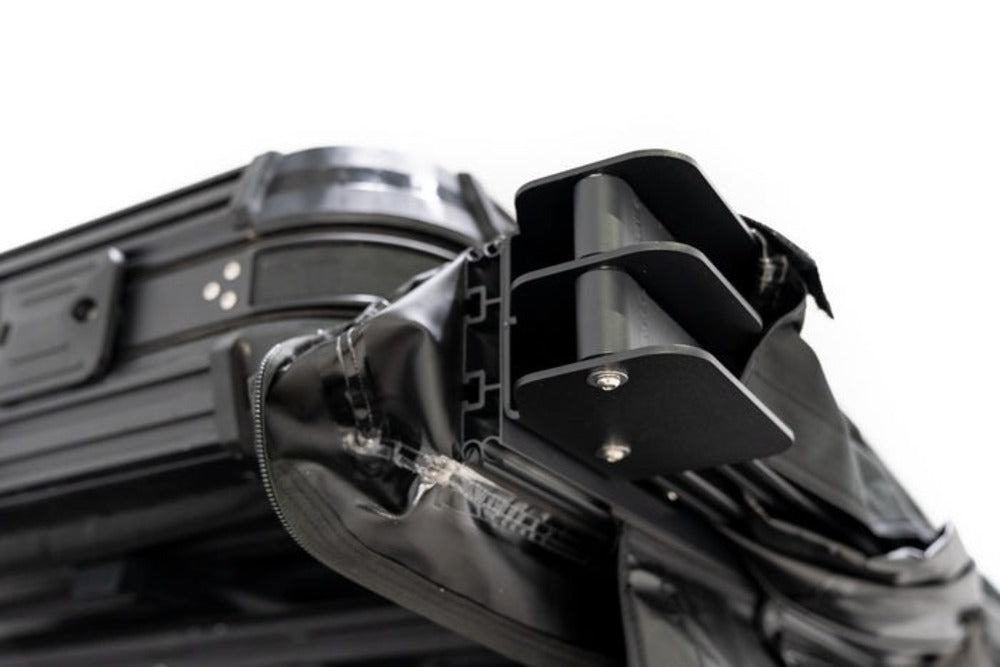

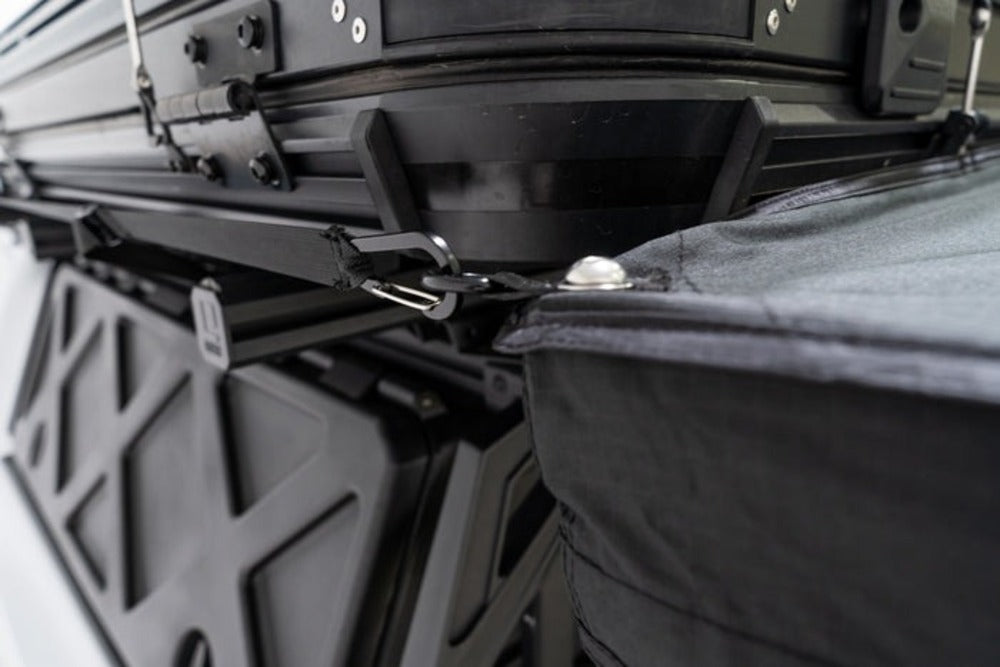

Redesigned Swing Hinges and Canvas Cover

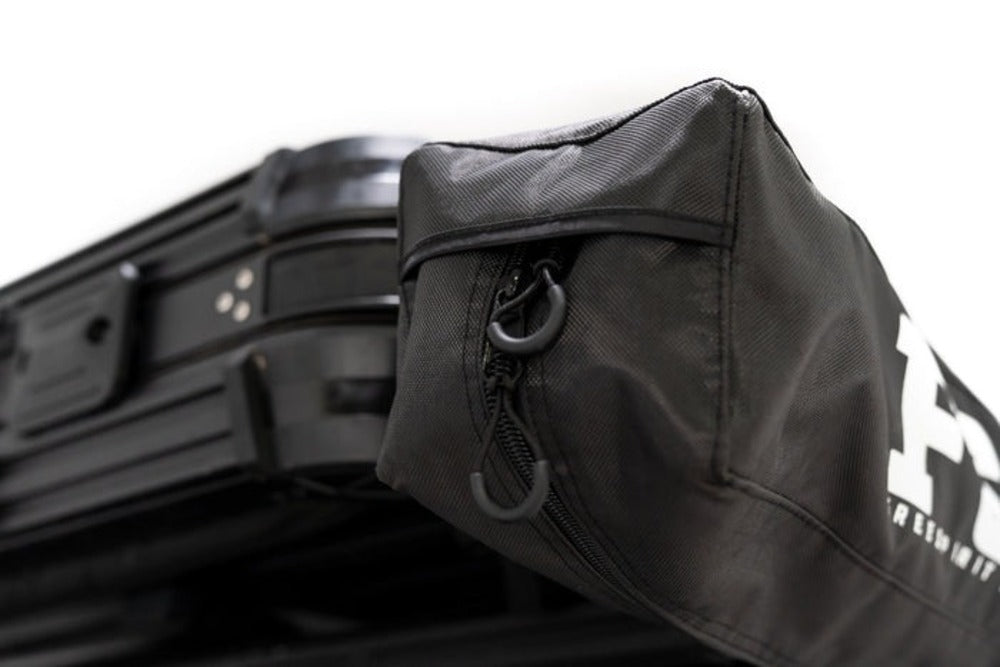

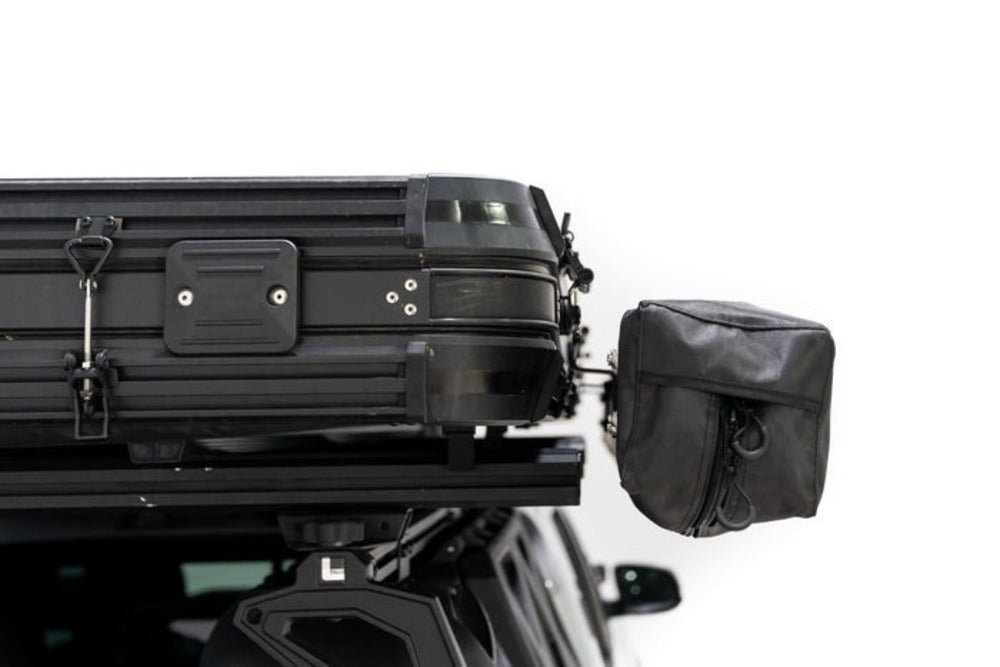

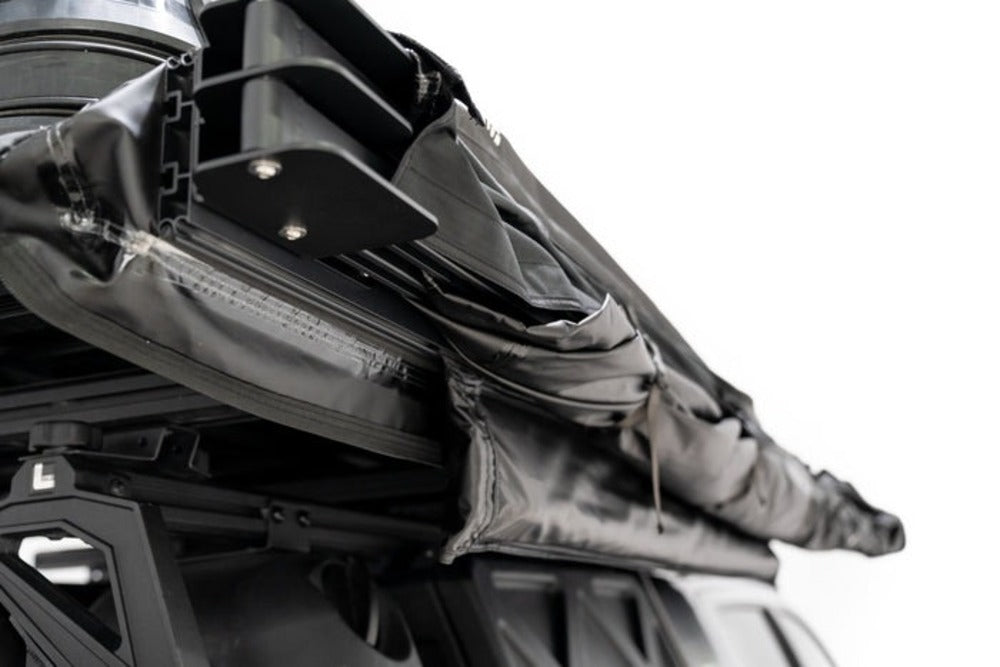

An overland awning lives a harder life than a camping awning at a developed site, and the V2 revision reflects that. It added support at the swing hinges over the original design, and the improved canvas cover protects the mechanism from low-hanging branches on the trail. Those are the two places a vehicle awning typically fails: the hinge under repeated load, and the folded canopy catching something at speed. Both got attention in this generation.
Integrated Keder Rail
A keder rail on the backplate lets you swap between the included gear grid, support pole bag, and small accessory bag. It also accepts awning walls, which fully enclose the space and turn the covered area into a private room at camp. That is the upgrade path if you start using the awning as a changing area, a shower enclosure, or an extra sleeping space.
Mounting and Rooftop Tent Pairing
Choose driver side or passenger side mounting at checkout. Whether you are fitting an awning for SUV, truck, or van builds, universal brackets are included, and the mounting backplate uses 2 inch spacing track-to-track.
If you run an FSR Evolution or Aspen rooftop tent, the 270 pairs directly with them using FSR's rooftop tent awning bracket system, so there is no drilling and no improvised hardware. A rooftop tent awning combination is the most common overland setup we sell: sleep above, cook and live underneath. Call us at 844-200-3979 and we will confirm the right bracket for your tent and rack.
Mounting note: the awning mounts to a roof rack or bed rack rather than directly to the vehicle body. Confirm your rack has a rated dynamic capacity that covers the awning's 43 lbs alongside anything else you carry, and that you have 90.5 inches of usable rail length for the closed unit.
Specifications
| Coverage | 270 degree side and rear wraparound, squared-off rear panel |
| Coverage Area | 80.7 sq ft |

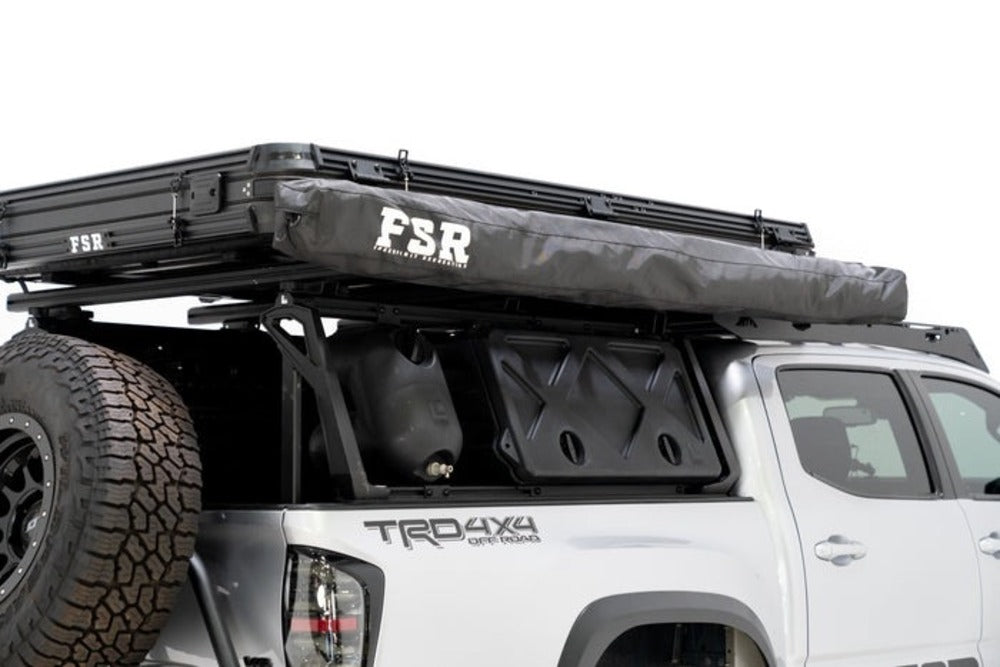

| Closed Dimensions | 90.5" x 5.9" x 5.9" |
| Open Dimensions | 72" x 112" vehicle side, 52" x 126" rear |
| Weight | ~43 lbs |
| Fabric | 600D Oxford Ripstop with 3000PU waterproof coating |
| Sun Protection | UPF 50+ |
| Support | Freestanding rigid arms, no ground poles required |
| Lighting | Integrated dual-color dimmable LED, USB powered (battery sold separately) |
| Mounting Backplate | 2" spacing track-to-track |
| Mounting Side | Driver side or passenger side |
| Accessory Rail | Integrated keder rail for gear grid, bags, or awning walls |
| Deployment | Under one minute |
| Rated For | Rain, sun, and snow |
What's Included
Sold separately: USB battery bank for the LED lighting, awning walls, and the rooftop tent awning bracket system if you are pairing with an FSR tent.
📄 Instruction Manual
Download the FSR 180 and 270 awning V2 instruction manual covering mounting, deployment, and takedown.
Pros
- 80.7 sq ft wrapping the full vehicle side and across the rear at the same time
- Squared-off rear panel keeps coverage consistent right into the tailgate corner
- Genuinely freestanding on rigid arms, no ground poles or guy lines needed for calm conditions
- Deploys in under a minute. Swing, lock, done
- 600D Oxford Ripstop with 3000PU coating and UPF 50+, rated for rain, sun, and snow
- Dual-color dimmable LED built into the arms, USB powered
- V2 redesigned swing hinges and an improved canvas cover that protects the mechanism on trail
- Keder rail accepts the gear grid, accessory bags, or full awning walls
- Driver or passenger side mounting with universal brackets included
Cons
- An 80 sq ft canopy is a large sail. FSR recommends staking and guying in any degree of wind, so treat the freestanding capability as a fair-weather convenience
- Mounting side is chosen at purchase, so decide which side of the vehicle you want your camp on
- Needs 90.5 inches of usable rail length closed, which is a lot on a shorter rack already carrying a tent
- The USB battery bank for the LED lighting is sold separately
- Awning walls, which unlock the enclosed room setup, are also sold separately
Frequently Asked Questions

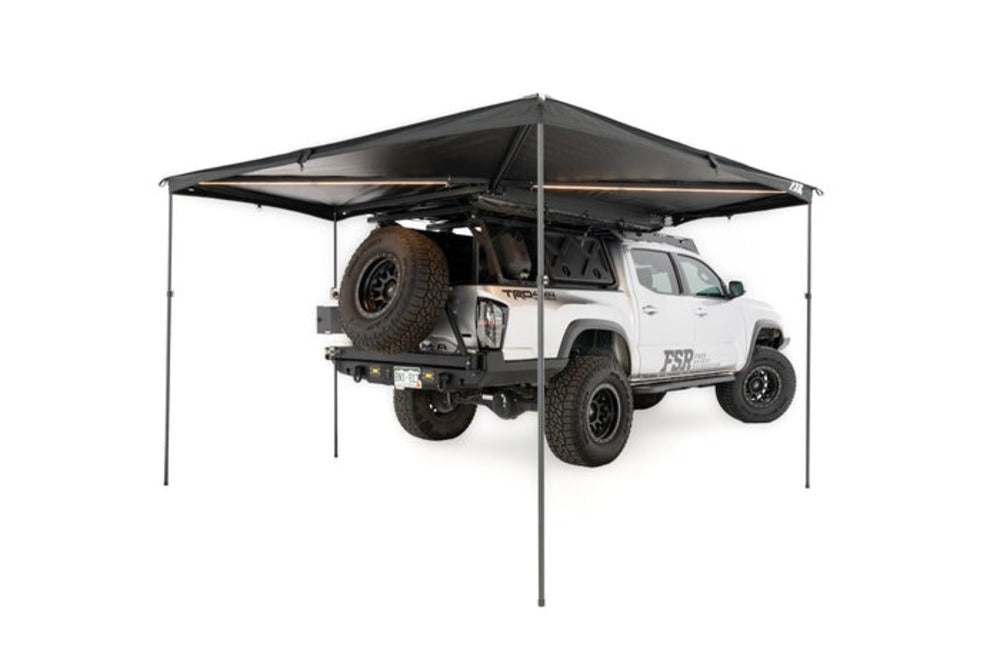

Does it really need no poles?
In calm conditions, no. The rigid arm design carries the entire canopy, so you swing it out, lock it, and you are done. Telescoping aluminum support poles, guy lines, and stakes are all included, and FSR recommends using them in any degree of wind or when you are running awning walls. An 80 square foot canopy catches a lot of air, so the honest advice is to stake it whenever there is a breeze. The freestanding capability is a convenience for still evenings, not a reason to skip securing it.
Driver side or passenger side?
You choose at purchase, and it is worth thinking about. Most people mount on the passenger side so camp sets up away from traffic when parked roadside, and so the driver door stays clear. Mount driver side if your kitchen slide, fridge, or drawer system lives on that side and you want the awning over your working area. Because the 270 also wraps the rear, the tailgate stays covered either way.
Will it work with my rooftop tent?
Yes. The 270 pairs directly with FSR Evolution and Aspen rooftop tents using FSR's rooftop tent awning bracket system, with no drilling and no improvised hardware. Sleeping above and living underneath is the most common overland setup we sell. If you run a different tent or rack, universal brackets are included and we can advise on fitment. Call us at 844-200-3979 with your tent and rack and we will confirm.
Is it actually waterproof?
Yes. The canopy is 600D Oxford Ripstop with a 3000PU waterproof coating, which is rain-rated fabric rather than a light shade cloth. FSR rates it for rain, sun, and snow, and it carries UPF 50+ for sun protection. The wraparound geometry is what makes that useful in practice: instead of one strip of dry ground you get a defined camp area covered from the side and the rear at once.
What does the keder rail do?
It is a track on the backplate that lets you slide accessories on and off. The included gear grid, support pole bag, and small accessory bag all mount there, and you swap between them as needed. It also accepts awning walls, which fully enclose the covered area and turn it into a private room at camp. That is the upgrade path if you want a changing space, a shower enclosure, or extra sleeping area. Walls are sold separately.
How much rack space does it need?
Closed it measures 90.5 by 5.9 by 5.9 inches, so you need just over 90 inches of usable rail length along the side you are mounting it on. Weight is roughly 43 lbs. Check that against your rack's dynamic load rating alongside anything else you carry, especially if you are also running a rooftop tent. The mounting backplate uses 2 inch spacing track-to-track. Call us at 844-200-3979 and we will confirm your rack works.
