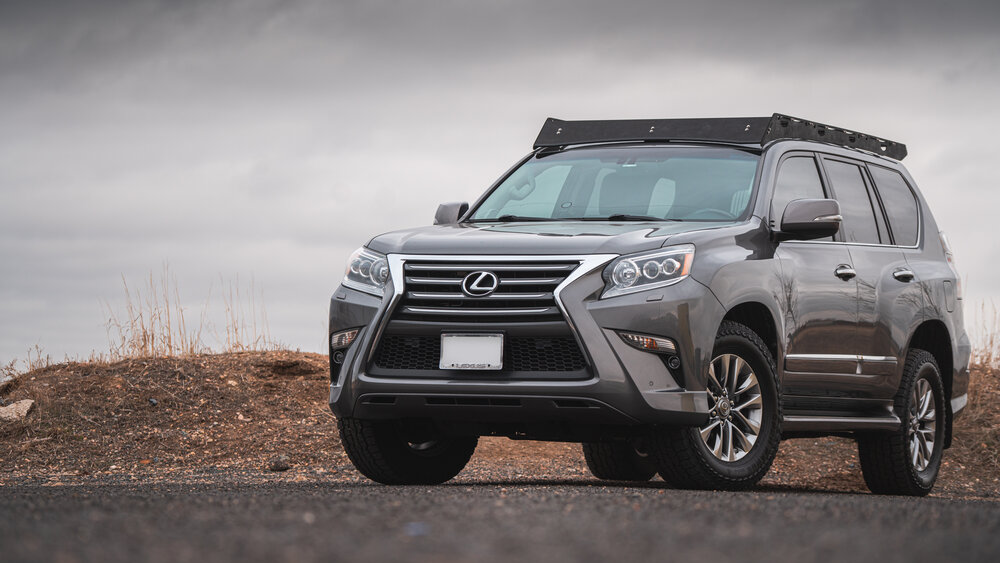

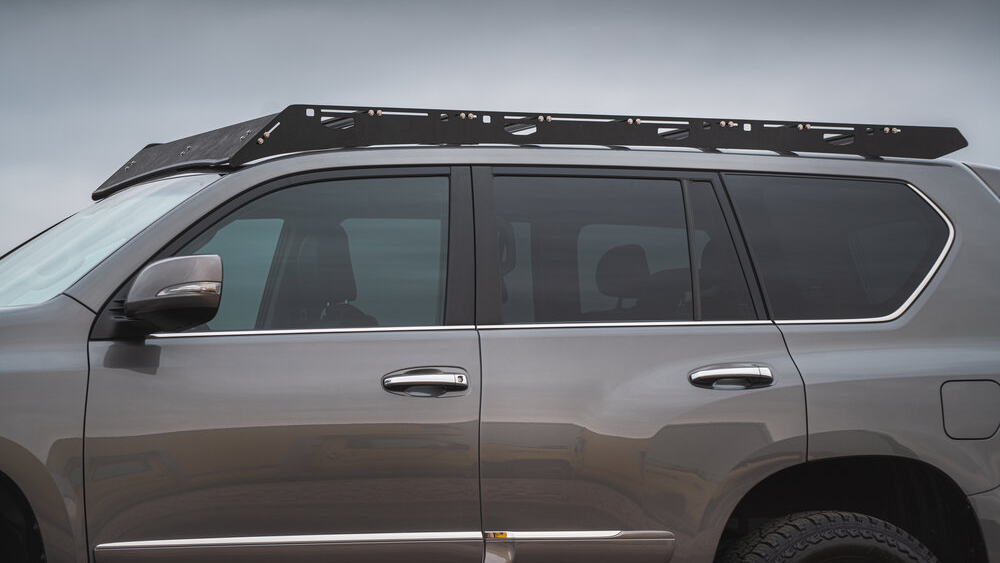

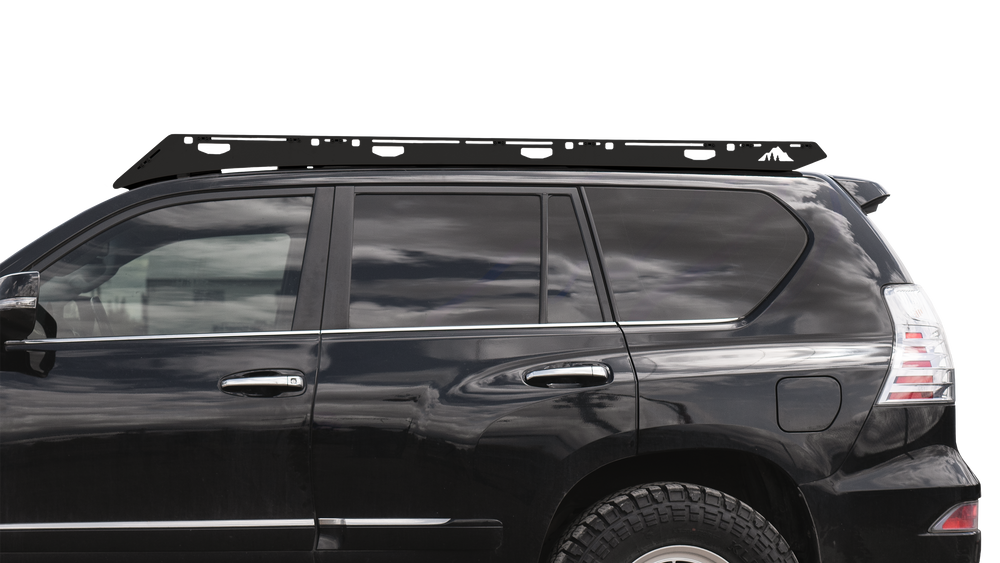

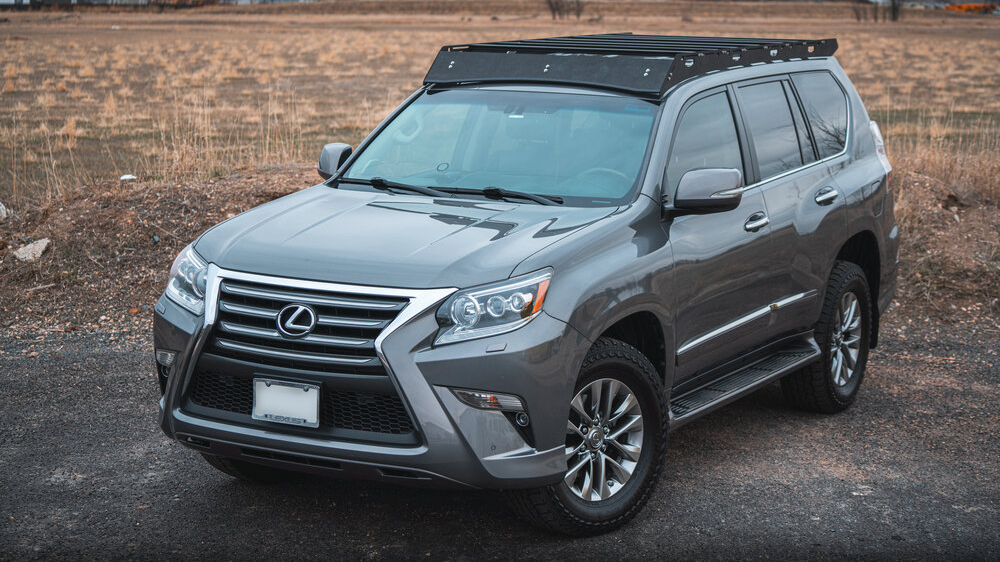

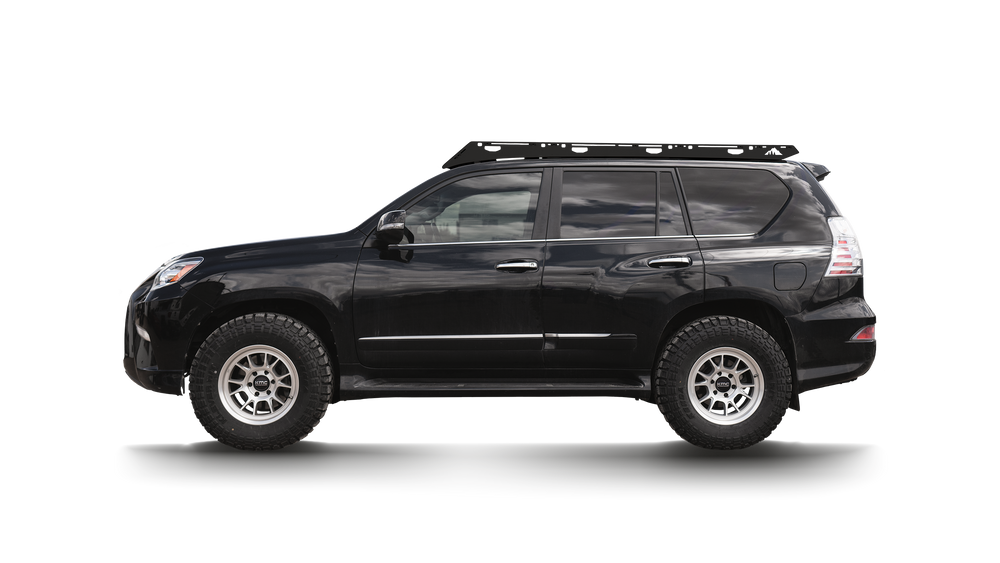

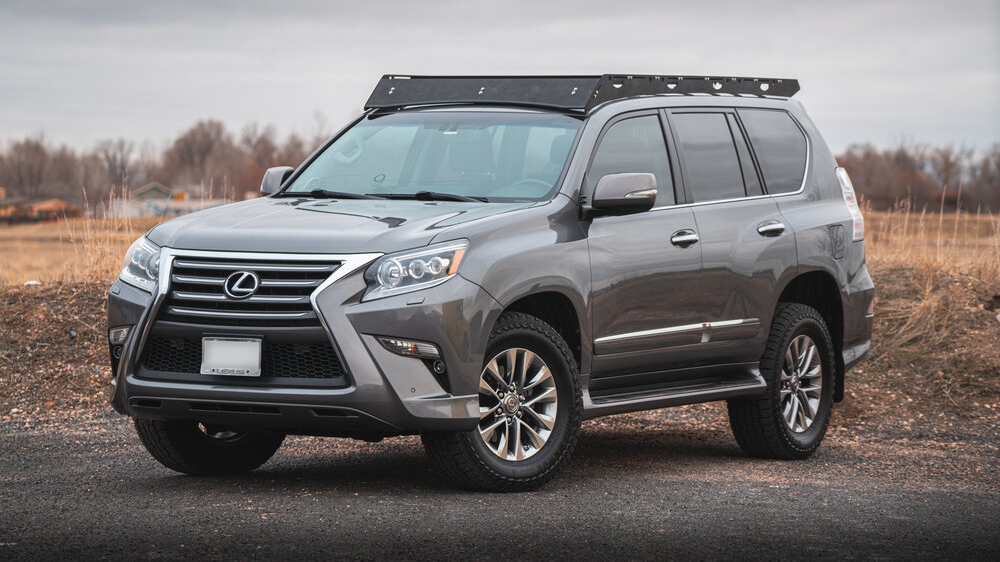

Sherpa Yale Roof Rack for 2010-2023 Lexus GX460
Sherpa Yale Roof Rack for 2010-2023 Lexus GX460
✓ Drill-Free. Zero Vehicle Modification.
The Yale mounts to factory locations on your GX460. No drilling, no cutting, and zero modification to the vehicle. Six mounting brackets ship with rubber seals, so nothing permanent happens to your roof.
The GX460 is one of the most quietly capable overland platforms ever sold with a Lexus badge: full-frame, body-on-frame, and built on the same bones as the Land Cruiser Prado. The Yale is the full-length Sherpa PEAK GX460 roof rack built to match, covering every model year from 2010 through 2023. If you have been searching for a Lexus GX roof rack built for the vehicle rather than adapted to it, this is it.
It spans 90 inches with 9 extrusion crossbars and carries 400 lbs dynamic and 700 lbs static, with no drilling required. That 400 lb dynamic figure is the headline: most full-length roof racks rate 300 lbs for driving, and the Yale's six-bracket mount delivers a third more. Construction is 1/4 inch aircraft-grade aluminum side panels with stainless steel hardware, at roughly 50 lbs. Two adjustable leveling mounts let you dial the rack flat. Black textured powder coat, black anodized crossbars, black oxide stainless hardware. Choose a Full Height wind fairing or a Half Height fairing sized for a single-row light bar. Manufactured in Colorado. Lifetime Warranty.
Why 400 lbs Dynamic Matters
Dynamic rating is the figure that applies while you are driving, and it is the one most people should actually check. Static rating, which is always higher, only covers the tent plus occupants once you are parked.
Most full-length racks sit at 300 lbs dynamic. The Yale carries 400. That extra 100 lbs is the difference between running a rooftop tent and then watching what else goes up there, versus running a tent alongside traction boards, a fuel can, an awning, and a light bar without recalculating every trip.
The reason is the mounting: six brackets instead of the usual four, spreading load across more attachment points. And at roughly 50 lbs, the Yale delivers that rating while being one of the lighter full-length racks Sherpa builds.
The PEAK Series
Industry leading premium roof rack systems. The PEAK series is the go-to for a premium aluminum roof rack. It is the line that Sherpa built its name on, and for years it has carried the gear of the most extreme adventurers. Sherpa believes in the constant evolution of their products, building the toughest systems on the market. From industry-leading alloys to uncompromising mounts with rubber seals, you will always Adventure with Confidence.
Crafted
Manufactured in Colorado with precision laser-cut 1/4" aluminum sideplates formed with CNC accuracy by Sherpa's team of professionals. They have created a very stout mounting structure, secured with stainless steel hardware, that will keep your gear where you need it. The 1/4 inch aircraft-grade aluminum is thicker than most competing racks, which is where the strength comes from without the weight penalty of steel.
Adaptable
Sherpa knows the importance of mounting all of your goodies on your rig. With the PEAK Series, you have the ability to mount just about anything, anywhere. With slots and holes all over the rack, plus Sherpa's line of accessories, you will never find yourself wishing you could mount something. For anyone building out GX460 accessories for overlanding, the rack is the foundation the rest of the roof setup hangs off.
Durable
Strength is built into Sherpa's brand and the PEAK System is what they built their name on. Using the best in materials and hardware, you can beat on this system every weekend and trust it to show up to work on Monday. The 400 lb dynamic and 700 lb static ratings handle a full rooftop tent setup with occupants, gear, and accessories. All backed by Sherpa's Lifetime Warranty.
Two Adjustable Leveling Mounts
Like the best Lexus GX roof rack designs, the Yale includes two adjustable leveling mounts. Vehicle rooflines are rarely perfectly flat, and these let you dial the rack level rather than accepting whatever angle the factory mounting points produce. A level rack keeps a rooftop tent sitting square when deployed and spreads load evenly across all six brackets.

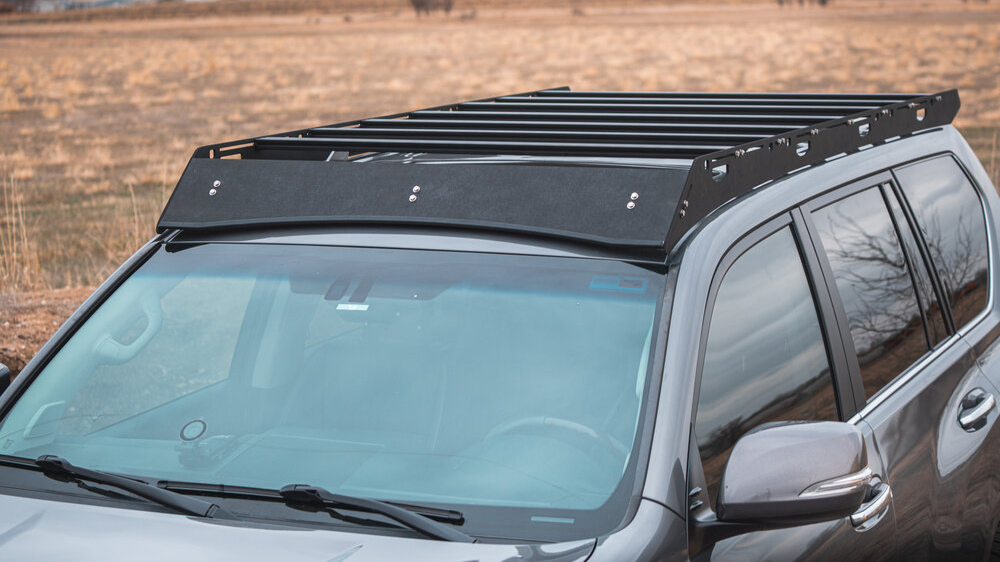

Which Fairing Is Right for You?
Sherpa's full height fairing is built for people who do not want to put a light bar on their rack. The half height fairing is made so you can fit a single row light bar while keeping everything flush. Both cost the same, so this is purely a build decision.
Specifications
| Vehicle | 2010-2023 Lexus GX460 |
| Weight | ~50 lbs |
| Crossbars | 9 x 48" |
| Rack Dimensions | 90" x 48.5" x 2.5" |
| Dynamic Load Rating | 400 lbs |
| Static Load Rating | 700 lbs |
| Sideplate Material | 1/4" aircraft-grade aluminum |
| Mounting | 6 brackets with rubber seals |
| Leveling | 2 adjustable leveling mounts included |
| Finish | Black textured powder coat |
| Crossbar Finish | Black anodized |
| Hardware | Black oxide stainless steel |
| Installation | Drill-free. Zero vehicle modification |
| Fairing Options | Full Height (no light bar) or Half Height (single row light bar) |
| Manufactured | Colorado, USA |
| SKU | 118744 |
| Warranty | Lifetime |
What's Included
📄 Installation Instructions
Download the Yale install guide. No drilling required, and all hardware is included.
Pros
- 400 lbs dynamic, a third more than most full-length racks
- Six mounting brackets spread load across more points than the usual four
- Completely drill-free with rubber-sealed brackets
- Only ~50 lbs for a full 90 inch rack
- A GX 460 roof rack covering every model year from 2010 through 2023
- Two adjustable leveling mounts to dial the rack flat
- 1/4" aircraft-grade aluminum sideplates
- Choice of Full or Half Height fairing at the same price
- Made in Colorado with a Lifetime Warranty
Cons
- Fits the GX460 only. The 2024+ GX550 needs the Sherpa Atlas instead
- A full-length rack raises overall height, so check garage clearance
- Fairing choice is made at purchase, so switching later means buying the other fairing separately
Frequently Asked Questions
Will it fit my GX?
If it is a 2010 through 2023 GX460, yes. The Yale is the Lexus GX460 roof rack Sherpa builds for the entire generation. It will not fit the redesigned 2024 and later GX550, which has different roof geometry. For that, we carry the Sherpa Atlas. Call us at 844-200-3979 if you are unsure which you have.
Does installation require drilling?
No. The Yale is drill-free and requires zero modification. It mounts to factory locations using six brackets with rubber seals, and all required hardware is included. Nothing permanent happens to the vehicle, which matters for resale on a GX that holds its value as well as these do.
Why is the dynamic rating higher than other racks?
Six mounting brackets instead of the four most full-length racks use. Spreading load across more attachment points means less stress on any single bracket, and Sherpa rates the result at 400 lbs dynamic instead of the usual 300. That is the difference between running a rooftop tent and watching what else you add, versus running a tent alongside traction boards, a fuel can, and an awning.
Can I mount a rooftop tent on it?
Comfortably. 400 lbs dynamic covers the tent plus accessories while driving, and 700 lbs static covers the tent plus occupants once parked. The 90 by 48.5 inch platform with nine crossbars takes any full-size hardshell or softshell tent. Browse our rooftop tent collection here.
What are the leveling mounts for?
Vehicle rooflines are rarely perfectly flat, and the two included leveling mounts let you dial the rack level rather than accepting whatever angle the factory points produce. That keeps a rooftop tent sitting square when deployed, and spreads load evenly across all six brackets.
Which fairing should I choose?
Choose Full Height if you are not running a light bar, since it deflects the most air for the quietest ride. Choose Half Height if you want a single-row light bar to sit flush with the fairing line. Both cost the same. If a light bar is anywhere in your plans, Half Height saves you buying a second fairing later.
