Cali Raised LED 2025+ Toyota 4Runner Winch Tray
Cali Raised LED 2025+ Toyota 4Runner Winch Tray
SKU: CR4449
Cali Raised LED 2025+ Toyota 4Runner Winch Tray
SKU: CR4449
$339.99$399.99
A winch is the piece of recovery gear that turns a stuck truck into a ten-minute problem instead of a long walk. But a winch is only as good as what holds it. Under load it pulls with thousands of pounds of force, and every bit of that goes through the mount and into the frame.

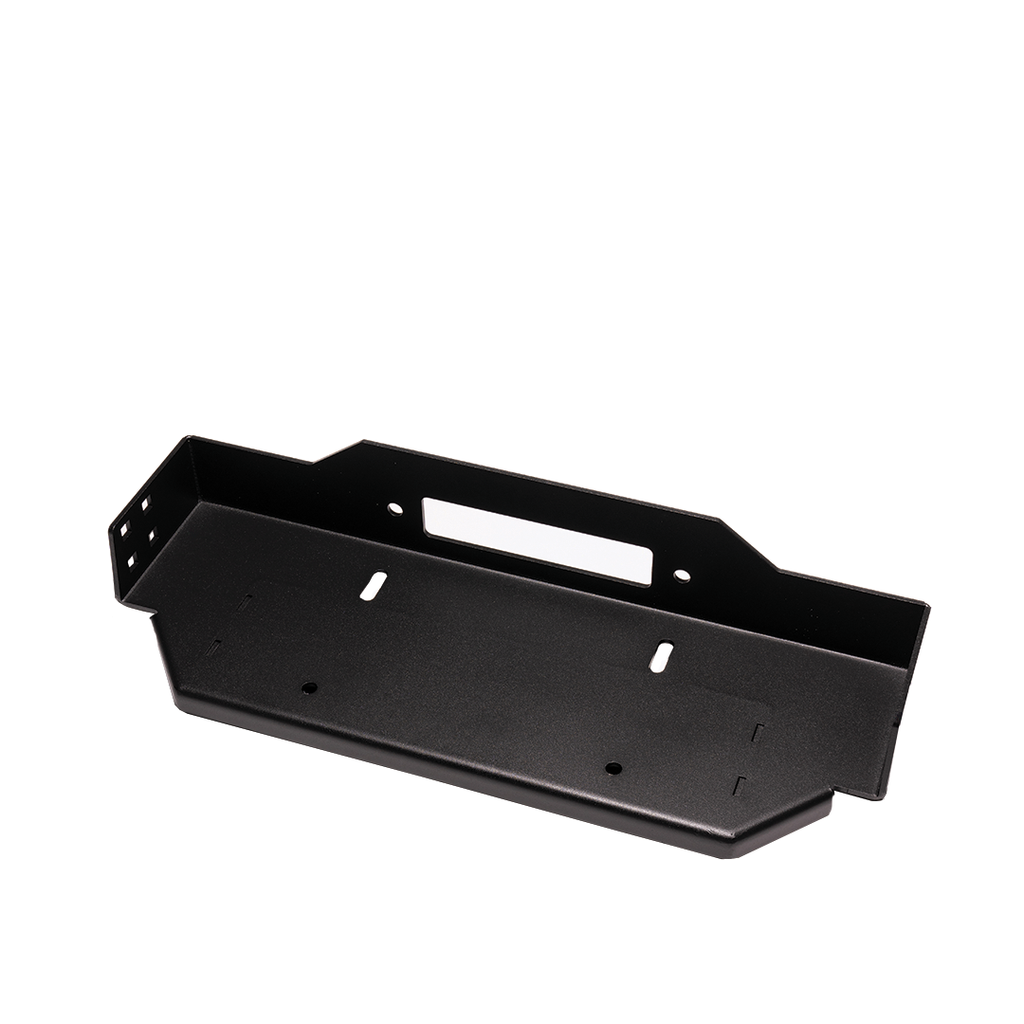

This is the winch tray made for Cali Raised LED's 2025+ Toyota 4Runner Stealth Front Bumper. If you are running that bumper and want a winch, you need it. It is CAD-designed for the 6th gen 4Runner, laser cut from high-strength steel, CNC formed and finished in black powder coat. It holds the winch in proper alignment, gives it secure mounting points and ties into the bumper's mounting system and factory frame locations, so recovery loads are spread properly instead of tearing at a few bolts. There is no drilling, and it is fabricated in-house in Fort Worth, Texas.
This Tray Only Works With One Bumper
Cali Raised 2025+ 4Runner Stealth Front Bumper only. It does not fit the factory Toyota bumper, any other aftermarket bumper brand or universal bumper systems.
6th gen only. It is made for the 2025+ Toyota 4Runner and nothing else.
Required for a winch on the Stealth Bumper. Without this tray, a winch cannot be properly installed on that bumper.
Do not have the bumper yet? See the Cali Raised 2025+ 4Runner Stealth Front Bumper, or call 844-200-3979 and we will put the two together.
What This 4Runner Winch Mount Does
Cali Raised list four jobs for the tray. Each one matters when the cable is tight and the truck is the anchor.
| Job | Why It Matters |
|---|---|
| Proper winch alignment | Keeps the winch square to the bumper so the line spools evenly and pulls straight. |
| Secure mounting points | Gives the winch a solid, purpose-made base to bolt to. |
| Structural frame support | Ties into the factory frame locations, so the pull goes into the chassis. |
| Safe recovery load handling | Spreads recovery forces properly instead of loading a few small points. |
Not a Universal Winch Mounting Plate
Plenty of winch mounting plates are sold as one-size-fits-most. This is the opposite. It is both vehicle-specific and bumper-specific, designed only to integrate with the 6th gen Stealth Bumper. That is what lets it sit cleanly inside the bumper and use the factory frame locations, but it also means it will not work anywhere else.
| Front End | Works With This Tray? |
|---|---|
| Cali Raised 2025+ 4Runner Stealth Front Bumper | Yes, and required for a winch |
| Factory 2025+ 4Runner bumper | No |
| Other aftermarket bumpers | No |
| Universal bumper systems | No |
| 2010-2024 or older 4Runners | No |
Which Winch Will Fit?
Cali Raised say the tray is designed to support most standard-footprint off-road winches. Always check your winch's dimensions and mounting pattern before you install, especially if you are running a compact or unusual model.
Already have a winch, or about to buy one? Tell us the make and model and we will confirm it with Cali Raised before you order. The winch, cable or synthetic rope and fairlead are sold separately.
✓ Fit the Tray With the Bumper
If you are buying the Stealth Bumper and plan to add a winch, even later, order the tray at the same time and fit them together. It saves taking the front end apart twice.
Installation
The tray is bolt-on when used with the Stealth Bumper, integrating with the bumper's mounting system and the factory frame locations, with no drilling. Cali Raised estimate 2 to 3 hours, and mounting hardware is included.
- Have the Stealth Bumper on hand. The tray works with it as one system.
- Get a helper and a floor jack. Between the tray and a winch, you are lifting real weight at the front of the truck.
- Test-fit before tightening so the tray, bumper and frame mounts all line up.
- Use the correct winch hardware and torque it properly. This is the connection that takes the load.
- Route the winch power cables safely away from sharp edges and hot parts.
- Re-check every bolt after your first recovery and periodically after that.
Questions about the install? Call us before you order and we will talk you through it.
Specifications
| Fitment | 2025+ Toyota 4Runner, 6th gen |
| Compatibility | Cali Raised LED 2025+ 4Runner Stealth Front Bumper only |
| Not compatible | Factory bumper, other aftermarket bumpers, universal bumper systems |
| Winch support | Most standard-footprint off-road winches, verify dimensions |
| Material | High-strength laser-cut steel |
| Forming | CNC formed |
| Finish | Black powder coat |
| Installation | Bolt-on with the Stealth Bumper, no drilling |
| Install time | 2 to 3 hours |
| Fabricated in | Fort Worth, Texas |
What's Included
- 2025+ Toyota 4Runner winch tray

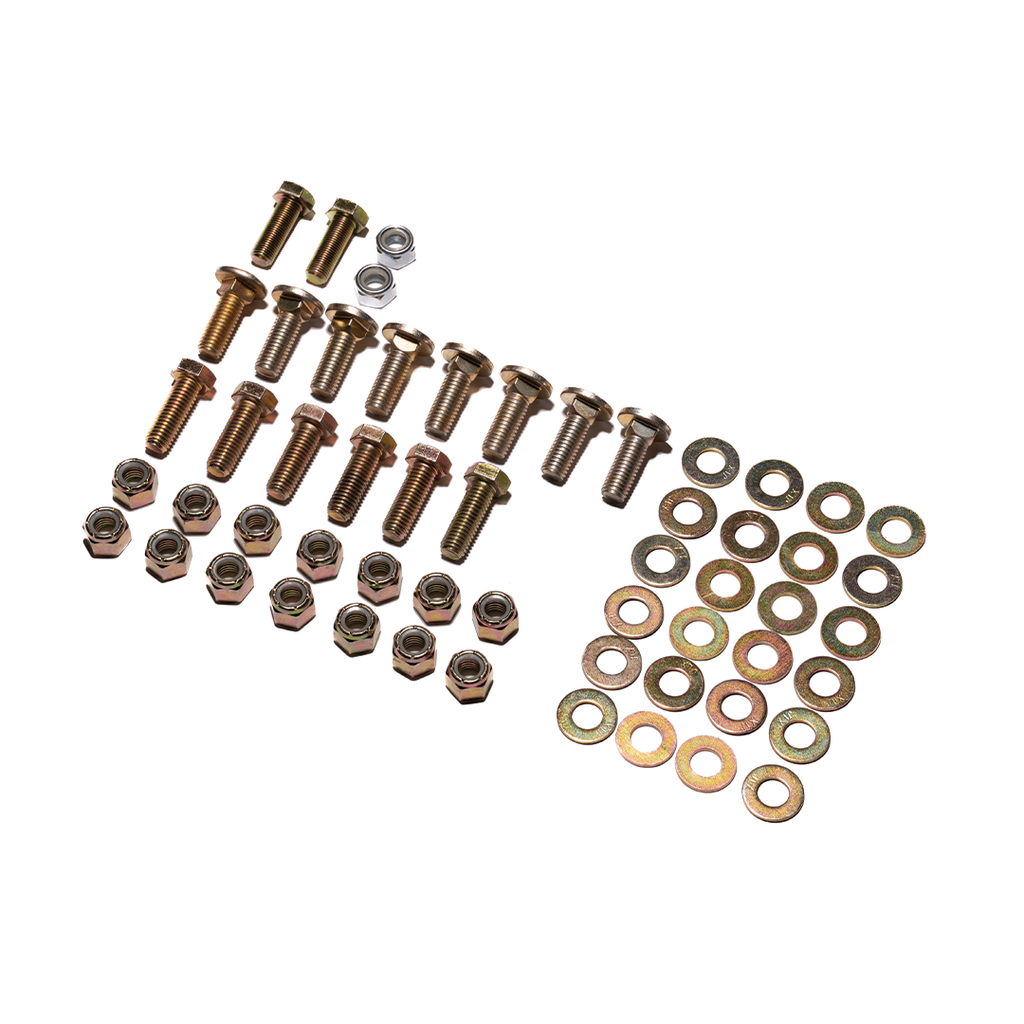

- Mounting hardware
The winch, rope or cable, fairlead and the Stealth Bumper itself are sold separately.
Pros
- Purpose-built for the Cali Raised 6th gen Stealth Bumper
- Ties into factory frame locations for proper load handling
- Laser-cut, CNC-formed steel in black powder coat
- Bolt-on with no drilling
Cons
- Only works with the Cali Raised Stealth Bumper
- Winch fit needs checking against your model
Frequently Asked Questions
Does this winch tray fit the factory 2025 4Runner bumper?
No. It is designed exclusively for the Cali Raised LED 2025+ 4Runner Stealth Front Bumper and does not fit the factory bumper.
Do I need it to put a winch on the Stealth Bumper?
Yes. Cali Raised say the tray is required to properly mount a winch on the 2025+ Stealth Bumper.
Will it work with other 6th gen 4Runner bumpers?
No. It is not a universal 4Runner winch mount. It only works with the Cali Raised Stealth Bumper.
Which winches does it fit?
It is designed for most standard-footprint off-road winches. Check your winch's dimensions before installing, or send us the model and we will confirm.
Is drilling required?
No. It integrates with the Stealth Bumper mounting system and factory frame locations. Cali Raised estimate 2 to 3 hours to install.
Complete Your Build
Bumper, Tray and Winch Together?
Tell us which winch you are running and we will confirm fit and ship the Stealth Bumper and tray together, along with the other 2025 4Runner mods on your list.
