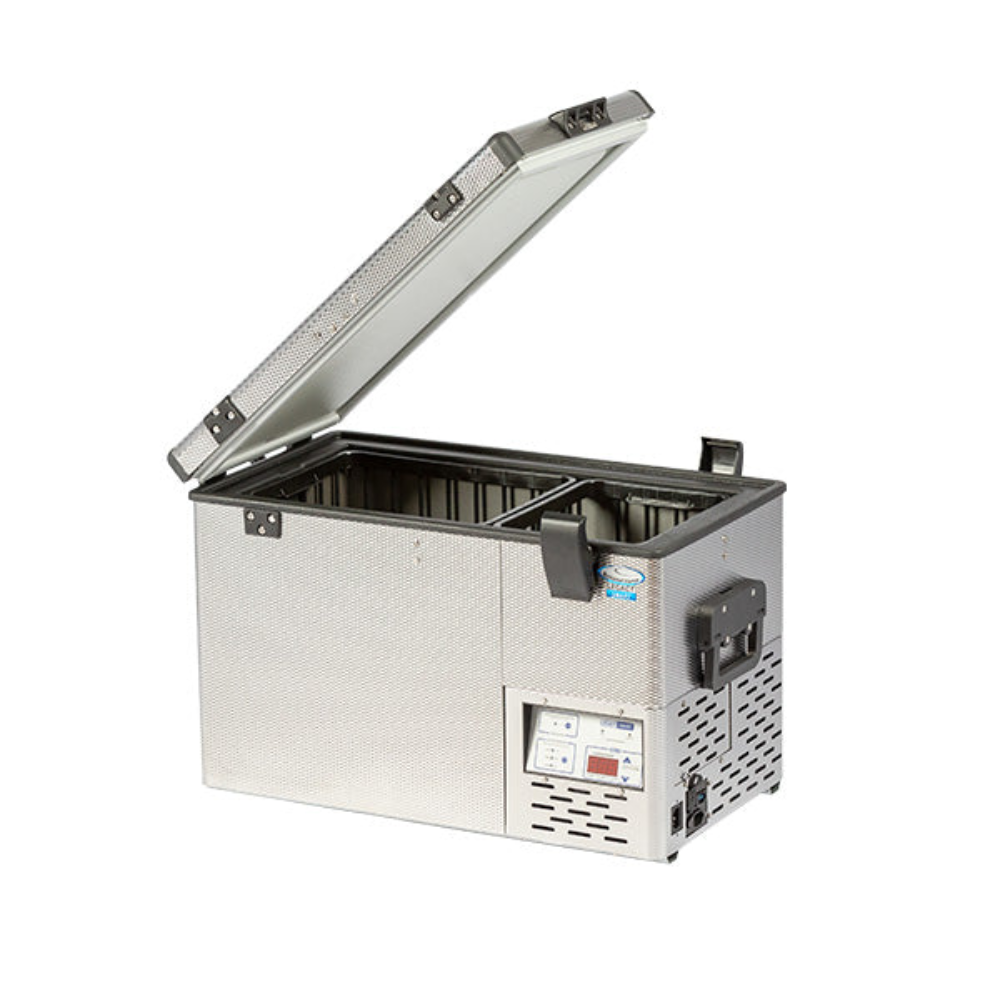

National Luna 35L Legacy Smart QC Fridge/Freezer Dual Zone
National Luna 35L Legacy Smart QC Fridge/Freezer Dual Zone
National Luna 35L Legacy Smart QC Fridge/Freezer Dual Zone
For over 30 years, National Luna has been the gold standard in portable 12V refrigeration, trusted across every continent by adventurers, overlanders, and pros alike. Renowned for their unmatched durability, energy efficiency, and cooling performance, National Luna fridges have consistently set the bar. Now, with the release of the newly upgraded Legacy Smart QC Fridge/Freezer, they’ve raised the standard once again—introducing Bluetooth connectivity, smarter power management, and new user-focused features.
The Legacy Smart QC Fridge/Freezer is more than a cooling solution—it’s a rugged, intelligent system built for serious off-road use. Featuring the new proprietary Off-Road Compressor, ultra-dense insulation, stainless steel construction, and full app control via the NL Connect App, this fridge is engineered to cool faster, stay cold longer, and do it all with less power consumption than ever before.
PERFORMANCE & TECHNOLOGY
At the heart of the new Legacy Smart QC is National Luna’s Off-Road Compressor, developed in-house for maximum efficiency and durability. This powerhouse compressor cools rapidly, automatically switching to idle mode once your set temperature is reached to reduce power draw. Designed to perform in extreme environments, it runs from 9.6V–31.5V DC and 100V–240V AC, with automatic switching and a built-in AC/DC electronic power supply.

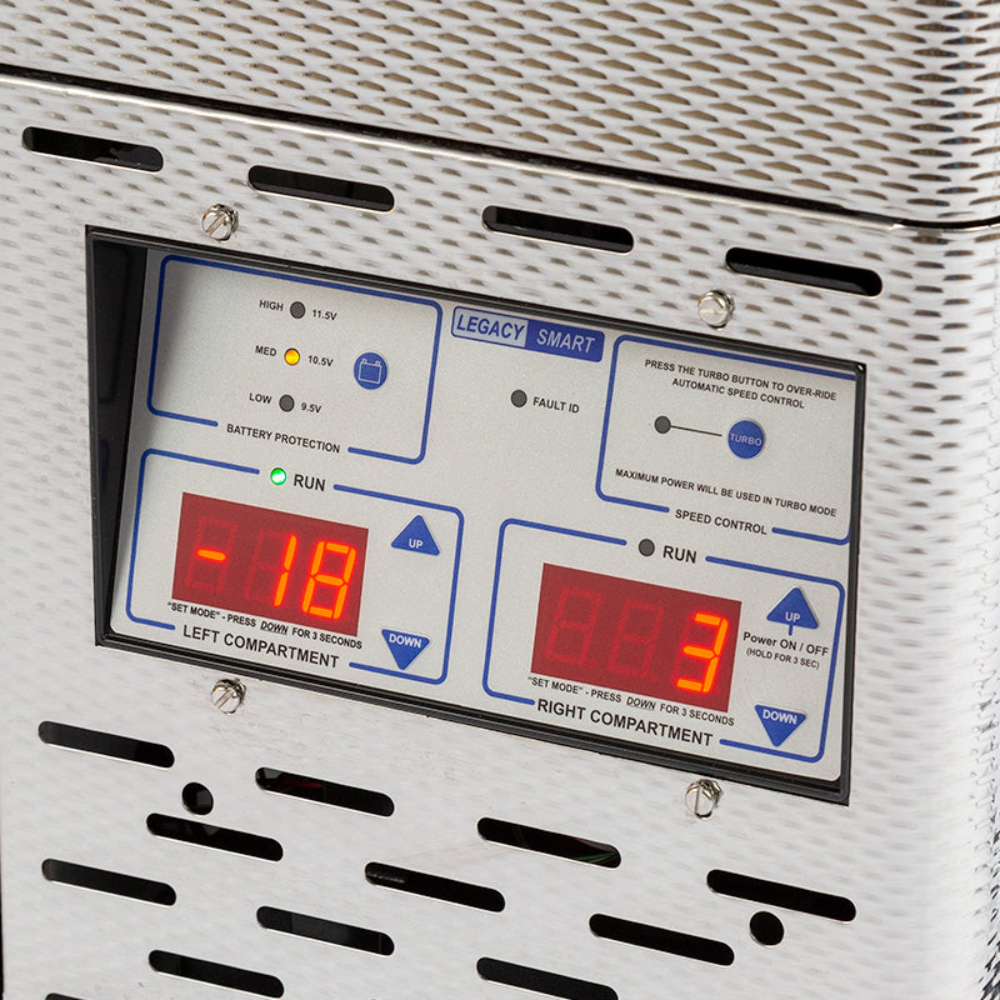

Smarter power control is built in. Choose from Low, Medium, or High battery cut-out settings to protect your battery, and fine-tune your performance using the programmable intelligent controller. The digital thermostat displays both the setpoint and actual temperature, and Turbo mode can be manually or automatically activated for rapid cooling when needed.

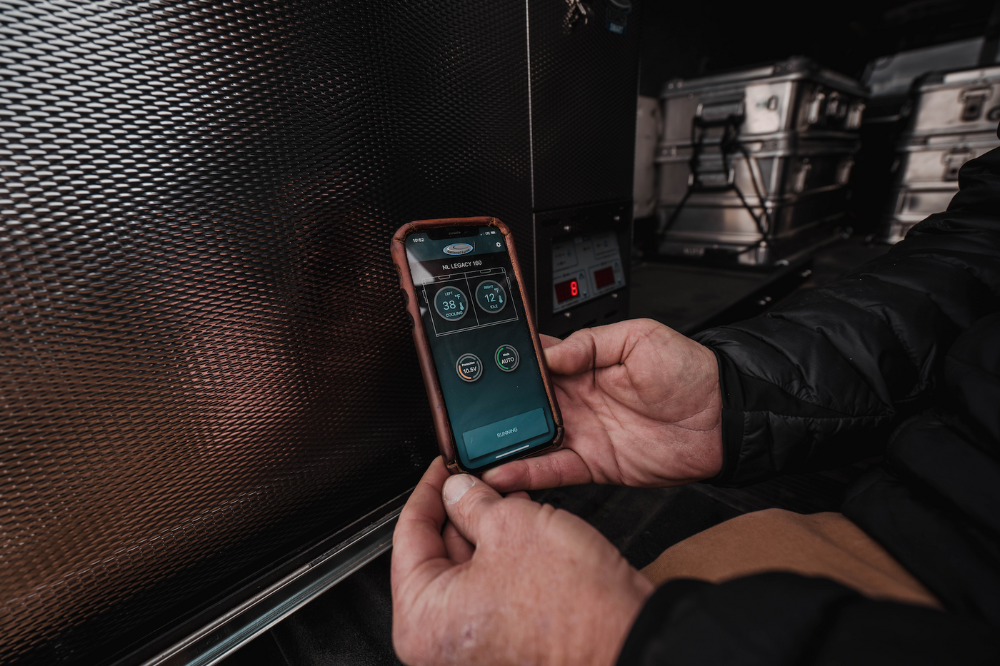

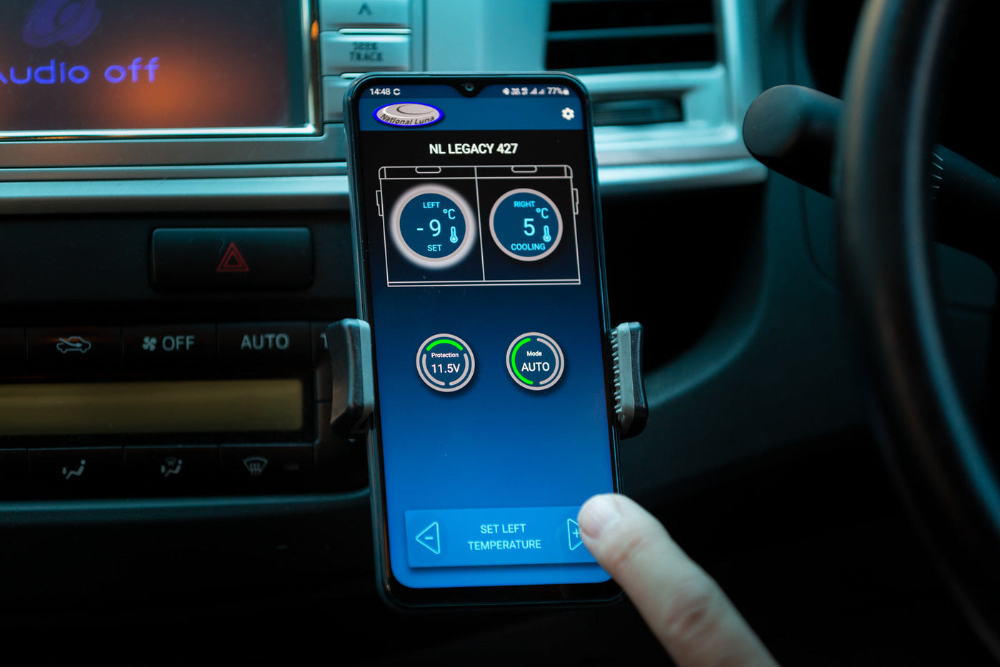

The integrated NL Connect App (via Bluetooth) allows full control and real-time monitoring from your smartphone. From adjusting temperatures to switching operating modes or receiving fault alerts, everything you can do on the fridge itself can now be done remotely.
CONSTRUCTION & INSULATION
The Legacy Smart QC’s premium build quality is designed for the toughest conditions. A rigidized 430 stainless steel exterior and aluminum interior provide excellent thermal conductivity and durability, while copper cooling piping ensures even temperature distribution—no more cold or hot spots.
Using a high-pressure foam injection process, high-density insulation (40mm & 60mm) is bonded to every surface, dramatically increasing cold retention while minimizing energy consumption. The result: your fridge stays cooler for longer with less power.

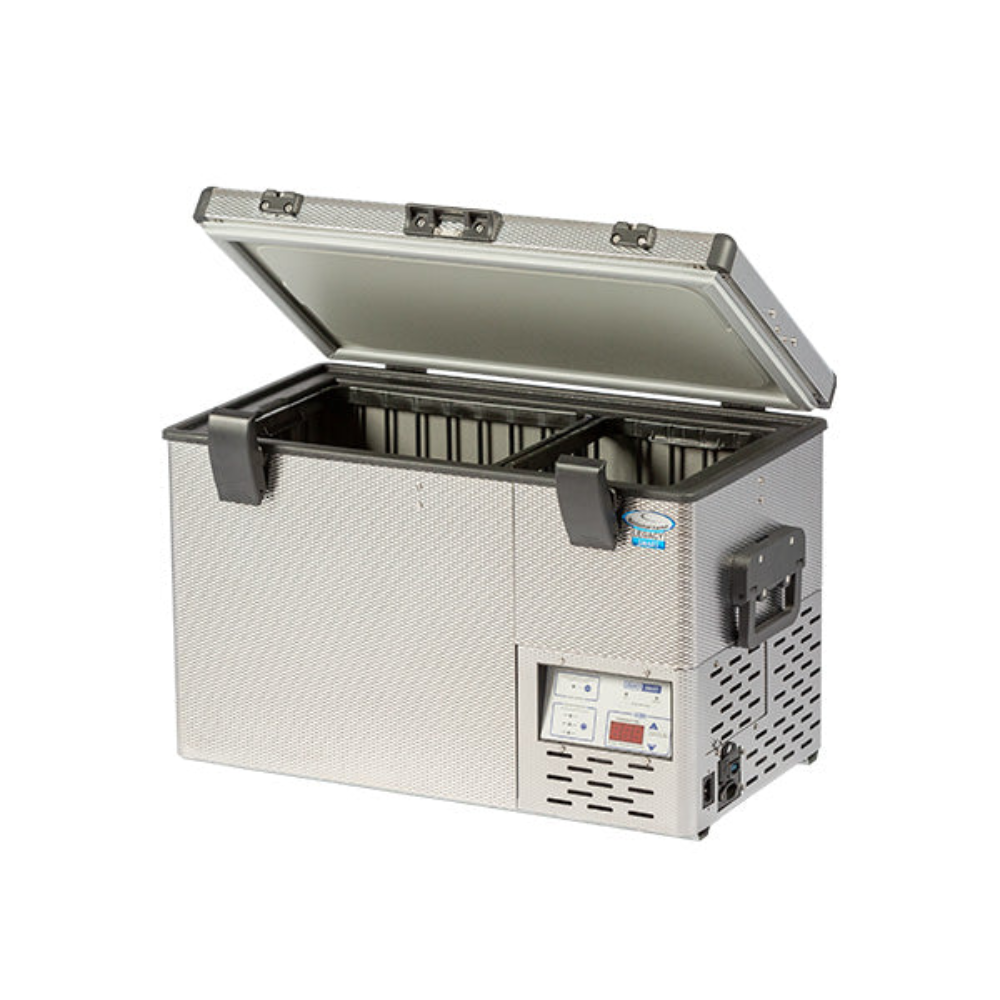

With a compact footprint but maximum internal volume, every inch is optimized for performance and storage. Dual polycarbonate baskets, interior LED lighting, and lockable latches ensure both convenience and peace of mind on the trail.
Features
- Smart Control: Built-in Bluetooth connectivity for wireless control via the NL Connect app.
- Dual Zone Flexibility: Independent zone control on dual models lets you switch between fridge and freezer as needed.
- Quick Change (QC) Design: Reposition the control faceplate to either the front or end for maximum flexibility.

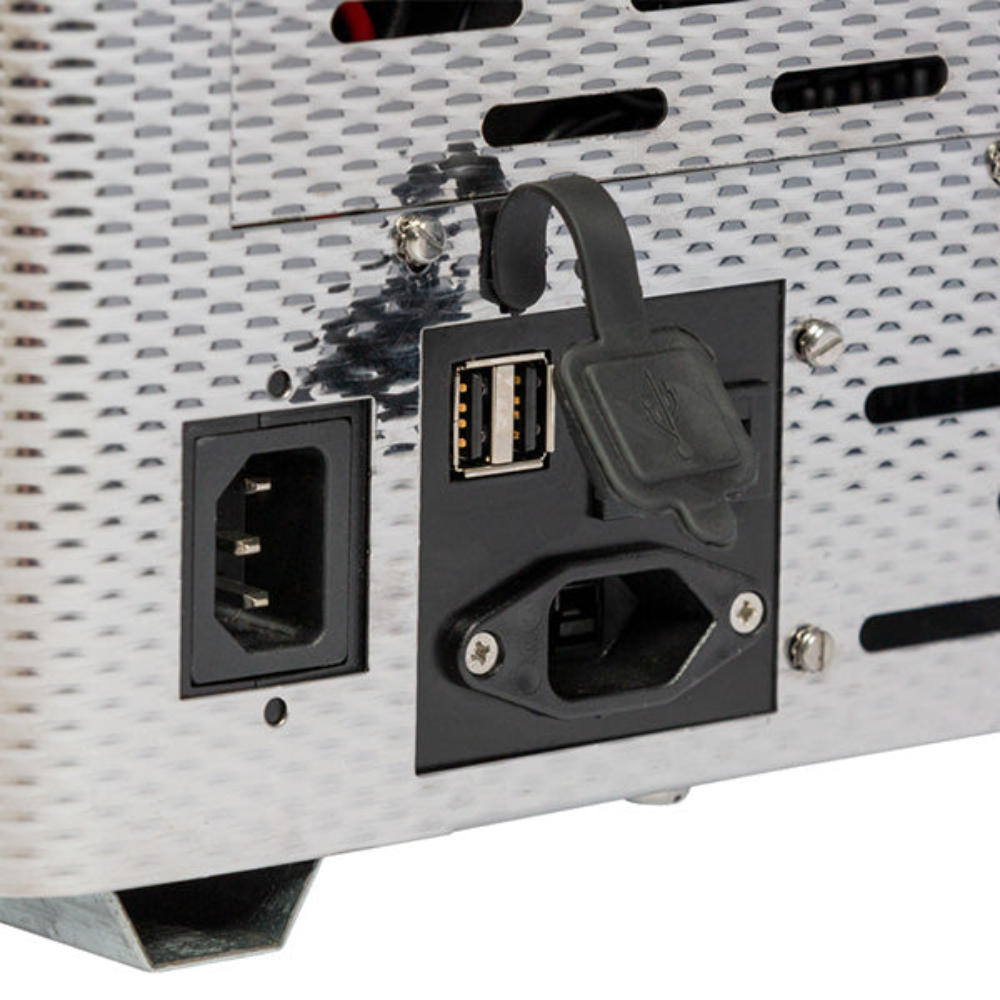

- USB Convenience: Two USB charging ports integrated into the power supply area.
- Efficient Cooling: New proprietary Off-Road Compressor cools faster and runs quieter with lower power draw.
- Heavy-Duty Build: Rigid stainless steel body, aluminum interior, and dense foam insulation for extreme durability.
- Energy Smart: Turbo mode for rapid cooling, idle mode for efficient power use, and 3-level battery protection.
- Even Cooling Performance: No hot or cold spots—just stable temperatures across both compartments.
- Travel-Ready: Secure lid latches, high-strength handles, and a compact, space-saving design.
- App-Controlled Features: Adjust temps, modes, and monitor performance—all from your smartphone.
Specifications
| Compressor | National Luna Off-Road Compressor |
| Compressor Warranty | 8 Years |
| Power Supply | AC/DC – 9.6V to 31.5V DC / 100V to 240V AC |
| Power Cord | 12V Power Cord with Proprietary Cigar Lighter Plug & DIN-style Plug |
| Power Modes | Auto-switching between AC & DC / Turbo Mode (Auto & Manual) / Idle Mode |
| Battery Protection | 3 Levels (Low, Medium, High) – Selectable Depth of Discharge |
| Controls | Digital Thermostat with Programmable Intelligent Controller |
| Mobile App | NL Connect App (Bluetooth) |
| Bluetooth Features | Temp control, mode adjustment, battery monitoring, fault notifications |
| Temperature Range | Fully adjustable (exact range varies by model) |
| Insulation | Injected High-Density Foam (40mm & 60mm) |
| Exterior Material | Rigidized 430 Stainless Steel |
| Interior Material | Aluminum with Copper Cooling Piping |
| Faceplate | Quick Change (QC) – Front or End Mounting |
| Zones | Single or Dual (with independent zone controls on dual models) |
| USB Ports | (2) USB Charging Ports |

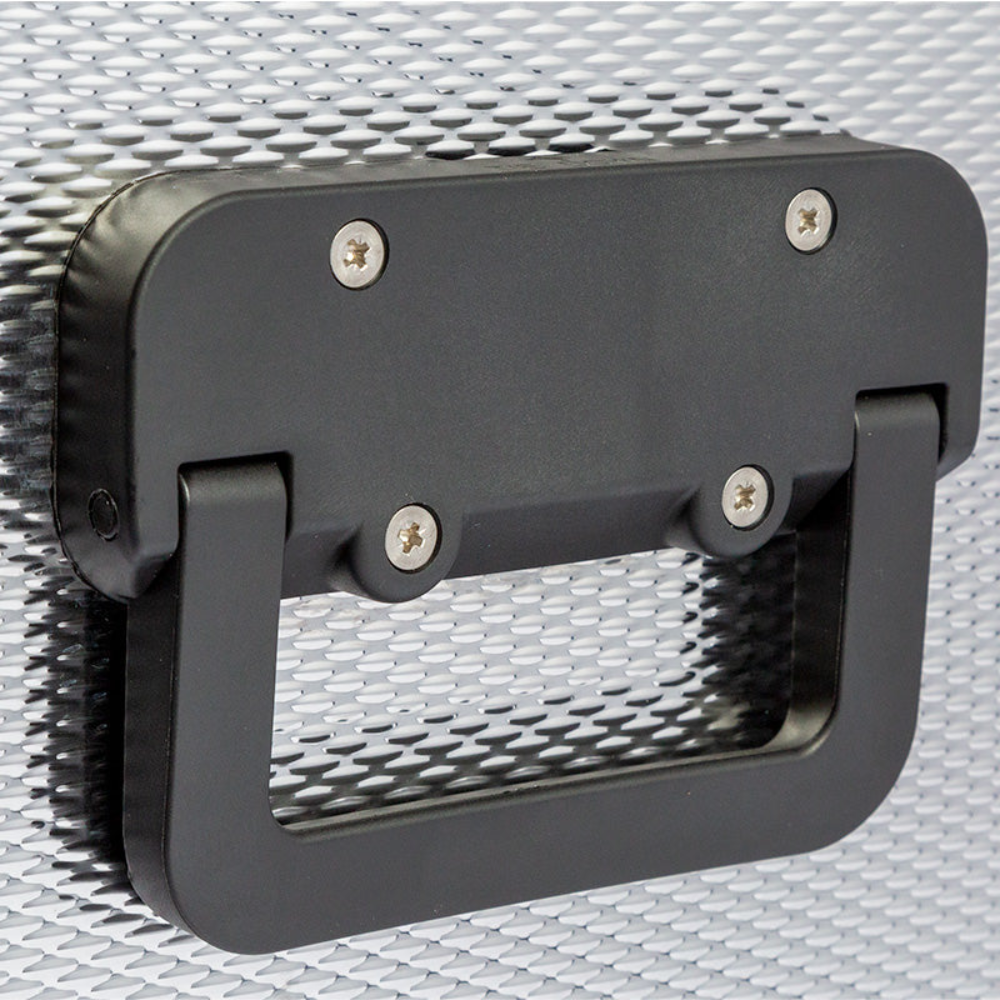

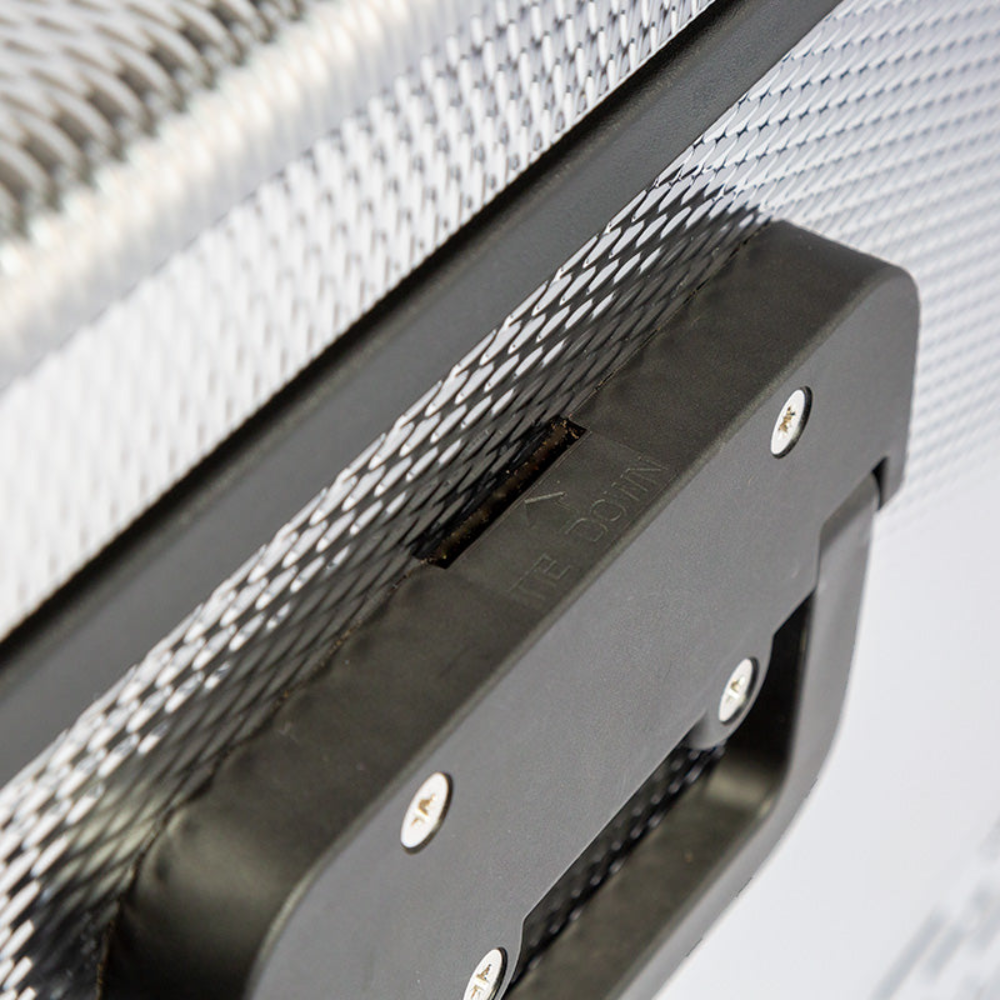

| Handles | High-Strength Polycarbonate |

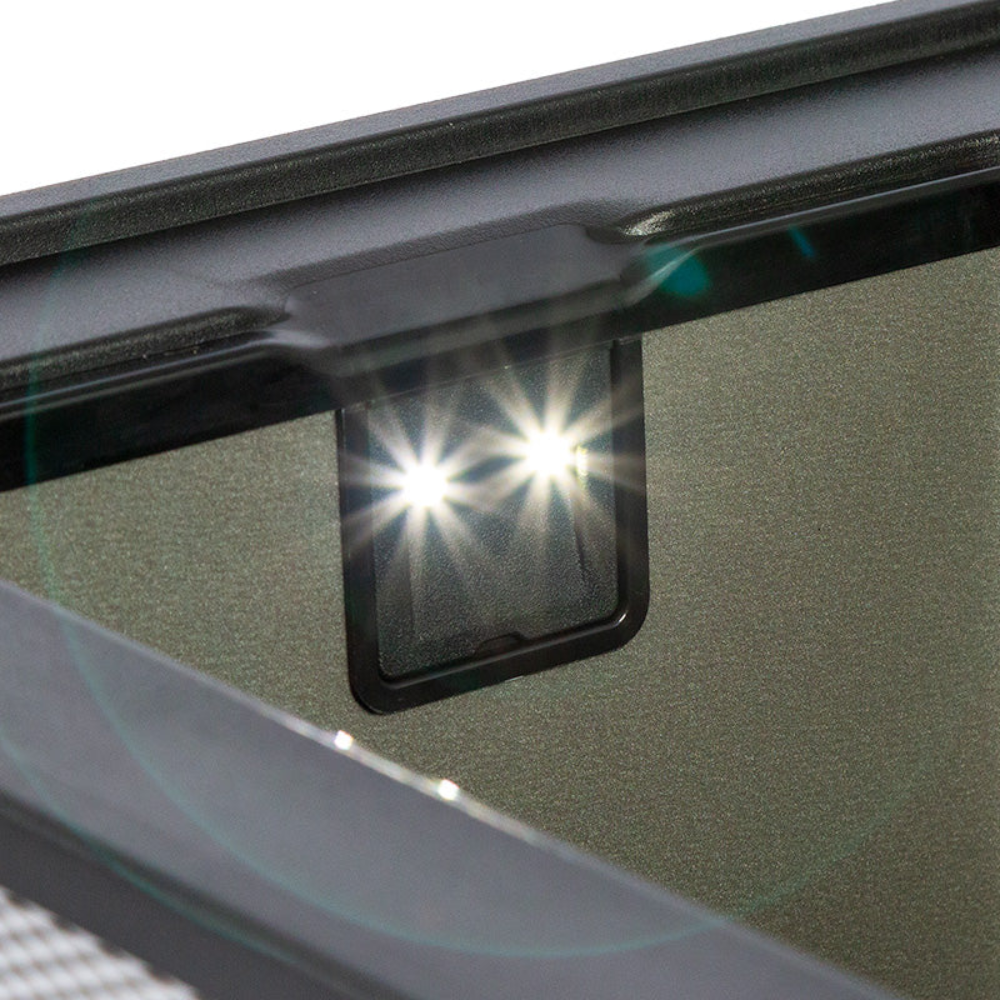

| Interior Lights | Dual LED |
| Interior Accessories | Food-Grade Polycarbonate Baskets Included |

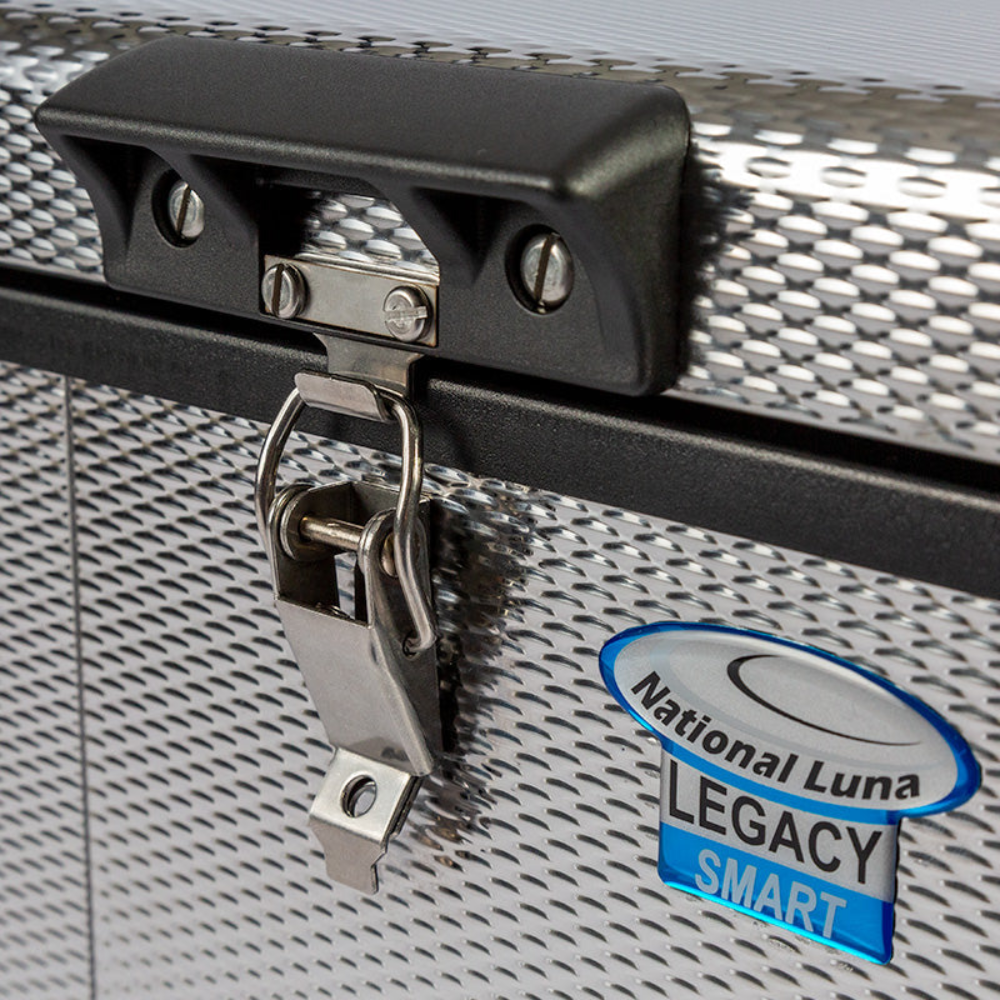

| Lid Features | Lockable Latch |
| Cooling Performance | High-Speed Cooldown / Even Temp Distribution / Cold Retention |
| Footprint | Compact with Maximum Storage Capacity |
| Warranty | 3-Year Fridge/Freezer Warranty |
| App Compatibility | Legacy Smart, Legacy Smart QC, Power Pack II |
FREQUENTLY ASKED QUESTIONS (FAQ)
Do I need internet or cell coverage to use NL CONNECT?
No. The app uses Bluetooth and requires no data or cell service. Just ensure Bluetooth and location services are enabled on your mobile device.
Why do I need to enable location services?
Bluetooth functionality requires location services to be enabled on your device. The app does not use or store your location or any personal data.
I cannot see any devices in NL CONNECT. What do I do?
Make sure Bluetooth and location services are active, and that the fridge is powered on and within range. The product must be a supported model, like the Legacy Smart or Legacy Smart QC.
Are there any costs to use NL CONNECT?
No. The app is free to download and use.
Which products can I connect to with NL CONNECT?
The National Luna Power Pack II and Legacy Smart fridges, including Legacy Smart QC, are currently supported. Additional products will be supported in future updates.
