RalliTEK Hidden Winch Mount Bumper System - 2003-2008 Subaru Forester
RalliTEK Hidden Winch Mount Bumper System - 2003-2008 Subaru Forester
SKU: RTEK-100753-BASE-NONE
RalliTEK Hidden Winch Mount Bumper System - 2003-2008 Subaru Forester
SKU: RTEK-100753-BASE-NONE
$627.20$696.89
RalliTEK Hidden Winch Mount Bumper System - 2003-2008 Subaru Forester
Transform your 2003-2008 Subaru Forester into a true off-road recovery vehicle without sacrificing its factory appearance. The RalliTEK Hidden Winch Mount Bumper System delivers professional-grade recovery capability while maintaining your Forester's clean front-end design—no bulky aftermarket bumper required.
Unlike traditional winch bumpers that replace your entire front fascia, this system integrates seamlessly behind your factory grille. You get full winch functionality with zero compromises to cooling, airflow, fuel economy, or vehicle systems. The active grill shutter continues operating normally, preventing check engine lights and maintaining factory efficiency.
Why Choose RalliTEK's Hidden Winch Mount?

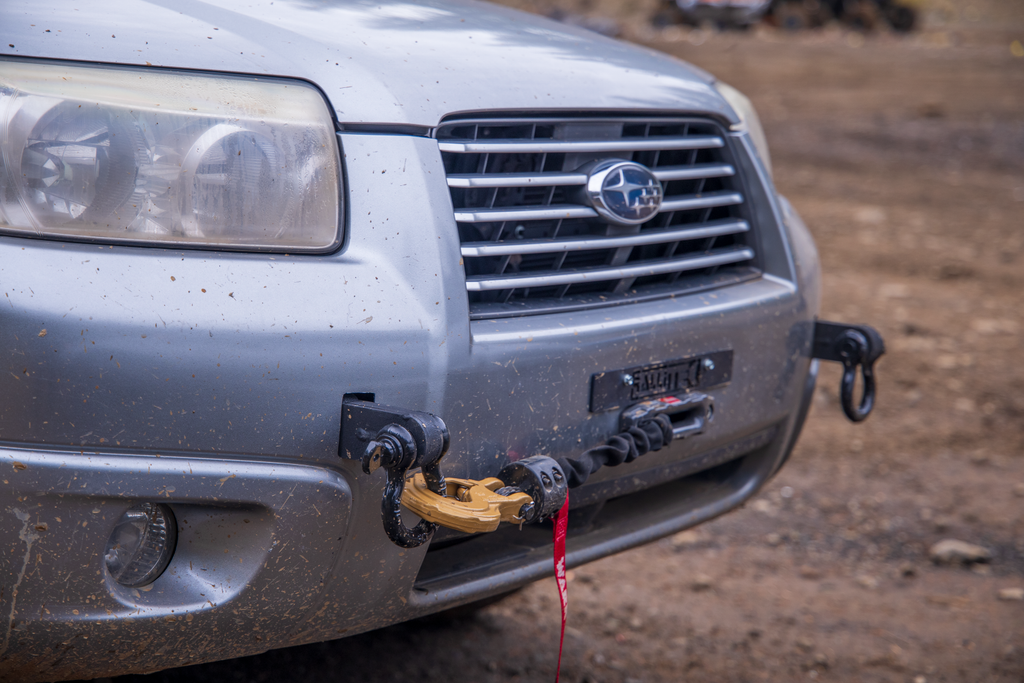

Factory Integration - Installs behind the stock bumper and grille. Your Forester maintains its original appearance while gaining serious recovery capability.
No System Compromises - Engineered to preserve factory airflow, cooling systems, and the active grill shutter (on equipped models). No check engine lights, no MPG loss, no overheating issues.
American-Made Steel - Constructed from 3/16" thick USA-made steel with precision CNC-cut components. This mount won't bend or fail when you need it most.
Verified Winch Compatibility - Pre-tested with Warn Axon 45-S (4,500 lbs), Warn Axon 55-S (5,500 lbs), and Superwinch Terra 4500. Choose the pulling power that matches your recovery needs.
Integrated Recovery Points - Built-in mounting locations for D-ring shackles provide secure attachment points for recovery straps, tow ropes, and extraction gear.
DIY-Friendly Installation - Complete hardware kit included with detailed instructions. Average install time: 2 hours with basic hand tools. No welding or fabrication required.
Key Features & Benefits
Maintains Factory Systems
The engineering team at RalliTEK spent countless hours ensuring this mount works with—not against—your Forester's factory systems:
Active Grill Shutter Compatibility - The mount positions behind the grille without interfering with the active shutter operation on 2006-2008 models. The shutter opens and closes normally to regulate engine temperature.
Uncompromised Cooling - Factory radiator and intercooler (on XT models) receive full airflow. No hot-running engines or overheating issues even during hard off-road use or summer heat.
No ECU Errors - Because all factory systems remain functional, you won't trigger check engine lights or fault codes that plague poorly-designed winch mount systems.
Fuel Economy Maintained - Unlike full bumper replacements that add 50-100 lbs of frontal weight and disrupt aerodynamics, this hidden mount preserves your Forester's MPG ratings.
Robust Construction
3/16" Steel Plate - Every component is laser-cut from thick American steel, then CNC-formed for precise fitment and maximum strength.
Strategic Reinforcement - Load-bearing areas receive extra gusseting to distribute recovery forces across the vehicle's frame, not just the mounting points.
Durable Finish - Black powder coat finish resists rust, scratches, and UV damage. Designed for years of Pacific Northwest weather and trail abuse.
Integrated Fairlead Mount - The winch mounts to the plate, and the fairlead bolts directly to the front of the mount for a clean, finished installation.
Winch Options Explained
We offer this system in four configurations:

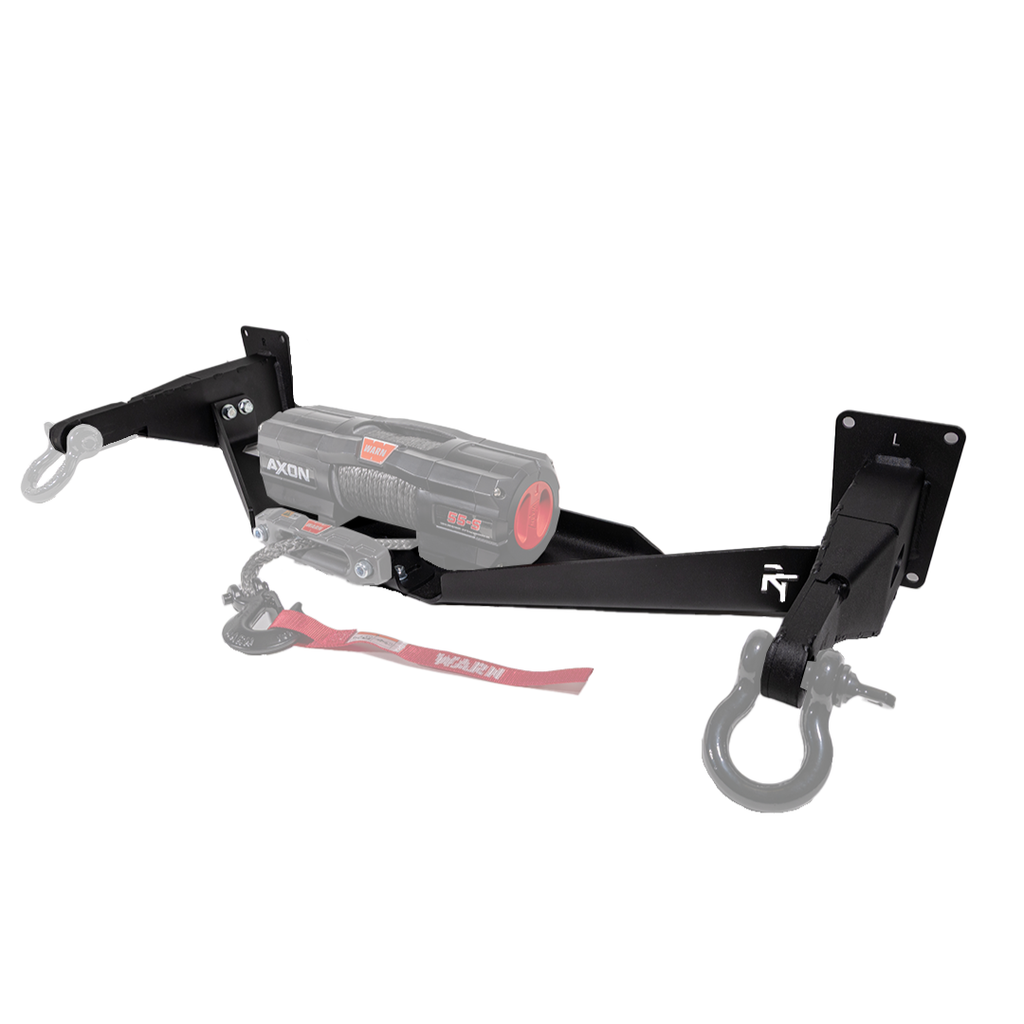

1. Mount Only ($696.89)
You supply your own winch. Verified compatible with Warn Axon 45-S, Warn Axon 55-S, and Superwinch Terra 4500. May fit other winches with similar bolt patterns—contact us to verify.
2. With Warn Axon 45-S (4,500 lbs pulling capacity)
Perfect for most Forester owners. Handles vehicle recovery, pulling logs, and trail obstacles. Synthetic rope, wireless remote, and all mounting hardware included. Ideal for solo adventurers and weekend off-roaders.

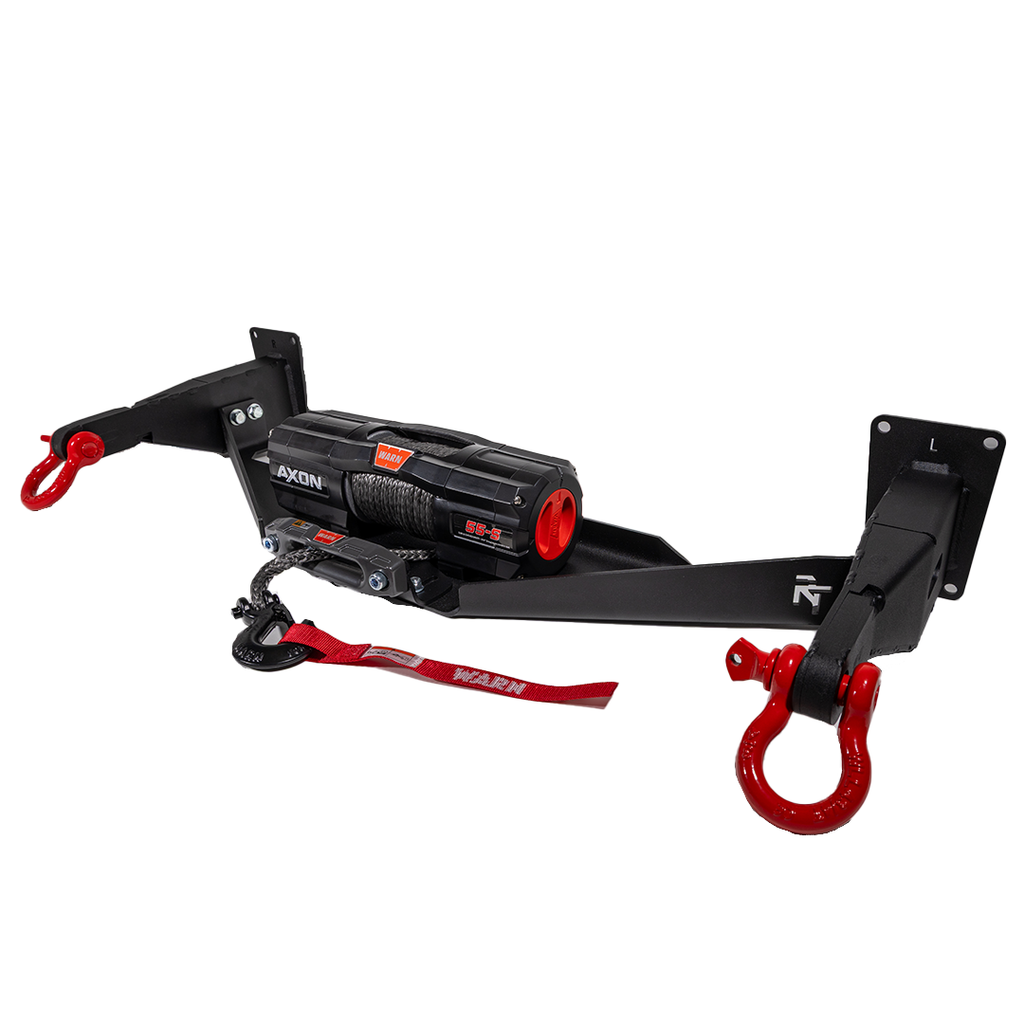

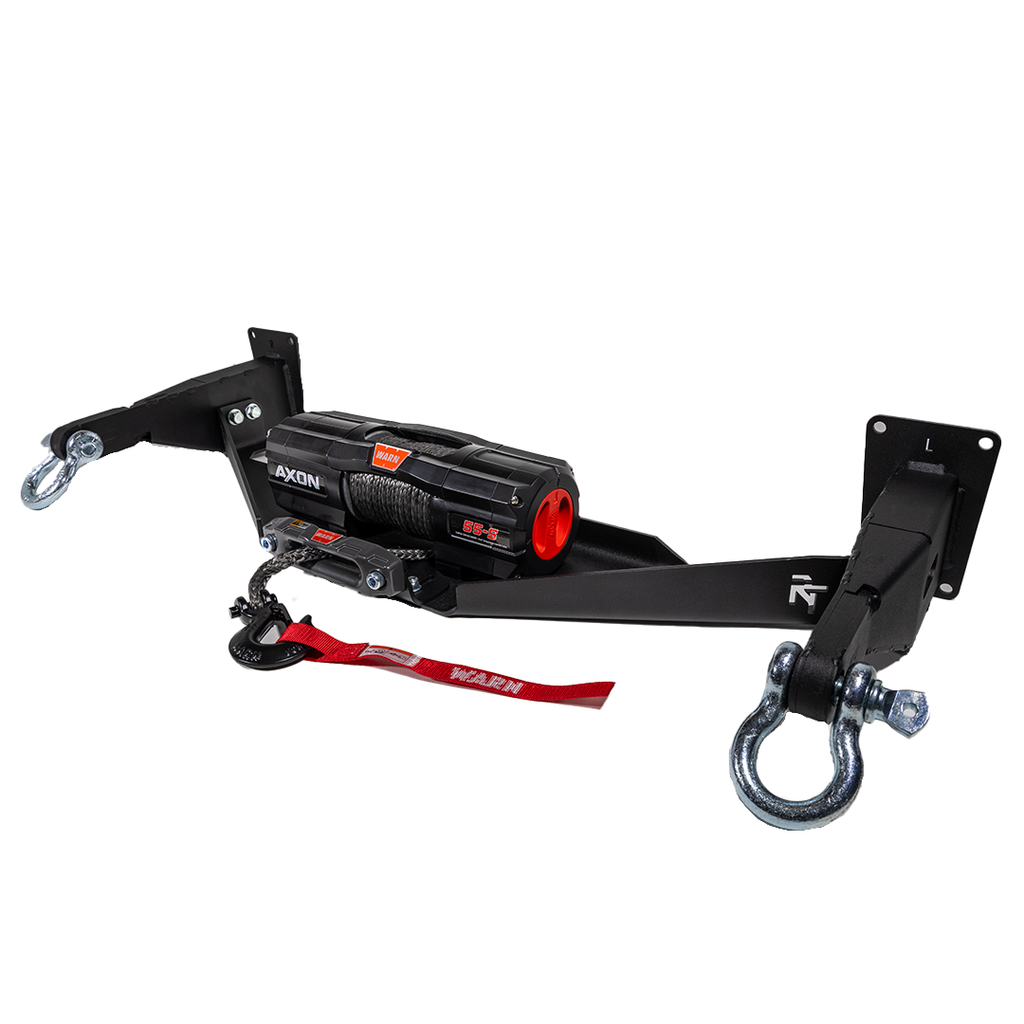

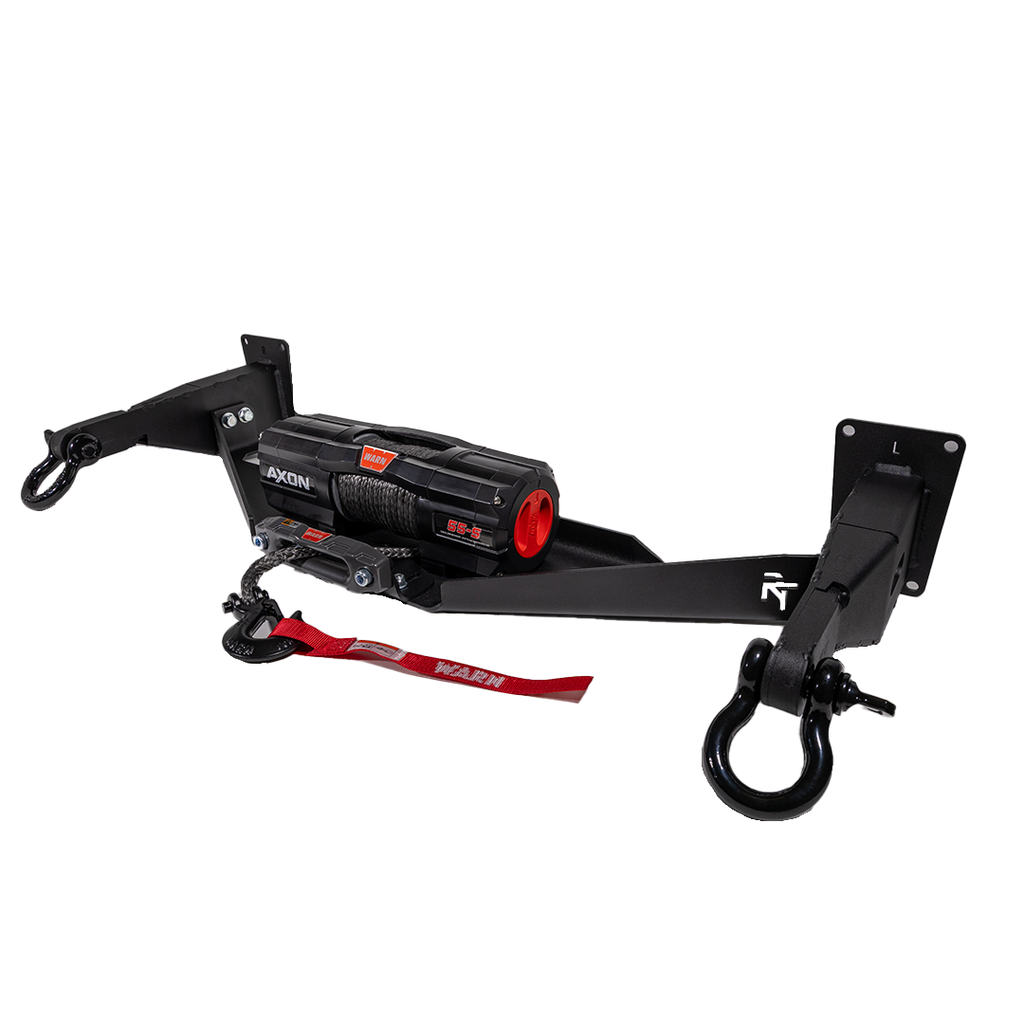

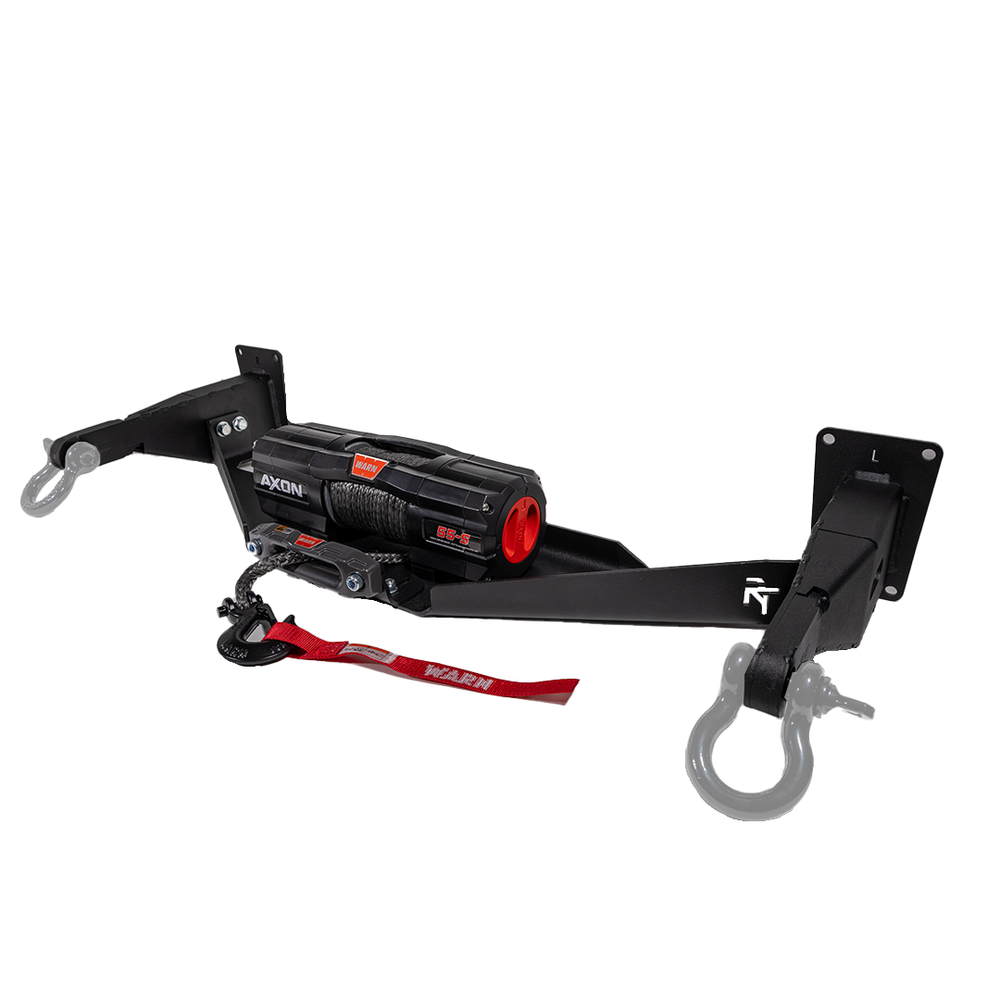

3. With Warn Axon 55-S (5,500 lbs pulling capacity)
Increased pulling power for heavier loads, steep inclines, or assisting larger vehicles. The extra capacity provides peace of mind when conditions deteriorate. Recommended for expedition travel or frequent deep mud/sand recovery.

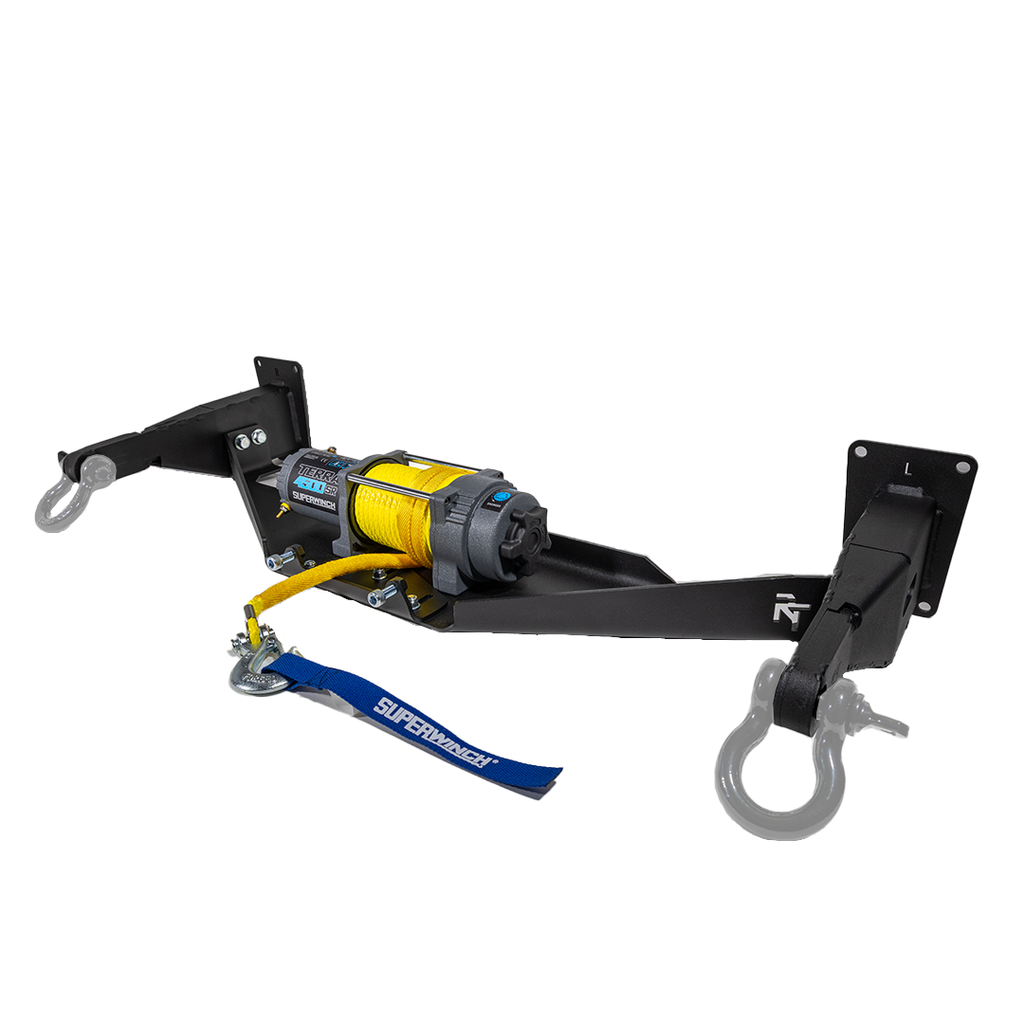

4. With Superwinch Terra 4500 (4,500 lbs pulling capacity)
Budget-friendly option delivering reliable performance. Includes steel cable, wired remote, and all mounting hardware. Great value for occasional use or those new to winching.
Recovery Point Integration
D-Ring Shackle Mounts - Two mounting locations (one each side) accept 3/4" D-ring shackles. Use these for:
- Attaching recovery straps during vehicle extraction
- Securing tow ropes for assisting other vehicles
- Connecting winch extension straps for increased reach
- Mounting tree savers and snatch blocks

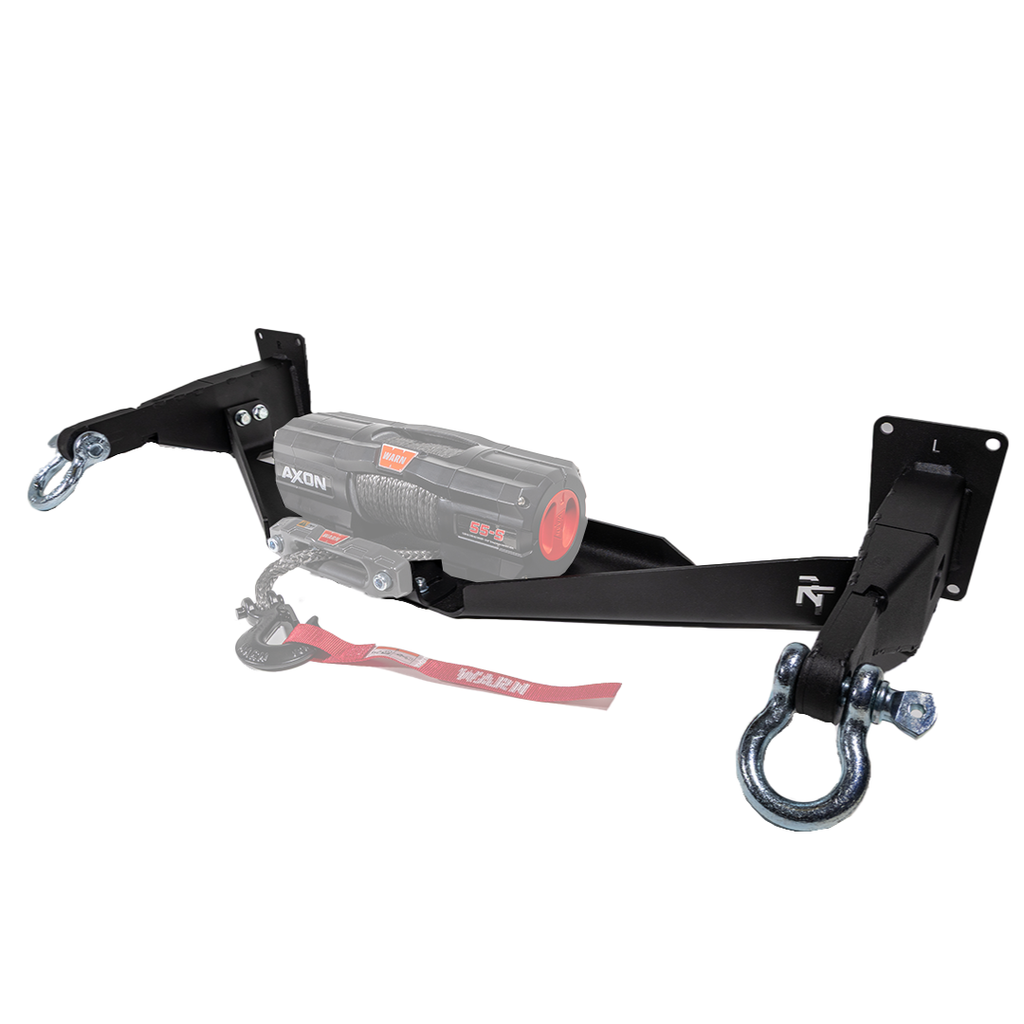

Optional D-Ring Shackles - Add OVS 3/4" D-ring shackles in your choice of:
- Zinc-plated - Classic silver finish, corrosion-resistant
- Black powder coat - Stealthy appearance, matches mount finish
- Red powder coat - High-visibility for quick location in emergency situations
Each shackle is rated for heavy-duty recovery work and includes a screw pin for secure attachment.
Installation Details
What's Required
Tools Needed:
- Socket set (metric)
- Wrench set (metric)
- Torque wrench
- Drill with bits (for marking/pilot holes)
- Basic hand tools
- Jack and jack stands
- Zip ties and wire loom (for routing winch wiring)
Skill Level: Intermediate
Install Difficulty: 4 out of 5
Estimated Time: 2 hours (first-time installation)
Installation Process Overview
1. Remove Factory Components - Front bumper cover, grille, and necessary trim pieces come off to access mounting locations.
2. Position Winch Mount - The steel plate positions behind the bumper and bolts to existing frame mounting points. No drilling into structural components.
3. Install Winch (if purchased) - Winch bolts to the mount plate using provided hardware. Fairlead installs to the front of the mount.
4. Route Wiring - Run power cables from winch to battery (positive and negative). Route control wiring to desired switch location. All wiring runs through factory wire looms and grommets for a factory-clean appearance.
5. Reinstall Factory Parts - Bumper cover and grille reinstall over the mount. The winch sits hidden behind the grille with only the fairlead visible through the lower grille opening.
6. Test Operation - Verify winch operation, check for any interference with moving parts, ensure active grill shutter operates normally (if equipped).
Professional Installation Available - RalliTEK HQ in Portland, Oregon offers in-house installation, or find a RalliTEK dealer near you. [Click here for dealer locations](https://rallitek.com/pages/rallitek-installs-and-dealer-map).
Complete Fitment Guide
Compatible Vehicles
2003 Subaru Forester
- 2.5 X
- 2.5 XT
2004 Subaru Forester
- 2.5 X
- 2.5 XT
2005 Subaru Forester
- 2.5 X
- 2.5 XT
2006 Subaru Forester
- 2.5 X
- 2.5 XT
2007 Subaru Forester
- 2.5 X
- 2.5 XT
2008 Subaru Forester
- 2.5 X
- 2.5 XT
Important: Fitment guaranteed for USDM (US Domestic Market) models only. JDM, European, or other market Foresters may have different bumper mounting points and frame configurations. Contact RalliTEK before ordering for non-USDM vehicles.
Technical Specifications
| Material | 3/16" USA-made steel |
| Finish | Black powder coat |
| Weight (Mount Only) | Approximately 35 lbs |
| Winch Compatibility | Warn Axon 45-S, Warn Axon 55-S, Superwinch Terra 4500 |
| Recovery Point Size | 3/4" D-ring shackle compatible |
| Mounting Method | Bolt-on (no welding required) |
| Installation Time | 2 hours average |
| Warranty | RalliTEK Lifetime Guarantee |
| Country of Origin | Made in USA |
Winch Specifications
Warn Axon 45-S:
- Pulling capacity: 4,500 lbs (single line)
- Rope type: Synthetic
- Remote: Wireless
- Motor: 1.6 HP permanent magnet
Warn Axon 55-S:
- Pulling capacity: 5,500 lbs (single line)
- Rope type: Synthetic
- Remote: Wireless
- Motor: 2.2 HP permanent magnet
Superwinch Terra 4500:
- Pulling capacity: 4,500 lbs (single line)
- Rope type: Steel cable
- Remote: Wired handheld
- Motor: 1.6 HP series wound
Why Hidden Mount vs. Full Bumper?
Hidden Mount Advantages
✓ Maintains Factory Appearance - No aftermarket bumper changing your Forester's look
✓ Preserves All Systems - Active grill shutter, sensors, airflow all work normally
✓ Lower Cost - Significantly less expensive than quality aftermarket bumpers
✓ Lighter Weight - Adds minimal weight compared to 50-100 lb steel bumpers
✓ Better MPG - No aerodynamic penalty or fuel economy loss
✓ No Cutting - Factory bumper cover reinstalls completely
✓ Faster Install - 2 hours vs. 4-6 hours for full bumper replacement
When Full Bumper Makes Sense
- You want integrated lighting mounts
- You need extreme approach angle improvement
- You prefer the aggressive aftermarket bumper aesthetic
- You plan to mount auxiliary equipment (hi-lift jack, jerry cans, etc.)
For most Forester owners seeking recovery capability without compromising daily drivability, the hidden mount is the superior choice.
Real-World Use Cases
Trail Recovery
You're three hours deep on a forest service road when your buddy's truck high-centers on a rock. The hidden winch mount allows you to:
1. Attach recovery strap to your D-ring shackle mounts
2. Use the strap as an extension to reach the stuck vehicle
3. Connect winch hook to the strap
4. Pull the truck off the obstacle
No visible winch, but full recovery capability when it matters.
Self-Extraction
Took that mud puddle a bit too optimistically? The winch gets you out:
1. Deploy synthetic rope to the nearest tree or anchor point
2. Use wireless remote to operate winch from driver's seat
3. Steer and apply gentle throttle while winching
4. Extract yourself without waiting for help
Load Pulling
Need to move logs for a campfire, drag brush from trails, or pull heavy equipment? The winch handles these tasks easily. The D-ring shackles provide attachment points for chains or straps when the winch itself isn't needed.
What's Included in Each Configuration
Mount Only
✓ Hidden winch mount plate (3/16" steel)
✓ Complete mounting hardware kit
✓ Installation instructions for your model year
✓ RalliTEK Lifetime Guarantee
With Warn Axon 45-S Winch
✓ Everything from "Mount Only" plus:
✓ Warn Axon 45-S winch (4,500 lb capacity)
✓ Synthetic rope with hook
✓ Wireless remote
✓ Wiring harness with circuit breaker
✓ Roller fairlead
✓ Winch switch for cab mounting
With Warn Axon 55-S Winch
✓ Everything from "Mount Only" plus:
✓ Warn Axon 55-S winch (5,500 lb capacity)
✓ Synthetic rope with hook
✓ Wireless remote
✓ Wiring harness with circuit breaker
✓ Roller fairlead
✓ Winch switch for cab mounting
With Superwinch Terra 4500
✓ Everything from "Mount Only" plus:
✓ Superwinch Terra 4500 winch (4,500 lb capacity)
✓ Steel cable with hook
✓ Wired handheld remote
✓ Wiring harness with circuit breaker
✓ Roller fairlead
Optional Add-Ons
OVS 3/4" D-Ring Shackles (Set of 2) - Available in:
- Zinc-plated (silver)
- Black powder coat
- Red powder coat
Each shackle includes screw pin and is rated for heavy-duty recovery operations.
Warranty & Support
RalliTEK Lifetime Guarantee
This hidden winch mount system is covered by RalliTEK's Lifetime Guarantee, protecting against:
- Manufacturing defects
- Material failures
- Structural issues under normal use
This warranty does not cover:
- Damage from accidents or collisions
- Improper installation
- Modifications or alterations
- Normal wear items (powder coat finish, hardware)
Frequently Asked Questions
Will this fit my 2009+ Forester?
No. This specific mount is engineered for 2003-2008 Foresters only. The 2009+ (SH chassis) Foresters have completely different frame mounting points and bumper structures requiring a different mount design.
Can I use a different brand winch?
The mount is specifically verified with Warn Axon 45-S, Warn Axon 55-S, and Superwinch Terra 4500. Other winches with similar bolt patterns may fit, but we cannot guarantee compatibility. Contact RalliTEK with your winch model for verification before ordering.
Will this work with aftermarket grilles or bumpers?
This mount is designed for use with factory bumper covers and grilles. Aftermarket components may have different cutouts or mounting points that interfere with installation. If you're running aftermarket front-end parts, contact us to discuss compatibility.
Does installation require cutting or welding?
No. This is a 100% bolt-on installation using existing frame mounting points. No cutting, drilling into frame rails, or welding required. The only holes you might drill are small pilot holes for routing zip ties or wire loom clips.
How much weight does this add to my Forester?
The mount plate weighs approximately 35 lbs. Add winch weight:
- Warn Axon 45-S: ~45 lbs
- Warn Axon 55-S: ~52 lbs
- Superwinch Terra 4500: ~48 lbs
Total weight addition: 80-87 lbs depending on configuration. This is significantly less than a full aftermarket bumper system (typically 100-150 lbs).
Will this affect my gas mileage?
No measurable impact. Because the mount installs behind the factory bumper and doesn't disrupt aerodynamics or add significant weight compared to full bumpers, fuel economy remains unchanged. The factory active grill shutter continues operating normally to optimize engine temperature and efficiency.
Can I install this with a lift kit?
Yes. This mount works with lifted Foresters. The winch mount attaches to the frame, so suspension modifications don't affect fitment. Many RalliTEK customers run this mount with 2"-3" lift kits without issues.
What if I damage my factory bumper cover?
The bumper cover is removable and replaceable. Used OEM bumper covers for 2003-2008 Foresters are readily available through Subaru dealers, auto recyclers, and online parts marketplaces. The winch mount itself is protected behind the bumper, so minor fender benders typically only damage the replaceable plastic cover.
Is this legal for street use?
Yes. This system maintains all factory lighting, doesn't protrude beyond the bumper profile, and doesn't interfere with airbags or safety systems. It's legal for street use in all 50 states. Some jurisdictions have regulations about exposed tow hooks or recovery points—check local laws if concerned.
Can I tow with this installed?
Yes. The winch mount doesn't interfere with your Forester's rear tow hitch or towing capability. Use the rear hitch for towing trailers. Use the front winch mount for recovery operations only—never for towing.
Do I need to inform my insurance company?
This depends on your policy. Generally, bolt-on accessories don't require notification. However, if you're adding a winch to recover other vehicles, check if your policy covers equipment usage for off-road assistance. Some policies have specific language around recovery equipment.
Pros & Cons
Pros
✓ Stealth Design - Winch capability without changing your Forester's appearance
✓ Factory System Compatibility - No interference with cooling, sensors, or grill shutter
✓ American-Made Quality - USA-sourced steel, precision manufacturing
✓ DIY Installation - Bolt-on design with clear instructions
✓ Verified Winch Compatibility - Pre-tested with popular winch models
✓ Integrated Recovery Points - D-ring mounts built into the system
✓ Lifetime Warranty - RalliTEK stands behind their work
✓ Lower Cost - Significantly less than quality aftermarket bumpers
✓ Lighter Weight - Minimal impact on handling and fuel economy
Cons
✗ Limited Winch Options - Only verified with three winch models
✗ No Approach Angle Improvement - Factory bumper remains in place
✗ No Integrated Lighting - Can't mount auxiliary lights to the mount
✗ 2003-2008 Foresters Only - Not available for newer models
✗ Moderate Install Difficulty - Requires mechanical experience and 2 hours
Complete Your Recovery System
Recommended Accessories
Recovery Straps
- 3" x 30' kinetic energy rope
- 3" x 20' tree saver strap
- Heavy-duty recovery shackles (3/4")
Winch Accessories
- Winch damper (protects windshield if cable snaps)
- Snatch block (doubles pulling power)
- Winch extension strap (adds reach)
- Heavy-duty gloves (protects hands during winching)
Safety Equipment
- First aid kit
- Fire extinguisher
- Hi-lift jack (for additional recovery options)
- Traction boards (for self-recovery before using winch)
*This RalliTEK product is designed for off-road use. Installation and use are at the buyer's own risk. Always follow proper recovery techniques and safety procedures when using winching equipment.*
Made in USA | Engineered by RalliTEK | Backed by 25+ Years of Subaru Off-Road Experience
Related Products
Overland Vehicle Systems
OVS HD Nomadic 180 LTE Awning - with Black Travel Cover Universal
Overland Vehicle Systems
Overland Vehicle Systems XD Nomadic 180 Awning With Black Travel Bag
Overland Vehicle Systems
OVS Hubcentric Ground Tent - Black Body & Grey Rainfly
Overland Vehicle Systems
Overland Vehicle Systems Heavy Duty Fridge Slide - Black Powder Coat Universal
Overland Vehicle Systems
Overland Vehicle Systems Discovery Rack For Mid & Full Size Trucks
Overland Vehicle Systems
OVS HD Bundu Cantilever Hard Shell Roof Top Tent - 2-4 Person
Overland Vehicle Systems
OVS XD Sherpa Roof Top Tent - Soft Shell - 1-4 Person Capacity
Overland Vehicle Systems
Overland Vehicle Systems HD Nomadic 270 LTE Awning
Overland Vehicle Systems
OVS Camp Cargo Box Kitchen With Slide Out Sink, Cooking Shelf and Work Station
Overland Vehicle Systems
OVS Bushveld II Hard Shell Roof Top Tent
Overland Vehicle Systems
Overland Vehicle Systems HD Nomadic 180 Degree Awning For Mid-High Vans
Overland Vehicle Systems
OVS HD Nomadic 2 Standard Roof Top Tent
Guana Equipment
Guana Equipment Wanaka 55" Roof Top Tent Setup With XL Annex
Guana Equipment
Guana Equipment Wanaka 64" Roof Top Tent With XL Annex
Guana Equipment
Guana Equipment Wanaka 72" 4 Person Roof Top Tent
Overland Vehicle Systems
OVS Sidewinder Aluminum Side Opening Roof Top Tent
Overland Vehicle Systems
OVS HD Nomadic 3 Standard Roof Top Tent
Overland Vehicle Systems
Overland Vehicle Systems Lite 270 Awning w/ Black Cover
Overland Vehicle Systems
Overland Vehicle Systems Nomadic 180 Awning
Overland Vehicle Systems
OVS HD Nomadic Awning Room Enclosure, Grey Body, Green Trim (4 Walls & Floor)
Overland Vehicle Systems
OVS Bed Extension For Pickup Trucks | Short Bed
Overland Vehicle Systems
OVS Explorer Soft Shell - Black Diamond Canvas and Aluminum Frame
Overland Vehicle Systems
OVS Expedition Truck Cap With Full Wing Doors
Overland Vehicle Systems
OVS Expedition Pro+ Truck Cap W/ Full Windows, Wing Doors, and 3rd Brake Light
Overland Vehicle Systems
OVS HD Bundu Hard Shell Pop Up Roof Top Tent - 2-4 Person
Overland Vehicle Systems
OVS Off Road Trailer - Military Style With Full Articulating Suspension (DOWNPAYMENT OPTION)
