Trail Trailer The MOD UTV Modular Trailer For Utility Terrain Vehicles
*** IN STOCK AND READY TO SHIP ***
NOTE: For these trailers, you can choose to add a gear tub, over which you can choose to have no towers, or add short or tall towers. You can also select to get the trailer without the gear tub, and still add the short or tall towers. or no towers at all.
The MOLLE panels can be added ONLY to the tall towers or the gear tub with towers. Short towers by themselves cannot have molle panels!
Venturing into the unknown does not have to be a tedious experience full of limitations and hardships. With the convenience and comfort of Trail Trailer, you can experience outdoor exploration without any limits and without sacrificing your vehicle's performance. Conquer any terrain with ease of mind thanks to the unmatched durability and reliability of Trail Trailers.
Whether you are an experienced off-road enthusiast or just starting out your new journey, you can hook up your modular trailer, load it up with necessary gear and accessories, and head on out. The modular Trail Trailer for UTVs comes in 4 different variants to suit your needs and your lifestyle.
Trail Trailer MOD
The MOD or modular trailer for UTV is a robust and very reliable off-road trailer that is user-friendly and can easily be hooked up to your vehicle and taken onto any unforgiving off-road trails, from rocky mountains to muddy streams and snowy paths. With heavy-duty powder-coated steel construction, you can be sure that the trailer will survive the rigors of everyday use and will not erode even in the most unforgiving environments.
The Trail Trailer MOD can be acquired with a street-legal light kit as well as with the addition of an awning, table or shelf, and even a spare tire carrier. We can even throw in a roof top tent into that mix!
Flatbed
The Trail Trailer MOD flatbed trailer is one of the simplest out of 4 versions we will talk about. It is a lightweight, flat platform that can be customized according to your needs and can be used to load up a variety of gear with you wherever you go. Load up firewood, fridges and coolers, bikes or motorcycles, cargo boxes, racks, kayaks, rafts, and pretty much whatever floats your boat.
It features a channel track system that allows you to easily attach any of your crucial gear without having to worry about it slipping away. Thanks to the endless attachment options and brackets, you can easily manage your cargo and keep it safe in any environment out there. Being the most simple version, you can further customize by adding gear tub, or gear towers.
Gear Tub
Adding the Gear Tub to your Trail Trailer MOD you get the intimate trunk for your vehicle. The walls allow you to safely pack up your trailer with chairs, tables, coolers, stoves, boxes, and a variety of other gear and accessories with a piece of mind. The gear tub trailer features a protected space for all of your gear with a full removable soft cover and a drop-down tailgate.
With the addition of a channel track system mounted on the top of the tub's walls, you can mount additional gear towers and even other accessories that might come in handy on your next outdoor adventure. A track system is also provided on the walls of this gear tub trailer that provides a cleat for mounting tables, sinks, stoves, and other useful accessories when at camp.
Gear Tower
With the addition of towers to your Trail Trailer, you allow yourself to mount a roof top tent and other pieces of gear such as canoes and kayaks, and take them with you wherever your adventure takes you. Gear towers act as roof racks for your modular trailer allowing you to install a variety of gear onto them while simultaneously having space beneath them to add even more gear.
Gear towers can be mounted both on the Flatbed trailer as well as on the walls of the Gear Tub trailer depending on your needs. These sturdy towers can not only withstand the weight of your equipment but are also built to withstand the test of time and any harsh weather conditions you find yourself in thanks to their rugged build and powder coat finish that prevents erosion.

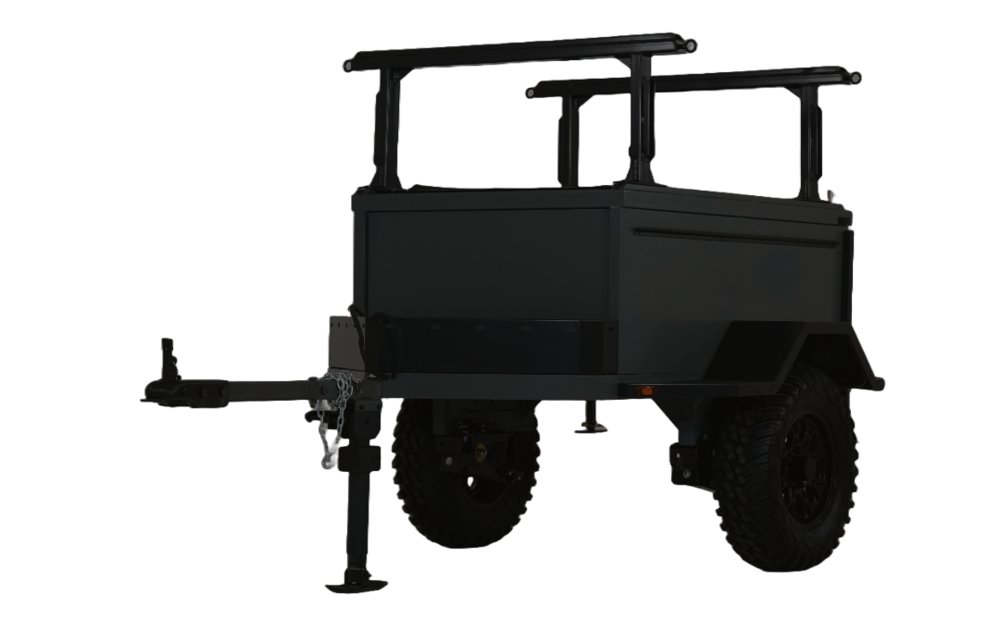

Complete Package
Combining the Trail Trailer MOD flatbed, gear tub, and towers, you get a complete off-road trailer that has infinite modular capabilities and allows you to customize your carrying needs on the go. Offering complete modularity, the fully upgraded Trail Trailer MOD provides a reliable platform able to carry pretty much everything you would ever need on any outdoor adventure.
With a 17.25sq ft flatbed storage and 23.64 cubic ft of storage with gear tub installed, you can store away all of the resources you will need thus taking the load off your vehicle. Combine that with heavy-duty off-road tires that can traverse any possible terrain and it is safe to say that you can be fully equipped for the glamping trip you were planning on.
NOTE: If you add a tower to your configuration, whether it's a flatbed with tall towers or a tub with short towers, you can mount a roof top tent and even an awning! Click HERE to see our roof top tent collection, and HERE to see all of our awnings!
TRAIL TRAILER MOD UTV CONFIGURATIONS:
Flatbed:
Each MOD starts with a welded steel flatbed chassis like the one you see in this picture. This subframe features 3 full-length channels of Universal Rail. These provide the MOD with limitless tie-down or mounting locations for additional accessories like our towers, tubs, etc.
Short Tower:
The Short Tower configuration consists of a flatbed with short towers bolted directly to it or even on top of the TUB. The short tower has a clearance of 15.5" and features an impressive dynamic load weight capacity of 300lbs and a static load weight capacity of 600lbs, strong enough to support the weight of your gear, accessories, or even a roof top tent.
Tall Tower:
The TALL TOWER bolts directly to the FLATBED using the universal mounting rails and THEY ARE NOT COMPATIBLE WITH THE TUB). The TALL Tower has a clearance of 49" and features an impressive 300lbs of dynamic weight load capacity as well as a 600lbs of static weight capacity which is enough to support the weight of your roof top tent as well as a variety of other gear and accessories you'll need on your next adventure!
Tub:
The TUB features Powder Coated Steel Construction with a locking tailgate and a diamond plate skid rigid lid. The TUB is a great option for keeping all your valuables safe form the elements on your adventures. Optional bolt-on accessories include the short tower on which you can mount your roof top tent, and a full-size slide.
Tub + Short Tower:
The TUB + SHORT TOWER is the perfect combo for out-of-sight storage and gear-mounting real estate. It features an impressive 300lbs of dynamic load weight capacity as well as 600lbs of static load weight capacity, enough to support the weight of your roof top tent as well as any valuable gear needed for your next adventure.
Tub + Tower + Tent
Add your favorite Roof Top Tent to the MOD. The TUB + SHORT TOWER is the perfect combo for out-of-sight storage and gear-mounting real estate. Keep in mind that you CANNOT add a tall tower on top of your TUB. Use the tub to store and protect your valuables from the elements and mount the rest of your gear, cargo boxes, or boards beneath the tent for extra storage options.
Features:
- Universal Rail Mounts Limitless Bolt-On Mounting Options
- Timbren Suspension For Smoother Rie And Tons Of Ground Clearance
- Stand On Fenders Serving As An Etra Flat Countertop Or Even As A Step
- 4 Rock LED's To Illuminate The Ground Below The Trailer
- Turn/Blinker LED Signal Lights
- Brake And Running LED Lights
- Tongue Tray Providing Additional Space For Buckets, Firewood, Water Jugs, or Anything Else You Want Easy Access To
- Locking Tailgate For Increased Security
- Three Universal Rail Channels That Eun From Front To Back For Mounting Towers, Tubs, or Tie Down Points
- Universal Rail Towers With Universal Lines On Both Sides Allowing For Limitless Mounting Opportunities
- Drop Down Tailgate For Easy Access To Your Gear With A Built-In Table And Cooking or Seating Surface
- Supporting Various Roof Top Tents And Awnings
- Extended Tongue Providing Enhanced Utility For A Range Of Vehicles
- 2" Rear Reciever On Which You Can Add Recovery Points, Cargo Baskets, etc.
- Stabilizer Jacks
Specifications:
C/L Clearance: 18.5" *additional sizes and configurations are in development
Suspension Travel: 2” *additional sizes and configurations are in development
Tire size: 26" (205/75-14) (Current) *additional sizes and configurations are in development
Wheel Size: 14 X 9 *additional sizes and configurations are in development
Axle type: Timbren, Flexiride, or Spring. *Additional sizes and configurations are in development
Paint/Finish: zinc primer coat & colored powder coat UV protected
Optional Light Package / Trailer plug style: 4 Wire trailer plug- additional for whips or electric brakes. *Additional sizes and configurations are in development
Hitch Style: 2" standard ball or off-road articulating hitches.
Box Cubic in Storage: 40867 cu in or 23.64 cubic ft
Flat Bed Sq ft Storage: 17.25 sq ft
Trailer Weight:
- Flatbed: 425lbs
- Flatbed w/Tub: 608lbs
- Flatbed w/Tower: 513lbs
- Flatbed/Tall Tower: 585lbs
- Tongue Weight Range (Flatbed To Tub And Tower): 61-87lbs
Tongue Height
- Tongue (Ground To Bottom Of Coupler): 23"
