Cali Raised LED Cat Shield and Transmission Skid Plate for 2024+ Toyota Tacoma
Cali Raised LED Cat Shield and Transmission Skid Plate for 2024+ Toyota Tacoma
SKU: CR4325
Cali Raised LED Cat Shield and Transmission Skid Plate for 2024+ Toyota Tacoma
SKU: CR4325
$280.49$329.99
Trail Armor and a Theft Deterrent in One Plate
Cali Raised LED cat shield and transmission skid plate for the 2024+ Toyota Tacoma.
Three Things to Check First
Does not fit with the OEM TRD skid plate. If your Tacoma has the factory TRD skid, this plate is not for use alongside it.
Hybrid or non-hybrid. Select the version that matches your powertrain when you order.
4WD only. This plate is made for the 4WD 4th gen Tacoma.
Not sure what is under your truck? Send us your VIN or a photo, or call 844-200-3979, and we will check before it ships.
Two things under your new Tacoma are worth protecting more than most. The transmission takes hits on the trail when you straddle rocks and crest ledges. The catalytic converters are a target in car parks and driveways, where a thief with a battery saw can be gone in minutes. One threat comes from the ground, the other from people. This plate deals with both.

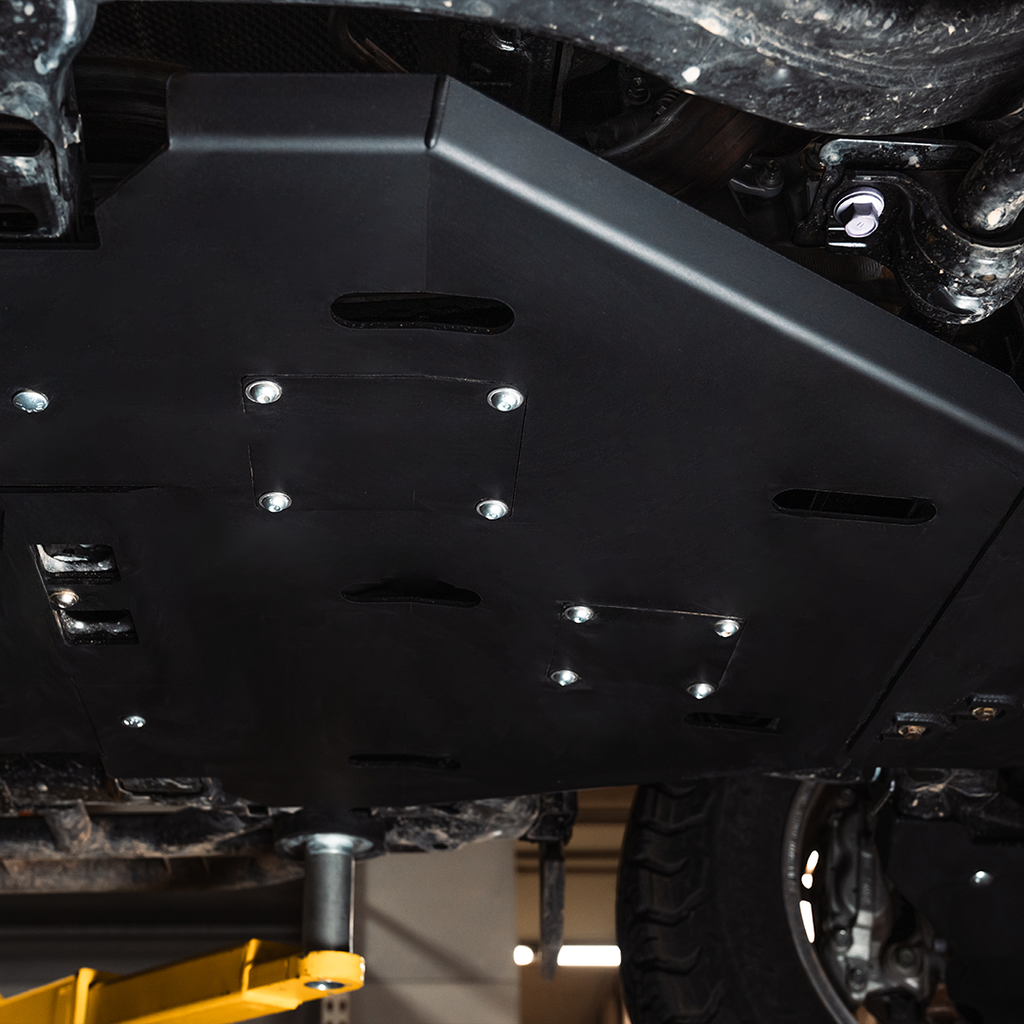

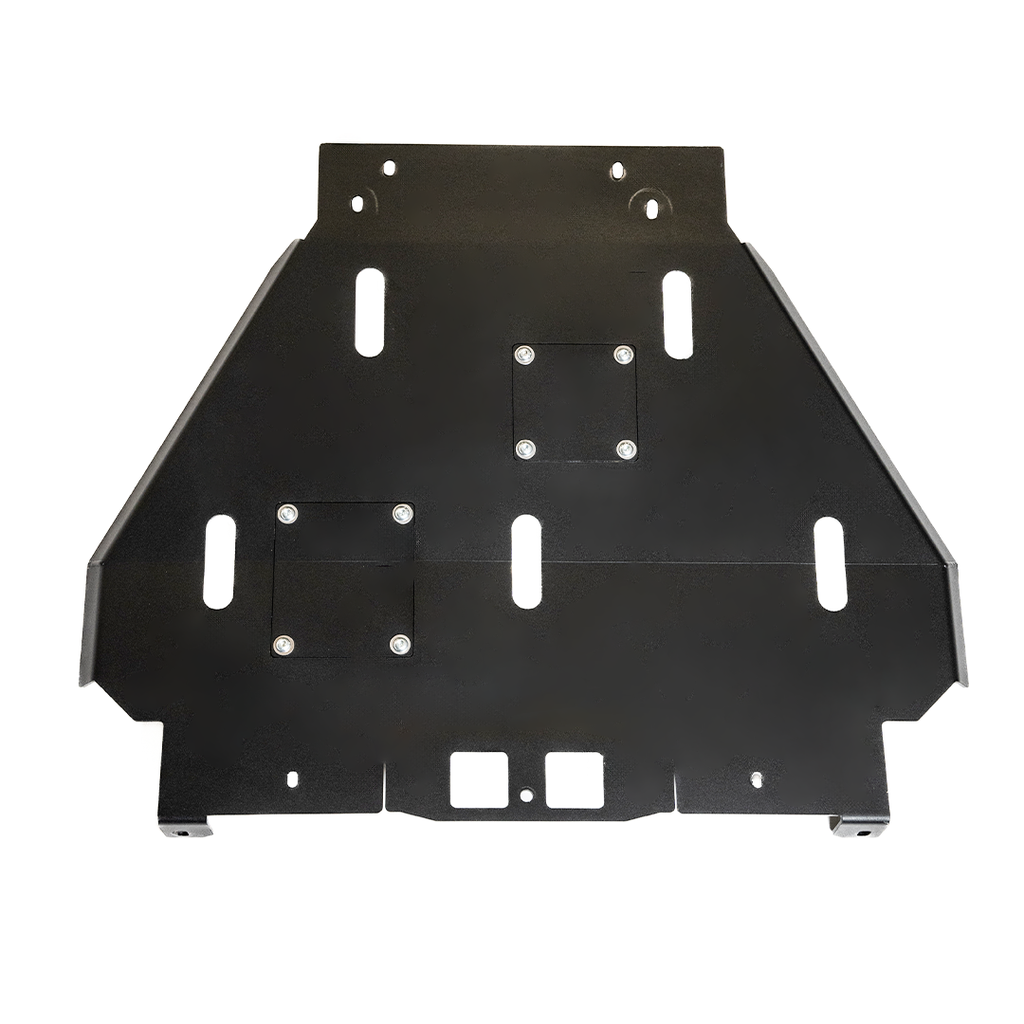

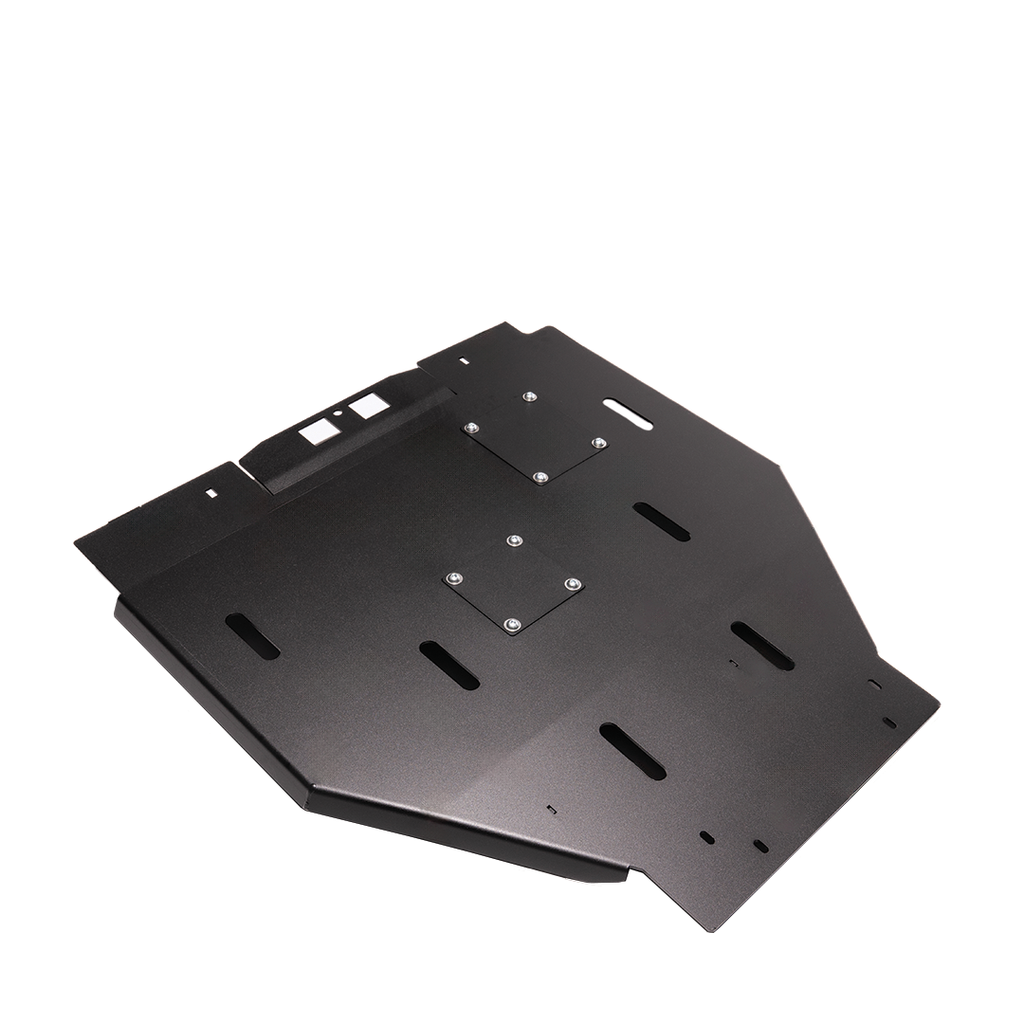

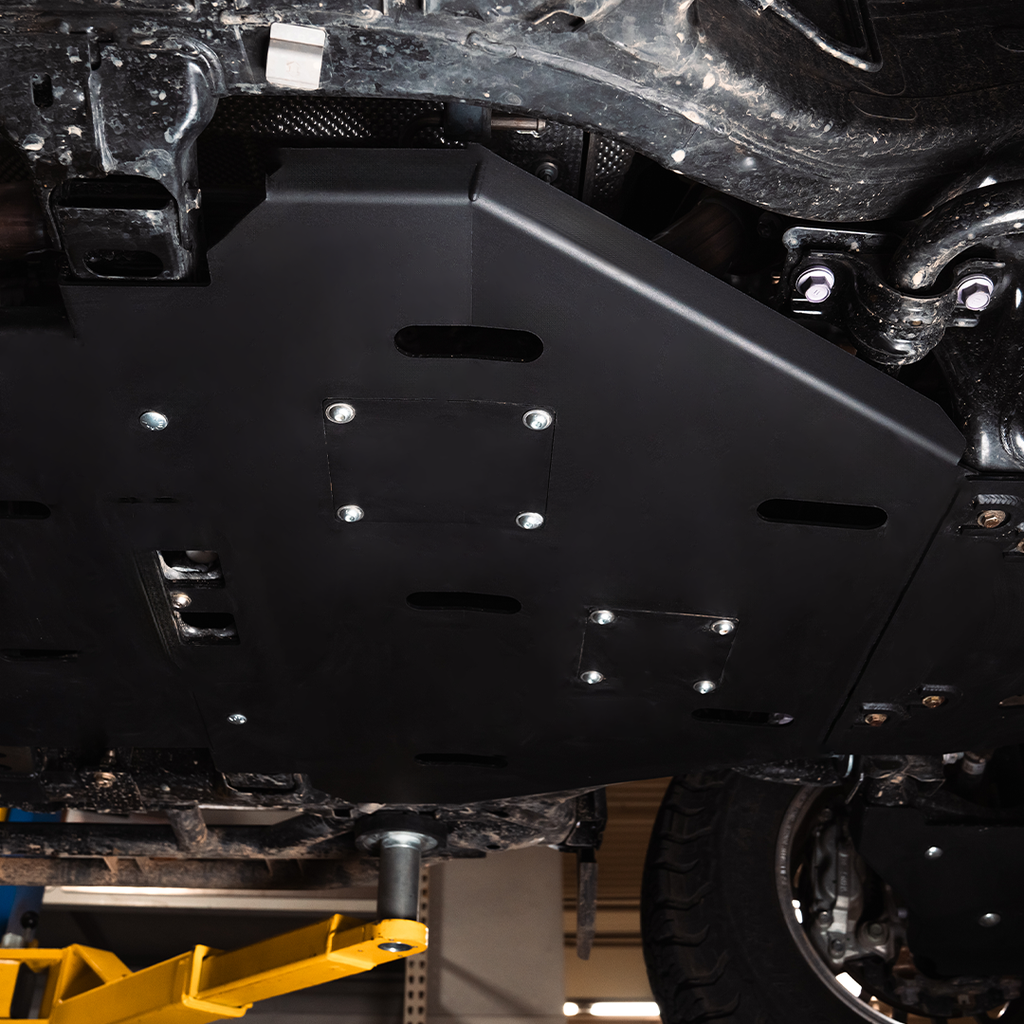

Cali Raised LED's cat shield and transmission skid plate covers the transmission and acts as a protective shield over the catalytic converters on the 2024+ 4th gen Tacoma. Choose 3/16" steel or 1/4" 5052 aircraft-grade aluminum, and pick hybrid or non-hybrid to match your truck. It is 100% bolt-on with zero modification, using a combination of factory hardware and Grade 8 hardware, and every plate is made in-house in Fort Worth, Texas, with a durable semi-gloss black powder coat.
A 2024 Tacoma Catalytic Converter Shield and Skid Plate
Transmission Protection
Covers the transmission against rocks, ruts and ledges as the middle of the truck rides over obstacles.
Cat Converter Shield
Puts a solid plate over the catalytic converters, making them far harder to reach with a saw.
One Install
Two jobs, one plate, one session under the truck, in a finish that matches Cali Raised's other 4th gen skids.
What a Catalytic Converter Shield Can and Cannot Do
We would rather be straight with you. No shield makes a catalytic converter impossible to steal. What a solid plate does is turn a fast, quiet job into a slow, noisy one, and most thieves move on to an easier truck. Think of it as a strong deterrent, not a guarantee. Parking somewhere well lit and covered by cameras still helps.
Steel or Aluminum?
These are Cali Raised's published weights for this plate.
| 3/16" Steel | 1/4" 5052 Aluminum | |
|---|---|---|
| Weight | 55 lbs | 31 lbs |
| Weight saved | 24 lbs | |
| Against a saw | Tougher to cut through | Still a solid barrier, but softer metal |
| Against rock | Slides well and resists dents | Thicker plate, but it marks and gouges more easily |
| Best for | Rock crawling, and trucks that park in high-theft areas | Overland builds watching their payload |
Our take: if theft protection is your main reason for buying, go steel. It is the harder of the two to get through. If you are mainly after trail protection on an overland rig that is already heavy, aluminum saves 24 lbs and still covers both jobs.
Got the Factory TRD Skid Plate?
Cali Raised are clear that this plate does not fit with the OEM TRD skid plate. If your Tacoma came with one, talk to us before ordering so we can go over your options. It is better to sort that out now than with the truck up on stands.
Where It Fits in the 4th Gen Tacoma Skid Plate Lineup
On the truck, this plate sits between the front skid and the transfer case skid in Cali Raised's five-plate 2024+ Tacoma lineup.
✓ Want Everything Covered?
The complete 2024 Tacoma skid plate collection bundles this cat shield with the front, transfer case, lower control arm and fuel tank skids in one order and one matching finish.
Installation
The plate bolts up with zero modification to your truck, using factory hardware alongside Grade 8 hardware.
- Let the exhaust cool fully. The catalytic converters run very hot and sit right above this plate.
- Confirm no OEM TRD skid, 4WD, and your powertrain before you start.
- Get the truck on ramps or jack stands. The steel plate is 55 lbs.
- Lift the plate on a floor jack or with a helper while you start the bolts.
- Start every bolt by hand before tightening any of them.
- Re-check the hardware after the first few trail miles.
Want to talk through the install first? Call us and we will run through it with you.
Specifications
| Fitment | 2024+ Toyota Tacoma, 4th gen, 4WD only |
| Versions | Hybrid or non-hybrid, select when ordering |
| Protects | Transmission and catalytic converters |
| OEM TRD skid plate | Not compatible |
| Material options | 3/16" steel or 1/4" 5052 aircraft-grade aluminum |
| Weight | 55 lbs steel, 31 lbs aluminum |
| Finish | Semi-gloss black powder coat |
| Hardware | Factory plus Grade 8 |
| Installation | 100% bolt-on, no drilling or modification |
| Fabricated in | Fort Worth, Texas |
What's Included
- Cat shield and transmission skid plate, hybrid or non-hybrid, in your chosen material

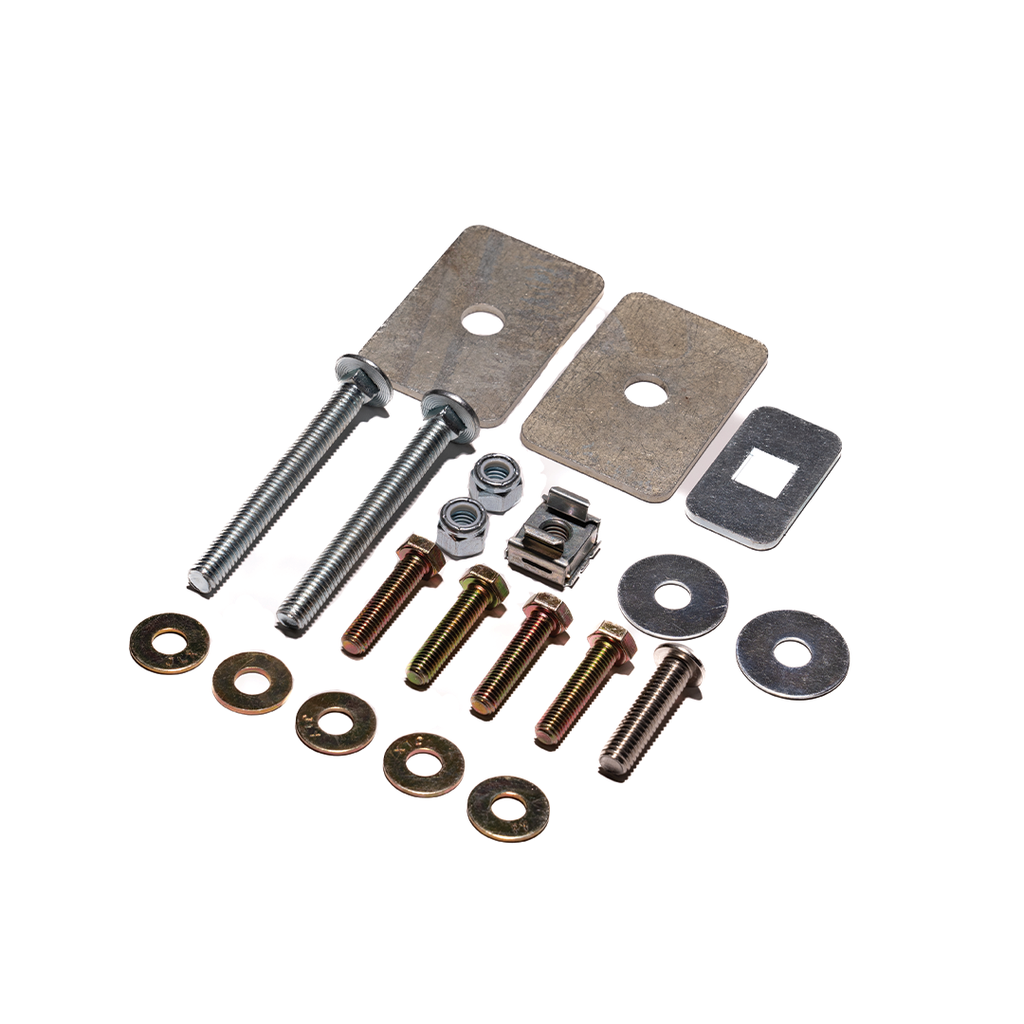

- Grade 8 mounting hardware
Pros
- Transmission skid and catalytic converter shield in one plate
- Hybrid and non-hybrid versions for the 4th gen
- Aluminum version saves 24 lbs over steel
- Bolt-on with zero modification
Cons
- Does not fit with the OEM TRD skid plate
- A deterrent, not a guarantee against theft
Frequently Asked Questions
Is this a 2025 Tacoma catalytic converter shield too?
Yes. Every 4WD Tacoma from 2024 on is covered, so 2025 and 2026 trucks too. Just pick the hybrid or non-hybrid version.
Will it stop catalytic converter theft?
It makes theft much harder and slower, which deters most thieves, but no shield is a guarantee. Steel is the tougher choice if theft is your main worry.
Can I keep my factory TRD skid plate?
No. This plate does not fit with the OEM TRD skid plate. Talk to us before ordering if your truck has one.
How much does this Tacoma transmission skid plate weigh?
The steel version is 55 lbs and the aluminum version is 31 lbs, a saving of 24 lbs.
Is any drilling needed?
No. It is 100% bolt-on with zero modification, using factory hardware and Grade 8 hardware.
Complete Your Build
Steel for Theft, Aluminum for Weight?
Tell us how and where you use your Tacoma, and we will help you choose the right material and version of this Tacoma cat shield.
