Cali Raised LED Transfer Case Skid Plate for 2024+ Toyota Tacoma
Cali Raised LED Transfer Case Skid Plate for 2024+ Toyota Tacoma
SKU: CR4317
Cali Raised LED Transfer Case Skid Plate for 2024+ Toyota Tacoma
SKU: CR4317
$297.49$349.99
Cover the Heart of Your 4WD System
Cali Raised LED transfer case skid plate for the 2024+ Toyota Tacoma, hybrid and non-hybrid.
Two Things to Get Right
Hybrid or non-hybrid. The two 4th gen powertrains get different plates, so select the one that matches your Tacoma at checkout.
4WD only. A 2WD Tacoma has no transfer case, so this plate is for 4WD trucks.
Not sure which powertrain you have? Send us your VIN or call 844-200-3979 and we will confirm before it ships.
Your Tacoma's transfer case is what turns a rear-drive truck into a four-wheel-drive one. It hangs below the center of the truck, exactly where a rut crown drags or a rock settles as you crest a ledge. Crack the housing and you lose fluid, then four-wheel drive, usually at the worst possible moment.
This 2024 Tacoma transfer case skid plate from Cali Raised LED is custom-made for the 4WD 4th gen, with separate versions for the hybrid and non-hybrid trucks. Choose 3/16" steel or 1/4" 5052 aircraft-grade aluminum at checkout. Installation is pure bolt-on with factory and Grade 8 hardware and nothing to cut. Cali Raised build each plate at their Fort Worth, Texas shop and coat it in semi-gloss black powder for lasting corrosion resistance.
Why the Transfer Case Needs Its Own Plate
Middle of the Truck
Once the front wheels are over an obstacle, the middle of the Tacoma is what rides over it next.
High-Centering
Ease over a crest and the truck can settle onto its belly. The plate takes that weight instead of the housing.
Long Way Home
A damaged transfer case is not something you can patch on the trail. It usually means a tow.
If you have already fitted a front skid and cat shield, the transfer case is the next gap in the armor. This plate fills it.
Hybrid or Non-Hybrid? Two Different Plates
The i-FORCE MAX hybrid and the non-hybrid Tacoma differ enough underneath that Cali Raised make a transfer case skid for each. The difference shows in the weights.
| Version | 3/16" Steel | 1/4" 5052 Aluminum | Saved With Aluminum |
|---|---|---|---|
| Hybrid | 20 lbs | 9 lbs | 11 lbs |
| Non-hybrid | 30 lbs | 21 lbs | 9 lbs |
These are Cali Raised's published weights. Make sure you choose the version that matches your truck, since each plate is made for its own powertrain.
Steel or Aluminum?
On this plate, your material choice applies to the whole skid. There is no separate crossbar on the 2024+ Tacoma transfer case skid, so the entire plate is steel or the entire plate is aluminum.
| 3/16" Steel | 1/4" 5052 Aluminum | |
|---|---|---|
| Strength | Maximum strength for hard hits | Strong, in a thicker and lighter plate |
| Against rock | Glides over and shrugs off dents | Thicker but softer, so sharp rock can gouge it |
| Best for | Rock crawling and frequent contact | Overland builds watching their payload |
Our take: the weight saving here is modest, 9 to 11 lbs, so this is a good plate to go steel on if you are unsure. If you are building an all-aluminum set to save weight across the whole truck, aluminum keeps everything matching.
Part of the 4th Gen Tacoma Skid Plate Set
This plate sits in the middle of Cali Raised's five-plate 2024+ Tacoma lineup, between the cat shield and transmission skid and the fuel tank skid.
✓ Doing the Whole Underside?
The complete 2024 Tacoma skid plate collection includes this transfer case skid plus the front, cat shield and transmission, lower control arm and fuel tank skids, all in one order.
Installation
No cutting, no drilling. The plate bolts up using a mix of factory fasteners and Grade 8 hardware.
- Confirm 4WD and your powertrain before you start.
- Support the truck safely on ramps or stands if you need more room underneath.
- Use a floor jack or a helper to hold the plate in place while you start the bolts.
- Get every bolt started by hand before tightening any of them.
- Check the bolts again once you have some trail miles on them.
Want a second opinion before you crawl under? Give us a call and we will run through it with you.
Specifications
| Fitment | 2024+ Toyota Tacoma, 4th gen, 4WD only |
| Versions | Hybrid or non-hybrid, select when ordering |
| Protects | Transfer case |
| Material options | 3/16" steel or 1/4" 5052 aircraft-grade aluminum |
| Crossbar | None, the whole plate follows your material choice |
| Weight (hybrid) | 20 lbs steel, 9 lbs aluminum |
| Weight (non-hybrid) | 30 lbs steel, 21 lbs aluminum |
| Finish | Semi-gloss black powder coat |
| Hardware | Factory plus Grade 8 |
| Installation | 100% bolt-on, no drilling or modification |
| Fabricated in | Fort Worth, Texas |
What's Included

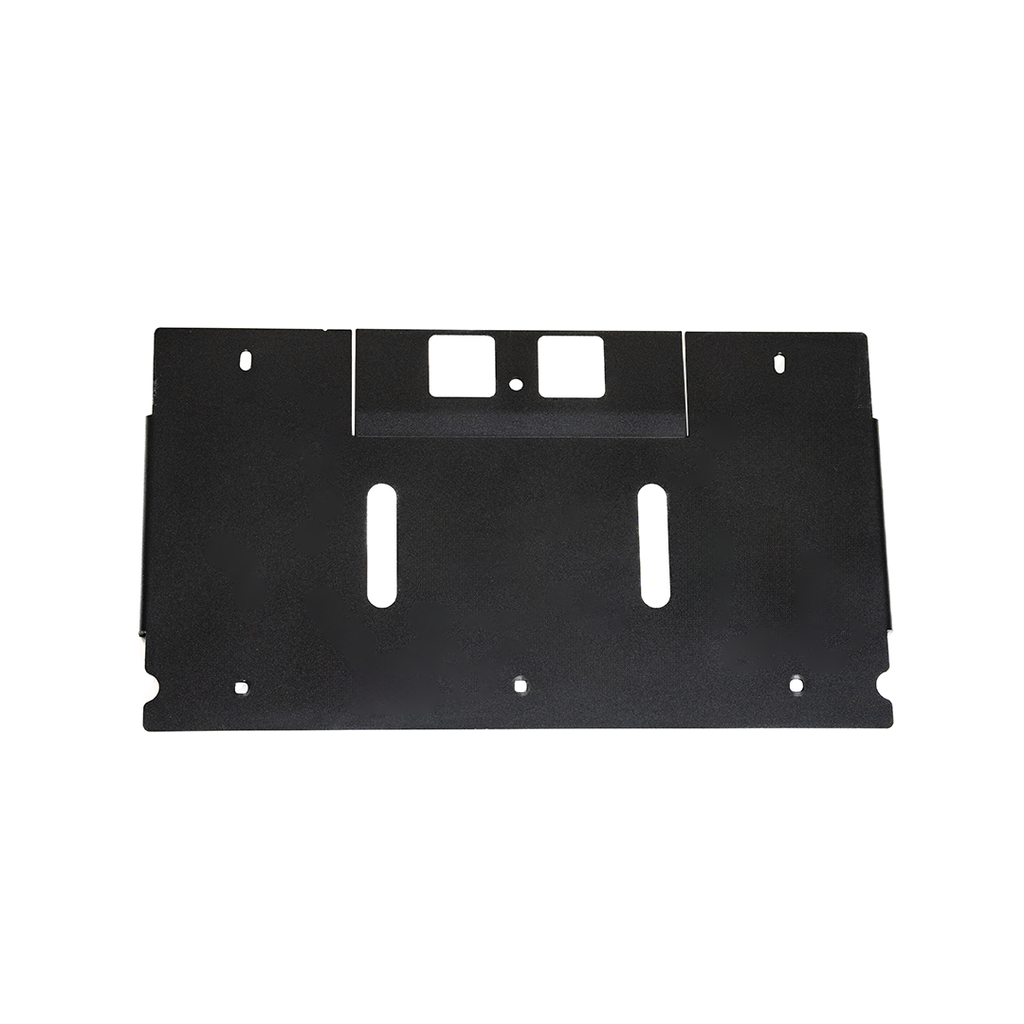

- Transfer case skid plate, hybrid or non-hybrid, in your chosen material

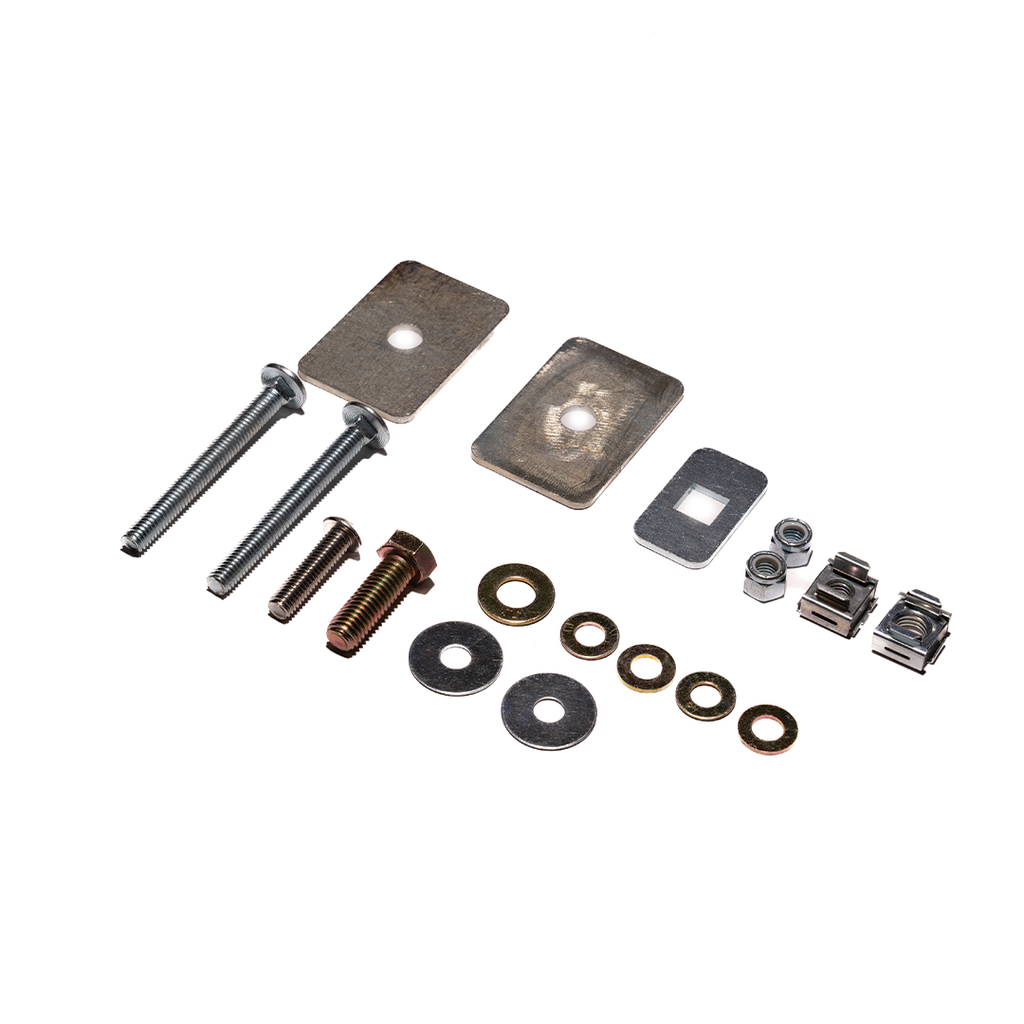

- Grade 8 mounting hardware
Pros
- Separate versions matched to the hybrid and non-hybrid trucks
- Hybrid aluminum plate is just 9 lbs
- Bolt-on with zero modification
- Matches the rest of Cali Raised's 4th gen skid plates
Cons
- 4WD trucks only
- Covers the transfer case only, not the transmission or tank
Frequently Asked Questions
Is this the right 2025 or 2026 Tacoma skid plate for my truck?
It fits any 4WD 2024 or newer Tacoma, including 2025 and 2026 trucks. Choose hybrid or non-hybrid to match your powertrain.
Do I need the hybrid or non-hybrid version?
Match it to your truck. The i-FORCE MAX hybrid and the non-hybrid get their own plates, so pick the one made for yours. Send us your VIN if you are unsure.
Is there a separate steel crossbar?
No. On the 2024+ Tacoma, the whole transfer case skid plate follows your steel or aluminum choice, with no separate crossbar.
How much does it weigh?
The hybrid plate is 20 lbs in steel or 9 lbs in aluminum. The non-hybrid plate is 30 lbs in steel or 21 lbs in aluminum.
Do I need to drill or modify my Tacoma?
No. Nothing gets cut or drilled. It bolts up with factory and Grade 8 hardware.
Complete Your Build
Hybrid or Non-Hybrid?
Send us your VIN and we will confirm the right transfer case skid and material for your 4th gen Tacoma skid plate setup.
