Cali Raised LED Dual Function Amber/White Light Bar & Prinsu Bracket Kit
Cali Raised LED Dual Function Amber/White Light Bar & Prinsu Bracket Kit
Two Things to Know Before You Start
- Slight trimming of the front fairing is required. The brackets themselves bolt up, but the fairing needs a trim to clear the bar.
- Wiring is a choice, not a default. One harness runs everything together. Two harnesses let you run amber and white independently. Full instructions below.
Call us at 844-200-3979 and we will make sure you order the right harness setup.
Most people end up choosing between white and amber and then regretting it the first time they drive into dust. White throws further and shows detail. Amber cuts through dust, fog and snow. You want both, and swapping bars by the weather is not a plan.
The Cali Raised LED Dual Function bar is an amber white light bar with both colours in the one unit, and this kit pairs it with custom laser cut brackets made for the Prinsu roof rack. Wire it one way and the whole bar switches together. Wire it the other way and you run amber, white, or both at once, on demand. Powder-coated black semi-gloss mini texture, engineered for a seamless fit that keeps vibration and wind noise down. Sold as a kit with installation hardware. Two-year Cali Raised LED warranty.
Why Two Colours Actually Matters
A dual function light bar is not a styling feature. The two colours do genuinely different jobs, and which one you want depends entirely on what is in the air.
White for Distance
Brighter, throws further, and shows colour and detail properly. What you want on clear open trail at speed.
Amber for Particles
Cuts through dust, fog and falling snow. White light scatters off airborne particles and reflects straight back at you as a wall of glare.
Both Together
Wired independently, you can run the pair at once when conditions are mixed and you want everything you can get.
If you have ever followed someone through desert dust on white lights and had to back off because you could not see past your own glare, that is the problem a dual color light bar solves.

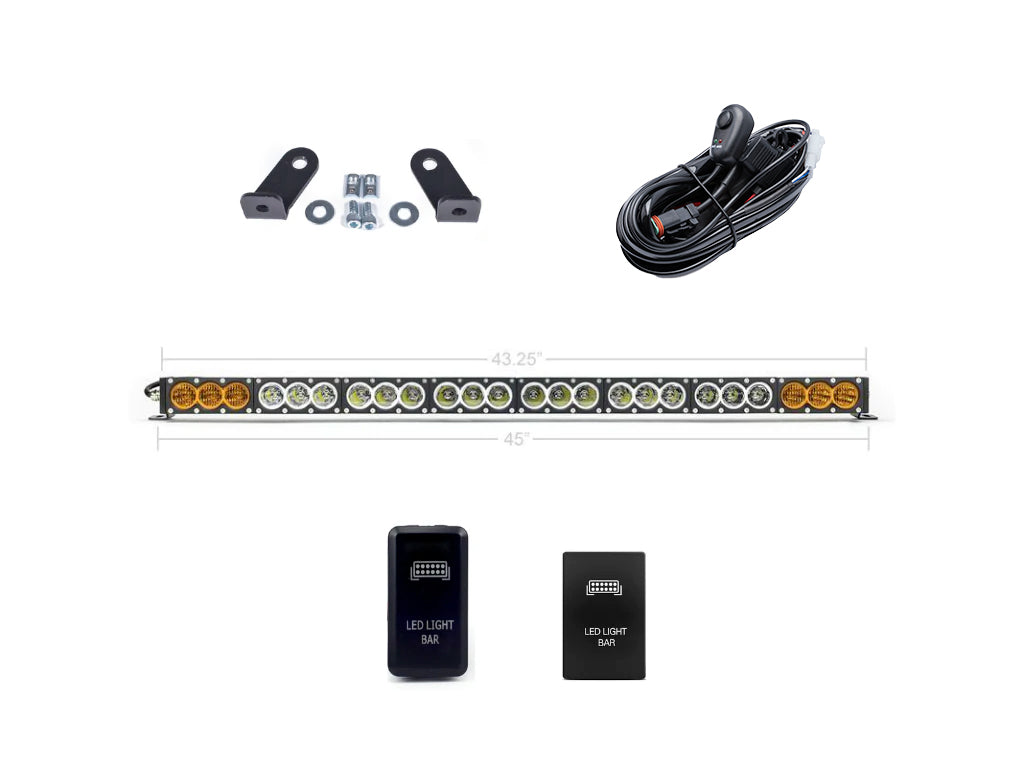

What Comes in the Kit
Wiring options are custom. How many harnesses you need depends on how you want the bar to operate.
Wiring: One Harness or Two?
This is the decision that shapes how the bar works, so make it before you order rather than after. The bar itself has three wires regardless.
| Wire | Function |
|---|---|
| Black | Ground |
| White | Power for the white LEDs |
| Green | Power for the amber LEDs |
One Harness: Everything Together
Choose this if you want the whole bar to switch on and off as one unit and you do not need to separate the colours. Simpler wiring, one switch.
Remove the plug from the harness.
Connect the black wire from the LED bar to the black wire on the harness.
Combine the green and white wires on the LED bar and connect them together to the red on the harness.
Two Harnesses: Amber and White Independently

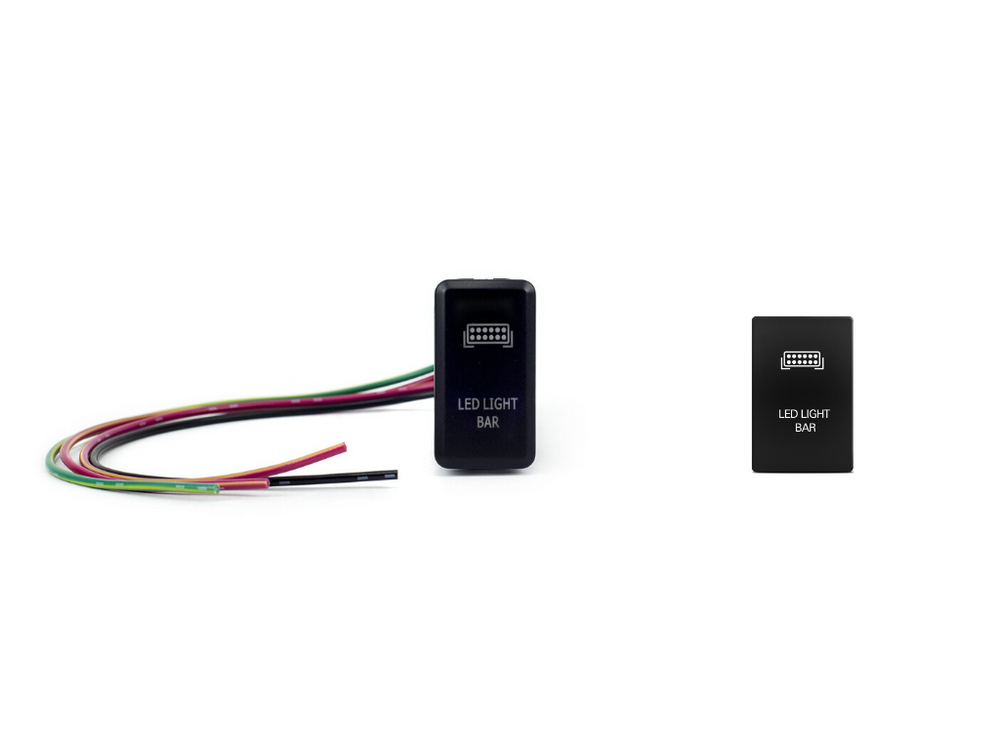

Choose this if you want amber on its own, white on its own, or both at once. This is the setup that makes a dual function bar worth having, and it needs two harnesses and two switches.
The harnesses have DT plugs on the end. Remove them, as they are not needed.
With the plugs off you will have two red wires and two black wires exposed across the two harnesses.
Join the two black wires together and connect them to the black on the LED bar.
Connect one red to white and the other red to green. That gives you independent control of each colour.
If you are not confident with the wiring, an install shop will do either version quickly. Call us at 844-200-3979 and we will make sure you have the right number of harnesses before you start.
About the Fairing Trim
Worth being upfront: this kit requires slight trimming of the front fairing on the Prinsu rack. The brackets bolt up, but the fairing needs a small cut to clear the bar.
It is a minor job and it is done once, but it is permanent, so measure and mark before you cut. If that is not something you want to do yourself, a shop will handle it alongside the install.
Made for This Rack, Not Adapted to It

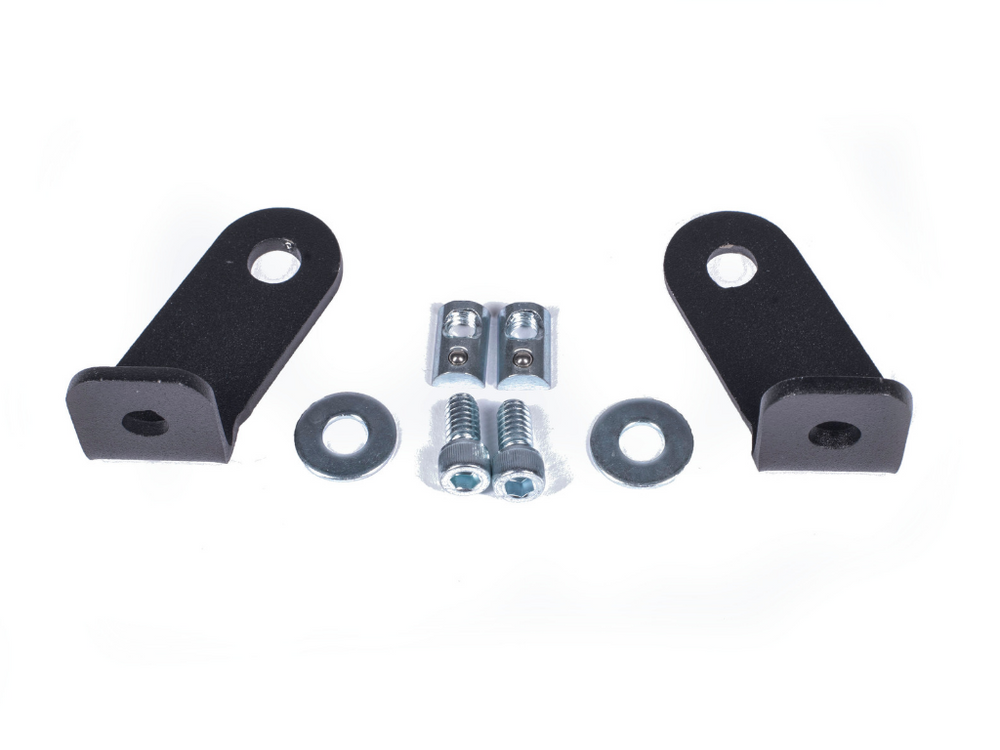

The brackets are custom laser cut for the Prinsu roof rack and for this specific bar, which is what gives you a seamless fit rather than a light bar standing proud and whistling at 70 mph.
They are powder-coated in a durable black semi-gloss mini texture, the same finish approach Cali Raised uses across their brackets, chosen for corrosion resistance on a part that lives permanently exposed on the front of a roof rack.
Fitment is guaranteed for the Dual Function bar on a Prinsu rack. Cali Raised does not guarantee it on other racks or other bars.
Specifications
| Fits | Prinsu roof racks |
| Light Bar | Cali Raised LED Dual Function, amber and white |
| Brackets | Custom laser cut for the Dual Function bar |
| Finish | Black semi-gloss mini texture powder coat |
| Rack Modification | Slight trimming of the front fairing required |
| Wiring | One harness for combined control, two for independent amber and white |
| Bar Wires | Black ground, white for white LEDs, green for amber LEDs |
| Hardware | Included |
| Sold As | Complete kit |
| Warranty | 2 years, Cali Raised LED |
Pros
- An LED light bar with amber and white in one unit, so you stop choosing between them
- Wire it for independent control and run either colour or both
- Brackets custom laser cut for the Prinsu rack and this specific bar
- Seamless fit keeps vibration and wind noise down
- Black semi-gloss mini texture powder coat against corrosion
- Bar, brackets and hardware all in one kit
- Two-year Cali Raised LED warranty
Cons
- Slight trimming of the front fairing is required, and it is permanent
- Independent colour control needs two harnesses and two switches
- Wiring is custom rather than plug and play
- Fitment guaranteed on Prinsu racks with this bar only
Frequently Asked Questions
How many harnesses do I need?
One if you want the whole bar to switch on and off together. Two if you want amber and white controlled separately, which also lets you run both at once. Two harnesses is what makes a dual function bar worth having, but it means two switches and a little more wiring. Call us at 844-200-3979 and we will get you the right setup.
Do I really have to trim the fairing?
Yes. Cali Raised specifies slight trimming of the front fairing so it clears the bar. The brackets themselves bolt up without modification, but the fairing needs a small cut. It is a minor, one-time job, though it is permanent, so measure and mark carefully. An install shop will handle it alongside the fitting if you would rather not.
When would I actually use the amber?
Any time there is something in the air. Dust, fog and falling snow all scatter white light back at you, which is why high beams in fog make visibility worse rather than better. Amber scatters far less and lets you see into the conditions instead of at them. On clear nights, white is brighter and throws further, so you use that.
What do the wire colours mean?
The bar has three. Black is ground, white powers the white LEDs, and green powers the amber LEDs. Combine green and white to one harness and everything runs together. Run them to separate harnesses and you get independent control. The step-by-step for both setups is above.
Will these brackets fit another rack or another bar?
They are custom-made for the Dual Function bar on a Prinsu roof rack, and Cali Raised does not guarantee fitment on other products. If you are running a different rack or want to mount a different bar, call us at 844-200-3979 before ordering and we will check whether there is a kit that suits.
Complete Your Build
One Harness or Two?
Tell us how you want the bar to run and which Prinsu rack you have. We will sort the harness count and confirm the fit before you order.
844-200-3979
