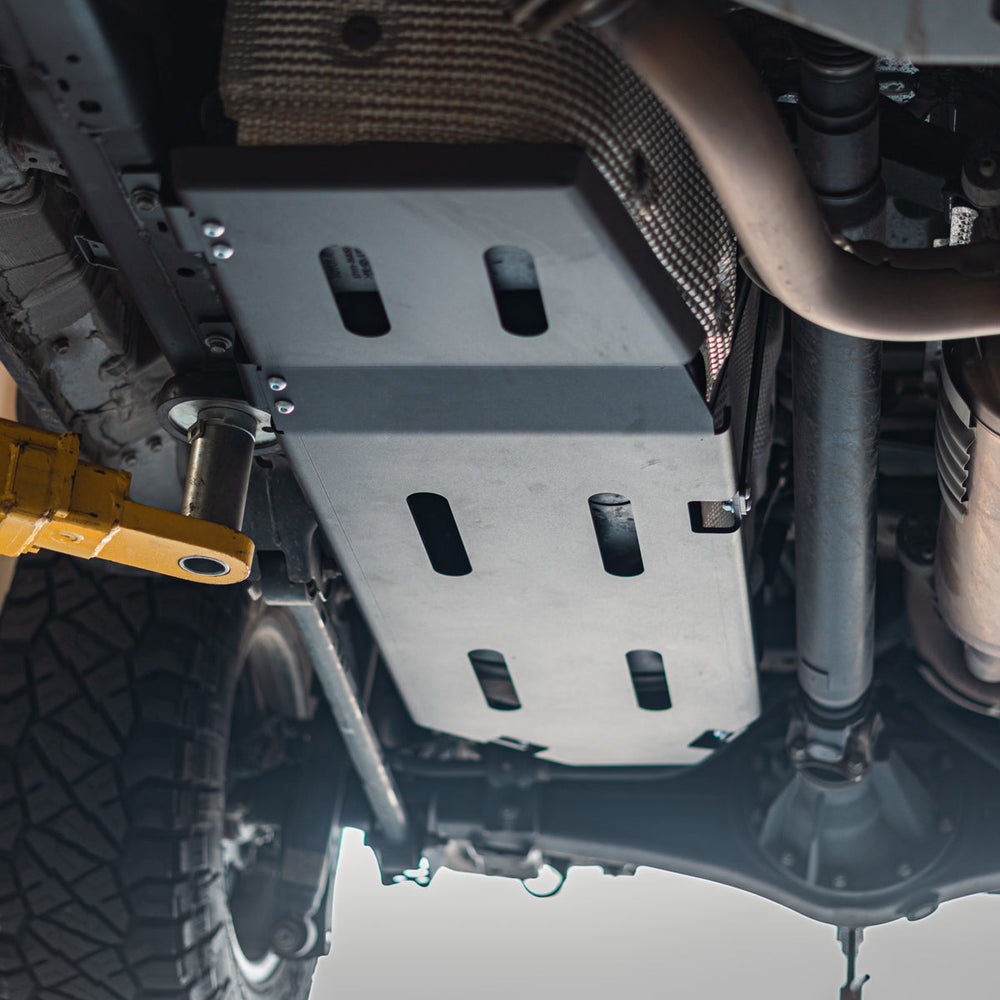

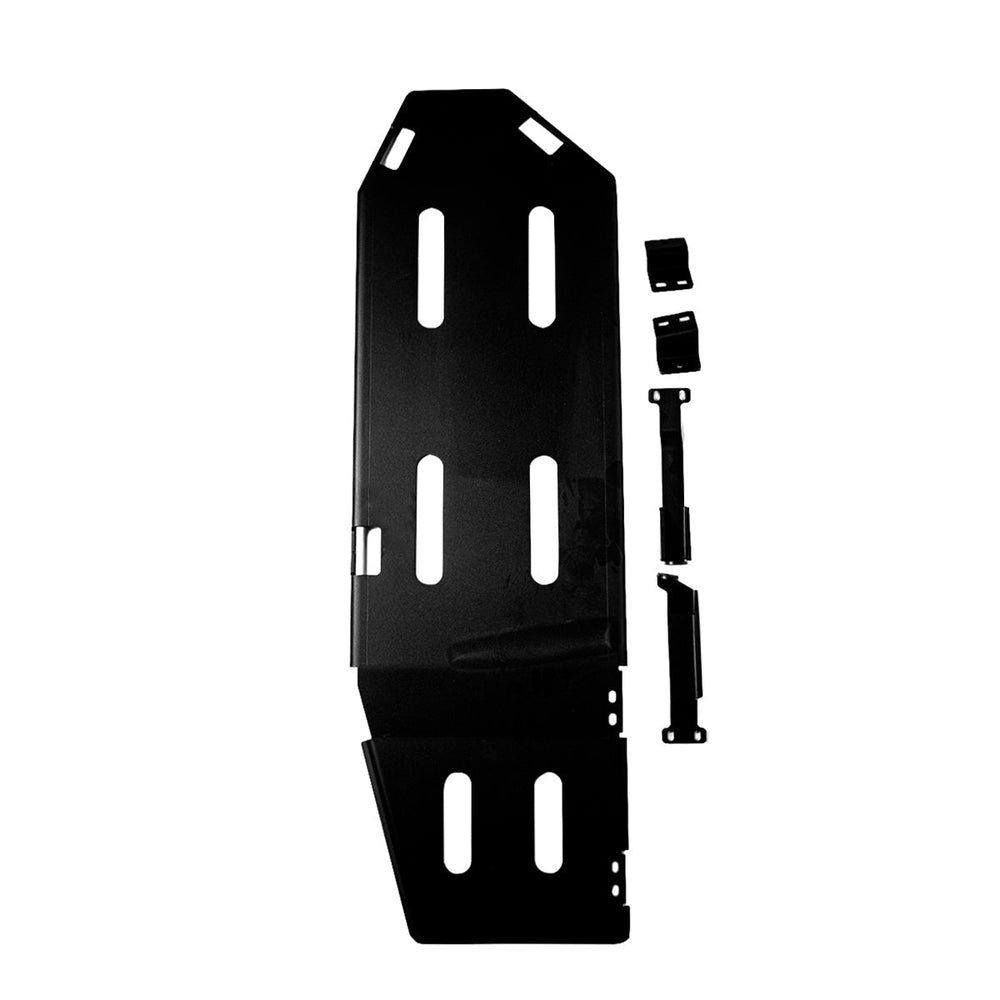

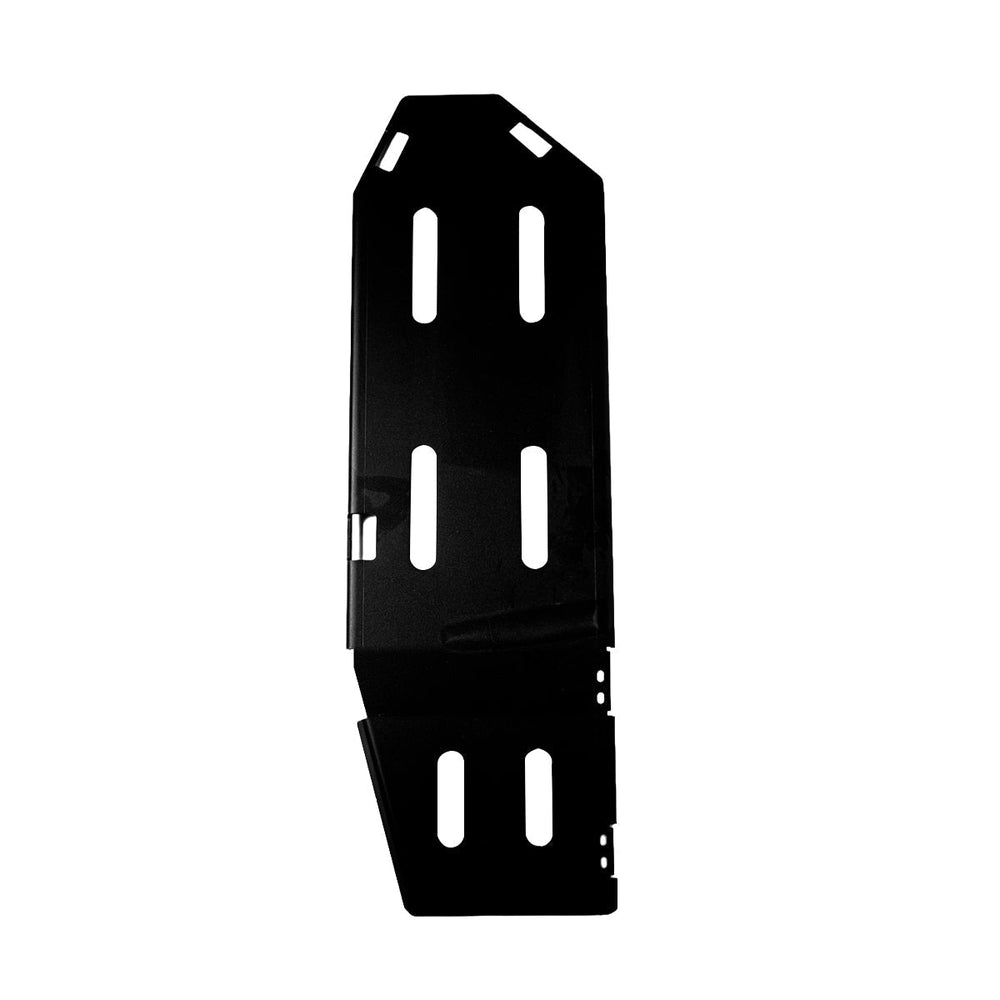

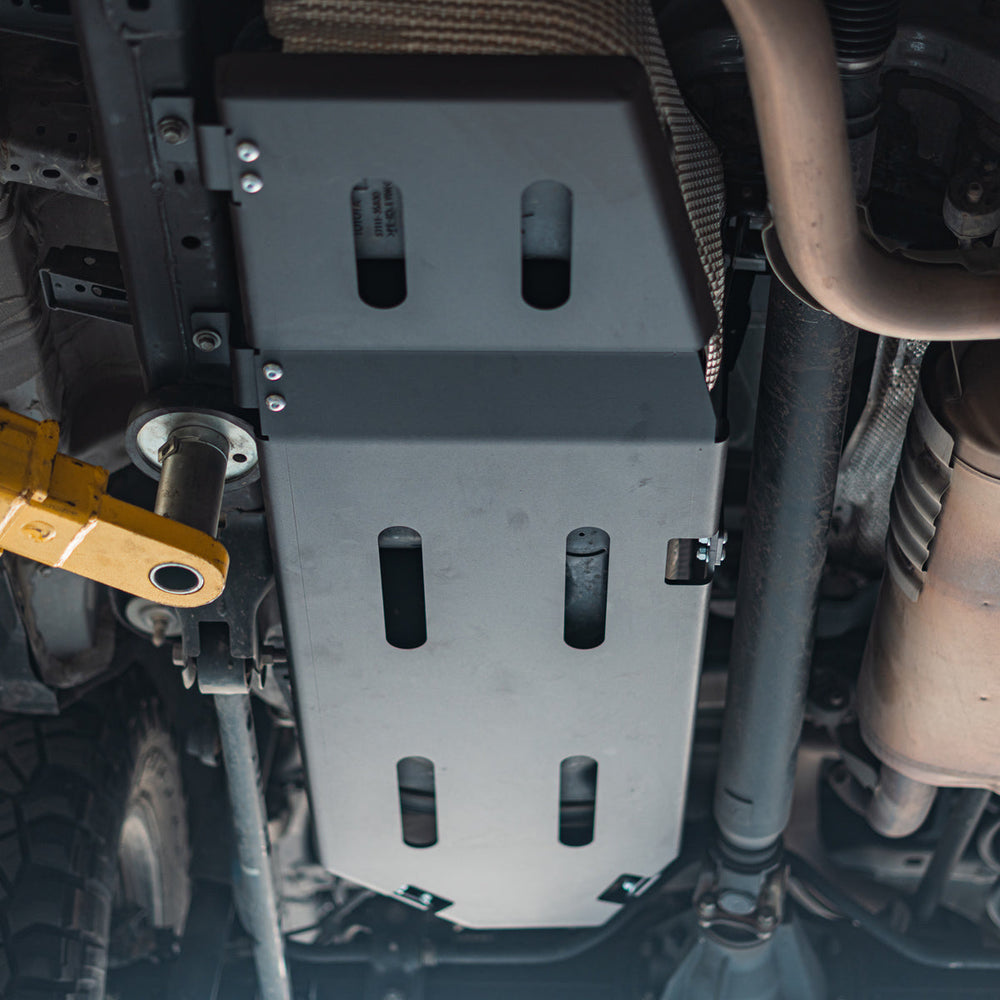

Cali Raised LED Fuel Tank Skid Plate
Cali Raised LED Fuel Tank Skid Plate
The 6th gen 4Runner is a properly capable truck, but its fuel tank still sits under the body where a rock can reach it. Drop off a ledge or drag through a rutted wash and that is a part you do not want to find out about the hard way.
This 2025 4Runner skid plate covers it. Cali Raised LED build it specifically for the 2025+ 6th gen 4Runner 4WD, in steel or aluminum, with a semi-gloss black powder coat. It is 100% bolt-on using factory mounting points and your factory hardware, with no drilling, no modification and, unlike the 5th gen version, no replacement fuel tank straps to buy first.
4WD Only
This plate fits the 2025+ 6th gen 4Runner in 4WD form only. It will not fit a 2WD truck.
Driving a 2010-2024 5th gen? You need the 5th gen 4Runner fuel tank skid plate instead. Not sure? Call us at 844-200-3979.
✓ No Extra Hardware, No New Straps
On the 5th gen 4Runner, the Cali Raised fuel tank skid needs TRD Off-Road fuel tank straps before it will mount. The 6th gen plate does not. Cali Raised confirm that replacement fuel tank straps are not required and no additional hardware is needed. It mounts with your factory hardware at the factory locations.
Why the Fuel Tank Needs a Skid Plate
A fuel tank is one of the largest exposed surfaces under any truck, and it is the one with the worst consequences if it goes. A gouged or punctured tank means a leak, a stranded truck and an expensive repair, usually miles from anywhere useful.
A fuel tank skid plate does not hold the tank up. Its job is to put a sheet of metal between the tank and anything sharp, and to spread an impact across the face of the plate rather than letting it land on one point of the tank.
Ledge Drops
Come off a ledge and the underside can land on rock. The plate takes that contact instead of the tank.
Ruts and Washes
Dropping in and climbing out, the underside drags as the truck pivots over the edge. Anything low takes the scrape.
Road Debris
Gravel, rocks and debris thrown up on dirt roads chip away at whatever is exposed underneath, trip after trip.
Steel or Aluminum?
You choose the material for your 6th gen 4Runner skid plate at checkout. Cali Raised's own summary is simple: steel gives maximum impact resistance, and aluminum cuts weight while still providing strong underbody protection.
| Steel | Aluminum | |
|---|---|---|
| Published weight | 37.9 lbs | 16 lbs |
| Impact resistance | Maximum, resists denting | Strong, lighter on the truck |
| Sliding on rock | Slides well and shrugs off scraping | Softer surface, more prone to grabbing on sharp rock |
| Best for | Rocky trails and regular hard use | Weight-conscious overland builds |
On published weights, the aluminum 2025 4Runner skid plate saves 21.9 lbs over steel. That adds up quickly once you start armouring the rest of the truck, and on a 6th gen carrying a rooftop tent, a fridge and recovery gear, every pound of payload counts.
Cali Raised do not list the plate thickness for this 6th gen version. If that matters for your build, ask us and we will confirm it before you order.
5th Gen or 6th Gen: Which Plate Do You Need?
Cali Raised make a 4Runner fuel tank skid plate for both generations, and they are not interchangeable.
| 6th Gen (this plate) | 5th Gen | |
|---|---|---|
| Model years | 2025+ | 2010-2024 |
| Drive | 4WD only | Not stated in Cali Raised's listing |
| Fuel tank straps | Not required, factory setup works | TRD Off-Road straps required |
| Hardware | Factory hardware only | Factory hardware plus Grade 8 |
| Weight | Published: 37.9 lbs steel, 16 lbs aluminum | Not published |
How It Is Built
- Material: Steel or aluminum, chosen at checkout
- Finish: Durable semi-gloss black powder coat for long-term corrosion resistance
- Fabrication: Made in-house in Fort Worth, Texas, by Cali Raised's own welders
- Fit: Custom-made for the 2025+ 6th gen 4Runner 4WD, one of the first 6th gen 4Runner accessories worth fitting before the trail
Powder coat on a skid plate is a wear item, and we would rather say so. The plate is there to get dragged over things, and the high spots on a hard-working plate will show bare metal eventually. That is the plate doing its job. A touch-up with black chassis paint once a season keeps the steel version free of rust.
Installation
Fitting this 2025 4Runner skid plate is 100% bolt-on, using the factory mounting points and your factory hardware. There is no drilling, no modification and nothing extra to buy.
- Support the truck properly. Use stands or ramps, not just a jack, because you will be working underneath with a plate overhead.
- Keep the factory bolts together. You are reusing them to mount the plate, so do not mix them up with anything else.
- Two pairs of hands help with steel. At 37.9 lbs, holding the plate in place while you start the bolts alone is awkward.
- Start every bolt before tightening any. It lets the plate find its alignment on all the mounting points.
- Re-check after your first trip. Standard practice for anything that takes impacts.
Specifications
| Fitment | 2025+ Toyota 4Runner, 6th generation |
| Drive | 4WD only |
| Protects | Fuel tank |
| Material options | Steel or aluminum |
| Weight (steel) | 37.9 lbs |
| Weight (aluminum) | 16 lbs |
| Plate thickness | Not published by manufacturer |
| Finish | Semi-gloss black powder coat |
| Hardware | None needed, uses factory hardware |
| Fuel tank straps | Replacement straps not required |
| Installation | 100% bolt-on, factory locations, no drilling or modification |
| Fabricated in | Fort Worth, Texas |
Pros
- Protects the fuel tank, the part with the worst consequences if it is damaged
- No replacement straps or extra hardware, just your factory bolts
- Aluminum version is 16 lbs, saving 21.9 lbs over steel
- Bolt-on at factory locations, so it is fully reversible
Cons
- 4WD only, so 2WD 6th gen trucks are out
- Plate thickness is not published
Frequently Asked Questions
Will this fit a 2WD 2025 4Runner?
No. This fuel tank skid plate is built for 4WD 2025+ 6th gen 4Runners only. It will not fit a 2WD truck.
Do I need new fuel tank straps or extra hardware?
No. Cali Raised confirm that replacement fuel tank straps are not required on the 6th gen, and no extra hardware is needed. It mounts with your factory hardware. That is a change from the 5th gen plate, which needs TRD Off-Road straps.
Should I choose steel or aluminum?
Steel for maximum impact resistance if your 4Runner sees rocky trails regularly. Aluminum if weight matters, because at 16 lbs against 37.9 lbs it saves 21.9 lbs while still giving strong underbody protection.
Is this 6th gen 4Runner skid plate bolt-on?
Yes. It is 100% bolt-on using the existing factory mounting points, with no drilling or modification. You can return the truck to stock at any time.
Will it fit my 2010-2024 4Runner?
No. This plate is made for the 2025+ 6th gen only. For a 5th gen truck, choose the 2010-2024 4Runner fuel tank skid plate.
Complete Your Build
Steel or Aluminum?
Tell us how you use your truck and we will help you choose the right 6th gen 4Runner skid plate material, then confirm fitment before it ships.
844-200-3979
