Cali Raised LED 32" Lo Pro Grille LED Light Bar Kit for 2025+ Toyota 4Runner
Cali Raised LED 32" Lo Pro Grille LED Light Bar Kit for 2025+ Toyota 4Runner
SKU: CR4340
Cali Raised LED 32" Lo Pro Grille LED Light Bar Kit for 2025+ Toyota 4Runner
SKU: CR4340
$327.24$384.99
A Light Bar That Blends Into the New 4Runner
Cali Raised LED 32" Lo Pro grille LED light bar kit for the 2025+ Toyota 4Runner.
Before You Order
Limited with chrome bumper? This kit will not fit. Cali Raised found extra tabs on that bumper, and the bar interferes with the grille shutter.
Switch sold separately. You get the bar and the harness in the box, but you will need to add a switch and wire it in.
Trim question? Ring 844-200-3979 or send your VIN and we will check it for you.
The 6th gen 4Runner has a clean, modern front end, and plenty of owners do not want to bolt a big bar across it. But you still want proper light when the trail goes dark. The answer is a bar that sits in the bumper rather than on it.

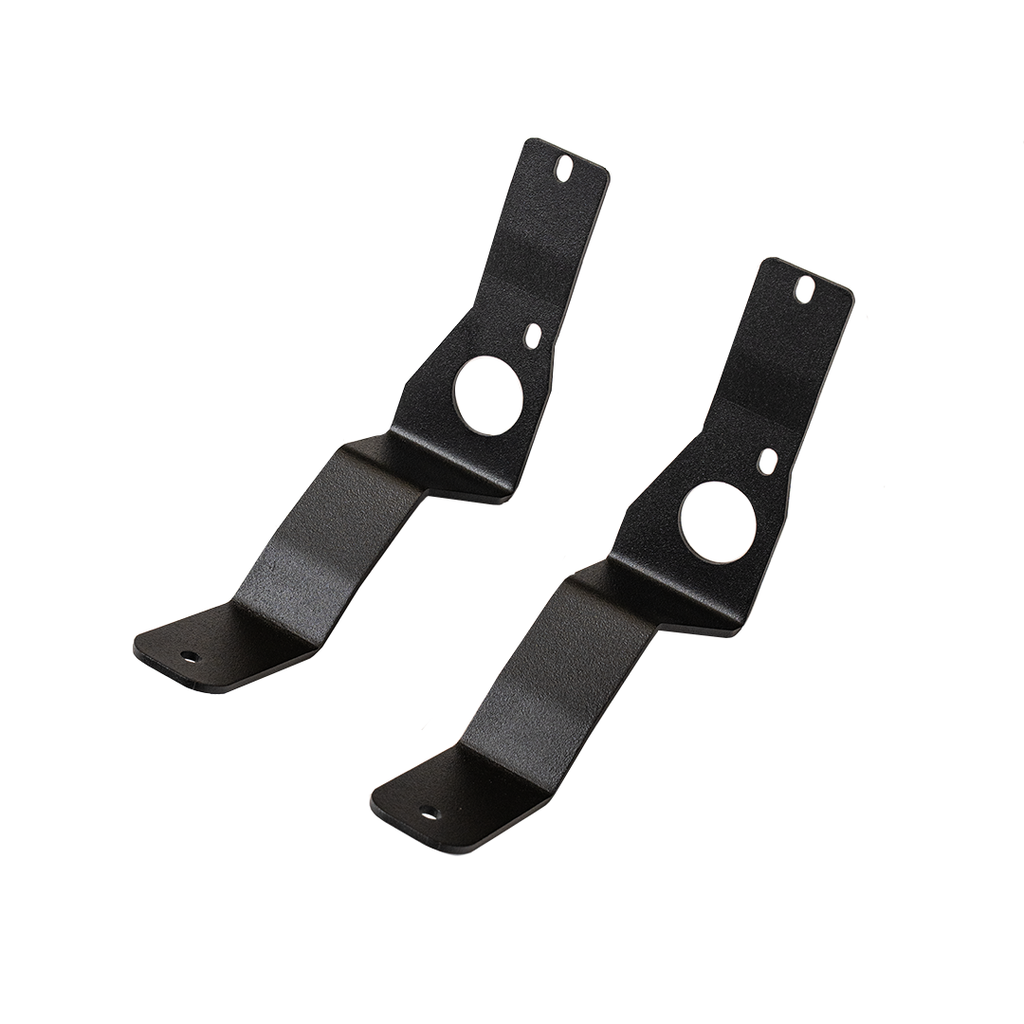

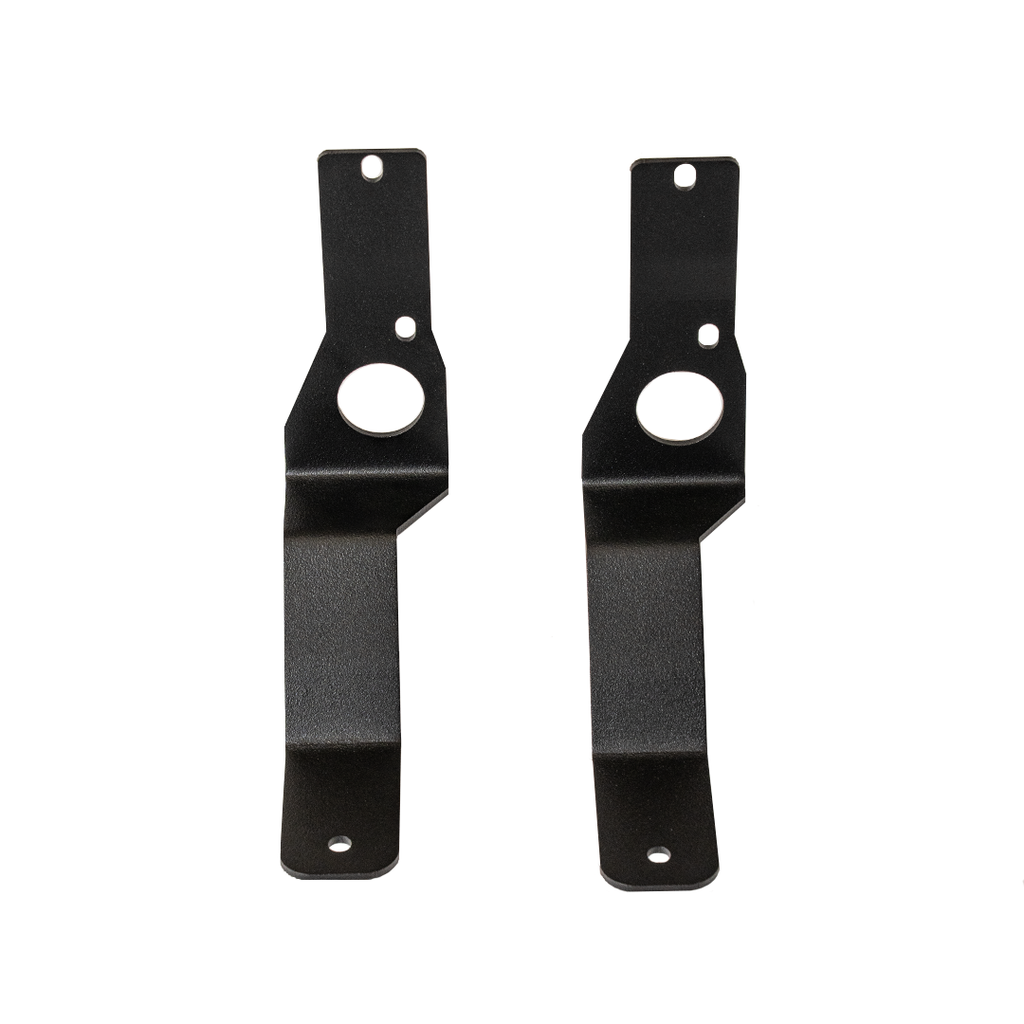

This 2025 4Runner light bar kit from Cali Raised LED does exactly that. Custom laser-cut brackets hold a 32" Lo Pro LED light bar flush to the bumper, with the whole light face exposed. The kit comes with the bar, the wiring harness and the installation hardware, and it installs with no modifications. Cali Raised make the brackets at their own shop in Fort Worth, Texas, then finish them in a black semi-gloss mini texture powder coat that keeps rust away.
Why a 4Runner Bumper Light Bar?
Keeps the Look
Sitting flush in the bumper, the bar works with the 6th gen's front end instead of covering it.
Nothing Lost
The brackets leave the entire light face exposed, so you get the bar's full output on the trail.
Light Where You Need It
Mounted low, it floods the track just ahead of your tires, ideal for slow, technical sections.
If you want a 4Runner hidden light bar that keeps the factory look, this is one of the cleanest ways to do it. Already running a roof bar? This one covers the near ground that a high-mounted bar tends to skip over.
✓ Running the Cali Raised Stealth Bumper?
The Cali Raised 2025+ 4Runner Stealth Front Bumper has its own 32" light bar cutout. This kit is for the 4Runner's own bumper. If you are not sure which suits your build, call us.
Choosing a Switch
No switch comes in the box, which lets you control the bar however you like. If you want it to look like it left the factory that way, Cali Raised make two Toyota-style square switches that you can add:
- A switch labelled "BUMPER LIGHT BAR", which suits this kit best
- A switch labelled "LED LIGHT BAR"
Either one has to be wired to the harness. We can add it to your order and talk you through the connections.
Plan the Wiring
Run the bar on the included harness rather than tapping an existing circuit, and keep the wiring clear of hot and moving parts. It is an off-road light, so switch it off when other vehicles are around, and look up your state's road-use rules.
Installation
The kit installs with no modifications, using the included hardware.
- Confirm your trim. No Limited with the chrome bumper.
- Disconnect the battery before any wiring.
- Keep clips and fasteners together as you remove trim for access.
- Check the bar sits flush in the brackets before the final tightening.
- Route and secure the harness with ties, away from heat and moving parts.
- Test the bar before you put the trim back.
Want to talk the install through first? Call us and we will walk you through it.
Specifications
| Fitment | 2025+ Toyota 4Runner, 6th gen |
| Not compatible | Limited trims with a chrome bumper |

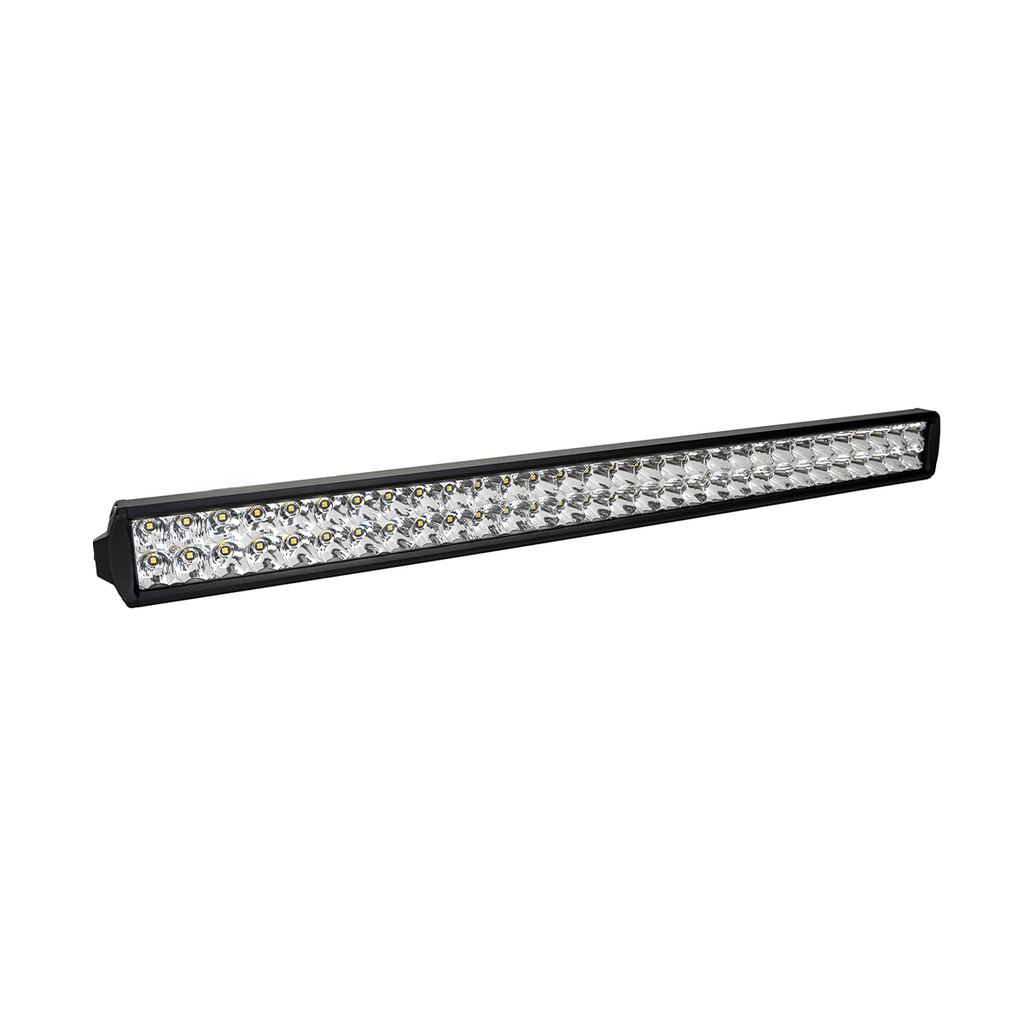

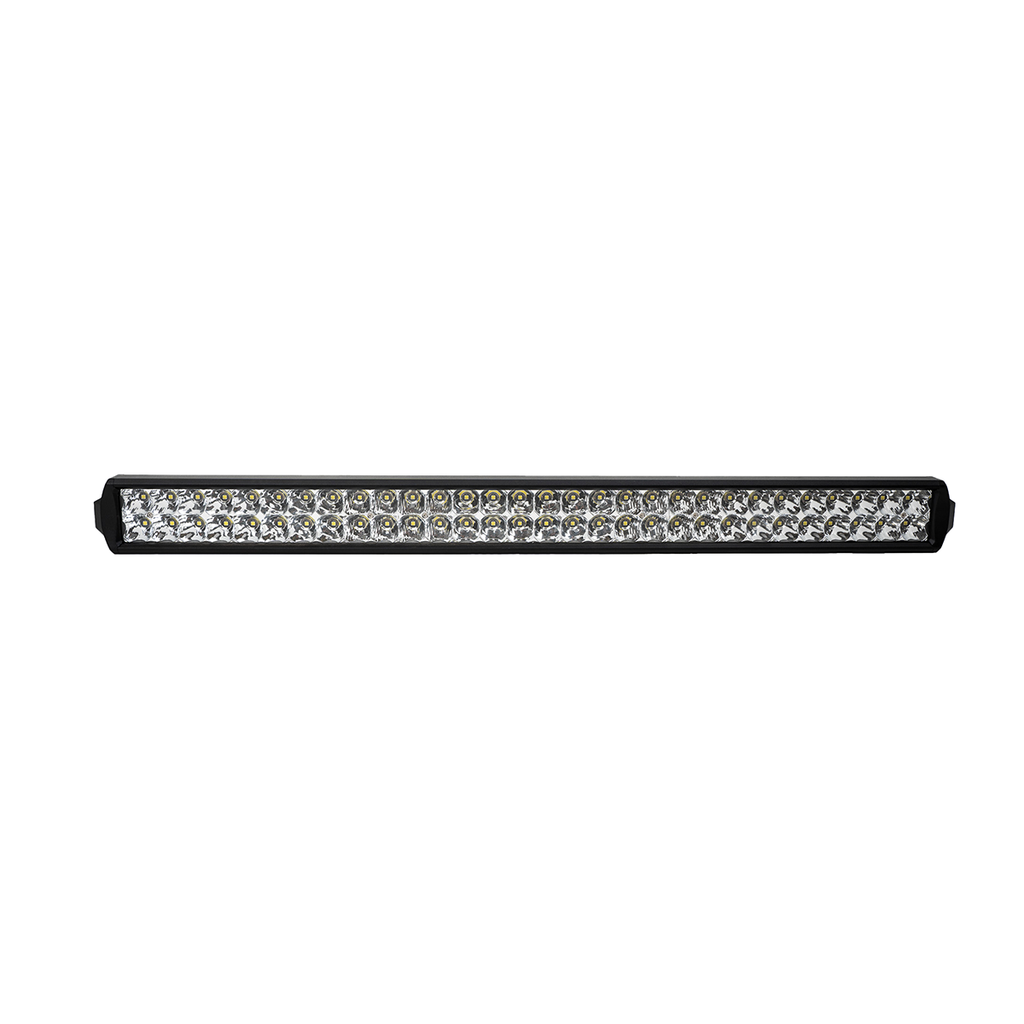

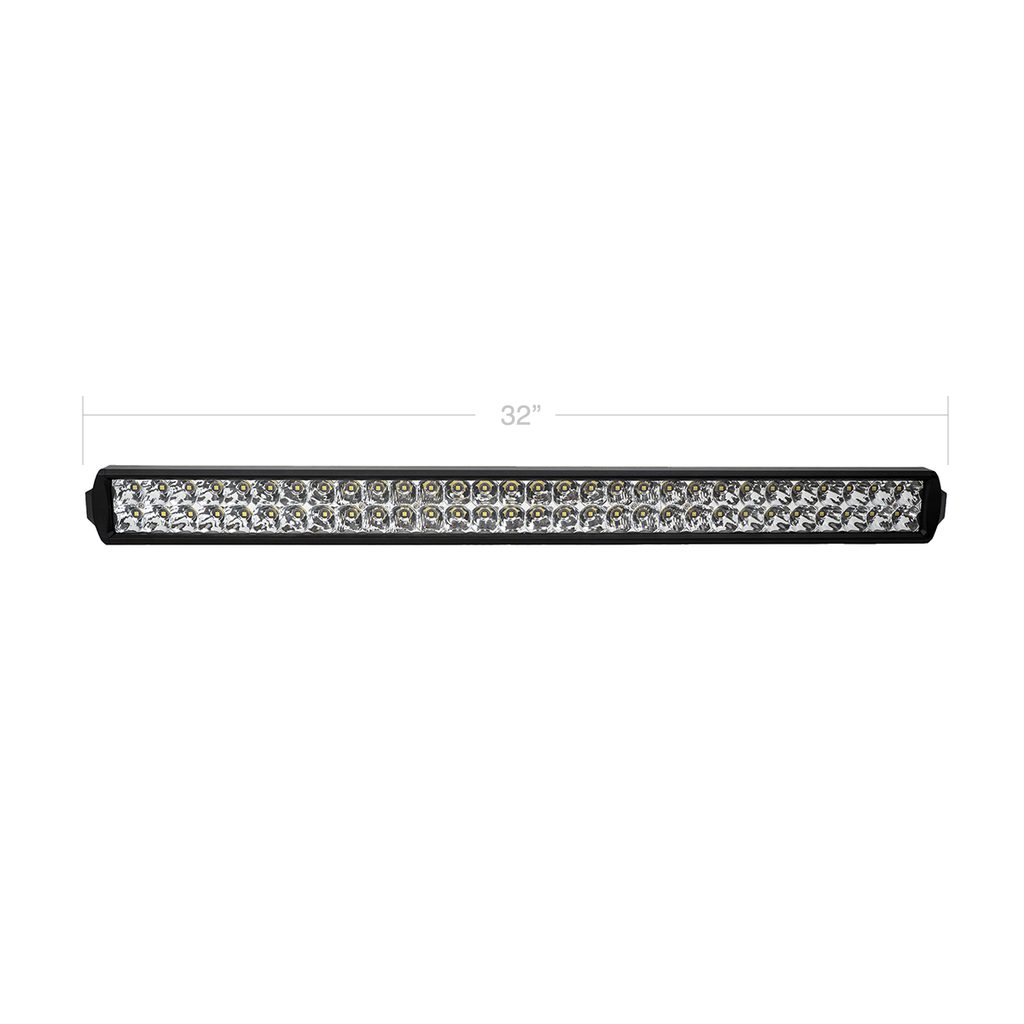

| Light bar | 32" Lo Pro LED light bar, included |
| Mounting | Sits flush in the bumper with the light face fully exposed |
| Brackets | Laser cut, made for the 6th gen |
| Finish | Black semi-gloss mini texture powder coat |
| Wiring harness | Included |
| Switch | Sold separately |
| Installation | No modifications needed |
| Hardware | Included |
| Brackets made in | Fort Worth, Texas |
What's Included
- Custom mounting brackets for the 2025+ 4Runner
- 32" Lo Pro LED light bar
- Wiring harness
- Installation hardware
Pros
- Flush bumper mount keeps the 6th gen's clean front end
- Bar, harness and hardware all in the kit
- Whole light face exposed for full output
- No modifications, with brackets made in Texas
Cons
- Does not fit Limited trims with a chrome bumper
- Switch sold separately
Frequently Asked Questions
Which trucks does this 6th gen 4Runner light bar kit suit?
Cali Raised built it for the 2025+ Toyota 4Runner. The one exception is the Limited with a chrome bumper, which it does not fit.
Is the light bar included?
Yes. The kit includes the 32" Lo Pro LED light bar, the wiring harness and the brackets, plus installation hardware.
Is a switch included?
No. The switch is sold separately and needs electrical connections. Most owners add the square "BUMPER LIGHT BAR" switch.
Do I need to drill or modify anything?
No. It is designed to install with no modifications, and the installation hardware is included.
Does it work with the Cali Raised Stealth Bumper?
This kit is for the 4Runner's own bumper. The Cali Raised Stealth Bumper has its own 32" light bar cutout, so it does not need this kit.
Complete Your Build
Kit and Switch Together?
Tell us your 4Runner's trim and we will confirm fit and add the right OEM-style switch to your order.
