Cali Raised LED Cat Shield and Transmission Skid Plate for 2025+ Toyota 4Runner
Cali Raised LED Cat Shield and Transmission Skid Plate for 2025+ Toyota 4Runner
Pick the Right Plate When You Order
Hybrid or non-hybrid. There are two versions, and the hybrid plate is 7 inches longer. Select the one that matches your 4Runner's powertrain at checkout.
4WD only. This plate does not fit 2WD trucks.
Not sure which powertrain you have? Send us your VIN or call 844-200-3979 and we will confirm before it ships.
The 6th gen 4Runner has two things hanging underneath that you really do not want damaged: the transmission and the catalytic converters. One gets hit by rocks on the trail. The other gets cut off by thieves in car parks. This plate deals with both.

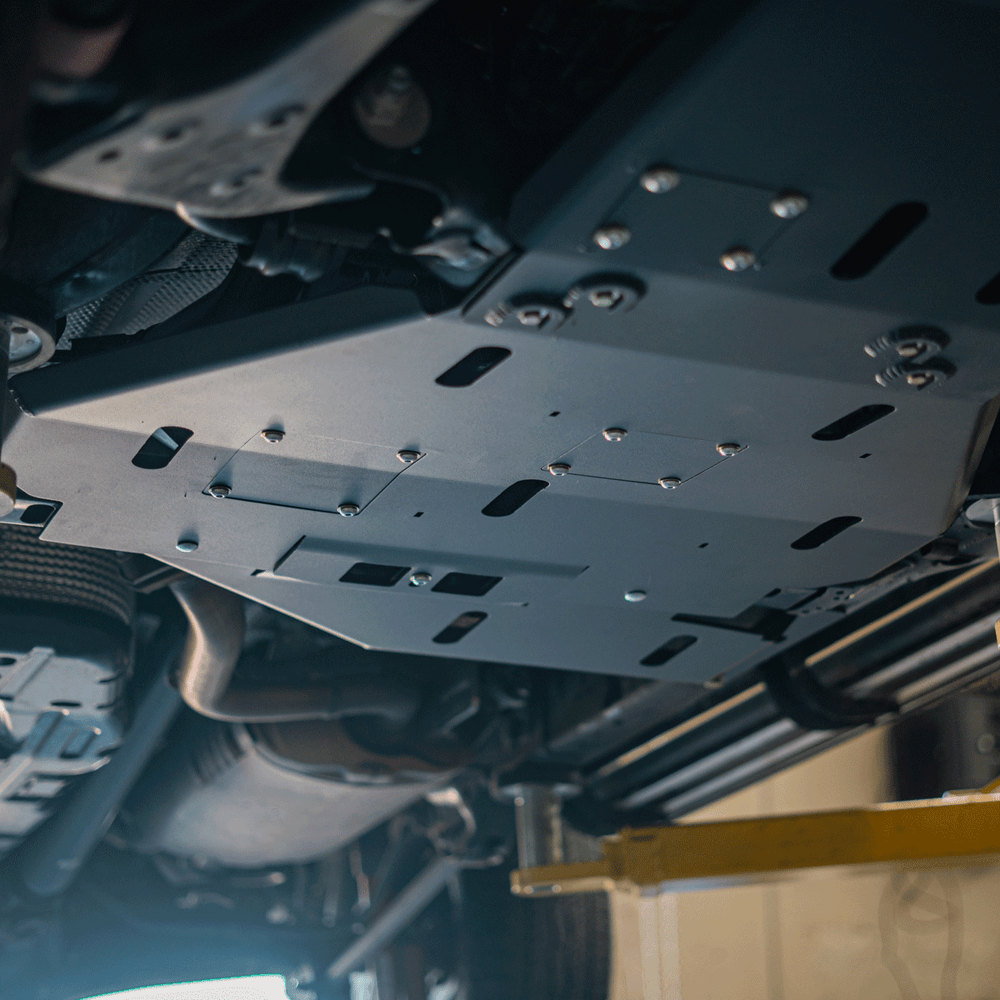

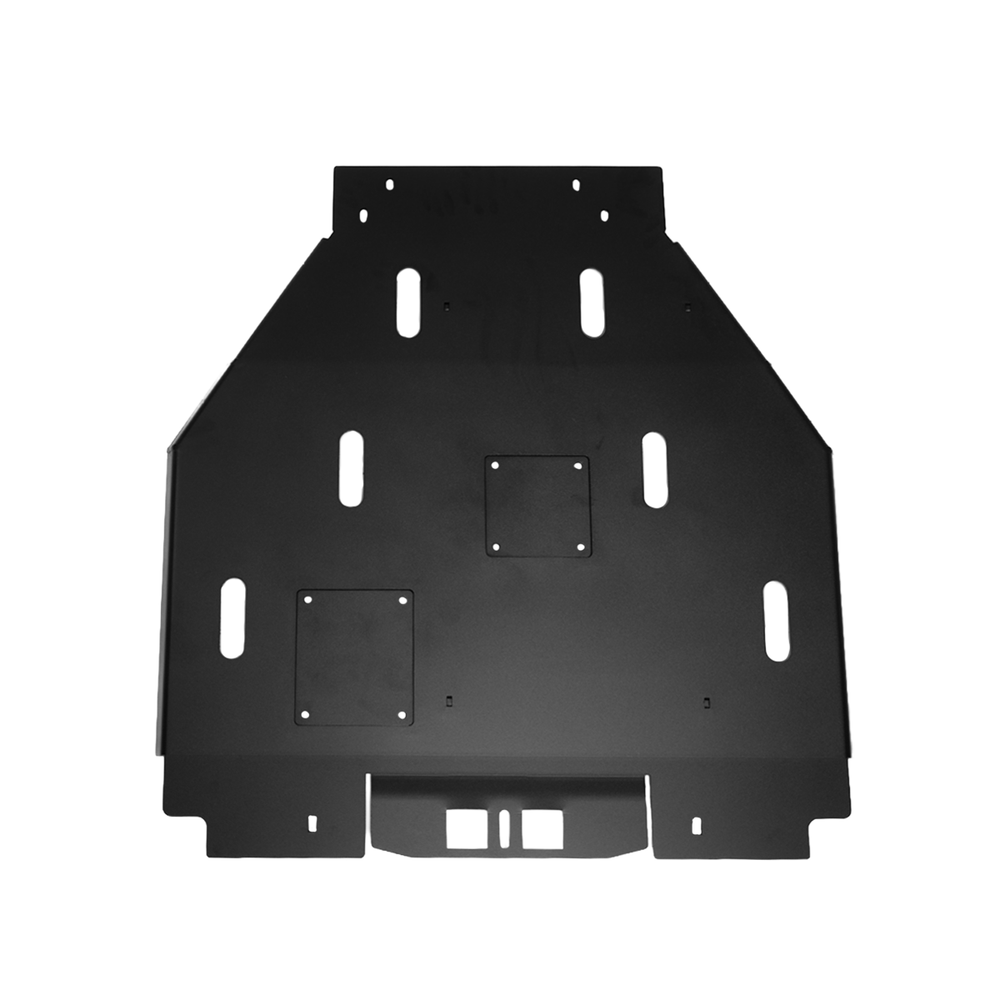

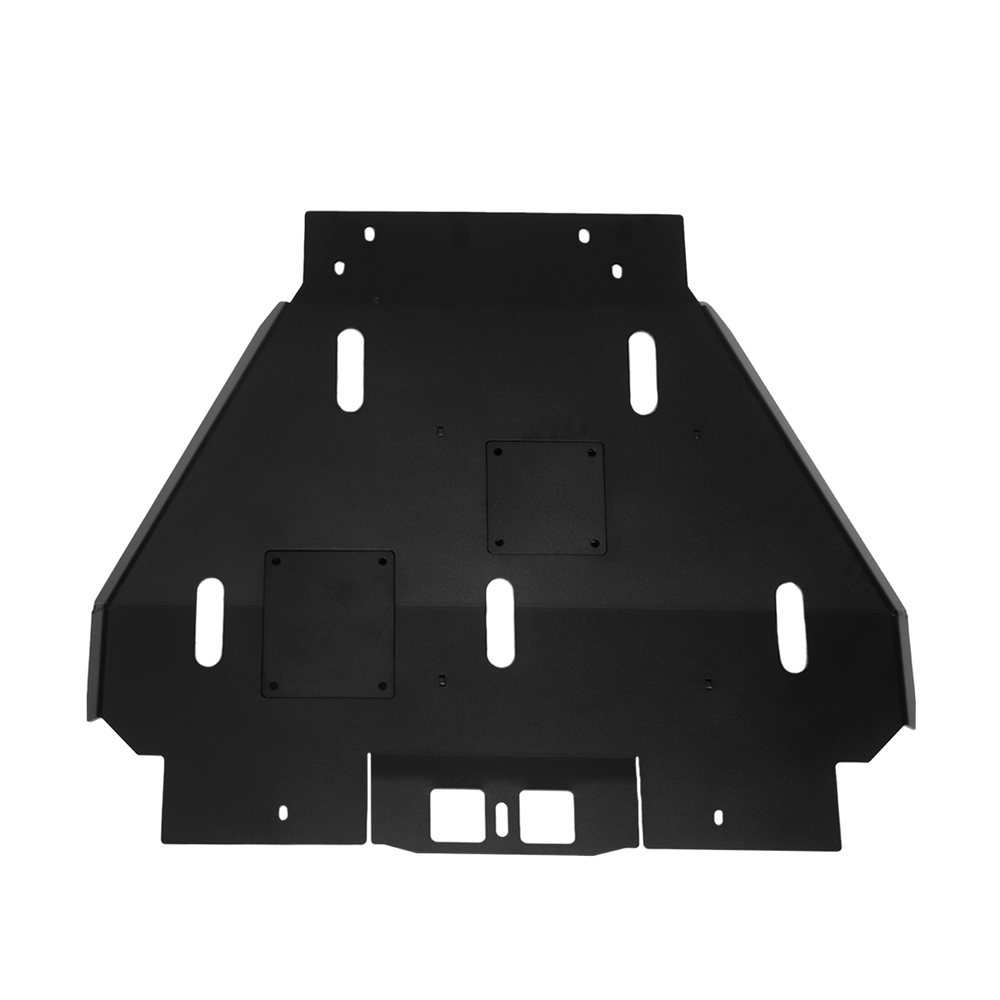

Cali Raised LED's 2025 4Runner catalytic converter shield and transmission skid plate covers the transmission and puts a physical barrier around the catalytic converter area. It comes in 3/16" steel or 1/4" 5052 aircraft-grade aluminum, laser-cut and CNC-formed, finished in semi-gloss black powder coat, and bolts to factory mounting points with no drilling or welding. It works with the OEM TRD skid plate, with Cali Raised's other skids, and with most aftermarket lifts.
A 4Runner Catalytic Converter Shield and Skid Plate in One
Most people buy these as two separate parts. On the 2025+ 4Runner, Cali Raised combine them into a single plate.
Trail Protection
Covers the transmission and nearby underbody components from rocks, ruts and debris when you straddle obstacles.
Theft Deterrence
Puts a physical barrier around the catalytic converter area, so a quick cut-and-run theft takes longer and makes more noise.
Fits the System
Designed to work alongside other Cali Raised skid plates and the OEM TRD skid plate.
What a 4Runner Cat Shield Can and Cannot Do
We would rather be honest. No shield makes a catalytic converter impossible to steal. What a plate does is turn a fast theft into a slow, noisy one, and most thieves move on to an easier vehicle. One thing worth knowing: the kit uses standard hardware, and its parts list does not include tamper-resistant security bolts. The protection comes from the steel or aluminum plate itself, not from locking hardware.
Hybrid or Non-Hybrid?
The 2025+ 4Runner comes with a standard powertrain or Toyota's hybrid, and the underside is different enough that Cali Raised make two versions. The hybrid plate is 7 inches longer. Hardware and installation steps are the same for both.
| Your 4Runner | Steel | Aluminum |
|---|---|---|
| Hybrid | CR4325 | CR4327 |
| Non-hybrid | CR4329 | CR4331 |
Steel or Aluminum?
| 3/16" Steel | 1/4" 5052 Aluminum | |
|---|---|---|
| Strength | Maximum strength for heavy trail use and hard hits | Durable protection in a thicker, lighter plate |
| Weight | Heavier | Reduced weight |
| Sliding on rock | Slides well and shrugs off scraping | Softer surface, more prone to grabbing on sharp rock |
| Best for | Rocky trails and regular hard use | Weight-conscious overland builds |
Cali Raised do not publish weights for this plate. If the exact figure matters for your build, ask us and we will find out before you order.
What It Works With
| Setup | Compatible? | Notes |
|---|---|---|
| OEM TRD skid plate | Yes | Works with the factory TRD skid |
| Cali Raised front skid | Yes | The plate overlaps and sits on top of it |
| No front skid | Yes | A front skid is not required |
| Aftermarket lifts | Most | Check fit on custom or extreme setups |
| 2WD | No | 4WD only |
Installation
Cali Raised estimate 45 to 90 minutes for this 2025 4Runner skid plate. It bolts to factory mounting points with no drilling or welding, and two carriage bolts through the crossmember secure the back end.
Tools You Supply
- Ratcheting wrench
- 12 mm and 13 mm sockets
- 7/32 Allen key
- 9/16 box-end wrench
The Short Version
- Let the exhaust cool completely and support the truck on jack stands on level ground.
- Remove any plastic underbody guard if your 4Runner has one.
- Find the overlap edge. The plate overlaps and sits on top of the front skid, whether that is Cali Raised's or the stock one.
- Fit the two carriage bolts through the crossmember holes, then lift the plate into place with a helper.
- Start every bolt by hand before tightening any, then fit both access doors with four bolts each.
- Tighten until the plate is solid, without over-tightening. If hardware will not seat properly, stop and ask rather than forcing it.
📄 Installation Instructions
Download Cali Raised's full step-by-step guide for part numbers CR4325, CR4327, CR4329 and CR4331.
What's Included
| Item | Quantity |
|---|---|
| Skid plate with two access doors (four bolts each) | 1 |
| M8 x 35 mm bolts | 4 |
| 5/16 washers | 4 |
| 3/8 button-head bolts | 8 |
| 3/8 x 1-1/2 in button-head bolt | 1 |
| 3/8 washers | 11 |
| 3/8 lock nuts | 2 |
| 3/8 snap nut | 1 |
| 3/8 snap-in nut plate | 1 |
| 1/2 in washer plates | 2 |
| 3/8 carriage bolts | 2 |
Specifications
| Fitment | 2025+ Toyota 4Runner, 6th gen, 4WD only |
| Protects | Transmission and catalytic converter area |
| Versions | Hybrid (7 inches longer) or non-hybrid |
| Material options | 3/16" steel or 1/4" 5052 aircraft-grade aluminum |
| Manufacturing | Laser-cut and CNC-formed |
| Finish | Semi-gloss black powder coat |
| Access doors | 2, each held by four bolts |
| OEM TRD skid plate | Compatible |
| Front skid required | No |
| Installation | Bolt-on at factory mounting points, no drilling or welding |
| Install time | 45 to 90 minutes |
| Part numbers | CR4325, CR4327 (hybrid); CR4329, CR4331 (non-hybrid) |
| Weight | Not published by manufacturer |
Pros
- Transmission skid and catalytic converter shield in one plate
- Works with the OEM TRD skid plate, and no front skid is required
- Hybrid and non-hybrid versions, in steel or aluminum
- Bolt-on at factory points in 45 to 90 minutes
Cons
- No tamper-resistant security bolts in the kit
- 4WD only, and weights are not published
Frequently Asked Questions
Is this a 4Runner catalytic converter shield or a skid plate?
Both. It is a transmission skid plate and a catalytic converter shield in one, protecting against trail impacts and adding a physical barrier that helps deter theft.
Do I need the hybrid or non-hybrid version?
Choose the one that matches your 4Runner's powertrain. The hybrid plate is 7 inches longer. Send us your VIN if you are not sure.
Will it work with my factory TRD skid plate?
Yes. Cali Raised confirm it is compatible with the OEM TRD skid plate. It also overlaps and sits on top of a front skid, whether that is Cali Raised's or the stock one.
Do I need a front skid plate?
No. A front skid is not required. If you do run one, this plate overlaps it and sits on top.
Does installation require drilling?
No. It bolts to factory mounting points with no drilling or welding. Cali Raised estimate 45 to 90 minutes with basic hand tools.
