Cali Raised LED Complete Skid Plate Collection for 2025+ Toyota 4Runner

SKU: CR4416

Cali Raised LED Complete Skid Plate Collection for 2025+ Toyota 4Runner

SKU: CR4416

$1,270.74$1,494.99

HYBRID

NON-HYBRID

Do you have a HYBRID or NON-HYBRID?

Steel

Aluminum

Material

$1,270.74$1,494.99

Call Our Experts: (844) 200-3979

Easy Financing

60 Days Returns!

Safe & Secure Checkout

Call Our Experts: (844) 200-3979

Easy Financing

60 Days Returns!

Safe & Secure Checkout

Most people armour a 4Runner one plate at a time, and most of them end up wishing they had done the whole underside at once. This is the complete set for the 2025+ 6th gen: front skid, cat shield and transmission skid, transfer case skid, fuel tank skid and both lower control arm skids. Five Cali Raised LED skid plates, one order, one afternoon under the truck.

Choose 3/16" steel or 1/4" 5052 aircraft-grade aluminum for the main plates, and pick hybrid or non-hybrid to match your powertrain. Every plate bolts on with factory and Grade 8 hardware and no drilling, and Cali Raised say each plate is cut to index against the next, so there are no coverage gaps along the belly. It is the most complete set of 2025 4Runner skid plates they make, fabricated in-house in Fort Worth, Texas.

5 Skid Plates

86.6 lbs Aluminum Kit, Approx.

2-3 hrs Full Install

Bolt-On Grade 8 Hardware

Two Choices to Get Right at Checkout

Hybrid or non-hybrid. The two 2025+ 4Runner powertrains have different underbody layouts, so the plates are configured to match. Pick the one that matches your truck.

4WD only. The kit is designed for 4WD 2025+ 4Runners.

Not sure which powertrain you have? Send us your VIN or call 844-200-3979.

Five 6th Gen 4Runner Skid Plates, Full Belly Coverage

Each plate covers a specific part of the 6th gen's underside. Together they run from the front of the truck back to the fuel tank.

Plate	What It Protects

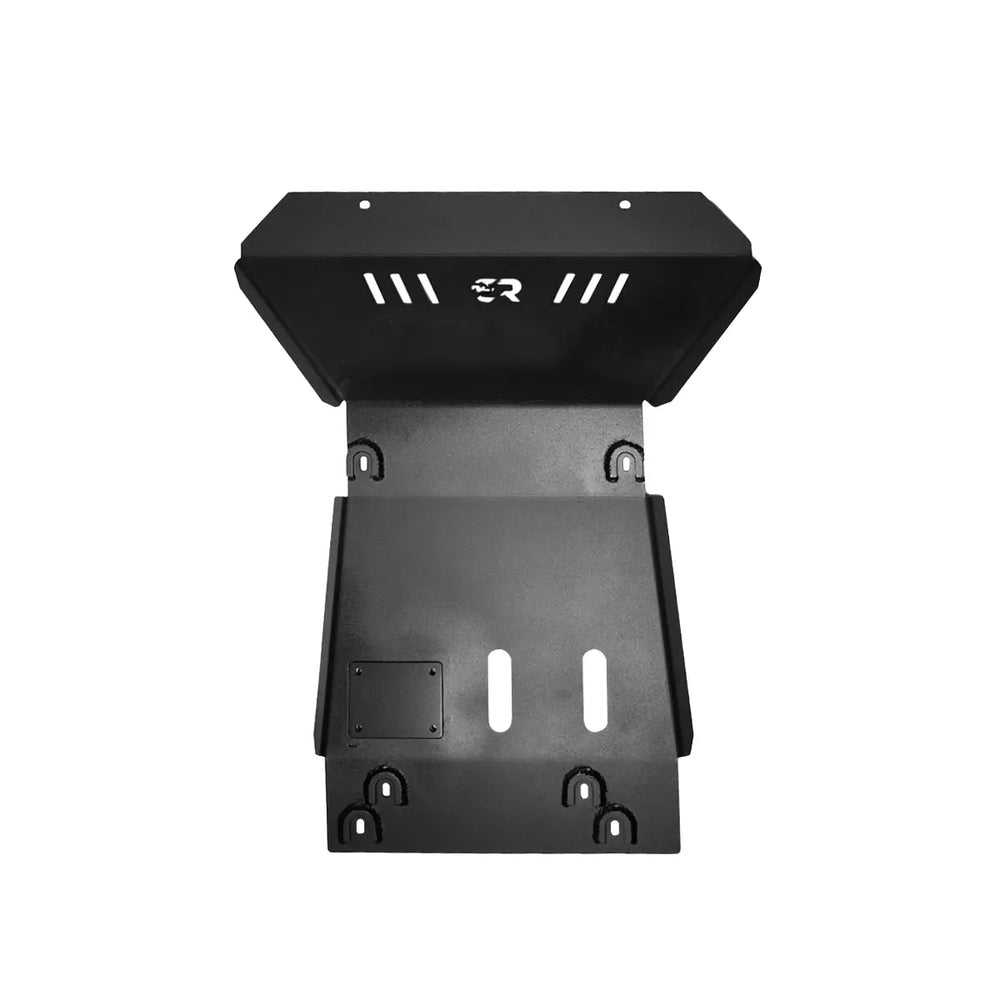

Front skid plate	Oil pan, front crossmember and frame rails, with oil change access ports

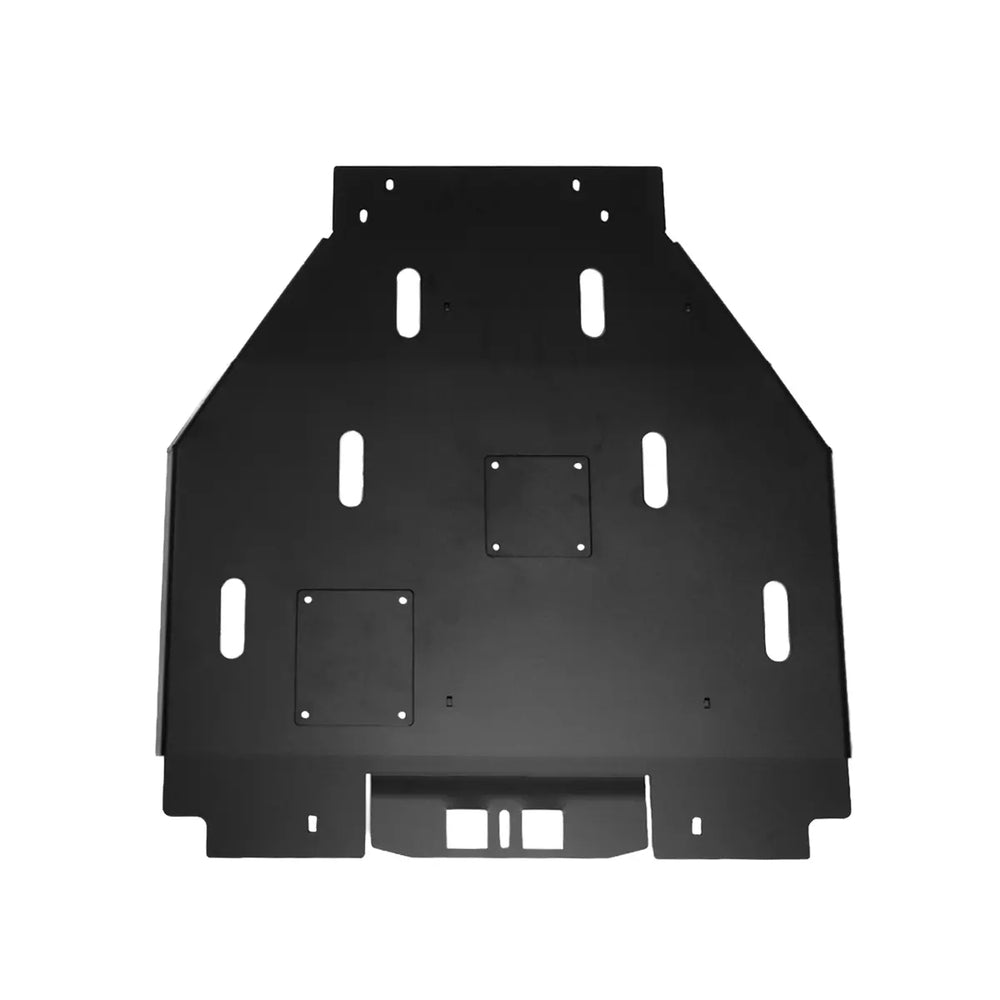

Cat shield and transmission skid	Transmission and the catalytic converter area

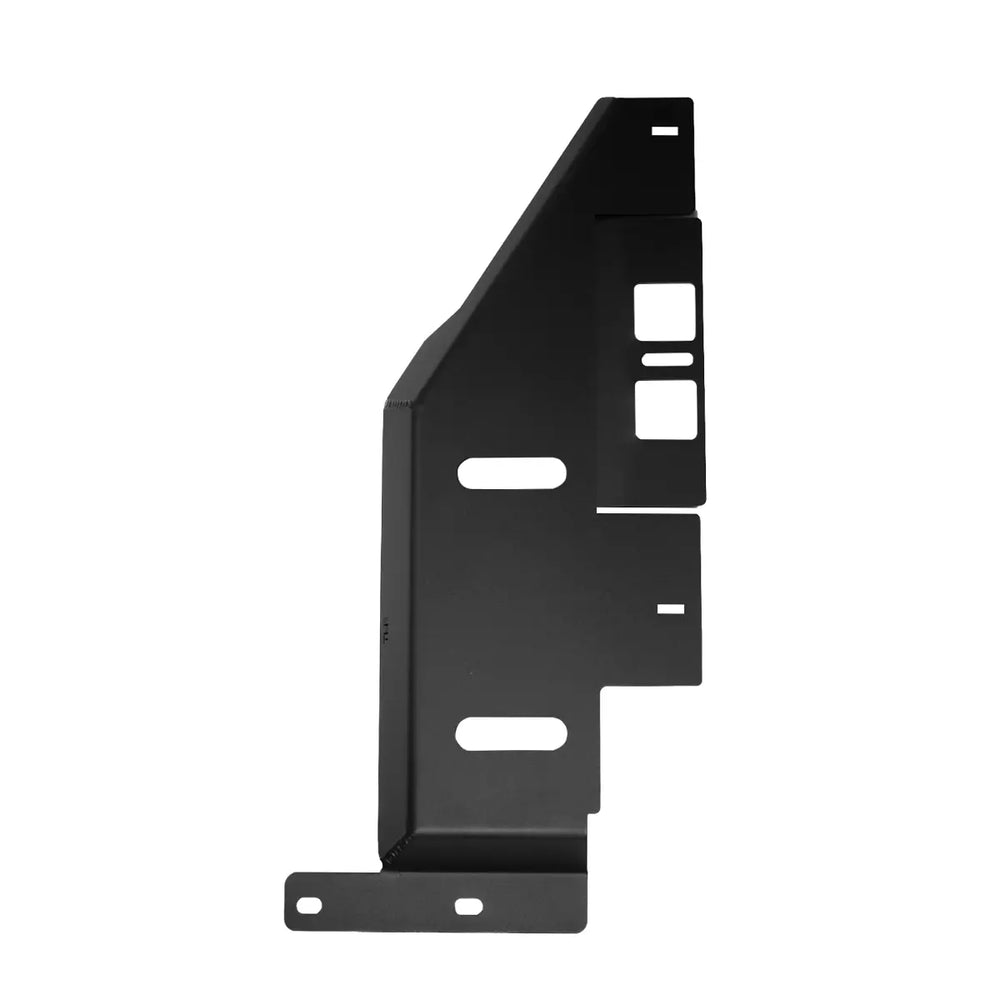

Transfer case skid	Transfer case, hanging low in the middle of the truck

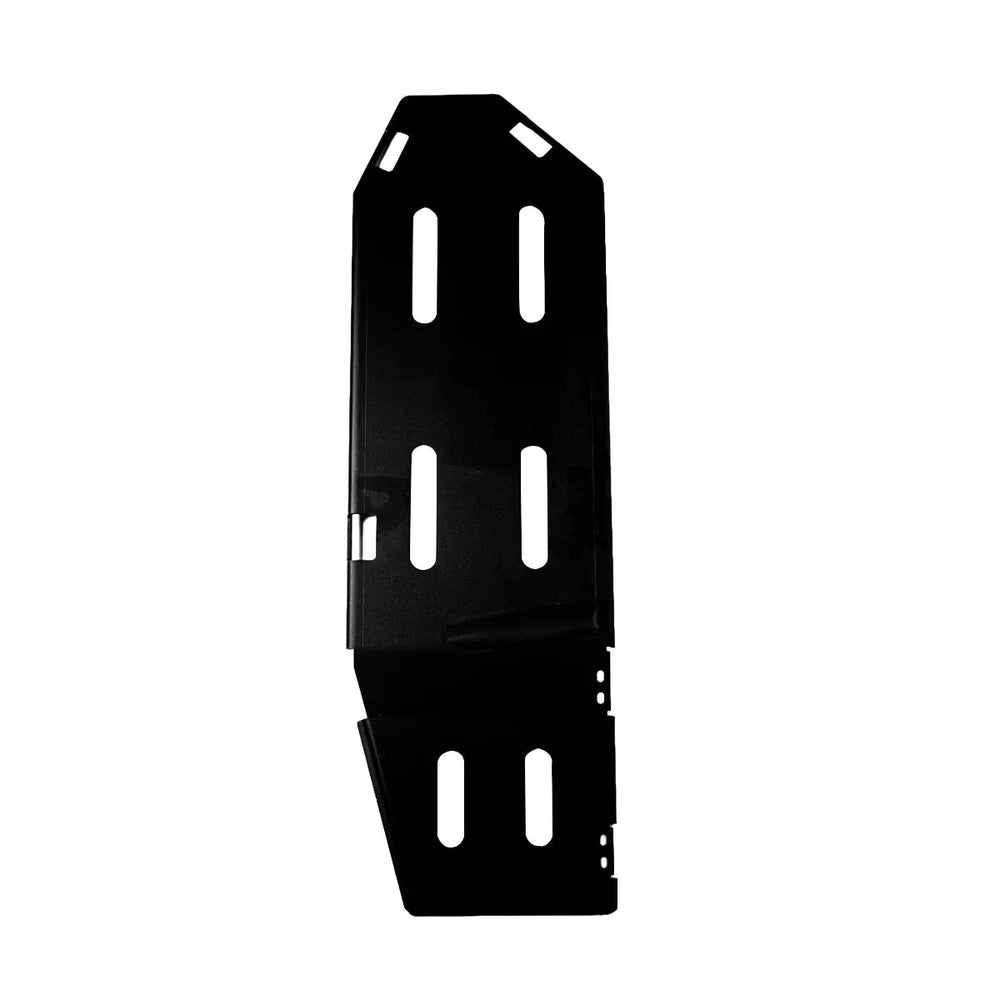

Fuel tank skid	Fuel tank

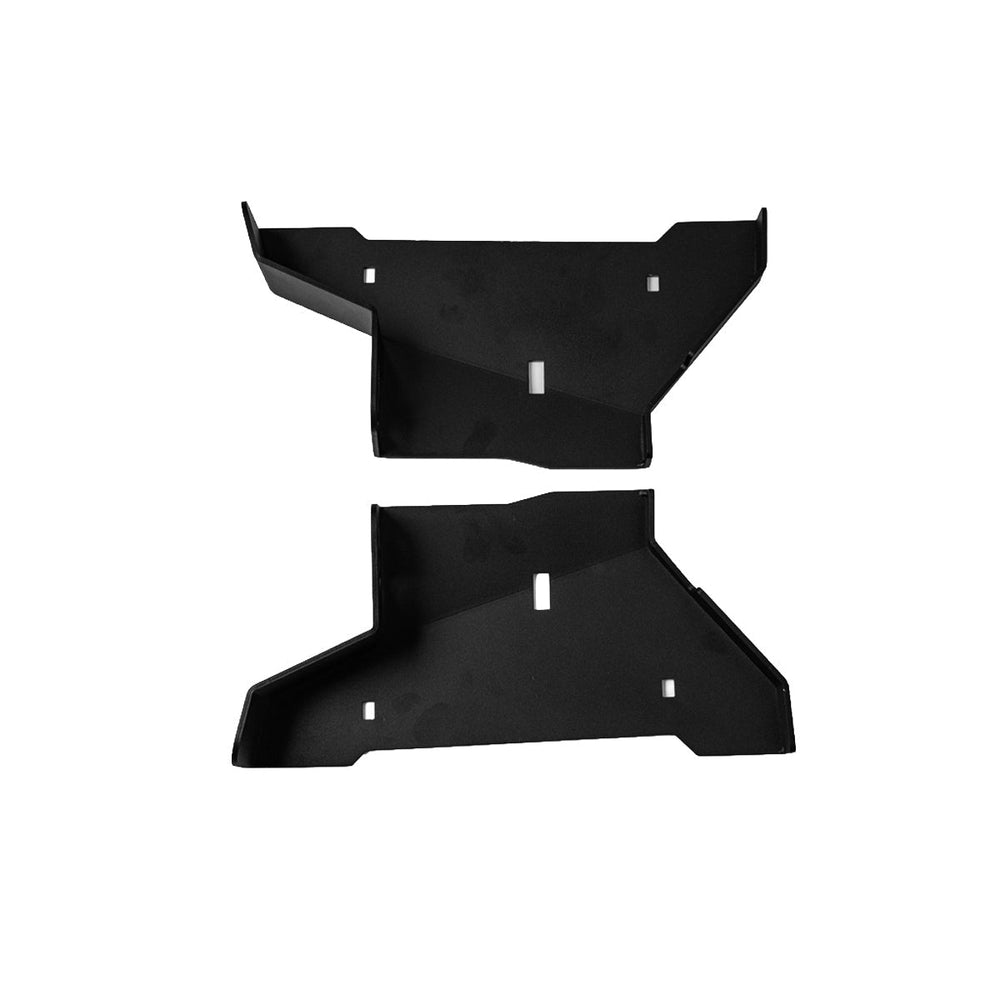

Lower control arm skids	Both lower control arms, left and right

✓ The Same Plates, Bundled

These are the same plates Cali Raised sell individually, packaged as one set. Prefer to build up over time? Every plate in the kit is also available on its own. Want the whole underside done at once? This is the way to do it.

Steel or Aluminum? Here Are the Numbers

The material you choose for this 2025 4Runner skid plate kit applies to the front, cat shield and transmission, transfer case and fuel tank plates. The lower control arm skids are always coated steel, in both kits, because Cali Raised only make that plate in steel.

Plate	3/16" Steel	1/4" 5052 Aluminum	Saved
Front skid	49.2 lb	20.5 lb	28.7 lb
Cat shield and transmission	31.1 lb	14.6 lb	16.5 lb
Transfer case	35 lb	20.5 lb	14.5 lb
Fuel tank	37.9 lb	16 lb	21.9 lb
Lower control arms (pair)	15 lb	15 lb (steel)	None
Full kit	About 168.2 lb	About 86.6 lb	About 81.6 lb

Weights are Cali Raised's approximate figures for each 2025 4Runner skid plate. An 80 lb difference is significant on a 6th gen that is also carrying a roof rack, a rooftop tent, recovery gear and passengers, and most of it sits at the front of the truck.

Choose Steel If

Your 4Runner regularly slides over rock. 3/16" steel takes the hardest hits and shrugs off scraping.

Choose Aluminum If

You are building a loaded overland rig and want strong protection while saving around 80 lb.

Either Way

Every plate ships in a durable semi-gloss black powder coat for corrosion resistance.

Installation

The full set of 4Runner skid plates is 100% bolt-on using factory and Grade 8 hardware, with no drilling, cutting or fabrication. Cali Raised rate it moderate and estimate 2 to 3 hours, depending on your tools and experience. A full Grade 8 hardware kit is included, and installation instructions are available as an online video.

Get the truck up safely. Lifting the vehicle may be required. Use stands or a lift, never just a jack.
Get a second person. Cali Raised recommend it, because the plates are heavy to hold in position overhead, especially in steel.
Work front to back. Fit the front skid first, since the cat shield and transmission skid overlaps and sits on top of it.
Start every bolt before tightening any on each plate, so each one settles onto its mounting points.
Re-check every plate after your first trail run.

Specifications

Fitment	2025+ Toyota 4Runner, 6th gen, 4WD
Powertrain	Hybrid or non-hybrid, select when ordering
Plates included	Front, cat shield and transmission, transfer case, fuel tank, lower control arms (left and right)
Material	3/16" steel or 1/4" 5052 aircraft-grade aluminum
Lower control arm plates	Coated steel in both kits
Approx. kit weight	About 168.2 lb steel, about 86.6 lb aluminum
Finish	Semi-gloss black powder coat
Hardware	Full Grade 8 kit, plus factory hardware
Installation	100% bolt-on, no drilling or fabrication
Install time	2 to 3 hours, moderate difficulty
Part numbers	CR4416, CR4418, CR4420, CR4422, CR4414 (lower control arms)
Fabricated in	Fort Worth, Texas

What's Included

Front skid plate
Cat shield and transmission skid plate
Transfer case skid plate
Fuel tank skid plate
Lower control arm skid plates, left and right, in coated steel
Full Grade 8 hardware kit with bolts, washers and lock nuts
Access to Cali Raised's online installation video

Pros

Full underbody coverage in one order, with plates that index together
Aluminum kit saves around 80 lb over steel
Hybrid and non-hybrid versions for the 6th gen
Bolt-on with Grade 8 hardware and no drilling

Cons

4WD only
Lower control arm skids stay steel even in the aluminum kit

Frequently Asked Questions

What is included in this 6th gen 4Runner skid plate kit?

All five Cali Raised 2025+ 4Runner skid plates: front, cat shield and transmission, transfer case, fuel tank, and the left and right lower control arm skids, plus a full Grade 8 hardware kit.

If I choose aluminum, is every plate aluminum?

No. The front, cat shield and transmission, transfer case and fuel tank plates are 1/4" 5052 aluminum. The lower control arm skids are coated steel in both kits, because that plate is only made in steel.

Hybrid or non-hybrid: which do I need?

Choose the one that matches your 4Runner's powertrain. The hybrid and non-hybrid trucks have different underbody layouts, so the plates are configured to suit. Send us your VIN if you are unsure.

How long does the full kit take to install?

Plan on 2 to 3 hours at moderate difficulty. You may need to lift the vehicle, and a second person helps, because the plates are heavy to hold in place.

Can I buy each 6th gen 4Runner skid plate individually instead?

Yes. Every plate in the kit is also sold on its own if you would rather build up your protection over time. This is the complete set in one package.

Complete Your Build

6th Gen Stealth Bumper - Steel front end 6th Gen Premium Roof Rack - With light bar deflector 6th Gen Front Skid - Sold individually 6th Gen Cat Shield and Trans Skid - Sold individually Skid Plates - Every fitment we carry Toyota 4Runner - All 4Runner gear

Steel or Aluminum? Hybrid or Not?

Send us your VIN and tell us how you use your 4Runner. It is one of the biggest 2025 4Runner accessories you can fit, so we want it right. We will confirm the right kit before it ships.
