Cali Raised LED 32" Slim Single Row LED Light Bar
Cali Raised LED 32" Slim Single Row LED Light Bar
Factory headlights are built for pavement. Point a truck down an unlit forest road at night and you quickly discover how little of it you can actually see, and how much slower you end up driving than the road requires.
This is the Cali Raised LED 32 inch slim LED light bar: a single row bar putting out 30,000 lumens from 150 watts across 60 LEDs. It is IP68 rated, housed in extruded aluminum behind a polycarbonate lens, with integrated thermal management and a GORE pressure equalizing vent. It arrives as a complete kit with a plug and play wiring harness and switch already attached, plus mounting brackets and hardware. Two-year Cali Raised LED warranty.
What 30,000 Lumens Actually Means
Lumen figures get thrown around carelessly on every LED light bar listing, so here is the useful context: 30,000 lumens from 150 watts across 60 LEDs on a 32 inch bar is a serious amount of light from a unit this slim.
Instant On, No Warmup
Full output the moment you hit the switch. No gradual brightening, which matters when something appears in the road.
50,000+ Hour Lifespan
Run it four hours every night and you are looking at decades. In practice, the bar outlives the truck.
Single Row Profile
A slim single row bar fits where a double row will not, and presents less frontal area to the wind.
IP68, and What That Rating Is Worth
IP68 is the part of the spec sheet that decides whether a light is still working in three years, so it is worth understanding rather than skimming.
The international standard rating means this bar is fit to withstand dust, dirt and sand, and is resistant to submersion up to 1.5 metres for up to thirty minutes. Those are the actual test conditions: 1.5 metres of fresh water, 30 minutes.
In practice that covers everything a vehicle light realistically meets. Pressure washing, river crossings, a week of fine desert dust, salt spray on a winter road. The failure mode for a cheap light bar is almost always moisture finding its way in, condensation forming behind the lens, and the LEDs going one by one.
Why It Keeps Working
Four things in the build do the heavy lifting on durability, and they are not standard across the category.
- Extruded aluminum housing. Stronger than cast, and aluminum doubles as a heatsink, which is what keeps LED output stable over a long run.
- Durable polycarbonate lens. Takes stone chips and trail debris without cracking the way acrylic does.
- Integrated thermal management. LEDs dim and die when they run hot. Managing that heat is the difference between rated output and real-world output after twenty minutes.
- GORE pressure equalizing vent. The clever one. A sealed light heats up, cools down and creates pressure differences that draw moisture past the seals. The GORE vent lets air pressure equalise while blocking water, which is how a sealed unit stays sealed.
This 32 inch light bar also carries over and under voltage protection, so a spike or a sagging battery does not take the bar out with it.
Plug and Play Wiring
Unlike some bars that leave you sourcing a harness and a switch separately, this one arrives ready to wire.
You get a single-leg wiring harness with a standard switch already attached, so there is no splicing a harness together or hunting for a compatible switch. Connect it, mount the switch where you want it, and you are done.
Mounting brackets and hardware are included too. These brackets are universal, not vehicle specific, which means they will mount to a wide range of locations but they are not cut for a particular bumper or rack cut-out. If you want a bar that drops into a specific rack opening, that is a vehicle-specific bracket kit instead. Call us at 844-200-3979 and we will point you at the right one.
Specifications

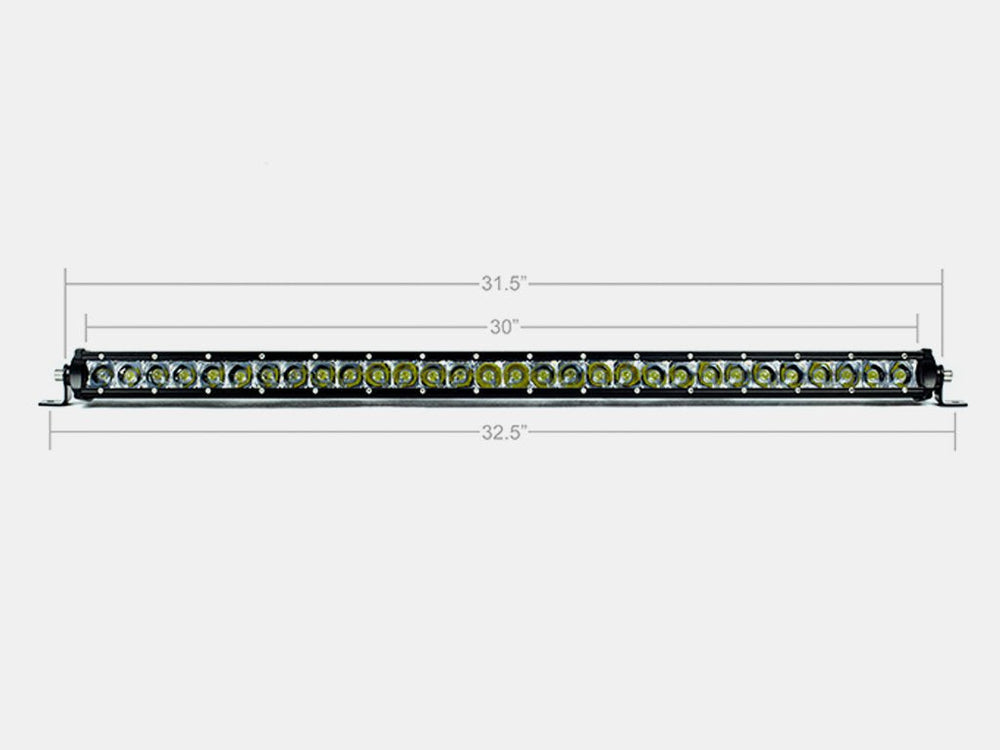

| Length | 32" |
| Configuration | Slim single row |
| Watts | 150 |
| LEDs | 60 |
| Lumens | 30,000 |
| IP Rating | IP68, submersion to 1.5m for 30 minutes |
| LED Lifespan | 50,000+ hours |
| Startup | Instant on and off, no warmup time |
| Housing | Extruded aluminum |
| Lens | Durable polycarbonate |
| Thermal | Integrated thermal management |
| Venting | GORE pressure equalizing vent |
| Protection | Over and under voltage protection |
| Wiring | Plug and play single-leg harness with standard switch attached |
| Brackets | Universal, not vehicle specific |
| Warranty | 2 years, Cali Raised LED |
What's Included
Pros
- A single row LED light bar putting out 30,000 lumens from 150 watts across 60 LEDs
- IP68 sealed, rated to 1.5m submersion for 30 minutes
- GORE vent keeps moisture out while equalising pressure
- Extruded aluminum housing doubling as a heatsink
- Polycarbonate lens that takes stone chips
- Over and under voltage protection built in
- Harness and switch included and plug and play
- Instant on with no warmup, 50,000+ hour lifespan
- Two-year Cali Raised LED warranty
Cons
- Brackets are universal, so not cut for a specific rack opening or bumper
- 150 watts is a real draw, so factor it into your electrical setup
- Single colour, with no amber option on this bar
- At 32 inches, check your mounting location before ordering
Frequently Asked Questions
Will the brackets fit my vehicle?
The included brackets are universal, not vehicle specific. They mount to a wide range of locations but are not cut for a particular bumper or roof rack cut-out. If you want a bar that drops flush into a specific rack opening, a vehicle-specific or rack-specific bracket kit is the better route. Call us at 844-200-3979 with your setup and we will point you at the right option.
What does IP68 actually protect against?
Dust, dirt and sand completely, plus submersion in up to 1.5 metres of fresh water for up to 30 minutes, which are the actual test conditions behind the rating. In practice that covers pressure washing, river crossings, desert dust and winter salt spray. Moisture ingress is how most light bars die, so this is the spec worth paying attention to.
Do I need a separate switch or harness?
No. The bar ships with a plug and play single-leg wiring harness and a standard switch already attached, plus mounting brackets and hardware. There is no sourcing a compatible harness or hunting for a switch. If you would rather run it off a vehicle-specific OEM switch, that is a separate part and the wiring changes, so call us at 844-200-3979 first.
What is the GORE vent for?
It solves the problem that kills sealed lights. A light bar heats up when running and cools when it stops, and that cycle creates pressure differences that pull moisture past the seals. The GORE pressure equalizing vent lets air pressure equalise while blocking water, so the unit stays sealed instead of slowly drawing condensation inside.
How much power does it draw?
150 watts, which is roughly 12.5 amps on a 12 volt system. That is a real load, so it belongs on a proper relay and fused circuit rather than tapped into something convenient, and the supplied harness handles that. If you are already running a winch, a fridge and other accessories, it is worth checking your total draw.
