Cali Raised LED 32" Lower Bumper Flush Light Bar Kit for 2016-2023 Toyota Tacoma
Cali Raised LED 32" Lower Bumper Flush Light Bar Kit for 2016-2023 Toyota Tacoma
Two Things to Know About Flush Mounting
- Flush mounting requires some modification to the grille face. That is what lets the bar sit flush with nothing in front of it. If you want a no-modification install, the hidden mount version is the one.
- Single row only on a 2016 and newer Tacoma. A dual row bar will not work in the flush position on this generation.
Call us at 844-200-3979 and we will talk through hidden versus flush before you commit.

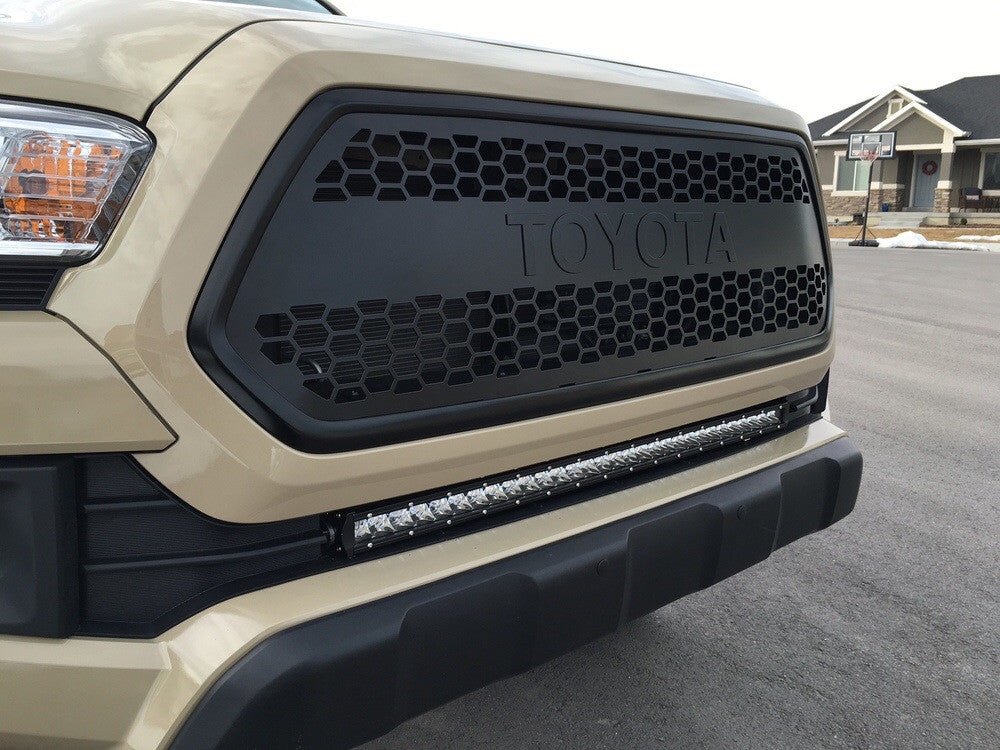

There are two ways to fit a Tacoma bumper light bar in the lower opening, and they look completely different once installed. One hides the bar behind the grille. This one puts it in front, flush with the opening, where it is meant to be seen.
This Cali Raised LED kit is the flush version: custom-designed, laser-cut brackets fabricated in-house in Fort Worth, Texas, powder-coated in durable black semi-gloss mini texture. It includes the brackets as a pair, a 32 inch slim single row LED bar in traditional LED or amber, and a wiring harness, with an option to add an OEM switch. All single row bars are combo beam. Works with all Toyota grilles and most aftermarket ones. Two-year Cali Raised LED warranty.
Hidden or Flush? The Real Difference
Cali Raised makes both, and choosing between them is the actual decision with any Tacoma grille light bar. It is not just a styling preference.
| Flush Mount (this kit) | Hidden Mount | |
|---|---|---|
| Position | Outside the grille, bar exposed | Inside the grille, bar behind it |
| Modification | Some modification to the grille face | No major modification |
| Bar Types (2016+ Tacoma) | Single row only | Slim or dual row |
| Look | Bar visible, deliberate | Discreet, bar tucked behind grille |
Choose flush if you want the bar seen and want nothing between the LEDs and the trail. Nothing in front of the bar means nothing interrupting the beam.
Choose hidden if you want the install reversible and modification-free, or you would rather the bar not announce itself. Cali Raised notes that mounting behind the grille does not affect the performance of the light, so hidden is not a compromise on output.
Worth noting for other vehicles: the 2005-2015 Tacoma and 2003-2009 4Runner flush mounts can only take a dual row bar, the opposite restriction to this generation. Call us at 844-200-3979 if you are shopping for a different truck.
Why the Lower Bumper
Nothing Above the Cab
No wind roar at highway speed, no added height in a garage, no bar in your mirror sightline.
Uses Existing Space
The lower bumper opening is already there. The bar fills it rather than adding something to the silhouette.
Clean From the Front
Flush mounting makes it look factory-intentional rather than bolted on as an afterthought.
The trade against a roof or grille-top position is that a tacoma bumper light bar sits low enough to pick up your own dust on dry trails, and low enough to collect stone chips. The polycarbonate lens on the Cali Raised bar handles the second part.
Traditional LED or Amber
This kit gives you the choice, and at bumper height it matters more than it would up top.
Traditional LED is the brighter option. It throws further and shows colour and detail properly, which is what you want on clear open trail.
Amber cuts through dust, fog and falling snow far better. White light scatters off airborne particles and reflects straight back at you, and a low-mounted bar sits right in the dust cloud your own front tyres kick up. If you spend time in desert dust or drive in fog regularly, amber earns its place at this height more than at any other.
All single row bars in this kit are combo beam: concentrated throw in the centre with spread at the edges, which suits the mixed terrain most people actually drive.
Cut for This Bumper, Made in Texas

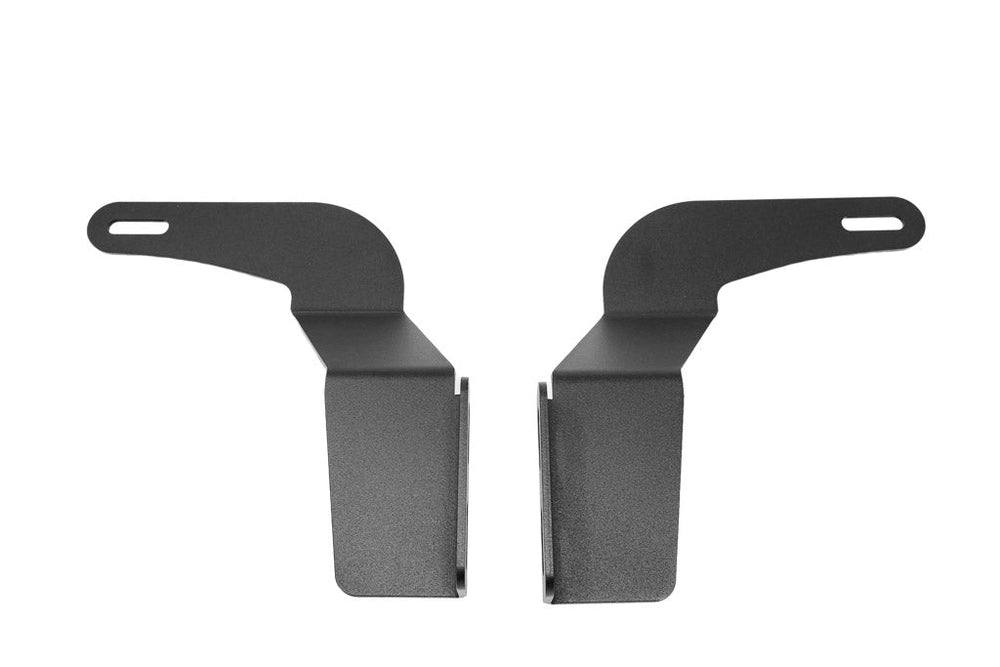

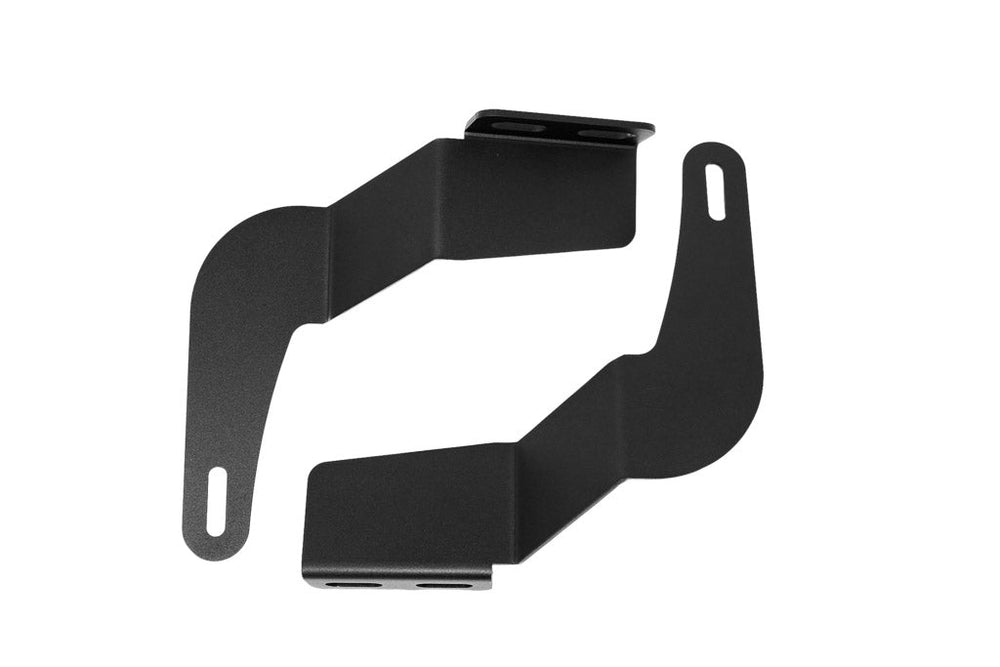

The brackets are custom-designed and laser cut for the 2016-2023 Tacoma, and fabricated in-house in Fort Worth, Texas rather than sourced in. They are powder-coated in durable black semi-gloss mini texture for corrosion resistance, which matters on a part sitting in the lower bumper collecting road spray and salt.
The bar itself uses extruded aluminum housing, a durable polycarbonate lens, and integrated thermal management. At bumper height, the polycarbonate lens is the one that earns its keep, because this is where stone chips land.
Brackets are sold as a pair with hardware included. Works with all Toyota grilles and most aftermarket grilles, though if you are running an aftermarket grille it is worth checking with us first.
Specifications
| Vehicle | 2016-2023 Toyota Tacoma |
| Mount Type | Flush, lower bumper |

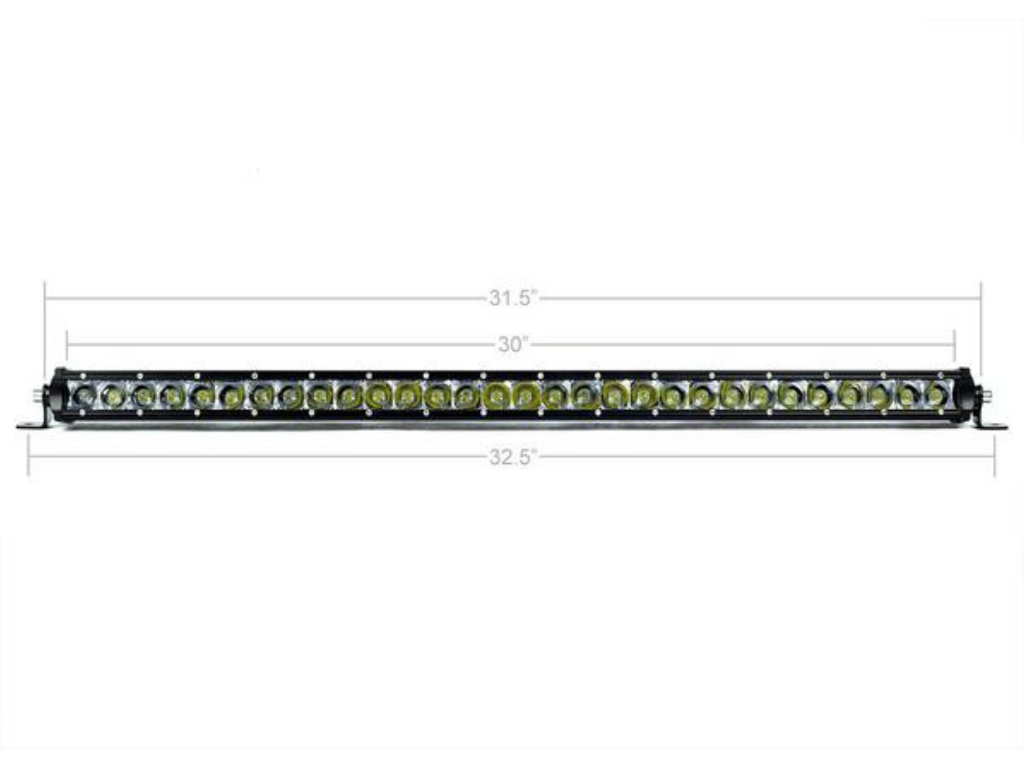

| Bar Included | 32" slim single row LED bar |
| Colour Options | Traditional LED or amber |
| Beam Pattern | Combo beam, all single row bars |
| Bar Types Supported | Single row only on 2016 and newer Tacoma |
| Modification | Some modification to the grille face required |
| Brackets | Laser cut, sold as a pair, fabricated in Fort Worth, Texas |
| Finish | Black semi-gloss mini texture powder coat |
| Bar Construction | Extruded aluminum housing, polycarbonate lens, integrated thermal management |
| Grille Compatibility | All Toyota grilles and most aftermarket grilles |
| Wiring | Harness included when purchased with a light bar |
| OEM Switch | Optional add-on |
| Warranty | 2 years, Cali Raised LED |
What's Included
Pros
- A flush mount light bar sitting level with the bumper opening, nothing in front of the LEDs
- Laser cut for the Tacoma and fabricated in Fort Worth, Texas
- Choice of traditional LED or amber, which matters at bumper height
- Combo beam gives throw in the centre and spread at the edges
- Nothing added above the cab, so no roofline wind noise

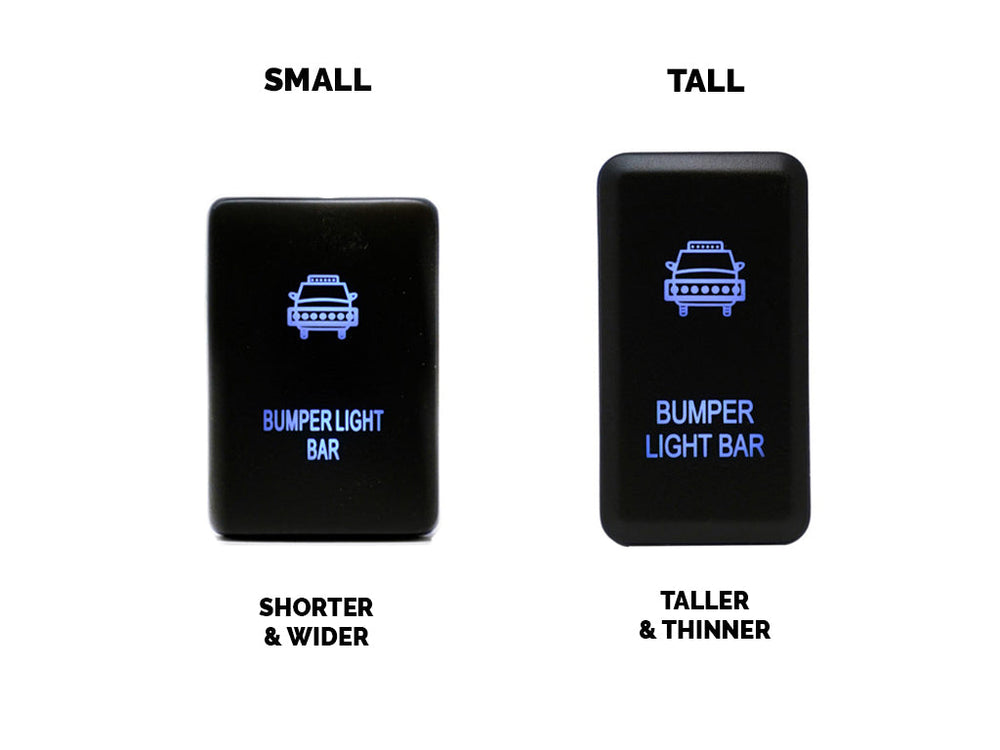

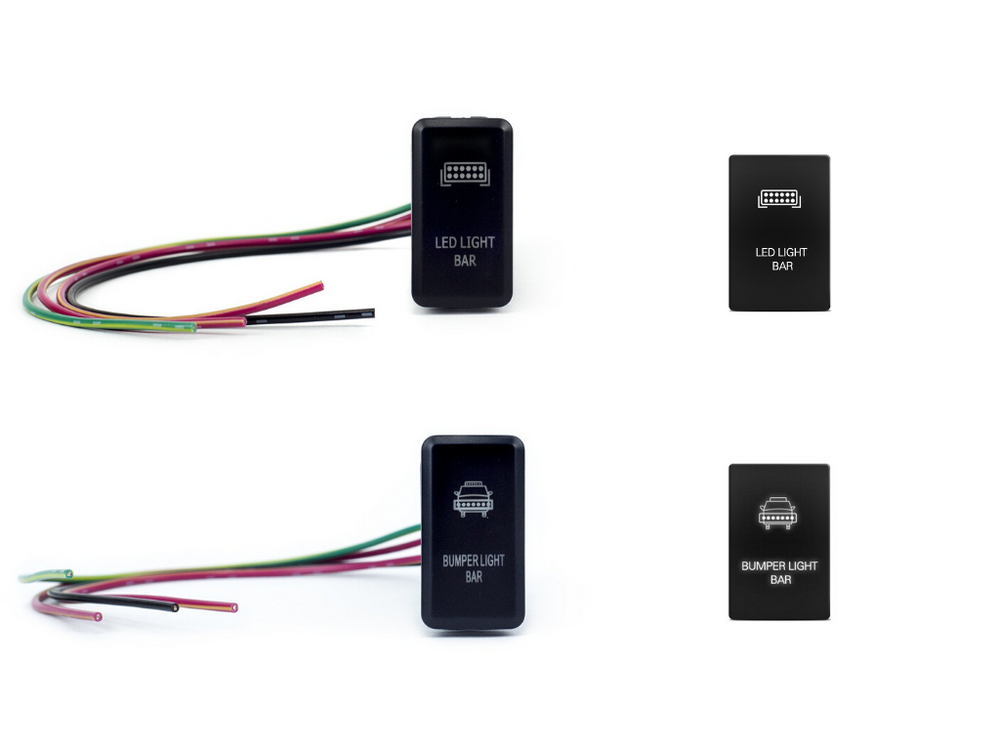

- Wiring harness included, with an optional OEM switch
- Works with all Toyota grilles and most aftermarket ones
- Two-year Cali Raised LED warranty
Cons
- Flush mounting requires modification to the grille face
- Single row only on 2016 and newer Tacomas, so no dual row option
- Bumper height picks up your own dust on dry trails
- Aftermarket grilles are worth checking before ordering
Frequently Asked Questions
What is the difference between hidden and flush mounting?
Flush mounts the bar outside the grille, exposed, with nothing in front of the LEDs. It needs some modification to the grille face. Hidden mounts the bar behind the grille with no major modification, and Cali Raised notes this does not affect the performance of the light. Flush is the deliberate look. Hidden is the discreet, modification-free route.
Can I run a dual row bar in this?
Not on a 2016 or newer Tacoma. The flush mount on this generation can only take a single row bar, which is why the kit ships with the 32 inch slim. If you want a dual row in the lower bumper, the hidden mount version takes either. Interestingly the restriction reverses on older trucks: the 2005-2015 Tacoma flush mount can only take a dual row.
What modification is involved?
Modification to the grille face, so the bar can sit flush with the opening rather than behind it. That is inherent to a flush mount: you are making room for the bar in the grille itself. If you would rather not cut anything, the hidden mount version needs no major modification. Call us at 844-200-3979 and we will walk through what is involved.
Should I choose LED or amber?
Traditional LED is brighter and throws further, which suits clear open trail. Amber cuts through dust, fog and snow, because white light scatters off airborne particles and reflects back at you. That matters more at bumper height than anywhere else, since a low bar sits right in the dust your own front tyres kick up. Desert or fog driving, go amber.
Will it work with my aftermarket grille?
It works with all Toyota grilles and most aftermarket grilles, but since flush mounting involves modifying the grille face, an aftermarket grille is worth confirming first. Call us at 844-200-3979 with the grille you are running and we will check it before you order rather than after you have cut anything.
Complete Your Build
Hidden or Flush?
Tell us your year, your grille and whether you mind modifying it. We will steer you to the right mount and the right bar colour.
844-200-3979
