Front Runner Canopy Load Bar Kit - Multiple Sizes

Canopy Load Bar Kit 1165mm, 1255mm, 1345mm, 1425mm, 1475mm & 1575mm W - by Front Runner Outfitters

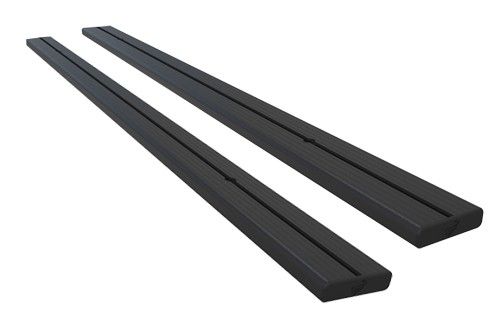

A set of excellent canopy load bars or cross bars with a widths from 1165mm to 1575mm.

Choose between the 5 different options of width of the load bars to fit your canopy and truck.

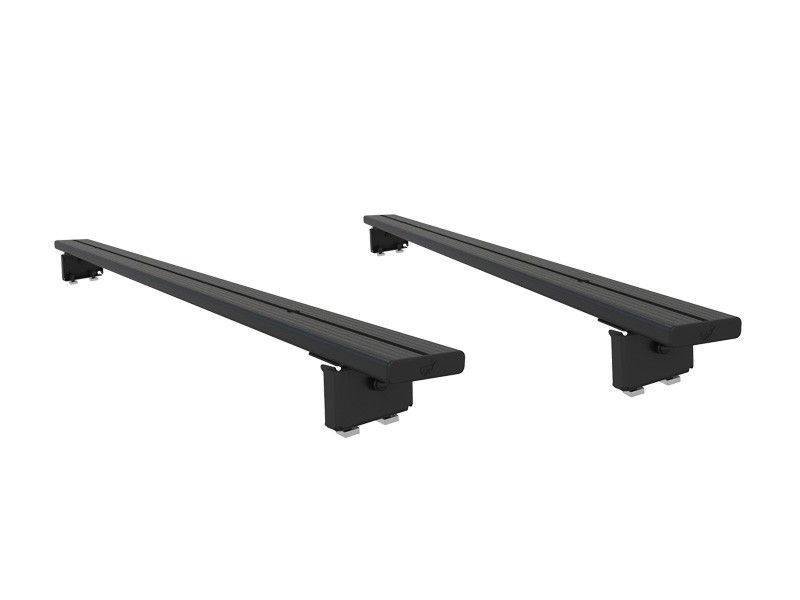

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack.

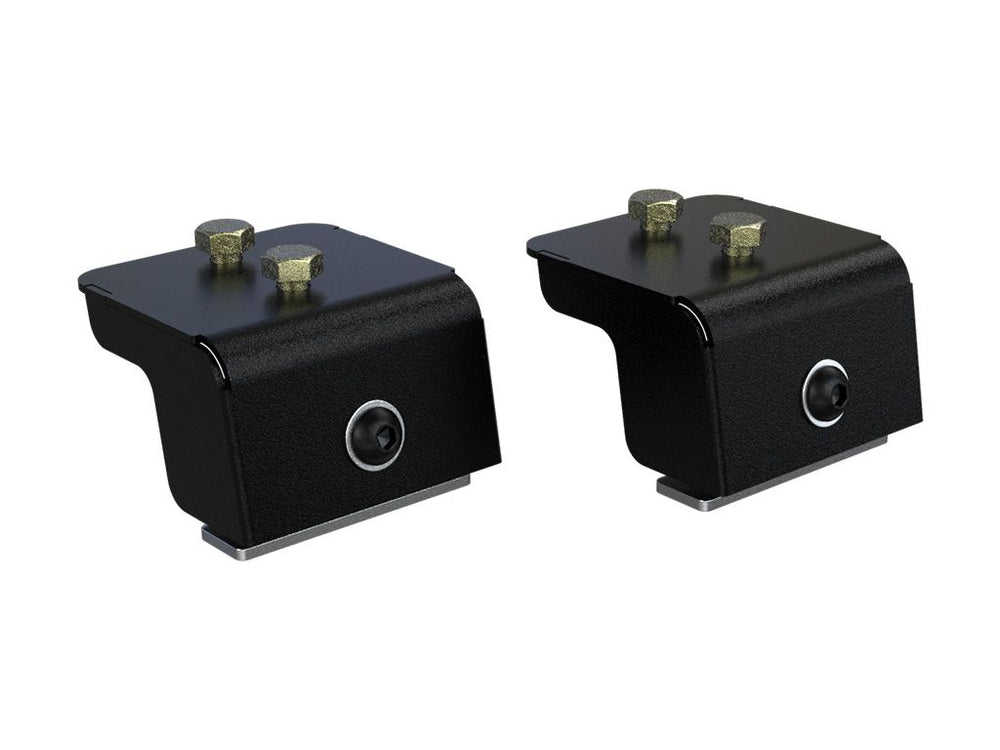

These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.

Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Consists Of:

• 2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
• 1 x LBSK013 - Load Bar Pair 1255mm(W) - by Front Runner - **varies depending on the W of load bar you choose**

• Materials Used:


• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

How To Install:

• Approximate Installed Weight 7kg (14lbs)
• View HERE The Foot Instructions
• View HERE The Universal Track Instructions
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
