Front Runner Load Bar / Gutter Mount For Volkswagen Kombi

Consists Of:

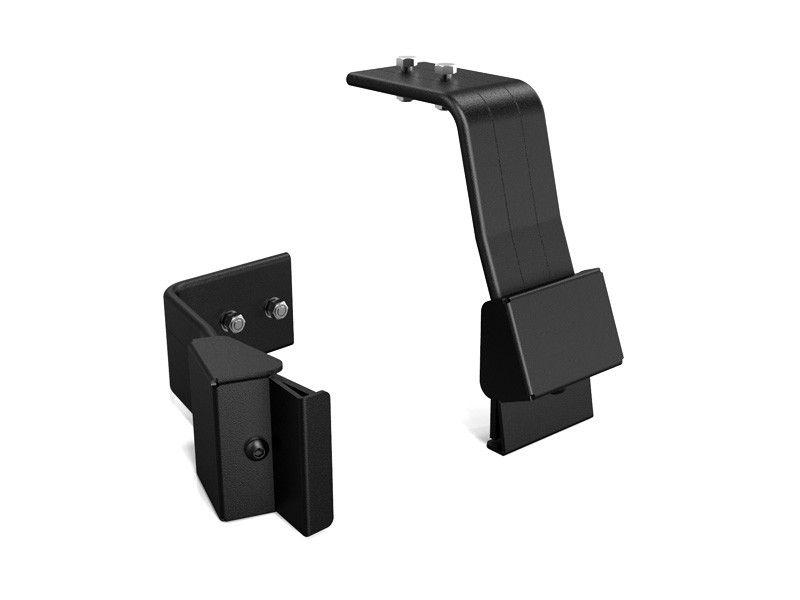

• 2 x LASS105 - No 5 Leg 190mm (Pair) - by Front Runner

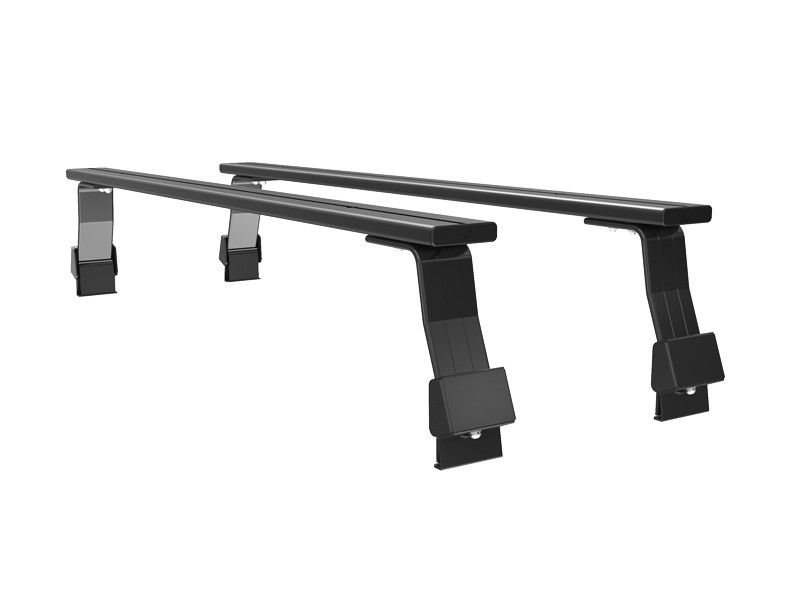

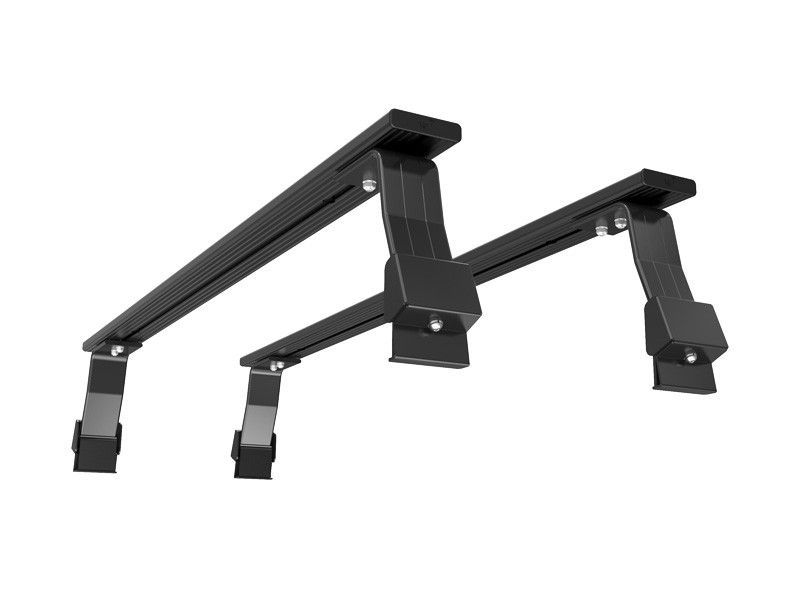

• 1 x LBSK017 - Roof Load Bar Pair 1475mm(W) - by Front Runner

Materials Used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

How To Install:

• Approximate Installed Weight 7kg (16lbs)
• The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
