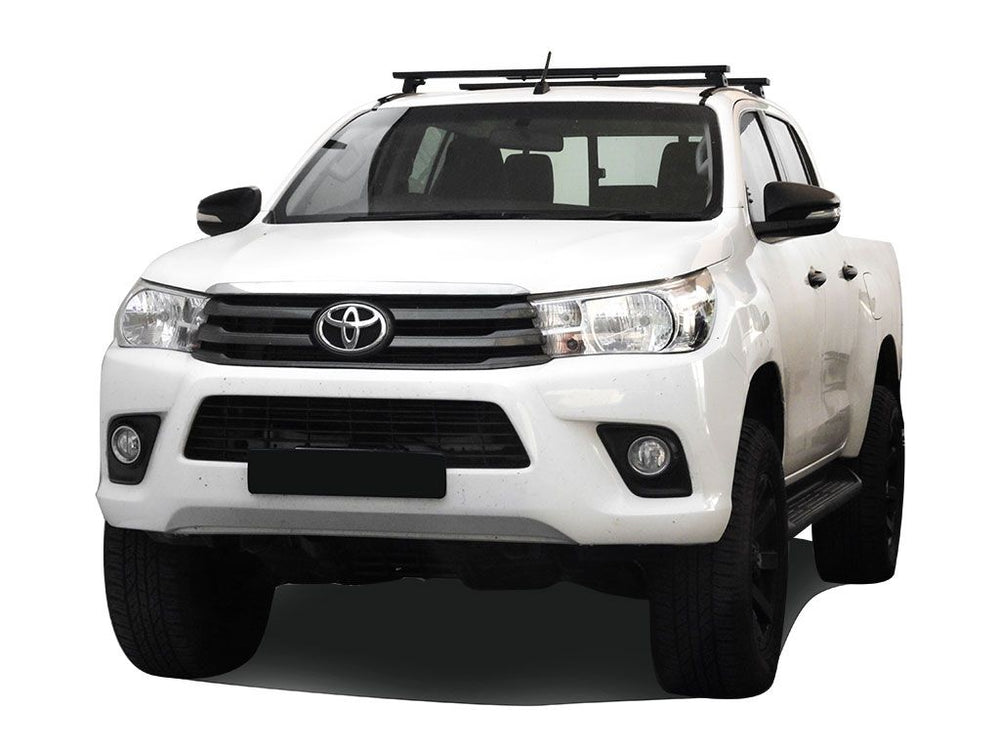

Front Runner Load Bar Kit / Track And Feet For Toyota HILUX REVO DC 2016-Current

Load Bar Kit / Track And Feet For Toyota HILUX REVO DC 2016-Current - by Front Runner Outfitters

An excellent set of reliables strong and durable cross-bars for your Toyota Hilux REVO DC from the 2016 to the current moddel.

Front Runner is widely recognized as one of the leaders in the overlanding or off road industry, thanks to the high quality of their products. This is not an exception.

Whether it is for off-road use, or simply on a day-to-day basis, or to carry a roof top tent, this rack will serve its purpose.

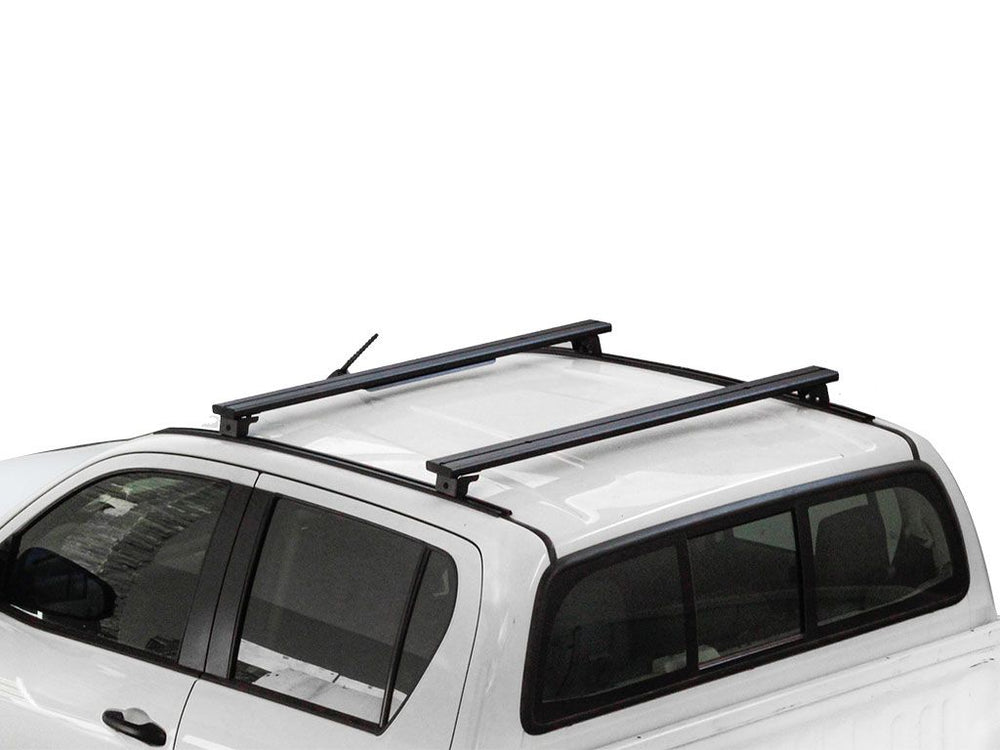

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack.

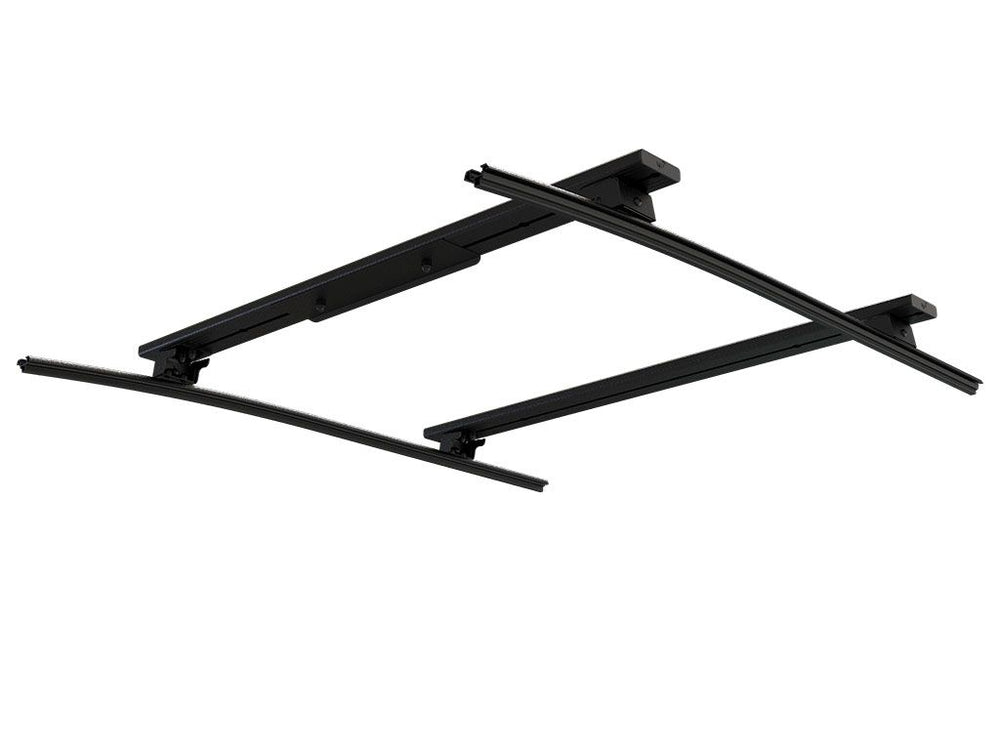

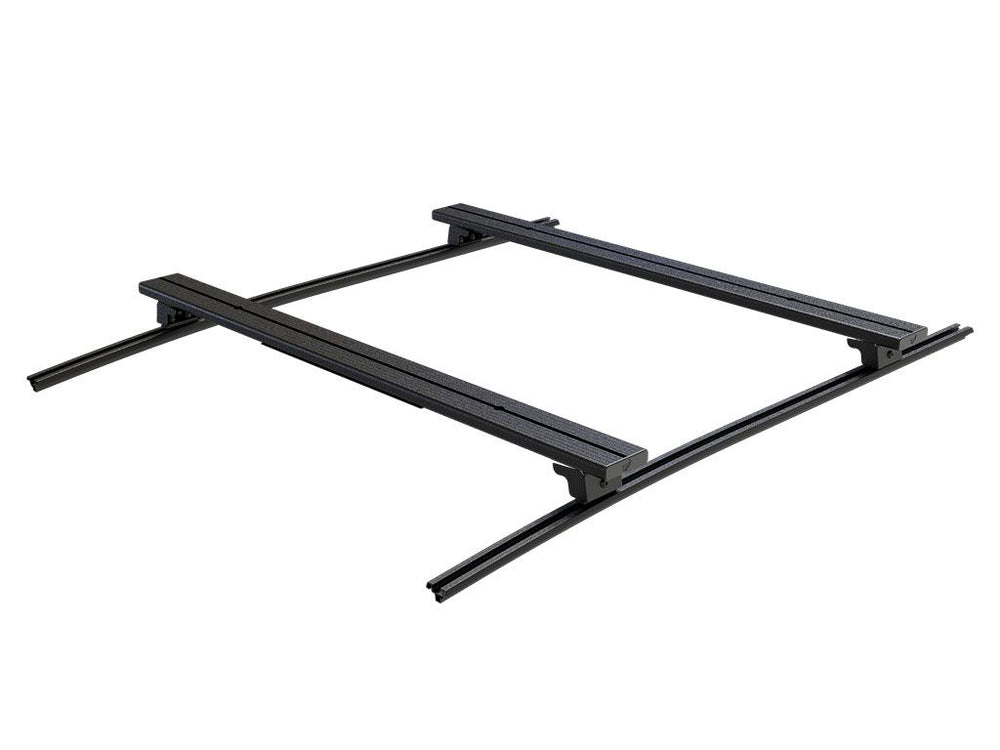

This low profile, smaller footprint solution includes 4 40mm-50mm Feet, 2 1165mm Load Bars, 2 Toyota Revo DC (2016-Current) Tracks / 1300mm Tracks, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.

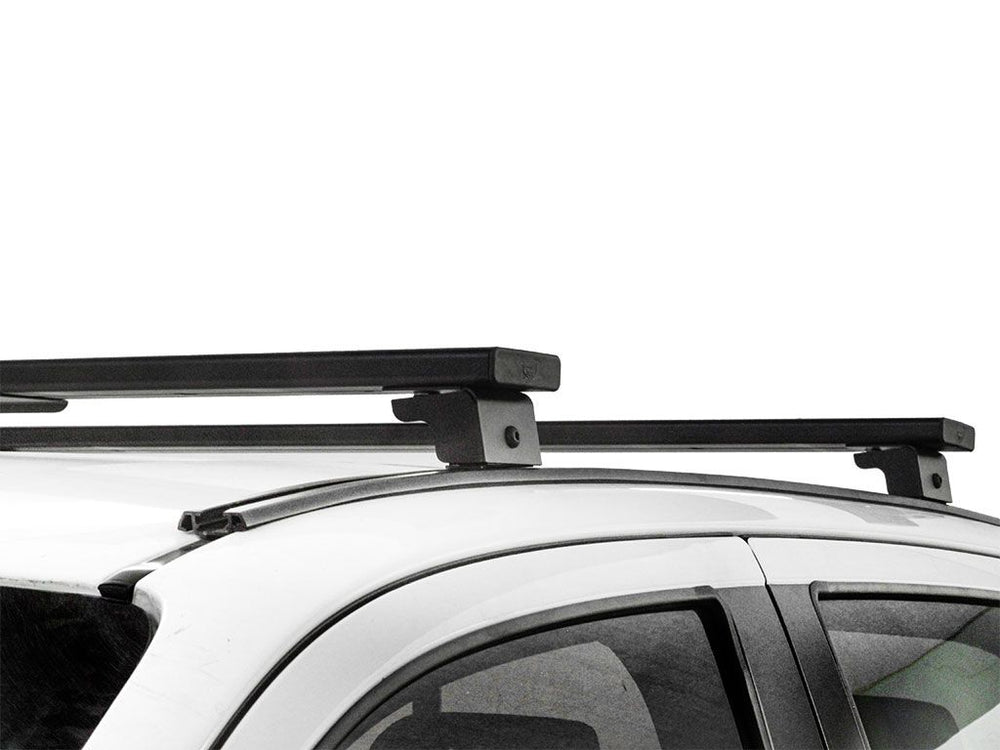

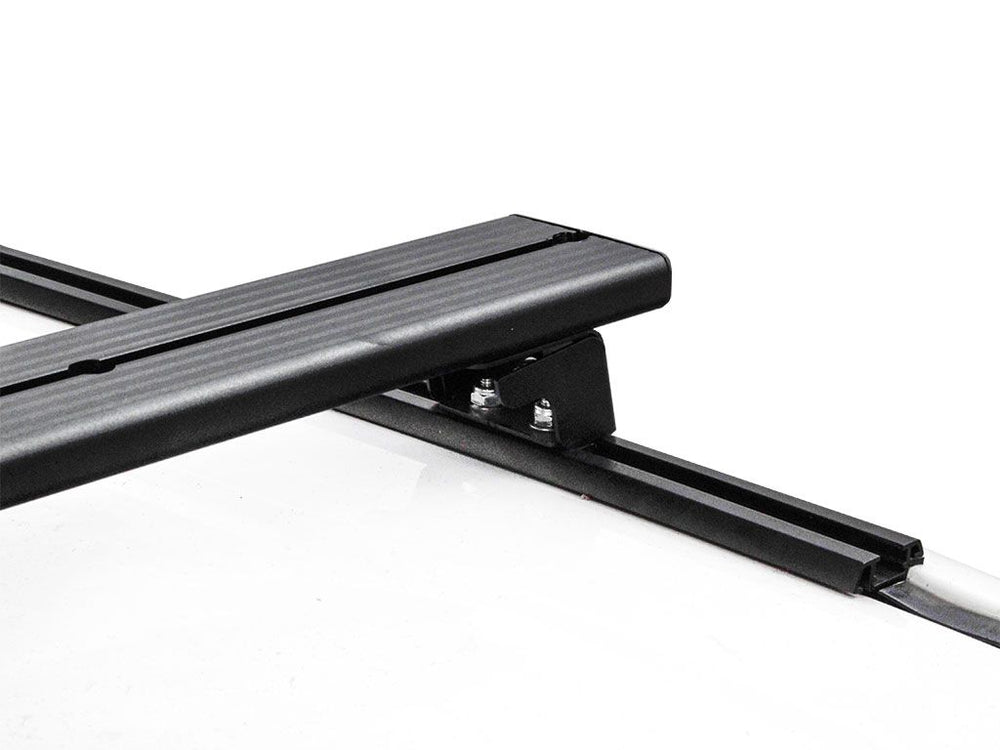

These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.

Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consists Of:

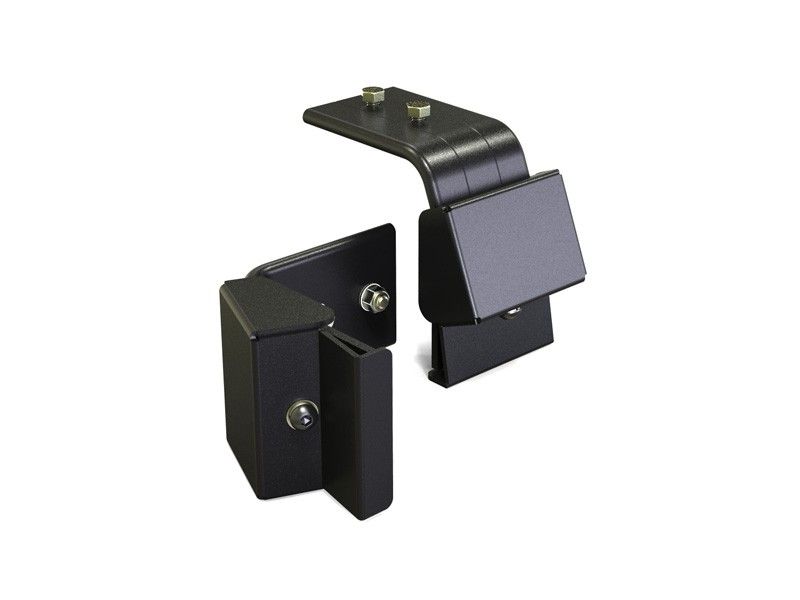

• 2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
• 1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner

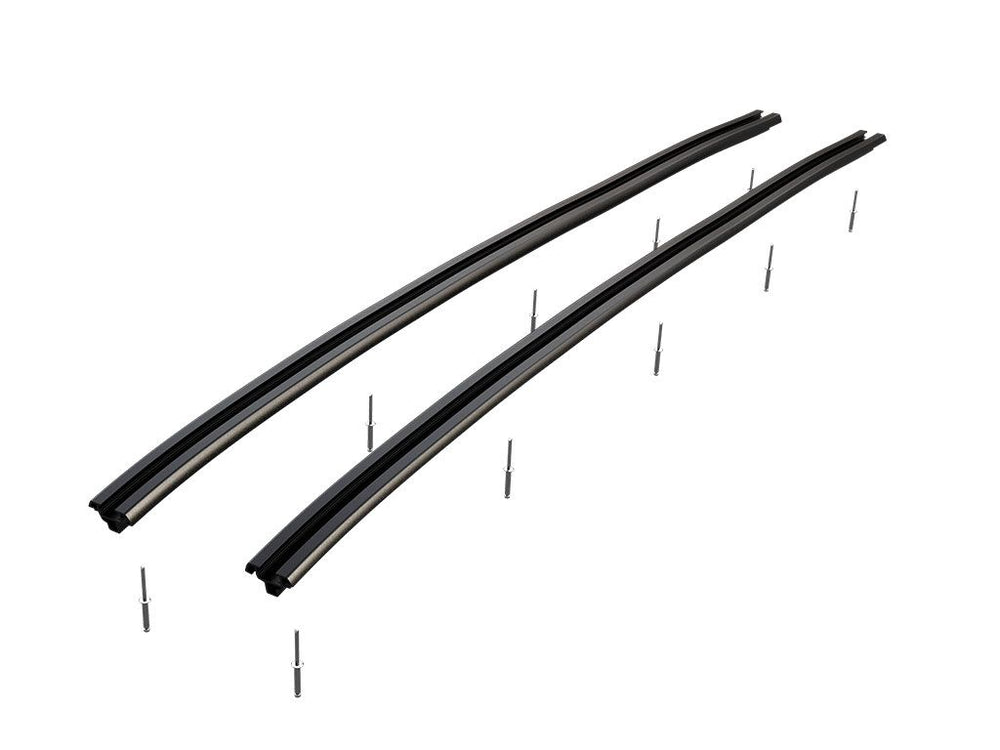

• 1 x TRTH003 - Toyota Revo DC (2016-Current) Tracks / 1300mm(L) - by Front Runner
• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Materials Used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

How To Install:

• Approximate Installed Weight 7kg (16lbs)
• View HERE The Foot Instructions
• View HERE The Track Instructions
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
