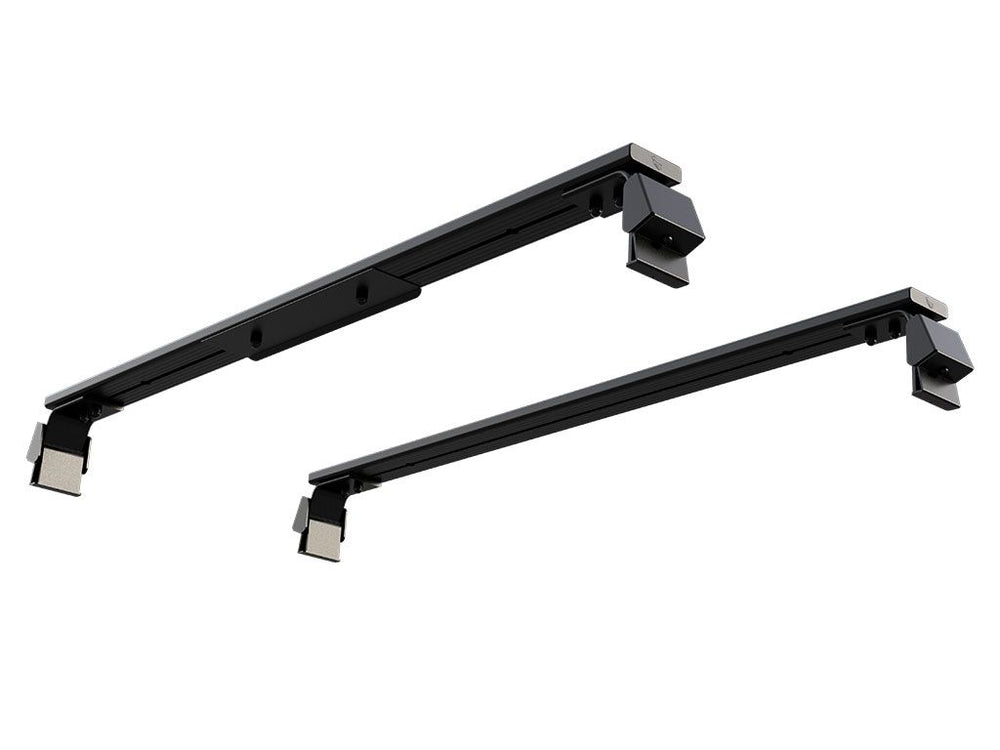

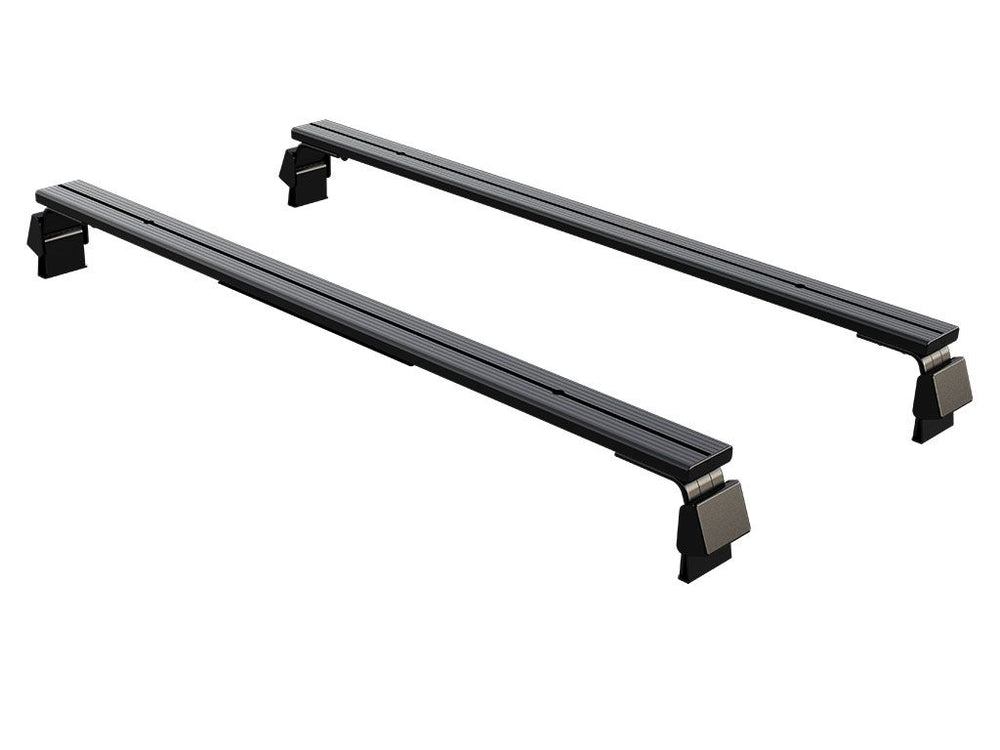

Front Runner Load Bars For Suzuki Jimny 2018-Current

Load Bars / Crossbars For Suzuki Jimny 2018-Current - by Front Runner Outfitters

An excellent set of crossbars for your Suzuki Jimny from the 2018 to the current model.

These load bars will go on the gutter mount of your rig, ensuring a safe and strong way to carry pretty much anything you need.

Whether it is for off-road use, or simply on a day-to-day basis, or to carry a roof top tent, this full rack will serve its purpose.

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack.

This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consists Of:

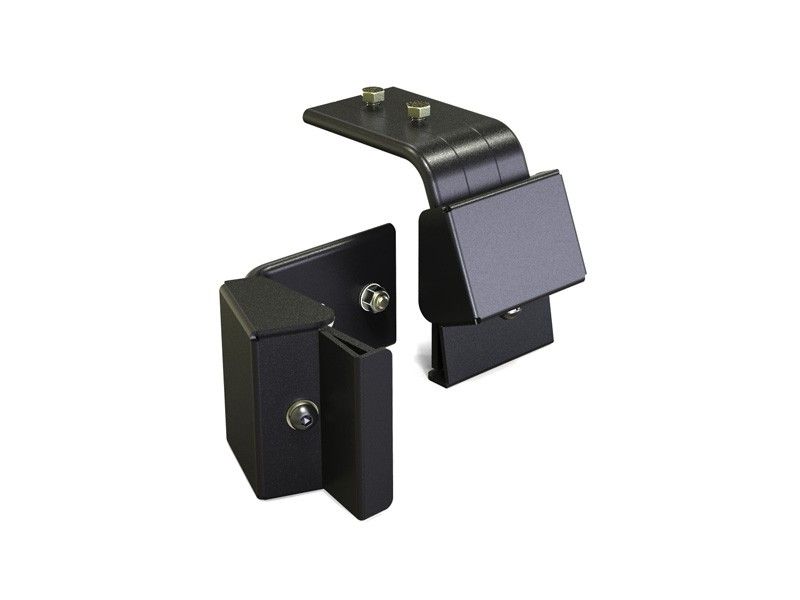

• 2 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
• 1 x LBSK015 - Roof Load Bar Pair 1345mm(W) - by Front Runner
• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Materials Used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

How To Install:

• Approximate Installed Weight 7kg (16lbs)
• View HERE The Leg Assembly Instructions
• View HERE The Wind Deflector Instructions
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
