Front Runner Slimline II Roof Rack Kit TALL Toyota Hilux 1999-2004
Front Runner Slimline II Roof Rack Kit TALL Toyota Hilux 1999-2004
SKU: KRTHT03T
Front Runner Slimline II Roof Rack Kit TALL Toyota Hilux 1999-2004
SKU: KRTHT03T
$716.59$738.75

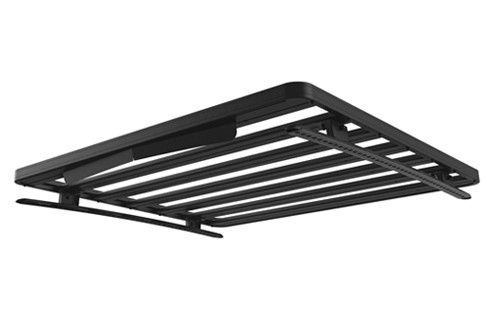

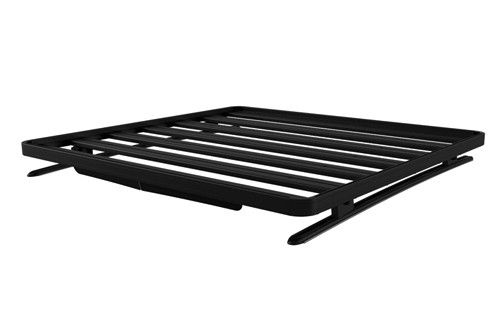

Slimline II Roof Rack Kit TALL Toyota Hilux 1999-2004 -by Front Runner Outfitters
Another variant of the Slimline II Roof Rack Kit available for Toyota Hilux 2009-2004 models is here!
Introducing the TALLER version of Slimline II Roof Rack Kit from Front Runner. It has almost the same dimension with the regular version but what makes it different from the other variation is the presence of additional space in between your Hilux's ceiling and the Slimline II Tray. In simpler terms, there's an option to mount other accessories such as Front Runner Table or other accessories underneath your roof rack.
Each component of the Slimline II Roof Rack Kit is made of durable and quality materials, sturdy enough to accommodate your cargo requirements. These are made from high-strength 3CR12 stainless steel and T6 aluminum powder-coated with black epoxy for water resistance.
Free Shipping!
Package Inclusion:
- 1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
- 1 x FASS013 - Foot Set / 60mm-70mm - by Front Runner
- 2 x RRAC021 - Between Slat Foot Adapter - by Front Runner
- 1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner
- 1 x TRTH002 - Toyota Hilux DC Tracks / 1280mm(L) - by Front Runner
Additional Notes:
- Approximate Installed Weight 23kg (51lbs)
- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
- To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle's roof.
Shipping Dimensions:
- Width: 450mm (18")
- Length: 1615mm (64")
- Height: 140mm (6")
- Shipping Weight: 27.0kg (59.3lbs)
Product Video:
Installation Guide:
- Click HERE for Foot Set Instruction Manual
- Click HERE for Between Slat Foot Adapter Instruction Manual
- Click HERE for Front Runner Slimline II Tray Installation Guide
- Click HERE for Toyota Hilux DC Tracks Installation Guide
