Front Runner Slimline II Roof Rail Rack Kit For Mercedes X-Class 4x4
Front Runner Slimline II Roof Rail Rack Kit For Mercedes X-Class 4x4
SKU: KRMX004T
Front Runner Slimline II Roof Rail Rack Kit For Mercedes X-Class 4x4
SKU: KRMX004T
$985.15$1,159.00
Slimline II Roof Rail Rack Kit For Mercedes X-Class 4x4 (2017-Current) - by Front Runner Outfitters
You have an awesome Mercedes X-Class 4x4 (2017-Current), yet you still feel like your rig is missing something. Of course, a roof rack! And there is simply no better platform roof rack than the Slimline II Roof Rail Rack Kit.
This high quality, completely sophisticated and with excellent functionality rack, was built to withstand extreme conditions. It has a 660 lbs static load capacity, and it will carry all your cargo, from surfboards, to gear, kayaks, boards, bikes, accessories, to even roof top tents.
The Slimline II Roof Rail Rack Kit give an awesome variation to your rig, and it will take your Mercedes X-Class 4x4 (2017-Current), to the best overlanding adventures.

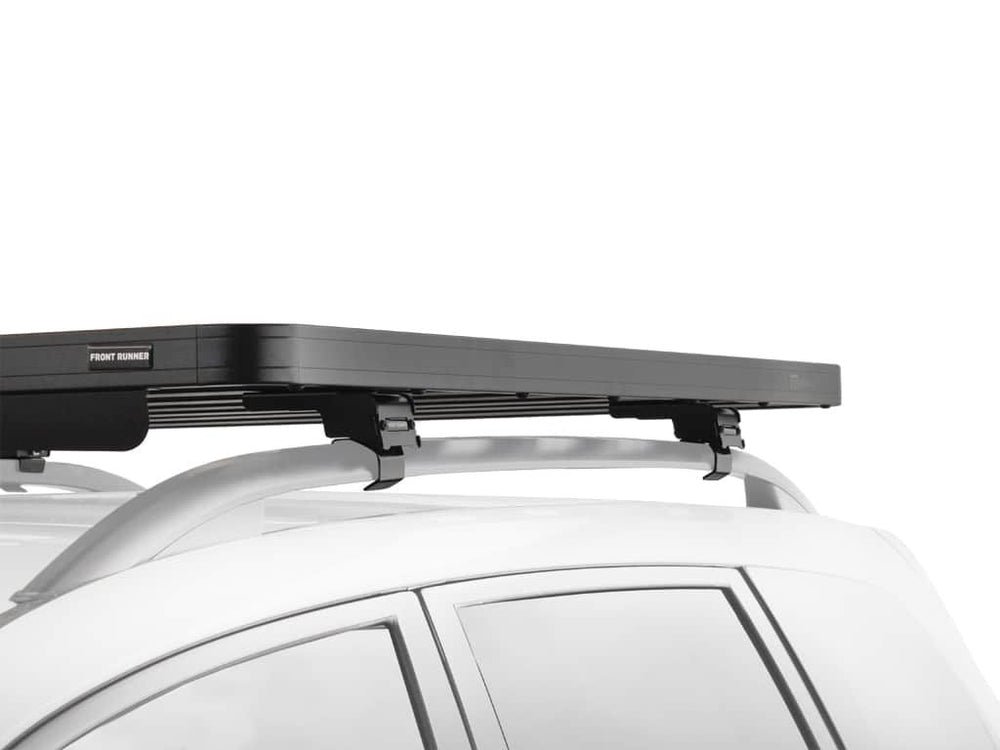

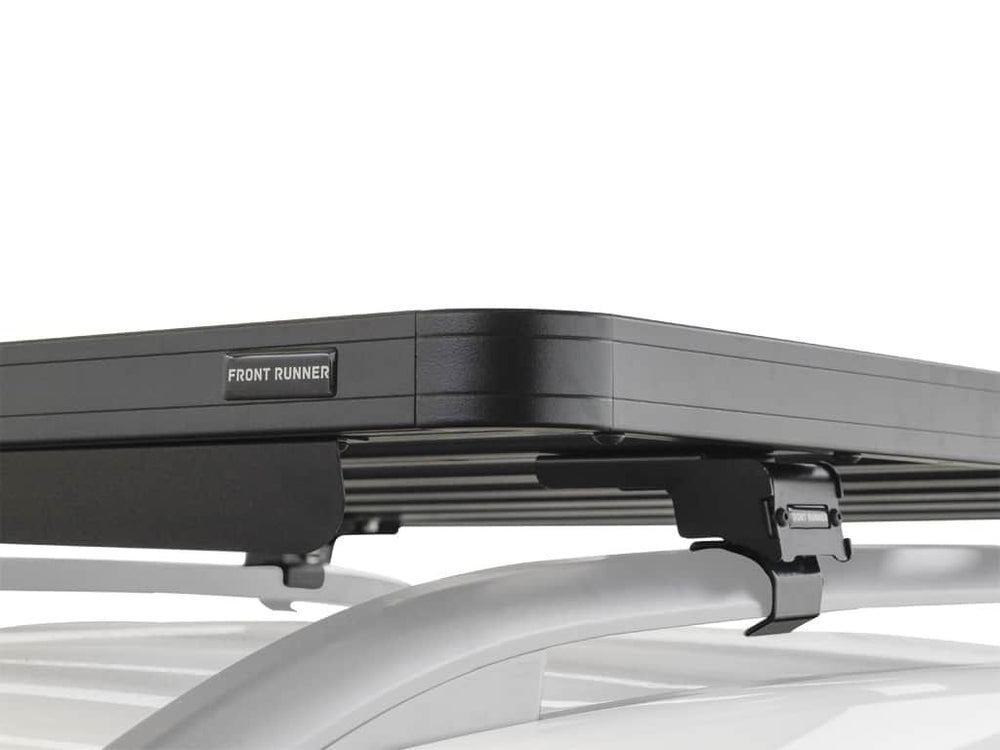

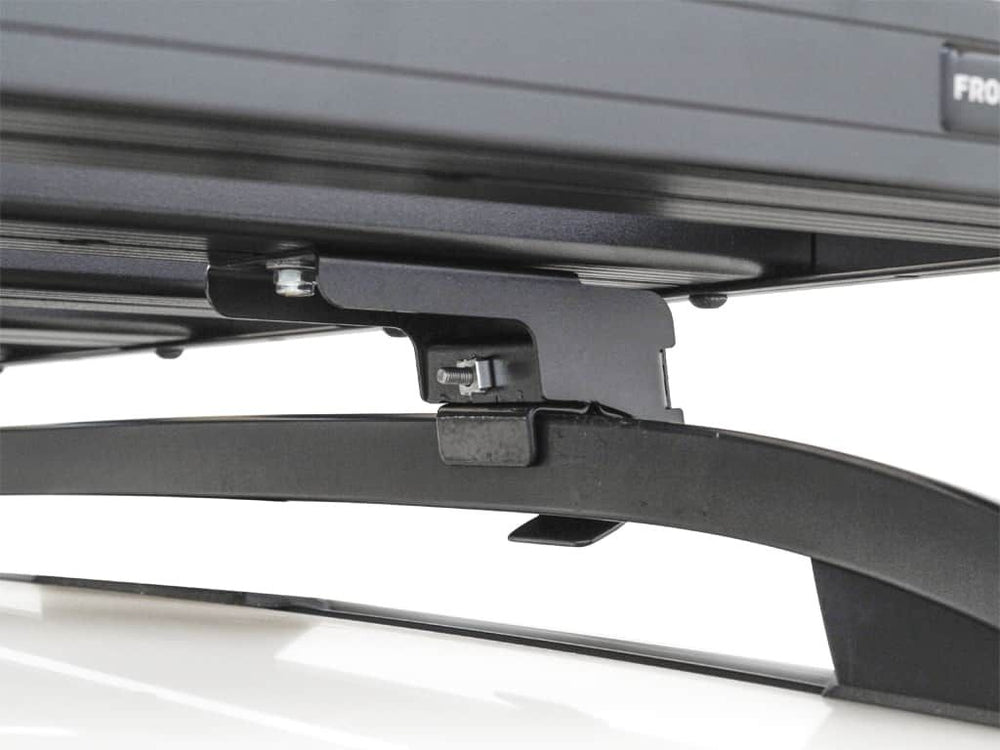

Also, this full-sized Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 pairs of Grab-On Feet to mount the Slimline II Tray to the roof rails of your Mercedes X-Class 4x4. This system installs easily with off-road tough feet that grab on to the existing factory/OEM roof rails.
These Foot Rails have an opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table). It is 1358mm/53.5" long and it does not require any drilling for installation. Plus, it comes with installation instructions, as well as the components needed to mount the Slimline II Tray to your vehicle so you can get going with your adventures!
All Front Runner Racks are backed by a Limited Lifetime Warranty*
NOTE: Your vehicle must be equipped with the factory/OEM roof rails in order to use this rack kit.
This rack kit can be removed leaving your vehicle’s roof and roof rails in their original condition.
For a stronger expedition grade cargo carrying solution, Front Runner may offer a specific Foot Rail System to mount the Rack Tray to your vehicle. Front Runner Foot Rail solutions can be installed by removing the factory roof rails or used if no factory roof rails are fitted.
We offer Free Shipping!
Consists of:
- 2 x GOFR001 - Rail Foot Base (Pair) - by Front Runner
- 2 x GORR052 - Raised Rail Outer Grab-On / No. 3 - by Front Runner
- 2 x GORR071 - Raised Rail Inner Grab-On / B - by Front Runner
- 1 x RRSTD07 - Slimline II Tray - 1255mm(W) X 1358mm(L) - by Front Runner
- 1 x WDST011 - Wind Deflector 20mm Lip Extra Narrow Pair / 1165mm(W) - by Front Runner
Material used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
Features:
- Approximate Installed Weight 22kg (48lbs)
- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
Shipping Dimensions:
- Width 455mm (18")
- Length 1610mm (63")
- Height 285mm (11")
- Approximate Installed Weight 22kg (48lbs)
- Shipping weight 25.5kg (56.2lbs)
How To Install:
- Click HERE for Installation Instructions for GOFR001
- Click HERE for Installation Instructions for RRSTD07
More Info:
- To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Watch The Roof Rack Video:
