Cali Raised LED Front Skid Plate for 2010-2024 Toyota 4Runner
Cali Raised LED Front Skid Plate for 2010-2024 Toyota 4Runner
SKU: CR3801
Cali Raised LED Front Skid Plate for 2010-2024 Toyota 4Runner
SKU: CR3801
$373.99$439.99
The First Plate to Hit the Rock

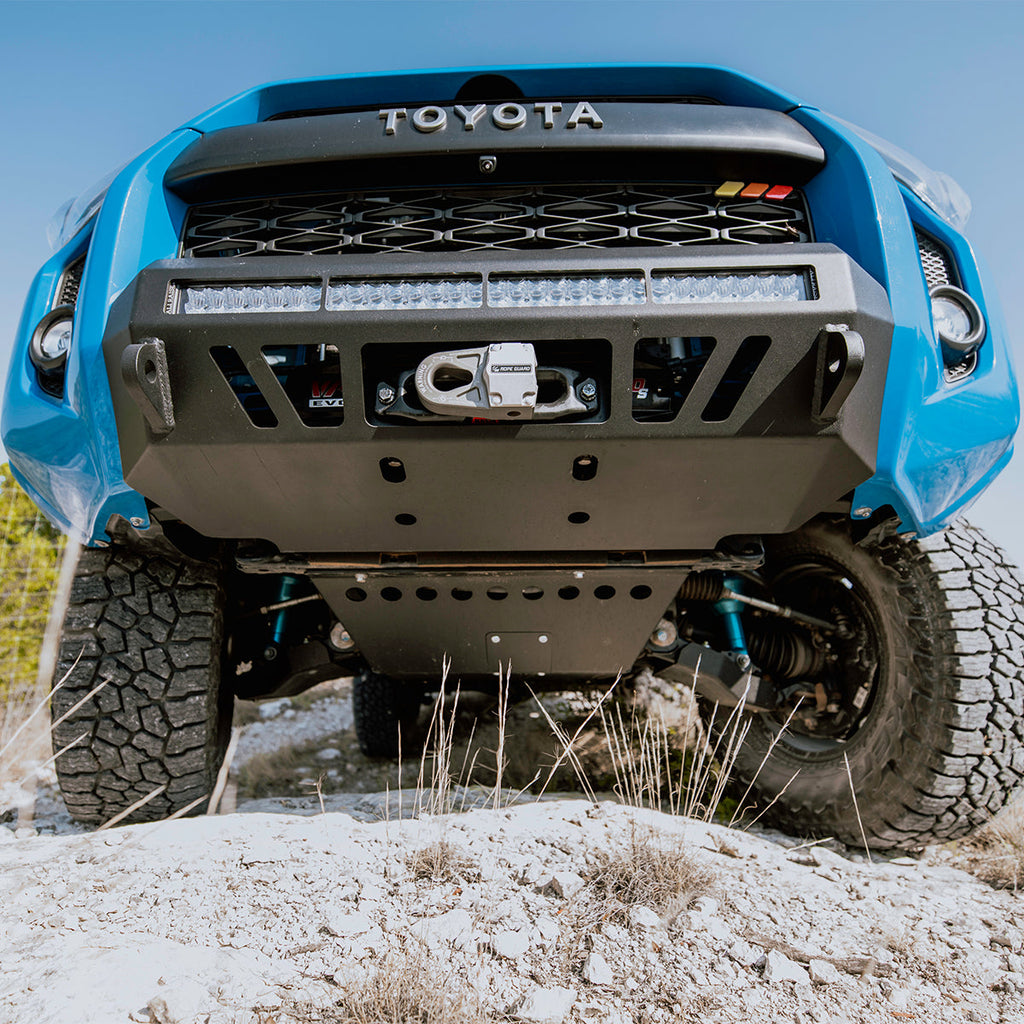

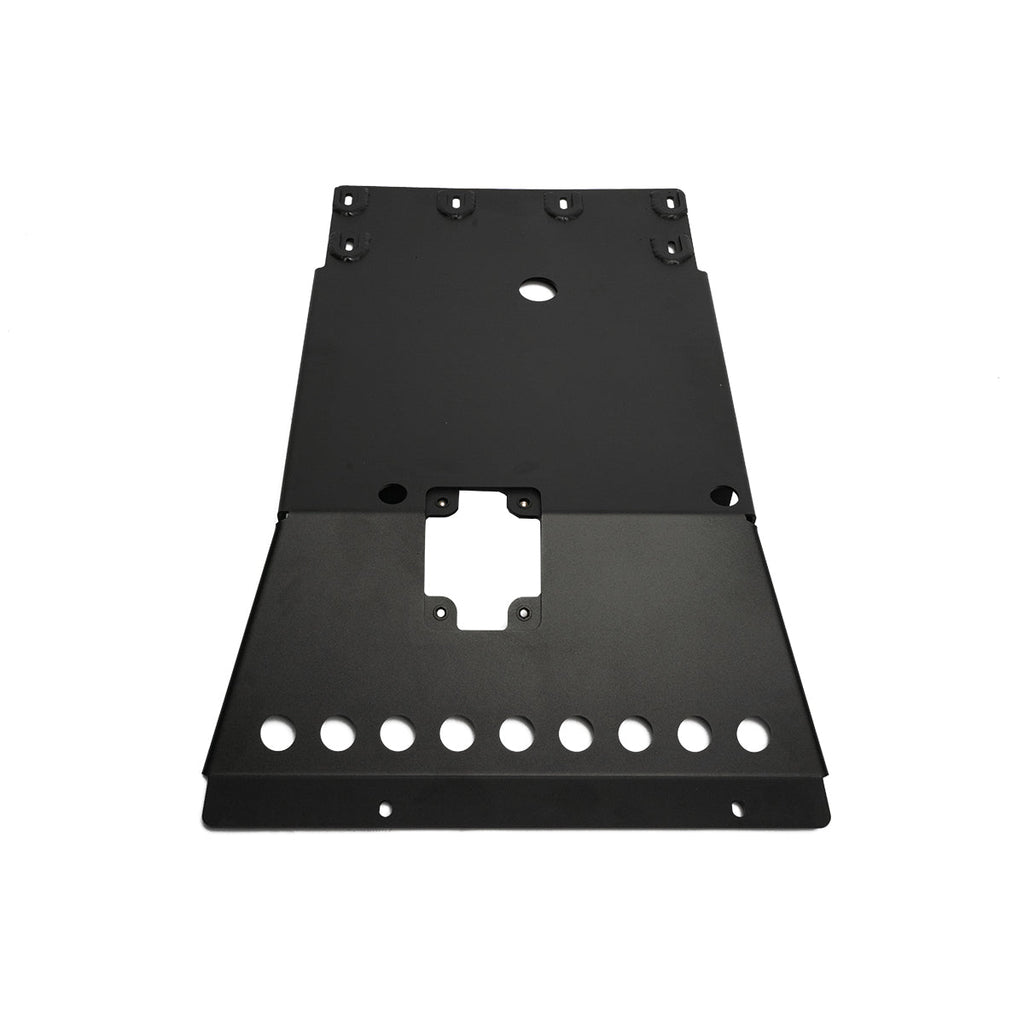

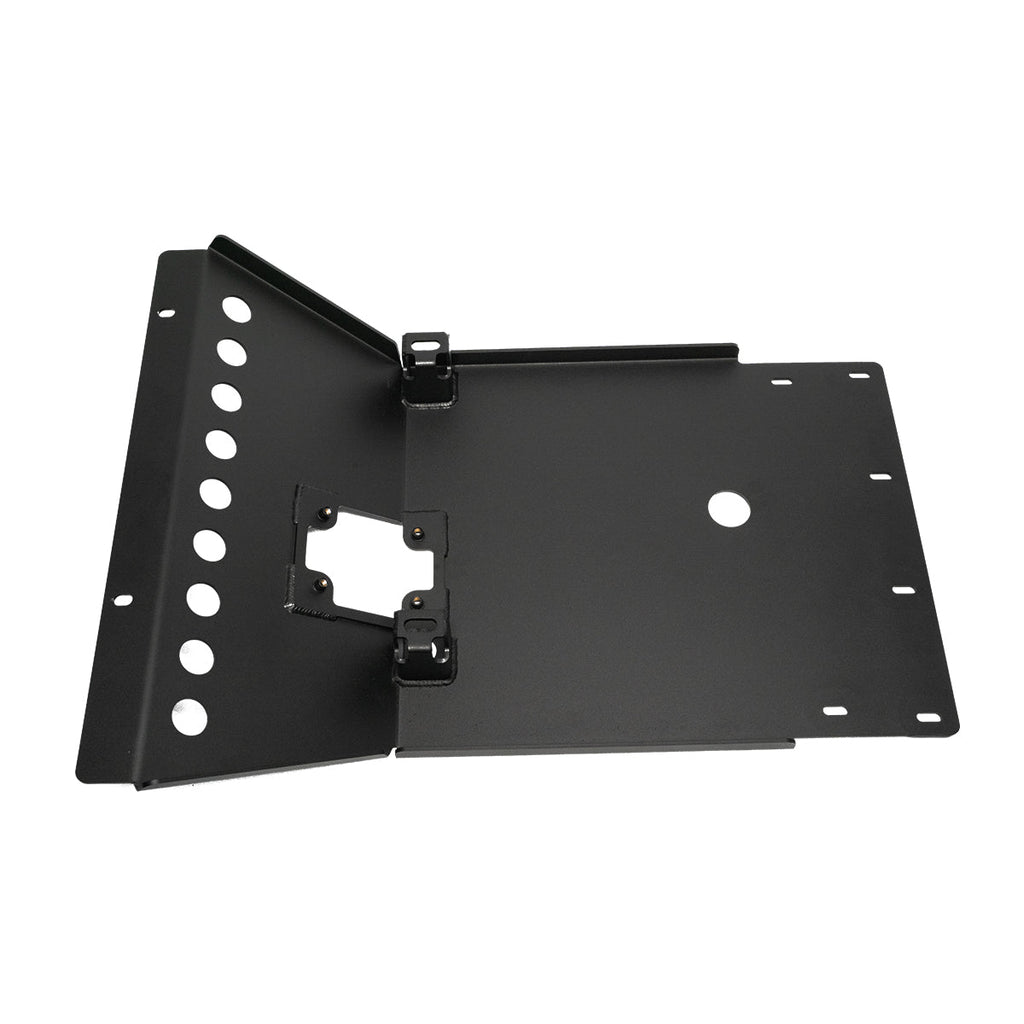

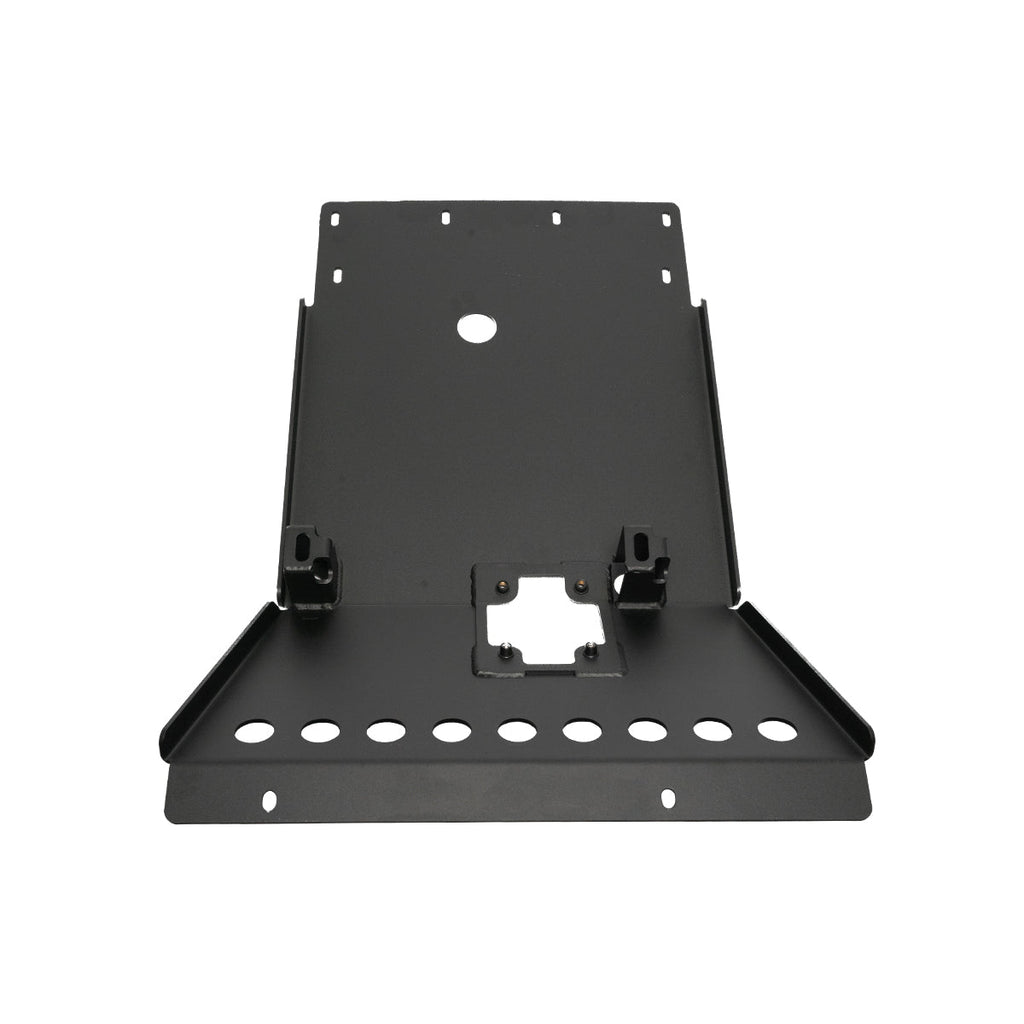

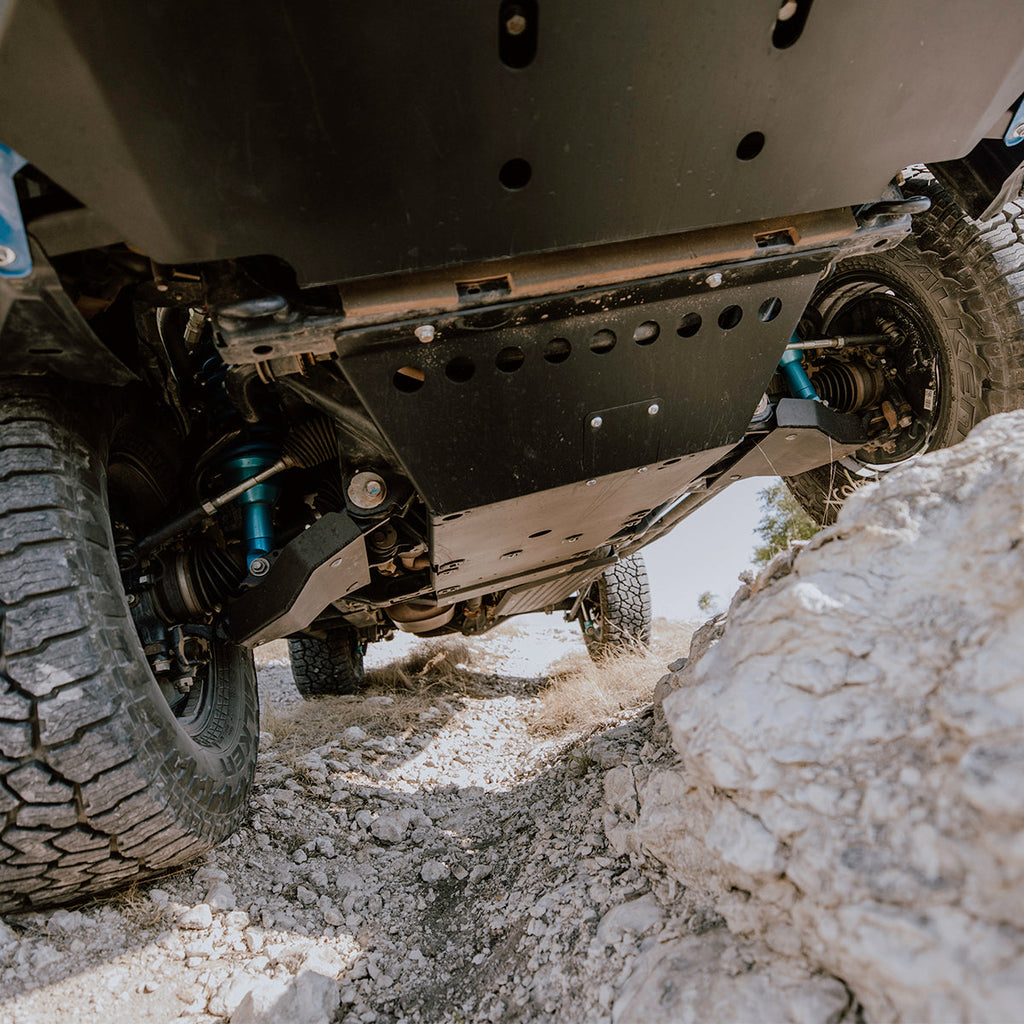

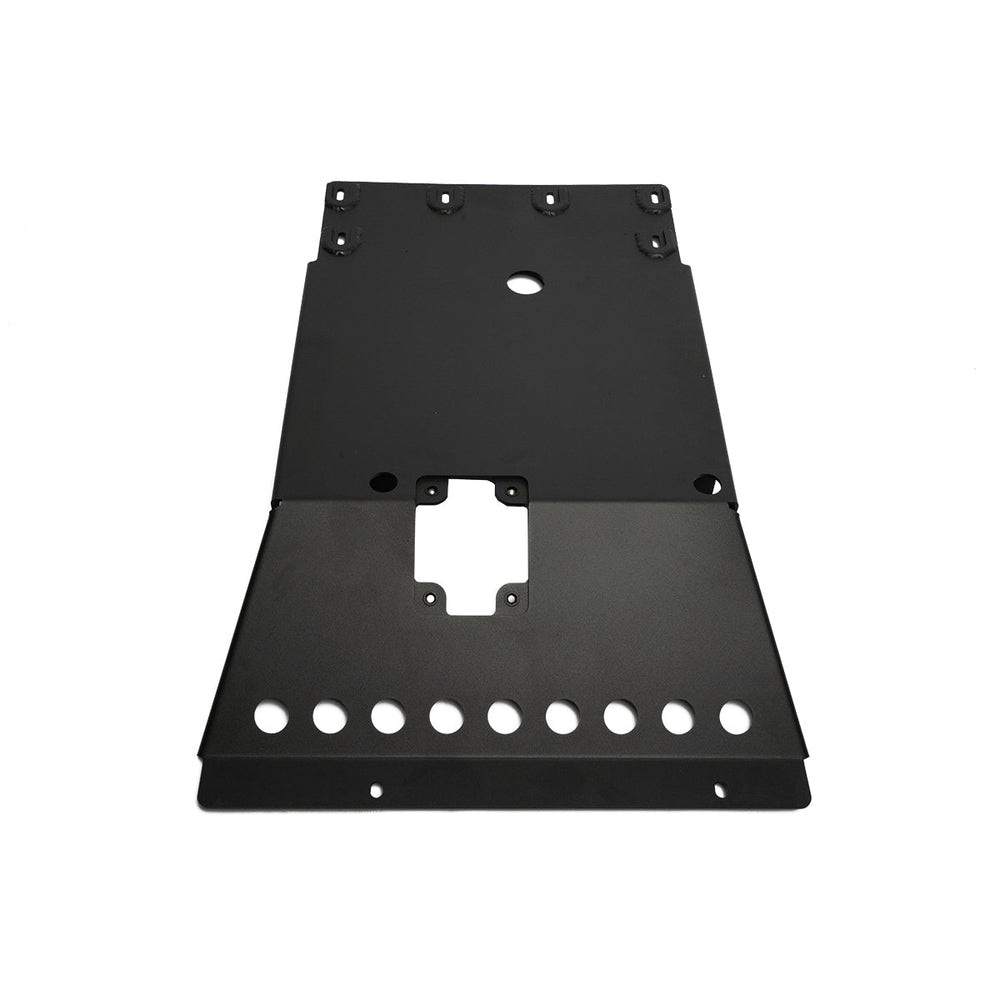

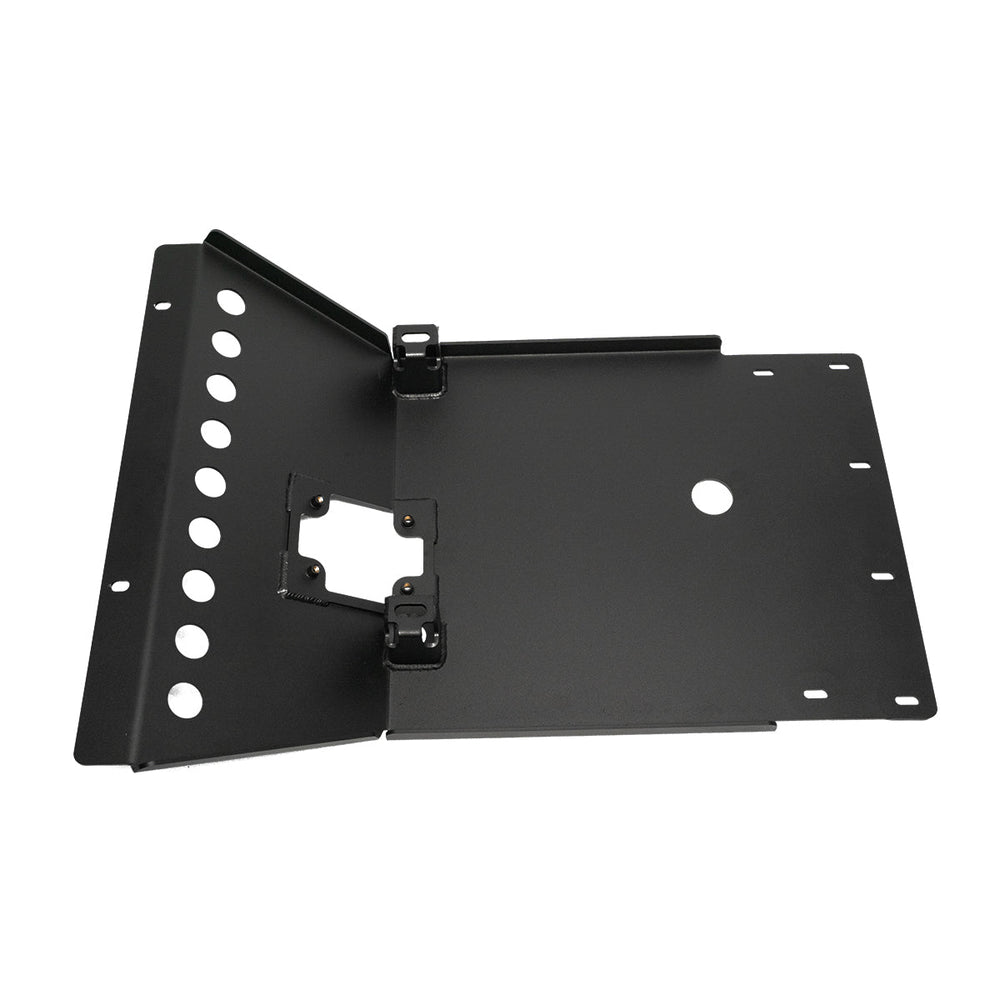

Cali Raised LED front skid plate for the 2010-2024 Toyota 4Runner.
Check These Three Things First
No KDSS. Cali Raised's 5th gen skid plates will not work on a 4Runner with KDSS.
King or Fox sway bar drop? This front skid does not work with the sway bar drop used by King and Fox. If you run one, the sway bar has to come off to fit the plate.
TRD Pro? This plate is not for use alongside the factory TRD Pro skid, and the same goes for Cali Raised's 5th gen transmission skid.
Not sure what your truck has? Send us your VIN and a note about any lift, or call 844-200-3979, and we will check before it ships.
Point a 5th gen 4Runner up a ledge and the front of the truck gets there first. Before the tyres find grip, the low edge behind the bumper is already scraping rock, and that is where the oil pan and, on 4WD trucks, the front differential live. The factory protection under there is light-duty by comparison.
This 4Runner front skid plate from Cali Raised LED replaces that weak spot with real armor. It is made for every 2010-2024 4Runner, in 3/16" steel or 1/4" 5052 aircraft-grade aluminum, with a semi-gloss black powder coat. It bolts up to existing holes using factory and Grade 8 hardware, with no drilling or modification, and it works with a differential drop on lifted trucks. It is also the base plate for Cali Raised's 5th gen transmission skid, which installs with it.
Why Start With a Front Skid?
If you only buy one 4Runner skid plate, make it this one. The front of the truck takes more hits than anywhere else underneath, simply because it arrives at every obstacle first.
Climbing Ledges
Nose up onto a step and the front underside lands on the edge before the front wheels lift the truck over it.
Dropping Off
Coming down off a rock, the front dips first. Misjudge it and the low point at the front takes the impact.
Water and Mud
Plowing through ruts and crossings, the front pushes into whatever is hiding below the surface.
A dent in a powder-coated plate is a badge. A cracked oil pan miles down a trail is a tow bill and a ruined weekend.
Steel or a 4Runner Aluminum Skid Plate?
The shape and fitment are the same. What changes is weight and how the plate behaves against rock. These are Cali Raised's published weights for this plate.
| 3/16" Steel | 1/4" 5052 Aluminum | |
|---|---|---|
| Weight | 49.2 lbs | 20.5 lbs |
| Weight saved | 28.7 lbs | |
| On rock | Slides well and resists denting | Thicker plate, but softer and more prone to gouging |
| Best for | Rock crawling and hard, regular use | Overland builds already carrying a lot of weight up front |
That 28.7 lb difference matters more on this plate than most, because it sits right over the front suspension. If you already run a steel bumper and a winch, aluminum keeps the nose from getting any heavier. If you spend your weekends dragging the front over granite, steel is the plate that will not mind.
Lifted 4Runner? What Works and What Does Not
| Setup | Works With This Front Skid? |
|---|---|
| Differential drop | Yes |
| King or Fox sway bar drop | No, the sway bar must be removed |
| KDSS | No |
| Factory TRD Pro skid | No |
Differential drops are common on 5th gen 4Runners with bigger lifts, so it is good news that this plate works with one. The King and Fox sway bar drop is the catch. If your lift came with one and you want to keep the front sway bar, talk to us before ordering.
Building Out 5th Gen 4Runner Skid Plates
The front skid is where most people start, and with Cali Raised it is also the plate the others build from. The 5th gen transmission skid needs this front skid to install, so if you plan to cover the middle of the truck later, start here.
| Plate | What It Covers | Needs Front Skid? |
|---|---|---|
| Front skid (this plate) | Front underbody | |
| Transmission skid | Transmission, plus about half the catalytic converter | Yes |
| Fuel tank skid | Fuel tank | No |
✓ Doing the Front and Transmission Together?
Order them at the same time in the same material and fit both in one session. You only get under the truck once, and the plates arrive with the same finish.
Installation
This 5th gen 4Runner front skid plate is 100% bolt-on. It uses all existing bolt holes with a mix of factory and Grade 8 hardware. You will need to remove some factory parts to fit it, but nothing is cut or drilled, so you can go back to stock at any time.
- Confirm no KDSS and no King or Fox sway bar drop before you start.
- Get the truck on ramps or stands. The steel version is close to 50 lbs, which is not something to have overhead on a jack alone.
- Bag and label the factory parts you take off. You will want them if you ever return to stock.
- Use a helper or a floor jack to lift the plate into position while you start the bolts.
- Thread every bolt by hand first, then tighten once the plate has settled onto all its mounting points.
- Re-check the bolts after the first trail run.
Questions about the install? Call us before you order and we will talk you through it.
Specifications
| Fitment | 2010-2024 Toyota 4Runner, 5th generation |
| Protects | Front underbody |
| Material options | 3/16" steel or 1/4" 5052 aircraft-grade aluminum |
| Weight (steel) | 49.2 lbs |
| Weight (aluminum) | 20.5 lbs |
| Finish | Semi-gloss black powder coat |
| Hardware | Factory plus Grade 8 |
| Installation | 100% bolt-on, existing holes, no drilling or modification |
| Reversible | Yes, can return to stock |
| Differential drop | Compatible |
| King or Fox sway bar drop | Not compatible, sway bar must be removed |
| KDSS | Not compatible |
| TRD Pro factory skid | Not compatible |
| Fabricated in | Fort Worth, Texas |
Pros
- Fits every 2010-2024 4Runner without KDSS
- Aluminum saves 28.7 lbs over steel
- Works with a differential drop on lifted trucks
- Bolt-on with existing holes and fully reversible
Cons
- Will not fit KDSS trucks or work with the TRD Pro factory skid
- King or Fox sway bar drop means losing the sway bar
Frequently Asked Questions
Will this 4Runner front skid plate fit my 2018 or 2023 4Runner?
Yes, as long as it does not have KDSS. It fits every 2010-2024 5th gen 4Runner, so the 2014, 2018, 2021 and 2023 trucks are all covered.
Does it work with KDSS?
No. Cali Raised state these skid plates will not work with KDSS. Send us your VIN if you are not sure whether your truck has it.
Will it fit with a lift and a differential drop?
Yes, it is differential drop compatible. The exception is the sway bar drop used by King and Fox. With one of those, the sway bar has to be removed.
How much does the front skid weigh?
The 3/16" steel version is 49.2 lbs and the 1/4" 5052 aluminum version is 20.5 lbs, a saving of 28.7 lbs.
Is it bolt-on, and can I go back to stock?
Yes to both. It is 100% bolt-on using existing holes. You remove some factory parts to fit it, so keep them and you can return to stock at any time.
Complete Your Build
Steel or Aluminum Up Front?
Send us your VIN and tell us about your lift. We will confirm fitment and help you choose the right material for your 4Runner.
