Cali Raised LED Complete Skid Plate Collection for 2010-2024 Toyota 4Runner
Cali Raised LED Complete Skid Plate Collection for 2010-2024 Toyota 4Runner
SKU: CR3820
Cali Raised LED Complete Skid Plate Collection for 2010-2024 Toyota 4Runner
SKU: CR3820
$1,297.09$1,525.99
Every Plate Your 5th Gen Needs, in One Box
Cali Raised LED complete skid plate collection for the 2010-2024 Toyota 4Runner.
Four Things to Check Before You Order
4WD only. This kit fits 4WD 2010-2024 4Runners. It is not for 2WD trucks.
No KDSS. These skid plates will not work on a 4Runner with KDSS.
Fuel tank straps. The fuel tank skid is designed to use the bolts that come with the TRD Off-Road fuel tank straps. If your truck has a different strap setup, you will need those straps first.
TRD Pro owners. Cali Raised confirm their front and transmission skids are not for use with the factory TRD Pro skid. The transfer case, lower control arm and fuel tank skids are.
Not sure about KDSS or your tank straps? Send us your VIN or call 844-200-3979 and we will check before anything ships.
Most owners add 4Runner skid plates one at a time. A front skid after the first scrape, a transmission skid after a scare on a ledge, and so on, usually with a different brand or finish each time. It works, but it is the slow and expensive way to end up protected.
This is the faster way. Cali Raised LED's complete collection gives you every 4Runner skid plate they make for the 5th gen in one kit: front, transmission, transfer case, lower control arms and fuel tank. The main plates come in 3/16" steel or 1/4" 5052 aircraft-grade aluminum, and the lower control arm skids are always powder-coated steel. Everything is 100% bolt-on with a mix of factory and Grade 8 hardware, with no drilling or modification, and every plate is finished in the same semi-gloss black powder coat at Cali Raised's shop in Fort Worth, Texas. It is designed as a universal fit for every 2010-2024 4WD 4Runner without KDSS.

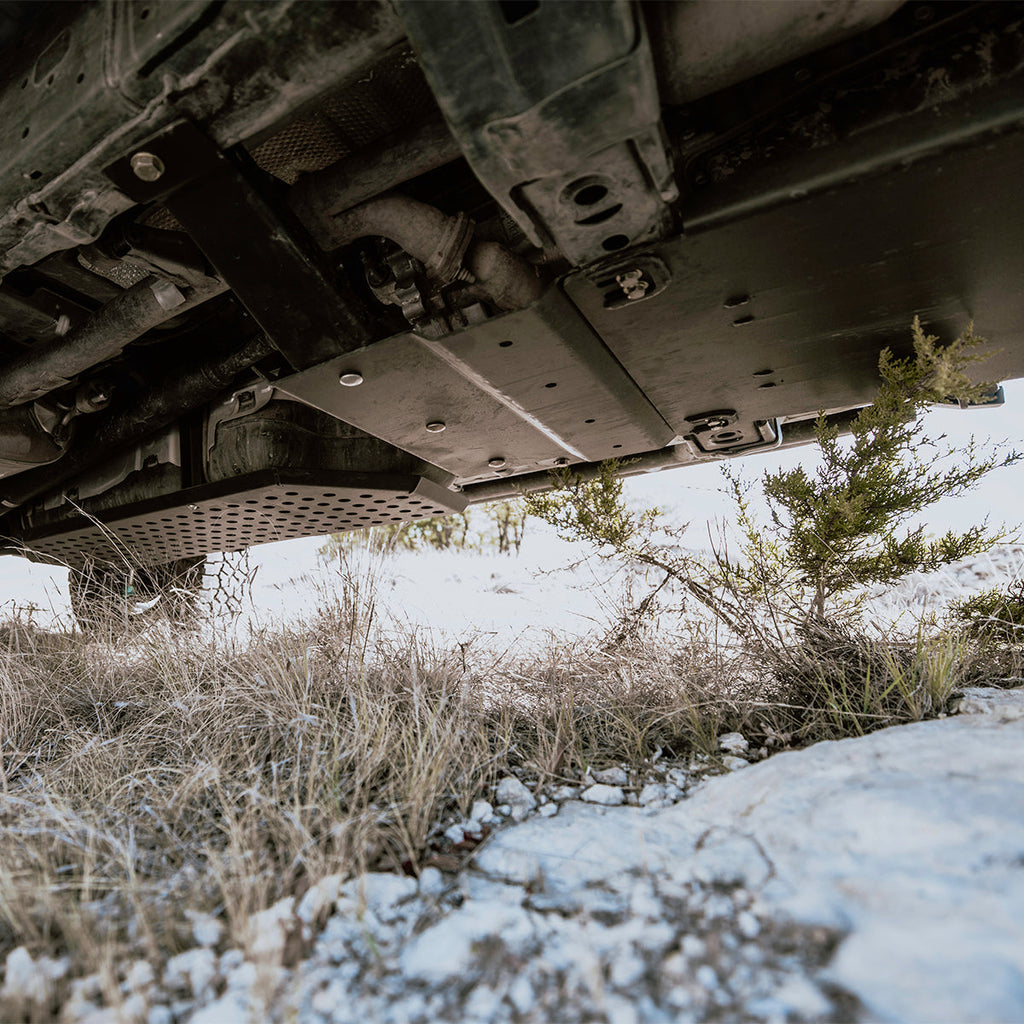

What Each of These 4Runner Skid Plates Protects
Here is how the five plates cover the underside, from the front bumper back to the fuel tank. The links take you to the plates sold individually if you want to read more about any one of them.
| Plate | What It Covers | Works With TRD Pro Skid? |
|---|---|---|

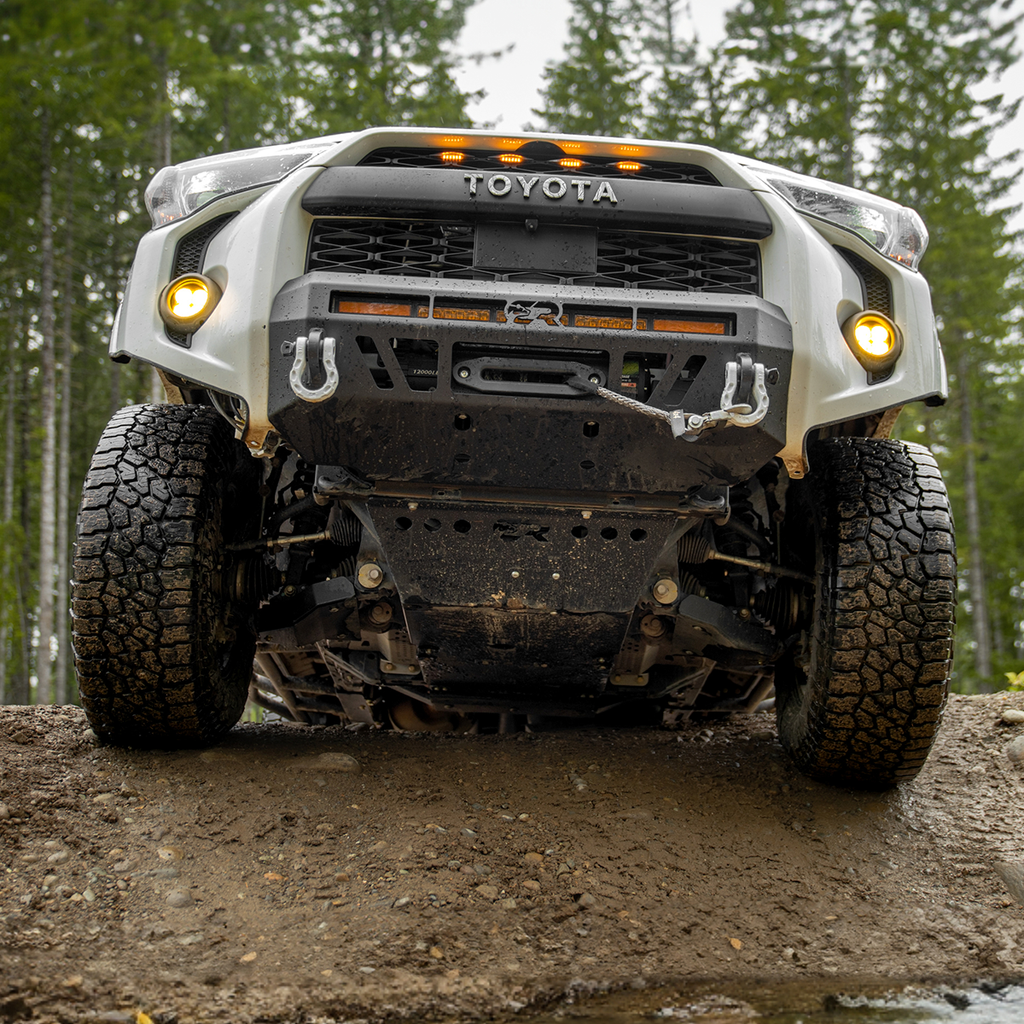

| Front skid | Front underbody, the first section to meet a ledge | No |

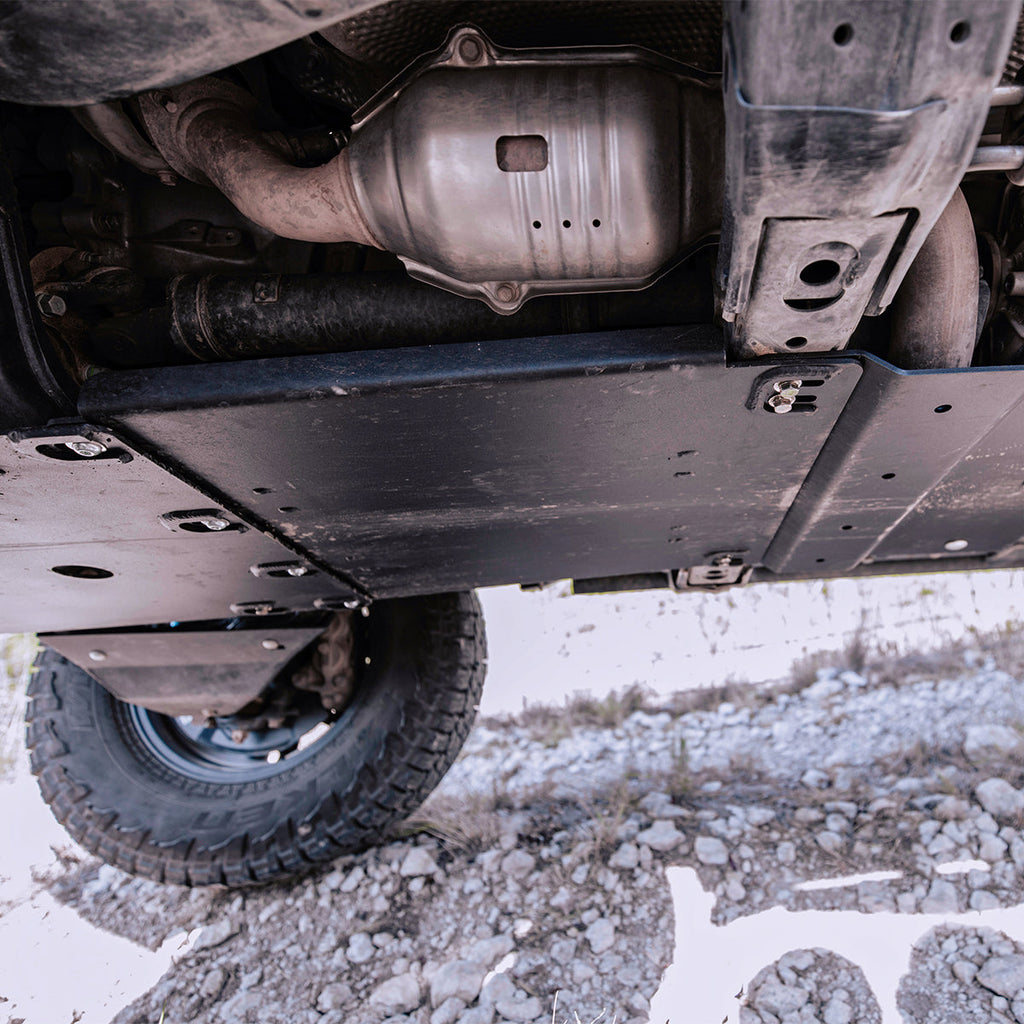

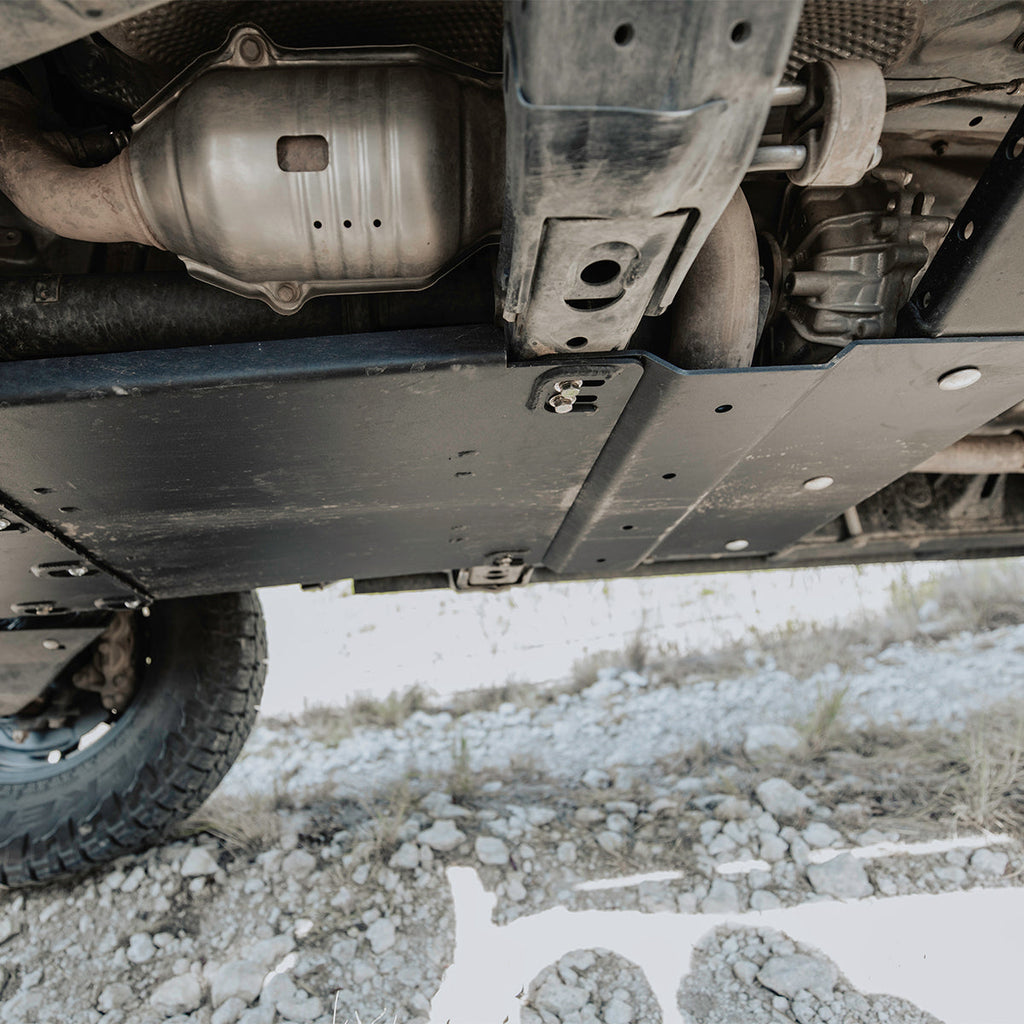

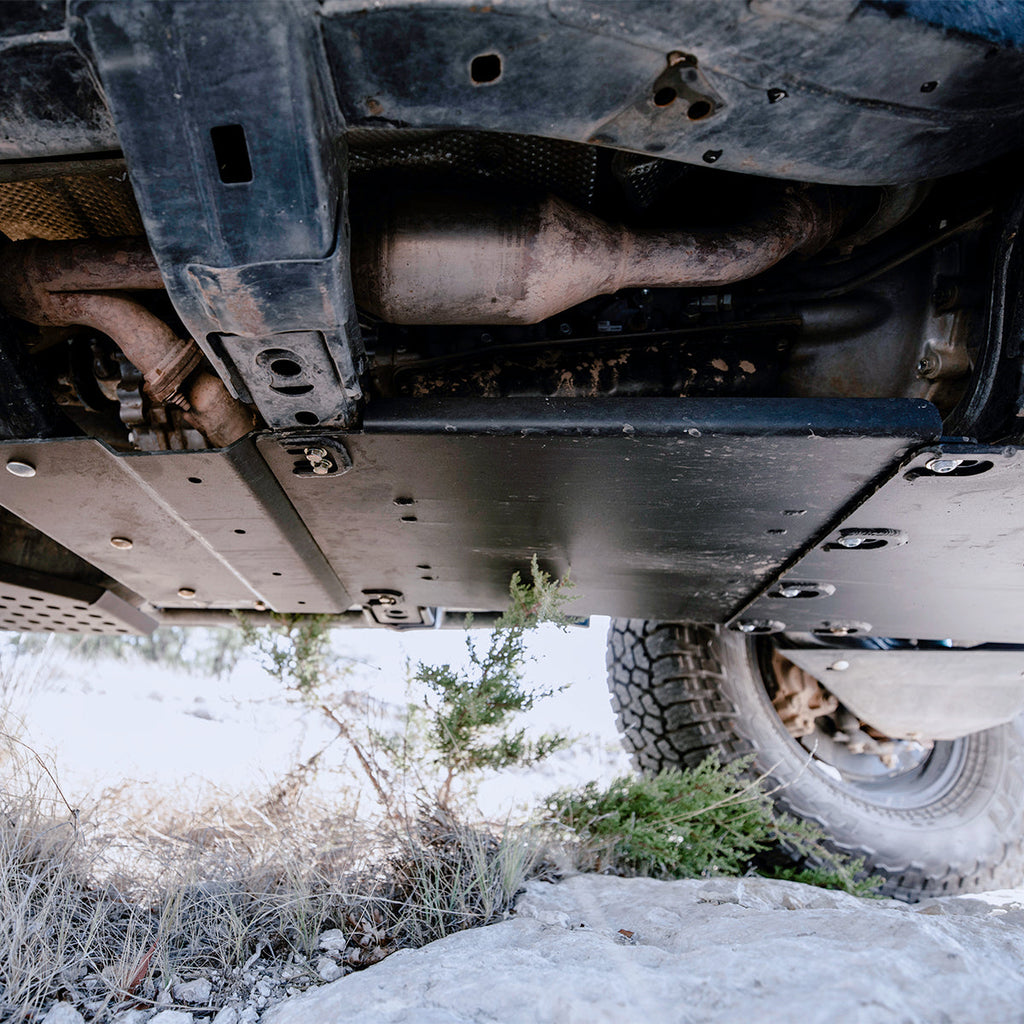

| Transmission skid | Transmission, plus about half the catalytic converter | No |

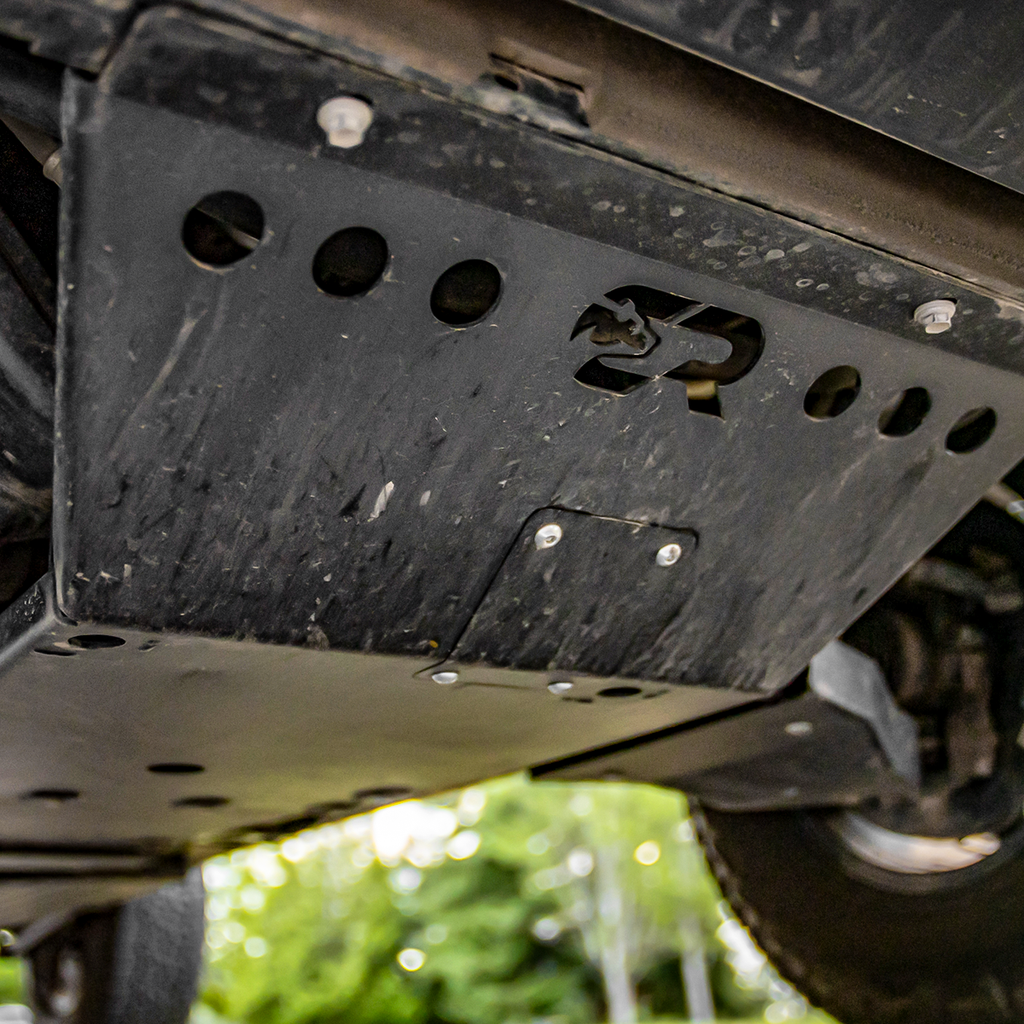

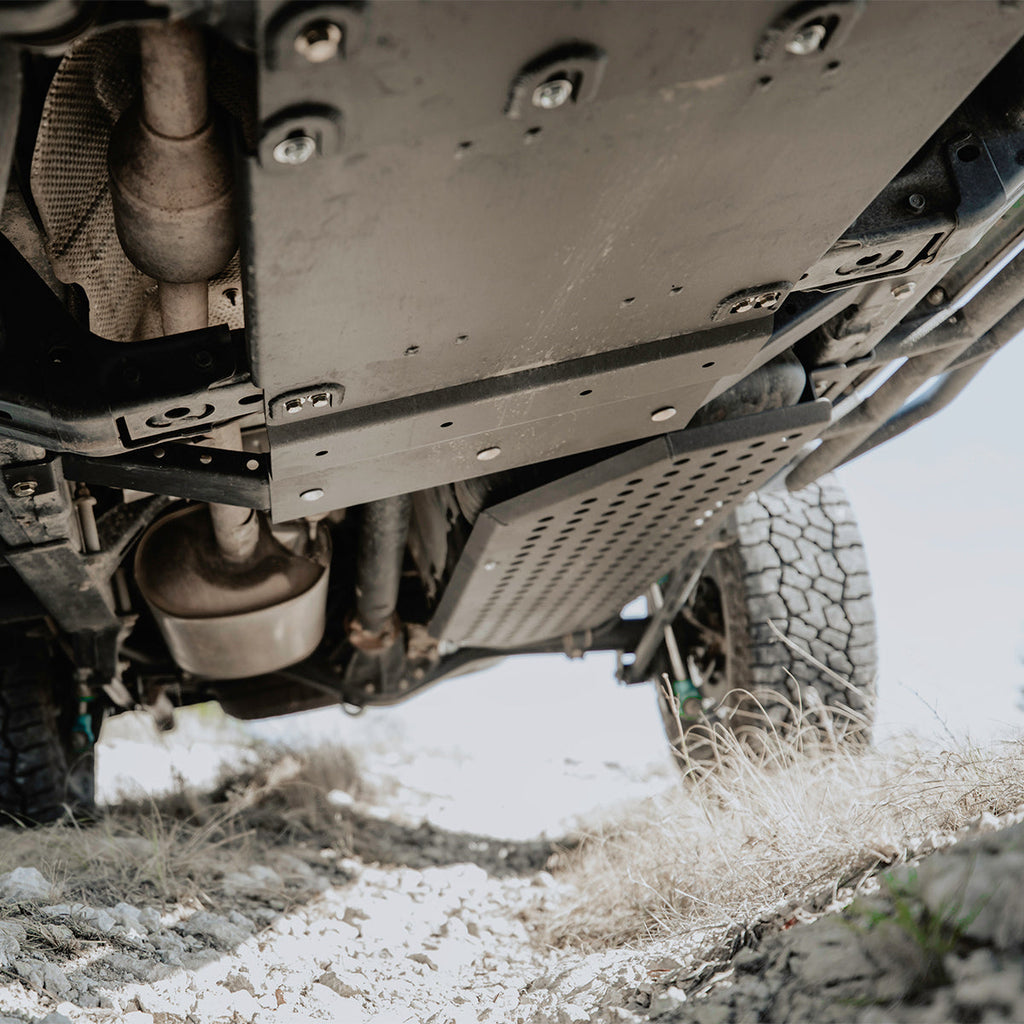

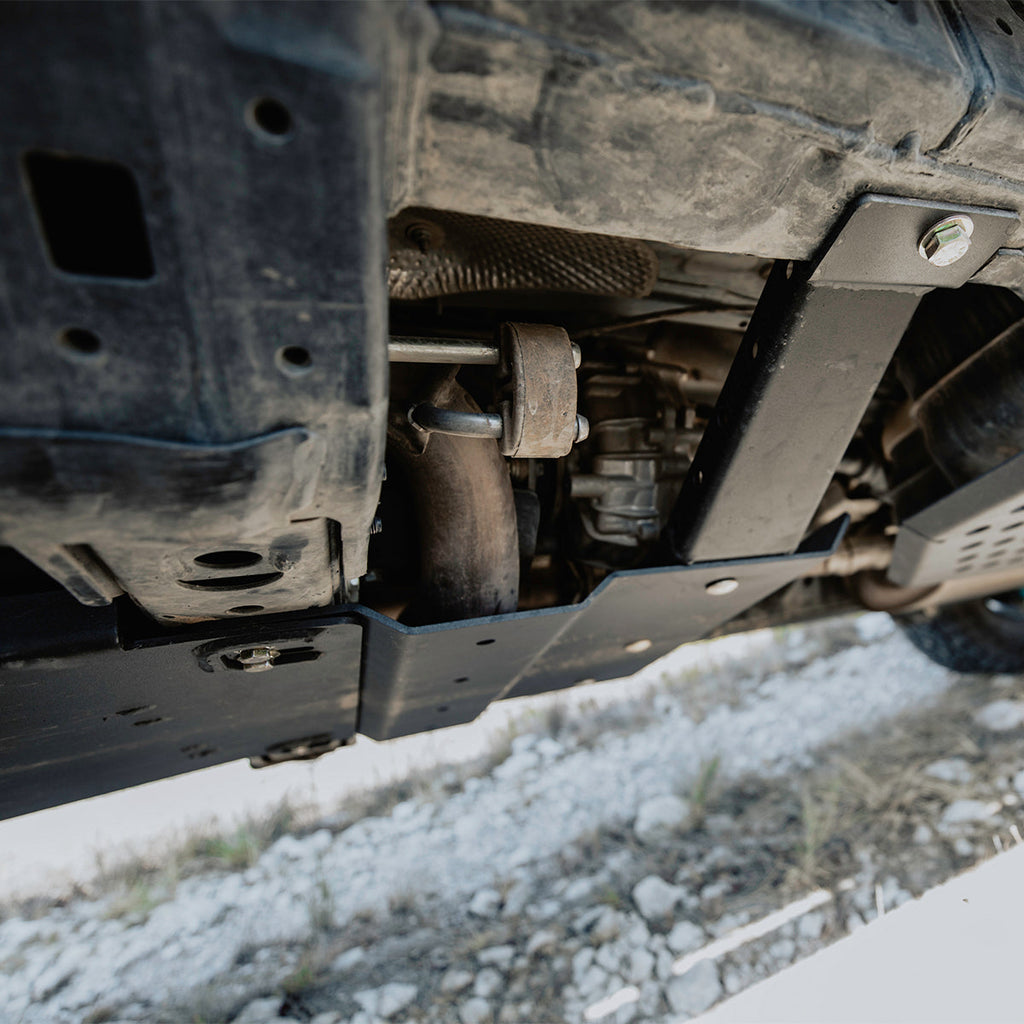

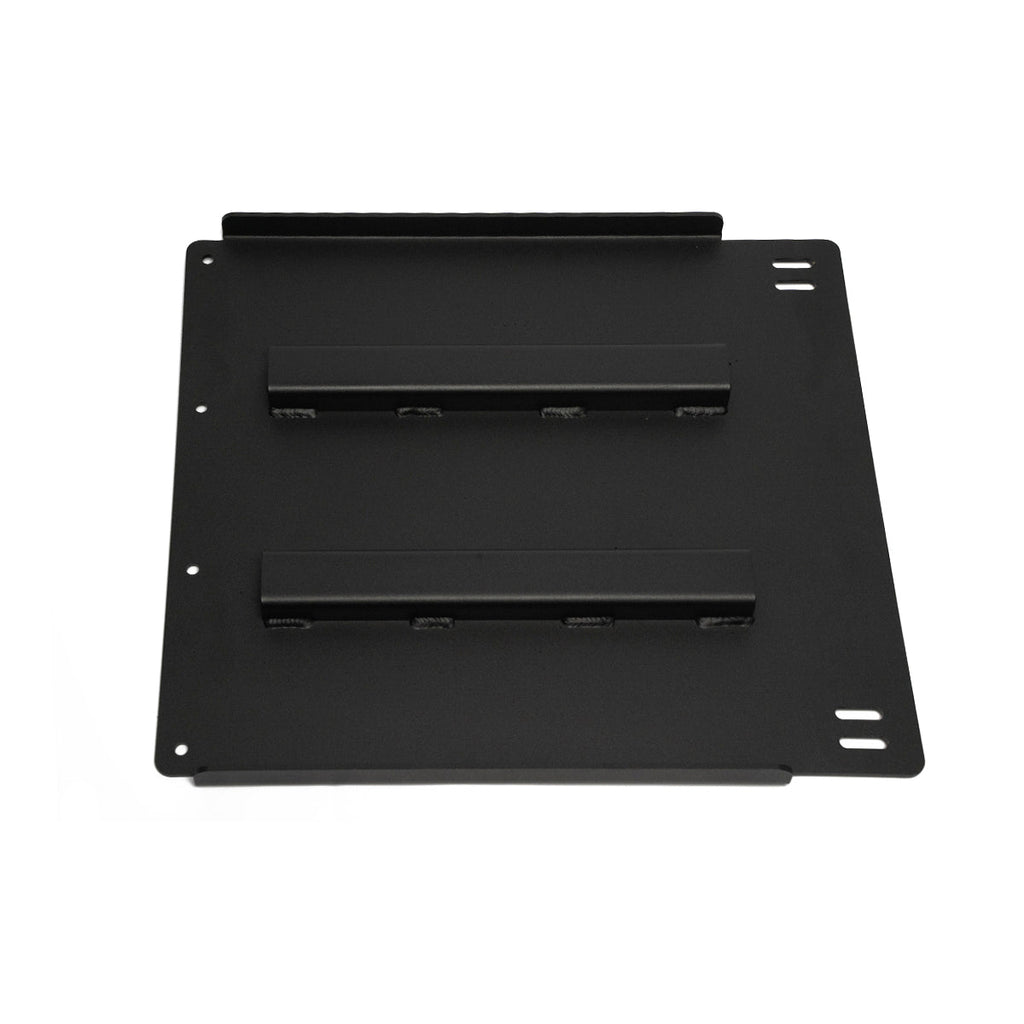

| Transfer case skid | Transfer case, where power splits to the front and rear driveshafts | Yes |

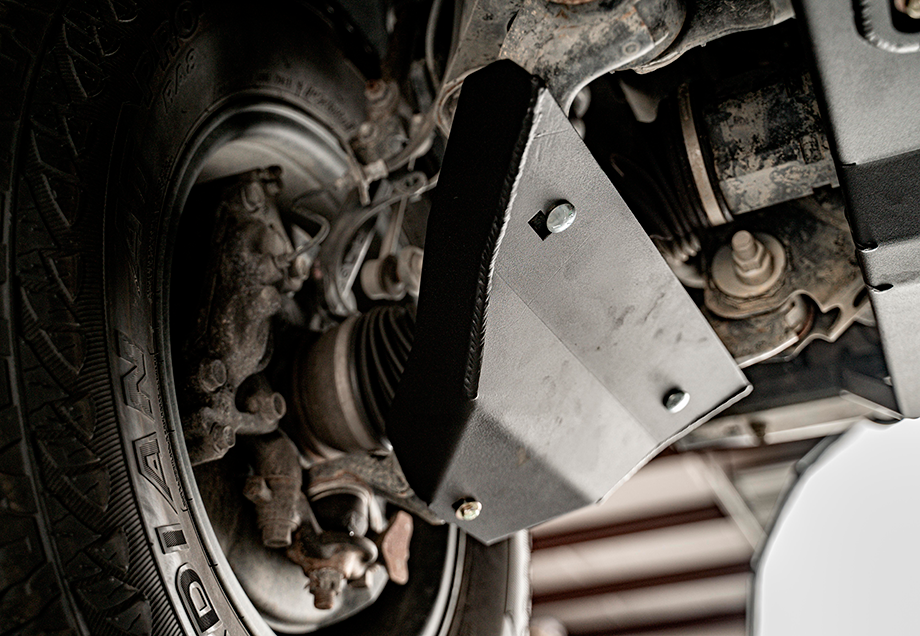

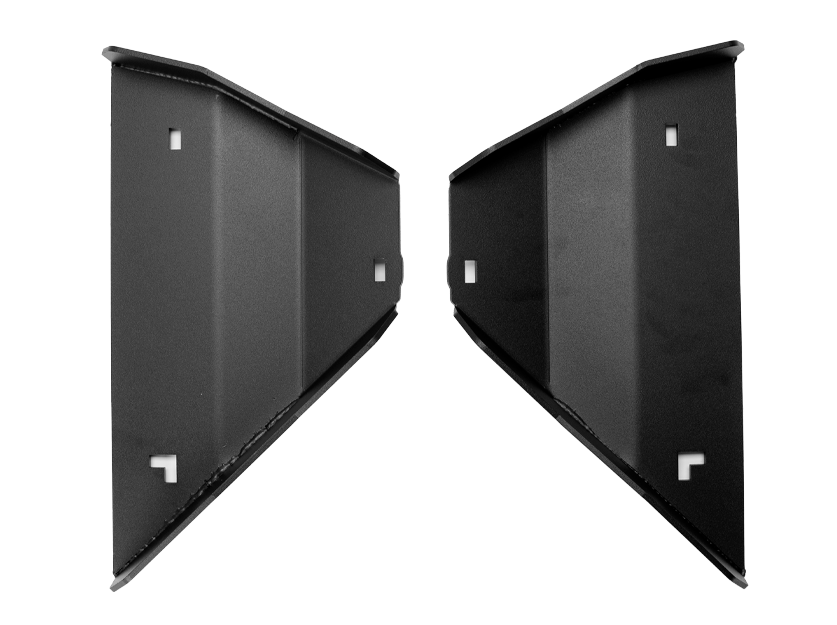

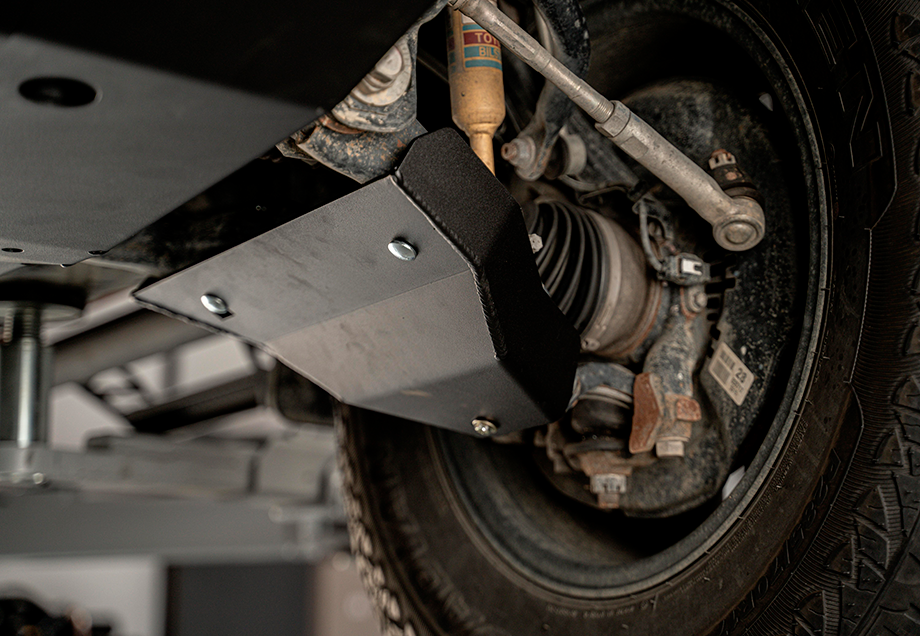

| Lower control arm skids | Front lower control arms | Yes |

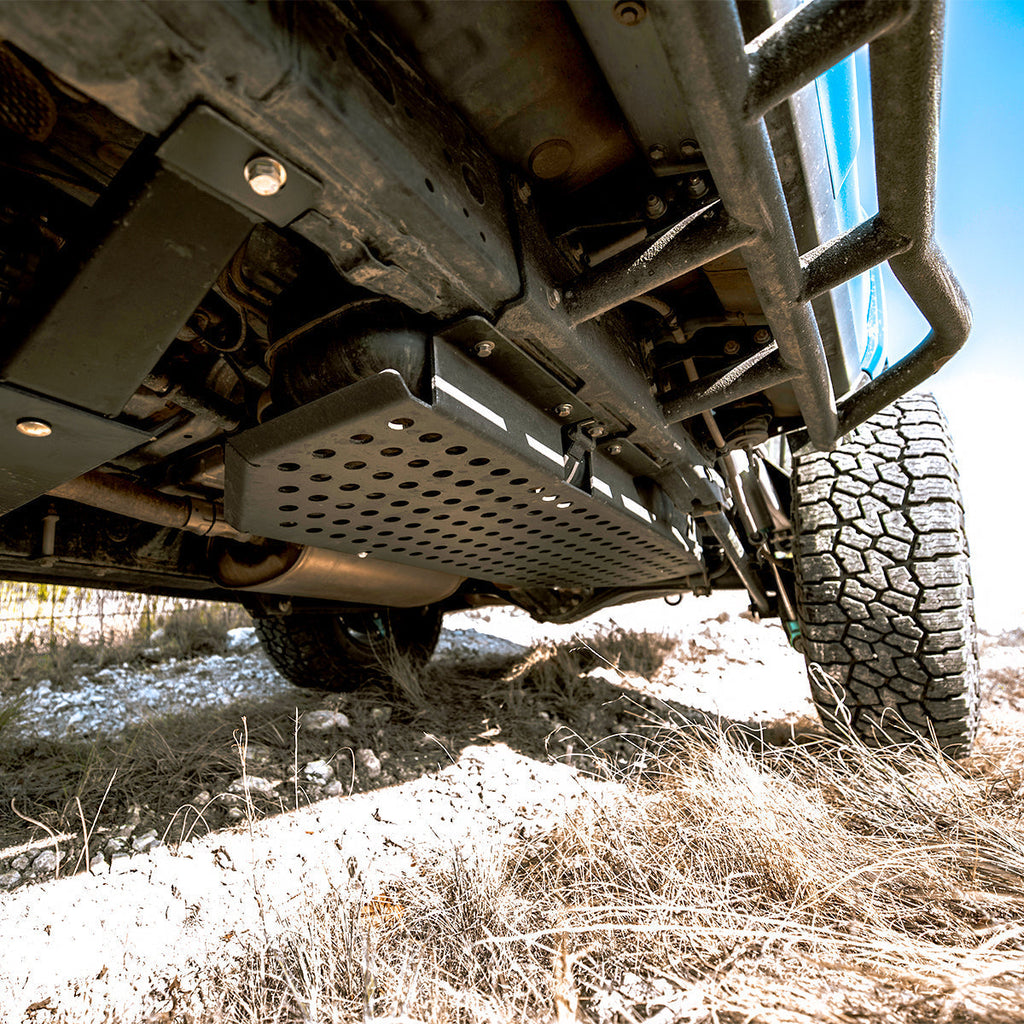

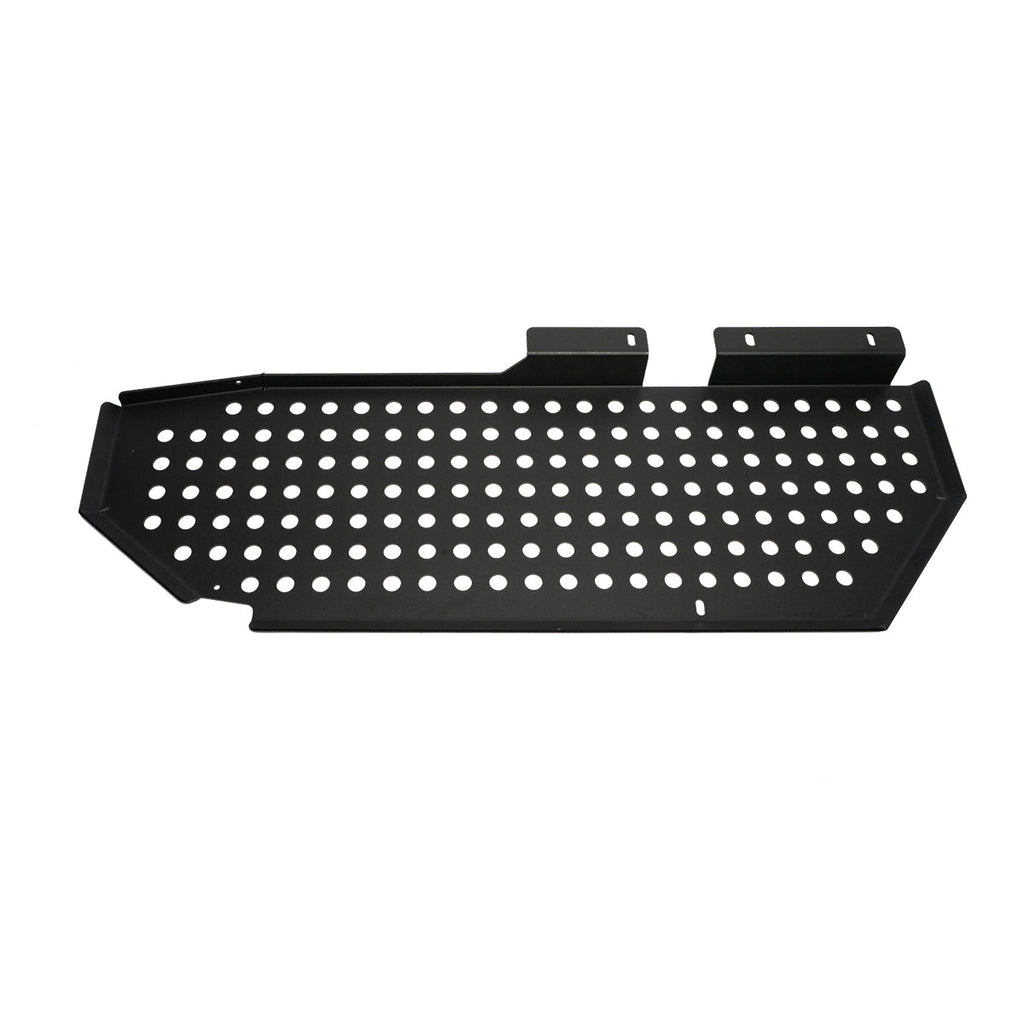

| Fuel tank skid | Fuel tank | Yes |
The transmission skid is designed to install with the front skid, which is one more reason the full set makes sense. Buy them separately and you need both anyway.
✓ A Bonus Against Catalytic Converter Theft
Cali Raised say the transmission skid covers about half of the catalytic converter, which makes it harder to get cutting tools in. They are clear the plates were not designed for theft prevention, so treat it as a side benefit, not a guarantee.
Steel or Aluminum? The Full Weight Breakdown
You choose the material once and it applies to the front, transmission, transfer case and fuel tank plates. The lower control arm skids are steel in both kits. These are Cali Raised's published weights.
| Plate | 3/16" Steel | 1/4" 5052 Aluminum |
|---|---|---|
| Front skid | 49.2 lbs | 20.5 lbs |
| Transmission skid | 31.1 lbs | 14.6 lbs |
| Transfer case skid | 35 lbs | 20.5 lbs |
| Fuel tank skid | 37.9 lbs | 16 lbs |
| Lower control arm skids | 15 lbs | 15 lbs (steel) |
| Full kit | About 168.2 lbs | About 86.6 lbs |
That is a difference of roughly 81.6 lbs. On a 4Runner already carrying sliders, a bumper, a roof rack and camping kit, that weight counts.
Choose Steel If
You crawl rocky trails regularly and drag the belly over rock. Steel slides better, resists denting and does not mind being abused.
Choose Aluminum If
Your 4Runner is an overland rig that already carries a lot of weight, and you want full 4Runner armor without the payload hit. A 4Runner aluminum skid plate in 1/4" 5052 is still a thick, strong plate. It is softer against sharp rock, so expect more gouging over time.
Looking for a 4Runner KDSS Skid Plate?
This is not it. KDSS, Toyota's Kinetic Dynamic Suspension System, is common on 5th gen trucks, particularly the TRD Off-Road, Trail and TRD Pro, and Cali Raised state these skid plates will not work with it. Better to find out here than halfway through the install. Your VIN is the quickest way to check, so send it over if you are unsure.
KDSS owners can still armor the sides. Cali Raised's Trail Edition and Step Edition rock sliders fit KDSS trucks.
Installation
Every plate is 100% bolt-on using existing holes, with a combination of factory hardware and Grade 8 hardware. You will remove some factory parts along the way, but nothing is cut or drilled, so you can return to stock whenever you like.
- Confirm 4WD, no KDSS and your fuel tank straps before you start.
- Get the truck safely on ramps or stands. The steel front skid alone is nearly 50 lbs.
- Start at the front. The transmission skid installs with the front skid, so fit the front plate first and work back.
- Use a floor jack or a helper to hold each plate while you start the bolts.
- Thread every bolt by hand before tightening any on that plate.
- Bag and label the factory parts you remove, in case you ever go back to stock.
- Re-check every bolt after your first trail run.
It is a big afternoon under the truck rather than a quick job, so plan for a full session. Questions about the install? Call us before you order and we will talk you through it.
Specifications
| Fitment | 2010-2024 Toyota 4Runner, 5th gen, 4WD only |
| KDSS | Not compatible |
| Plates included | Front, transmission, transfer case, lower control arms, fuel tank |
| Material options | 3/16" steel or 1/4" 5052 aircraft-grade aluminum |
| Lower control arm skids | Powder-coated steel in both kits |
| Kit weight | About 168.2 lbs steel, about 86.6 lbs aluminum |
| Finish | Semi-gloss black powder coat |
| Hardware | Factory plus Grade 8 |
| Installation | 100% bolt-on, existing holes, no drilling or modification |
| Fuel tank skid | Uses the bolts from TRD Off-Road fuel tank straps |
| TRD Pro factory skid | Front and transmission skids not compatible |
| Reversible | Yes, can return to stock |
| Fabricated in | Fort Worth, Texas |
What's Included
- Front skid plate
- Transmission skid plate
- Transfer case skid plate
- Lower control arm skids (steel)
- Fuel tank skid plate
- Grade 8 mounting hardware
Pros
- Full underbody coverage in one order, with matching finish
- Aluminum kit saves about 81.6 lbs over steel
- Bolt-on with existing holes and fully reversible
- Front and transmission plates arrive together, as they install
Cons
- Not for KDSS or 2WD trucks
- Fuel tank skid needs TRD Off-Road tank straps
Frequently Asked Questions
Which 5th gen 4Runner skid plates are in the kit?
All five: front, transmission, transfer case, lower control arms and fuel tank, plus the Grade 8 hardware to fit them.
Will it fit my 2014, 2018 or 2023 4Runner?
Yes, if it is 4WD and does not have KDSS. The kit is designed to fit every 2010-2024 5th gen 4Runner that meets those two conditions.
If I choose aluminum, is every plate aluminum?
No. The front, transmission, transfer case and fuel tank plates are 1/4" 5052 aluminum. The lower control arm skids are powder-coated steel in both kits.
How much does the full kit weigh?
About 168.2 lbs in steel and 86.6 lbs in aluminum, based on Cali Raised's published weights for each plate.
Do I need anything extra for the fuel tank skid?
Possibly. It is designed to use the bolts that come with the TRD Off-Road fuel tank straps. If your 4Runner has different straps, you will need the TRD Off-Road ones first.
Complete Your Build
Steel or Aluminum? KDSS or Not?
Send us your VIN and we will confirm fitment, check your tank straps and ship the full set of 4Runner skid plates in the material you want.
