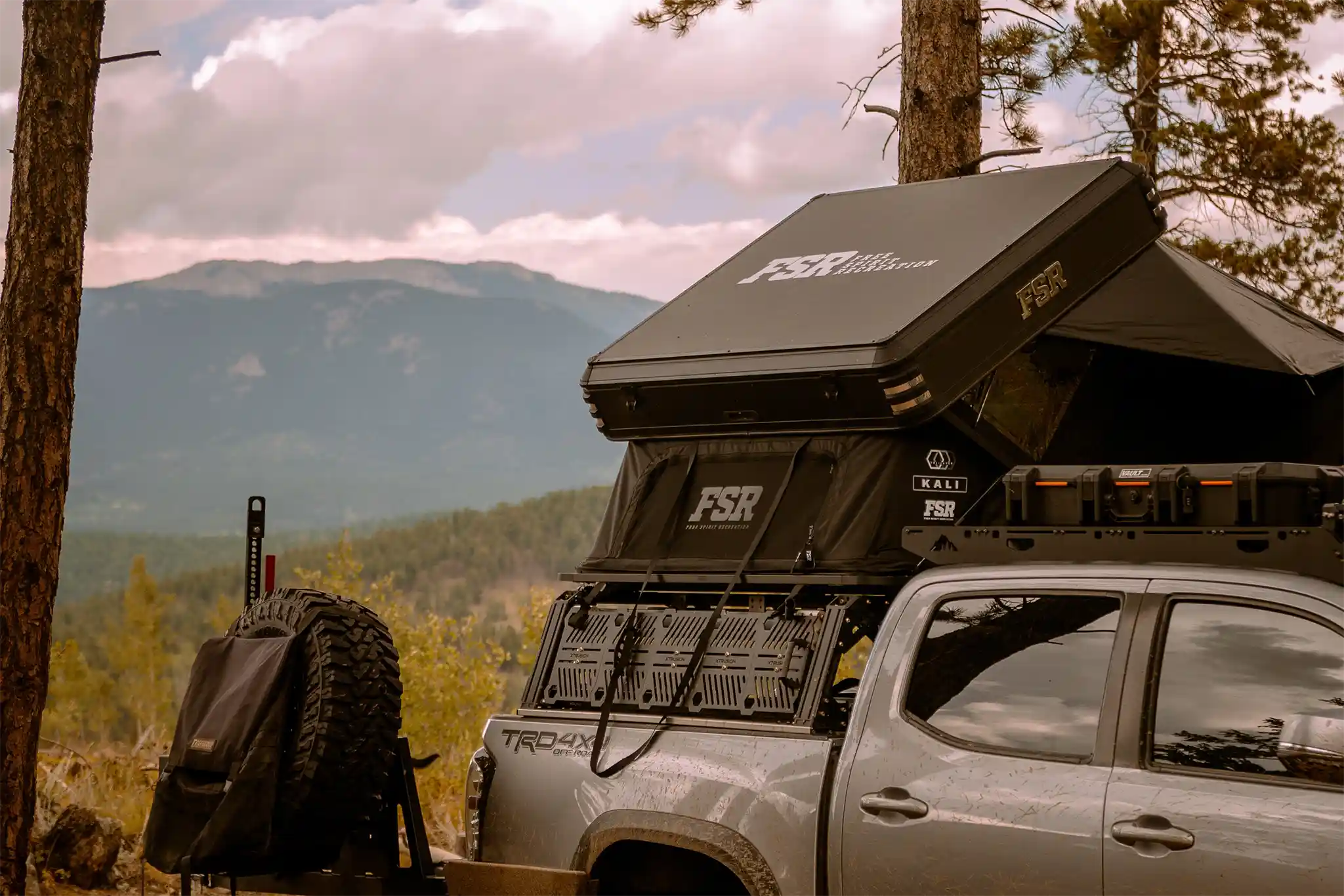

Rack rail length is the constraint nobody mentions until they try to buy a rooftop tent. Most hardshells close to somewhere between 78 and 84 inches long, which is fine on a full-size platform rack and a problem on a short bed rack, a compact cab rack, or an SUV roof that already has other things on it. The Kali closes to 59 inches. That is roughly two feet shorter than a typical hardshell, and it is the reason this tent fits builds the others cannot.

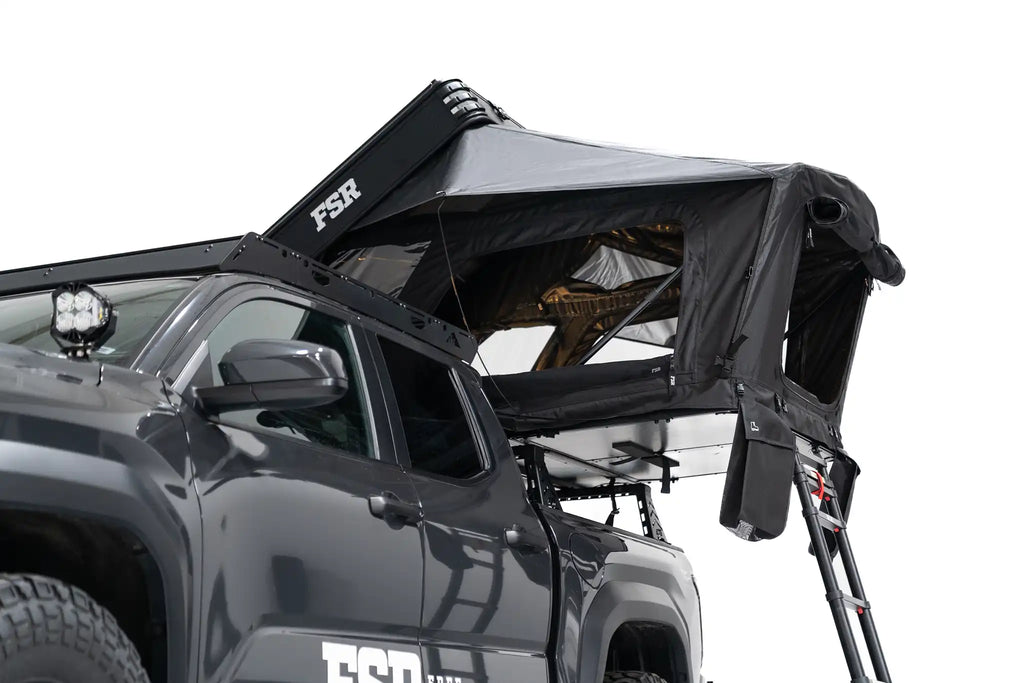

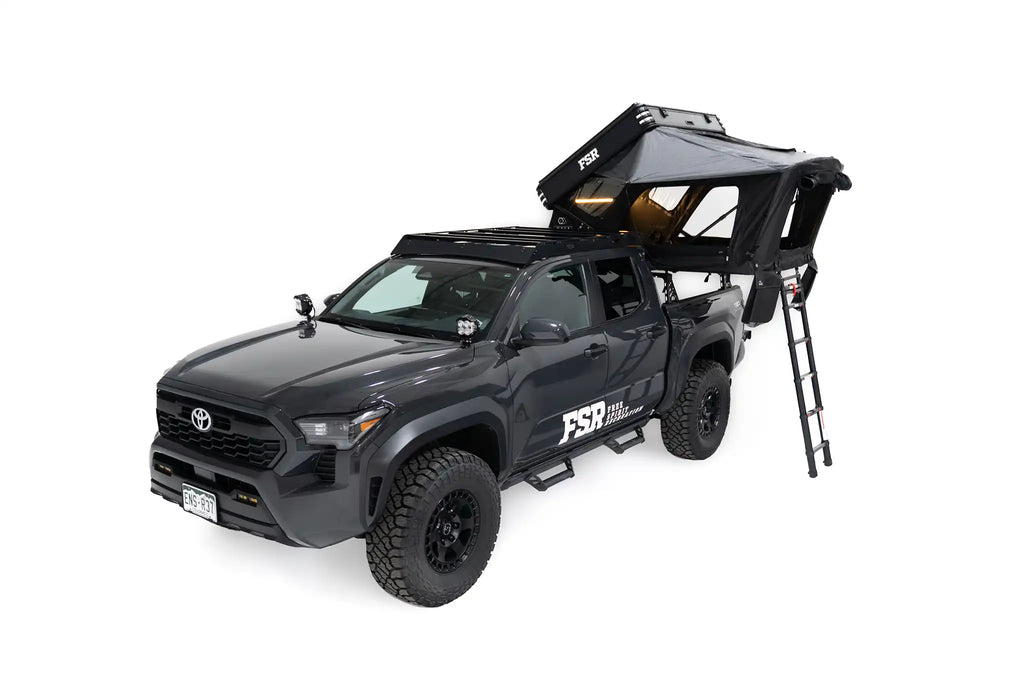

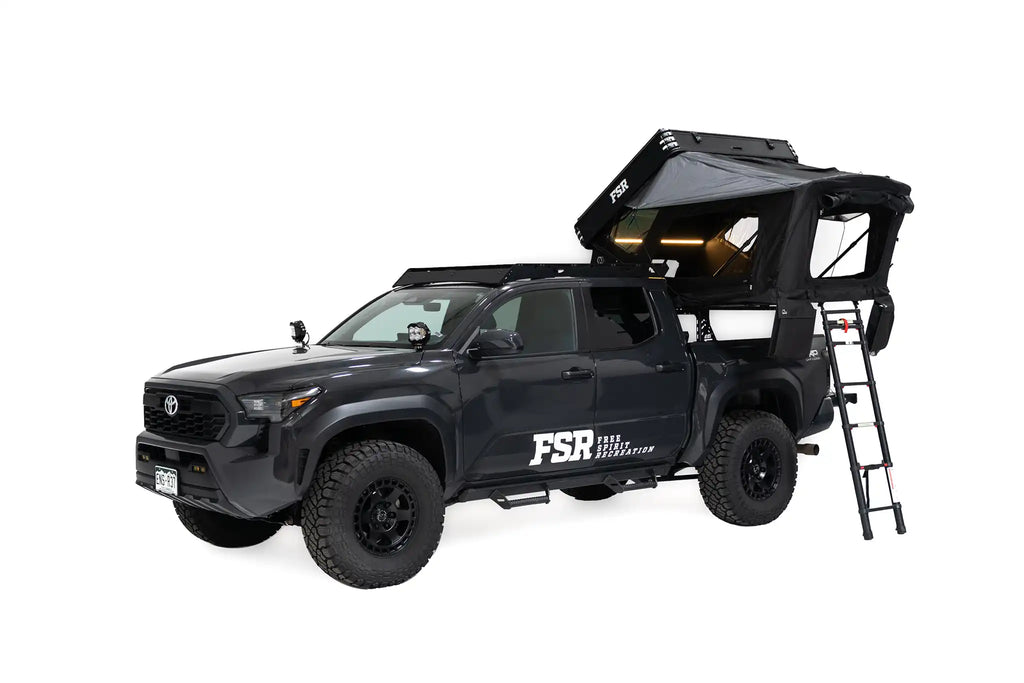

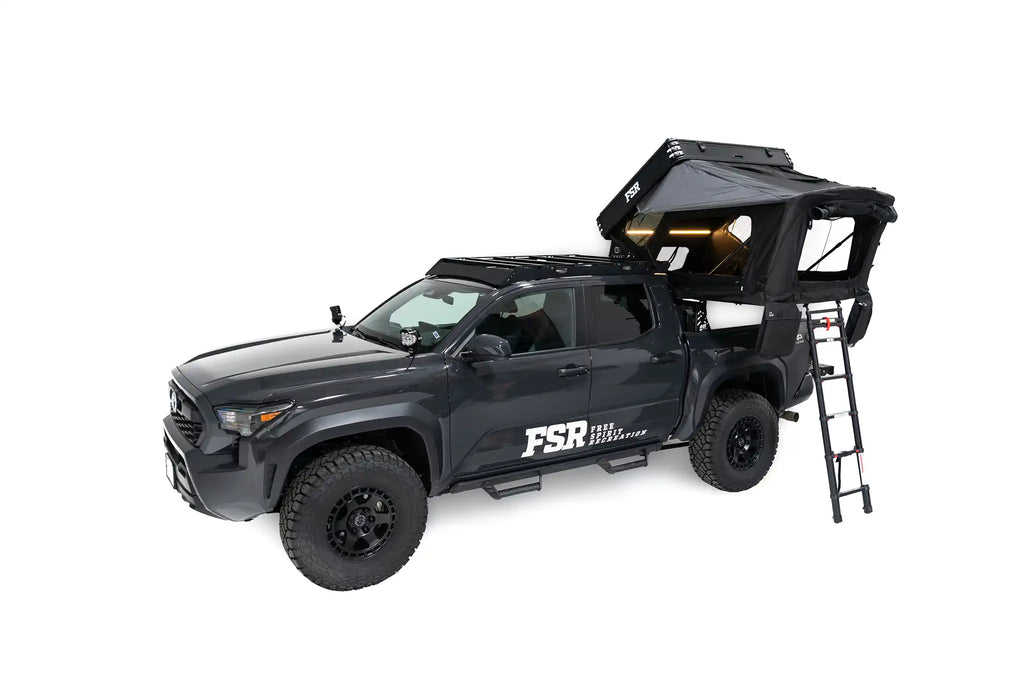

It achieves that with a dual-hinge pop up design. The shell opens and extends at both ends, expanding a 59 inch closed footprint into an 82 inch long interior. Headroom is 48.5 inches, the most of any FSR tent, so sitting up inside is comfortable rather than a compromise. The whole body is wrapped in FSR's patented Tri-Layer insulation, the floor is a rigid fiberglass honeycomb plate with a 3D anti-condensation mat, and gas struts pop it open in under a minute. Memory foam mattress, 7.5 foot auto-collapse ladder, dimmable LED lighting, and mount kit all included.
Dual-Hinge: Small Closed, Big Open

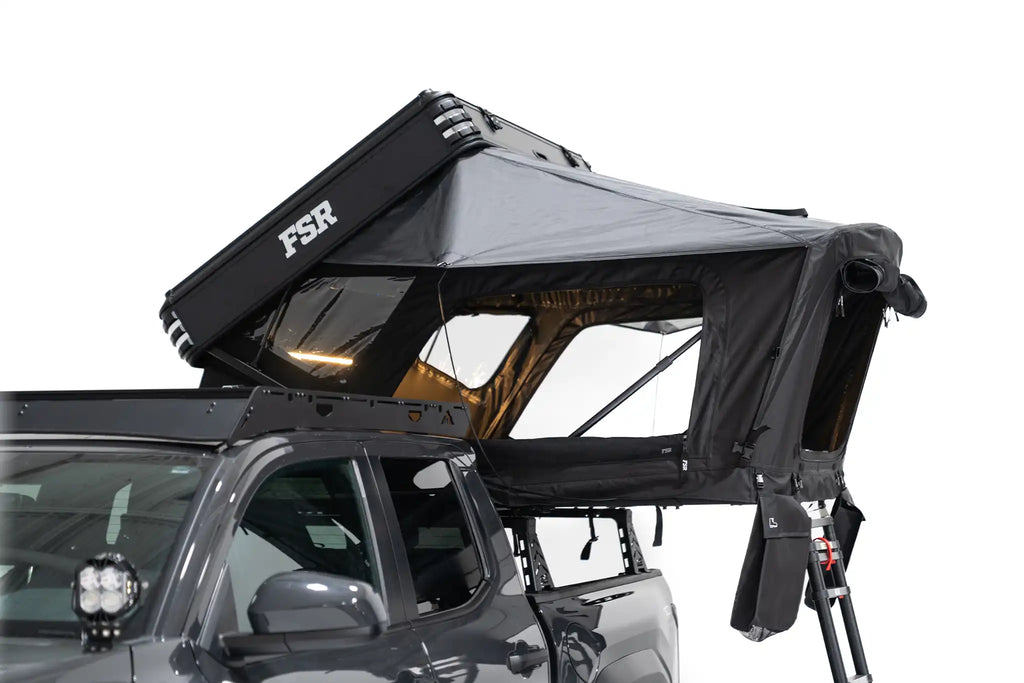

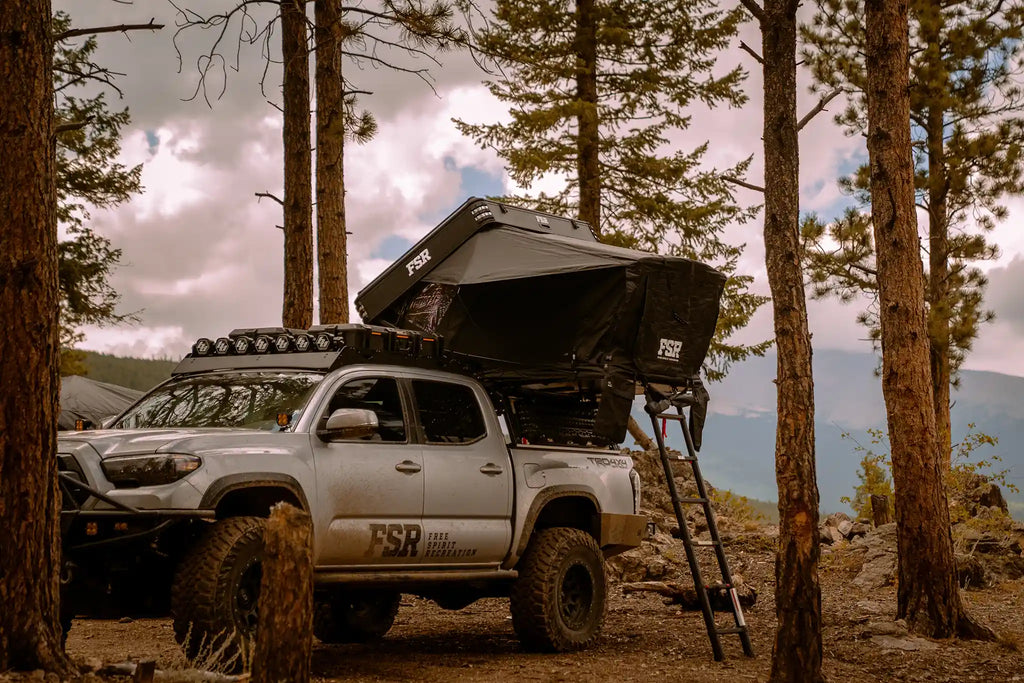

The Kali opens at both ends rather than hinging from one side. That turns a 59 inch closed footprint into an 82 inch long interior, a gain of roughly two feet you are not carrying around all week. For a short bed rack, a compact cab rack, or an SUV roof that also needs to hold crossbars and gear, this is the difference between a rooftop tent fitting and not fitting. You get a genuine 2 to 3 person sleeping space from a footprint closer to a cargo box.
Aluminum Shell, Fiberglass Honeycomb Floor
The shell is aluminum hardshell construction, closing to 12 inches including the mounting rail. Underneath, the floor is a fiberglass honeycomb plate rather than a fabric or plywood base. Honeycomb is rigid, so there is no sag under load and no flex when you move around at night, and the structure itself insulates against cold transferring up from the rack. A 3D anti-condensation mat sits on top of it, which is what keeps moisture from collecting between the mattress and the floor.
See It Deploy
Dimensions
Four views covering the tent open, closed, and inside. The closed dimensions are the ones to check against your rack's usable rail length before ordering.

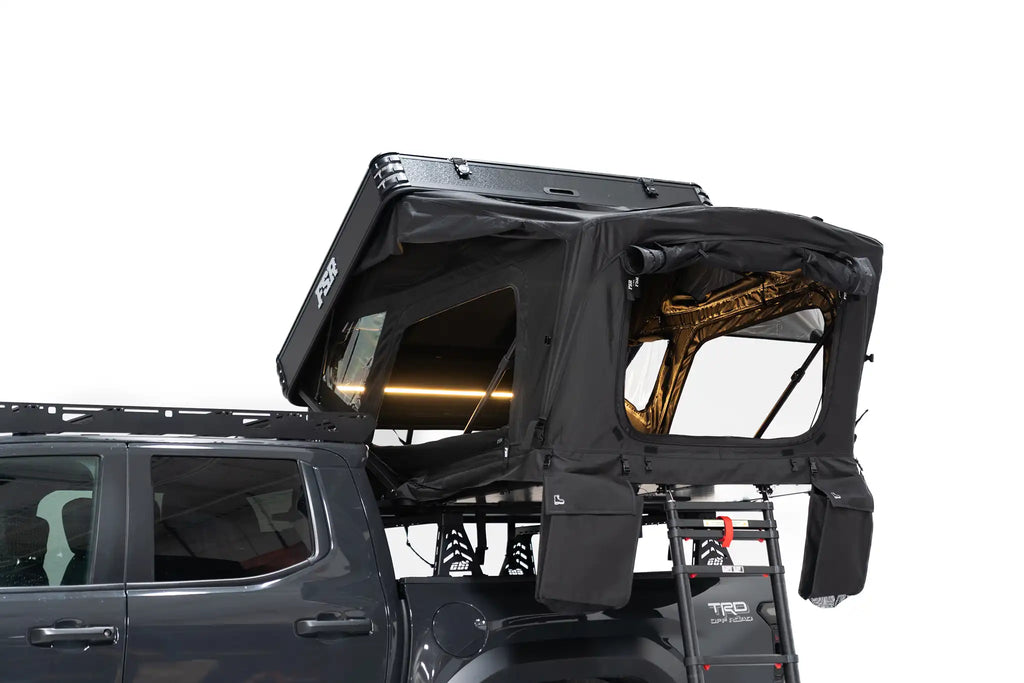

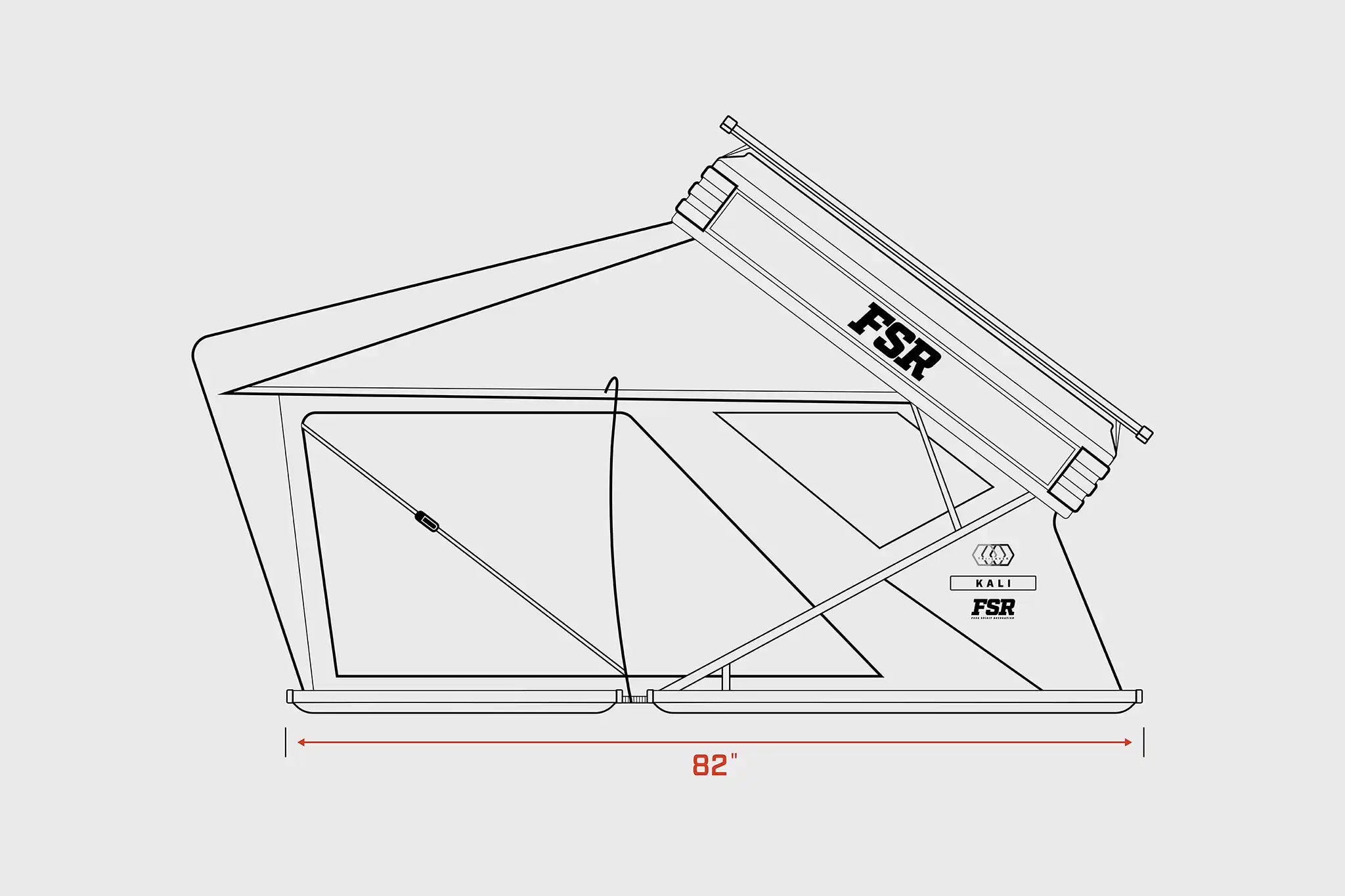

Open: Length & Height
Deployed side profile showing the dual-hinge extension.

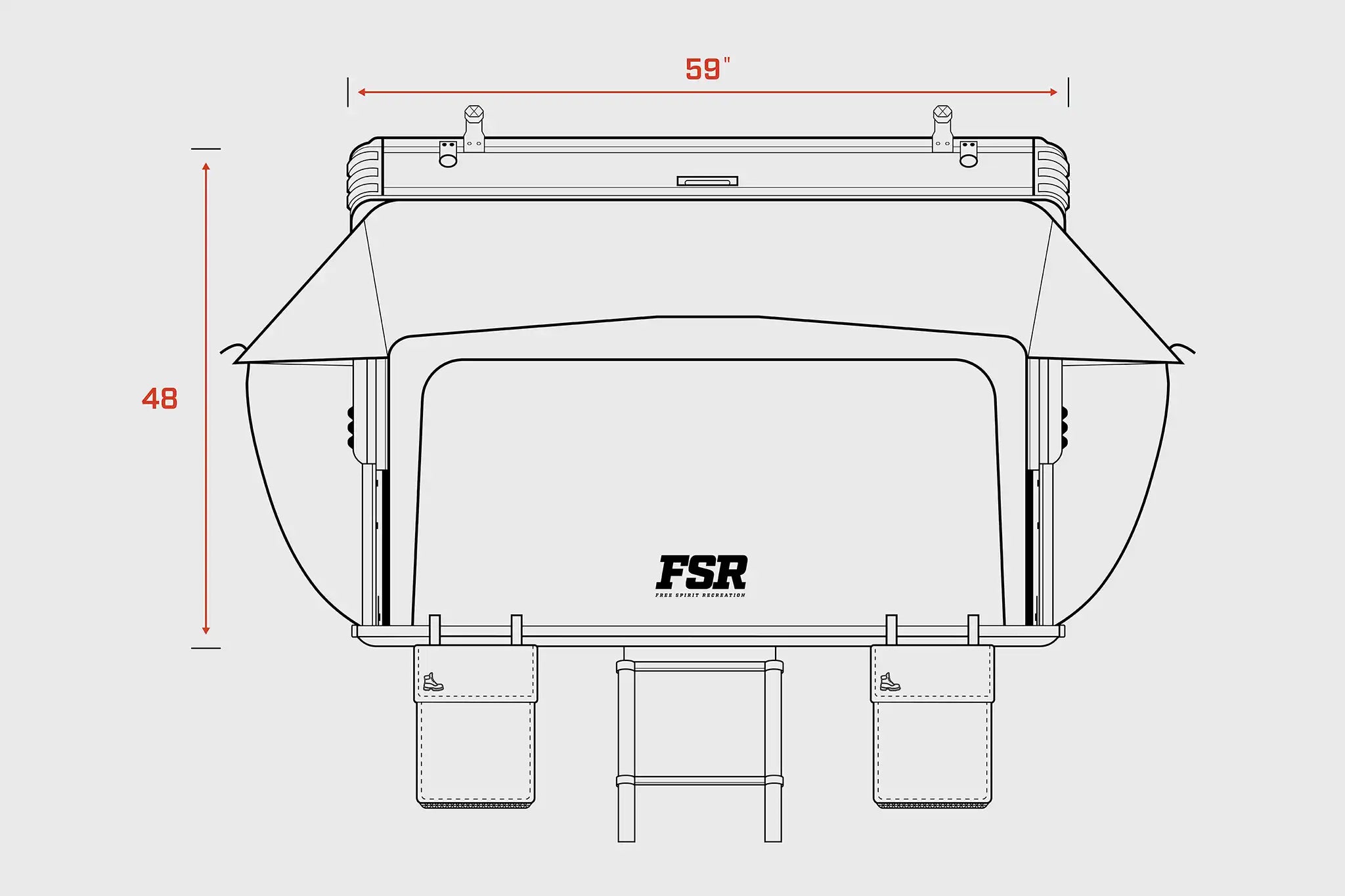

Open: Width & Height

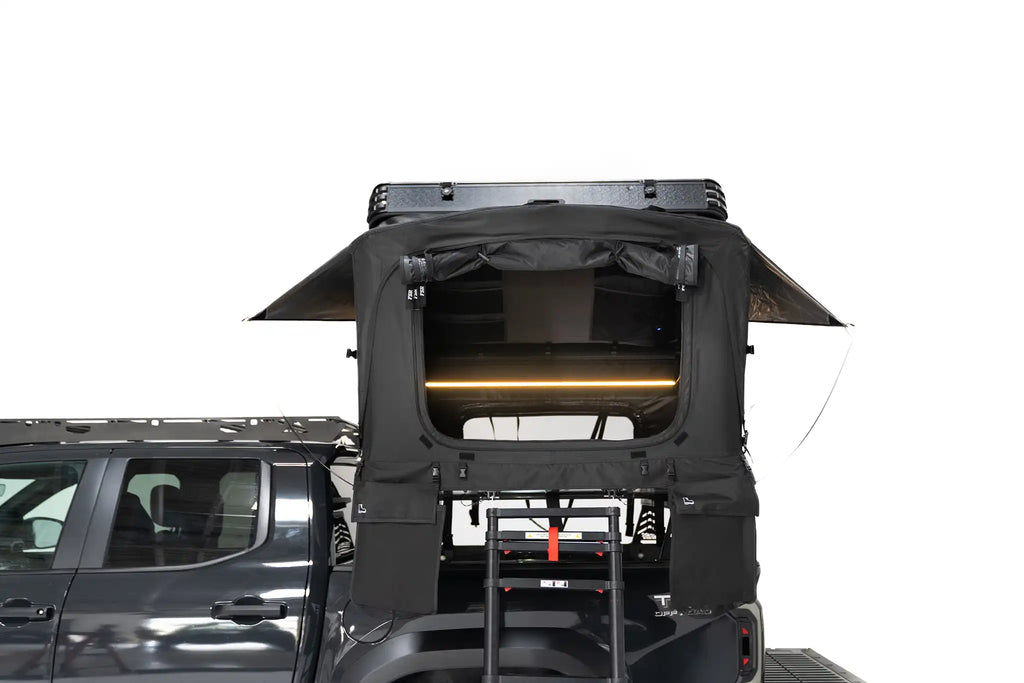

Front view with the tent deployed.

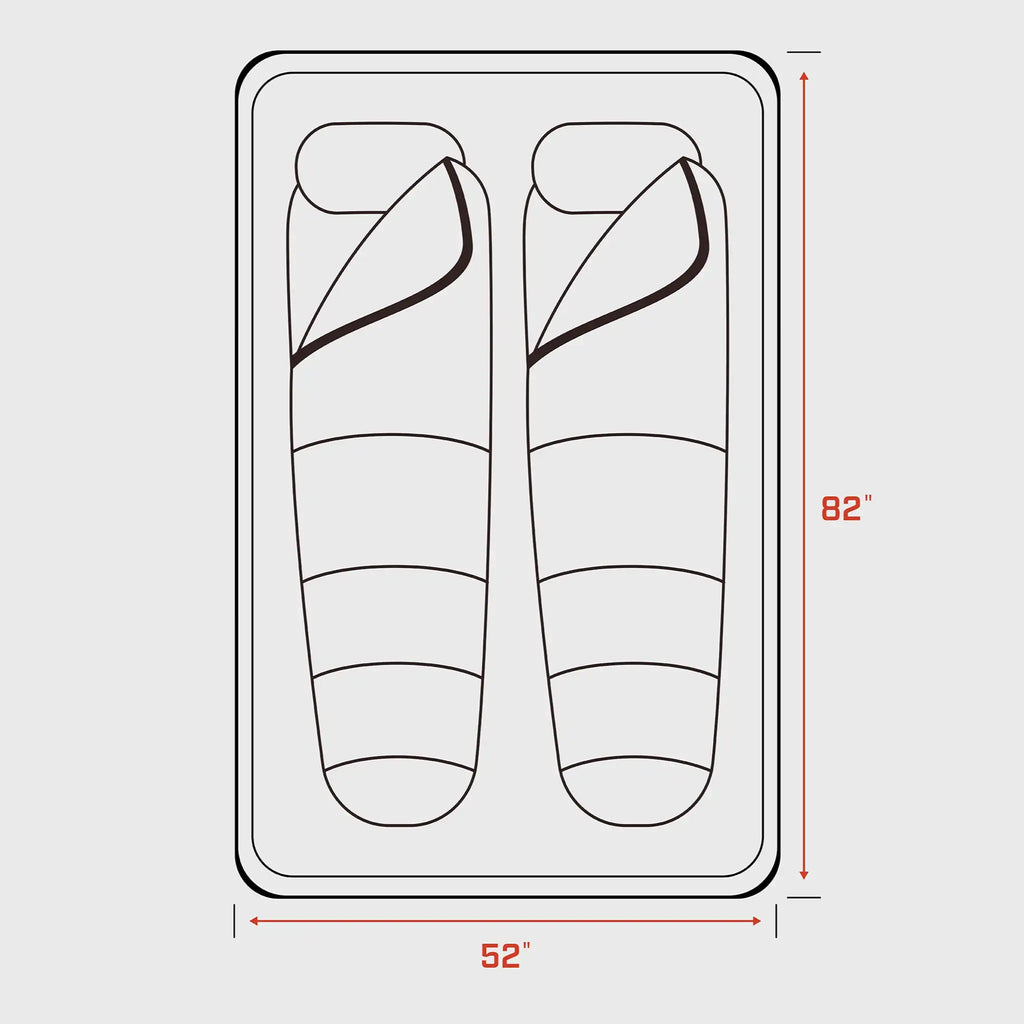

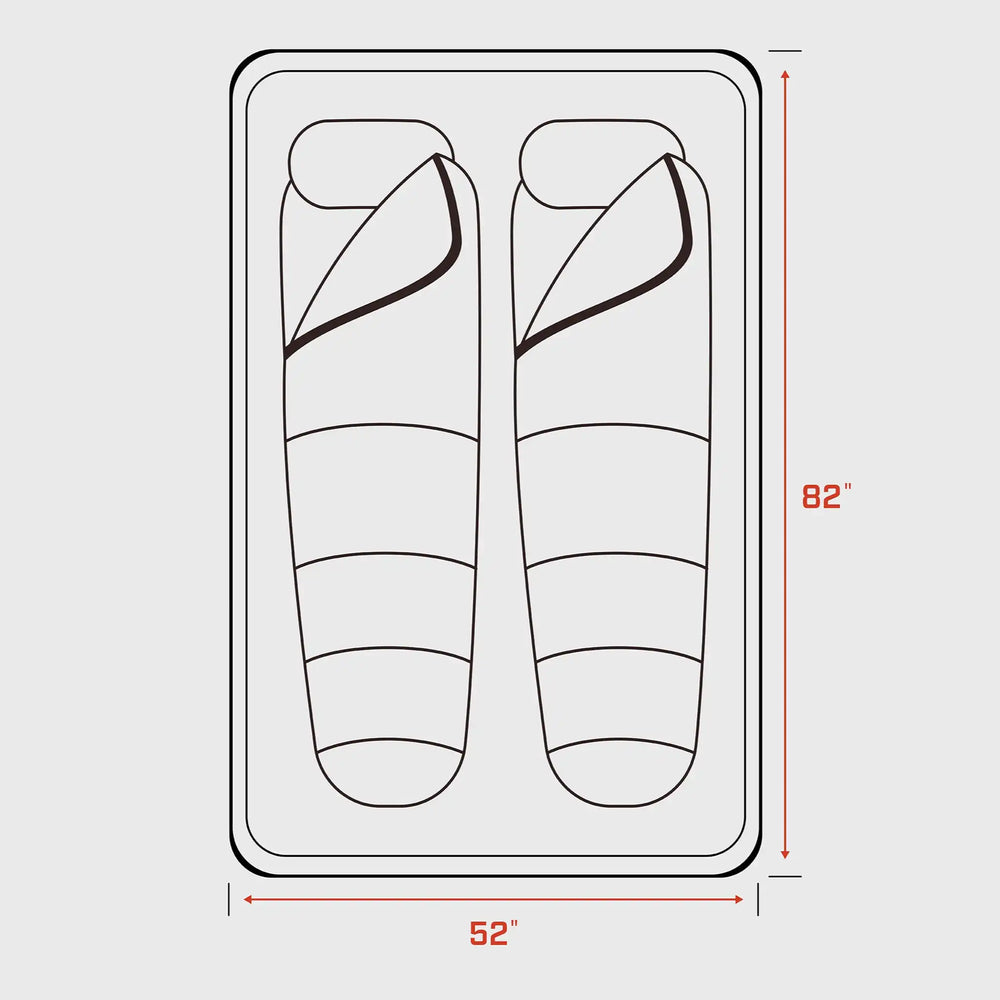

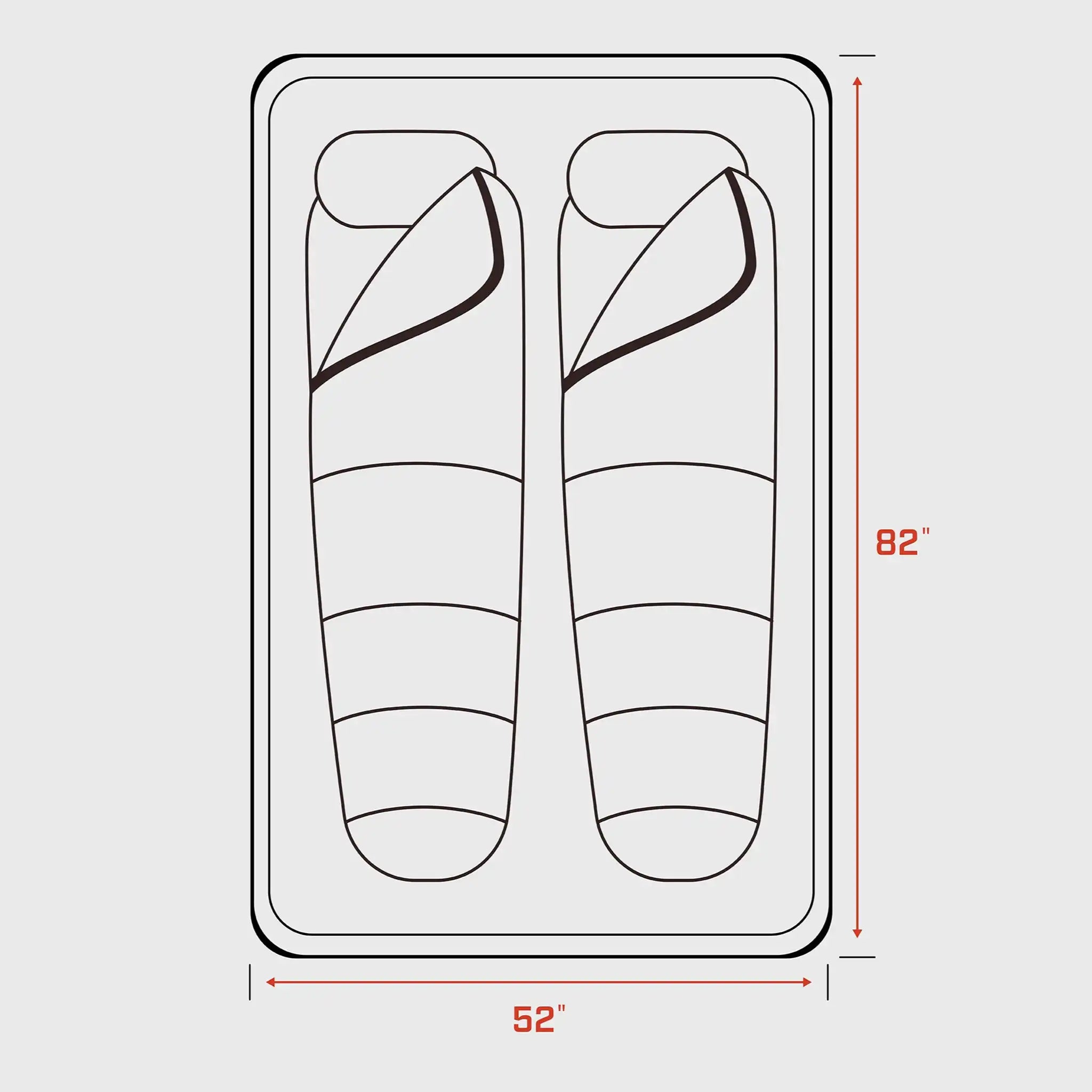

Interior
52" W x 82" L x 48.5" H of usable space.

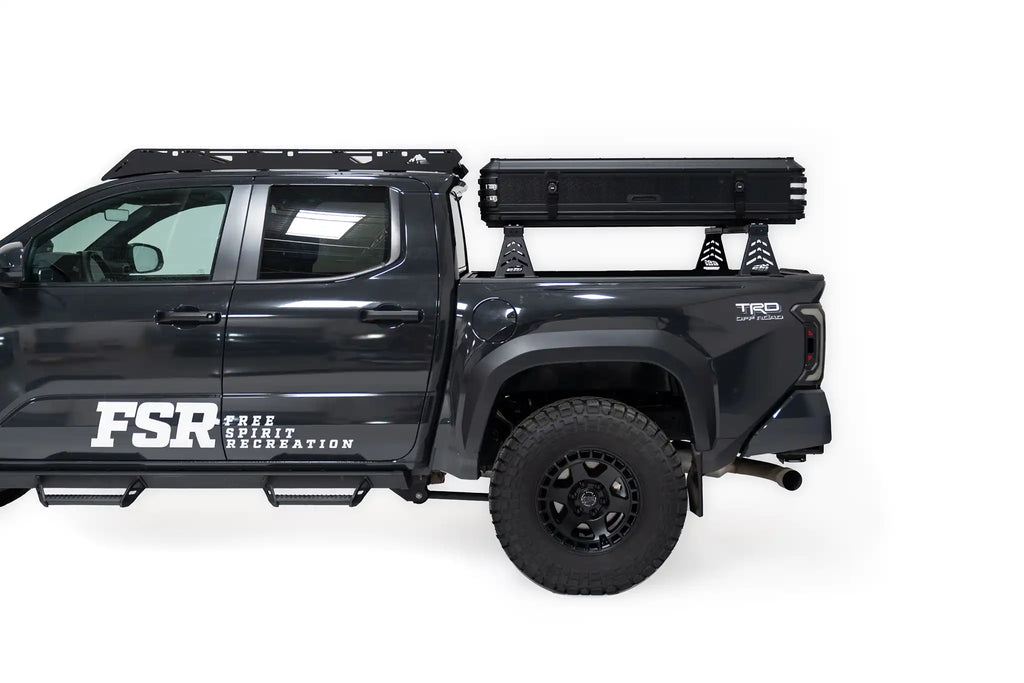

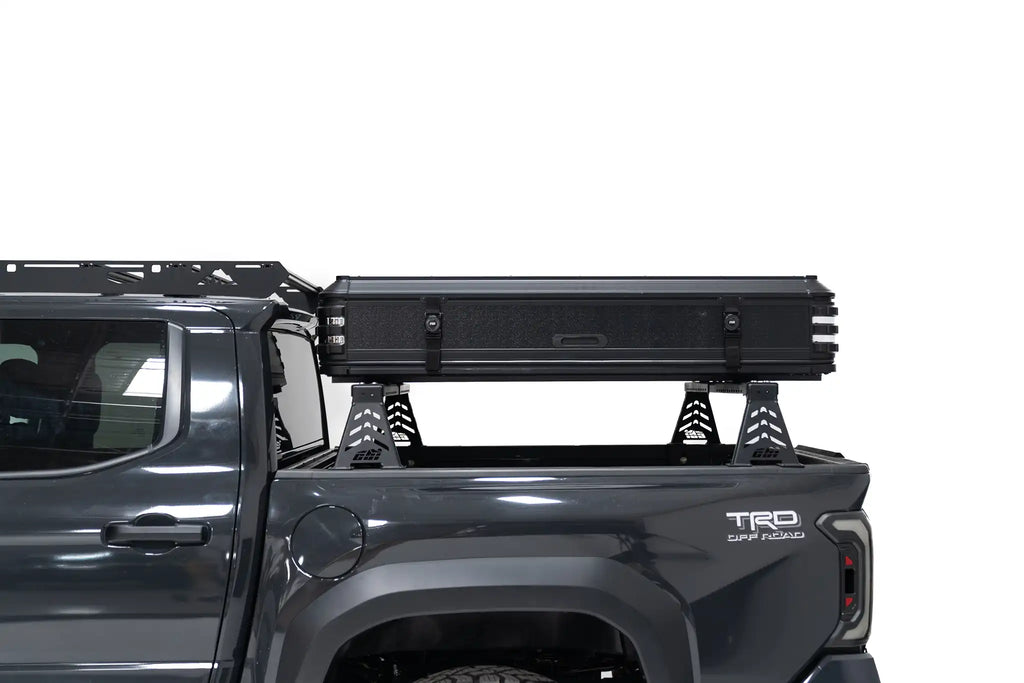

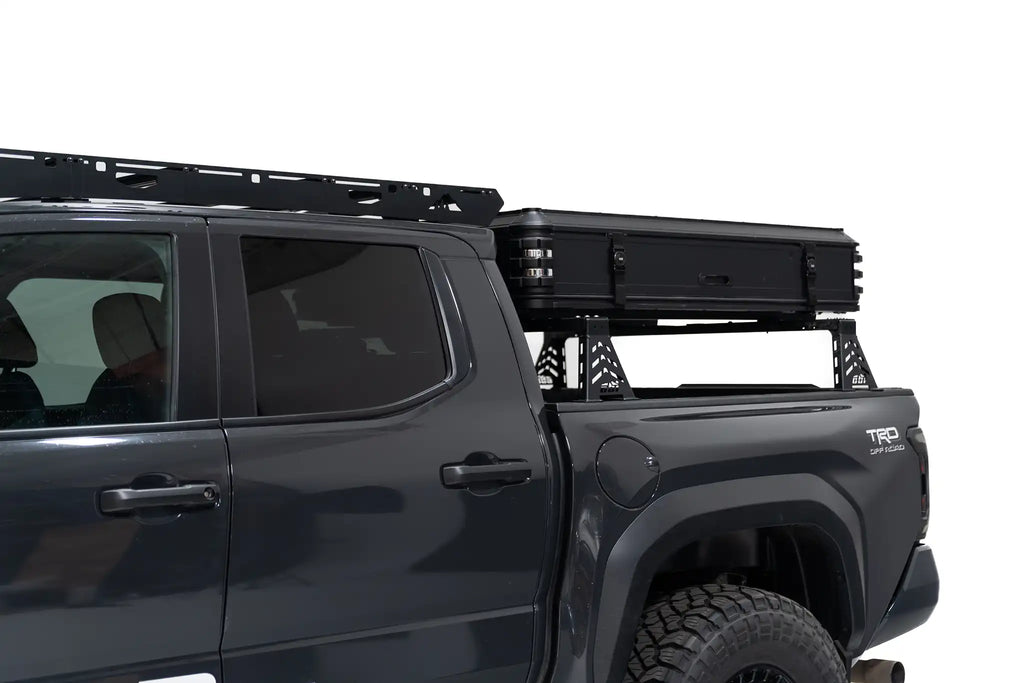

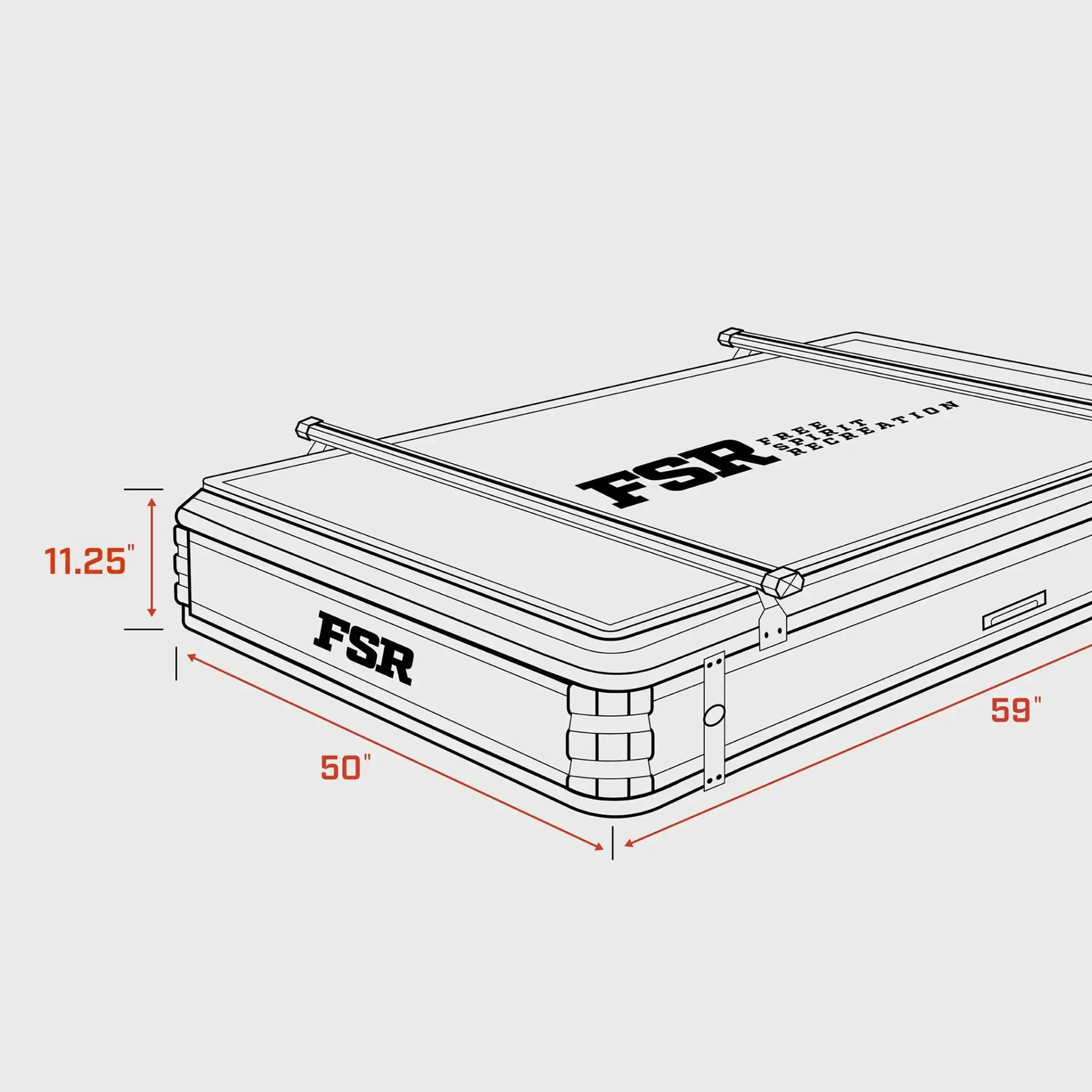

Closed
50" W x 59" L x 12" H including mounting rail.
What Makes It an FSR
Patented Tri-Layer Body: A polycotton fill sandwiched between two layers of 210D ripstop, armoring the entire tent rather than just the roof panel. FSR describes it as working like a canteen, holding heat in when it is cold and blocking it when it is hot. Tri-Layer materials are 100% waterproof, so insulation does not cost you weather protection.

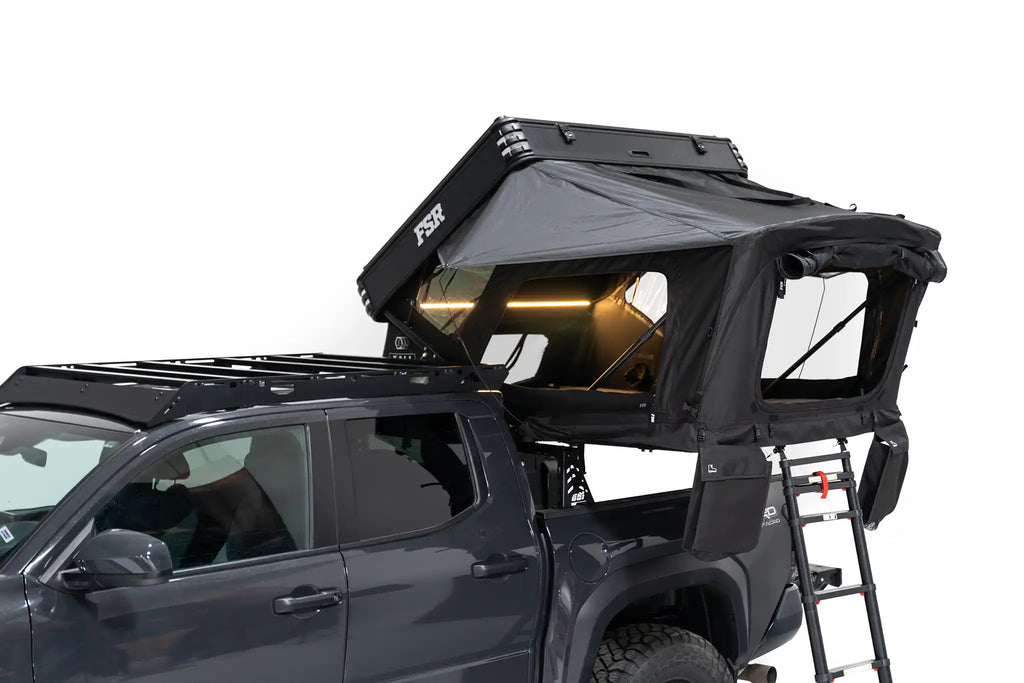

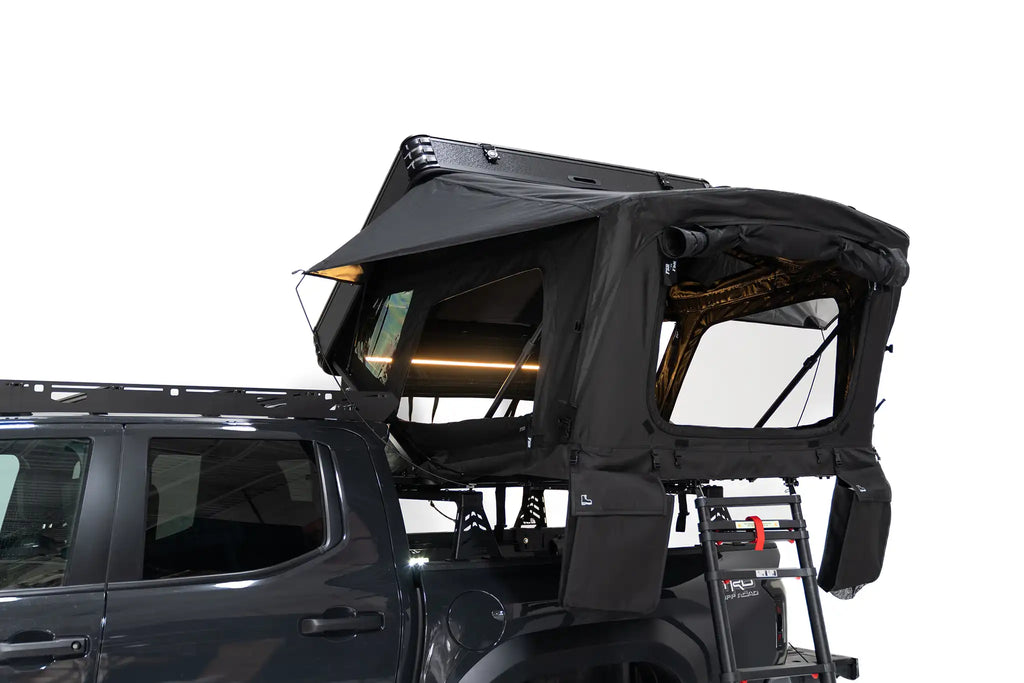

360 Degree Ventilation: Venting placed all the way around the tent, paired with the 3D anti-condensation mat under the mattress. Condensation is the most common rooftop tent complaint, and airflow plus a mat that lets the mattress breathe is what actually addresses it.
Gas-Strut Assisted with Strut Locks: Struts do the lifting, and included strut locks hold the shell positively rather than relying on strut pressure alone. Setup is under a minute.
Auto-Collapse Ladder: The 7.5 foot telescoping ladder collapses automatically rather than requiring you to work each section down by hand. Small thing, appreciated every single time you pack up.

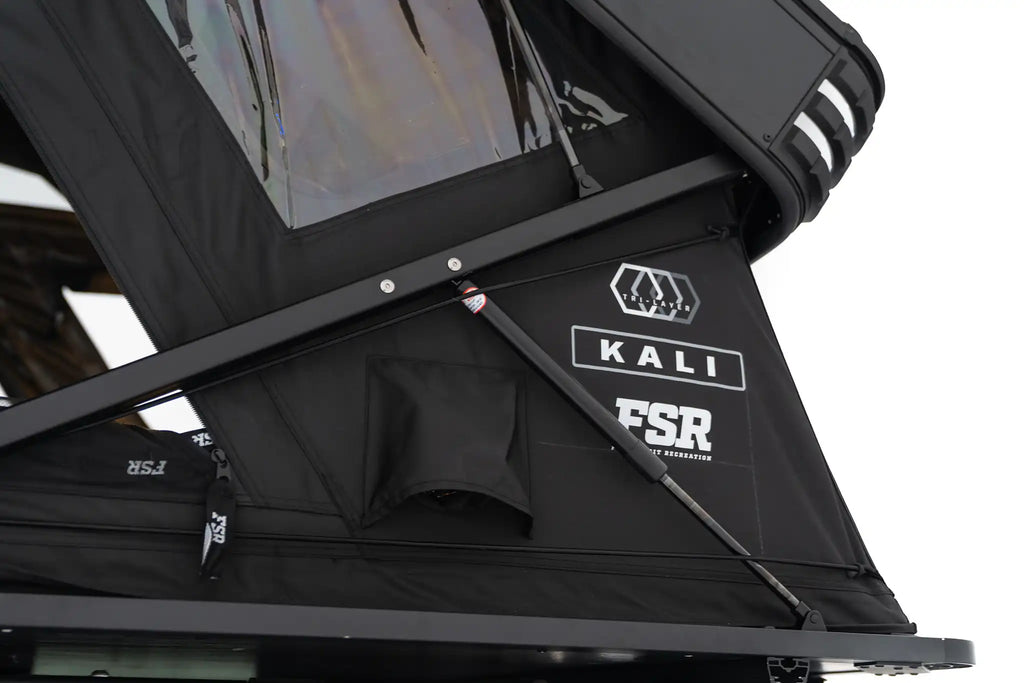

Heater, AC, and Electrical Ports: Built-in ports for running a diesel heater duct, an AC line, or electrical through the tent body without leaving a gap for weather or bugs.

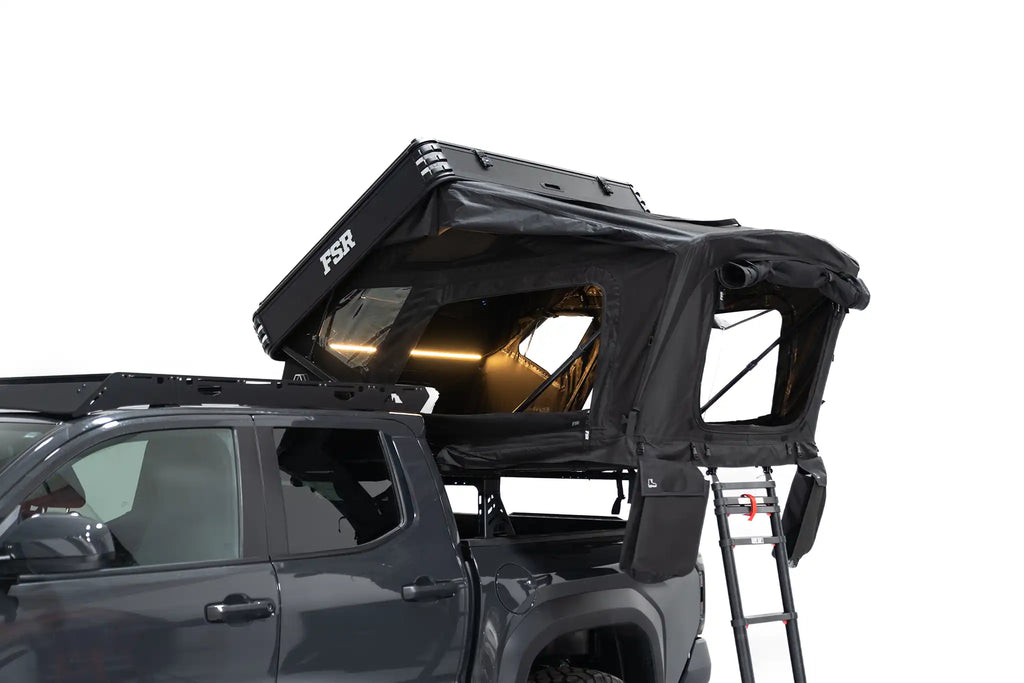

Integrated Dimmable LED: Built in and dimmable, so you are not choosing between full brightness and a headlamp. Shoe bags and a gear storage grid keep the small things off the mattress.
Kali, Nova King, or Aspen Lite?
All three use FSR's patented Tri-Layer insulation and all three deploy in under a minute. They are built around different constraints.
| Kali | Nova King | Aspen Lite | |
|---|---|---|---|
| Style | Dual-hinge pop up | Hardshell foldout | Clamshell |
| Sleeps | 2 to 3 | 3 to 4 | 1 to 2 |
| Closed Length | 59" | 78" | 80" |
| Closed Height | 12" | 11 1/2" | 7 3/8" |
| Interior Headroom | 48.5" | 43 1/4" | 59"* |
| Weight | 177 lbs | 162 lbs | 100 lbs |
| Weight Capacity | 660 lbs | 750 lbs | 750 lbs |
| Floor | Fiberglass honeycomb plate | 600D w/ vented slats | 600D w/ vented slats |
| Best For | Short racks, tight rail length | Families, longer trips | Crossovers, light builds |
*The Aspen Lite's 59" interior height is measured at its peak on a clamshell profile, which tapers toward the foot end. FSR recommends it for campers under 6 feet tall.
Choose the Kali if your rack's rail length is the limiting factor, or if you want maximum sit-up headroom in a 2 to 3 person tent.
Choose the Nova King if you camp with a family and want the widest interior, plus included crossbars.
Choose the Aspen Lite if you drive a crossover or small SUV, or if minimum weight and closed height matter most.
Specifications
| Style | Full insulation Tri-Layer dual-hinge pop up, gas-strut assisted |
| Sleeps | 2 to 3 people |
| Exterior Dimensions | 50" W x 59" L x 12" H (includes mounting rail height) |
| Interior Dimensions | 52" W x 82" L x 48.5" H |
| Weight | 177 lbs |
| Weight Capacity | 660 lbs |
| Shell | Aluminum hard shell |
| Tent Body | Patented Tri-Layer: polycotton fill between two layers of 210D ripstop |
| Tent Floor | Fiberglass honeycomb plate with 3D anti-condensation mat |
| Rainfly | 210D Oxford ripstop PU 3000mm, silver blockout coating, UPF 50+ |
| Frame | Extruded aluminum with polymer corners |
| Ventilation | 360 degree |
| Mattress | Memory foam |
| Lighting | Integrated dimmable LED |
| Ladder | 7.5' auto-collapse telescoping |
| Deployment | Under one minute |
| Ports | Heater, AC, and electrical |
| Bedding Storage | Sheets and a light comforter |
What's Included
📄 Installation Manual
Download the rooftop tent installation manual covering mounting hardware and rack setup.
Pros
- Closes to just 59" long, roughly two feet shorter than a typical hardshell, so it fits short racks and tight rail lengths
- Dual-hinge design expands to an 82" long interior from that compact footprint
- 48.5" of headroom, the most of any FSR tent, for genuine sit-up comfort
- Rigid fiberglass honeycomb floor plate does not sag or flex, and insulates from below
- Patented Tri-Layer insulation armors the whole body for true four-season use
- 360 degree ventilation plus a 3D anti-condensation mat included
- Auto-collapse telescoping ladder rather than working each section by hand
- Heater, AC, and electrical ports, integrated dimmable LED, and gas strut locks
Cons
- At 177 lbs this is the heaviest FSR tent despite sleeping fewer than the Nova King. Confirm your rack's dynamic rating before ordering
- 660 lb weight capacity is lower than the 750 lbs on the Nova King and Aspen Lite
- Interior bedding storage is limited to sheets and a light comforter rather than a full sleeping bag setup
- Crossbars are not included, unlike the Nova King
Frequently Asked Questions
How does a 59 inch tent have an 82 inch interior?
It is a dual-hinge pop up, meaning the shell opens and extends at both ends rather than hinging from one side. Closed on your rack it measures 59 inches long. Deployed, it expands to an 82 inch long interior. That roughly two foot gain is the whole point of the design: you get a 2 to 3 person sleeping space without carrying a full-length tent on your roof every day.
Will it fit my short bed rack?
This is the tent built for exactly that question. At 59 inches closed, the Kali needs roughly two feet less rail length than a typical hardshell that closes around 78 to 80 inches. That makes it viable on short bed racks, compact cab racks, and SUV roof racks that also need to carry other gear. Measure your rack's usable rail length and check it against the 50" W x 59" L closed footprint. Call us at 844-200-3979 with your rack and we will confirm.
Will my rack carry 177 lbs?
You need to check your rack's dynamic load rating, the figure that applies while driving, and confirm it covers 177 lbs plus anything else up there. Static rating, which is higher, is what covers the tent plus occupants once parked. The Kali's 660 lb weight capacity is the tent's own limit for occupants and gear. Call us at 844-200-3979 with your vehicle and rack and we will confirm both numbers work before you order.
What is a fiberglass honeycomb floor?
A rigid structural plate rather than a fabric or plywood base. Honeycomb construction gives high stiffness at low weight, so the floor does not sag under load or flex when you move around at night, and the structure itself insulates against cold transferring up from the rack. A 3D anti-condensation mat sits on top of it, which keeps moisture from collecting between the mattress and the floor. It is a step up from the vented slat floors on FSR's lighter models.
Is it warm enough for winter?
Yes. The patented Tri-Layer construction wraps the entire tent body with a polycotton fill sandwiched between two layers of 210D ripstop, which FSR compares to how a canteen works. The rigid honeycomb floor adds insulation from below, which matters more than people expect since cold transfers up through the rack. There are also built-in ports for running a diesel heater duct through the body without leaving a gap for weather.
Kali, Nova King, or Aspen Lite?
All three share FSR's Tri-Layer insulation and sub-minute setup. Choose the Kali if rack rail length is your constraint, since it closes to 59 inches, or if you want the most headroom at 48.5 inches. Choose the Nova King if you camp with a family and want the widest interior at 72 inches, plus included crossbars. Choose the Aspen Lite if you drive a crossover or small SUV, since at 100 lbs and 7 3/8 inches closed it goes where the others cannot.
