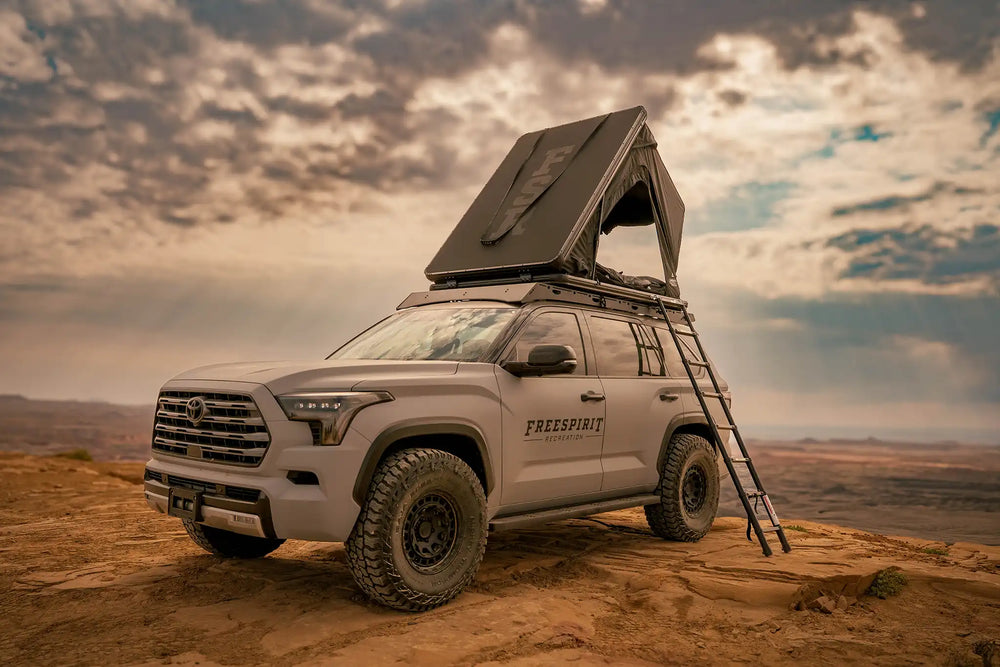

FSR Aspen Lite XL - 51° Opening Angle, Sleeps 2-3
FSR Aspen Lite XL - 51° Opening Angle, Sleeps 2-3
Lightweight rooftop tents usually feel flimsy and come with little to no amenities. The Aspen Lite XL combines the comforts of a full hard shell with the benefits of an ultralight rooftop tent, and it does it at a size that sleeps two to three rather than forcing you down to a solo setup.
At 110 lbs it practically floats, which is the point: a low-profile hybrid top wrapped in full Tri-Layer insulated tent skin, with a 52 1/2 inch interior width. The headline feature is the opening angle. Where most clamshells open to around 35 degrees, the Aspen Lite XL opens to 51 degrees, and that difference translates directly into usable interior space and headroom rather than a wedge that pinches down at your feet. Add an upgraded memory foam mattress and a static u-bar that gets you set up in under 30 seconds, and you have a genuinely groundbreaking ultralight that everyday explorers and weekend warriors both get on with.

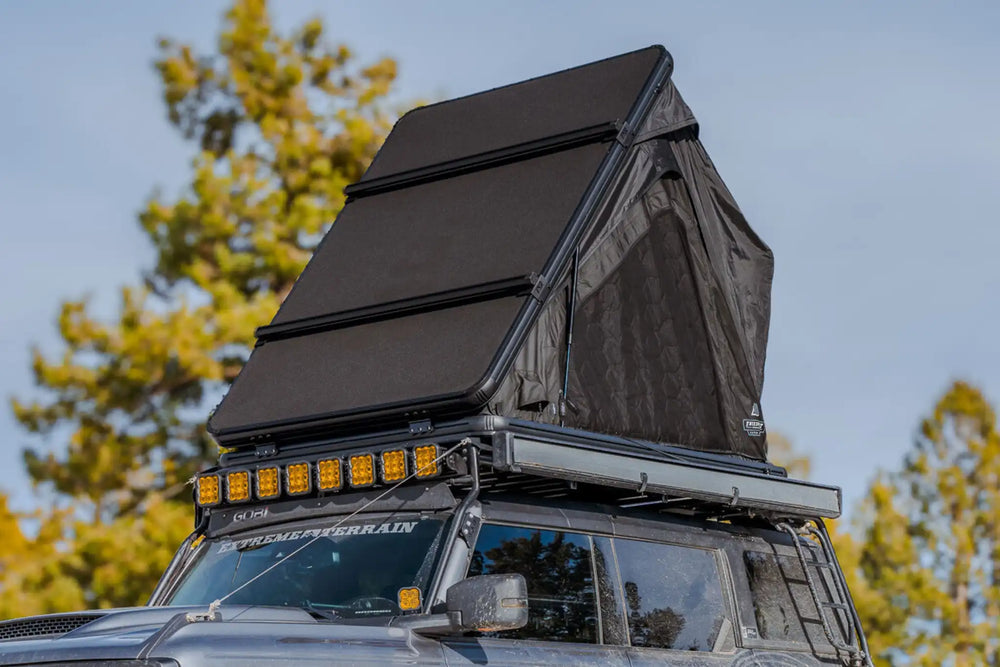

Why 51 Degrees Changes the Tent
Every ultralight rooftop tent makes a tradeoff somewhere, and on a clamshell it is usually interior volume. Opening angle is a spec almost nobody publishes, and it is the single biggest factor in how a clamshell actually feels inside. A standard clamshell opens to roughly 35 degrees. The Aspen Lite XL opens to 51.
That extra 16 degrees does two things. It raises the roofline across more of the floor rather than concentrating all the height at the hinge end, so the usable area with real headroom is much larger. And it opens the entry wider, so you step into the tent rather than posting yourself through a gap. Interior height is 59 inches at the peak over a 52 1/2 by 76 inch floor.
The practical version: two adults can sit up at the same time without taking turns, and a third person is genuinely viable rather than theoretical. On a lightest rooftop tent comparison spec sheets never capture this, which is why an ultralight that opens properly feels nothing like an ultralight that does not.
A Tonneau Top, Not a Hard Shell
Using Tonneau-style material as the roof was FSR's answer to building an ultralight model that still meets their standards for longevity while remaining 100% waterproof. The 600D ripstop Oxford is the same material relied on to withstand road wear, weather, and abrasion for years as a truck bed cover. You lose the weight of a fiberglass or full aluminum shell and keep the durability, which is exactly how a 52 1/2 inch wide tent comes in at 110 lbs.
Tri-Layer: Insulated Like a Canteen
FSR's patented Tri-Layer technology works like a canteen, strategically fortifying the entire tent where heat would otherwise seep in when it is hot and escape when it is cold. The construction is a polycotton fill sandwiched between two layers of 210D ripstop, and it armors the whole tent body rather than just the roof panel. Tri-Layer materials are 100% waterproof, so you get the insulation without a tradeoff in weather protection. This is what makes an ultralight genuinely four-season instead of fair-weather only.
Camp in Under 30 Seconds
Pop open four quick latches, push up on the tent to engage the interior gas struts, extend the static u-bar, and you are ready to camp. The static u-bar is the upgrade here: there is no tensioning to dial in, so the sequence is the same every single time and takes about thirty seconds once you have done it twice. Spend more of your outdoor time doing the fun stuff and less of it on setup.
Built for Jeeps and Top-Heavy Rigs
FSR calls this out specifically, and it is worth understanding why. A tall vehicle with a lifted suspension already has a raised center of gravity. Adding 160 to 200 lbs to the roof makes that worse, and you feel it in body roll on off-camber trails and in crosswinds on the highway.
At 110 lbs with a 7 3/8 inch closed height, this ultralight rooftop tent adds the least mass and the least frontal area of any 2 to 3 person tent FSR makes. For Jeep Wrangler and rooftop tent for Jeep Gladiator builds, lifted 4Runners, and anything already carrying armor and a rack, that difference is not cosmetic. It is the reason a tent this size is viable on a rig where a heavier one would not be.
The low closed height also means less wind drag and better garage clearance on a vehicle that is already tall.

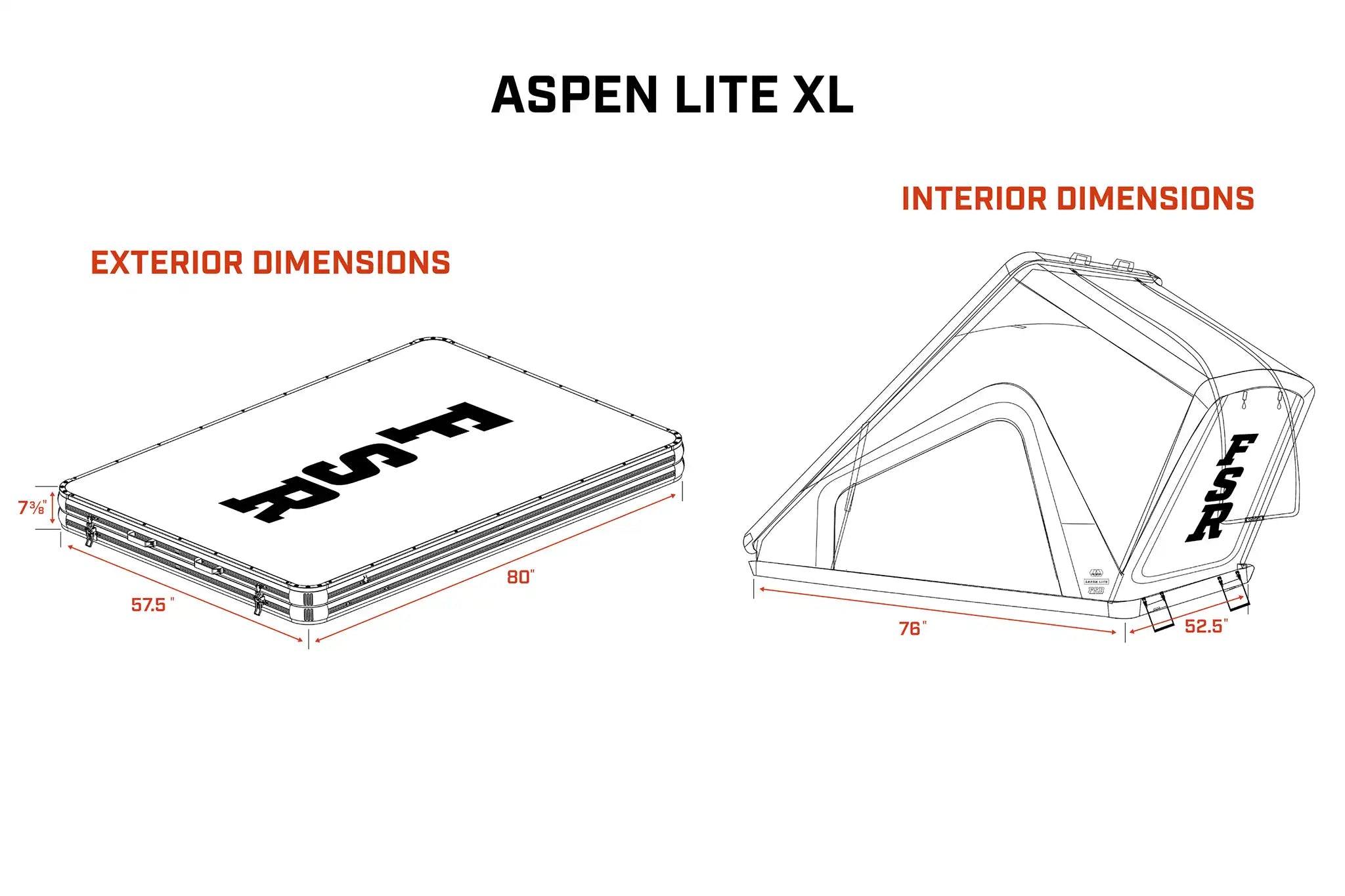

Dimensions
Closed, it measures 57 1/2 inches wide by 80 inches long by 7 3/8 inches tall including the mounting rail. Open interior is 52 1/2 by 76 by 59 inches. Check the 80 inch closed length against your rack's usable rail before ordering.
Find Your Fitment
At 110 lbs the Aspen Lite XL fits racks that heavier 2 to 3 person tents rule out. Confirm your rack's dynamic load rating covers 110 lbs plus crossbars, and that you have 80 inches of usable rail length.
SUVs & Jeeps
The vehicle FSR built this around. Low weight and a 7 3/8 inch closed profile keep a lifted or already-tall rig manageable in crosswinds and under branches.
Sedans & Crossovers
Viable on a rack rated for 110 lbs. If your rating is tighter, the 100 lb Aspen Lite Standard is the narrower, lighter option.

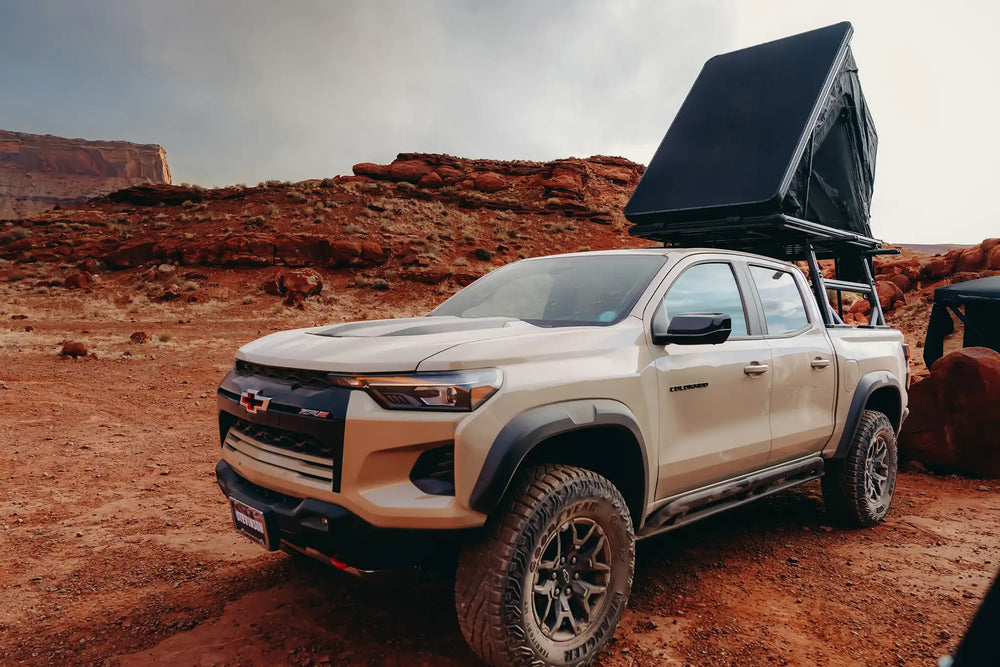

Mid-Size Trucks
On a cab rack or bed rack. The light weight leaves rack capacity free for a full bed build alongside the tent.
Full-Size Trucks
Plenty of capacity to spare, and the compact footprint leaves room on the rack for traction boards, fuel cans, and a light bar.
More Details That Matter
Condensation Elimination: The aluminum open cross-slat floor saves weight and lets the tent breathe from underneath instead of trapping moisture against a solid base. FSR pairs it with strategically located venting for 360 degree airflow. Waking up to a wet interior is the most common rooftop tent complaint, and this design attacks the cause.

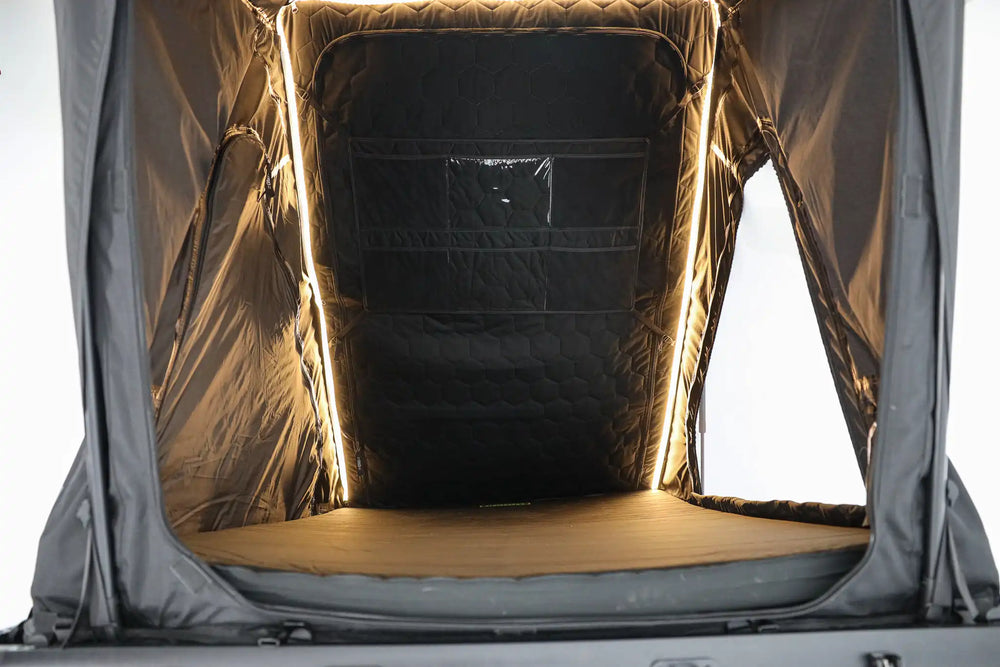

Upgraded Memory Foam Mattress: Not a thin closed-cell pad. Memory foam across the full 52 1/2 by 76 inch floor, which is what makes a lightweight tent worth sleeping in for more than one night.
Single Channel Accessory Mounting: Single channel extruded aluminum lets you mount crossbars, shovels, traction boards, light bars, Rotopax, and more to the tent itself. On a rack already carrying the tent, that extra mounting surface earns its place.
Integrated Rainfly: The tent body is already completely waterproof. The integrated rainfly is a second layer of security and sun shielding on top of that, rather than the only thing between you and the weather.
Heater, AC, and Electrical Ports: Built-in ports for running a diesel heater duct, an AC line, or power through the tent body without leaving a gap for weather or bugs.
Gas Struts Inside the Shell: Designed to live on the inside, so when the tent is closed they are protected rather than exposed to tree limbs and trail dirt. Gas strut locks and grab handles with hardware are included.
Aspen Lite XL or Aspen Lite Standard?
Same ultralight construction, same closed length and height, same 750 lb capacity. The difference is width and who fits inside.
| Aspen Lite XL | Aspen Lite Standard | |
|---|---|---|
| Sleeps | 2 to 3 | 1 to 2 |
| Interior Width | 52 1/2" | 45 1/2" |
| Interior Length | 76" | 76" |
| Peak Height | 59" | 59" |
| Weight | 110 lbs | 100 lbs |
| Closed | 57 1/2" x 80" x 7 3/8" | 49 1/2" x 80" x 7 3/8" |
| Best For | Couples with room, or three | Solo and tight rack ratings |
Choose the XL if you want seven more inches of interior width for ten more pounds. That is a good trade for most people, and it is the difference between two adults comfortable and two adults managing.
Choose the Aspen Lite Standard if your rack rating is tight, or if a narrower 49 1/2 inch closed footprint matters on your vehicle.
Want more length rather than width? The Aspen Pro Standard gives 81 1/2 inches of interior length for taller campers. For the widest option in the clamshell range, the Aspen Pro XL runs 55 inches.
Specifications
| Style | Full insulation Tri-Layer clamshell, gas-strut assisted |
| Sleeps | 2 to 3 people |
| Opening Angle | 51 degrees (versus a standard 35 degrees) |
| Exterior Dimensions | 57 1/2" W x 80" L x 7 3/8" H (includes mounting rail height) |
| Interior Dimensions | 52 1/2" W x 76" L x 59" H |
| Weight | 110 lbs |
| Weight Capacity | 750 lbs |
| Construction | Tonneau-style hybrid top, aluminum rails |
| Tent Body | Patented Tri-Layer: polycotton fill between two layers of 210D ripstop |
| Tent Floor | 600D breathable Oxford ripstop, PU coated 2000mm, open cross-slat design |
| Rainfly | Integrated. 210D Oxford ripstop PU 3000mm, silver blockout coating, UPF 50+ |
| Frame | Extruded aluminum with polymer corners |
| Ventilation | 360 degree |
| Mattress | Upgraded memory foam |
| U-Bar | Static, no tensioning required |
| Deployment | Under 30 seconds |
| Accessory Mounting | Single channel extruded aluminum |
| Ports | Heater, AC, and electrical |
| Bedding Storage | Light sleeping bag or sheet set |
| Best Suited For | Going fast and light, Jeeps, top-heavy vehicles, campers under 6' tall |
What's Included
📄 Installation Manual
Download the rooftop tent installation manual covering mounting hardware and rack setup.
Pros
- 110 lbs for a 2 to 3 person hard shell, the lightest in the FSR range at this size
- 51 degree opening angle versus a standard 35, delivering far more usable headroom and a wider entry
- Just 7 3/8" closed, so minimal added height, wind drag, and center of gravity change
- 52 1/2" interior width, seven inches more than the Aspen Lite Standard for ten more pounds
- 750 lb weight capacity, the highest tier FSR offers
- Static u-bar means no tensioning, so setup is the same 30 seconds every time
- Patented Tri-Layer insulation armors the whole body for true 4 season use
- Upgraded memory foam mattress, integrated rainfly, and heater, AC, and electrical ports
- Gas struts live inside the shell, protected from tree limbs and dirt
Cons
- FSR recommends it for campers under 6 feet tall. Interior length is 76 inches, so taller campers should look at the Aspen Pro Standard at 81 1/2 inches
- Needs 80 inches of usable rail length closed. Short racks should consider the Kali at 59 inches
- A Tonneau-style hybrid top rather than a rigid shell, so it does not give you a hard surface for mounting cargo on top of the closed tent
- Interior bedding storage is limited to a light sleeping bag or sheet set
Frequently Asked Questions
What does the 51 degree opening angle actually do?
It is the difference between a clamshell that feels roomy and one that feels like a wedge. Most clamshells open to about 35 degrees, which concentrates all the height at the hinge end and tapers hard toward your feet. At 51 degrees the roofline stays higher across more of the floor, so the area with genuine sitting-up headroom is much larger, and the entry opens wider so you step in rather than posting yourself through a gap. It is the main reason a 2 to 3 person rating here is realistic rather than optimistic.
Is 110 lbs really light for this size?
Yes. Most 2 to 3 person hard shells run 150 to 200 lbs. The Aspen Lite XL gets to 110 by using a Tonneau-style hybrid top rather than a full rigid shell, which keeps the 600D ripstop durability without the mass. For anyone comparing on weight, it is the lightest rooftop tent in the FSR range at this interior size, and the low 7 3/8 inch closed profile keeps wind drag and center of gravity change down too.
Why is it recommended for Jeeps and top-heavy vehicles?
Because weight on the roof of an already-tall vehicle compounds. A lifted Jeep, 4Runner, or Gladiator has a raised center of gravity before you add anything, and a 180 lb tent makes body roll and crosswind sensitivity noticeably worse. At 110 lbs and 7 3/8 inches closed, the Aspen Lite XL adds the least mass and the least frontal area of any 2 to 3 person tent FSR makes. On rigs already carrying armor and a rack, that is often what makes a tent this size viable at all.
Aspen Lite XL or Aspen Lite Standard?
Width. Both share the same 80 inch closed length, 7 3/8 inch closed height, 76 inch interior length, 59 inch peak, and 750 lb capacity. The XL gives you 52 1/2 inches of interior width and sleeps 2 to 3 at 110 lbs. The Standard gives 45 1/2 inches and sleeps 1 to 2 at 100 lbs. Seven more inches for ten more pounds is a good trade for most people. Go Standard if your rack rating is tight or a narrower 49 1/2 inch closed footprint matters.
How tall can I be?
FSR recommends the Aspen Lite range for campers under 6 feet tall. Interior length is 76 inches. If you or a regular camping partner are over six feet, look at the Aspen Pro Standard or Aspen Pro XL, both of which run 81 1/2 inches of interior length. Worth getting right the first time on a tent purchase. Call us at 844-200-3979 if you want to talk it through.
Will I wake up to condensation?
Far less than in a sealed-floor tent. The aluminum open cross-slat floor lets the tent breathe from underneath rather than trapping moisture against a solid base, and FSR pairs it with strategically located venting for 360 degree airflow. The floor design does double duty, saving weight and improving airflow at the same time. Condensation is the most common complaint about rooftop tents generally, and this construction attacks the cause rather than adding a vent and hoping.
