FSR Evolution XL Hard Top Roof Top Tent - Sleeps 2-3
FSR Evolution XL Hard Top Roof Top Tent - Sleeps 2-3
Most hard top roof top tent models that sleep three sacrifice something: interior space, insulation, or easy setup. The Evolution XL does not. It is built to store more than comparable tents while keeping the same wall-to-wall, floor-to-ceiling Tri-Layer construction, and it is the tent you choose when you are done compromising between capacity and capability.
Interior is 55 inches wide by 81 1/2 inches long, sleeping two to three, with nine interior storage pockets built in: six waterproof pockets, two large net bags, and one large overhead net organizer. That is not a gear grid with a couple of mesh pouches. It is a genuine storage system. The dual-hinge pop up design lifts flat rather than wedging, so you get consistent headroom across the whole floor instead of a peak that tapers toward your feet. Gas struts pop it open in under a minute. At 184 lbs with a 750 lb capacity, FSR builds it for full-size trucks, long beds, and year-round overlanding.

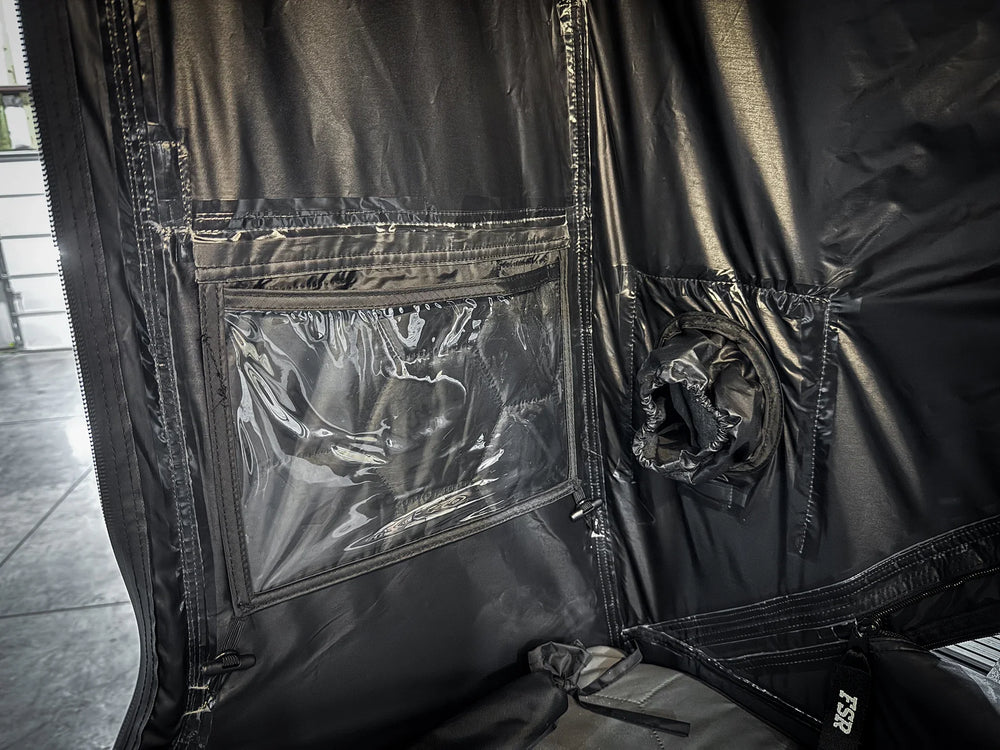

Nine Pockets, Not an Afterthought
Storage is the thing rooftop tent manufacturers treat as a checkbox. FSR built the Evolution XL around it, and the difference shows up every night you spend in it. Nothing lives on the mattress. Nothing gets lost in the dark.

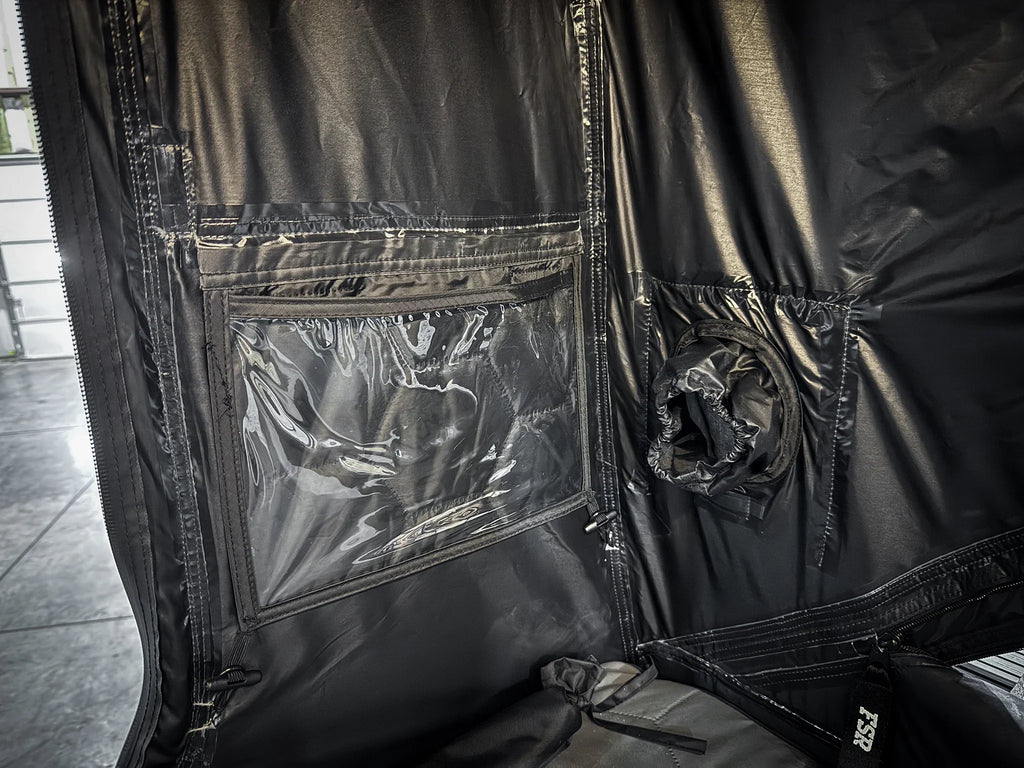

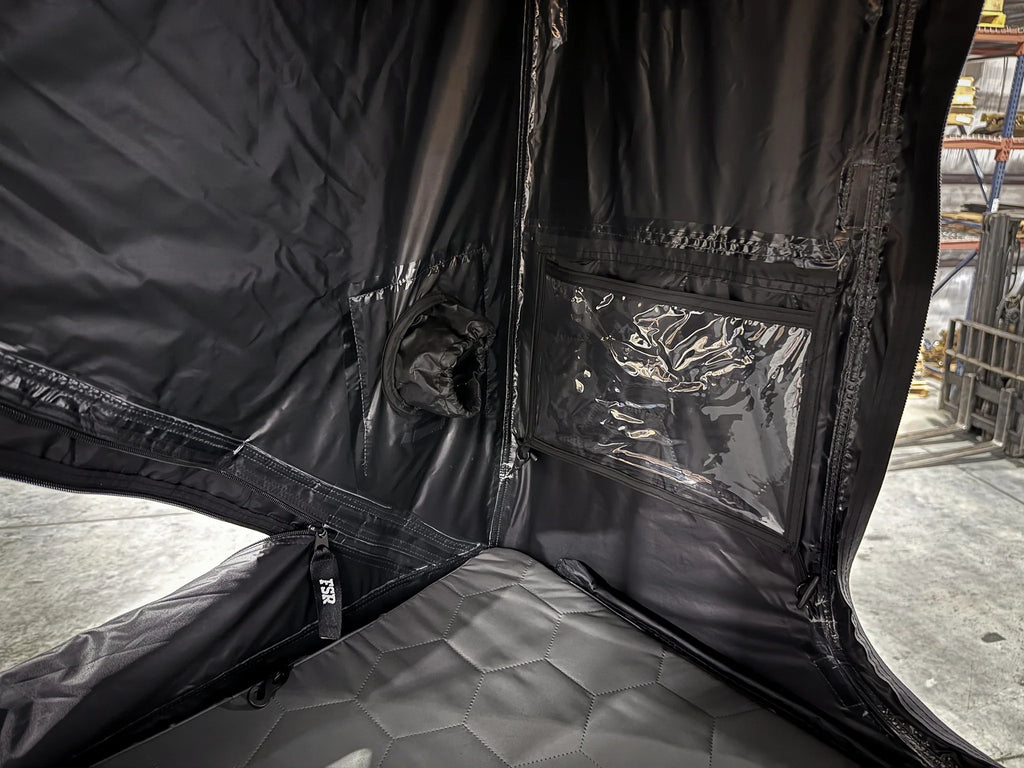

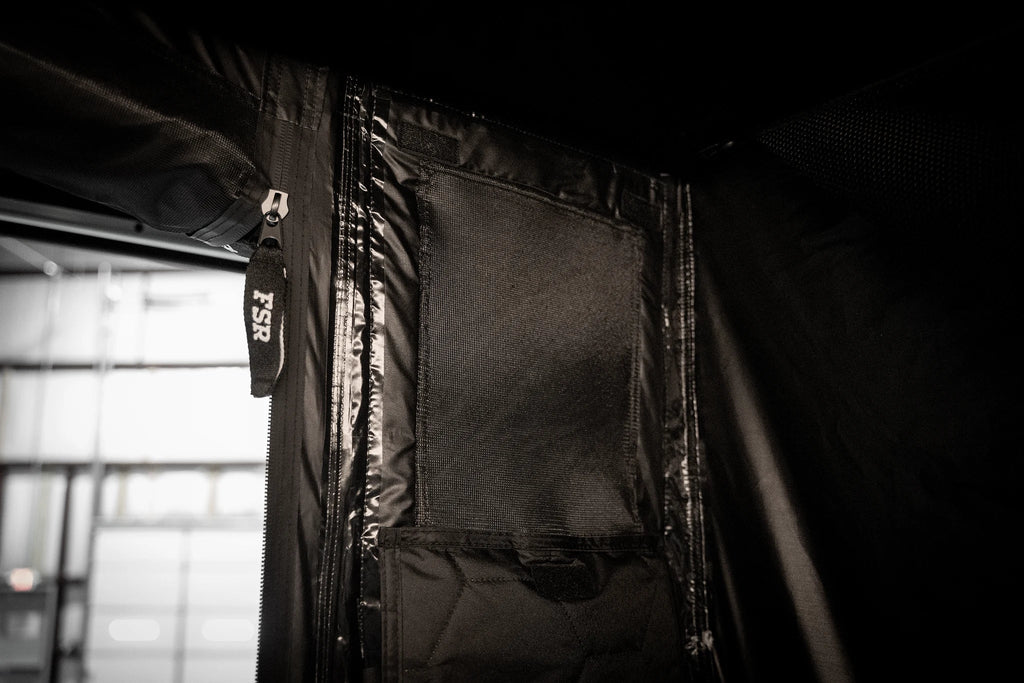

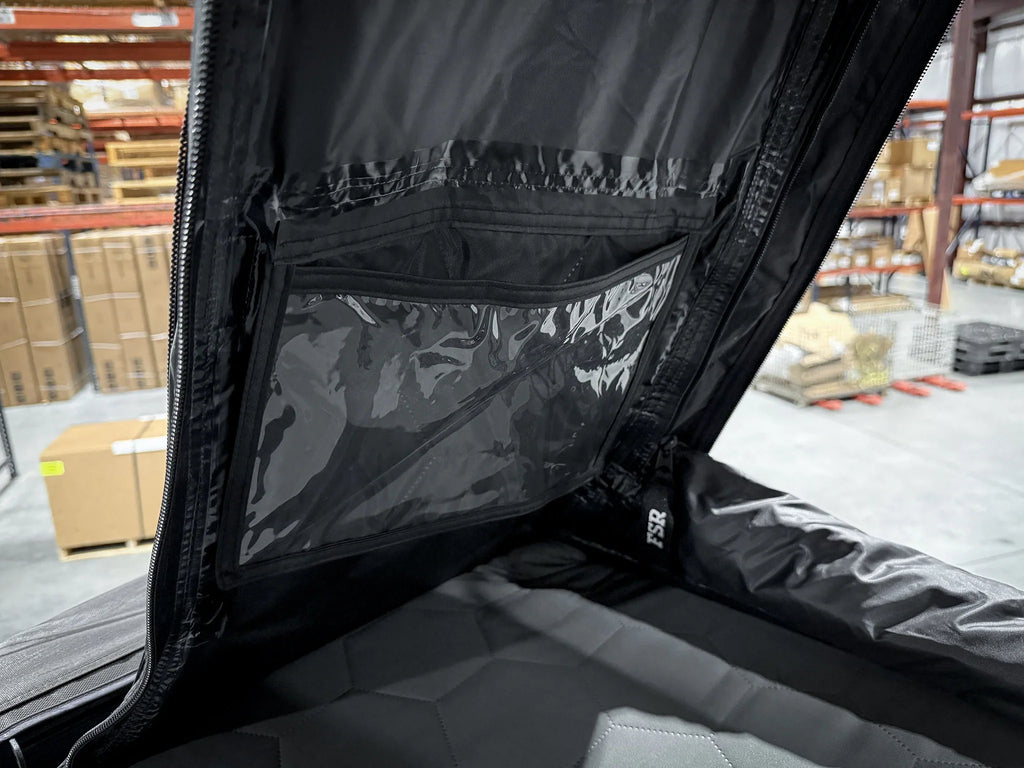

Waterproof Pockets
For phones, electronics, documents, and anything you do not want near condensation or a wet jacket.

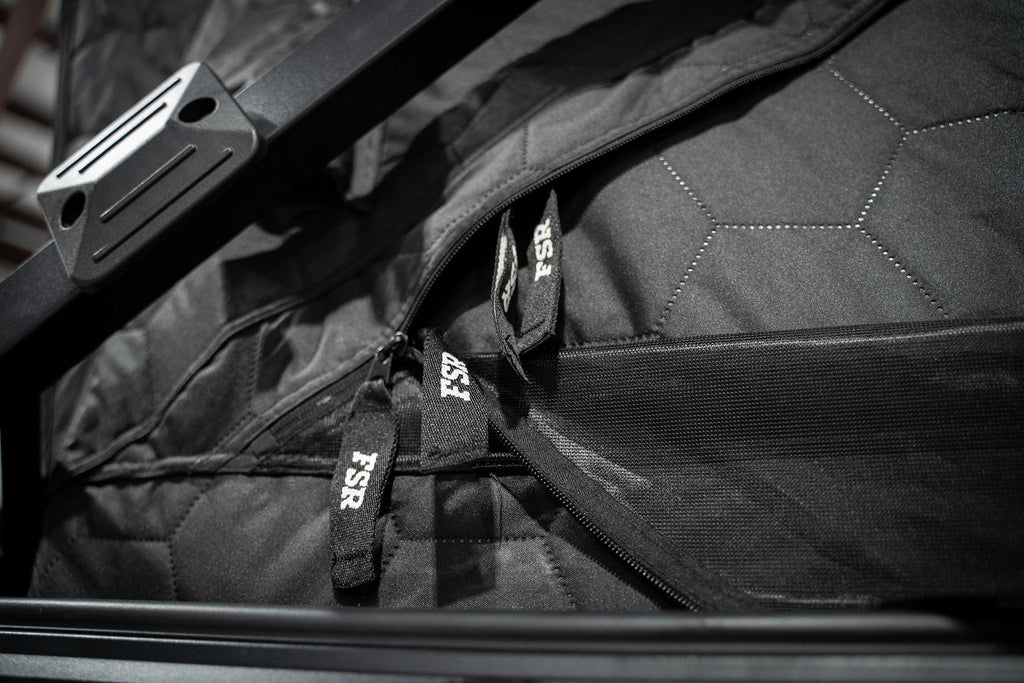

Large Net Bags
Breathable storage for clothing, headlamps, books, and the bulkier things you want reachable but out of the way.

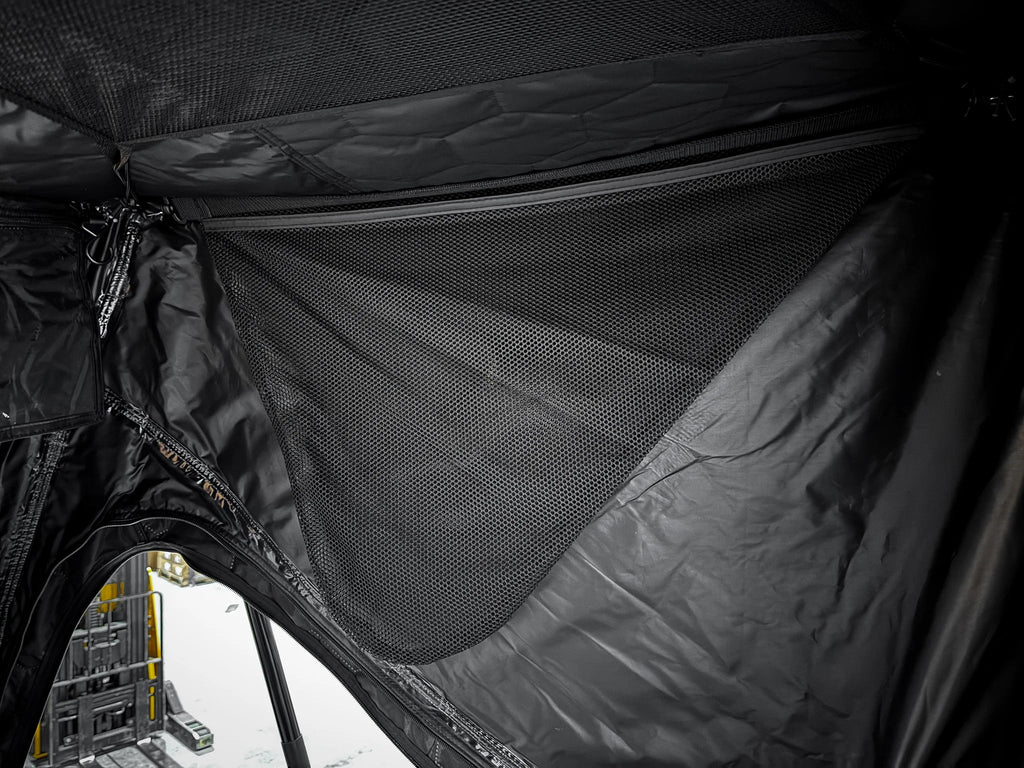

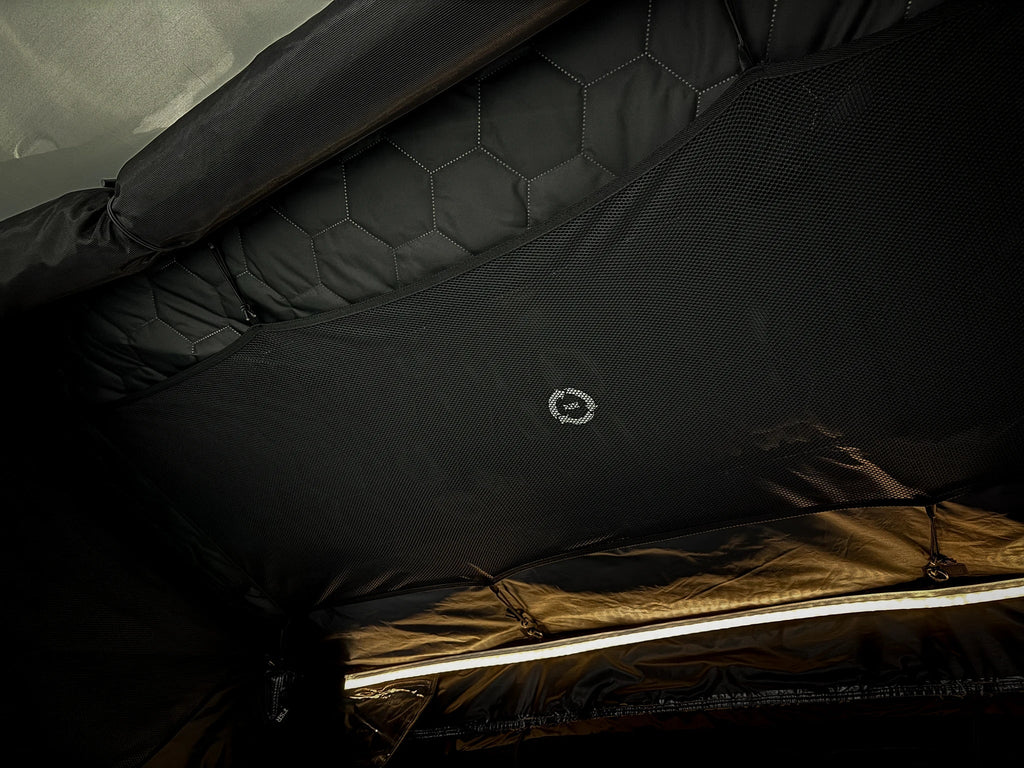

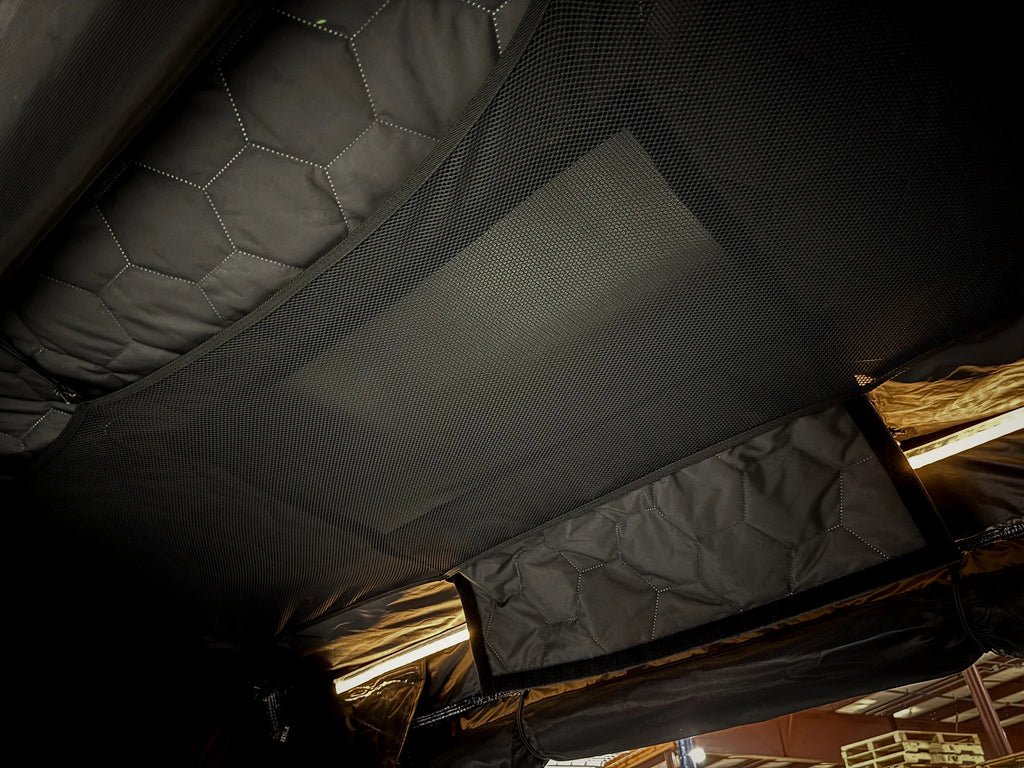

Overhead Net Organizer
A large organizer using the vertical space above you, which is otherwise wasted in every rooftop tent.

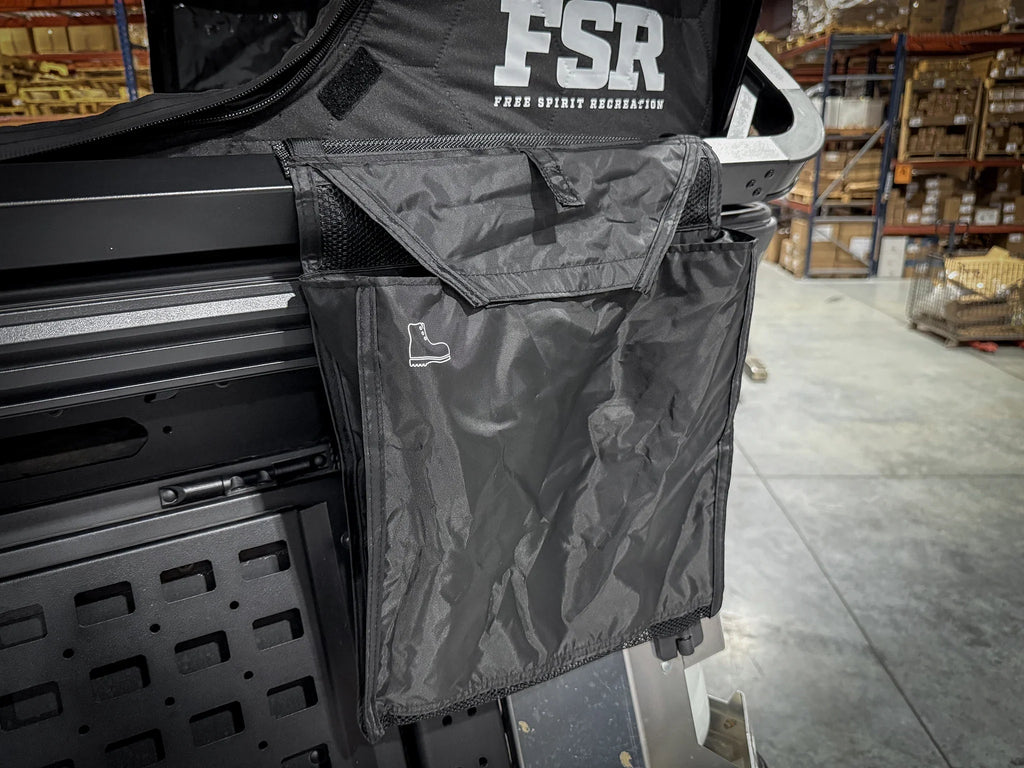

Add the included gear storage grid and two shoe bags, and the Evolution XL handles a 2 to 3 person trip's worth of small gear without any of it ending up underfoot. For rooftop tent camping over multiple nights, that is the difference between an organized space and a pile.

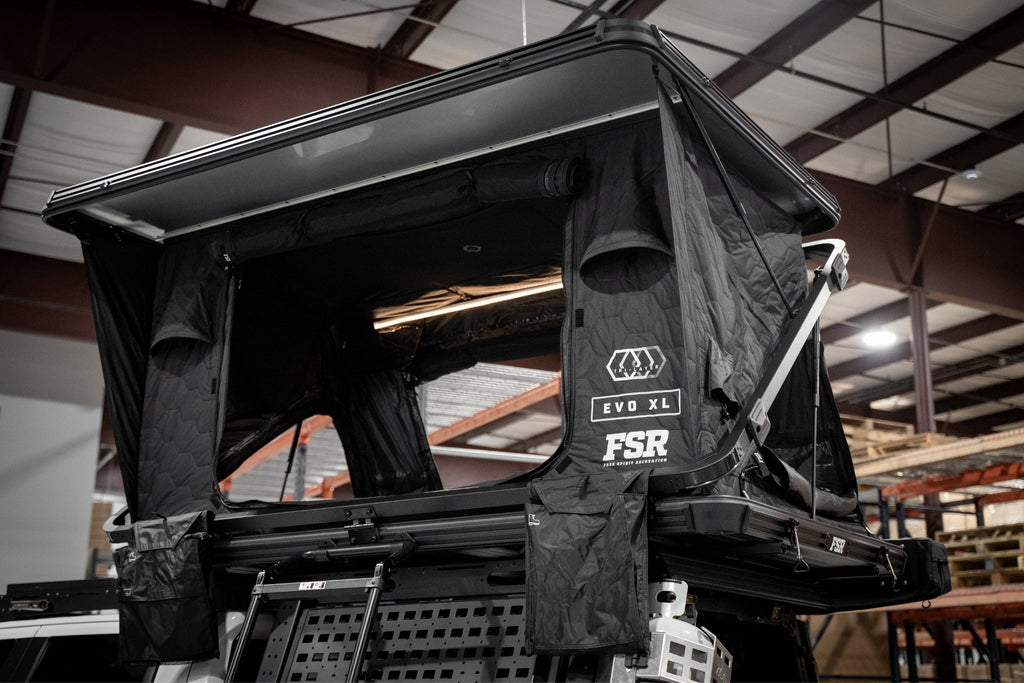

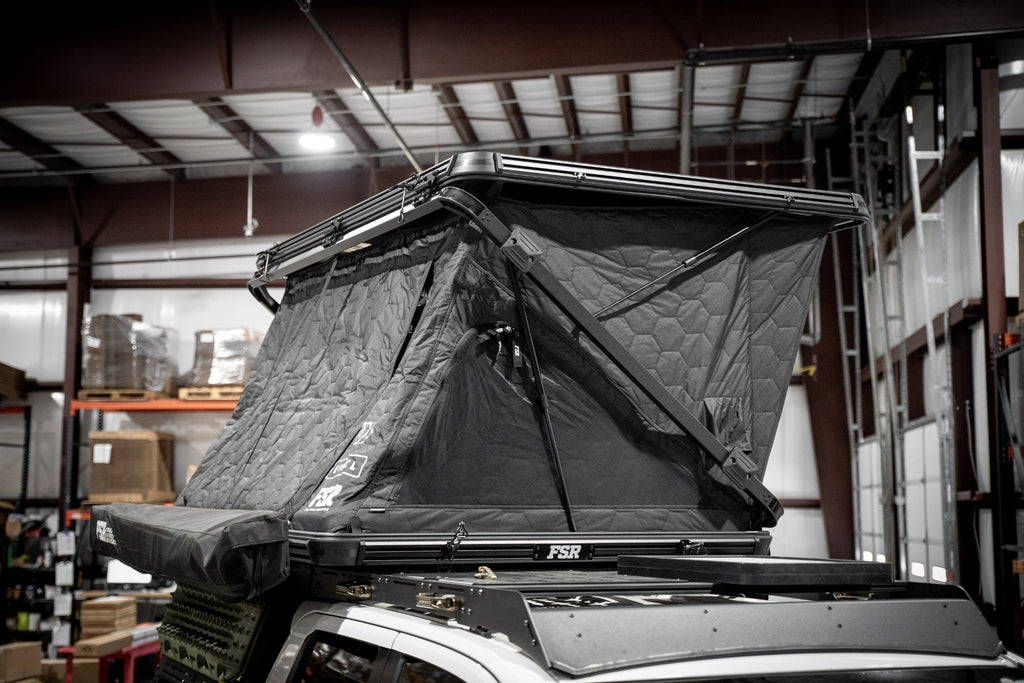

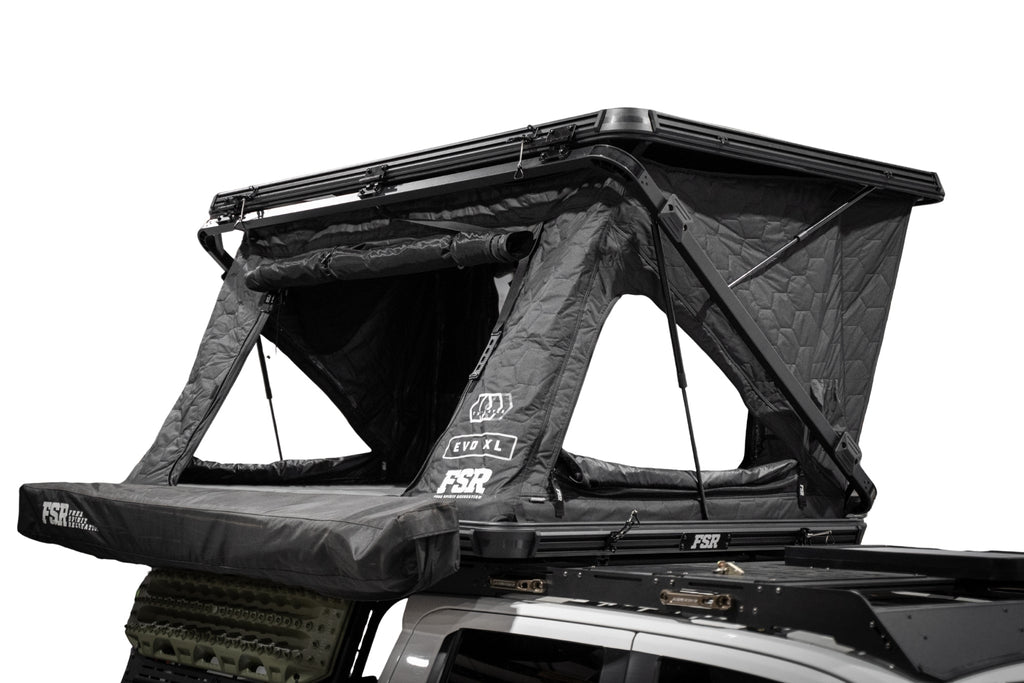

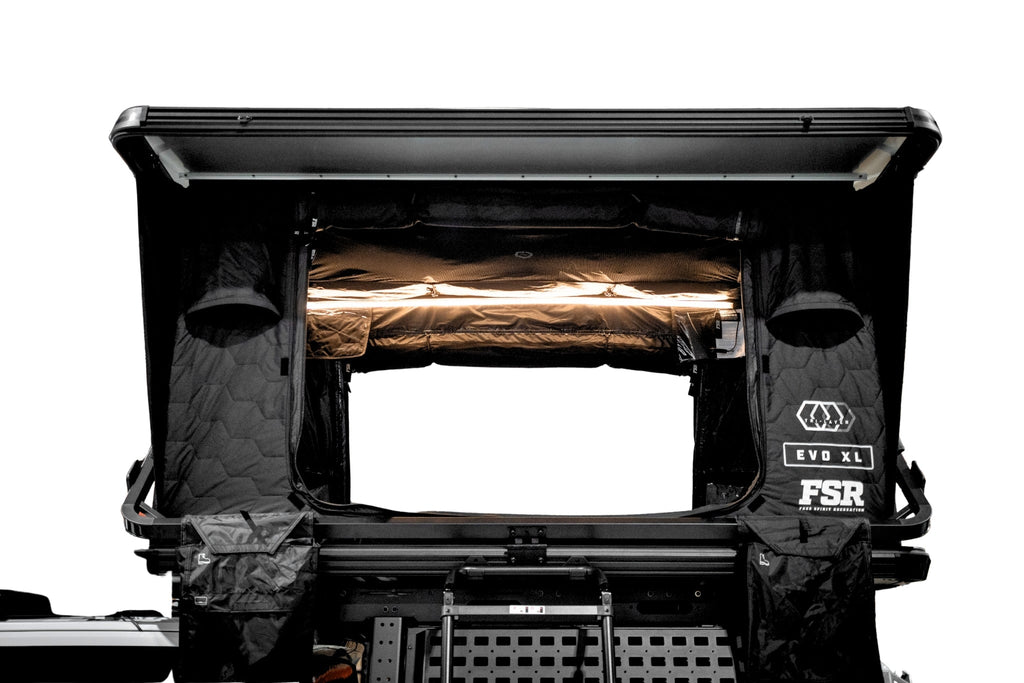

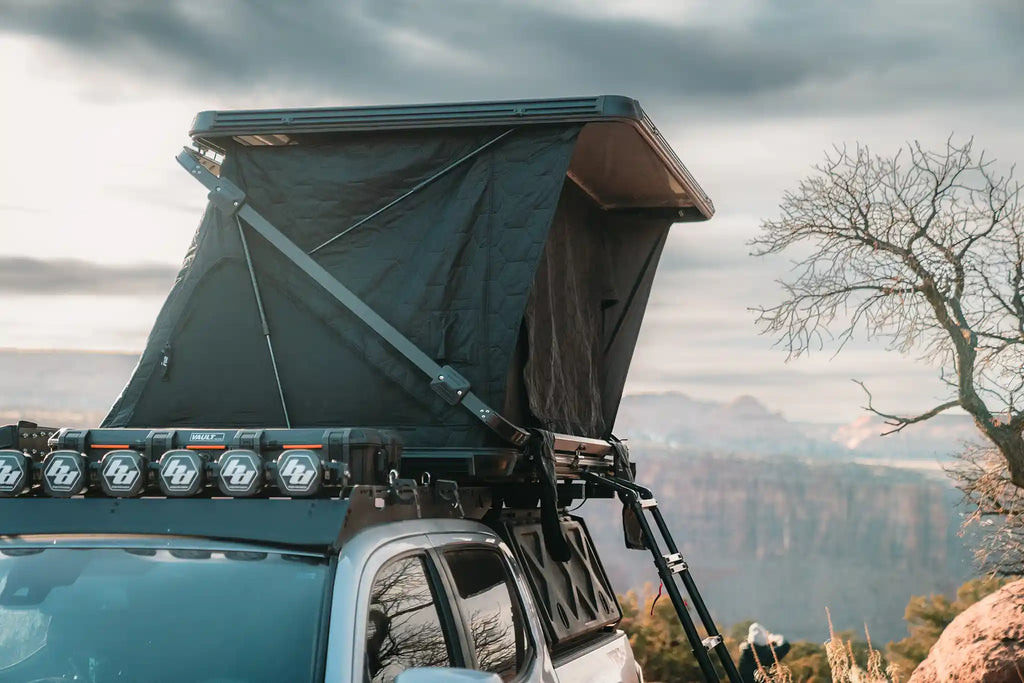

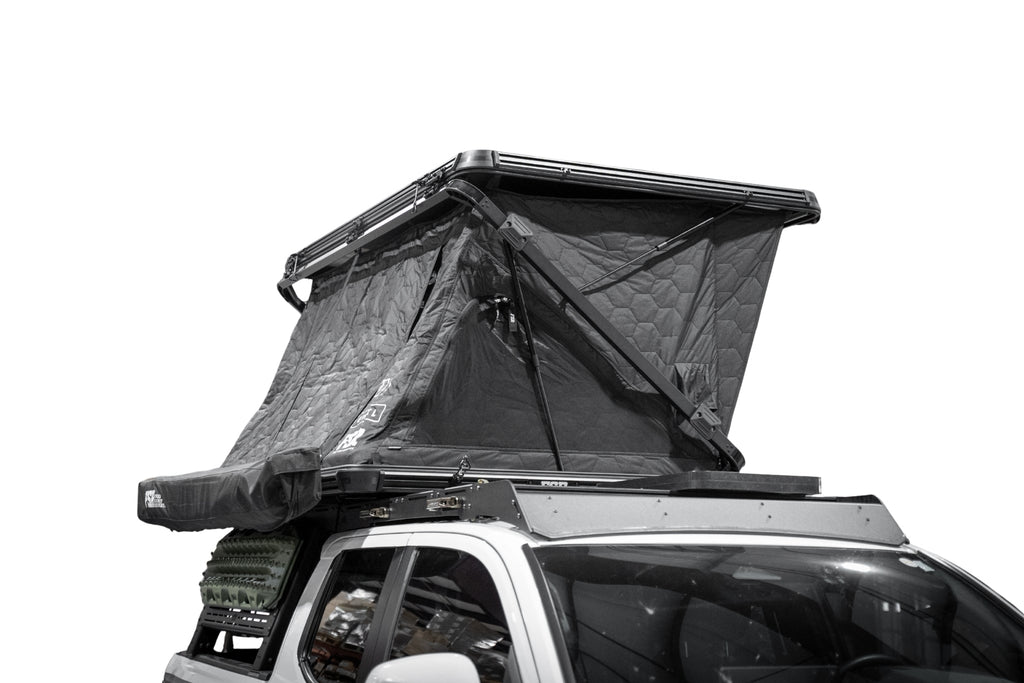

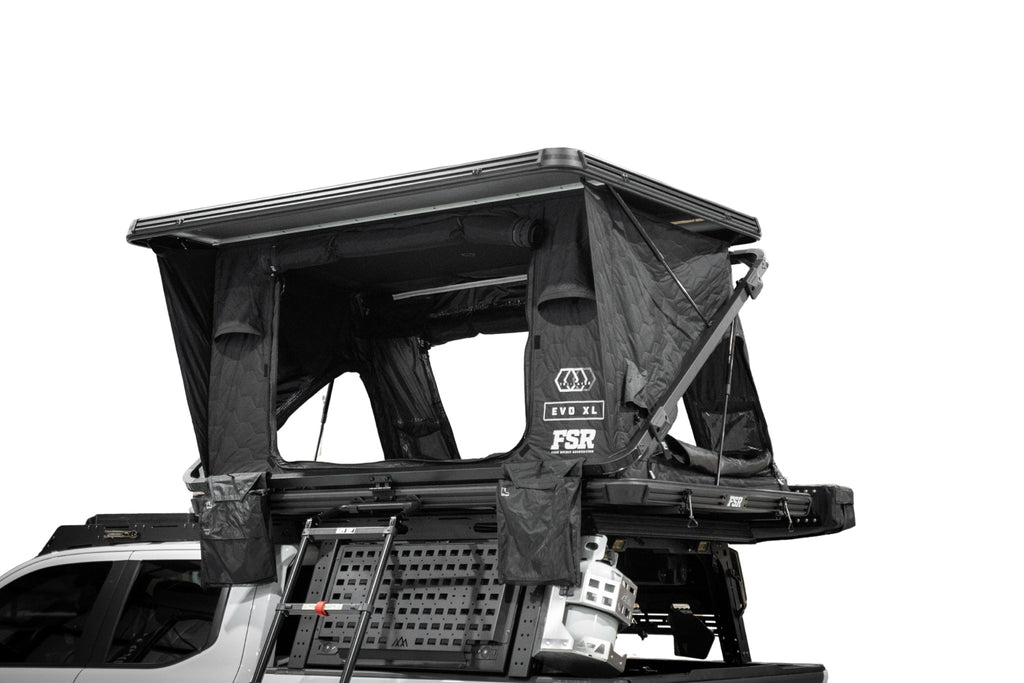

Pop Up Means Even Headroom
The Evolution XL uses a dual-hinge pop up design rather than a clamshell. A clamshell hinges at one end, so headroom peaks at the entry and tapers toward your feet. A pop up lifts flat, so the 38 inches of interior height is consistent across the entire 55 by 81.5 inch floor.
That changes how usable the space actually is. Two or three people can sit up anywhere in the tent rather than taking turns at the tall end. Gear can stack against any wall instead of only where the roof is high. If you have ever slept in a wedge-style tent and found yourself sleeping head-to-toe with your partner because only one end had room, this is the alternative.

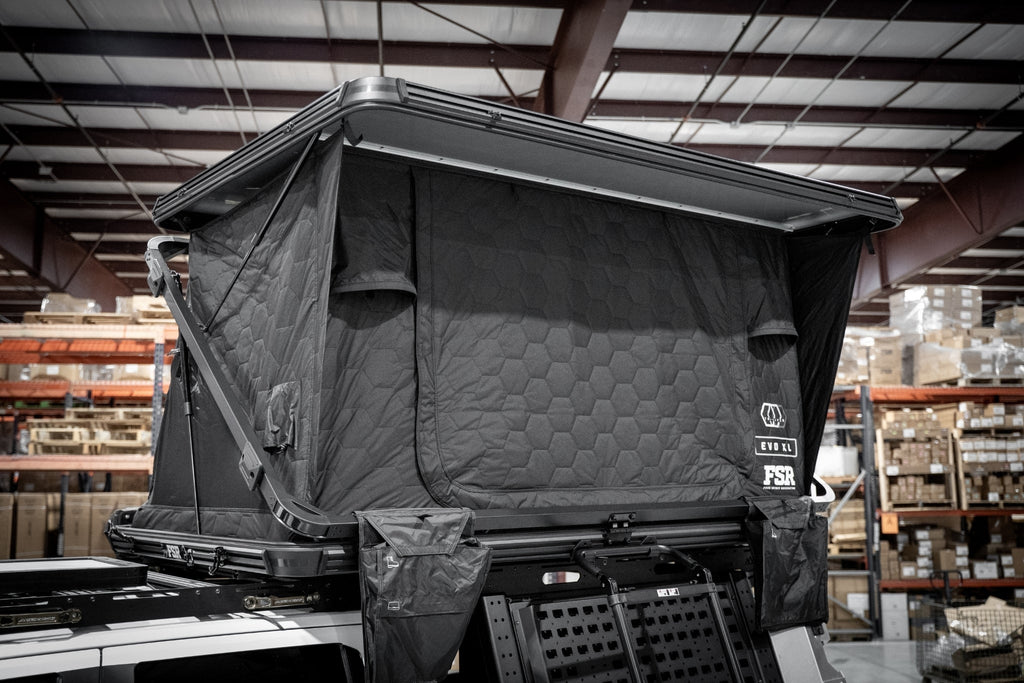

4-Season Use, 100% Waterproof
FSR's patented Tri-Layer technology works like a canteen, strategically fortifying the entire tent where heat would otherwise seep in when it is hot and escape when it is cold. The construction is a polycotton fill sandwiched between two layers of 210D ripstop, and FSR describes the Evolution XL's coverage as wall-to-wall, floor-to-ceiling. The body is completely waterproof, and the integrated rainfly adds another layer of weather protection and sun shielding. This is a genuine 4 season roof top tent, not a summer shell.
Camp in Under a Minute
Pop open four quick latches, push up on the tent to engage the interior gas struts, extend the U-bar, and you are ready to camp. The whole sequence takes about thirty seconds once you have done it twice. The struts are designed to live inside the shell, so when the tent is closed they are protected rather than exposed to tree limbs and trail dirt. Spend more of your outdoor time doing the fun stuff and less of it on setup.

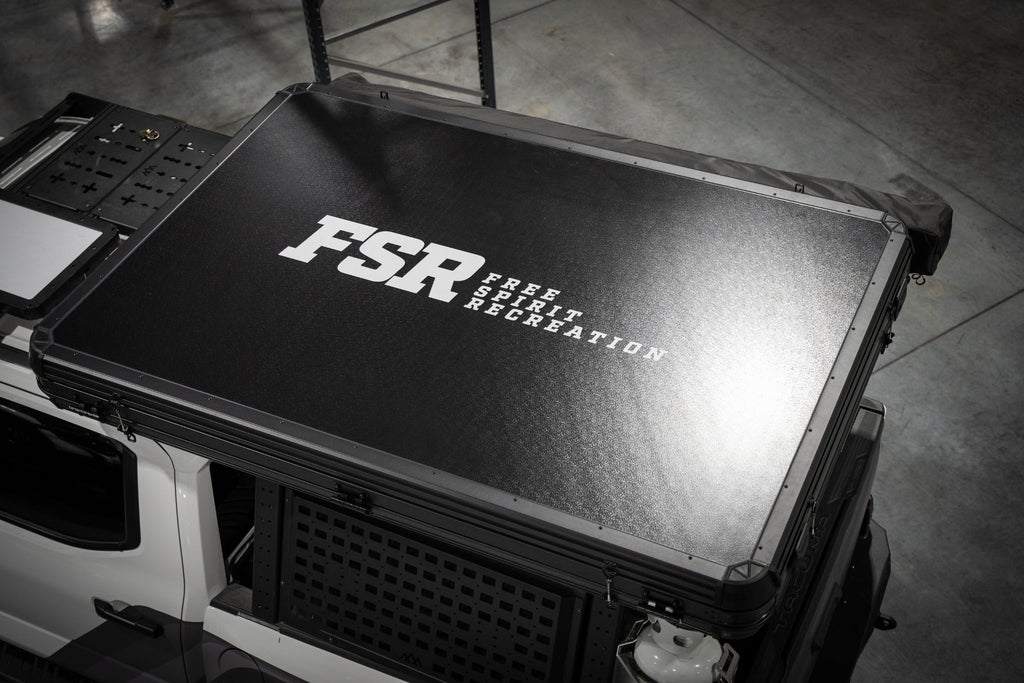

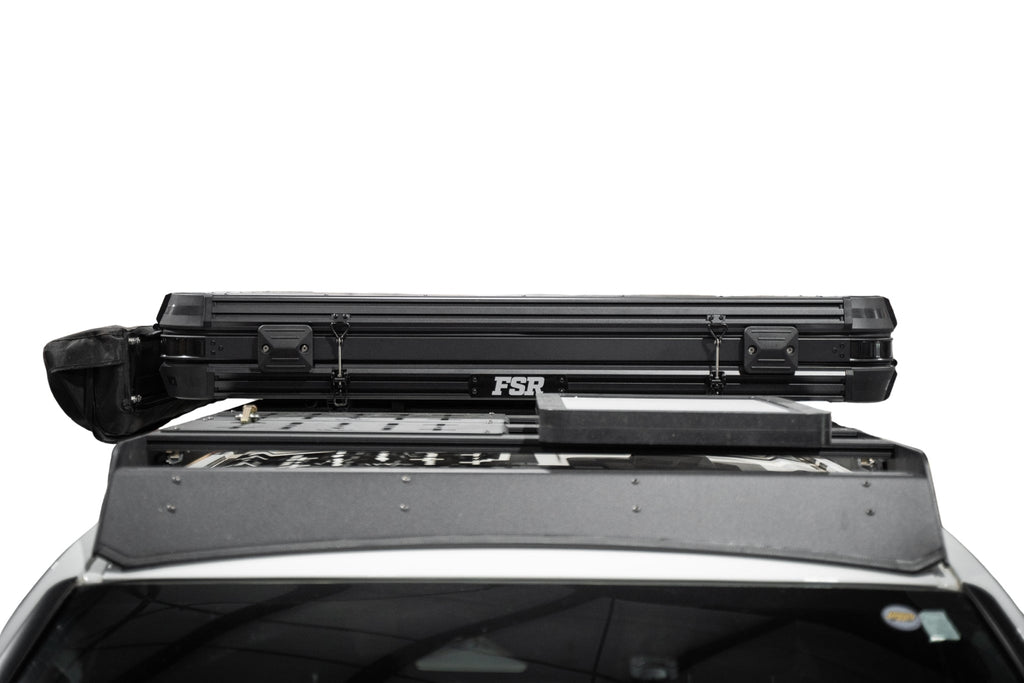

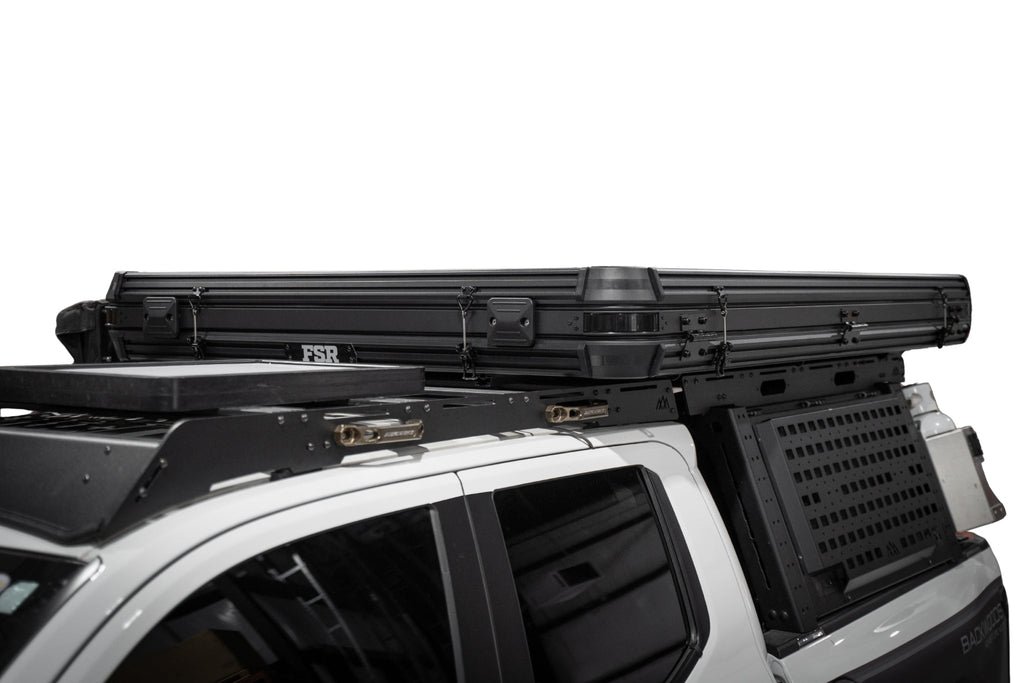

Premium Aluminum Construction

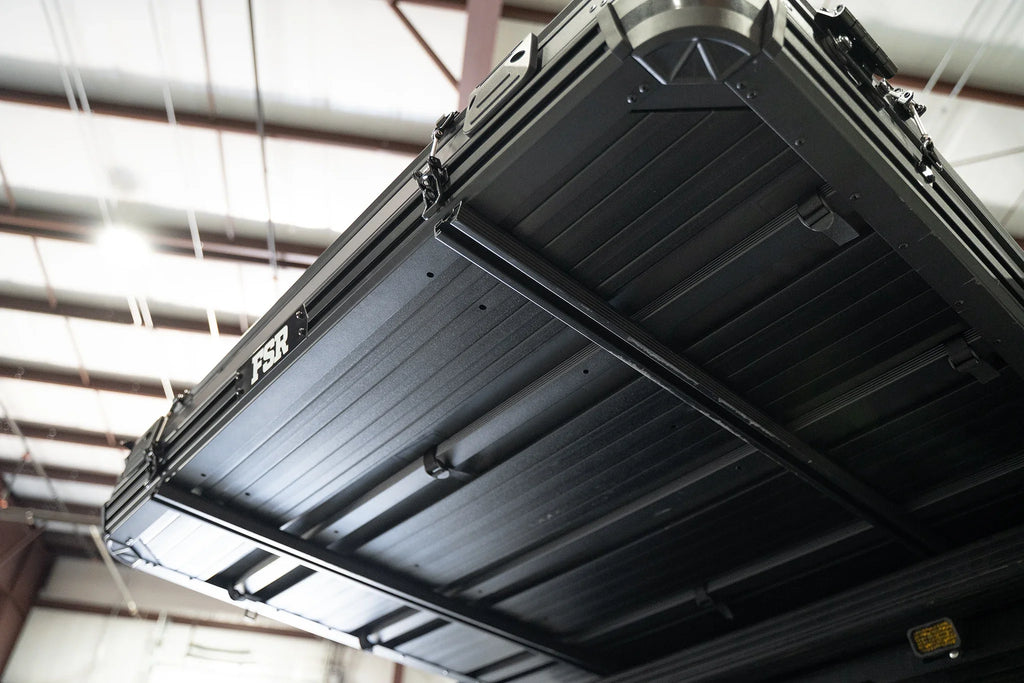

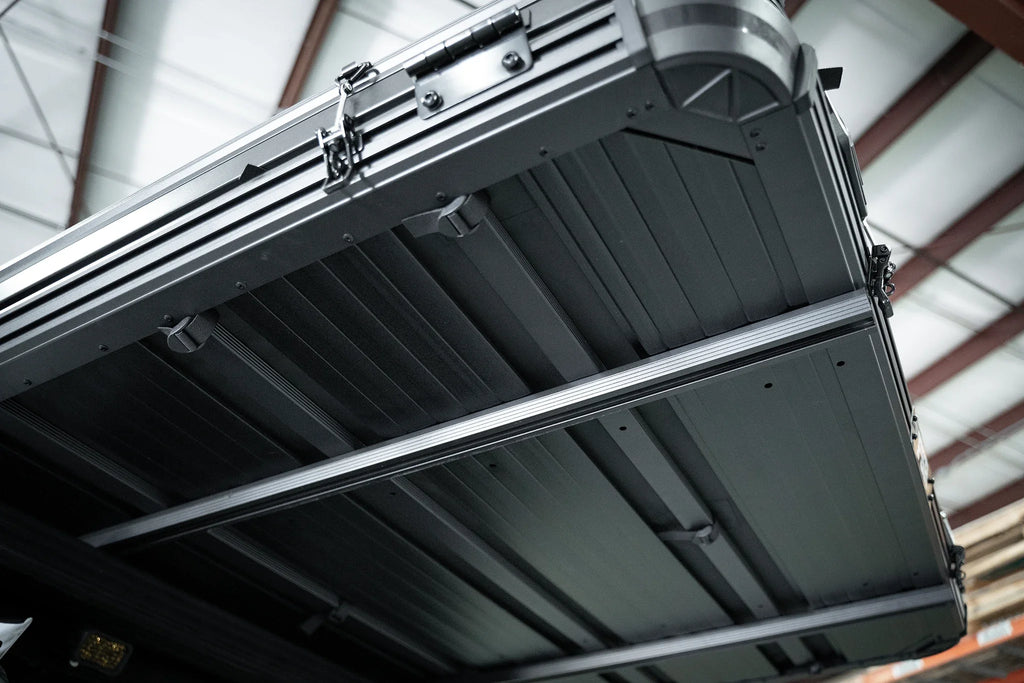

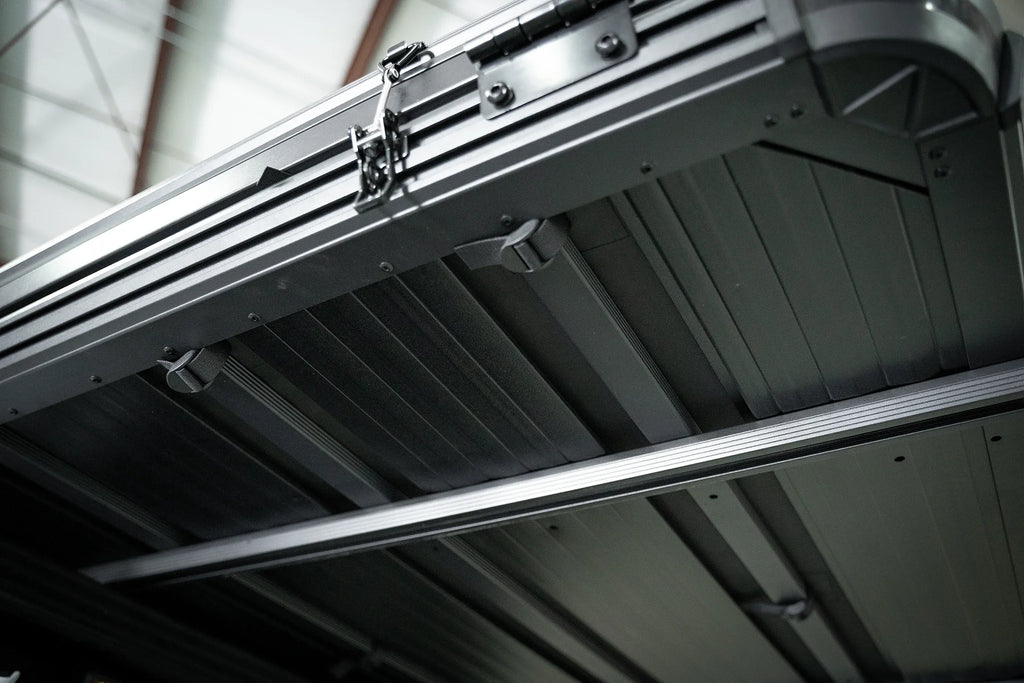

This is a proper hard top roof top tent: an uber durable extruded aluminum frame with polymer corners, an open cross-slat floor for breathability, and an aluminum hard shell built for aerodynamics. The open cross-slat floor does double duty: it saves weight and lets the tent breathe from underneath rather than trapping moisture against a solid base. Paired with strategically located venting for 360 degree airflow, it virtually eliminates the condensation that plagues sealed-floor tents.
Find Your Fitment

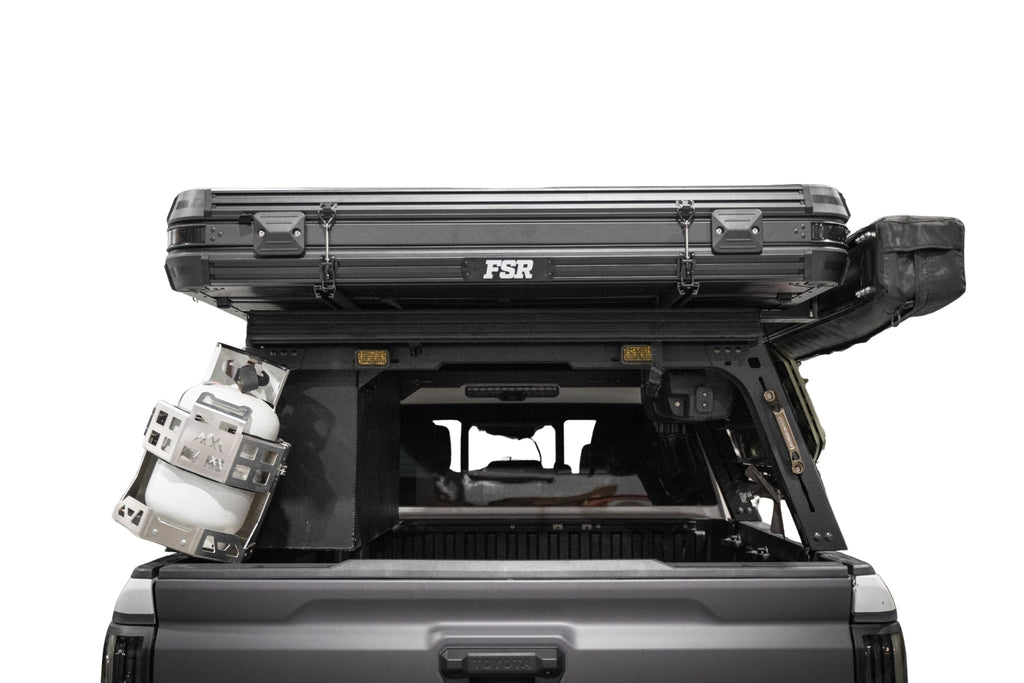

FSR builds the Evolution XL for full-size trucks and long beds, and for rig builds that demand maximum storage. Confirm your rack's dynamic load rating covers 184 lbs and that you have 86 1/2 inches of usable rail length.

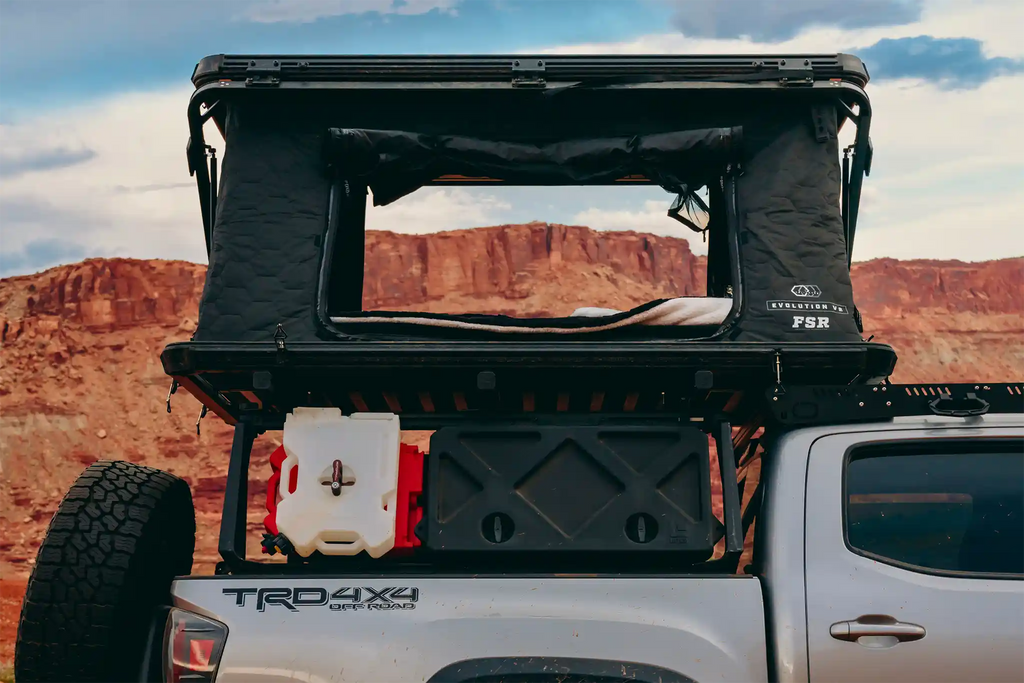

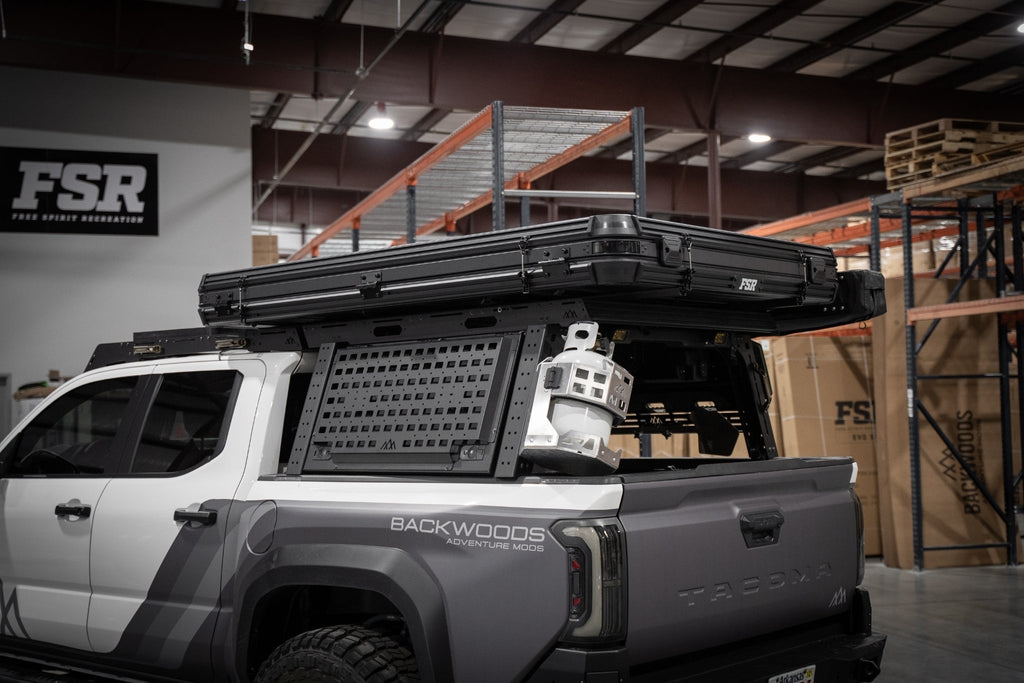

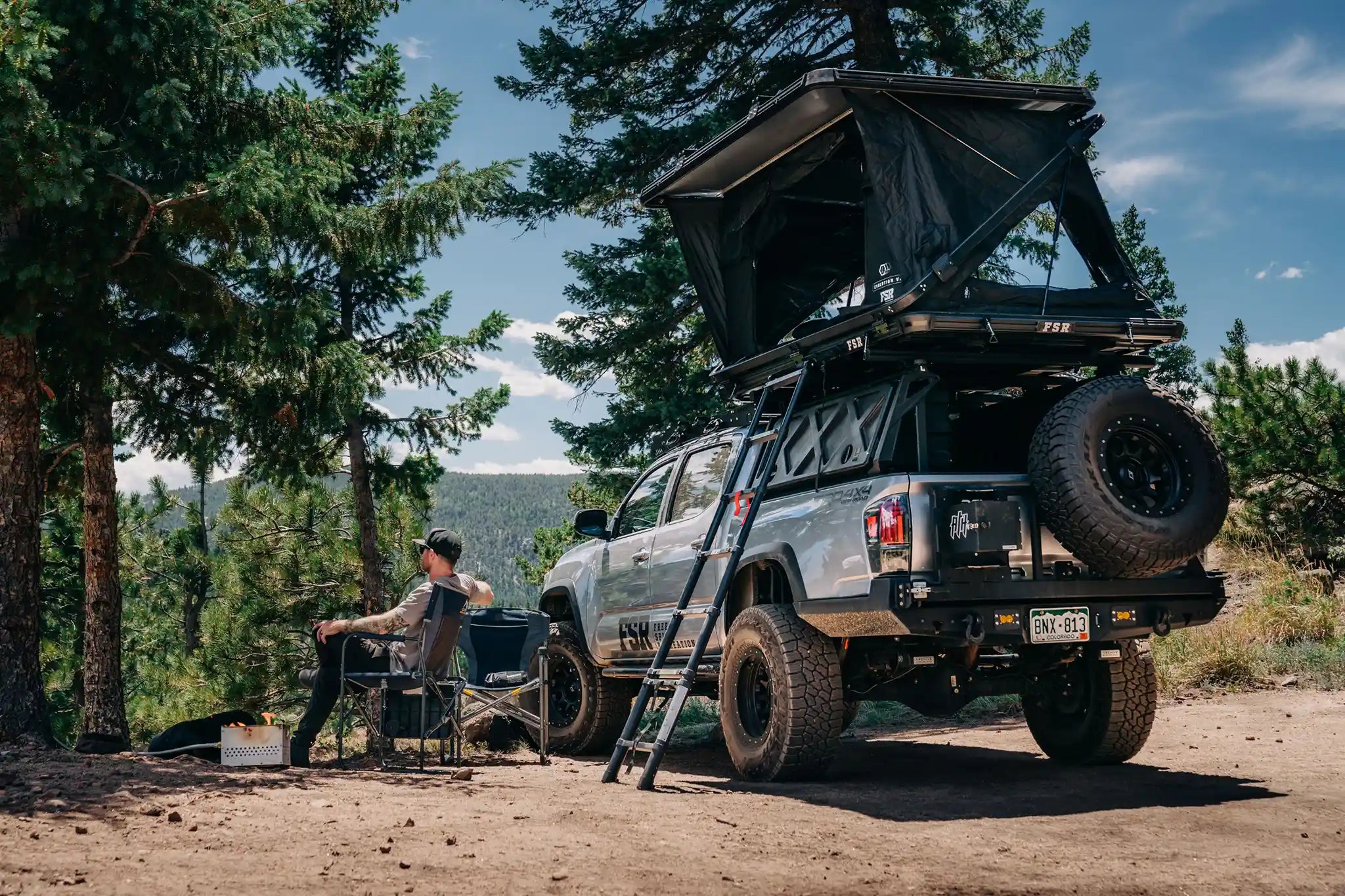

Full-Size & Long Bed Trucks
The vehicle FSR designed it around. A truck rooftop tent build on a full-size bed rack has the rail length and the load rating to carry 184 lbs without compromise.

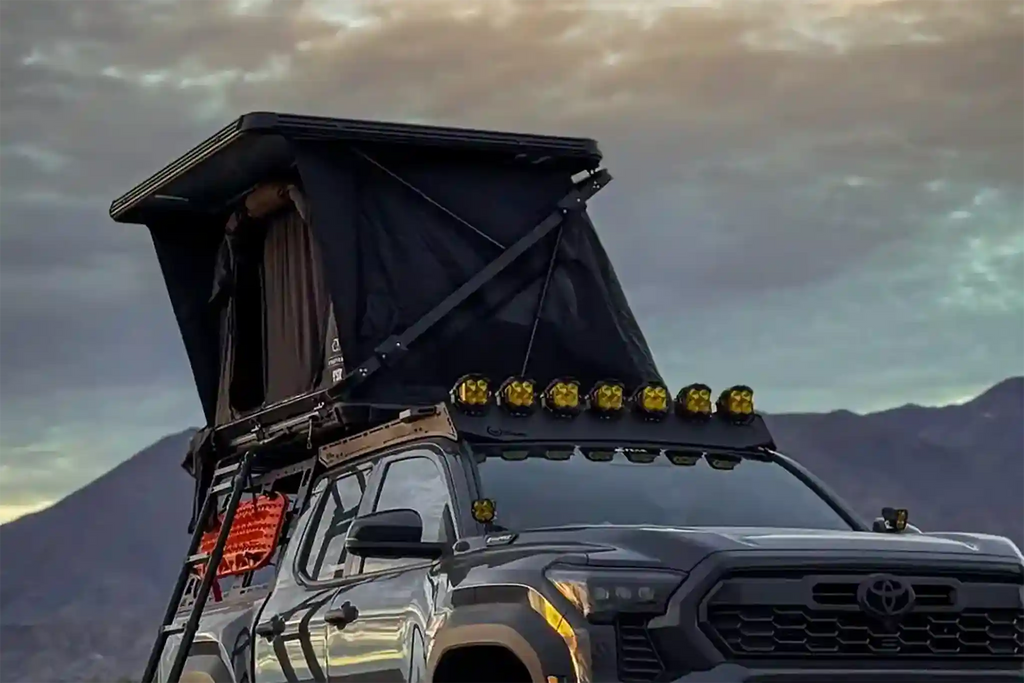

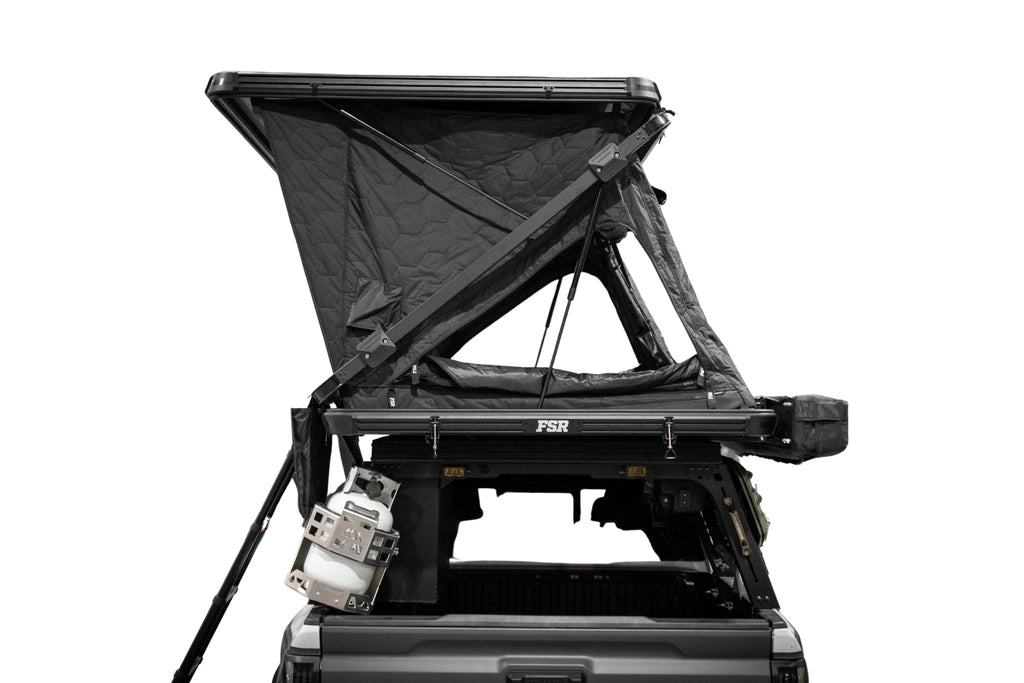

Mid-Size Trucks
Workable on an above-cab bed rack rated for the load. A pop up truck bed tent setup keeps the cab clear and puts the tent where it is easy to access.
Full-Size SUVs
Possible on a platform rack rated for 184 lbs with 86 1/2 inches of rail. Check both numbers, since SUV roof ratings are usually lower than a bed rack's.
Sedans & Crossovers
Not the right tent. At 184 lbs and 86 1/2 inches closed, look at the Aspen Lite at 100 lbs instead.
More Details That Matter
Single Channel Accessory Mounting: Single channel extruded aluminum lets you mount crossbars, shovels, traction boards, light bars, Rotopax, and more to the tent itself. On a build where the rack is already carrying the tent, that extra mounting surface is genuinely useful.
Integrated Rainfly: The tent body is already completely waterproof. The integrated rainfly is a second layer of security and sun shielding on top of that, rather than the only thing between you and the weather.
Heater, AC, and Electrical Ports: Built-in ports for running a diesel heater duct, an AC line, or power through the tent body without leaving a gap for weather or bugs. For year-round overlanding rooftop tent use, that is what makes genuine winter camping practical.

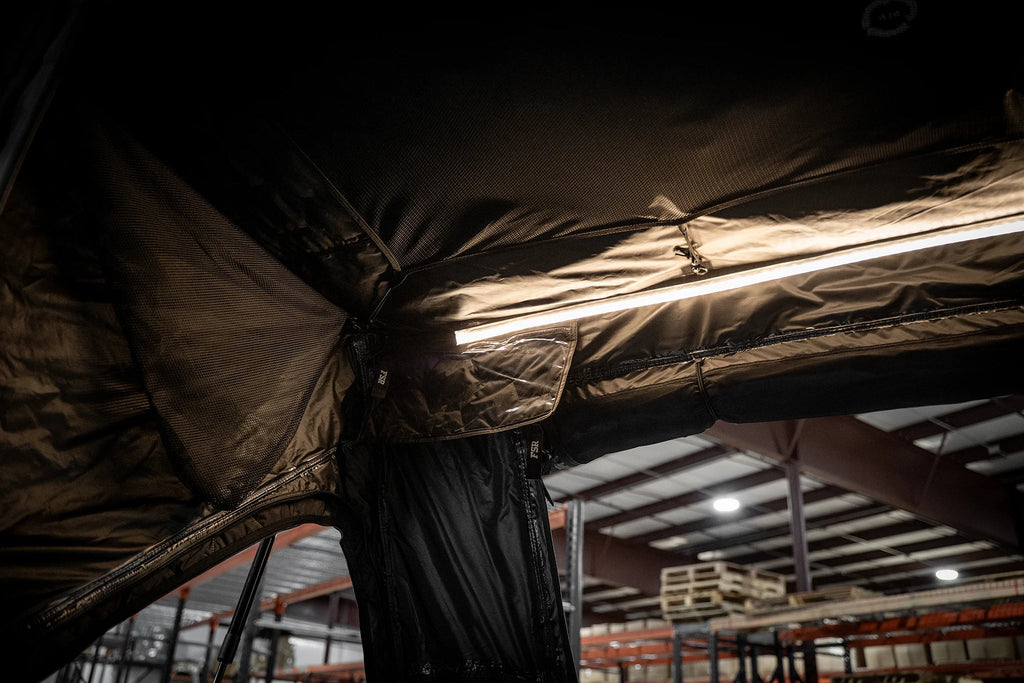

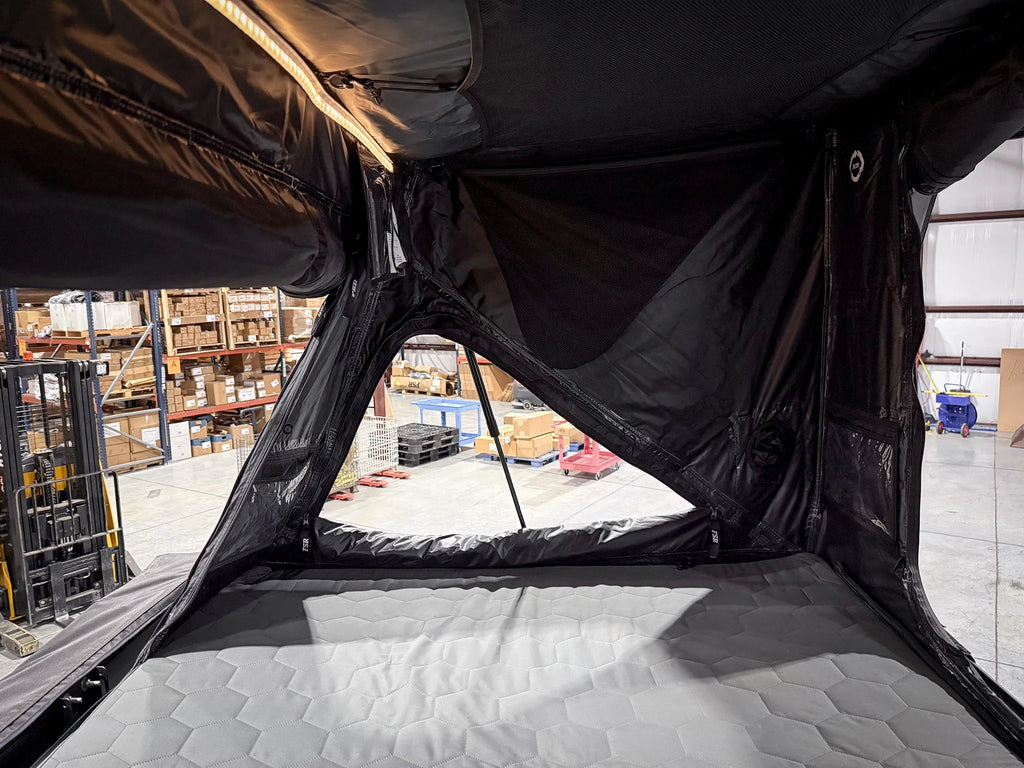

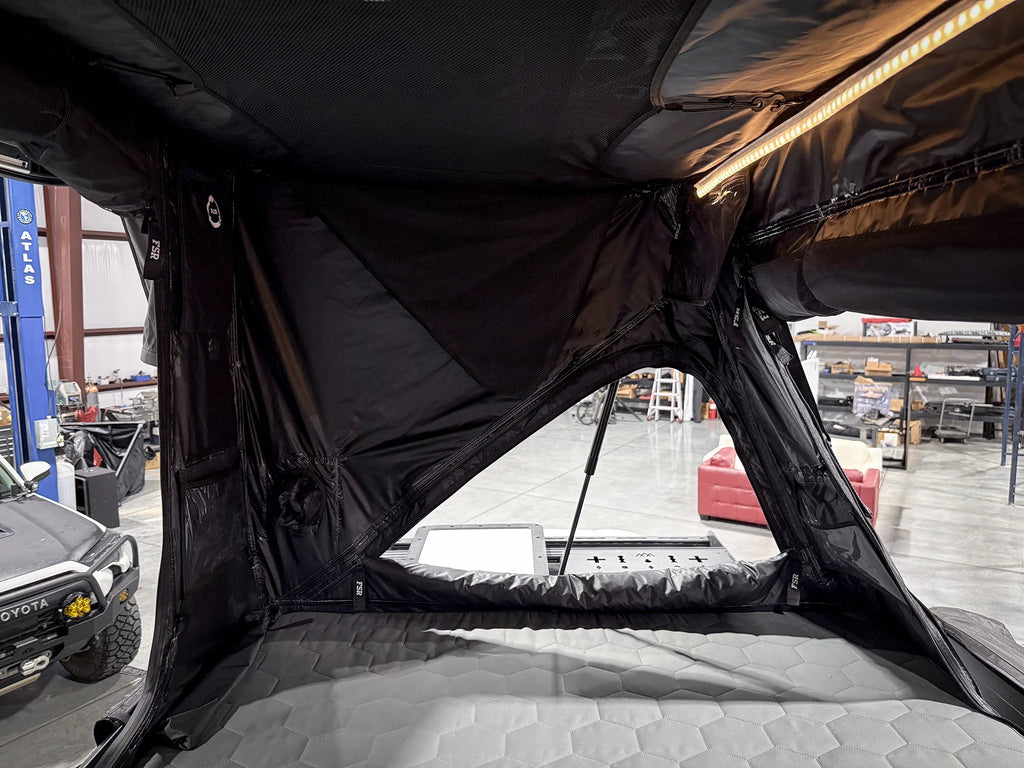

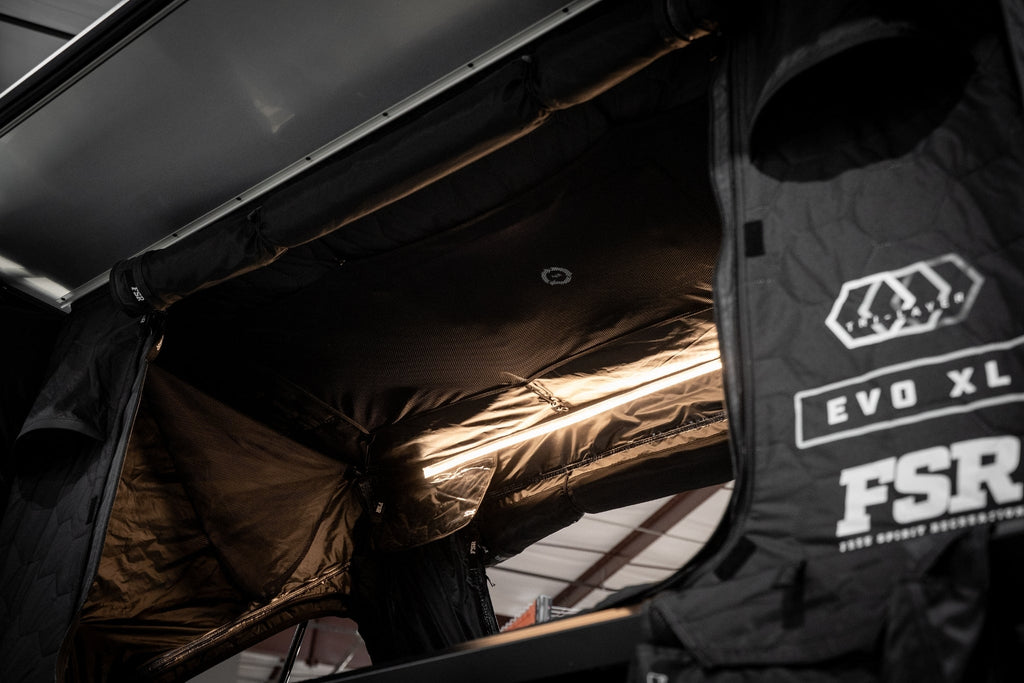

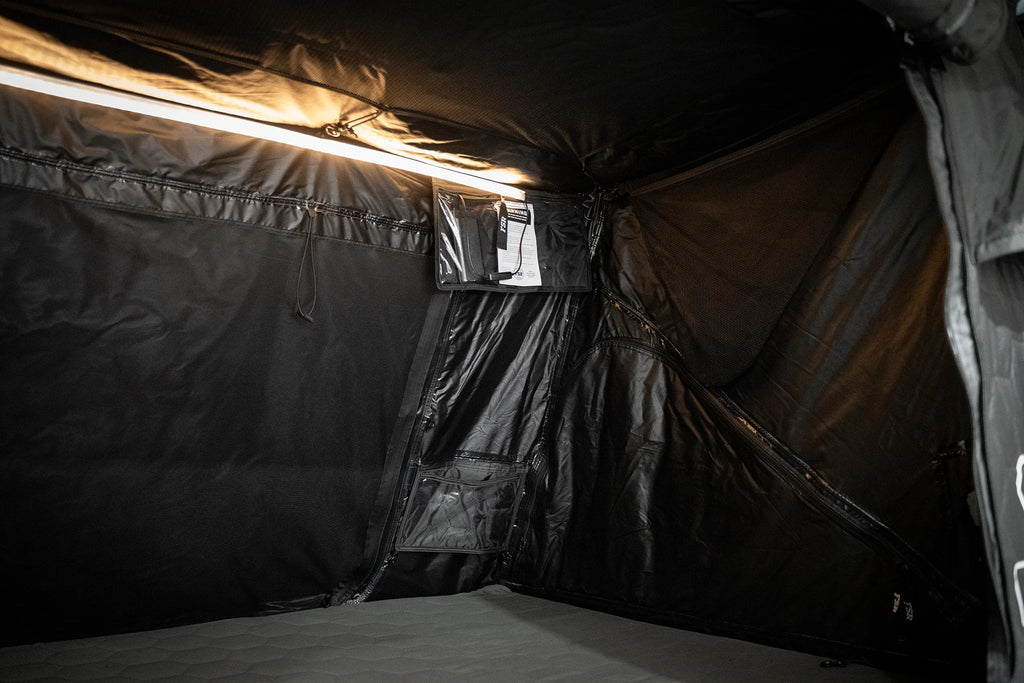

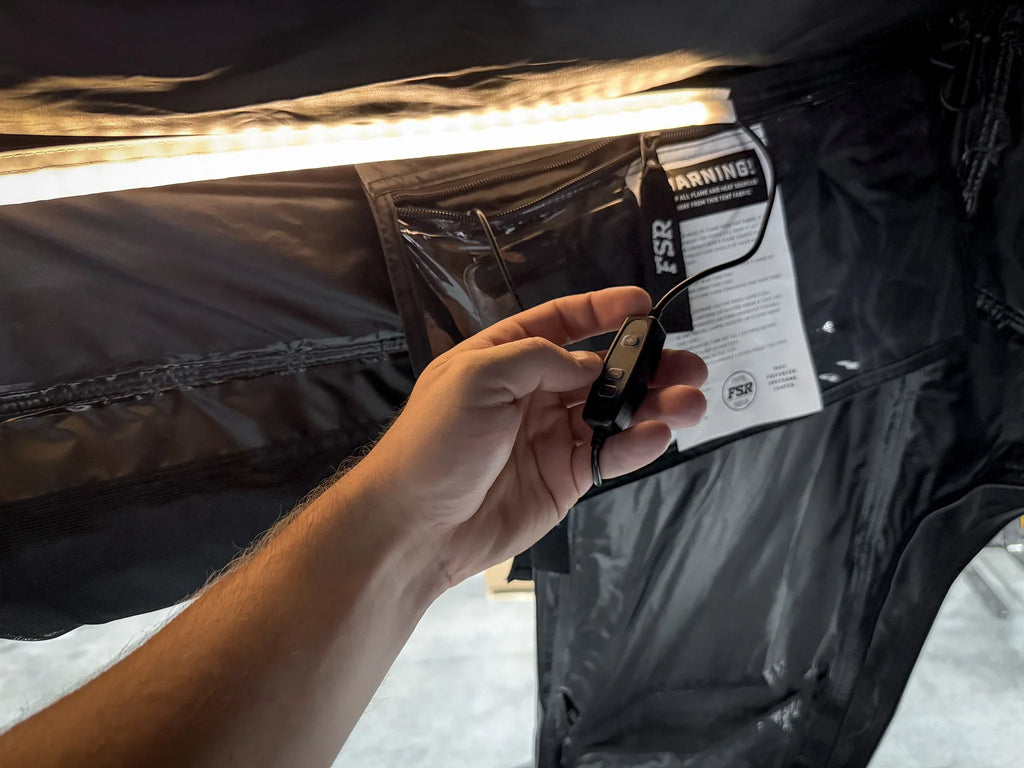

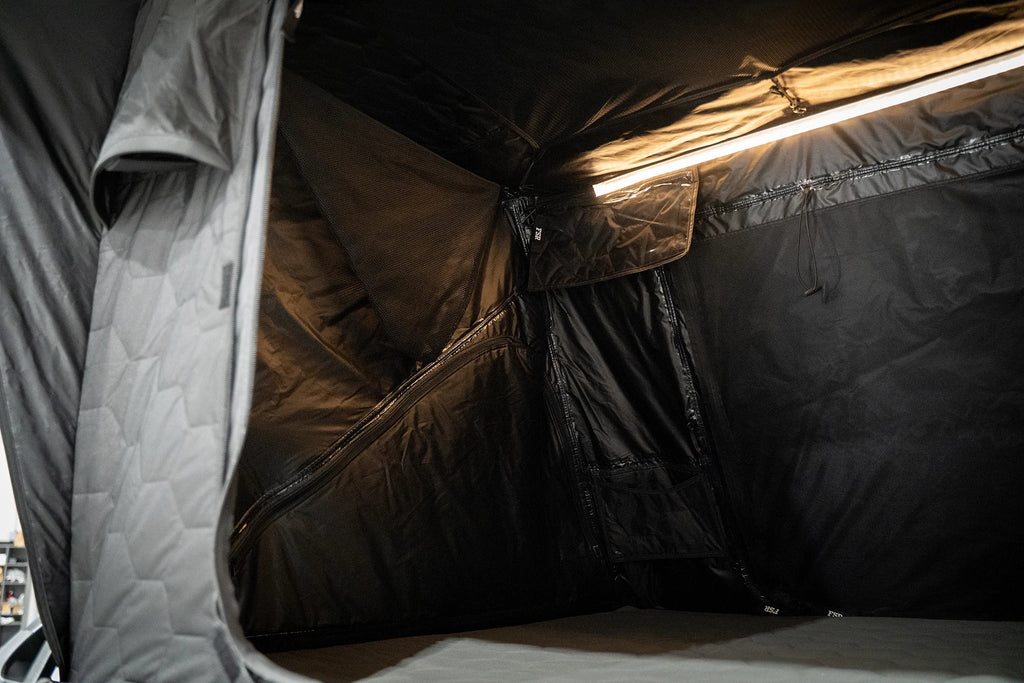

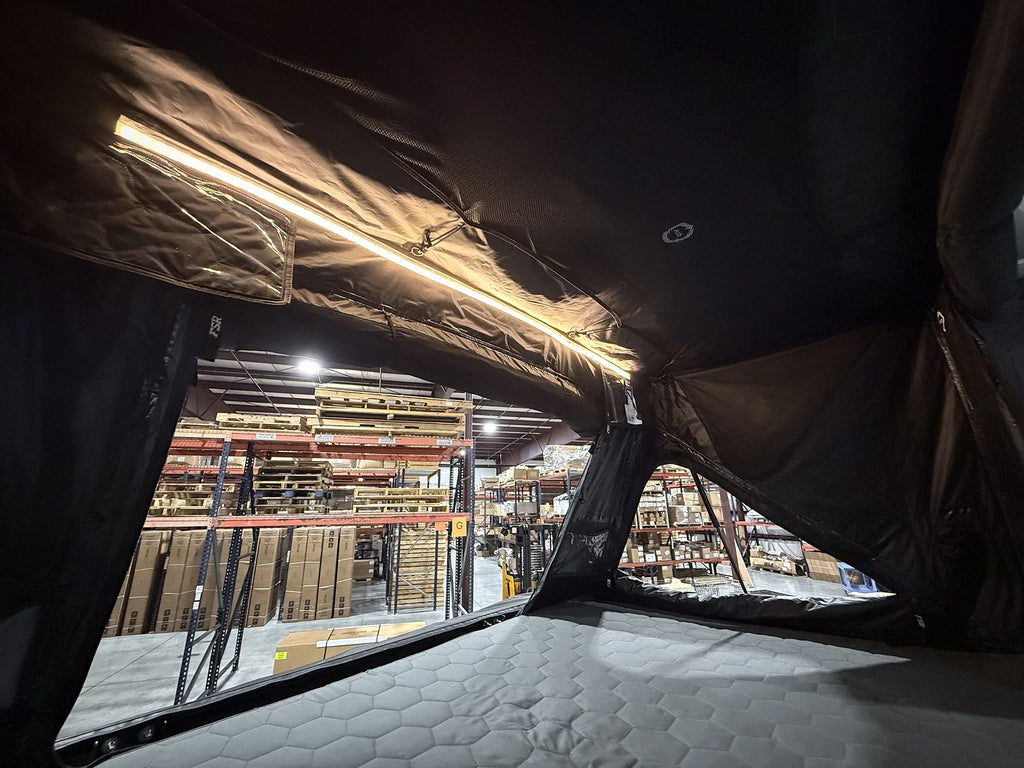

Memory Foam Mattress and Dimmable LED: A memory foam mattress across the full 55 by 81.5 inch floor, plus integrated dimmable LED lighting so you are not choosing between full brightness and a headlamp. Gas strut locks hold the shell positively.
Which FSR Tent?
All seven use FSR's patented Tri-Layer insulation and deploy in under a minute. They are built around different constraints.
| Evolution XL | Aspen Pro XL | Aspen Pro | Aspen Lite | Kali | Kali King | Nova King | |
|---|---|---|---|---|---|---|---|
| Style | Pop up | Clamshell | Clamshell | Clamshell | Pop up | Pop up | Foldout |
| Sleeps | 2 to 3 | 2 to 3 | 1 to 2 | 1 to 2 | 2 to 3 | 3 to 4 | 3 to 4 |
| Interior W | 55" | 55" | 45 1/2" | 45 1/2" | 52" | 72" | 72" |
| Headroom | 38" even | 52"* | 52"* | 59"* | 48.5" | 48.5" | 43 1/4" |
| Storage | 9 pockets | Grid | Grid | Grid | Grid | Grid | Grid |
| Weight | 184 lbs | 154 lbs | 134 lbs | 100 lbs | 177 lbs | 207 lbs | 162 lbs |
| Capacity | 750 | 750 | 750 | 750 | 660 | 660 | 750 |
*Clamshell headroom is measured at the peak and tapers toward the foot end. The Evolution XL's 38" is consistent across the entire floor.
Choose the Evolution XL if storage and even headroom matter most, on a full-size truck or long bed.
Choose the Aspen Pro XL if you want the same 55 inch width 30 lbs lighter and 2 inches lower, and you can live with clamshell taper.
Need to sleep four? See the Kali King or Nova King. Smaller vehicle? The Aspen Lite or Aspen Pro Standard. Short rack? The Kali closes to 59 inches.
Specifications
| Style | Full insulation Tri-Layer dual-hinge pop up, gas-strut assisted |
| Sleeps | 2 to 3 people |

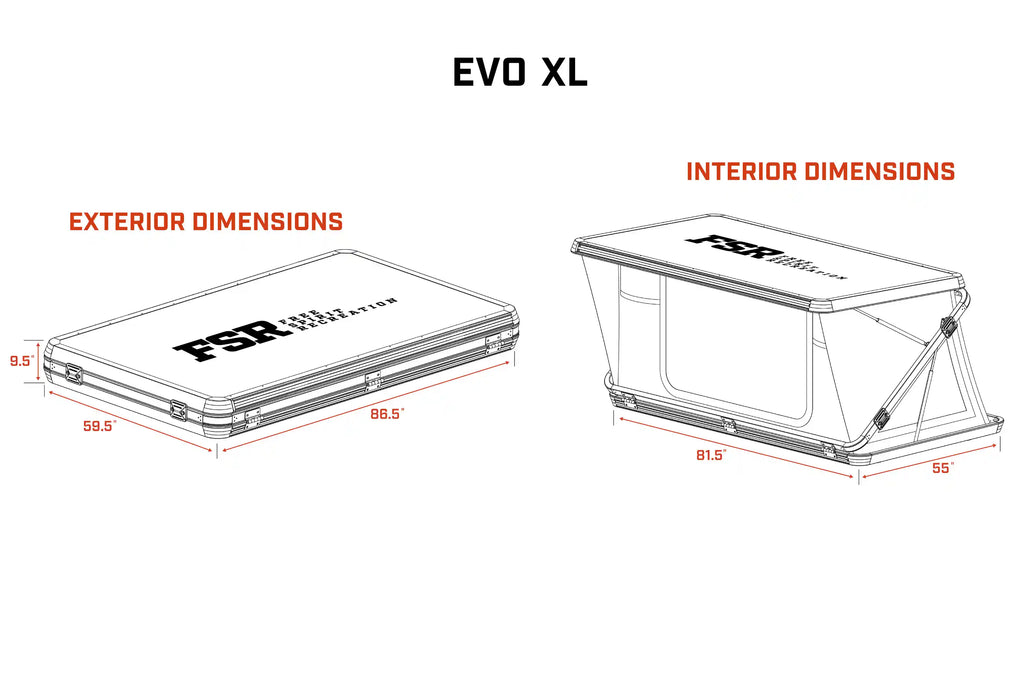

| Exterior Dimensions | 59 1/2" W x 86 1/2" L x 9 1/2" H (includes mounting rail height) |
| Interior Dimensions | 55" W x 81 1/2" L x 38" H |
| Weight | 184 lbs |
| Weight Capacity | 750 lbs |
| Shell | Aluminum hard shell |
| Interior Storage | 9 pockets: 6 waterproof, 2 large net bags, 1 large overhead net organizer |
| Tent Body | Patented Tri-Layer: polycotton fill between two layers of 210D ripstop |
| Tent Floor | 600D breathable Oxford ripstop, PU coated 2000mm, open cross-slat design |
| Rainfly | Integrated. 210D Oxford ripstop PU 3000mm, silver blockout coating, UPF 50+ |
| Frame | Extruded aluminum with polymer corners |
| Ventilation | 360 degree |
| Mattress | Memory foam |
| Lighting | Integrated dimmable LED |
| Ladder | 7.5' telescoping |
| Deployment | Under one minute |
| Accessory Mounting | Single channel extruded aluminum |
| Ports | Heater, AC, and electrical |
| Bedding Storage | Sheets, pillows, light comforter |
| Best Suited For | Full-size trucks and long beds, 2 to 3 person trips, year-round overlanding |
What's Included
📄 Installation Manual
Download the rooftop tent installation manual covering mounting hardware and rack setup.
Pros
- Nine interior storage pockets, the most in the FSR range, including six waterproof and an overhead organizer
- Pop up design gives 38" of even headroom across the whole floor rather than a tapering wedge
- 55" x 81 1/2" interior comfortably sleeps two to three
- 750 lb weight capacity, the highest tier FSR offers
- Patented Tri-Layer insulation wall-to-wall and floor-to-ceiling for true 4 season use
- Open cross-slat floor plus 360 degree venting virtually eliminates condensation
- Integrated rainfly on an already-waterproof body, plus heater, AC, and electrical ports
- Gas struts live inside the shell, protected from tree limbs and dirt
- Single channel aluminum lets you mount crossbars and gear to the tent itself
Cons
- 38" of headroom is the lowest in the FSR range. It is consistent rather than tapering, but you will not sit fully upright
- 184 lbs and 86 1/2 inches closed rules out crossovers and most small SUVs. Consider the Aspen Lite instead
- 30 lbs heavier and 2 inches taller closed than the Aspen Pro XL at the same 55 inch width
- Single channel accessory mounting rather than the dual channel on the Aspen Pro models
Frequently Asked Questions
How much storage does it actually have?
More than any other hard top roof top tent in the FSR range. Nine interior pockets: six waterproof pockets, two large net bags, and one large overhead net organizer. Plus the included gear storage grid and two shoe bags. The waterproof pockets matter for phones, electronics, and documents you do not want near condensation. The overhead organizer uses vertical space that is wasted in most rooftop tents. For a 2 to 3 person trip over multiple nights, it is the difference between an organized tent and a pile of gear on the mattress.
Is 38 inches of headroom enough?
It depends what you compare it to. 38 inches is the lowest figure in the FSR range, but it is consistent across the entire floor because this is a pop up rather than a clamshell. A clamshell listing 52 inches peaks at the entry and tapers toward your feet, so only part of the tent has that height. With the Evolution XL, two or three people can sit up anywhere in the tent. You will not stand or sit fully upright, but you will not be crawling to the tall end either.
Will my rack carry 184 lbs?
Check your rack's dynamic load rating, the figure that applies while driving, and confirm it covers 184 lbs plus anything else up there. Static rating, which is higher, covers the tent plus occupants once parked. You also need 86 1/2 inches of usable rail length. FSR builds this for full-size trucks and long beds, where both numbers are usually comfortable. Call us at 844-200-3979 with your vehicle and rack and we will confirm.
Evolution XL or Aspen Pro XL?
Both are 2 to 3 person tents with a 55 inch by 81 1/2 inch interior and a 750 lb capacity. The Evolution XL is a pop up with nine storage pockets and 38 inches of even headroom, weighing 184 lbs at 9 1/2 inches closed. The Aspen Pro XL is a clamshell with 52 inches of peak headroom that tapers, weighing 154 lbs at just 7 3/8 inches closed. Choose the Evolution XL for storage and even headroom. Choose the Aspen Pro XL if lower profile and less weight matter more.
Is it warm enough for year-round use?
Yes. FSR describes the Evolution XL's Tri-Layer coverage as wall-to-wall and floor-to-ceiling, a polycotton fill sandwiched between two layers of 210D ripstop across the entire body. The tent is completely waterproof with an integrated rainfly on top of that. Built-in heater, AC, and electrical ports let you run a diesel heater duct through the body without leaving a gap for weather, which is what makes genuine winter overlanding practical rather than theoretical.

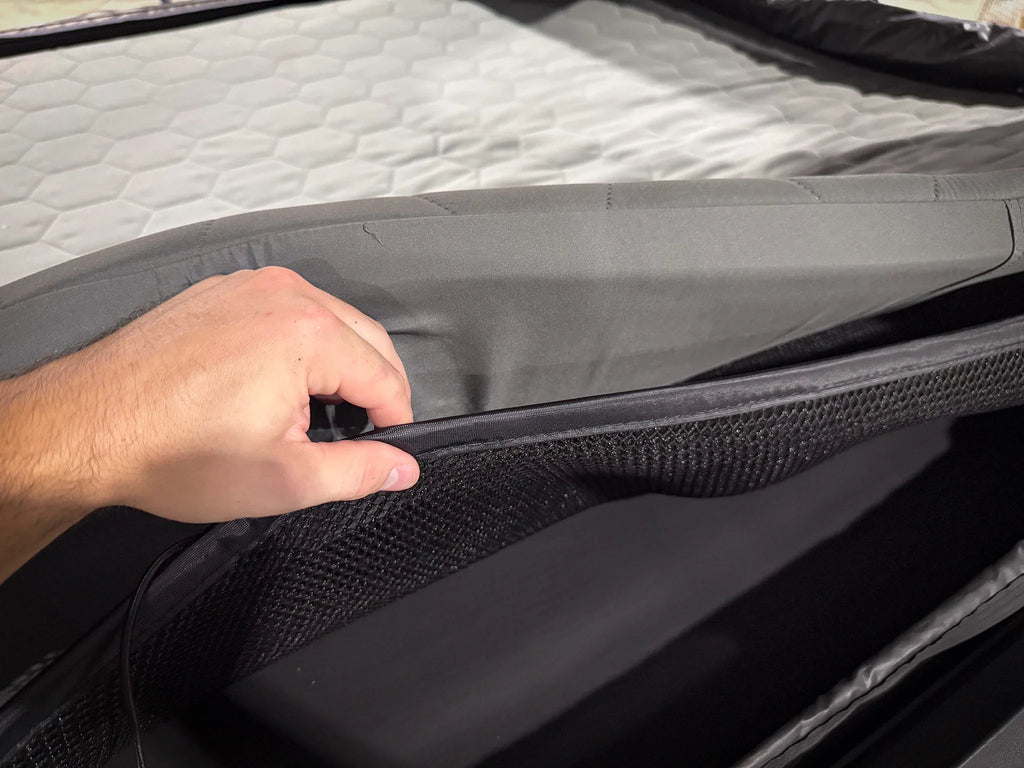

Will I wake up to condensation?

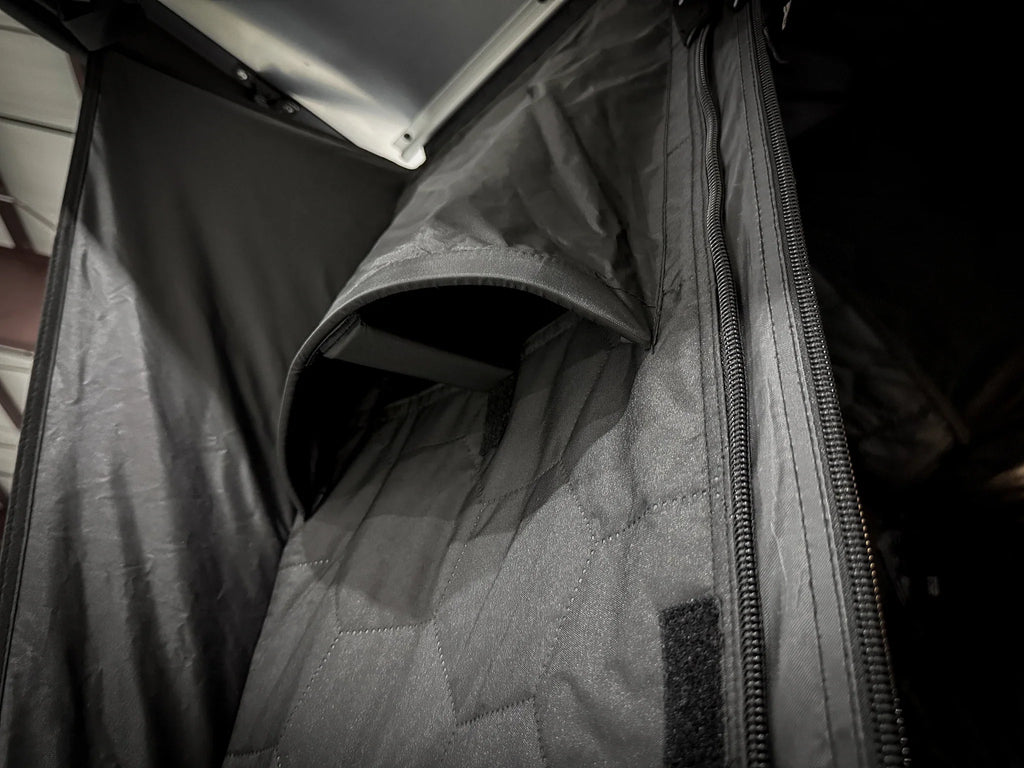

Far less than in a sealed-floor tent. The aluminum open cross-slat floor lets the tent breathe from underneath rather than trapping moisture against a solid base, and FSR pairs it with strategically located venting for 360 degree airflow. The floor design does double duty, saving weight and improving airflow at the same time. Condensation is the most common complaint about rooftop tents generally, and this construction attacks the cause rather than adding a vent and hoping.
