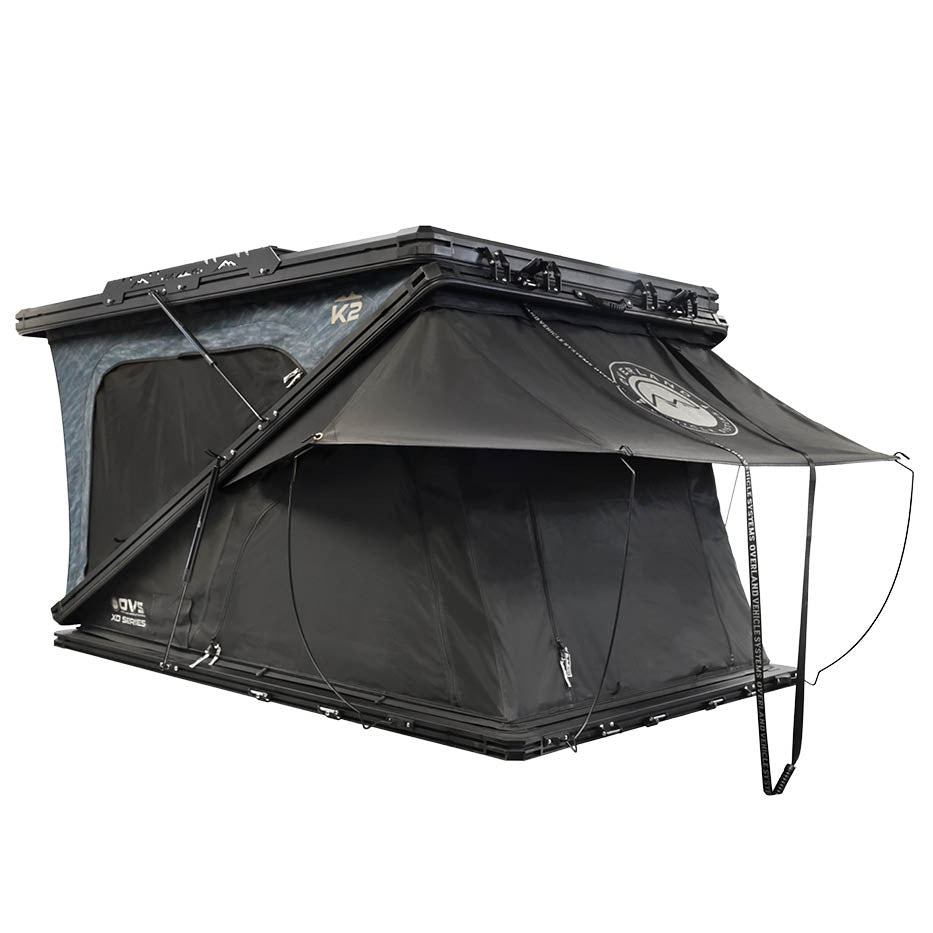

The OVS XD K2 is a dual clamshell pop-up roof top tent built for overlanders who want speed, strength, and comfort without compromise. The modern dual clamshell opening system pops open in seconds using two nitrogen gas-charged struts, getting you off the trail and into camp faster than any traditional setup. The low-profile aluminum honeycomb shell enhances aerodynamics on the road and provides exceptional durability for demanding adventures.
What sets the XD K2 apart from most hardshell tents is what comes included: a zip-up cold weather insulation kit, an anti-condensation mat, blackout fabric, an integrated LED light strip, a flexi-panel ceiling storage system, integrated adjustable crossbars, and a premium 2-inch memory foam mattress. Most competitors charge extra for at least half of these. OVS includes them all. Backed by a limited lifetime structural warranty and a 6-year fabric warranty.

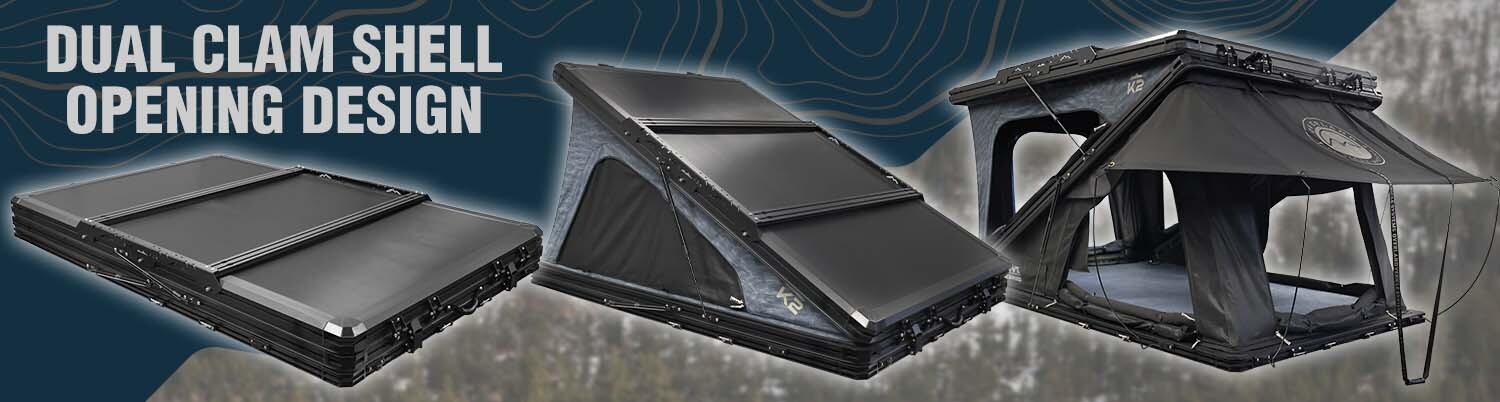

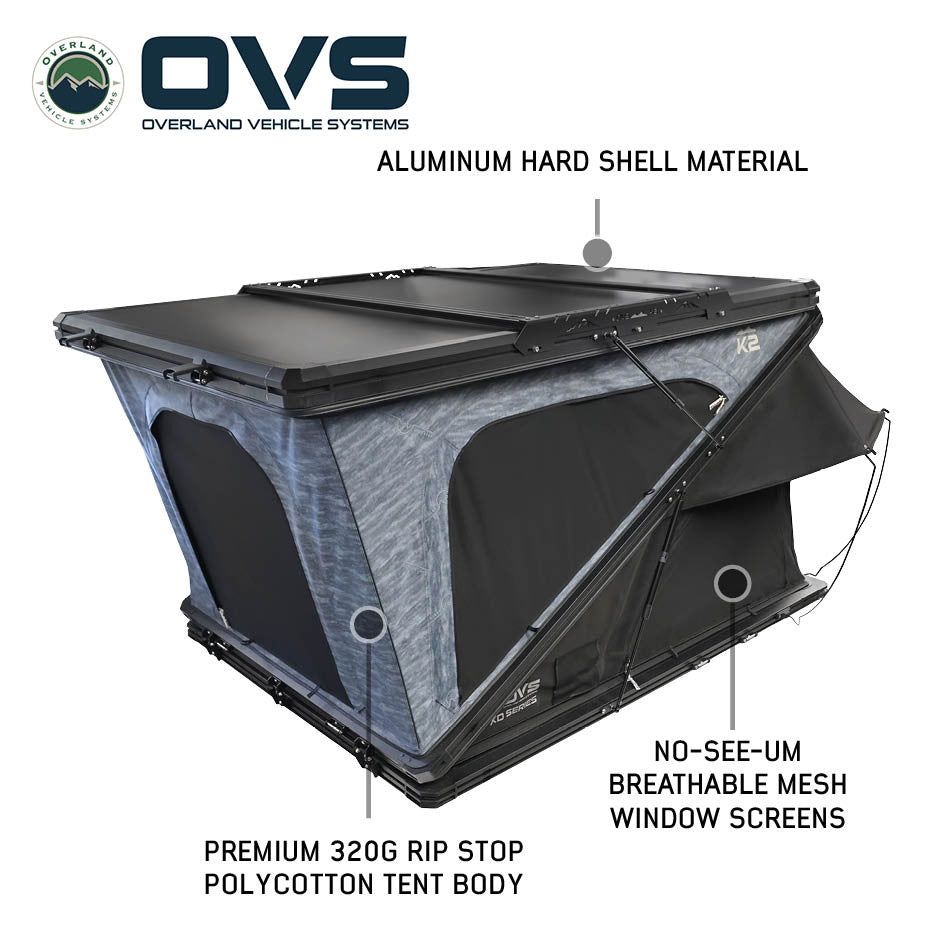

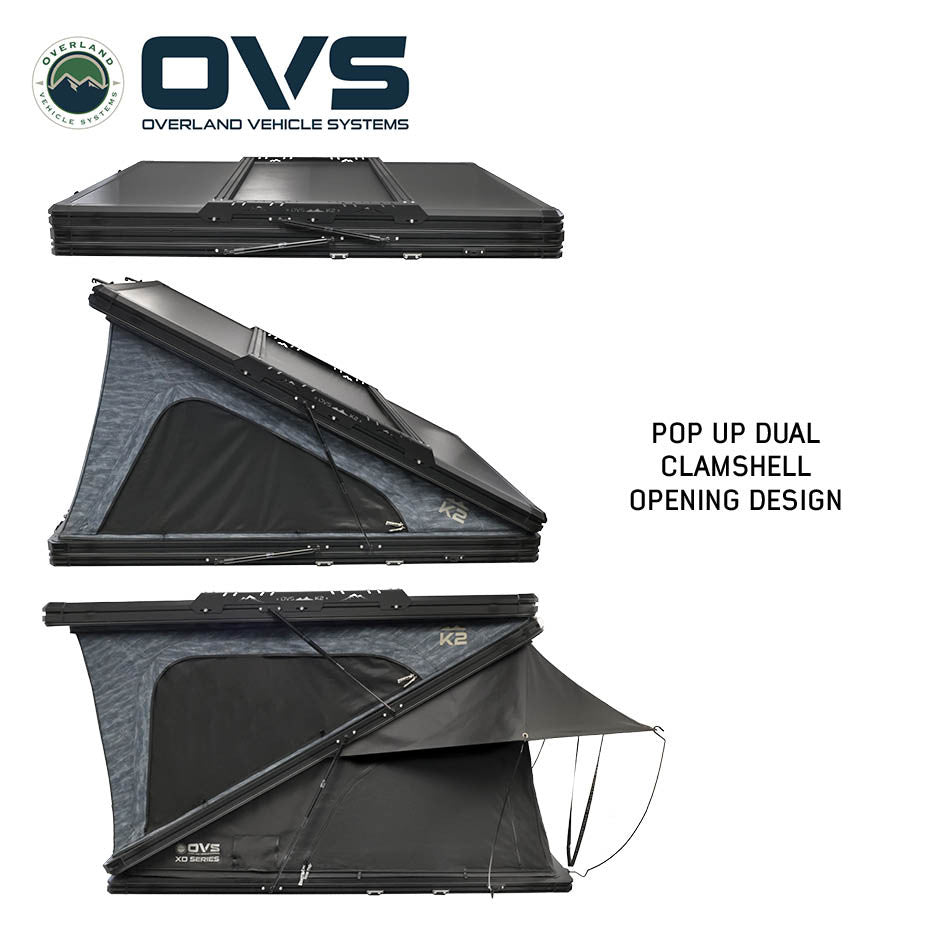

Dual Clamshell Opening

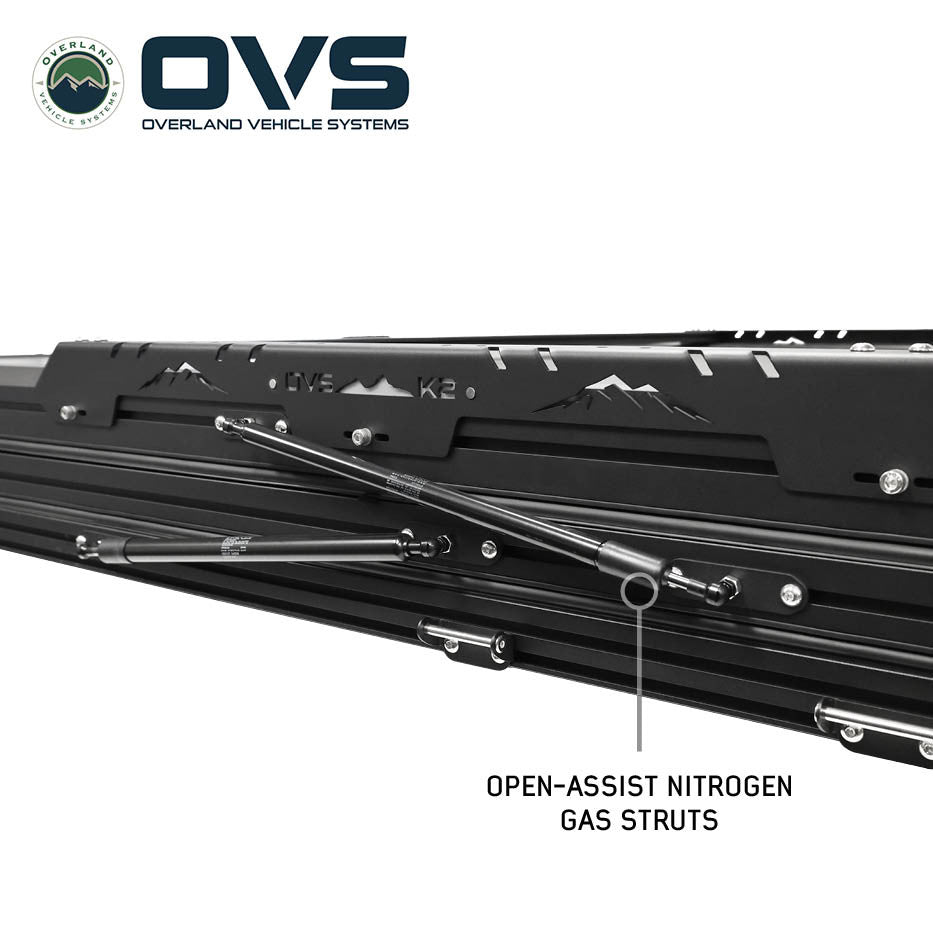

Unlike traditional single-hinge clamshell tents where one side stays flat against the rack, the XD K2 opens from both sides. Two nitrogen gas-charged struts lift both shell halves simultaneously, creating a symmetrical pop-up shape with 51 inches of headroom at the center. Setup takes about 2 minutes. Teardown takes about 2 minutes. Ladder mounts are available on all sides, allowing up to 3 entry points so you can position the ladder based on your camp layout, wind direction, or vehicle placement.

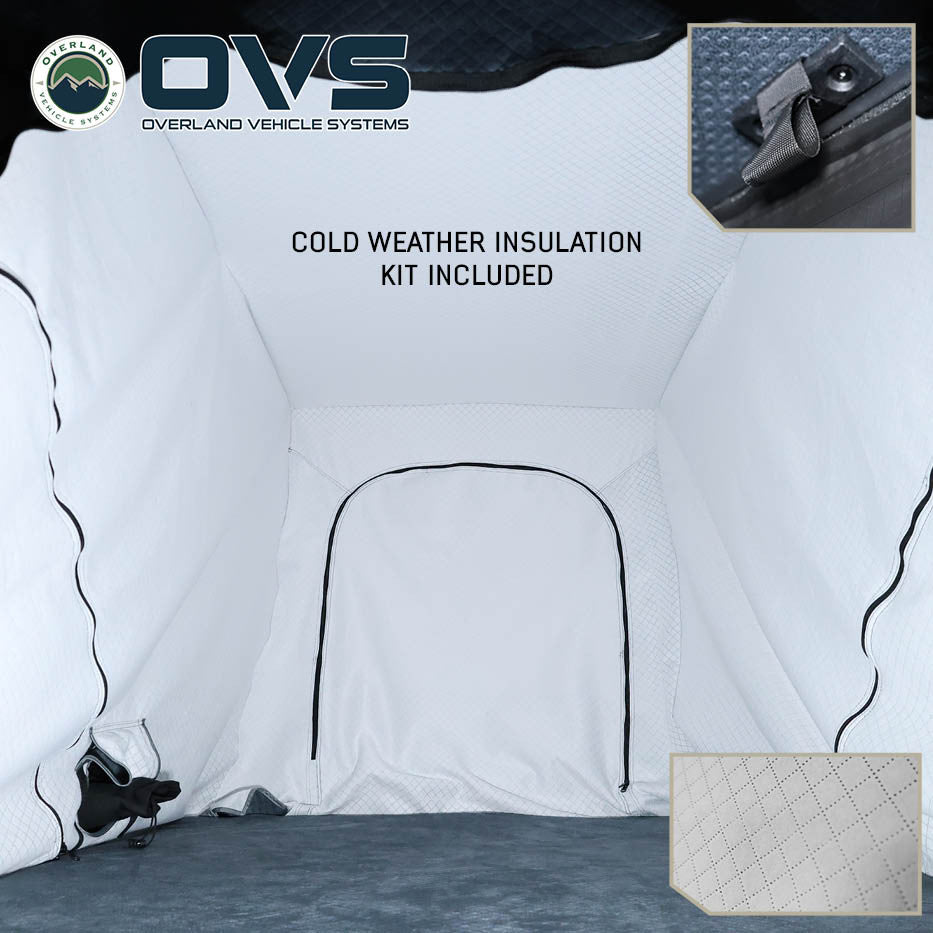

Included Cold Weather Insulation Kit
Most rooftop tents sell their cold weather kit separately for $200-$400. The XD K2 includes one in the box. The zip-up insulation kit uses breathable polycotton with high-frequency welded seams that line the interior of the tent, adding a thermal barrier between you and the elements. Pair this with the anti-condensation mat (also included) and the blackout fabric that reduces heat loss, and you have a genuine 4-season tent out of the box without spending extra on accessories.
5000 PU Waterproof. Anti-Condensation Included.

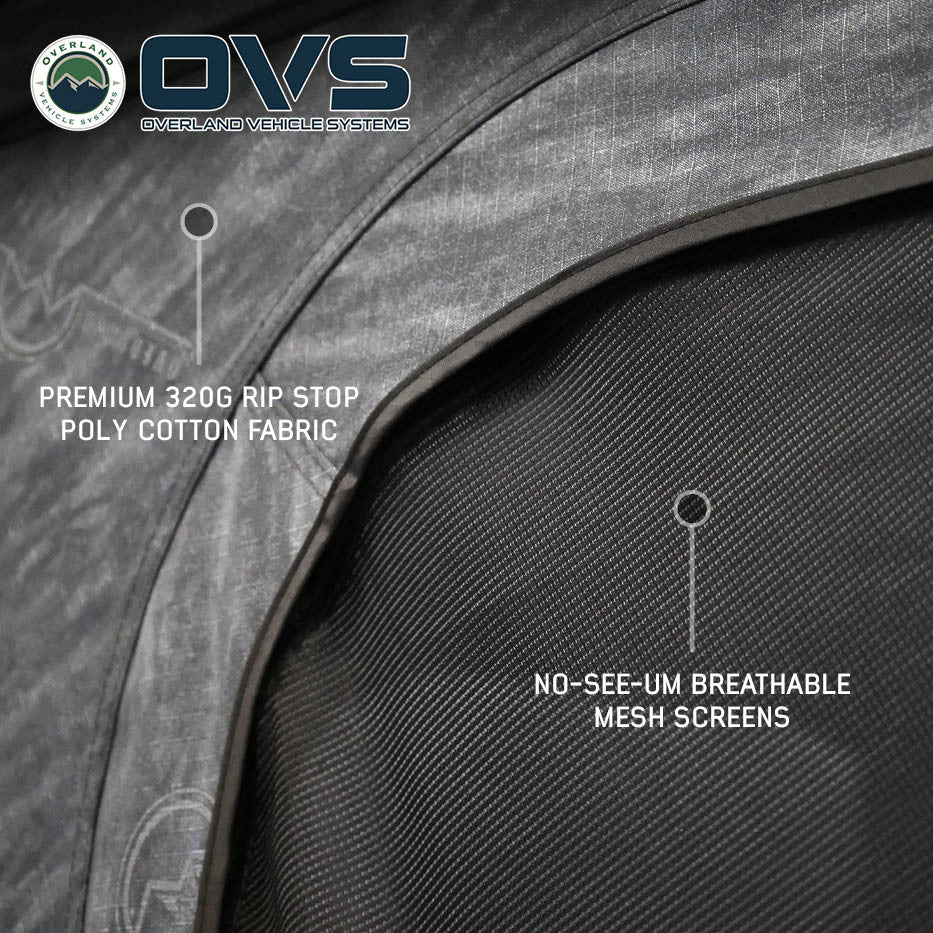

The premium XD 320G ripstop polycotton Oxford fabric carries a 5000 PU waterproof rating with military-spec seals that block water intrusion and mold. That is significantly higher than the 2000-3000 PU rating found on most competing tents. The blackout interior coating reduces heat and blocks all light intrusion for darker, cooler sleep. The included anti-condensation mat sits between the mattress and the tent floor, managing moisture in varying climates so you do not wake up to a damp sleeping surface. The fabric is also 302 FMVSS certified for flame retardancy.

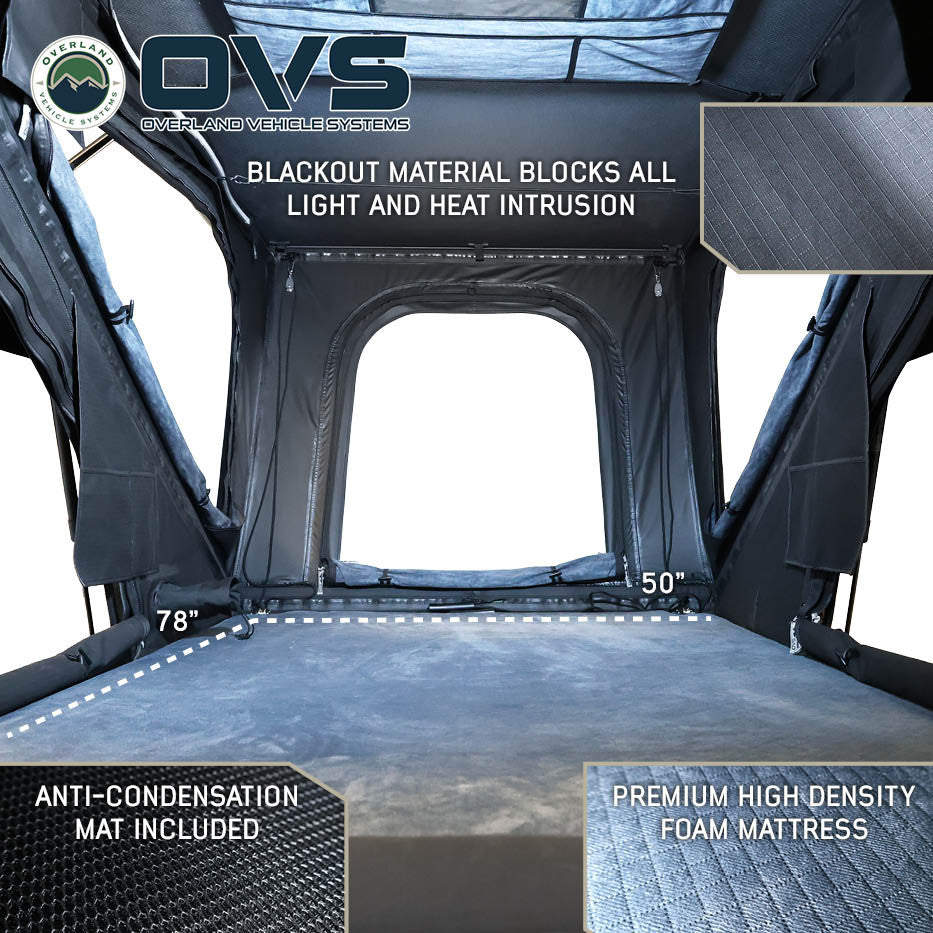

Premium Interior, Zero Compromise

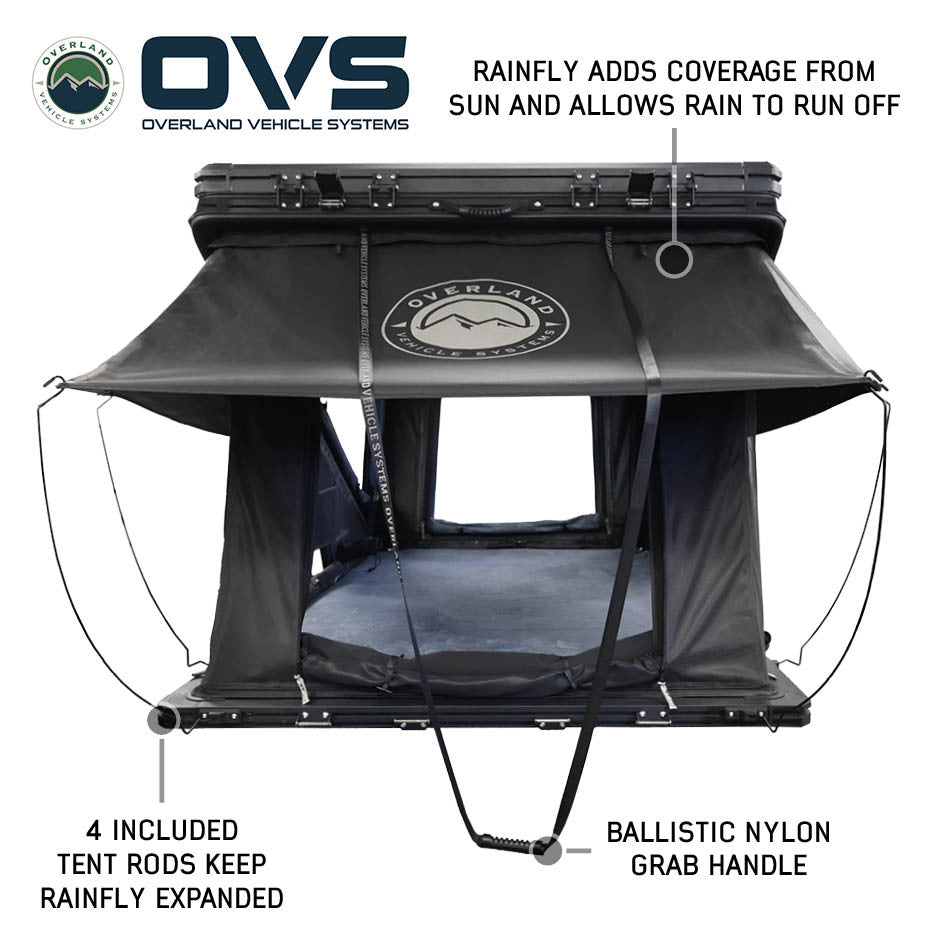

The open interior measures 95" L x 57" W x 51" H, with a sleeping area of 78" L x 50" W. The premium 2-inch high-density memory foam mattress with cotton cover provides real comfort after long days on the trail. With the rainfly expanded, the footprint grows to 107" L x 78" W, creating additional covered porch space at the entry. The tent stores 2 sleeping bags, 2 pillows, and the telescoping ladder inside when closed, so you pack up fast and arrive at camp ready to deploy without pulling gear from inside your vehicle.

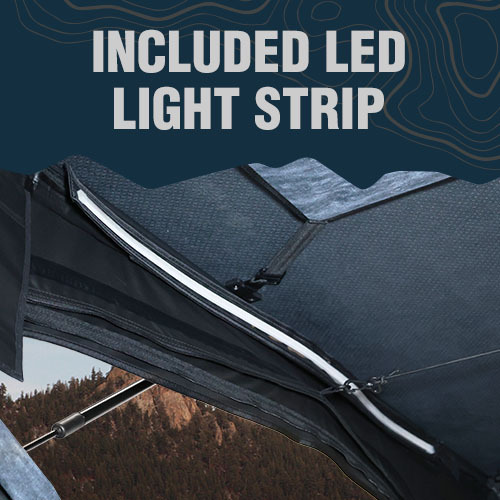

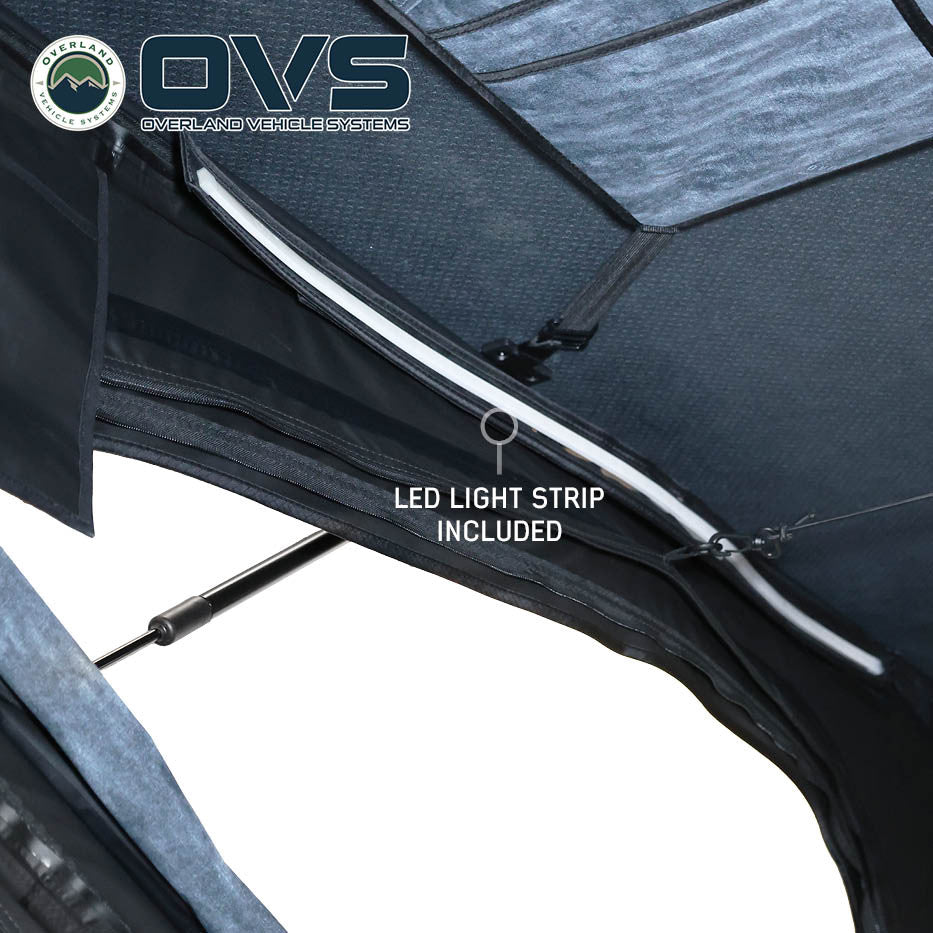

Integrated LED Lighting
The included LED light strip is built into the tent interior to illuminate your nights at camp. No need to hang a headlamp or lantern from the ceiling. The strip provides ambient light for reading, organizing gear, or winding down before sleep. Combined with the blackout fabric that blocks all exterior light, you control exactly how much light is in the tent at any time.

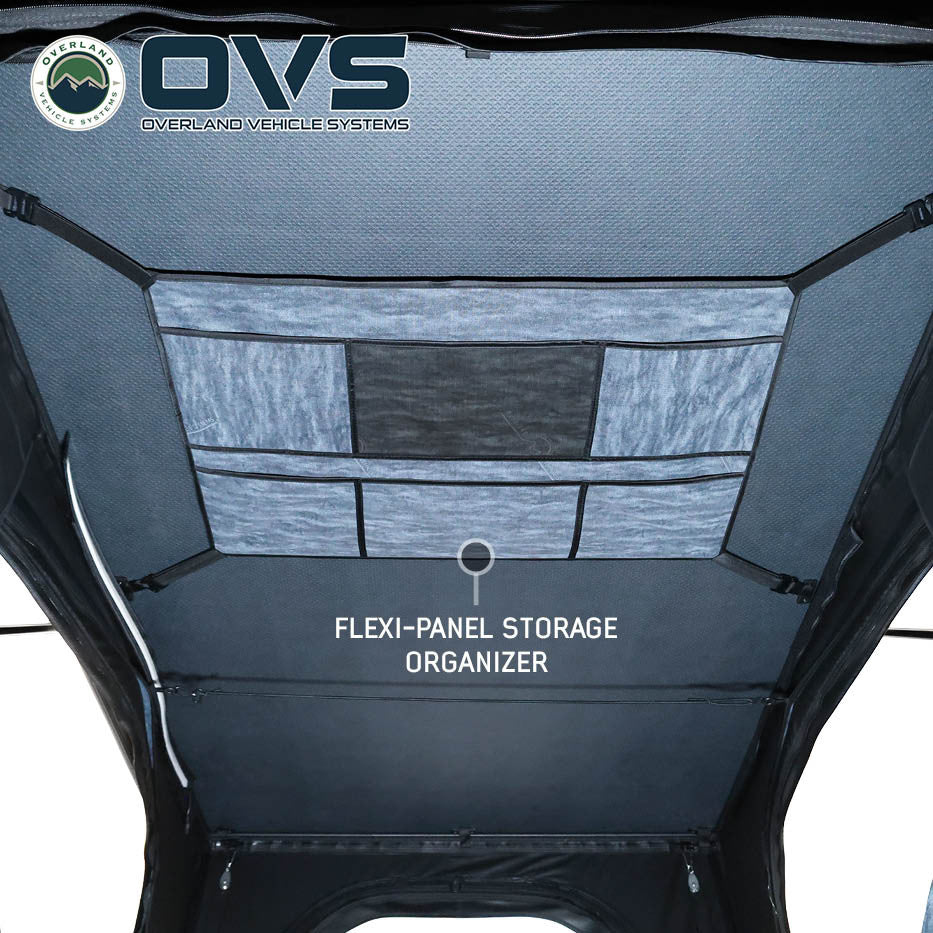

Flexi-Panel Ceiling Storage
The flexi-panel ceiling storage system keeps essential gear organized and within reach. Phones, headlamps, books, glasses, small tools: everything has a place overhead instead of rolling around on the mattress or getting lost in bedding. This is the kind of thoughtful detail that makes a difference on multi-day trips where living out of the tent is your routine.

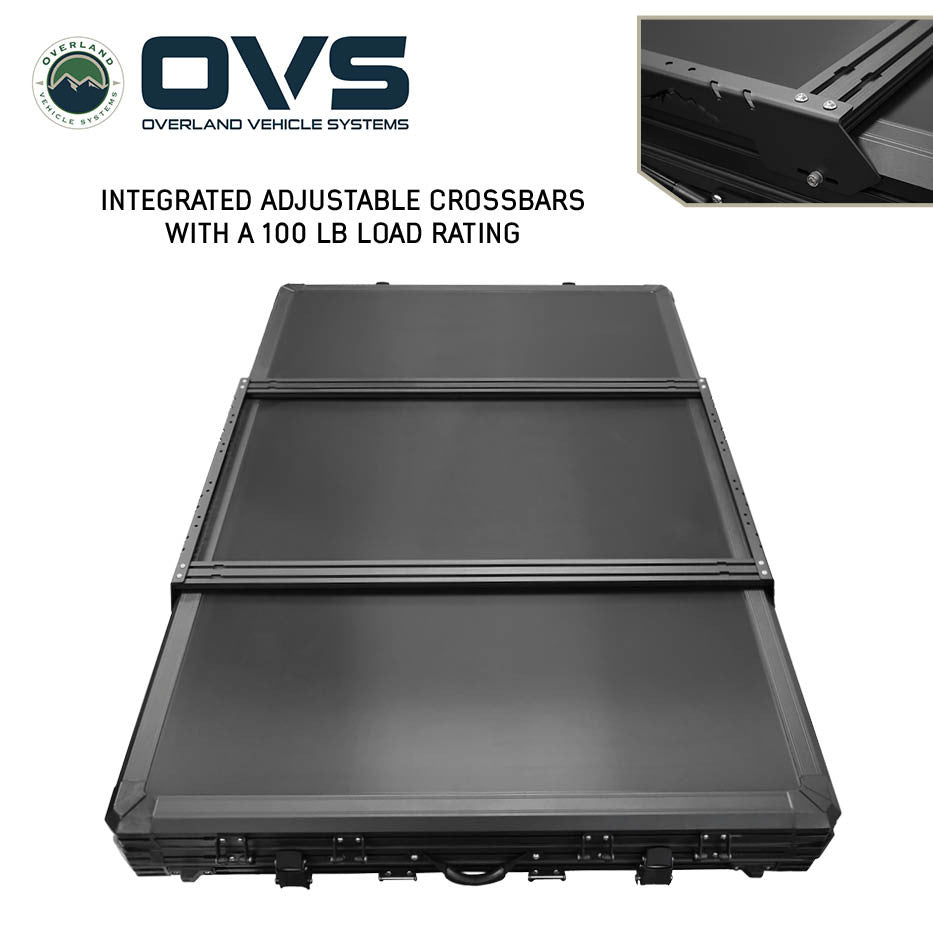

Integrated Adjustable Crossbars
The XD K2 includes an integrated adjustable crossbar rack system on the shell. When the tent is closed, the crossbars carry up to 100 lbs of gear on top: a solar panel, traction boards, a cargo basket, or other accessories. When the tent is open, the crossbars support up to 45 lbs. This turns the exterior of your closed tent into additional storage without buying a separate rack. Most competing tents either do not include crossbars or charge extra for them.

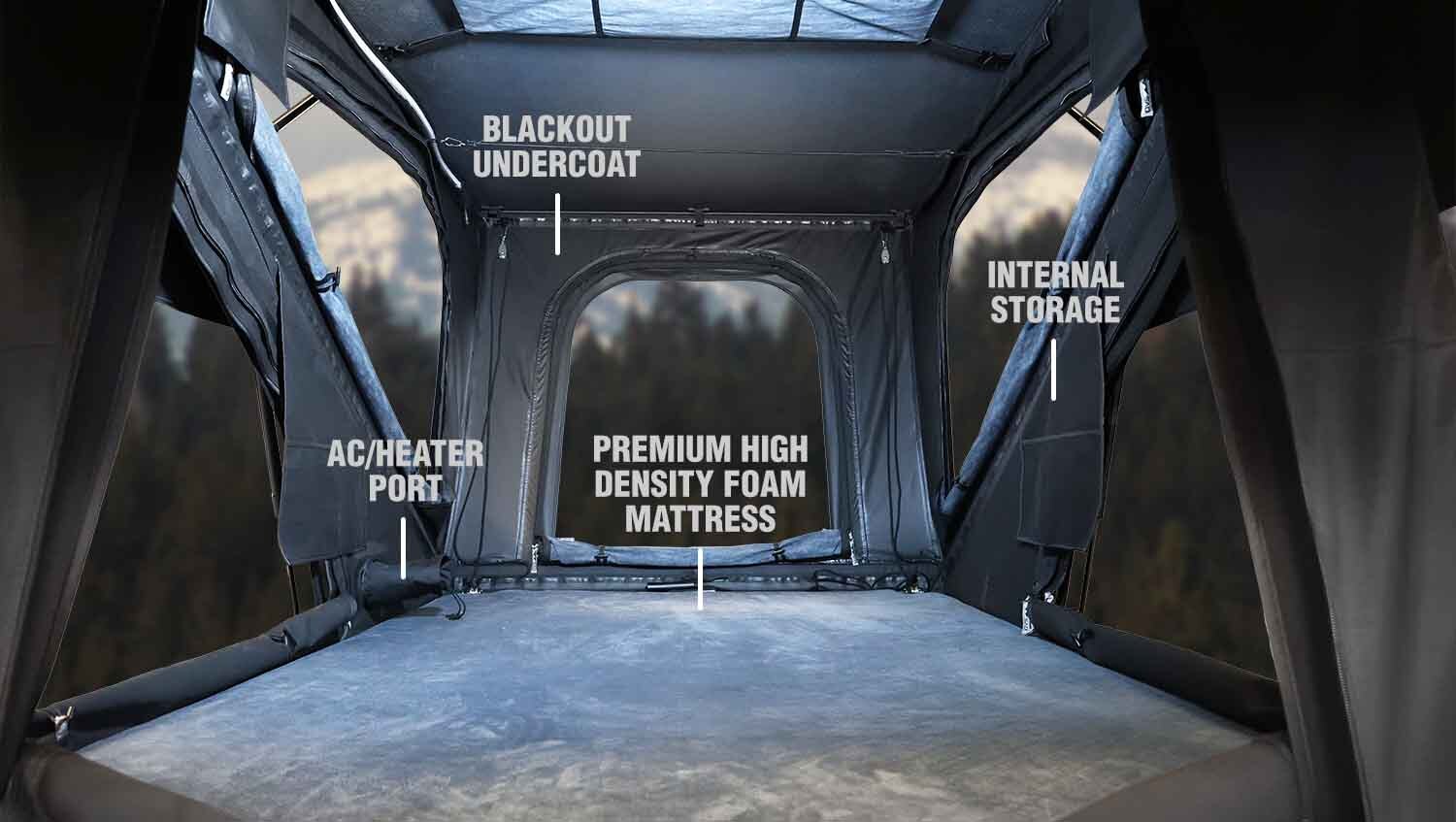

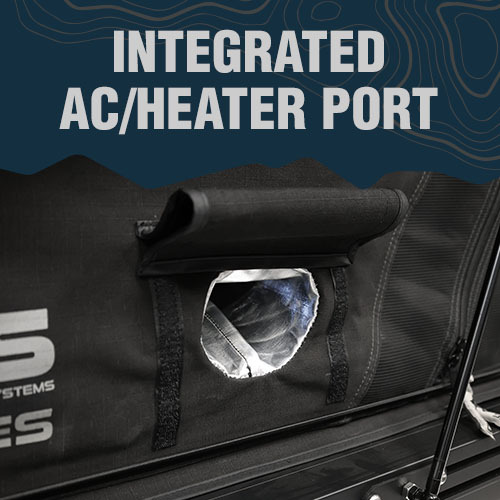

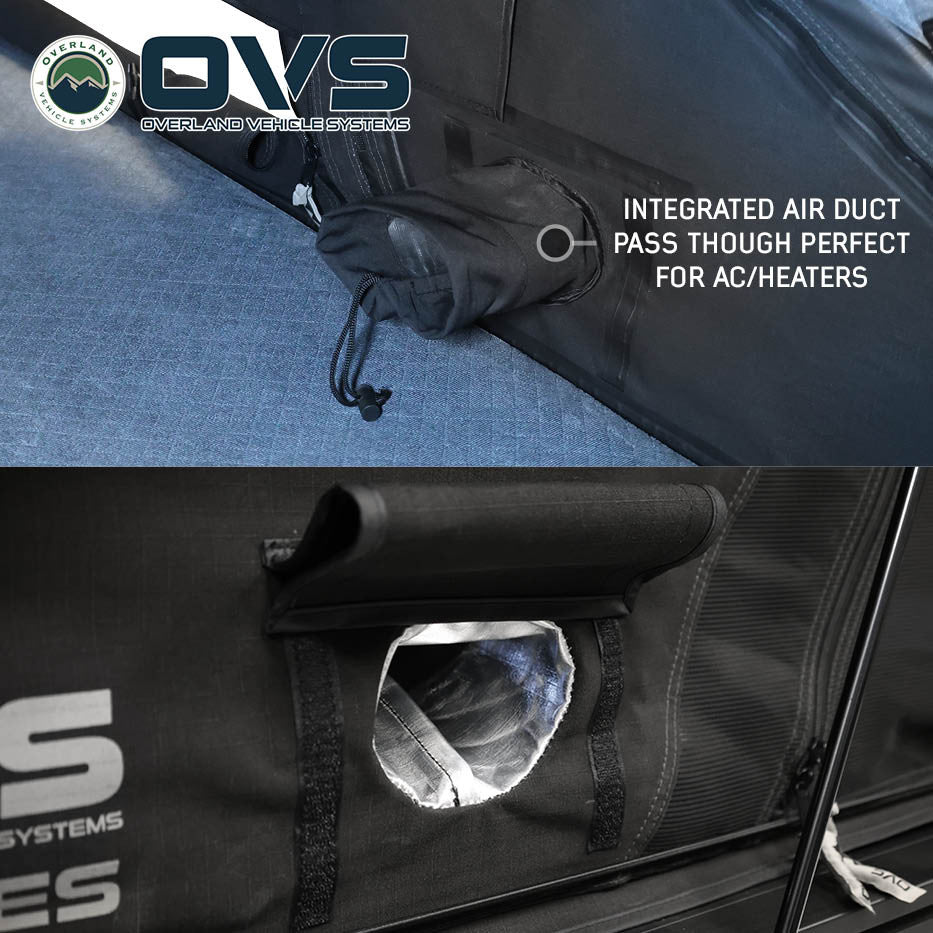

Integrated AC/Heater Port
A purpose-built port lets you run a heater duct or AC hose into the tent without leaving a window or door cracked open. Combined with the included cold weather insulation kit, this makes the XD K2 a genuine 4-season tent that can be climate-controlled for cold winter nights or hot summer afternoons. The port is sealed when not in use to maintain the tent's waterproof integrity.
Specifications
Dimensions & Weight
| Sleeping Capacity | 2 people |
| Closed Dimensions | 84.5" x 57" x 10" |
| Open Dimensions | 95" (L) x 57" (W) x 51" (H) |
| Open Dimensions (Rainfly Expanded) | 107" (L) x 78" (W) x 51" (H) |
| Sleeping Area | 78" (L) x 50" (W) |
| Mattress Height | 2.0" |
| Dry Weight | 220 lbs |
| Packaged Weight | 240 lbs |
| Setup Time | Approximately 2 minutes |
| Teardown Time | Approximately 2 minutes |
Construction & Materials
| Shell Material | Honeycomb aluminum (black) |
| Base Material | Smooth black aluminum |
| Body Fabric | 320G ripstop polycotton Oxford (blue and black) |
| Waterproof Rating | 5000 PU |
| Seals | Military-spec waterproof grade |

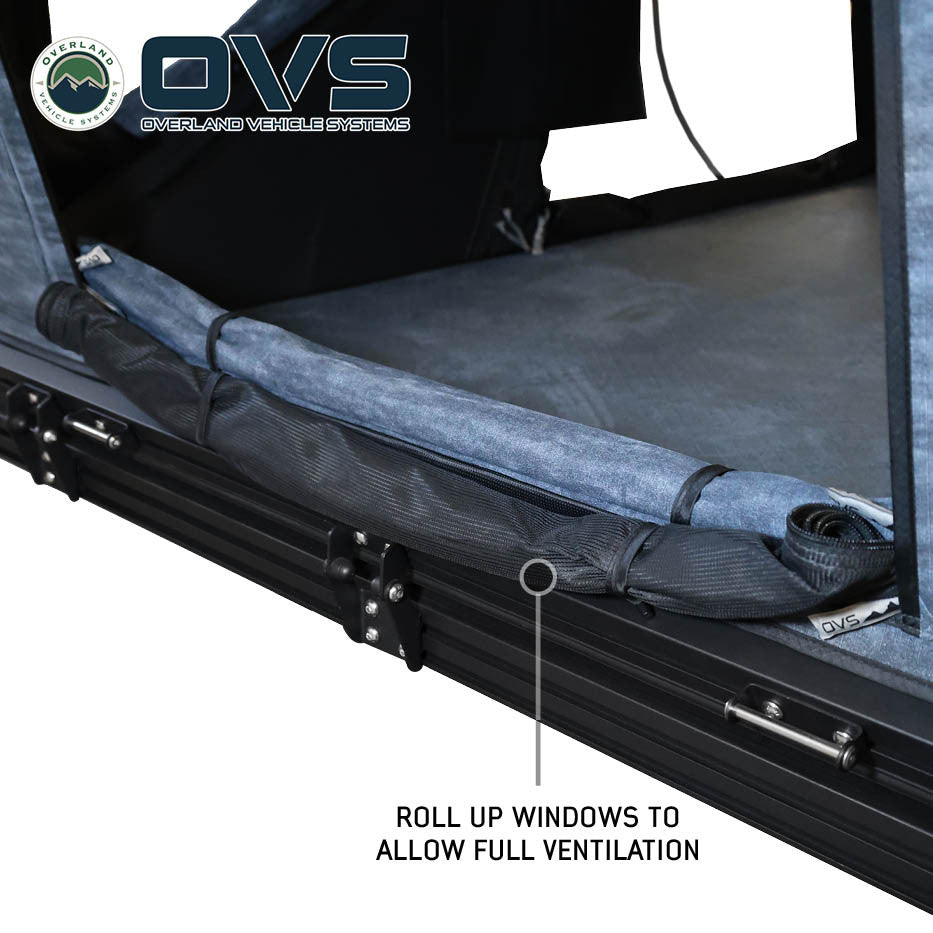

| Window Screens | 120G environmental fadeless breathable gauze |
| Flame Retardant | 302 FMVSS certified fabric |
| Blackout | Interior coating to block light and reduce heat |
| Struts | 2x nitrogen gas-charged struts |
| Handles / Pull-Down Strap | Heavy-duty ballistic nylon |
Included Accessories
| Cold Weather Insulation Kit | Breathable polycotton with high-frequency welded seams (included) |
| Anti-Condensation Mat | Included |
| LED Light Strip | Integrated interior LED strip (included) |
| Flexi-Panel Ceiling Storage | Included |
| Integrated Crossbar Rack | Adjustable crossbars (45 lbs open / 100 lbs closed) |
| Shoe Bags | Hanging shoe bags (included) |
| Mattress | 2" high-density memory foam with cotton cover (included) |
| Ladder | Telescoping ladder (stores inside tent) |
| AC/Heater Port | Integrated port for climate control ducting |
Warranty & Identifiers
| Structural Warranty | Limited Lifetime |
| Fabric Warranty | 6 years |
| Bedding Storage | 2 sleeping bags, 2 pillows, and telescoping ladder (stores inside when closed) |
| Ladder Mounts | Available on all sides (up to 3 entry points) |
| Part Number / SKU | 18689902 |
| UPC | 810161455478 |
Documents & Resources
Pros
- Cold weather insulation kit and anti-condensation mat included (most competitors charge $200-$400 extra)
- 5000 PU waterproof rating, significantly higher than the 2000-3000 PU found on most competing tents
- Dual clamshell design with ladder mounts on all sides for up to 3 entry points
- Integrated adjustable crossbars carry 100 lbs on top when closed (gear, solar, traction boards)
- Flexi-panel ceiling storage, LED light strip, blackout fabric, shoe bags all included
- Limited lifetime structural warranty + 6-year fabric warranty
- Stores 2 sleeping bags, 2 pillows, and the ladder inside when closed
Cons
- At 220 lbs dry weight, this is one of the heaviest 2-person hardshell tents on the market. You need a robust rack with high dynamic load capacity
- 2-person only with a 50" wide sleeping area. Tighter for two large adults compared to tents with 55"+ width
Frequently Asked Questions
What is included with the XD K2 that other tents charge extra for?
The XD K2 includes a cold weather insulation kit, anti-condensation mat, integrated LED light strip, flexi-panel ceiling storage, integrated adjustable crossbars, hanging shoe bags, and a 2-inch memory foam mattress. Most competing hardshell tents at this price point sell the cold weather kit, anti-condensation mat, and crossbars as separate accessories. OVS includes everything in the box.
What rack do I need for the XD K2?
You need a roof rack, bed rack, or crossbar system with a dynamic load rating of at least 220 lbs. The closed footprint is 84.5" x 57" x 10". Due to the weight, factory crossbars on most vehicles will not be sufficient. You will need aftermarket racks from Prinsu, Front Runner, or similar brands rated for this load. Call us at 844-200-3979 to confirm compatibility with your vehicle and rack.
Is the XD K2 good for winter camping?
Yes. The XD K2 is one of the most winter-ready hardshell tents out of the box. The included cold weather insulation kit (breathable polycotton with high-frequency welded seams) lines the interior for thermal protection. The anti-condensation mat manages moisture between the mattress and floor. The integrated AC/heater port lets you run a heater duct into the tent without cracking a window. The 5000 PU waterproof rating and military-spec seals keep snow and rain out. Pair with a quality sleeping bag rated for your expected temperatures.
Can I store bedding inside when the tent is closed?
Yes. The XD K2 has enough interior space to store 2 sleeping bags, 2 pillows, and the telescoping ladder when closed. This means you arrive at camp ready to deploy without pulling bedding from inside your vehicle. Pop open the tent and your bed is already made from the night before.
How does the dual clamshell differ from a standard clamshell?
A standard clamshell opens from one side only, leaving the other side flat against the rack. The XD K2's dual clamshell opens from both sides simultaneously, creating a symmetrical tent shape with 51 inches of headroom at the center peak. This gives you more usable interior volume and a more balanced structure in wind. It also allows ladder mounting on all sides (up to 3 entry points), which is not possible with a single-hinge clamshell that has one fixed side.
