The Nova was built around one constraint: fit anywhere, and take up as little space as possible doing it. With the smallest closed footprint in the FSR lineup at just 42 inches wide by 56 3/4 inches long, it installs cleanly on a below-cab bed rack or on a roof rack. And on a roof rack it leaves the remaining rail length free for storage boxes, extra tie-down space, or whatever else your rig demands.
Fold it out and you get a full 82 inches of sleeping space, nearly double the packed length, with full Tri-Layer insulation top to bottom and zero support poles required. If you like the small footprint and lightweight attributes of a fold-out design but want the benefits of a hard shell, this is the one. At 132 lbs with a 750 lb weight capacity, it is also the lightest hard shell FSR makes outside the Aspen Lite. Crossbars, ladder, memory foam mattress, LED lighting, and mount kit all included. It is the tent that gets out of its own way.
The Smallest Rooftop Tent FSR Makes
Closed footprint is the spec that decides whether a rooftop tent is even possible on your build, and the Nova Standard has the smallest one in the range. At 42 by 56 3/4 inches, it needs roughly two feet less rail length than most hard shells and it is narrower than nearly all of them.
That opens up three things other tents cannot do:
- Below-cab bed racks. A short closed length means it sits in the bed without towering over the cab, which keeps the whole build low and proportional.
- Short roofs. A Jeep Wrangler, a two-door SUV, or any vehicle with limited rail length becomes viable. This is a genuine small rooftop tent rather than a full-size one marketed as compact.
- Rack space left over. On a longer roof rack you still have rail free for a storage box, traction boards, or extra tie-down points. Most tents consume the entire rack.
The trade is that you sleep one to two rather than three, and interior width is 49 1/4 inches. For a solo camper or a couple who want the rack space back, that is not much of a trade at all.
Hard Shell Benefits, Foldout Footprint
FSR calls it a dual hardshell foldout, and the point is that it delivers the advantages of both tent styles at once. You get the small packed footprint and light weight people buy softshells for, with the durability, weather sealing, and sub-minute setup of a hard shell. No support poles required. The shell folds over the side and expands 56 3/4 inches of packed length into 82 inches of sleeping length, which is nearly double.
Small Outside, Sorted Inside

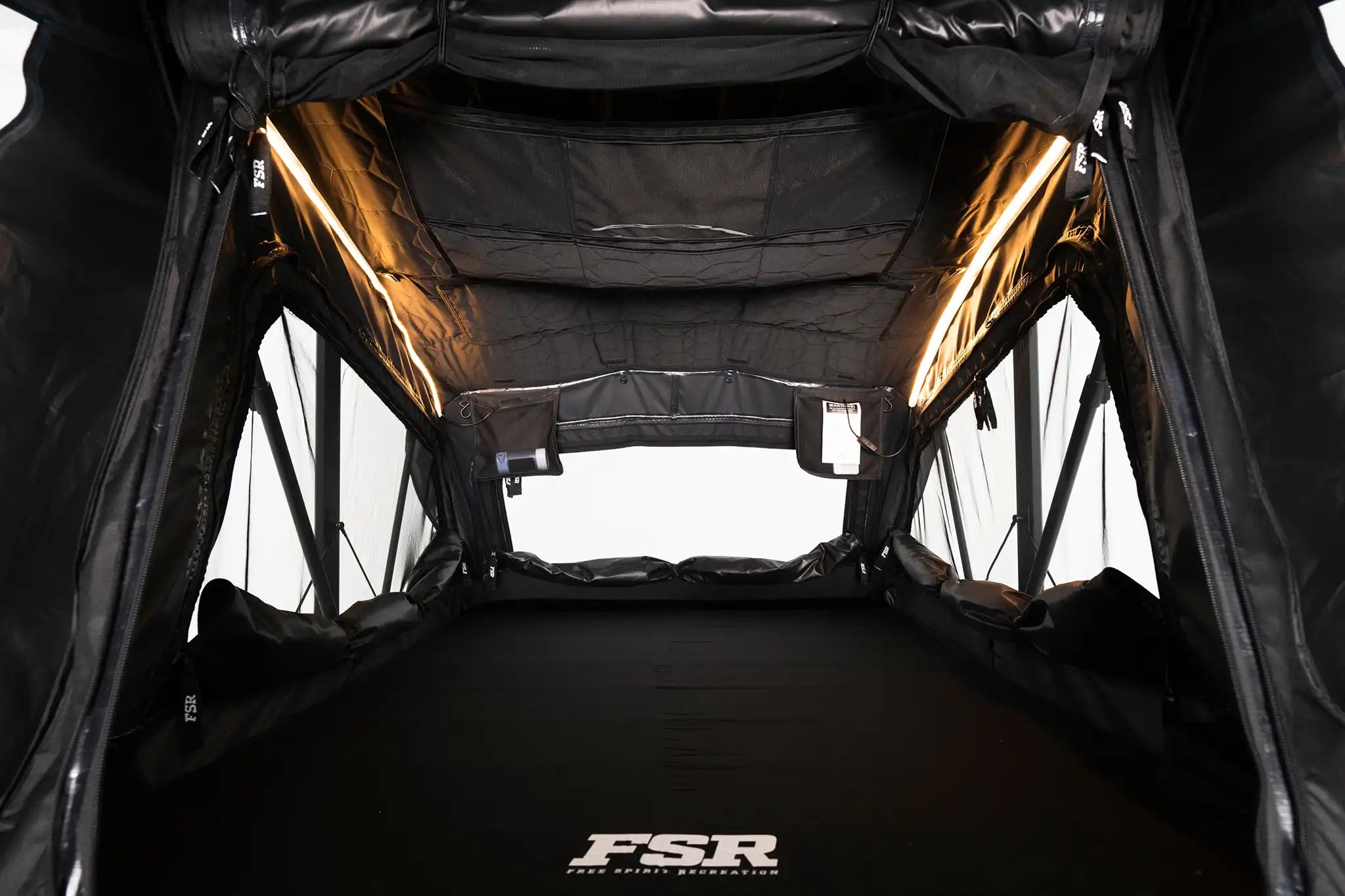

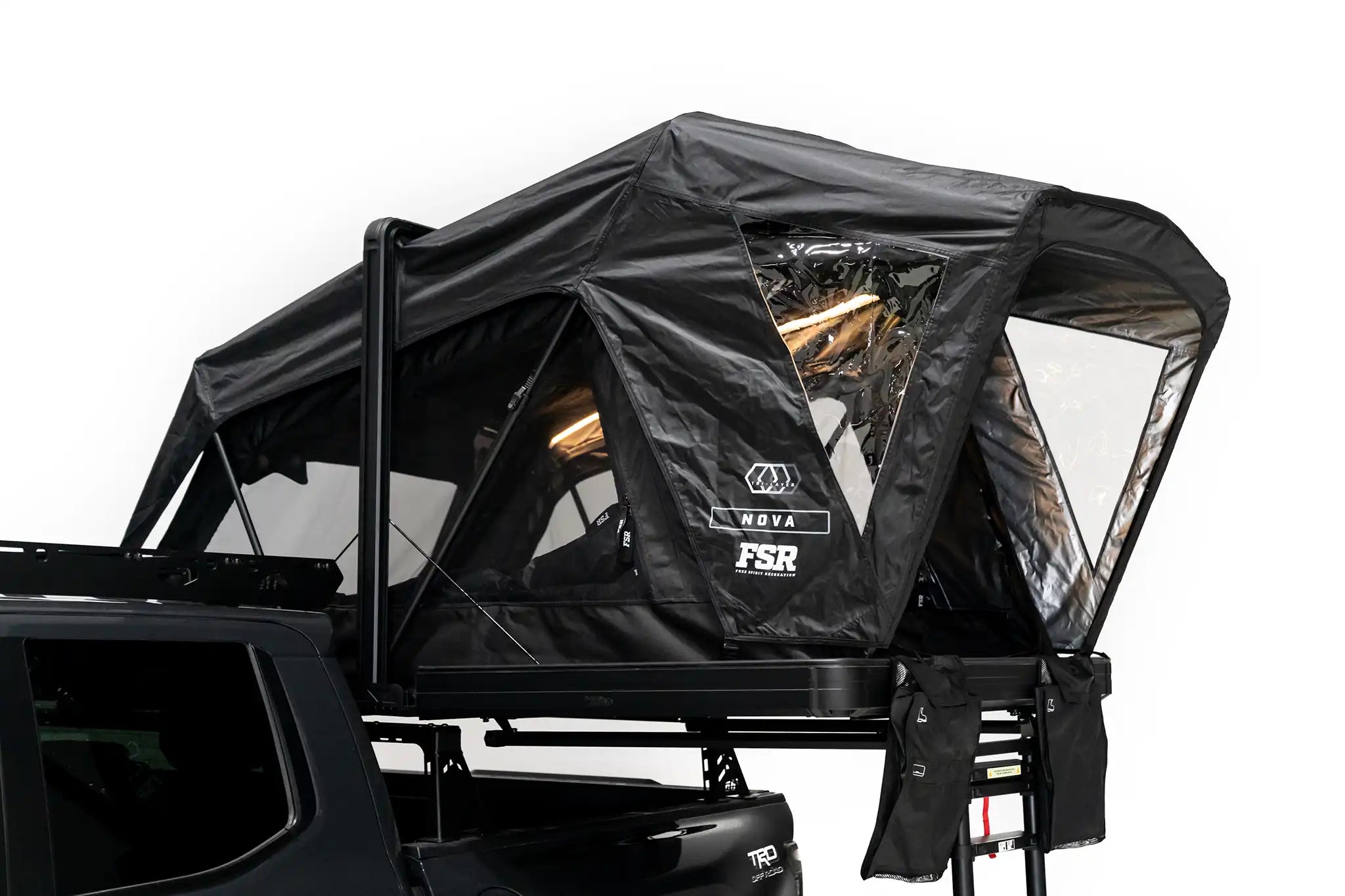

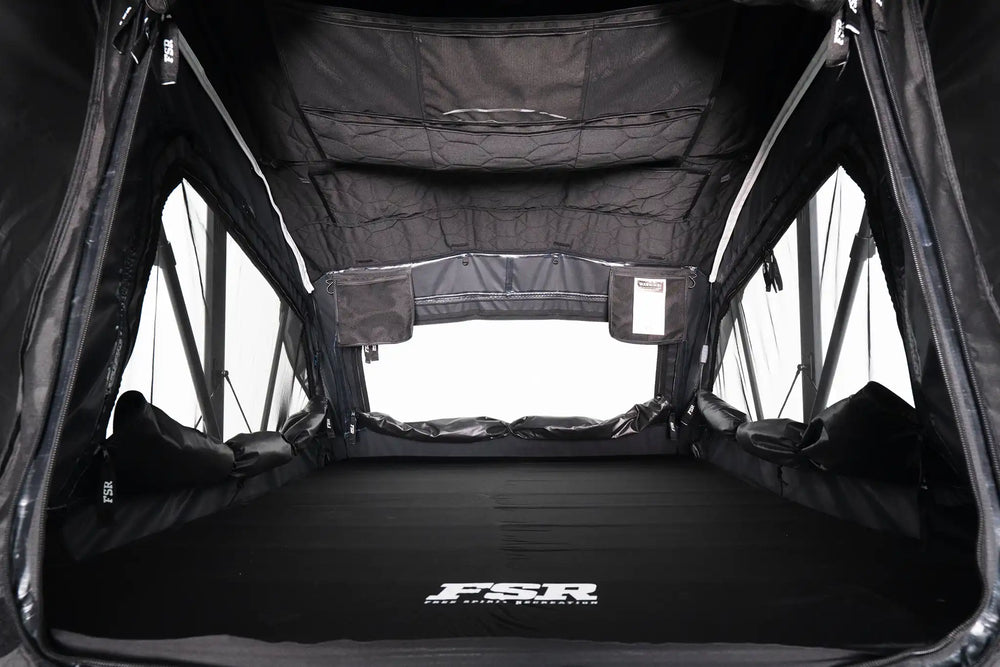

Integrated dimmable LED lighting means you are not clipping a lantern to a loop. Storage pockets and a gear storage grid keep phones, headlamps, and glasses off the mattress and findable in the dark. The memory foam mattress spans the full 49 1/4 by 82 inch floor, and there is room to store a sleeping bag and pillows inside when the tent is closed, so bedding lives in the tent between trips. Built-in heater, AC, and electrical ports let you run a duct or a power line through the body without leaving a gap for weather or bugs.
Dimensions
Four views covering the tent open, closed, and inside. The closed dimensions are the ones to check against your rack's usable rail length, and on this tent they are the whole selling point.

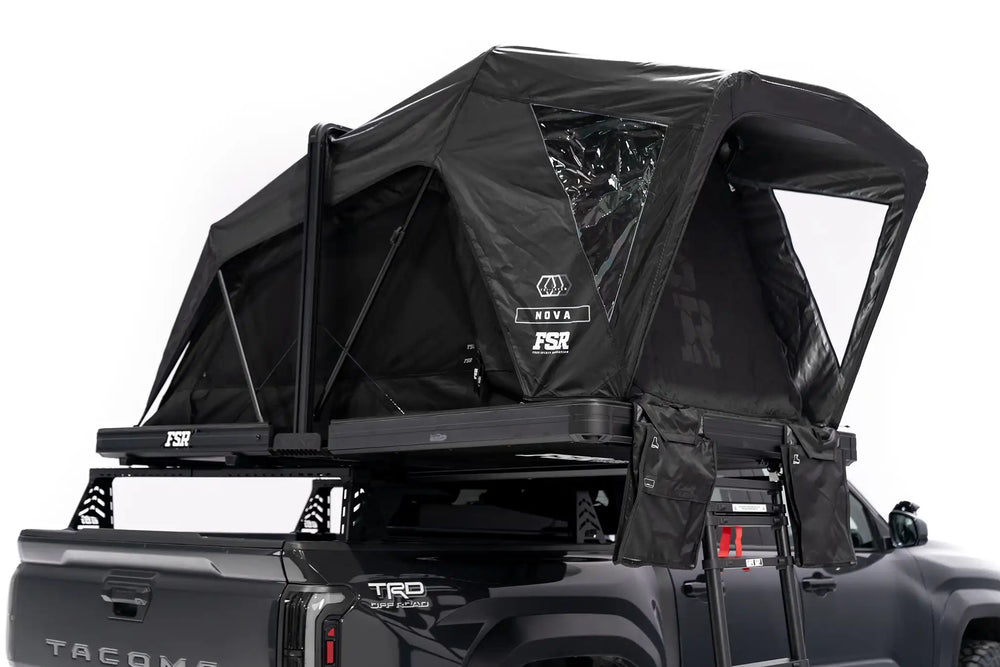

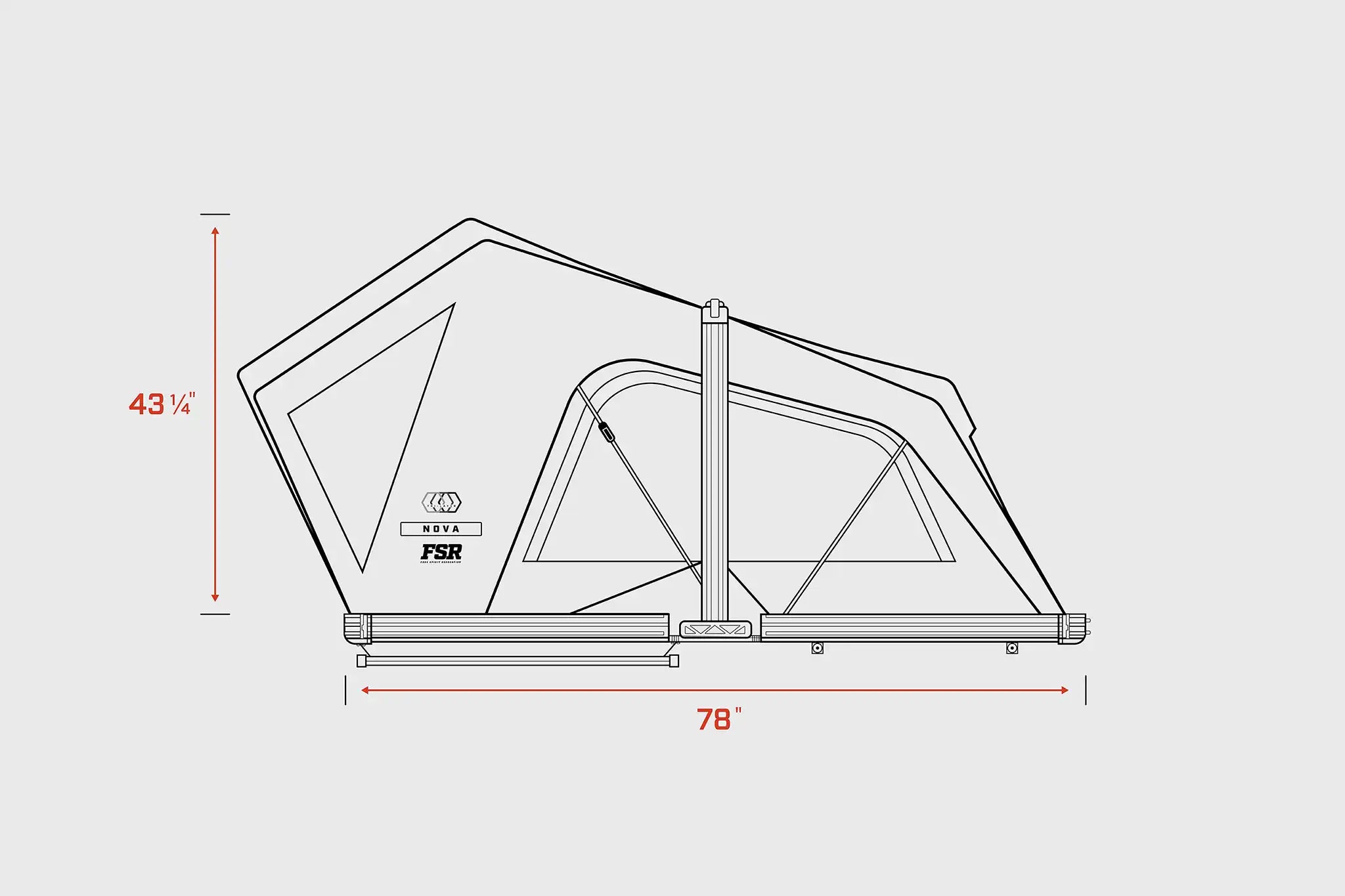

Open: Length & Height

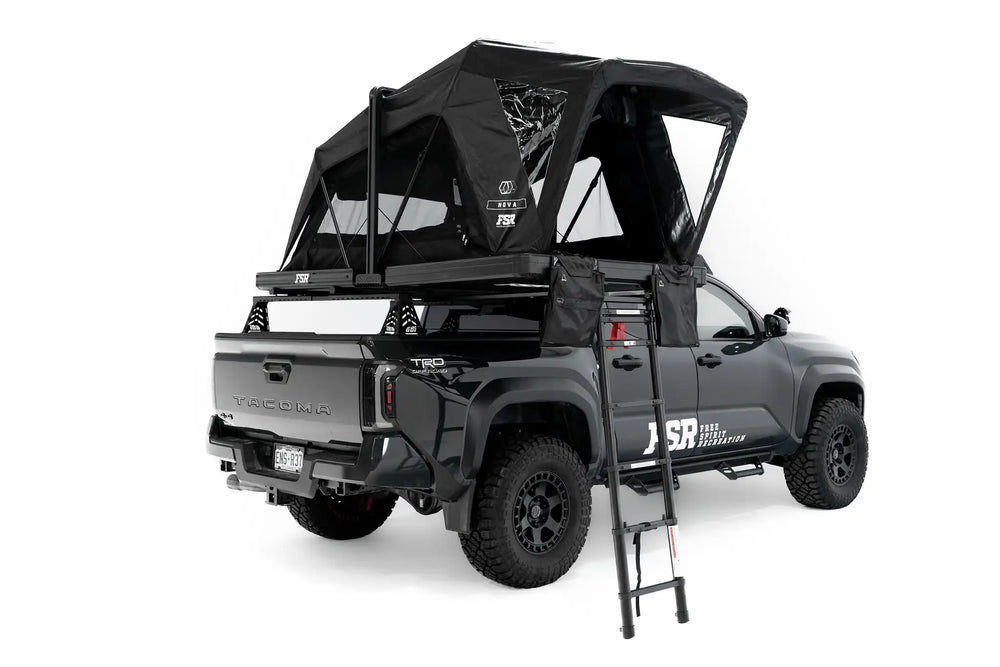

Deployed side profile with the ladder extended.

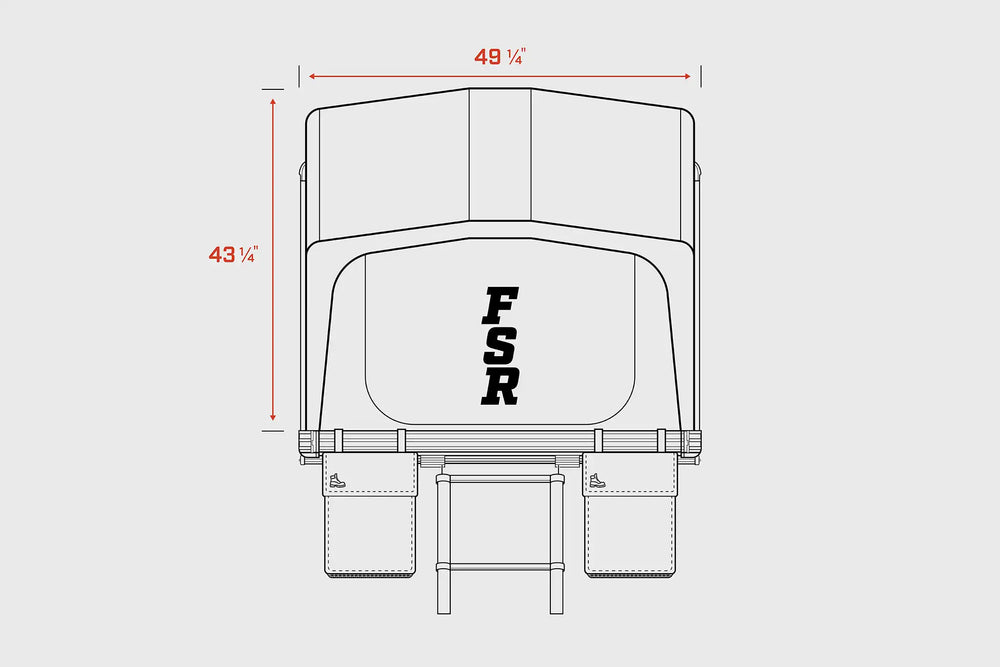

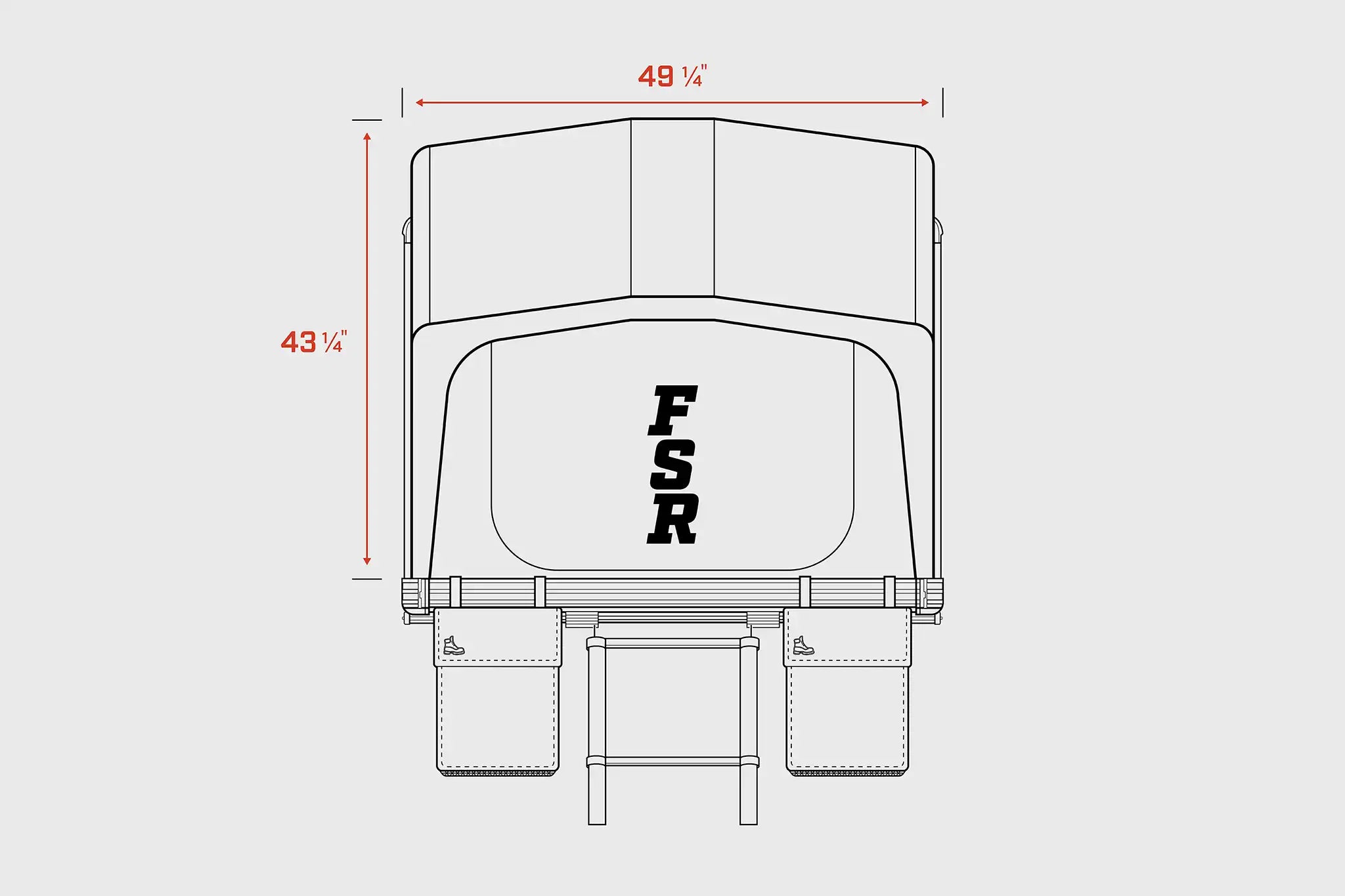

Open: Width & Height
Shows how far the foldout extends past the vehicle.

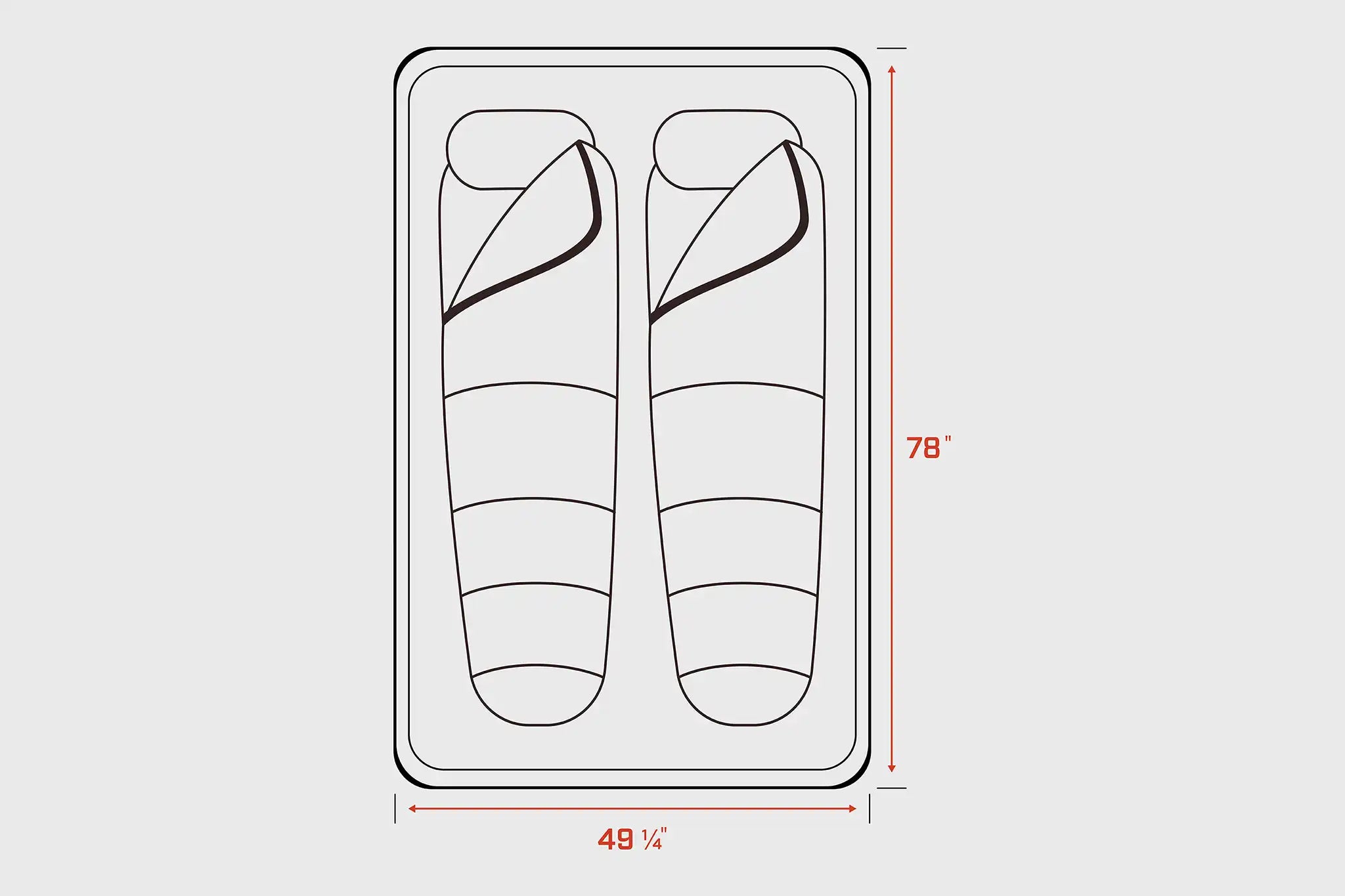

Interior
49 1/4" W x 82" L x 43 1/4" H of usable space.

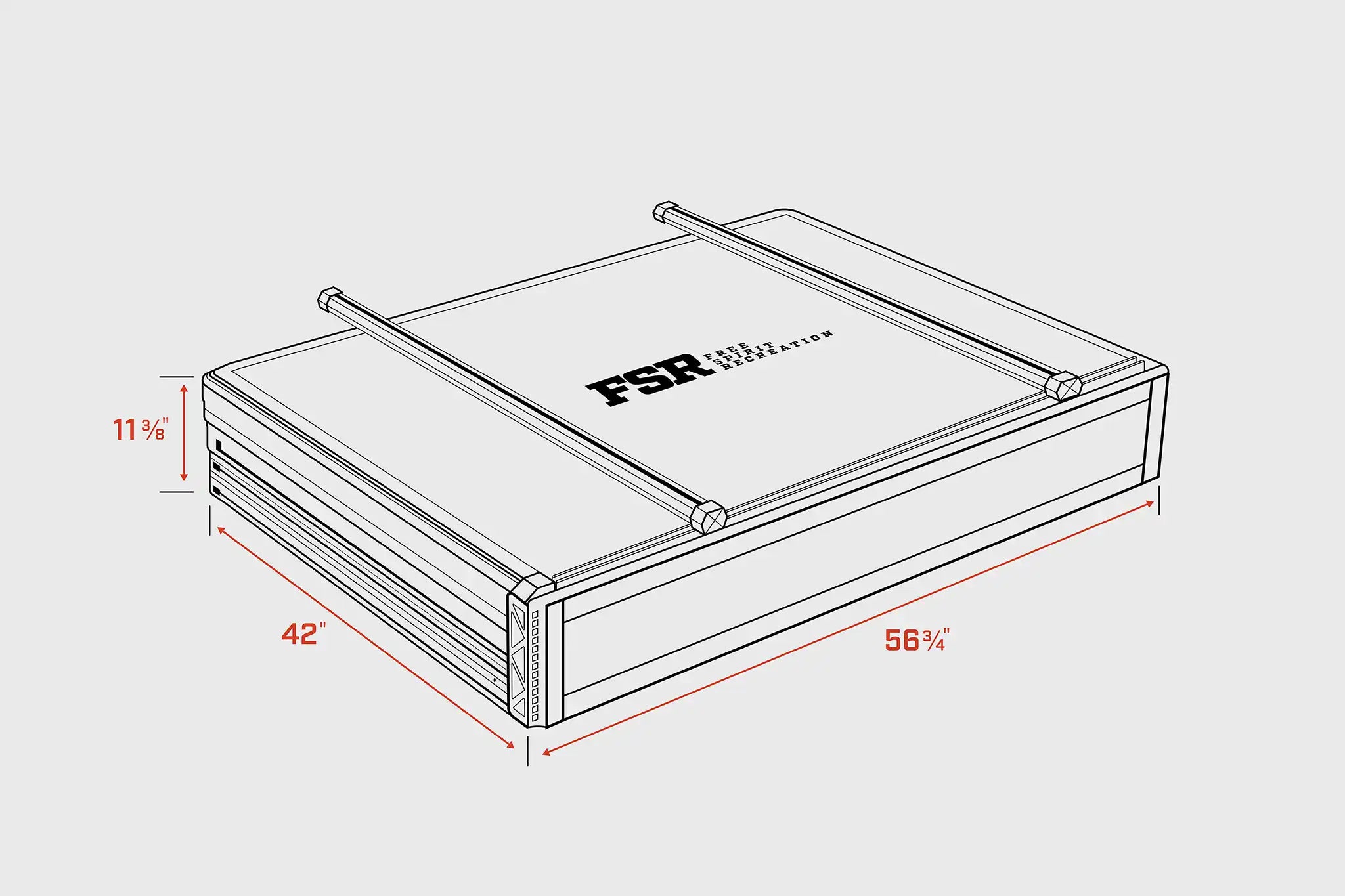

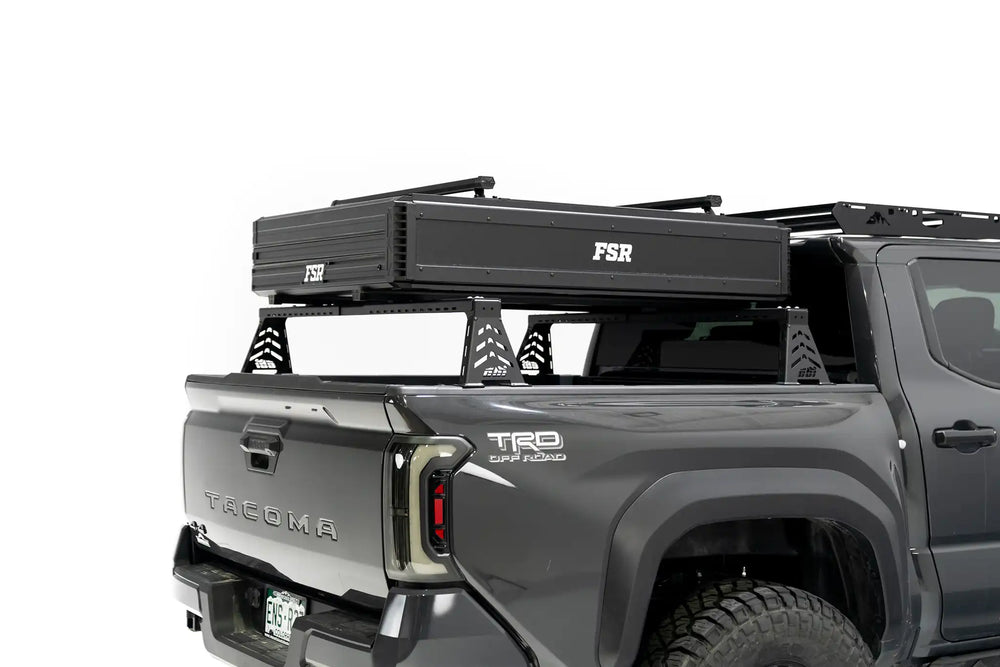

Closed
42" W x 56 3/4" L x 11 1/2" H including mounting rail.
Find Your Fitment
A genuinely small rooftop tent fits builds that longer models rule out, and the Nova Standard's compact footprint makes it the most widely fitting hard shell in the FSR range. Confirm your rack's dynamic load rating covers 132 lbs and that you have 56 3/4 inches of usable rail length, which most racks do comfortably.
SUVs & Jeeps
A strong rooftop tent for Jeep Wrangler and two-door SUV builds, where short roofs rule out longer tents. On a full-length rack you keep rail free for a storage box or traction boards.
Mid-Size Trucks

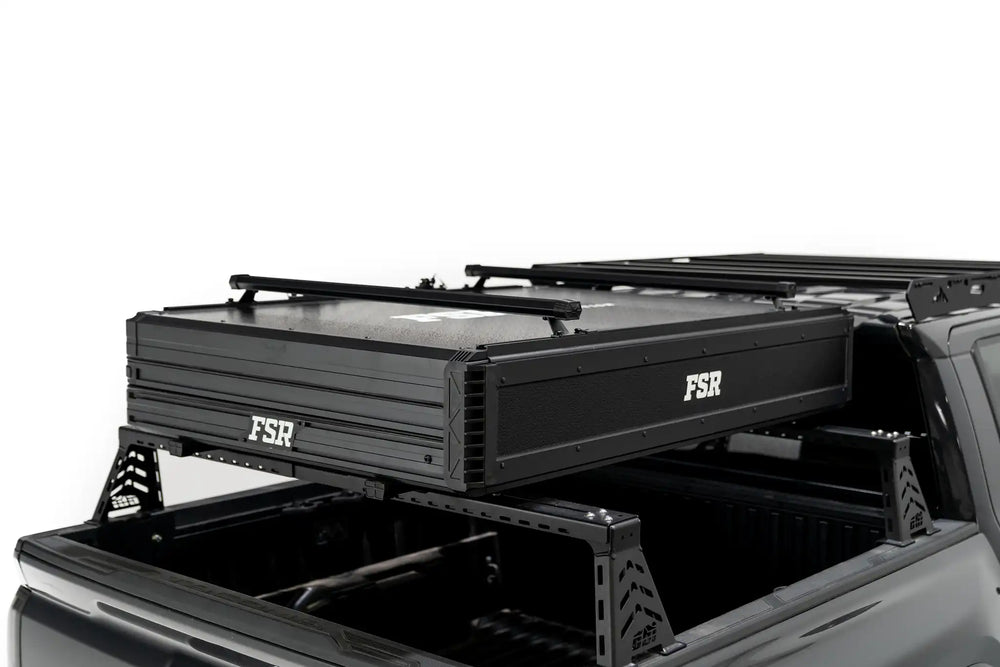

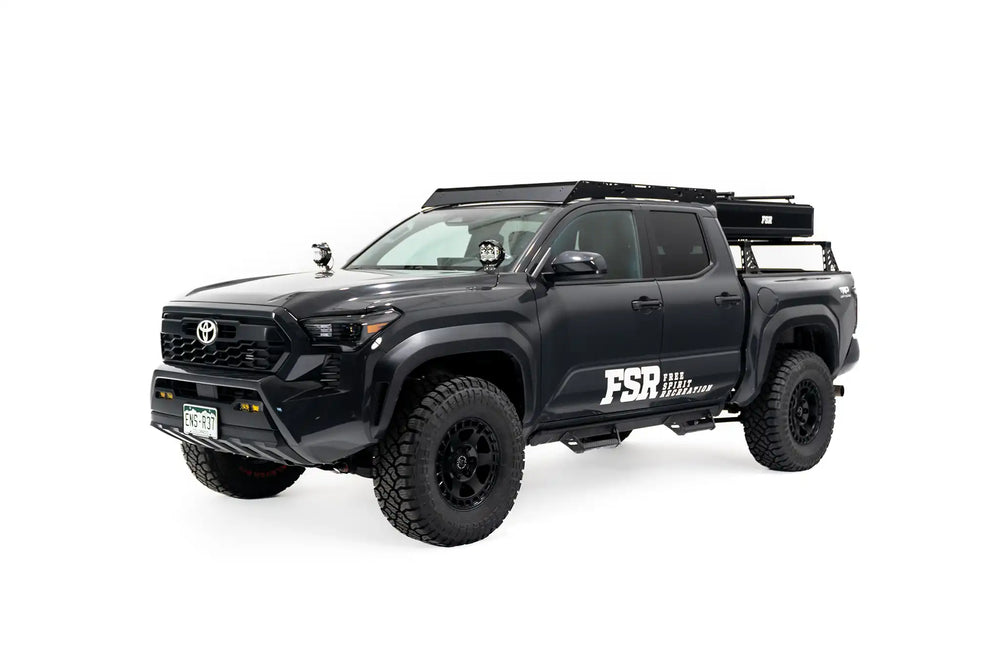

Below-cab bed rack mounting is what FSR designed this for. The short closed length sits in the bed without towering over the cab line.
Full-Size Trucks
Plenty of capacity and rail to spare, which means the rest of your bed rack stays available for gear rather than being consumed by the tent.
Sedans & Crossovers
Viable on a rack rated for 132 lbs. If your rack rating is lower, the Aspen Lite at 100 lbs is the better fit.
What Makes It an FSR

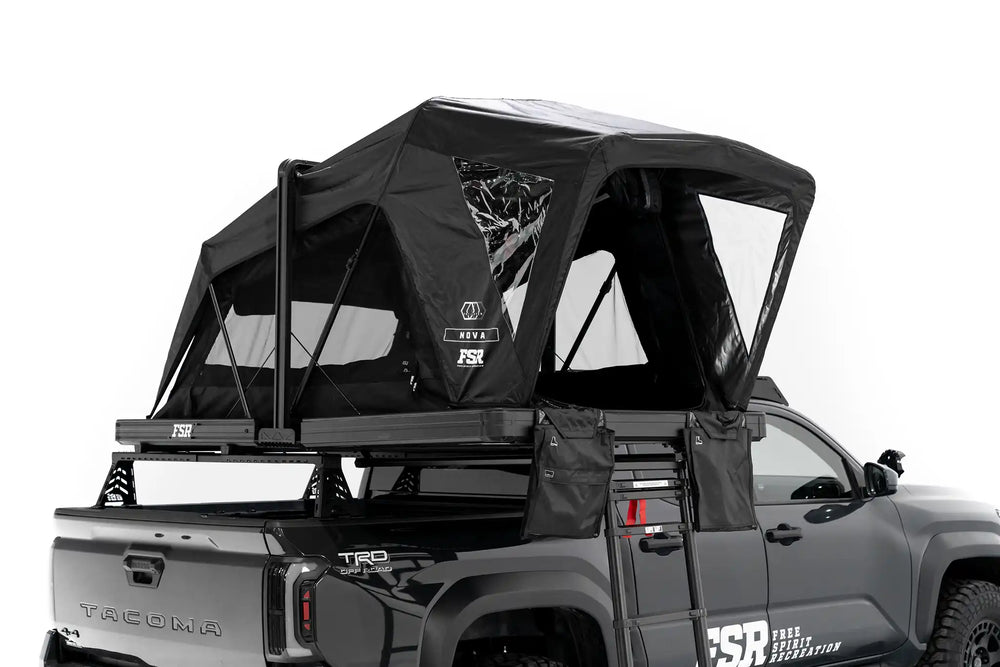

Patented Tri-Layer Body: A polycotton fill sandwiched between two layers of 210D ripstop, armoring the entire tent rather than just the roof panel. FSR describes it as working like a canteen, holding heat in when it is cold and blocking it when it is hot. Tri-Layer materials are 100% waterproof, so a genuinely small rooftop tent still works through winter.
Condensation Elimination: The aluminum open cross-slat floor saves weight and lets the tent breathe from underneath instead of trapping moisture against a solid base. FSR pairs it with a 3D anti-condensation mat and strategically located venting for 360 degree airflow. The floor itself is 600D poly Oxford rated PU 3500mm, so breathability does not cost you waterproofing.

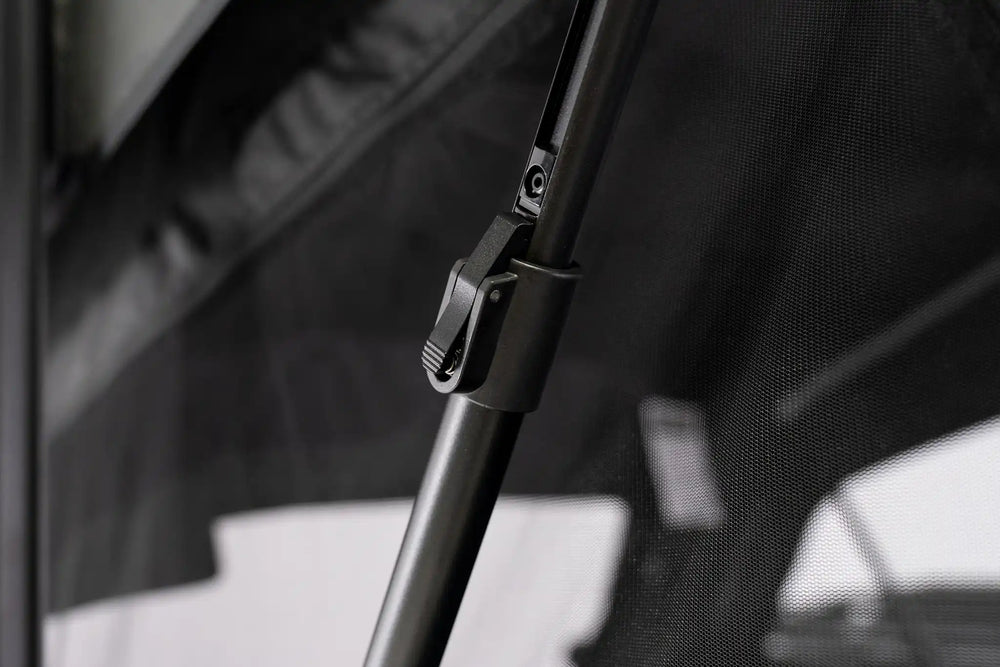

Adjustable U-Bar: All-new, with micro adjustments so you can dial in exactly the right amount of fabric tension. A properly tensioned tent sheds water and wind better and stops the flapping that keeps people awake.
Aluminum T-Track: Mount accessories to the exterior of the tent using the provided T-track with optional hardware. The included crossbars mount here too. On a small tent this matters more than usual, since the tent itself becomes extra mounting surface.

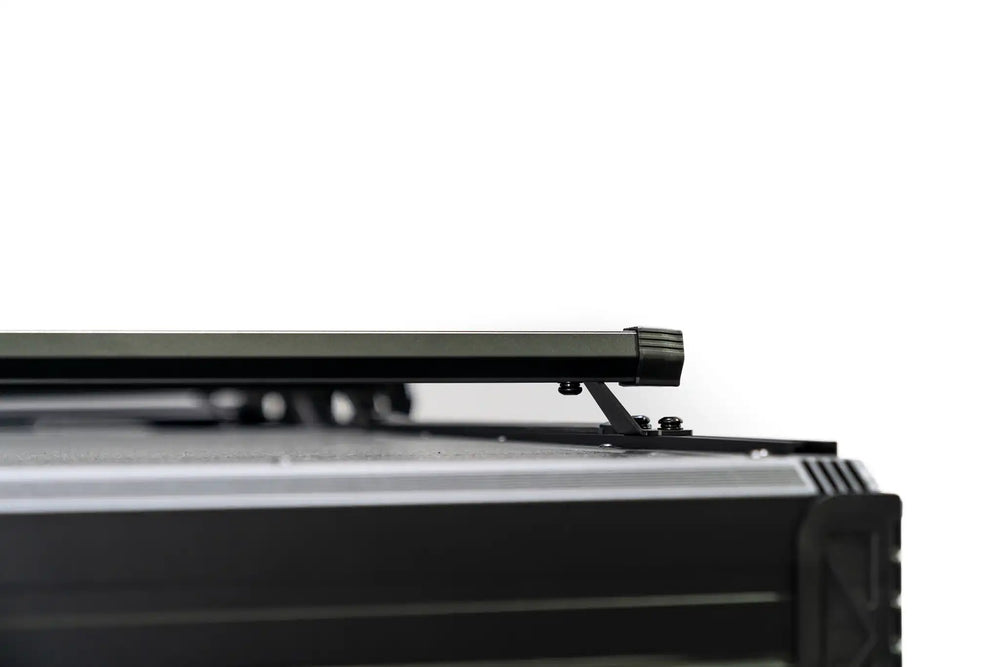

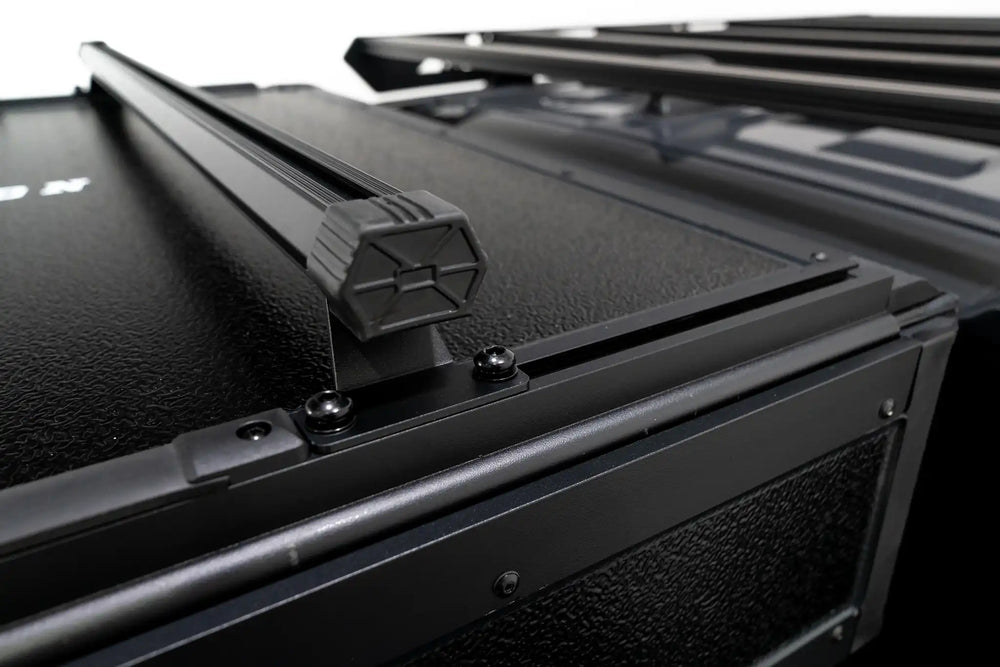

Crossbars Included: The Nova Standard ships with tent crossbars and hardware rated for a 66 lb dynamic load. Most rooftop tents make you buy these separately. Note that 66 lbs is the limit while driving, so plan traction boards and a light bar rather than a loaded cargo box.
Which FSR Tent?
All eight use FSR's patented Tri-Layer insulation and deploy in under a minute. They are built around different constraints.
| Nova | Aspen Lite | Kali | Aspen Pro | Aspen Pro XL | Evolution XL | Nova King | Kali King | |
|---|---|---|---|---|---|---|---|---|
| Closed W x L | 42 x 56¾ | 49½ x 80 | 50 x 59 | 51¼ x 86½ | 59½ x 86½ | 59½ x 86½ | 42 x 78 | 50 x 78 |
| Sleeps | 1 to 2 | 1 to 2 | 2 to 3 | 1 to 2 | 2 to 3 | 2 to 3 | 3 to 4 | 3 to 4 |
| Interior W | 49¼" | 45½" | 52" | 45½" | 55" | 55" | 72" | 72" |
| Weight | 132 lbs | 100 lbs | 177 lbs | 134 lbs | 154 lbs | 184 lbs | 162 lbs | 207 lbs |
| Capacity | 750 | 750 | 660 | 750 | 750 | 750 | 750 | 660 |
| Crossbars | Included | No | No | No | No | No | Included | No |
Choose the Nova Standard if closed footprint is your constraint, you want rack space left over, or you run a below-cab bed rack.
Choose the Aspen Lite if weight is the limit. 32 lbs lighter and just 7 3/8 inches closed, though it needs 80 inches of rail.
Choose the Kali if you want 2 to 3 person space in a short footprint.
Need to sleep four? See the Nova King or Kali King, both with a 72 inch interior.
Specifications
| Style | Tri-Layer hardshell foldout |
| Sleeps | 1 to 2 people |
| Exterior Dimensions | 42" W x 56 3/4" L x 11 1/2" H (includes mounting rail height) |
| Interior Dimensions | 49 1/4" W x 82" L x 43 1/4" H |
| Weight | 132 lbs |
| Weight Capacity | 750 lbs |
| Shell | Hard shell aluminum |
| Tent Body | Patented Tri-Layer: polycotton fill between two layers of 210D ripstop |
| Tent Floor | 600D poly Oxford, PU 3500mm, with 3D anti-condensation mat and vented slat floor |
| Rainfly | 210D Oxford ripstop PU 3000mm, silver blockout coating, UPF 50+ |
| Frame | Extruded aluminum with polymer corners |
| Support Poles | None required |
| Ventilation | 360 degree |
| Mattress | Memory foam |
| Lighting | Integrated dimmable LED |
| Ladder | 7.5' telescoping |
| Deployment | Under one minute |
| U-Bar | Adjustable with micro adjustments |
| Accessory Mounting | Aluminum T-track (optional hardware) |
| Included Crossbars | 66 lb dynamic load maximum |
| Ports | Heater, AC, and electrical |
| Bedding Storage | Sleeping bag and pillows |
| Seasons | 4 season, 100% waterproof |
| Best Suited For | Below-cab racks on pickups, SUVs that want extra mounting space alongside the tent |
What's Included
📄 Installation Manual
Download the rooftop tent installation manual covering mounting hardware and rack setup.
Pros
- Smallest closed footprint in the FSR lineup at 42" x 56 3/4", so it fits builds other hard shells cannot
- Leaves rack space free for storage boxes, traction boards, and tie-downs
- Folds out to a full 82" of sleeping length, nearly double the packed length
- 132 lbs with a 750 lb capacity, the highest capacity tier FSR offers
- Tent crossbars and hardware included, rated for 66 lbs dynamic
- Patented Tri-Layer insulation armors the whole body for true 4 season use
- 600D floor at PU 3500mm with a 3D anti-condensation mat and vented slat design
- No support poles required, and an adjustable micro-tensioning U-bar
- Aluminum T-track for mounting gear to the tent itself
Cons
- Sleeps 1 to 2 with a 49 1/4 inch interior width. For three or four, see the Nova King or Kali King
- The foldout extends over the side of the vehicle, so you need clearance on that side at your campsite
- Closed height of 11 1/2" is taller than FSR's clamshell models, so factor that into garage clearance
- Included crossbars are limited to 66 lbs dynamic, so plan traction boards and lighting rather than heavy cargo
Frequently Asked Questions
Is this the smallest rooftop tent FSR makes?
Yes, by closed footprint. At 42 inches wide by 56 3/4 inches long it is both the narrowest and the shortest tent in the FSR lineup when packed. The Aspen Lite is lighter at 100 lbs and lower at 7 3/8 inches closed, but it needs 80 inches of rail length versus the Nova's 56 3/4. If rail length or overall footprint is your constraint rather than weight, this is the smallest rooftop tent in the range.
Will it fit my Jeep Wrangler?
This is one of the better options for a Jeep. Choosing a roof top tent for Jeep builds usually comes down to rail length, and a Wrangler's roof is short, which rules out most hard shell tents that need 78 to 86 inches of rail. The Nova Standard needs 56 3/4 inches. Confirm your rack's dynamic load rating covers 132 lbs, since Jeep rack ratings vary a lot between factory hardtops, aftermarket platforms, and roll-cage mounted systems. Call us at 844-200-3979 with your Jeep and rack and we will confirm.
How does a 56 inch tent give 82 inches of sleeping length?

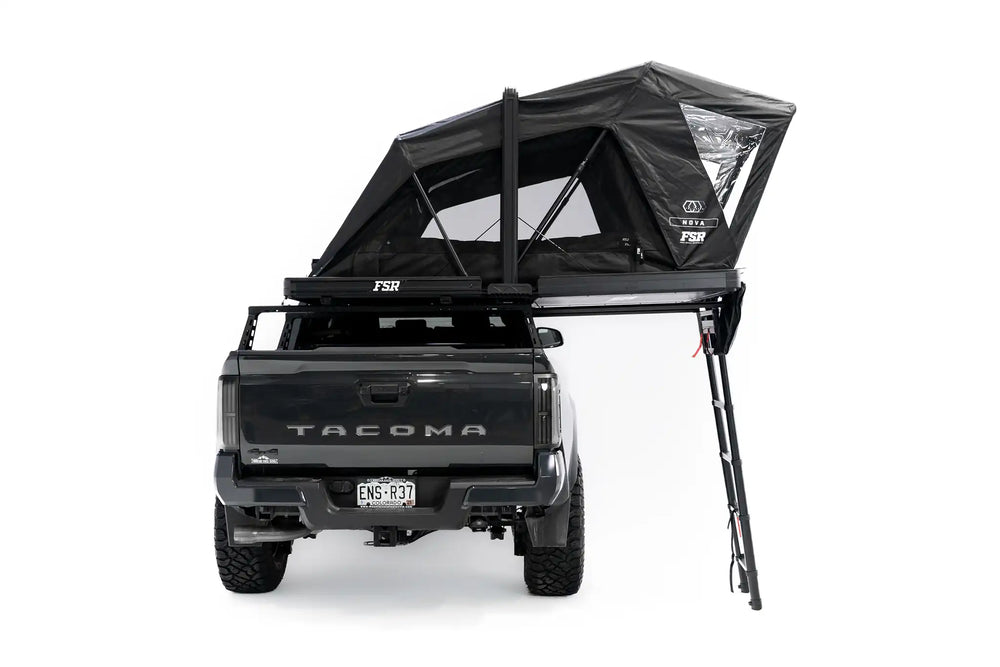

It folds out. Closed on your rack the Nova measures 56 3/4 inches. When you deploy it, the shell folds over the side of the vehicle and opens to an 82 inch long interior, nearly double the packed length. That is the core advantage of a foldout design: you get full-length sleeping space without carrying a full-length tent on your roof all week. No support poles are required.
Can I still carry gear on my rack?
Yes, and that is a large part of the point. Because the Nova only occupies 56 3/4 inches of rail, a full-length roof rack or bed rack still has room for a storage box, traction boards, or additional tie-down points alongside it. Most rooftop tents consume the entire rack. The tent also includes crossbars rated for 66 lbs dynamic that mount into its own aluminum T-track, so the tent itself becomes extra mounting surface.
Is it warm enough for winter?
Yes. The patented Tri-Layer construction wraps the entire tent body with a polycotton fill sandwiched between two layers of 210D ripstop, which FSR compares to how a canteen works: holding heat in when it is cold and blocking it when it is hot. The tent is rated 4 season and 100% waterproof, and built-in ports let you run a diesel heater duct or an AC line through the body without leaving a gap for weather.
Nova Standard or Aspen Lite?
Both sleep 1 to 2 with a 750 lb capacity. The Nova Standard is a foldout at 132 lbs needing only 56 3/4 inches of rail, with a 49 1/4 inch interior width and crossbars included. The Aspen Lite is a clamshell at 100 lbs and just 7 3/8 inches closed, with a 45 1/2 inch interior, but it needs 80 inches of rail. Choose the Nova if rail length or leftover rack space matters. Choose the Aspen Lite if weight and closed height matter most.
Complete Your Setup
Will It Fit Your Rack?
Tell us your vehicle and rack. We will confirm your load rating covers 132 lbs and that you have 56¾ inches of rail.
