FSR Aspen Pro XL Clamshell Rooftop Tent - Low Profile, Sleeps 2-3
FSR Aspen Pro XL Clamshell Rooftop Tent - Low Profile, Sleeps 2-3
The Aspen Pro XL is a clamshell rooftop tent that refuses the usual tradeoff. Most hard shell tents that sleep three weigh 180 to 230 lbs and sit 11 to 13 inches tall on your rack. This one weighs 154 lbs and closes to 7 3/8 inches, which makes it one of the lowest profile rooftop tents you can buy in this size class. Less height means less wind drag, less fuel penalty, and a vehicle that still fits in a parking garage.

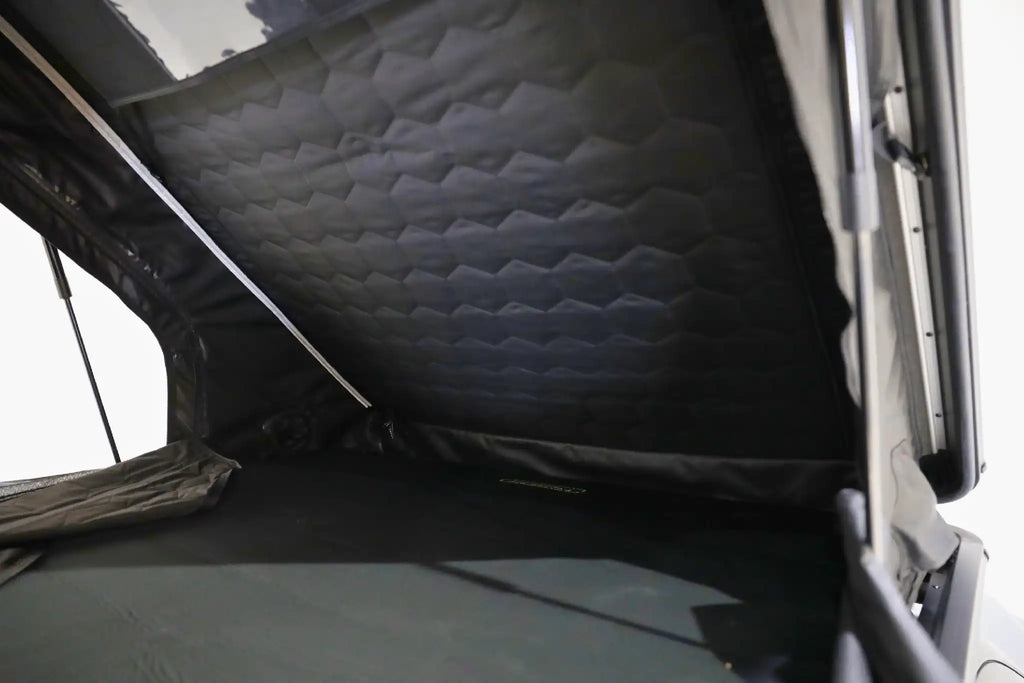

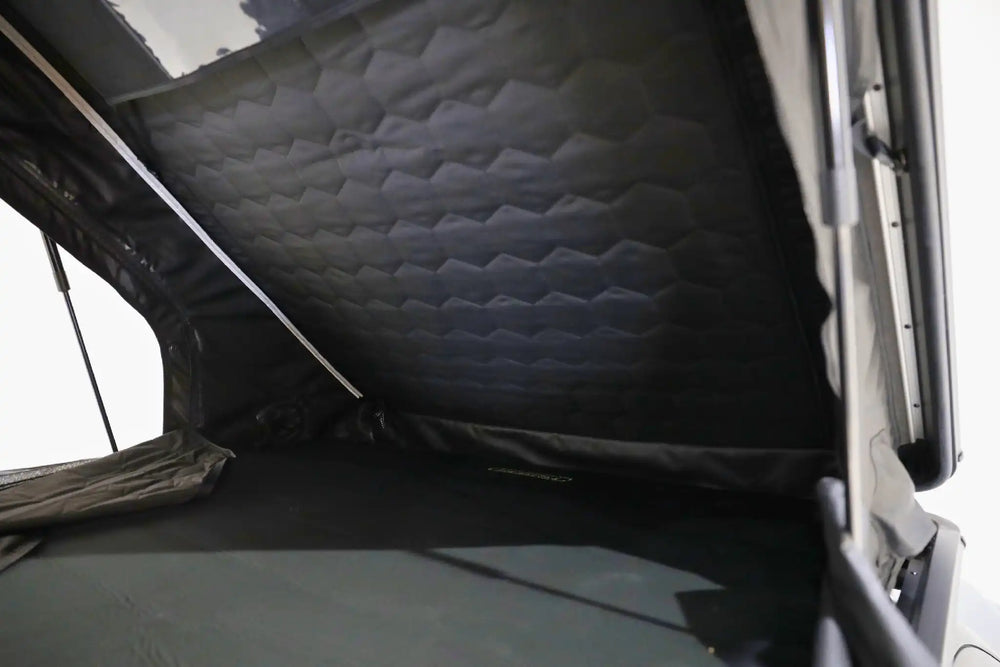

Inside, it opens to 55 inches wide by 81.5 inches long with 52 inches of headroom, making it a genuine 3 person roof top tent rather than a stretched two person. The whole body is wrapped in FSR's patented Tri-Layer insulation, so this is a genuine 4 season tent rather than a summer shell. The top is honeycomb aluminum, the floor is an open cross-slat design that lets the tent breathe, and dual channel extruded aluminum rails let you mount crossbars, traction boards, and lighting to the tent itself. Gas struts pop it open in under a minute. Memory foam mattress, 7.5 foot ladder, dimmable LED, and mount kit all included.
Why a Low Profile Rooftop Tent Matters
Closed height is the spec most buyers ignore and then regret. At 7 3/8 inches including the mounting rail, the Aspen Pro XL adds roughly the height of a cargo box to your vehicle rather than the height of a second roof.
- Less drag, better economy. A tall tent is a wall on your roof. Lower profile means less frontal area catching air at highway speed, which shows up directly in fuel consumption over a long trip.
- Garage and structure clearance. Four extra inches decides whether you park inside or outside, and whether parking garages are available to you at all.
- Less wind noise. Lower and more aerodynamic means less turbulence and a quieter cabin on the drive out.
- Better handling. Weight mounted lower on the vehicle has less effect on center of gravity, which matters on a full-size SUV that is already tall.
At 154 lbs the Aspen Pro XL is also a genuinely lightweight rooftop tent for a 2 to 3 person hard shell. A low profile rooftop tent that is also light is rare, and that combination is what lets this one go on vehicles and racks that heavier tents rule out.
4-Season Use, 100% Waterproof
FSR's patented Tri-Layer technology works like a canteen, strategically fortifying the entire tent where heat would otherwise seep in when it is hot and escape when it is cold. The construction is a polycotton fill sandwiched between two layers of 210D ripstop, armoring the whole tent body rather than just the roof panel. The entire body is completely waterproof, and the integrated rainfly adds another layer of weather protection and sun shielding on top of that.
Camp in Under a Minute
Pop open four quick latches, push up on the tent to engage the interior gas struts, extend the U-bar, and you are ready to camp. The whole sequence takes about thirty seconds once you have done it twice. The struts are designed to live inside the shell, so when the tent is closed they are protected rather than exposed to tree limbs and trail dirt. Spend more of your outdoor time doing the fun stuff and less of it on setup.
Premium Construction, Featherweight Class
An uber durable extruded aluminum frame, an open cross-slat floor for breathability, and a honeycomb aluminum top that prioritizes aerodynamics. Those three choices are what keep the Aspen Pro XL inside the featherweight class despite the feature-rich punch it is packing. Honeycomb structure delivers stiffness at low weight, which is why an aluminum rooftop tent built this way can be both lighter and lower than a conventional hard shell without giving up strength.
Find Your Fitment
FSR builds the Aspen Pro XL for full-size SUVs, pickups with above-cab height bed racks, and long bed pickups mounting below cab height. Confirm your rack's dynamic load rating covers 154 lbs and that you have 86.5 inches of usable rail length.

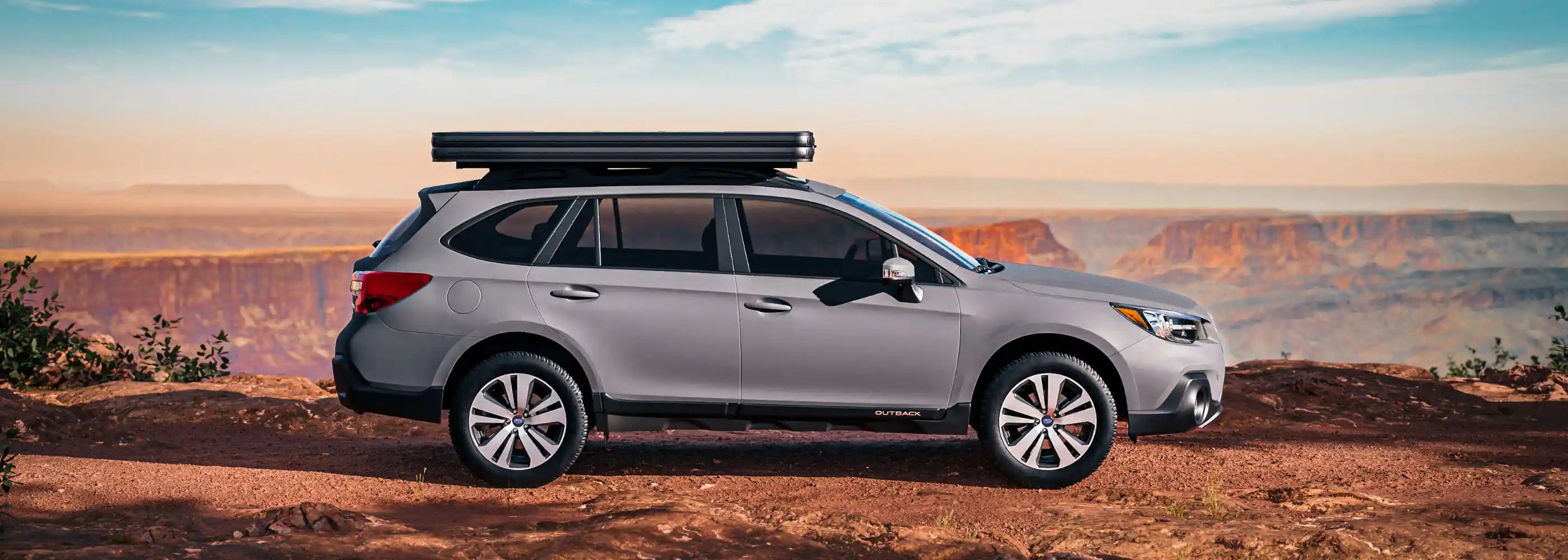

Sedans & Crossovers
Possible on a rack rated for the load, though the 86.5 inch closed length needs checking. If your vehicle is smaller, the Aspen Lite at 100 lbs is the better fit.

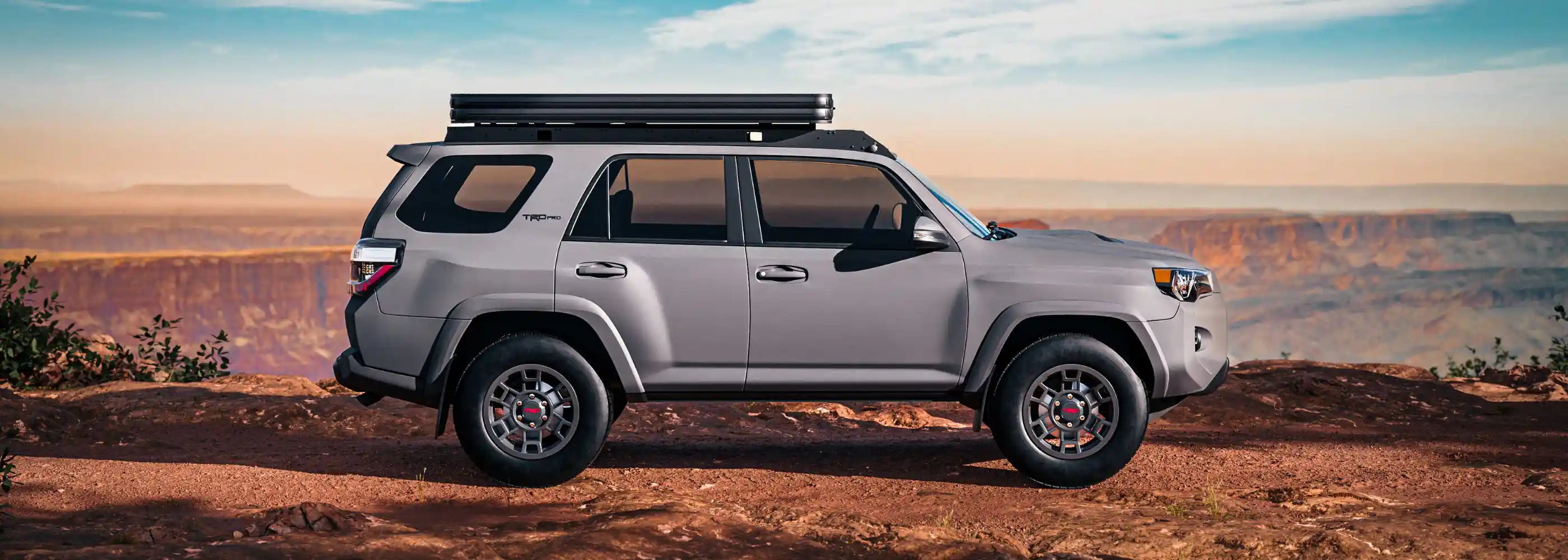

Full-Size SUVs
The sweet spot. A rooftop tent for SUV builds where the 7 3/8 inch closed height keeps an already-tall vehicle manageable in garages and under branches.

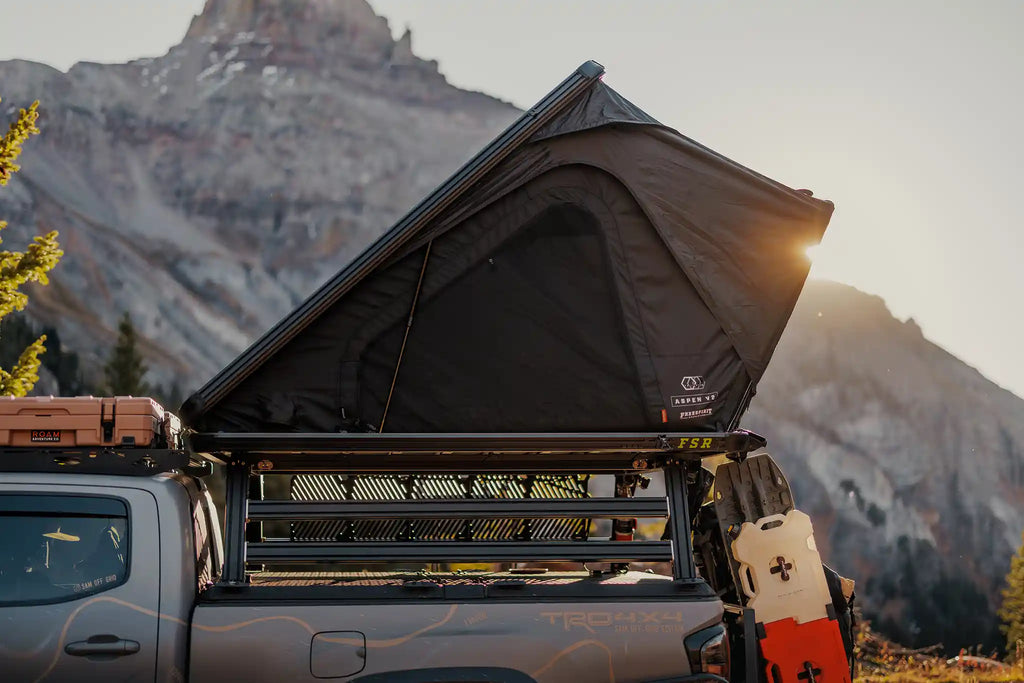

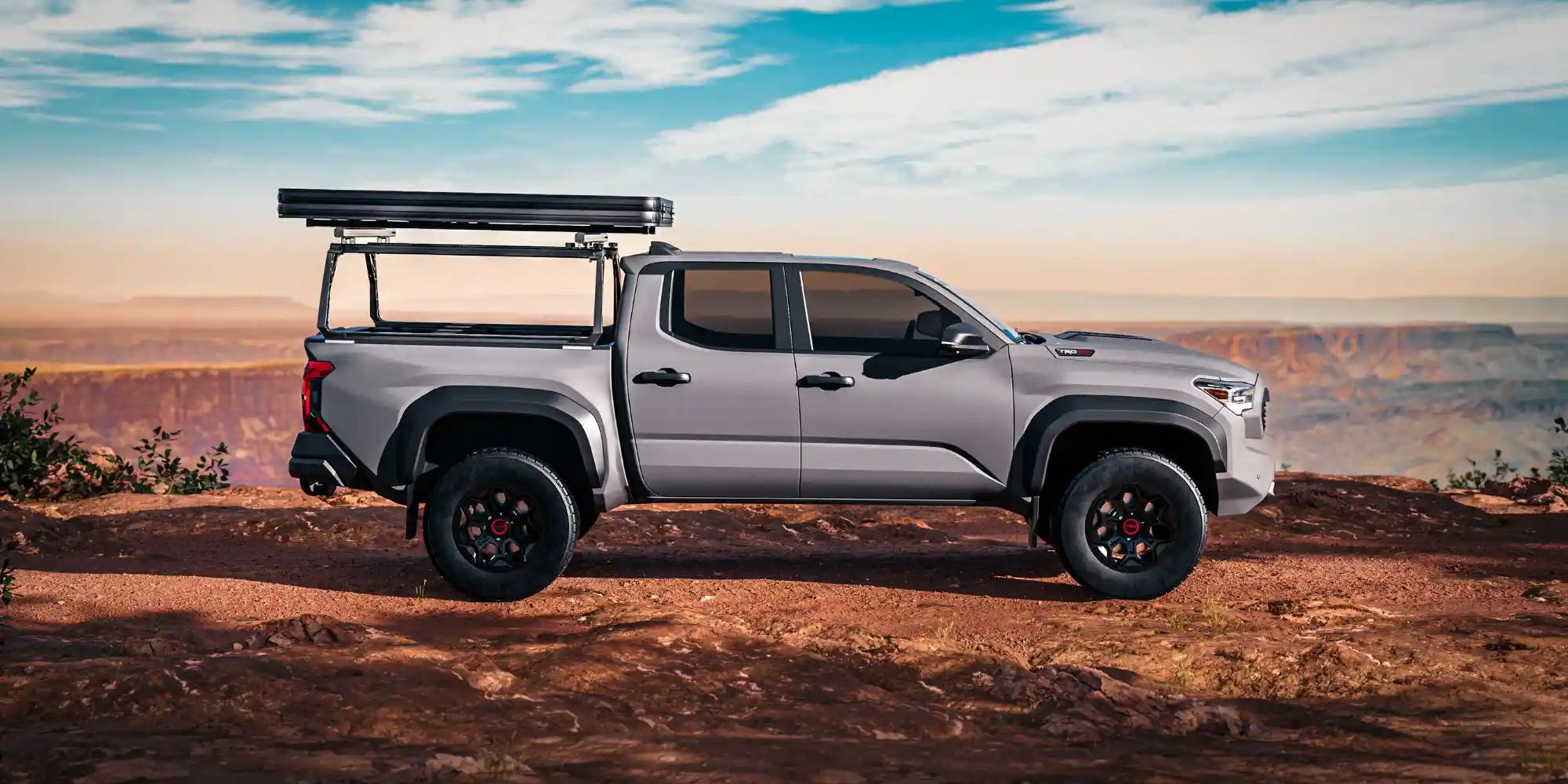

Mid-Size Trucks
On an above-cab height bed rack. The low profile means the tent does not tower over the cab, which keeps the whole build looking proportional.

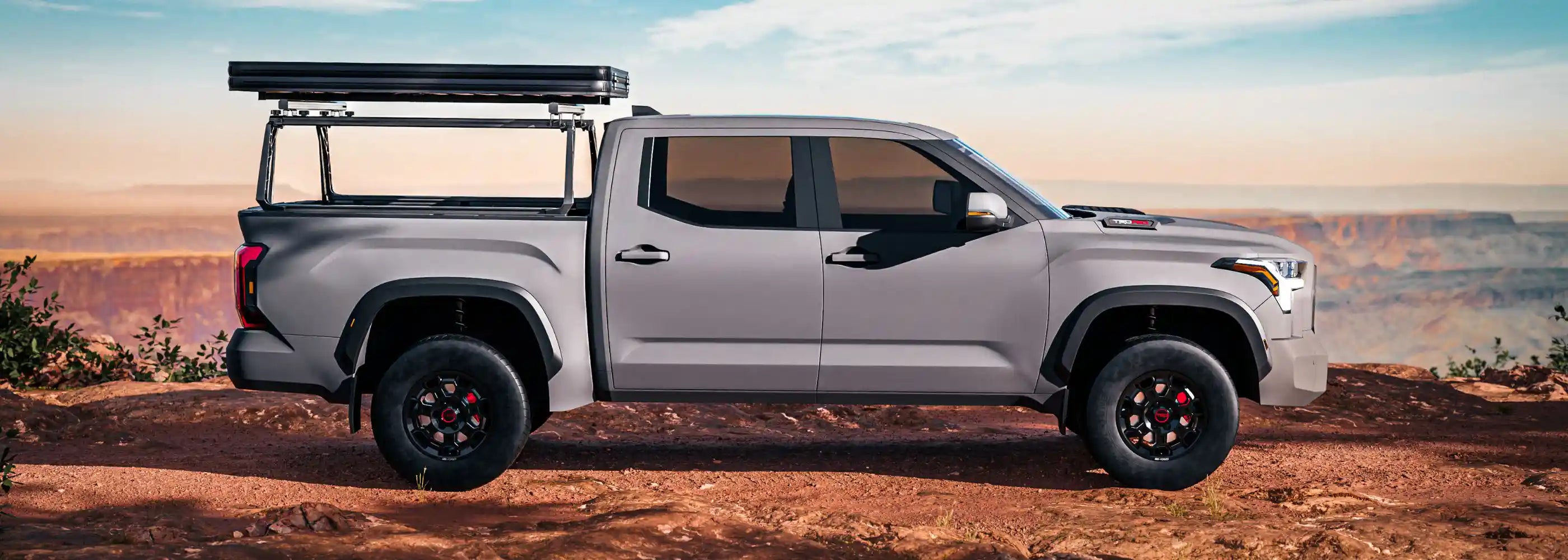

Full-Size & Long Bed Trucks
Works above cab on a bed rack, or below cab height on a long bed. Plenty of rack capacity to spare for traction boards and fuel cans alongside.
More Details That Matter
Condensation Elimination: The aluminum open cross-slat floor saves weight and lets the tent breathe from underneath instead of trapping moisture against a solid base. FSR pairs it with strategically located venting for 360 degree airflow. Waking up to a wet interior is the most common rooftop tent complaint, and this design attacks the cause.

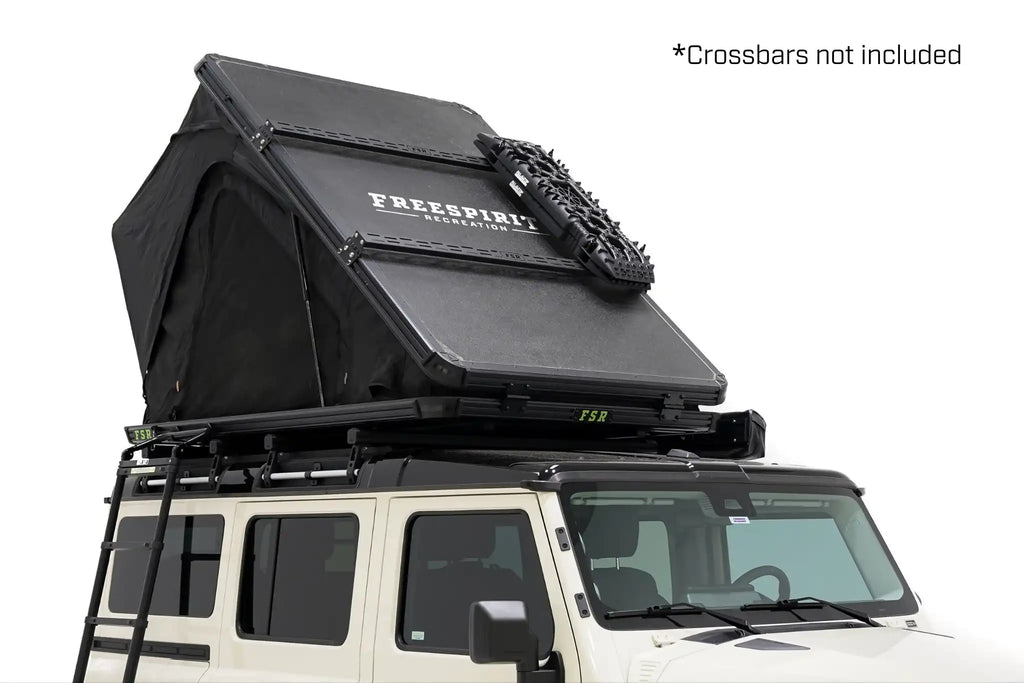

Dual Channel Accessory Mounting: Dual channel extruded aluminum lets you mount crossbars, shovels, traction boards, light bars, Rotopax, and more to the tent itself. Two channels rather than one means more mounting positions and more flexibility about where things go.

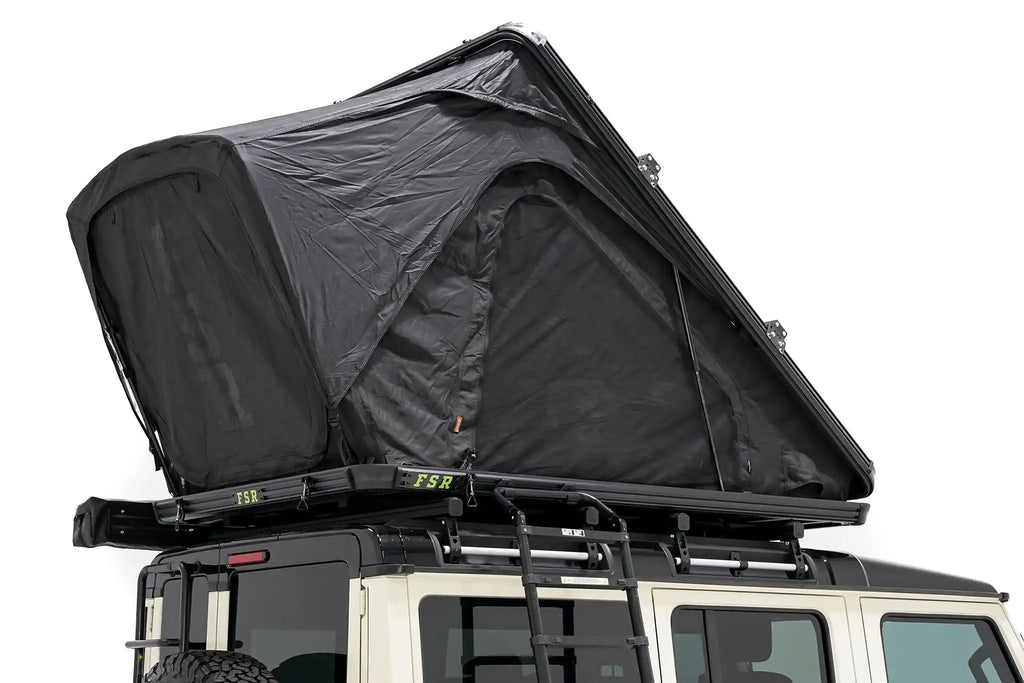

Integrated Rainfly: The tent body is already completely waterproof. The integrated rainfly is a second layer of security and sun shielding on top of that, rather than the only thing between you and the weather.
Heater, AC, and Electrical Ports: Built-in ports for running a diesel heater duct, an AC line, or power through the tent body without leaving a gap for weather or bugs.
Adjustable Shoe Bag Locations: Two shoe bags that mount where you want them rather than where the factory decided, plus a gear storage grid inside and an integrated dimmable LED light strip.
Which FSR Tent?
All five use FSR's patented Tri-Layer insulation and deploy in under a minute. They are built around different constraints.
| Aspen Pro XL | Aspen Lite | Kali | Kali King | Nova King | |
|---|---|---|---|---|---|
| Style | Clamshell | Clamshell | Pop up | Pop up | Foldout |
| Sleeps | 2 to 3 | 1 to 2 | 2 to 3 | 3 to 4 | 3 to 4 |
| Closed Height | 7 3/8" | 7 3/8" | 12" | 12" | 11 1/2" |
| Interior Width | 55" | 45 1/2" | 52" | 72" | 72" |
| Headroom | 52" | 59"* | 48.5" | 48.5" | 43 1/4" |
| Weight | 154 lbs | 100 lbs | 177 lbs | 207 lbs | 162 lbs |
| Capacity | 750 lbs | 750 lbs | 660 lbs | 660 lbs | 750 lbs |
*The Aspen Lite's 59" interior height is measured at its clamshell peak and tapers toward the foot end. FSR recommends it for campers under 6 feet tall.
Choose the Aspen Pro XL if you want the lowest profile and lightest weight available in a 2 to 3 person hard shell, on a full-size SUV or a truck bed rack.
Choose the Aspen Lite if you drive a crossover or smaller SUV and need the 100 lb weight.
Choose the Kali if rack rail length is your constraint, since it closes to 59 inches.
Choose the Kali King or Nova King if you need to sleep four.
Specifications
| Style | Full insulation Tri-Layer clamshell, gas-strut assisted |
| Sleeps | 2 to 3 people |
| Exterior Dimensions | 59 1/2" W x 86 1/2" L x 7 3/8" H (includes mounting rail height) |
| Interior Dimensions | 55" W x 81.5" L x 52" H |
| Weight | 154 lbs |
| Weight Capacity | 750 lbs |
| Shell | Aluminum hard shell with honeycomb aluminum top |
| Tent Body | Patented Tri-Layer: polycotton fill between two layers of 210D ripstop |
| Tent Floor | 600D breathable Oxford ripstop, PU coated 2000mm, open cross-slat design |
| Rainfly | Integrated. 210D Oxford ripstop PU 3000mm, silver blockout coating, UPF 50+ |
| Frame | Extruded aluminum with polymer corners |
| Ventilation | 360 degree |
| Mattress | Memory foam |
| Lighting | Integrated dimmable LED |
| Ladder | 7.5' telescoping |
| Deployment | Under one minute |
| Accessory Mounting | Dual channel extruded aluminum |
| Ports | Heater, AC, and electrical |
| Bedding Storage | Light bedding or sleeping bags |
| Best Suited For | Full-size SUVs, pickups with above-cab bed racks, long bed pickups below cab |
What's Included
📄 Installation Manual
Download the rooftop tent installation manual covering mounting hardware and rack setup.
Pros
- Just 7 3/8" closed, one of the lowest profile rooftop tents available in a 2 to 3 person size
- At 154 lbs it is a genuinely lightweight rooftop tent for a 55" wide hard shell, opening up racks that heavier tents rule out
- 750 lb weight capacity, the highest in the FSR range
- 52" of headroom over a 55" x 81.5" interior
- Patented Tri-Layer insulation armors the whole body for true 4 season use
- Honeycomb aluminum top and open cross-slat floor keep weight down without losing strength
- Dual channel aluminum lets you mount crossbars and gear to the tent itself
- Integrated rainfly on an already-waterproof body, plus heater, AC, and electrical ports
- Gas struts live inside the shell, protected from tree limbs and dirt
Cons
- Needs 86.5 inches of usable rail length closed, the longest in the FSR range. Short racks should look at the Kali at 59 inches
- Sleeps 2 to 3 rather than a full 4. For families, the Kali King or Nova King offer a 72 inch interior
- At 154 lbs, installation is a multi-person lift
- Interior bedding storage is limited to light bedding or sleeping bags
Frequently Asked Questions
How low profile is it really?
7 3/8 inches closed, including the mounting rail. That makes it one of the lowest profile rooftop tents in its class. Most hard shell rooftop tents that sleep two to three sit at 11 to 13 inches. That four to six inch difference shows up in three places: fuel economy from reduced frontal area at highway speed, garage and parking structure clearance, and cabin noise from less turbulence. On a full-size SUV that is already tall, it can be the difference between parking inside and outside.
Will my rack carry 154 lbs?
Check your rack's dynamic load rating, the figure that applies while driving, and confirm it covers 154 lbs plus anything else up there. Static rating, which is higher, covers the tent plus occupants once parked. You also need 86.5 inches of usable rail length for the closed tent, which is the longer constraint on most builds. Call us at 844-200-3979 with your vehicle and rack and we will confirm both numbers before you order.
What is a clamshell rooftop tent?
A clamshell rooftop tent, sometimes called a wedge rooftop tent, hinges at one end and lifts at the other, creating a wedge profile that is tall at the entry and lower at the foot. Gas struts do the lifting, so deployment is fast and requires no poles or unrolling. The tradeoff versus a pop up, which lifts flat, is that headroom tapers toward the foot end. The advantage is that clamshells pack lower and lighter, which is exactly why the Aspen Pro XL closes to 7 3/8 inches at 154 lbs.
Is it warm enough for winter?
Yes. The patented Tri-Layer construction wraps the entire tent body with a polycotton fill sandwiched between two layers of 210D ripstop, which FSR compares to how a canteen works: holding heat in when it is cold and blocking it when it is hot. The body is completely waterproof and the integrated rainfly adds a second layer. There are also built-in ports for running a diesel heater duct through the body without leaving a gap for weather.
Aspen Pro XL or Aspen Lite?
Both are clamshells at 7 3/8 inches closed with a 750 lb capacity. The Aspen Pro XL sleeps 2 to 3 with a 55 inch interior width and weighs 154 lbs. The Aspen Lite sleeps 1 to 2 with a 45.5 inch width and weighs 100 lbs, which lets it go on crossovers and small SUVs the Pro XL cannot. Choose the Pro XL for full-size SUVs and truck bed racks where you want the extra room. Choose the Lite if your vehicle or rack rating is the limit.
Will I wake up to condensation?
Far less than in a sealed-floor tent. The aluminum open cross-slat floor lets the tent breathe from underneath rather than trapping moisture against a solid base, and FSR pairs it with strategically located venting for 360 degree airflow. The floor design serves double duty, saving weight and improving airflow at the same time. Condensation is the most common rooftop tent complaint, and this construction attacks the cause rather than adding a vent and hoping.
