Cali Raised LED 52 Inch Curved Light Bar Roof Brackets Kit for 2003-2024 Toyota 4Runner
Cali Raised LED 52 Inch Curved Light Bar Roof Brackets Kit for 2003-2024 Toyota 4Runner
Drilling Into the Roof Is Required
These brackets mount by drilling into your 4Runner's roof. It is a permanent change, so make sure a roof-mounted bar is the setup you want before you start.
Cali Raised make them for the 2003-2024 Toyota 4Runner. Running factory roof rails or an aftermarket rack? Tell us before you order, and call 844-200-3979 with any questions.
A 52" curved bar is one of the biggest 4Runner light bar setups you can run, and the curve follows the roofline so it throws light wide at the edges of the trail as well as straight ahead. The catch with a bar that size is mounting it: it has to stay solid over corrugations and through branches without working loose.
Cali Raised LED designed and laser cut these brackets specifically for the 2003-2024 Toyota 4Runner light bar install, covering both the 4th gen and the 5th gen. They are fabricated in-house in Fort Worth, Texas, sold as a pair with installation hardware, and powder coated in a black semi-gloss mini texture. They take a slim or dual row 52" curved 4Runner light bar, and you can buy them on their own or as a combo with the bar and wiring harness.

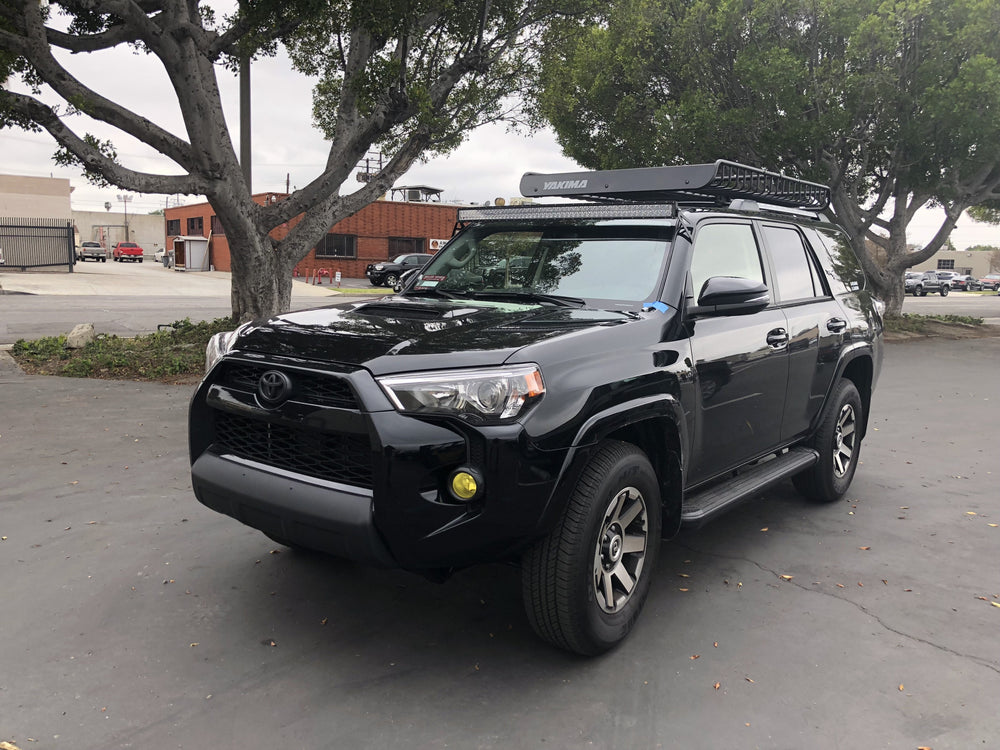

Roof Brackets or a Rack-Mounted Bar?
A lot of 4Runner owners end up with a roof rack eventually, so it is worth thinking about where your light bar lives before you drill anything.
| These Roof Brackets | Bar on a Roof Rack | |
|---|---|---|
| Mounting | Brackets drilled into the roof | Bar mounts to the front of the rack |
| Best when | You want a 52" curved bar and no full rack | You already run, or plan to run, a roof rack |
| Look | Bar sits on its own across the roof | Bar integrates with the rack and fairing |
| Roof space | Rest of the roof stays clear | Shared with tents, boxes and gear |
If a roof rack is on your list, ask us before you order. Many racks have their own light bar mounting, and it may make more sense to put the bar there instead.
Brackets Kit or Combo
| What You Get | Brackets Kit | Combo |
|---|---|---|
| Pair of roof brackets and hardware | Yes | Yes |

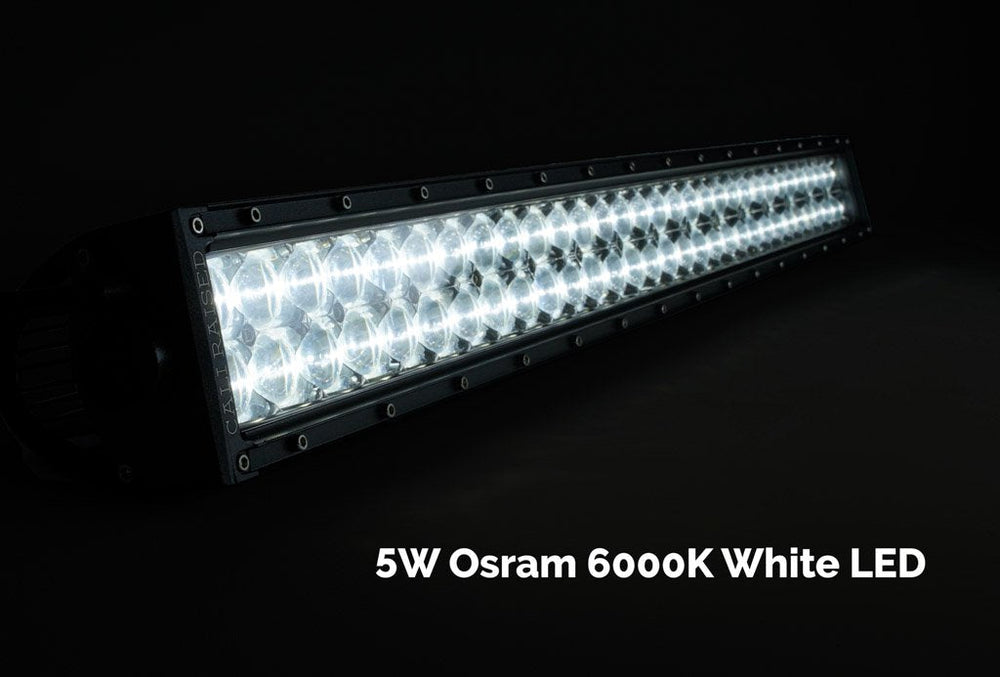

| 52" curved LED light bar | No, use your own | Yes |

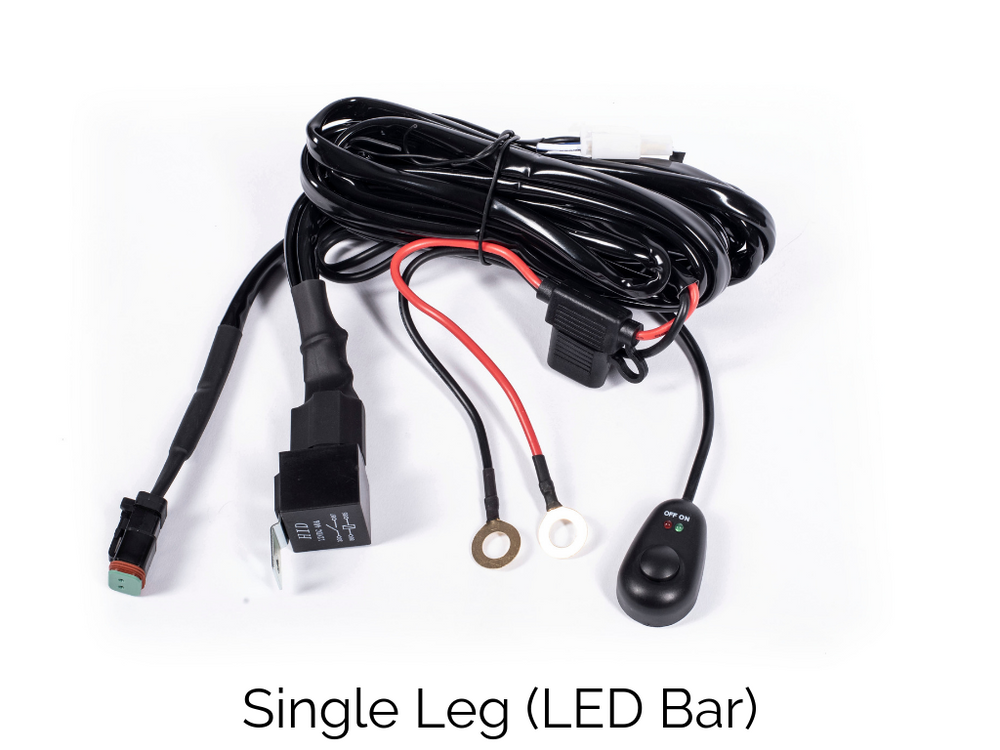

| Wiring harness | Confirm with us | Yes |

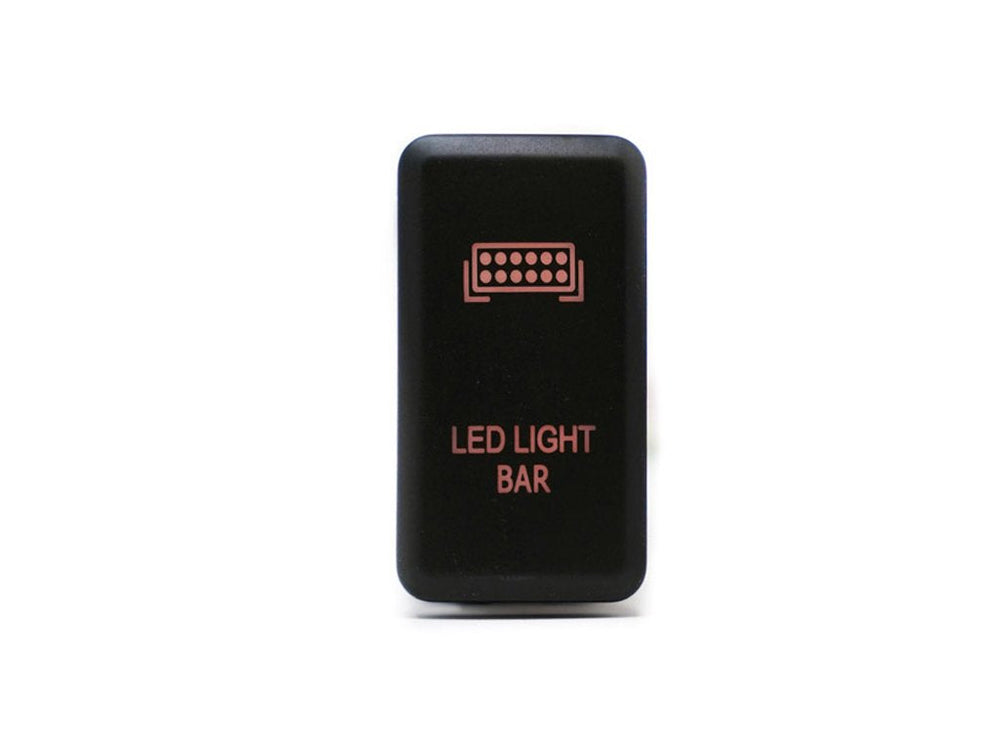

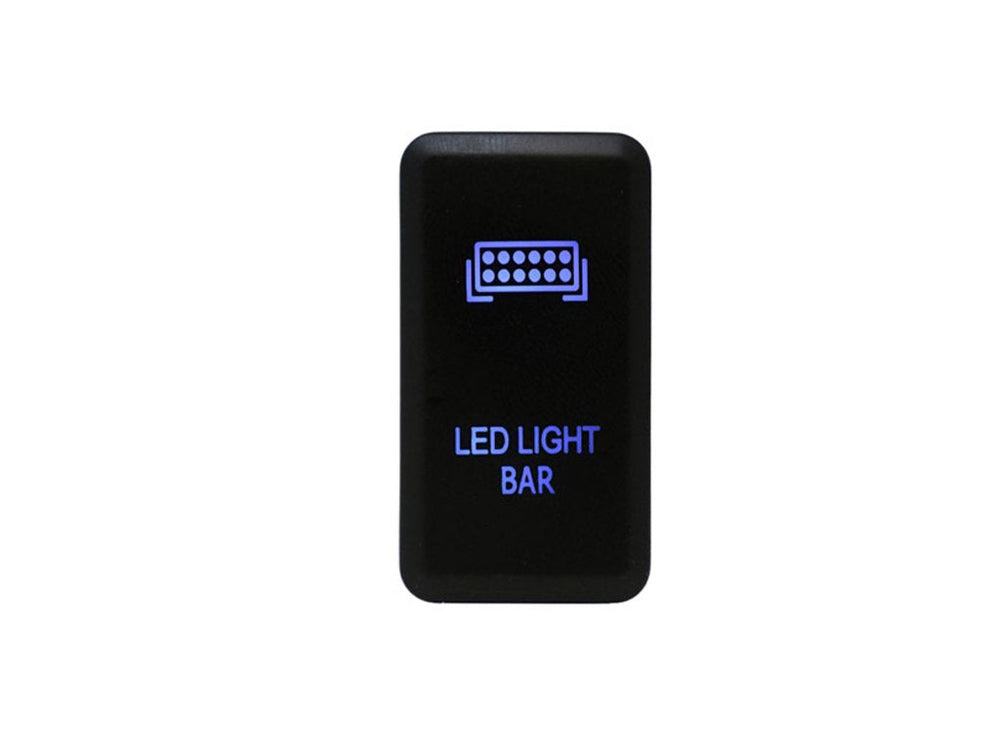

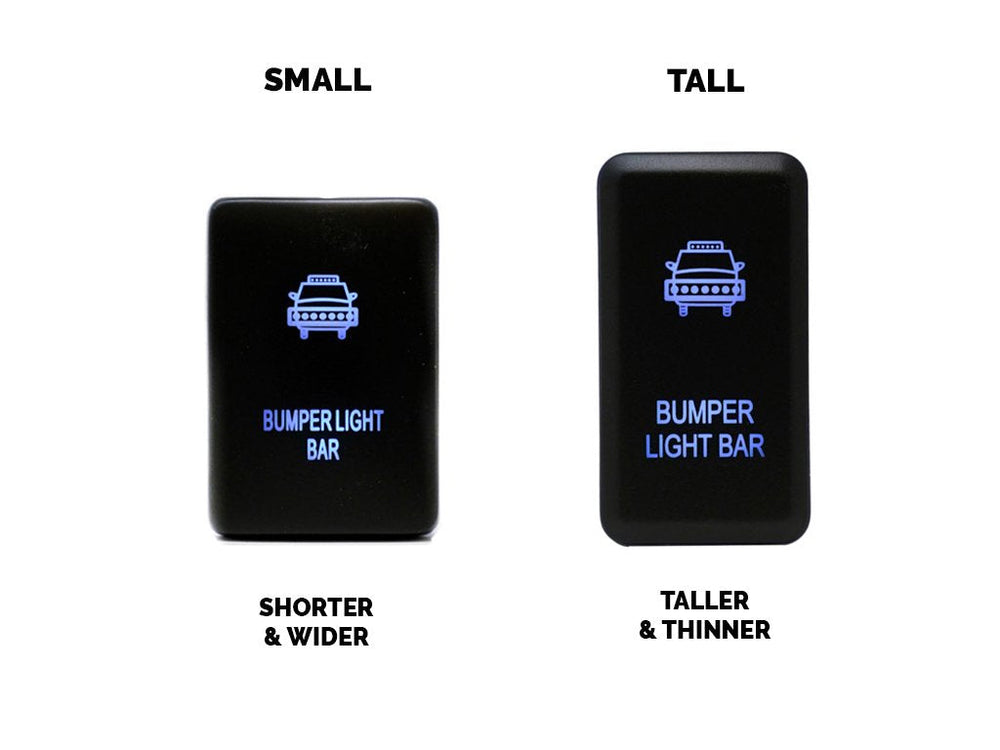

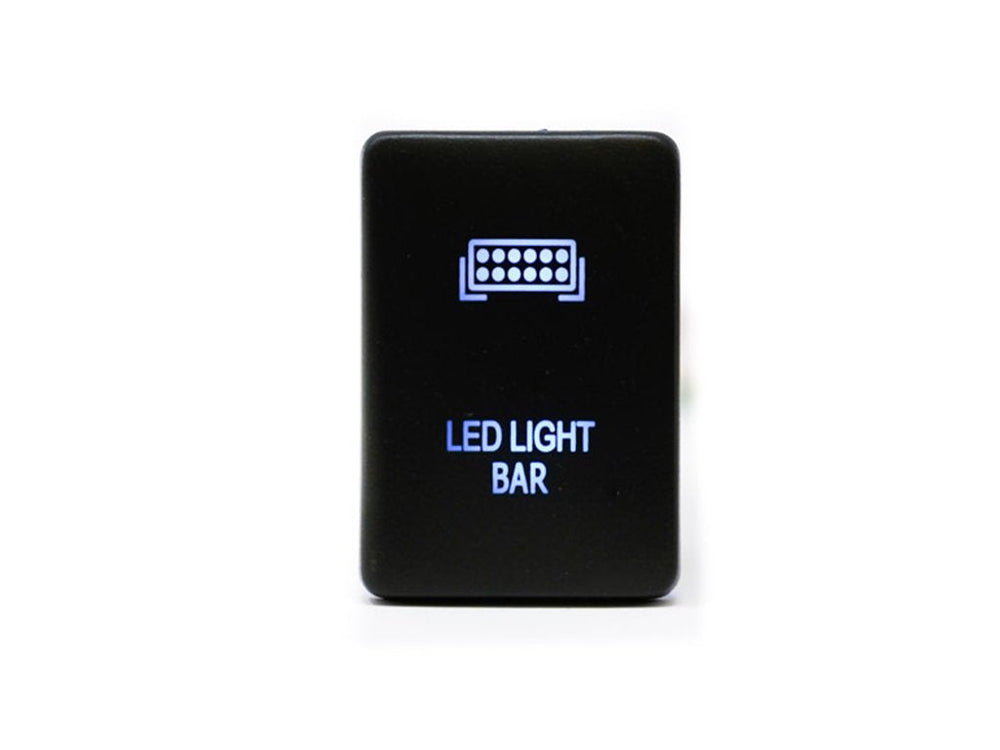

| OEM switch | Optional add-on | Optional add-on |
Already have a 52" curved 4Runner LED light bar? The brackets kit is all you need. Starting from scratch? The combo puts the bar, the brackets made for it and the harness in one box.
What a 4Runner Roof Light Bar Does Well
Light Over the Bonnet
Mounted on the roof, the bar sits well above the bonnet and throws light much further than fog or bumper lights.
Wide Coverage
A curved 52" bar spreads light toward the edges of the trail, helping on tight, twisty tracks.
Clear of Damage
Up top, the bar avoids the rocks and brush that take out lower-mounted lights.
✓ Plan the Power and the Rules
A 52" bar is a big electrical load, so run it on a proper harness with the engine running rather than tapping an existing circuit. It is also an off-road light: keep it off around other traffic and check your state's rules for road use.

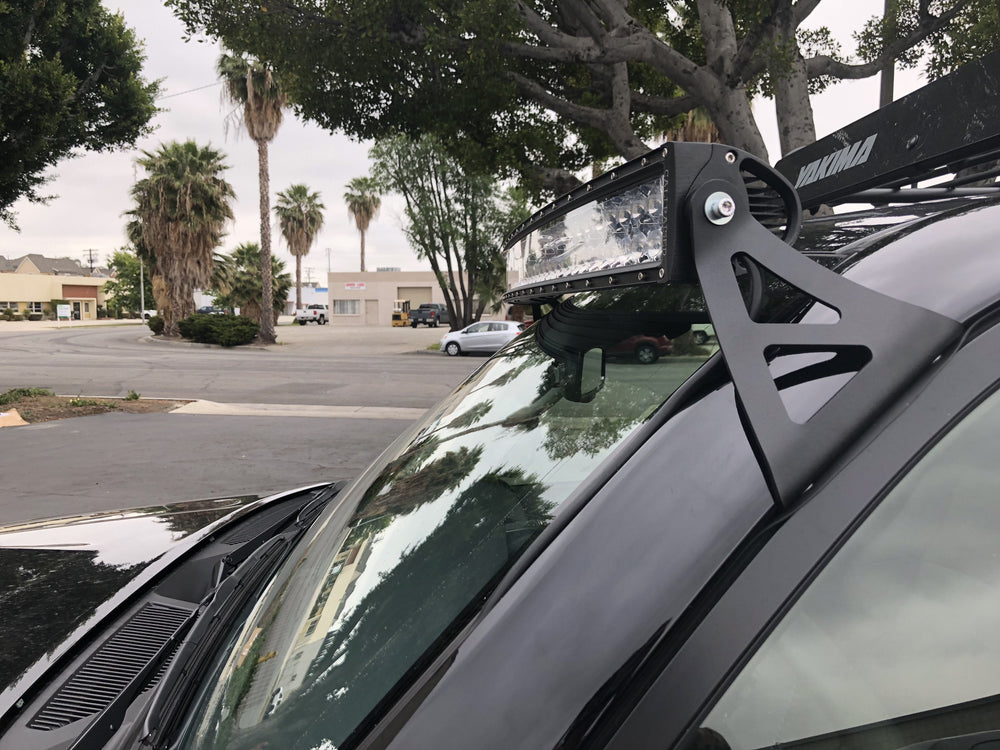

Installation
The brackets bolt on with the included hardware after drilling into the roof. Because those holes are permanent, take your time.
- Check behind the roof skin at each drilling point, including headliner wiring, before you drill.
- Mark both brackets and test-fit the bar so it sits square and level across the roof.
- Drill a pilot hole first, then open it up to size.
- Prime and seal every hole. Bare metal rusts and unsealed holes leak, so treat each one before fitting.
- Route the harness neatly, test the bar, then do the final tightening.
- Re-check the brackets after your first rough trail. A bar this long works its mounts hard.
Specifications
| Fitment | 2003-2024 Toyota 4Runner (4th and 5th gen) |

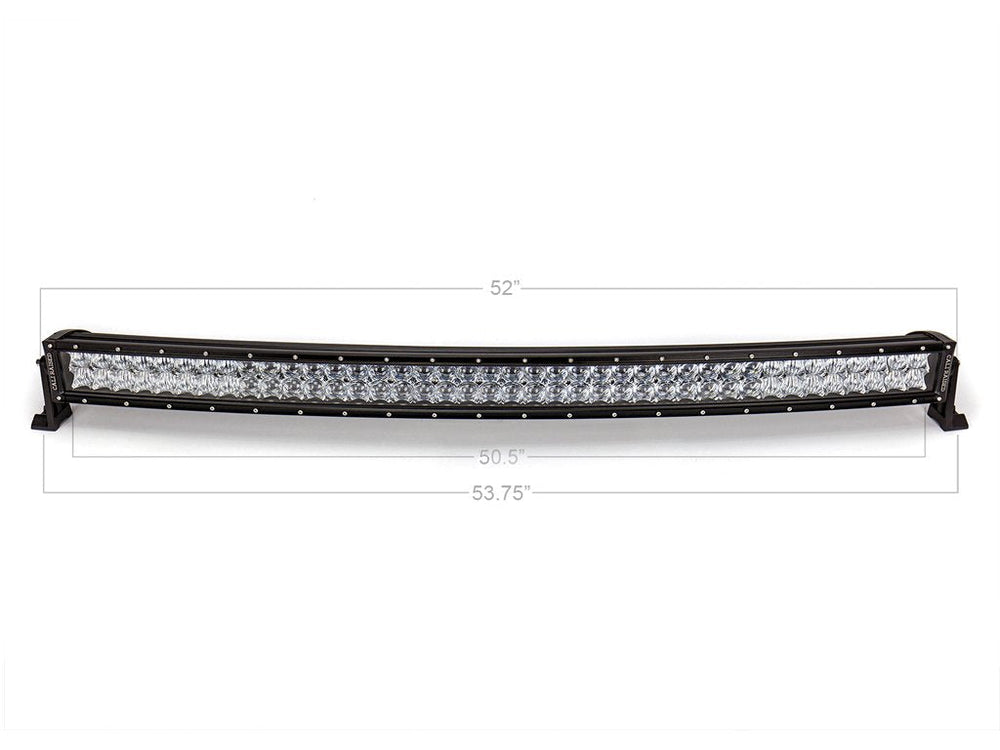

| Light bar fitment | 52" curved LED light bar, slim or dual row |
| Brackets | Custom-designed, laser cut, sold as a pair |
| Finish | Black semi-gloss mini texture powder coat |
| Installation | Requires drilling into the roof, hardware included |
| Variants | Brackets kit, or combo with 52" curved light bar and wiring harness |
| OEM switch | Optional add-on |
| Fabricated in | Fort Worth, Texas |
| Warranty | 2 years |

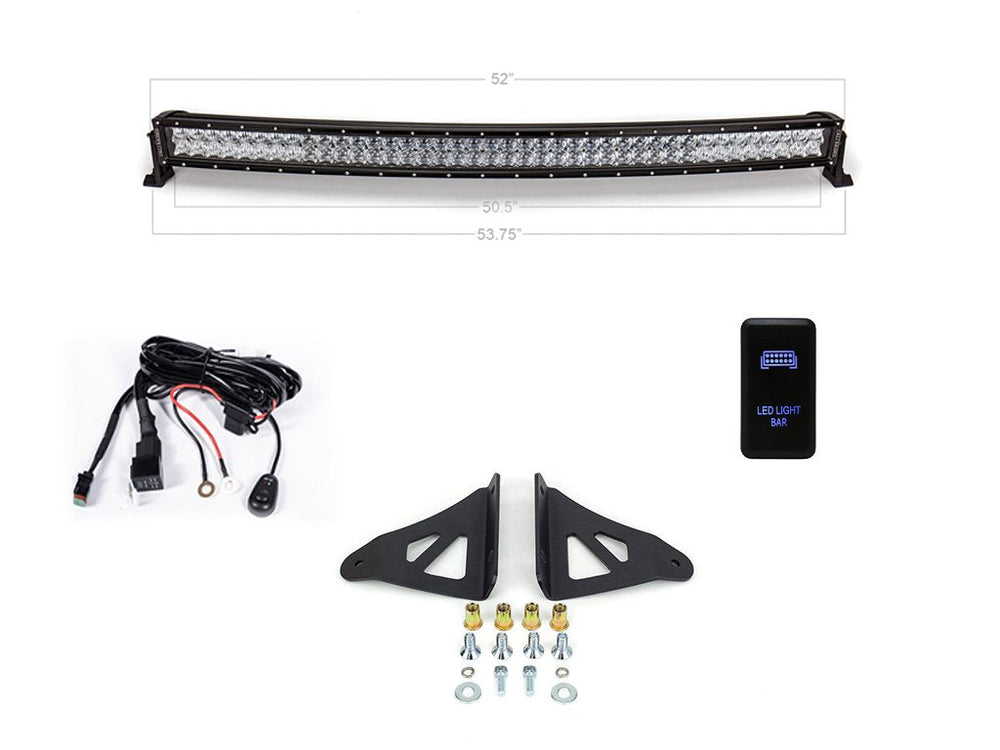

What's Included

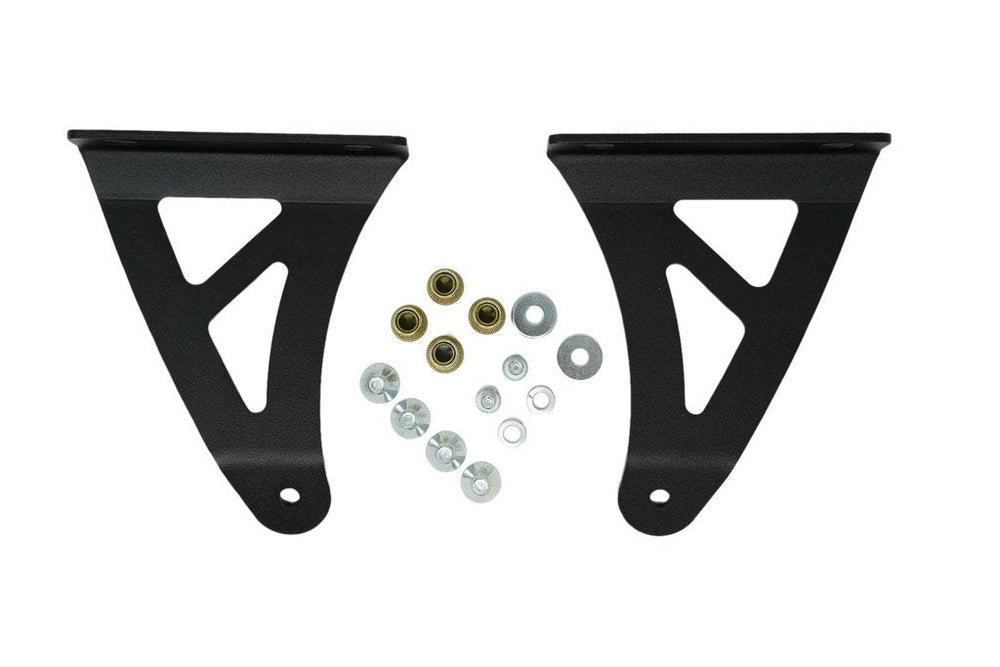

- Pair of 52" curved light bar roof brackets
- Installation hardware
- Combo variant: 52" curved LED light bar and wiring harness
- OEM switch, if added
Pros
- One bracket kit covers 4th and 5th gen 4Runners
- Takes slim or dual row 52" curved bars
- Combo option gets bar, brackets and harness in one order
- Laser cut, powder coated and made in Fort Worth, Texas
Cons
- Requires drilling into the roof
- Uses roof space you may later want for a rack
Frequently Asked Questions
Will this 4Runner light bar kit fit my 4th gen or 5th gen?
Cali Raised make it for the 2003-2024 Toyota 4Runner, which covers both the 4th gen and the 5th gen.
Do I have to drill the roof?
Yes. Installation requires drilling into the roof. Prime and seal every hole to keep out water and rust.
Does it come with the light bar?
Choose the combo and it comes with a 52" curved LED light bar and wiring harness. The brackets kit is for owners who already have a bar.
Can I mount a slim light bar?
Yes. The brackets take a slim or dual row 52" curved bar.
I plan to add a roof rack later. Should I still buy these?
Talk to us first. Many roof racks have their own light bar mounting, and putting the bar on the rack may make more sense than drilling the roof for brackets.
Complete Your Build
Brackets or Combo?
Tell us your 4Runner's year, what is on the roof now and whether you already have a bar, whether that is a 5th gen 4Runner light bar setup or a 4th gen build. We will make sure the right kit ships.
