Cali Raised LED 40" Cut-Out Prinsu Roof Rack Slim Light Bar Bracket Kit
Cali Raised LED 40" Cut-Out Prinsu Roof Rack Slim Light Bar Bracket Kit
About Those Three Different Numbers
Prinsu calls this a 40 inch cut-out, but the actual opening measures 43 inches. This kit ships with a 42 inch slim bar, which is why all three numbers appear. If your Prinsu rack has the 40 inch cut-out, this is the right kit. Not sure which cut-out you have? Call us at 844-200-3979.
A Prinsu light bar cut-out sitting empty is a slot waiting for something, and a light bar zip-tied or bodged into it looks exactly like what it is. The cut-out was designed to hold a bar properly. It just needs the right bracket.

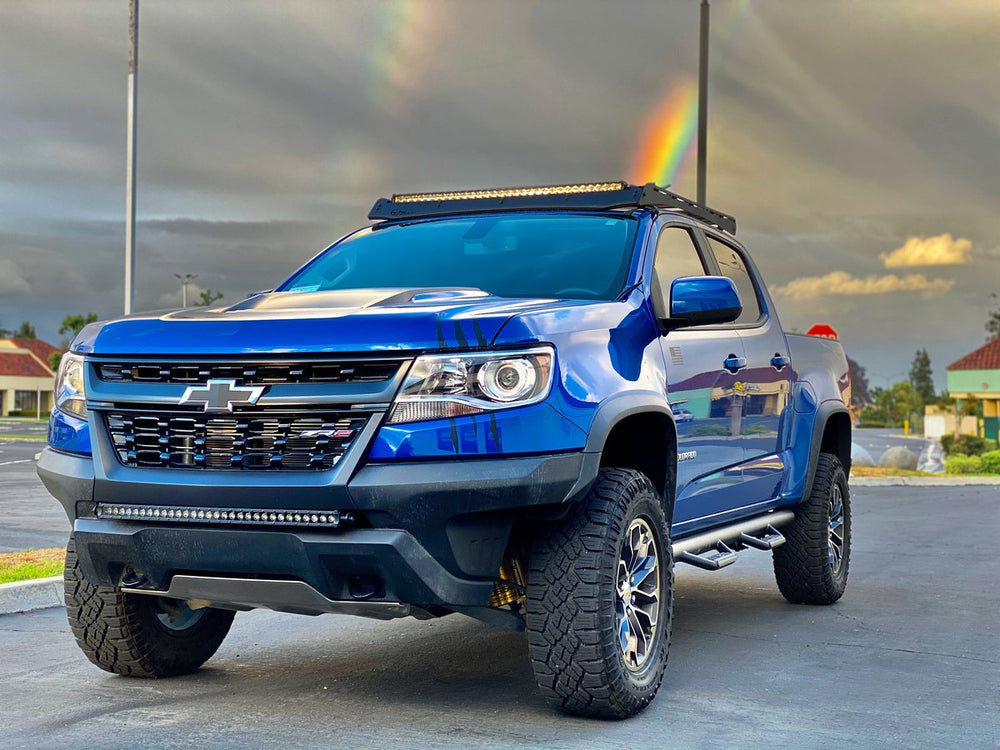

This is the Cali Raised LED light bar bracket kit, custom laser cut for the 40 inch cut-out Prinsu roof rack. It holds a 42 inch slim single-row bar flush in the opening with no modification to the rack, and the kit includes the bar itself in white or amber, a wiring harness, and the option to add a vehicle-specific OEM switch. Engineered and manufactured in the USA, powder-coated in a durable black semi-gloss mini texture. Sold as a pair with hardware. Two-year Cali Raised LED warranty.
Getting the Sizing Right
This trips people up, so here it is plainly.
| Number | What It Refers To |
|---|---|
| 40" | What Prinsu calls this cut-out. It is the product name, not a measurement |
| 43" | The actual opening size, and the maximum bar width these brackets will take |
| 42" | The slim bar supplied in this kit, which fits the opening with margin |
So: if your Prinsu rack is the one sold with a 40 inch cut-out, this kit fits it. And because the opening is actually 43 inches, these brackets will take any Cali Raised LED single-row bar up to 43 inches wide, not only the 42 inch one in the box.
Made for This Rack, Not Adapted to It

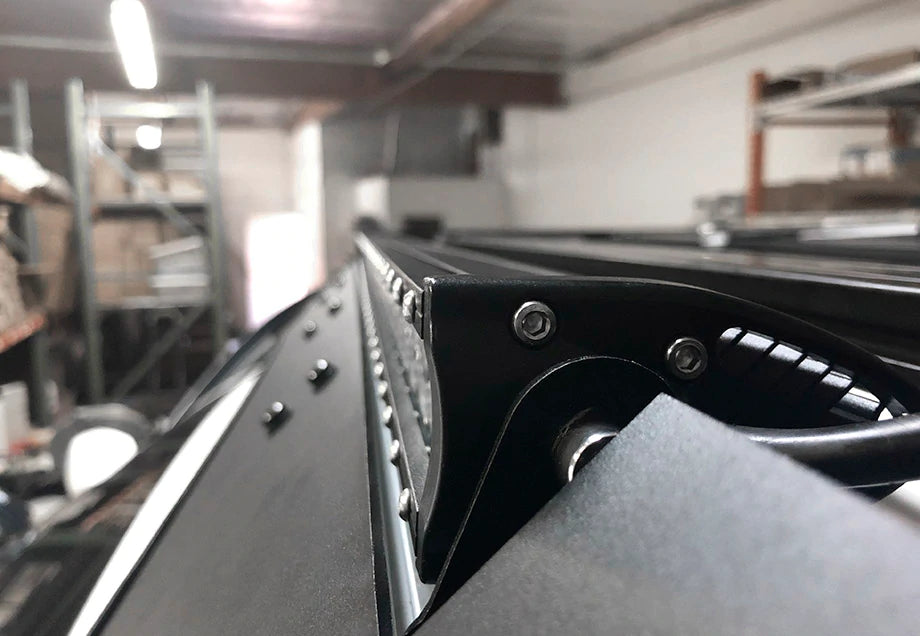

These brackets are custom laser cut for the Prinsu roof rack, which is the difference between a roof rack light bar mount that sits flush and a universal LED light bar mount that leaves a light bar standing proud and whistling at 70 mph.
No Modification

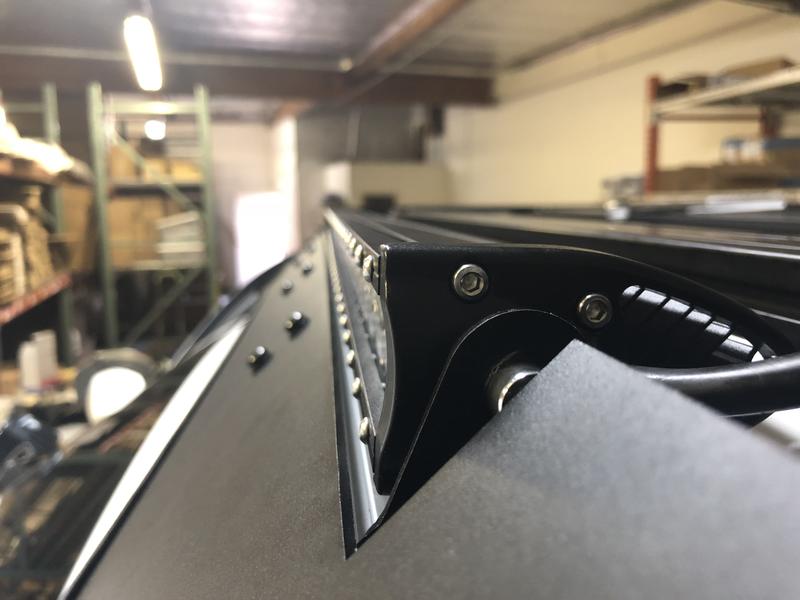

The brackets use the cut-out as designed. Nothing to drill, cut or adapt on the rack itself.
Low Profile

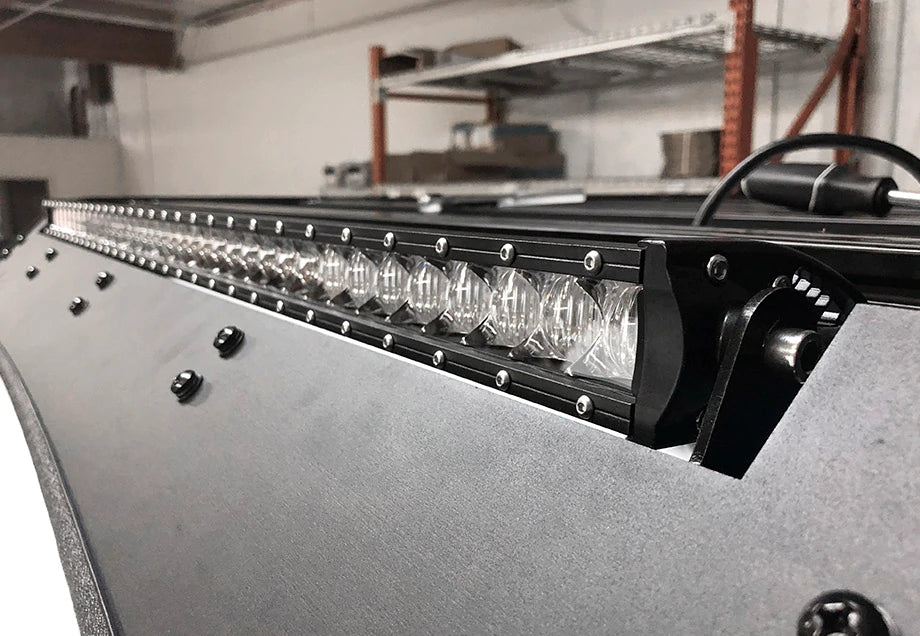

The slim design keeps the bar tucked into the opening, which is what keeps wind noise and vibration down.
Built to Last
Laser cut and powder-coated in black semi-gloss mini texture, so corrosion is not the thing that ends it.

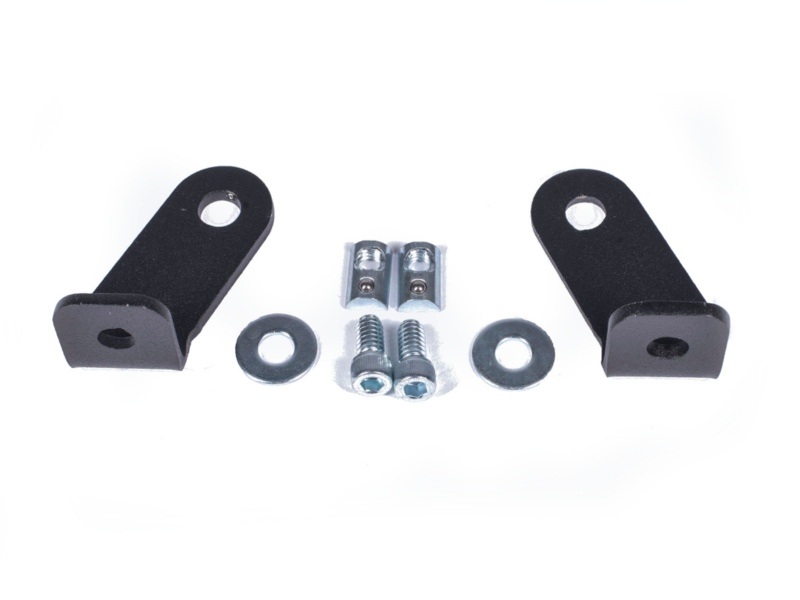

They are sold as a pair with installation hardware included, and when purchased with a light bar the wiring comes with it.
The OEM Switch Option

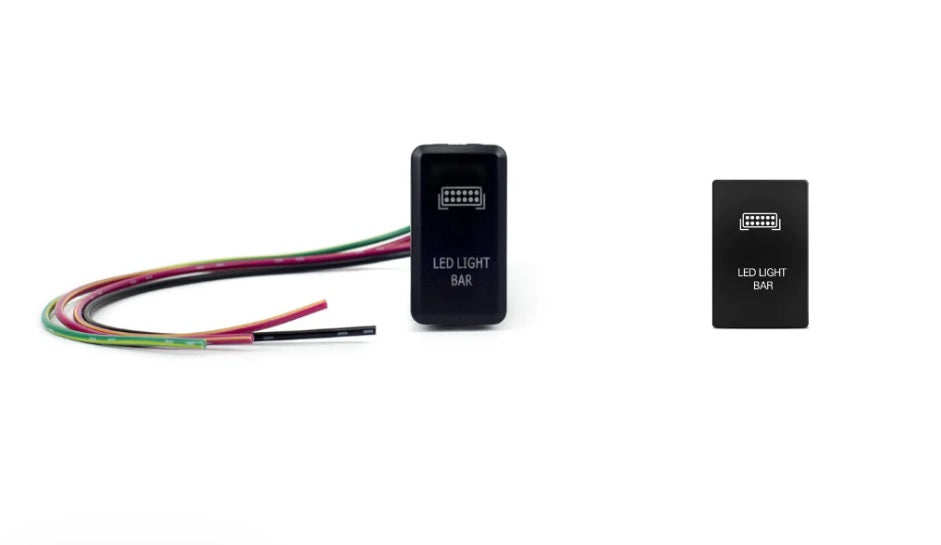

You can add a vehicle-specific OEM switch so the bar runs off a factory-look switch in your dash rather than an aftermarket toggle stuck somewhere underneath it.

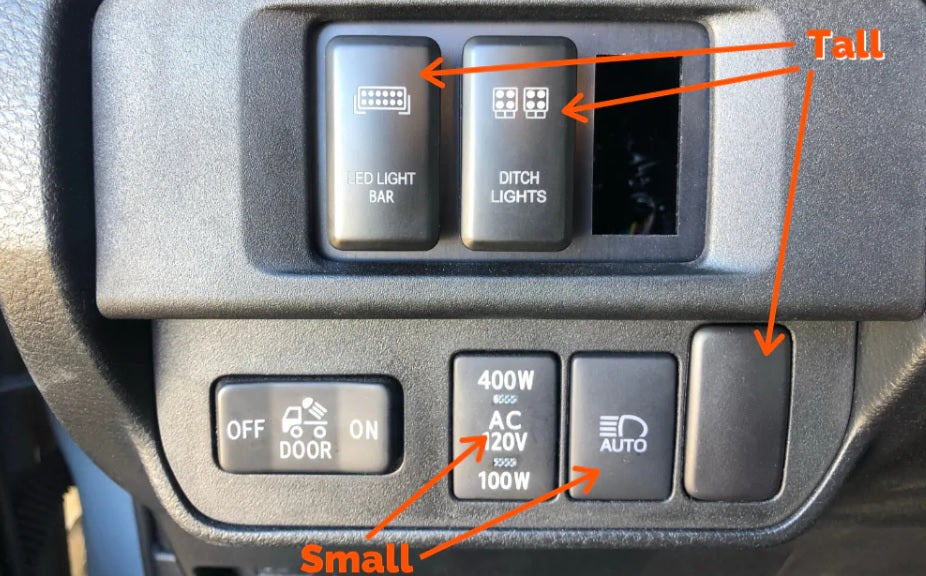

Which Switch Fits What
| Vehicle | Small Switch | Tall Switch |
|---|---|---|
| Toyota 4Runner 2010-2021 | Yes | No |
| Toyota Tundra 2014-2021 | Yes | No |

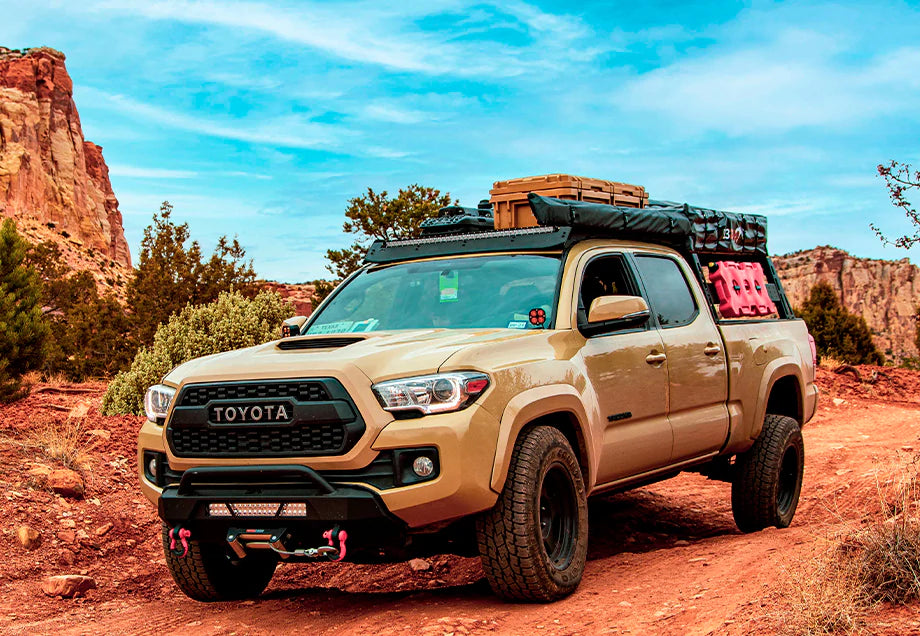

| Toyota Tacoma 2005-2021 | Yes | Yes |
The Tacoma is the flexible one here: it houses both the tall and the small switch, so either works. On the 4Runner and Tundra, the small switch is the one that fits.
One thing to know before you start: connecting the wiring harness to the OEM switch requires modification. It is not a plug-and-play swap. If you are not comfortable with that part, factor in an install shop, or run the bar on the supplied harness without the OEM switch.
White or Amber
The 42 inch slim bar comes in either, and the choice is about conditions rather than looks.
White is the default and the brighter option. It throws further and shows colour and detail properly, which is what you want on open trail at speed.

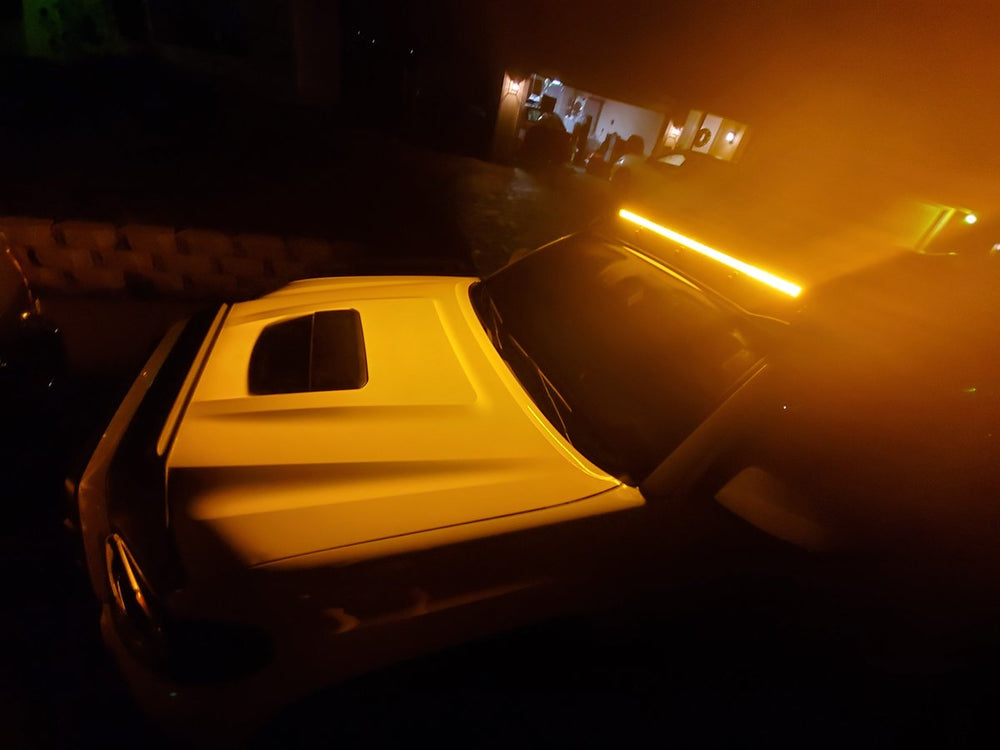

Amber cuts through dust, fog and falling snow far better. Shorter wavelengths scatter off airborne particles and bounce light straight back at you, which is why white light turns a dust cloud into a wall. If you spend time in desert dust or regularly drive in fog, amber earns its place.
Specifications
| Fits | Prinsu roof racks with the 40" cut-out |
| Actual Opening | 43" |

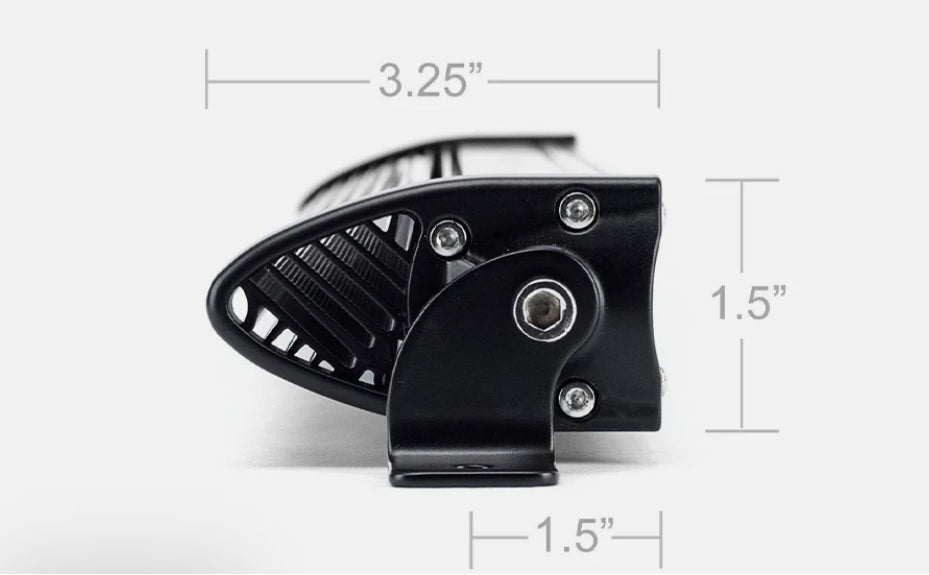

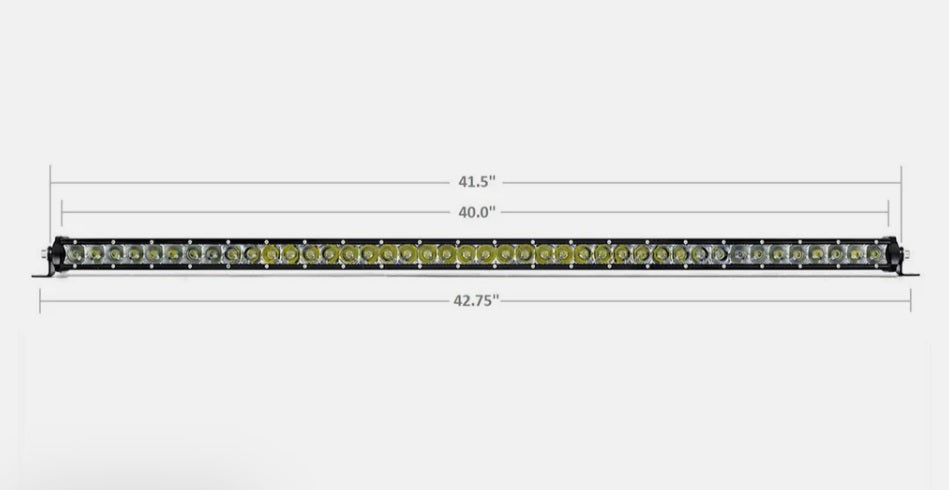

| Bar Included | 42" slim single-row LED light bar, white or amber |
| Max Bar Width | 43". Works with all Cali Raised LED single-row bars within that |
| Brackets | Custom laser cut, sold as a pair |
| Finish | Black semi-gloss mini texture powder coat |
| Modification to Rack | None required |
| Wiring | Harness included when purchased with a light bar |
| OEM Switch | Optional, vehicle specific. Connection requires modification |
| Manufactured | USA |
| Warranty | 2 years, Cali Raised LED |
What's Included
Pros
- Custom laser cut for the Prinsu cut-out, so the bar sits flush
- No modification to the rack required
- Light bar and wiring harness included, not add-ons
- Takes any Cali Raised single-row bar up to 43 inches, not just the 42 inch light bar supplied
- Low profile keeps wind noise and vibration down
- Optional vehicle-specific OEM switch for a factory look
- Engineered and manufactured in the USA
- Two-year Cali Raised LED warranty
Cons
- Connecting the harness to an OEM switch requires modification
- Built for the 40" cut-out Prinsu rack specifically, no guaranteed fit elsewhere
- Tall switch does not fit the 4Runner or Tundra
- The 40 / 43 / 42 inch naming takes a minute to decode
Frequently Asked Questions
Why does it say 40 inch if the bar is 42 inches?
Because 40 inch is Prinsu's name for the cut-out, not its measurement. The actual opening is 43 inches, which is why a 42 inch bar fits in it comfortably. If your Prinsu rack was sold with the 40 inch cut-out, this is the right kit. Call us at 844-200-3979 if you are unsure which cut-out your rack has.
Can I use a different light bar with these brackets?
Yes, within limits. The brackets work with all Cali Raised LED single-row bars up to 43 inches wide. Beyond that width, or with other manufacturers' bars, fitment is not guaranteed. The kit ships with the 42 inch slim bar, which is the intended pairing and the one that sits best in the opening.
Will the OEM switch fit my truck?
The small switch fits the 4Runner 2010-2021, Tundra 2014-2021 and Tacoma 2005-2021. The tall switch fits the Tacoma only, which houses both sizes. It will not fit the 4Runner or Tundra. Call us at 844-200-3979 with your year and model and we will get you the right one.
Is the install plug and play?
The brackets are. They bolt to the Prinsu cut-out with the supplied hardware and need no modification to the rack. The wiring is where it gets involved: connecting the harness to an OEM switch requires modification, so it is not a straight plug-in. Running the bar on the supplied harness without the OEM switch is the simpler route.
Should I choose white or amber?
White is brighter, throws further and shows detail better, which suits open trail at speed. Amber cuts through dust, fog and snow far better, because white light scatters off airborne particles and reflects straight back at you. If you drive in desert dust or regular fog, amber is worth it. Otherwise white is the default.
Complete Your Build
Not Sure Which Cut-Out You Have?
Send us a photo of your Prinsu rack and tell us your truck. We will confirm the bracket fit and which switch you need before you order.
844-200-3979
