Cali Raised LED Dual Function Light Bar and Sherpa Roof Rack Mounting Bracket Kit
Cali Raised LED Dual Function Light Bar and Sherpa Roof Rack Mounting Bracket Kit
Check Your Rack Before You Order
Made for Sherpa roof racks. The brackets are custom-made for the Cali Raised Dual Function light bar and the Sherpa roof rack. Fitment on other racks or other bars is not guaranteed.
Does not work with Sport model racks. If your Sherpa is a Sport model, this kit is not the one.
Not sure which Sherpa rack you have? Send us a photo or the model name, or call 844-200-3979, and we will confirm before it ships.
A white light bar is brilliant on a clear night. In dust, fog, rain or snow, it is a different story. All that white light bounces straight back off the particles in the air and you end up staring into a glowing wall. Amber cuts through it far better, which is why so many overlanders run both.

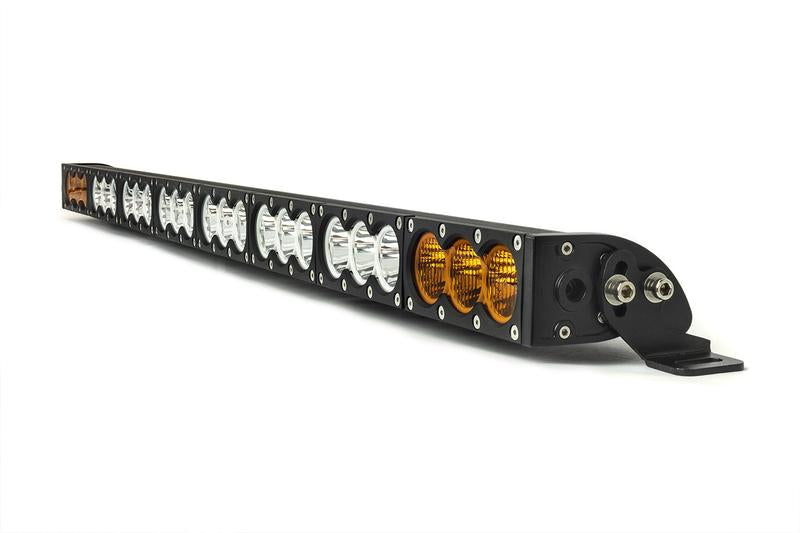

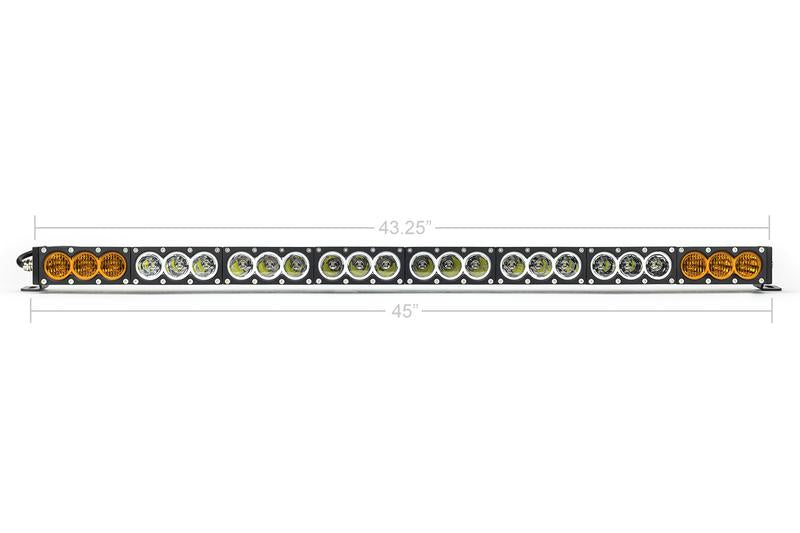

This kit gives you both in one bar, mounted properly on your Sherpa roof rack. You get the Cali Raised LED Dual Function light bar, with separate amber and white LEDs, plus custom laser-cut brackets built to hold it on a Sherpa rack. The brackets are engineered for a close fit to keep vibration and wind noise down, and they are powder coated in a black semi-gloss mini texture to fight corrosion. Installation needs no modification or drilling, and you can order it with a wiring harness and switch or without, if you would rather wire it yourself.
Why an Amber and White Light Bar?
White for Distance
On a clear night, white light shows you the most detail the furthest down the trail.
Amber for Bad Weather
In dust, fog, rain and snow, amber causes less glare back into your eyes, so you see more of the track.
Both When You Want
Wire it with two harnesses and you can run amber, white or both, switching as conditions change.
If you have ever driven a dusty fire road behind another rig, you will know the problem. A dual function bar means you do not have to choose one light for every condition.

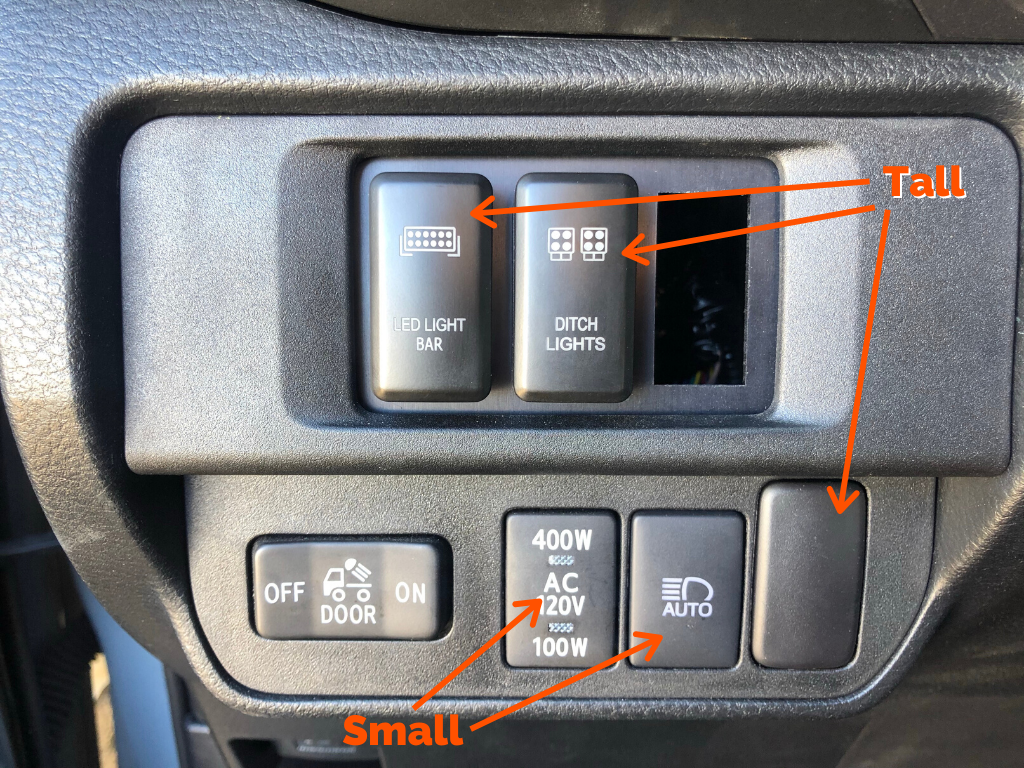

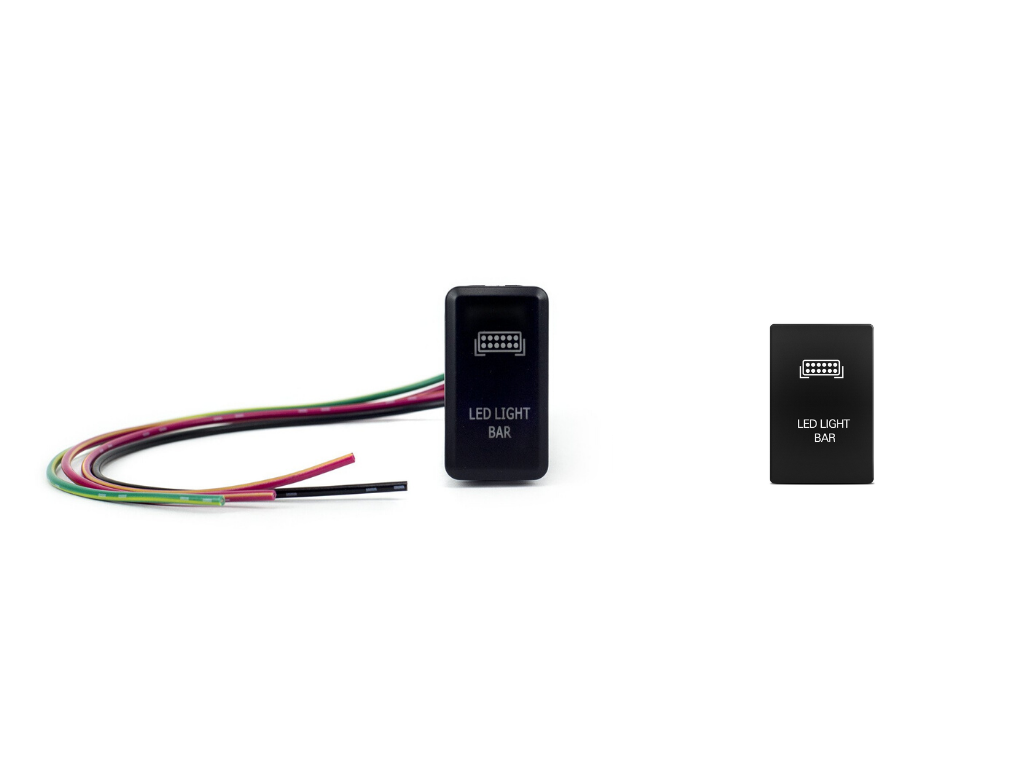

Choose Your Wiring Option
You pick how the kit arrives at checkout. Every option includes the bar, the Sherpa brackets and the installation hardware.
| Option | What You Get | Best For |
|---|---|---|
| Wire harness and Tall Dual Function Switch | Bar, brackets, harness and switch | A plug-and-play setup |
| Wire harness and Small Dual Function Switch | Bar, brackets, harness and switch | A plug-and-play setup with a smaller switch |
| Wire harness and Square Dual Function Switch | Bar, brackets, harness and switch | Matching a square switch panel |
| No wiring harness | Bar and brackets | Wiring it yourself or using an existing switch setup |
Not sure which switch suits your dash? Tell us your truck and what you already have fitted, and we will help you pick.
How to Wire a Dual Function Light Bar
If you are wiring it yourself, there are two ways to do it, depending on how you want the bar to work. Either way, the bar has three wires:
| Wire | Function |
|---|---|
| Black | Ground |
| White | Power for the white LEDs |
| Green | Power for the amber LEDs |
Option 1: One Harness, All Lights Together
Use this if you want the whole bar on or off at once, with no separate control.
- Remove the plug from the harness.
- Connect the black wire on the bar to the black wire on the harness.
- Join the green and white wires on the bar and connect them to the red wire on the harness.
Option 2: Two Harnesses, Amber and White Independently
Use this if you want to run amber only, white only, or both at the same time.
- Remove the DT plugs from the end of both harnesses. They are not needed.
- Expose the wires. Between the two harnesses you will have two red wires and two black wires.
- Join both black wires and connect them to the black wire on the bar.
- Connect one red to the white wire and the other red to the green wire.
✓ Our Recommendation
Go with two harnesses. Being able to drop from white to amber the moment the dust kicks up is the whole point of a dual function bar. Make sure every connection is properly sealed against water, and if you are not confident with 12V wiring, an auto electrician can do it quickly.

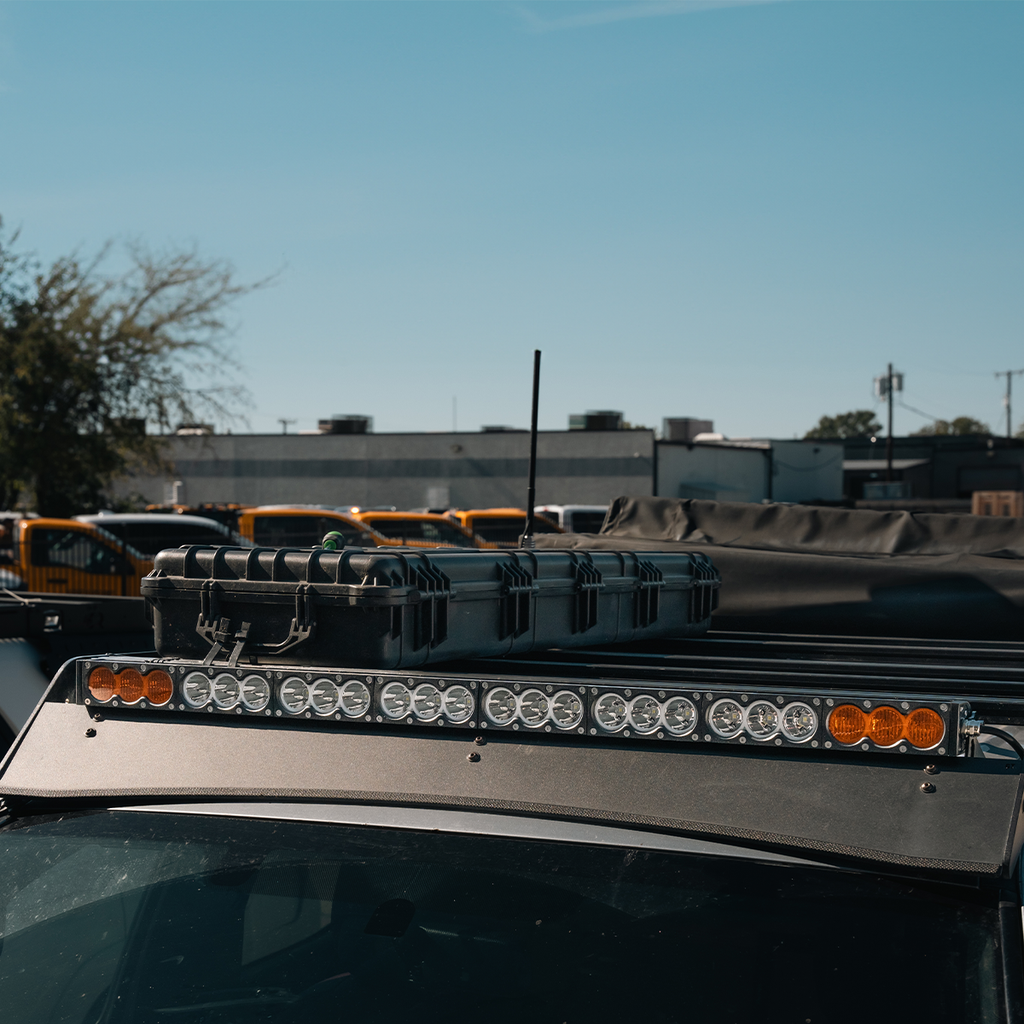

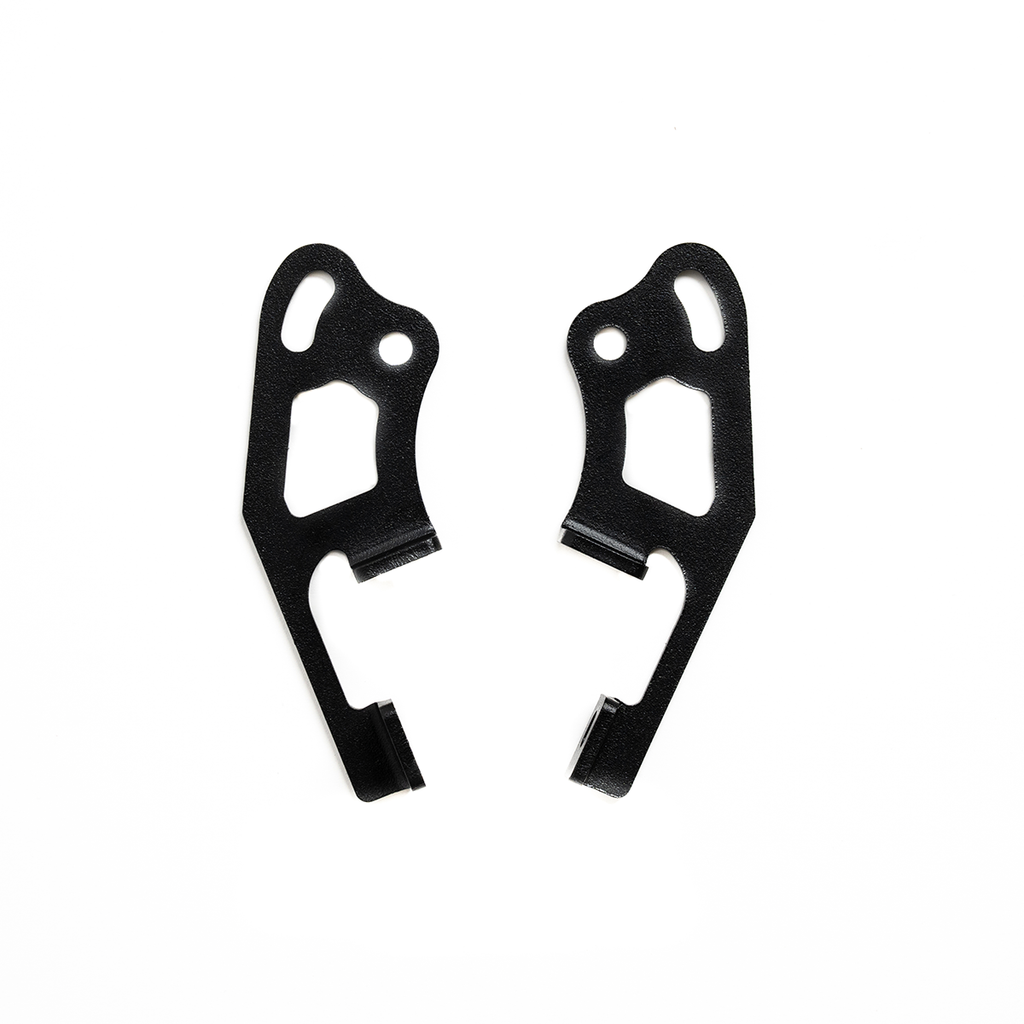

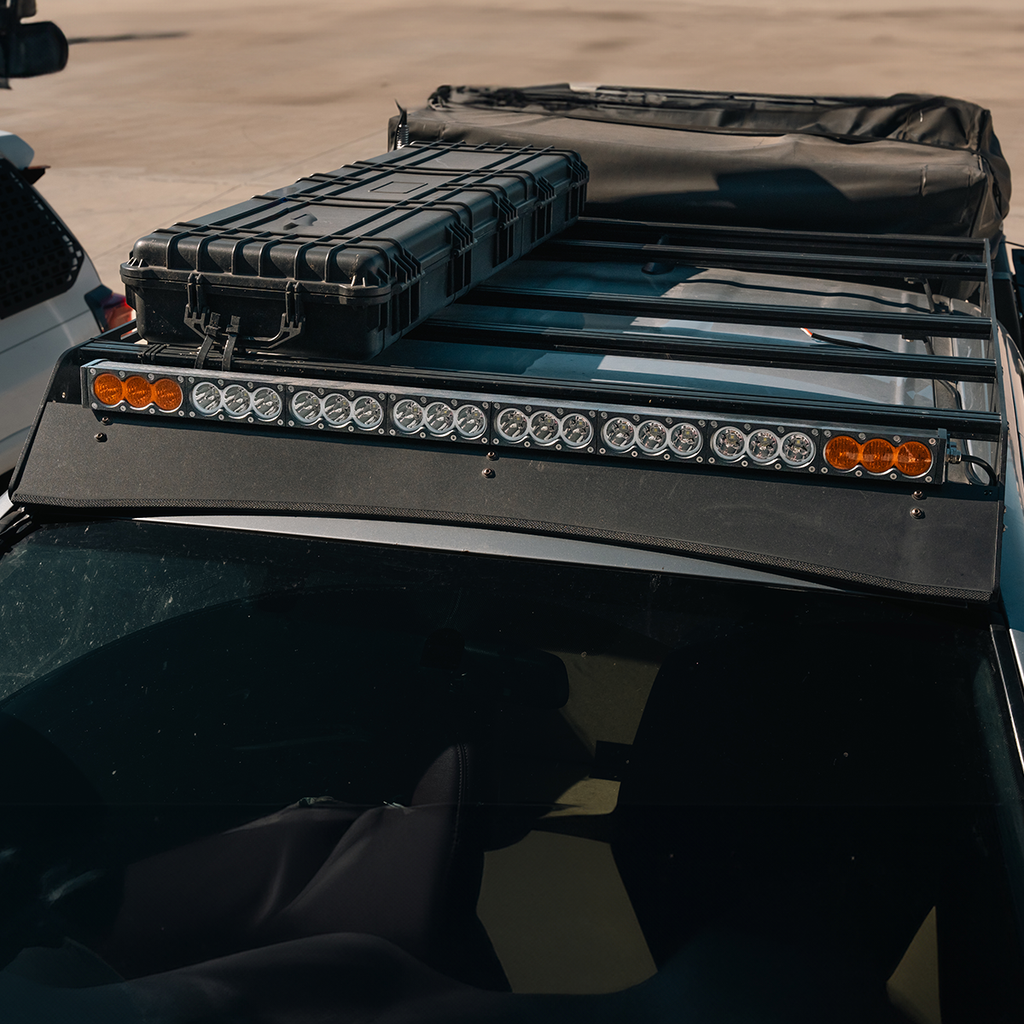

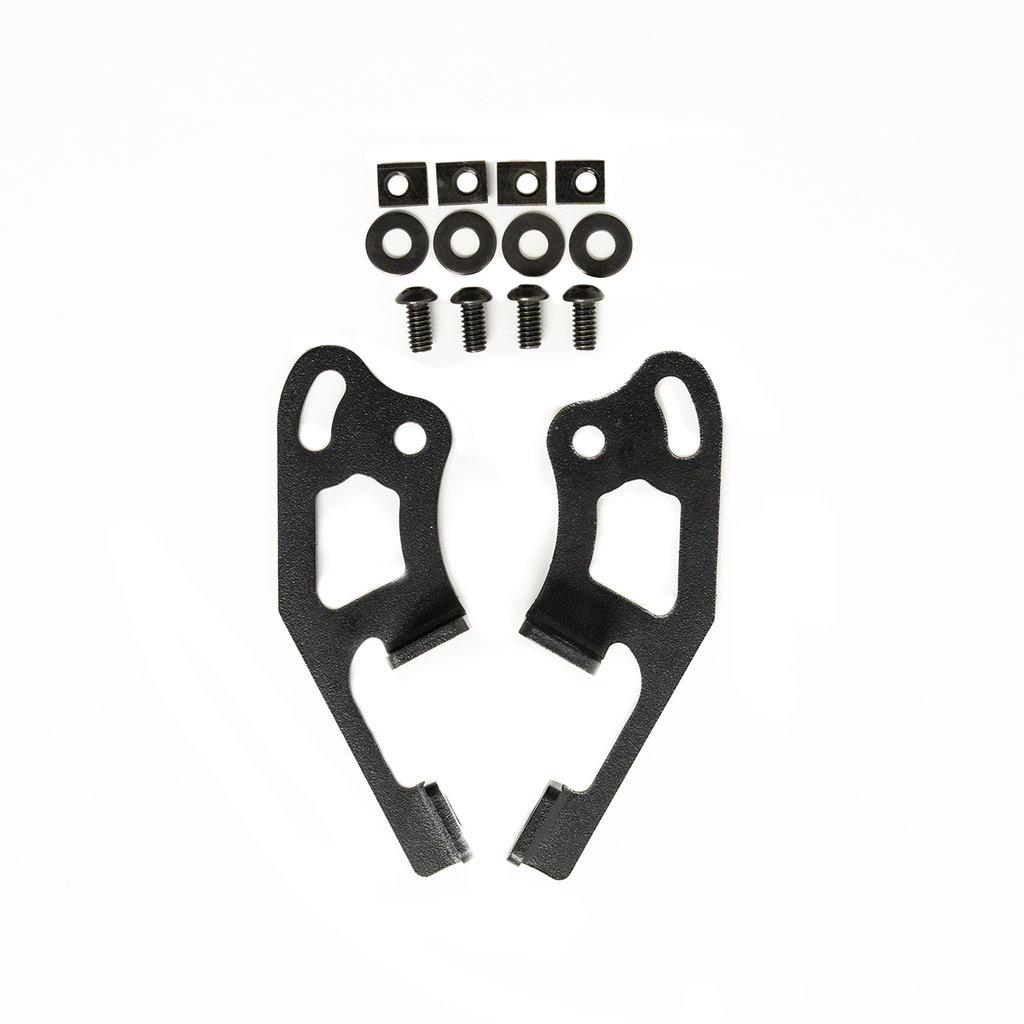

Light Bar Mounting Brackets Made for Sherpa
A roof rack light bar mount has a hard job. It sits in the wind at highway speed, it gets shaken on every corrugated road, and it lives outside in all weather. These brackets are made specifically for this bar and the Sherpa rack, so there is no universal clamp to slip or rattle. If you already run a Sherpa, it is one of the most useful Sherpa roof rack accessories you can add.
- Laser cut for a precise fit with the bar and the rack
- Engineered to minimize vibration and wind noise
- Powder coated in a durable black semi-gloss mini texture to resist corrosion
- Bolt-on to the existing rack with the included hardware, no drilling or modification
Specifications
| Fits | Sherpa roof racks (not Sport models) |
| Light bar | Cali Raised LED Dual Function, amber and white |
| Bar wiring | Black ground, white for white LEDs, green for amber LEDs |
| Brackets | Custom laser-cut, made for this bar and the Sherpa rack |
| Finish | Black semi-gloss mini texture powder coat |
| Wiring options | Harness with Tall, Small or Square Dual Function Switch, or no harness |
| Installation | Bolt-on, no modification or drilling |
| Hardware | Included |
| Warranty | 2 years |
What's Included
- Cali Raised LED Dual Function light bar
- Mounting brackets made for the Dual Function bar and Sherpa rack
- Installation hardware
- Wiring harness and Dual Function switch, if selected
Pros
- Amber and white in one bar, for clear nights and bad weather
- Brackets made specifically for the Sherpa rack, not a universal clamp
- Bolt-on with no drilling or modification
- Choice of switch styles, or no harness if you wire it yourself
Cons
- Does not work with Sherpa Sport model racks
- Fitment on other racks is not guaranteed
Frequently Asked Questions
Will this fit my Sherpa roof rack?
It is made for Sherpa roof racks, but not Sport models. Send us your rack model and we will confirm before it ships.
Can I run the amber and white lights separately?
Yes, with two harnesses. One runs the white LEDs and one runs the amber, so you can use either or both. With one harness, the whole bar comes on together.
Do I need to drill my rack?
No. The brackets bolt on with the included hardware and need no drilling or modification.
Is the wiring harness included?
Only if you choose it. Pick a harness with a Tall, Small or Square Dual Function Switch, or the no-harness option if you are wiring it yourself.
What do the three wires on the bar do?
Black is ground, white powers the white LEDs and green powers the amber LEDs. Join white and green for all-on, or power them separately for independent control.
Complete Your Build
Harness or No Harness?
Tell us your Sherpa rack and how you want to switch the bar, and we will make sure the right kit ships.
844-200-3979
