Cali Raised LED Second 32 Inch Light Bar with Relocation Mounts for 2016-2023 Tacoma Stealth Bumper
Cali Raised LED Second 32 Inch Light Bar with Relocation Mounts for 2016-2023 Tacoma Stealth Bumper
For the Cali Raised Stealth Bumper Only
This kit is designed for the Cali Raised Stealth Bumper on the 2016-2023 Toyota Tacoma. It adds a second 32" light bar to that bumper using the included relocation mounts.
It is designed for that bumper, not the factory bumper or other aftermarket bumpers. Not sure what you have? Call 844-200-3979.
One 32" bar in the Stealth Bumper already lights the trail well. Two of them is a different level. This kit gives your 3rd gen Tacoma a second 32" dual row LED light bar, the relocation mounts and hardware to fit it to the Cali Raised Stealth Bumper, and its own plug and play harness and switch.

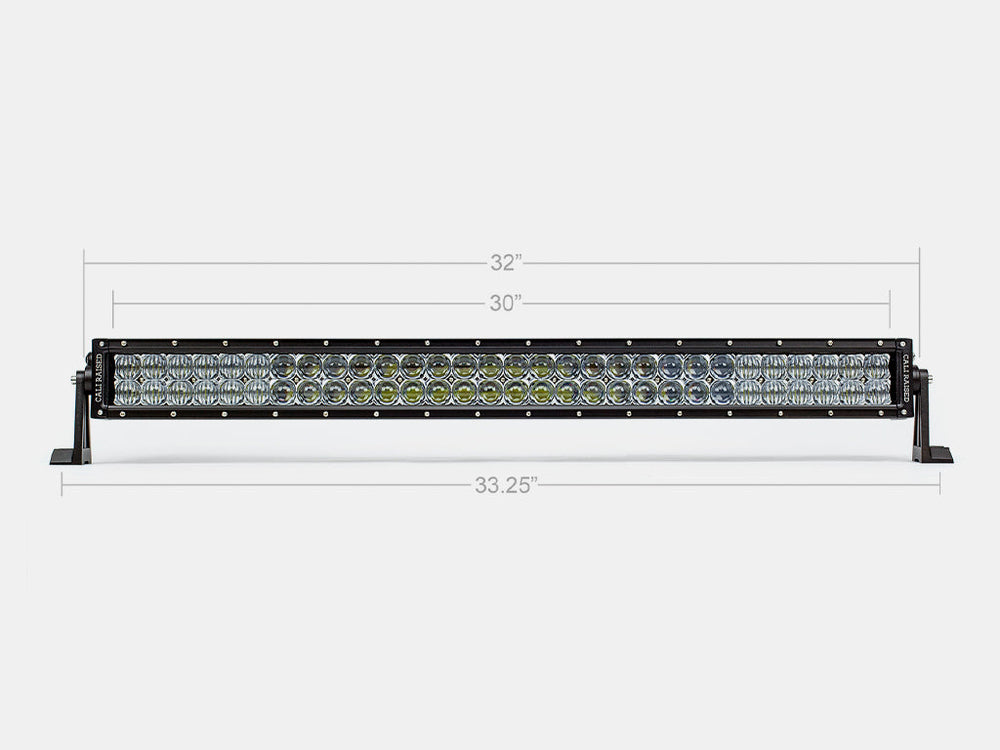

The bar is Cali Raised LED's 32" dual row 5D optic OSRAM bar: 60 OSRAM LEDs, rated at 30,000 lumens from 300 watts, sealed to IP68 in an extruded aluminum housing with a polycarbonate lens. Choose a spot or combo beam, and set up your second 3rd gen Tacoma light bar to work alongside the first.
Why Run Two Bars on a 3rd Gen Tacoma?
A second bar is not just more of the same light. Because it comes with its own harness and switch, it is a separate circuit you control on its own.
Mix Your Beams
Run one spot beam for distance and one combo beam for spread, and you get reach and width at the same time.
Switch Them Separately
Use one bar on a fast dirt road and both when the trail gets technical, without lighting everything every time.
More Light Up Front
Two 30,000 lumen rated bars put serious output across the front of the truck for night trails and desert runs.
Spot or Combo Beam?
| Beam | What It Does | Good For |
|---|---|---|
| Spot | A tight beam that throws light a long way | Fast, open roads where you need to see far ahead |
| Combo | Spot in the centre with flood at the edges | Mixed trails where you want distance and width |
If your first bar is a spot, a combo as the second bar is a good way to fill in the edges of the trail. If your first bar is a combo, a spot second bar adds reach. Tell us what you already run and we will suggest the pairing.
Plan for the Extra Load
Each 300W bar draws roughly 25 amps at 12 volts. With two 32" dual row bars running together, that is about 50 amps on your electrical system.
Use the supplied harness rather than tapping into an existing circuit, run the bars with the engine on, and check your alternator has headroom if you also run a fridge, compressor or winch.
About the Bar
The 3rd gen Tacoma light bar in this kit is the same 32" dual row 5D OSRAM design we cover in full on our 32" Dual Row OSRAM LED bar page. In short:
- 5D optics for a wide radius and long throw, per Cali Raised
- OSRAM LEDs, 60 in total, rated for 50,000+ hours
- Extruded aluminum housing and polycarbonate lens
- IP68 sealing against dust, dirt and water
The 30,000 lumen figure is a manufacturer rating of raw LED output rather than light measured at the trail, as with nearly every light bar on the market.
Installation
The kit uses relocation mounts and hardware to fit the second Tacoma light bar to the Cali Raised Stealth Bumper, and the plug and play harness makes the wiring straightforward.
- Disconnect the battery before you start any wiring.
- Fit the mounts and bar loosely first, check both bars sit level and aligned, then tighten.
- Route the harness away from heat and moving parts, and secure it with ties along the way.
- Mount the switch where you can reach it easily, separate from your first bar's switch.
- Aim both bars at night on a quiet road or trail before your first real run.
Specifications
| Fitment | Cali Raised Stealth Bumper, 2016-2023 Toyota Tacoma |
| Light bar | 32" dual row, 5D optics, 60 OSRAM LEDs |
| Beam options | Spot or combo |
| Power draw | 300 watts, approx. 25 amps at 12V |
| Rated output | 30,000 lumens (manufacturer rated) |
| IP rating | IP68 |
| LED lifespan | 50,000+ hours |
| Housing and lens | Extruded aluminum, polycarbonate lens |
| Wiring | Plug and play single-leg harness with standard switch |
| Mounting | Relocation mounts and hardware included |
What's Included
- 32" dual row LED light bar
- Relocation mounts and hardware
- Plug and play single-leg wiring harness
- Standard switch
The Stealth Bumper is sold separately.
Pros
- Adds a second 32" bar to the Stealth Bumper with mounts designed for it
- Its own harness and switch, so you control each bar separately
- Choice of spot or combo beam to complement your first bar
- OSRAM LEDs, 5D optics and IP68 sealing
Cons
- Only fits the Cali Raised Stealth Bumper for the 2016-2023 Tacoma
- Two bars together draw around 50 amps, so plan your electrical system
Frequently Asked Questions
Which 3rd gen Tacoma light bar setup does this fit?
The Cali Raised Stealth Bumper on the 2016-2023 Toyota Tacoma. It adds a second 32" light bar to that bumper using the included relocation mounts.
Is the light bar included?
Yes. The kit includes a 32" dual row LED light bar, the relocation mounts and hardware, a plug and play harness and a standard switch.
Should I choose spot or combo?
Pick the beam that complements your first bar. A spot adds distance, a combo adds width at the edges of the trail. Running one of each gives you both.
Can I run the two bars separately?
Yes. This bar comes with its own harness and switch, so it works on its own circuit and you can use one bar or both.
How much power do two bars draw?
Each 300W bar draws about 25 amps at 12 volts, so two together draw around 50 amps. Run them with the engine on and check your alternator has the headroom.
Complete Your Build
Spot, Combo or One of Each?
Tell us what is already in your Tacoma Stealth Bumper and we will help you choose the second bar to go with it.
844-200-3979
