Your headlights point forward. That is fine on pavement, but it is the wrong answer on a tight trail where the thing you need to see is the rock ledge beside your front tire, the drop-off on the passenger side, or the trail marker you are about to drive past. Side projecting pods fix that. These throw light out to the sides rather than down the trail, which is why they end up in the ditch light position on so many builds.

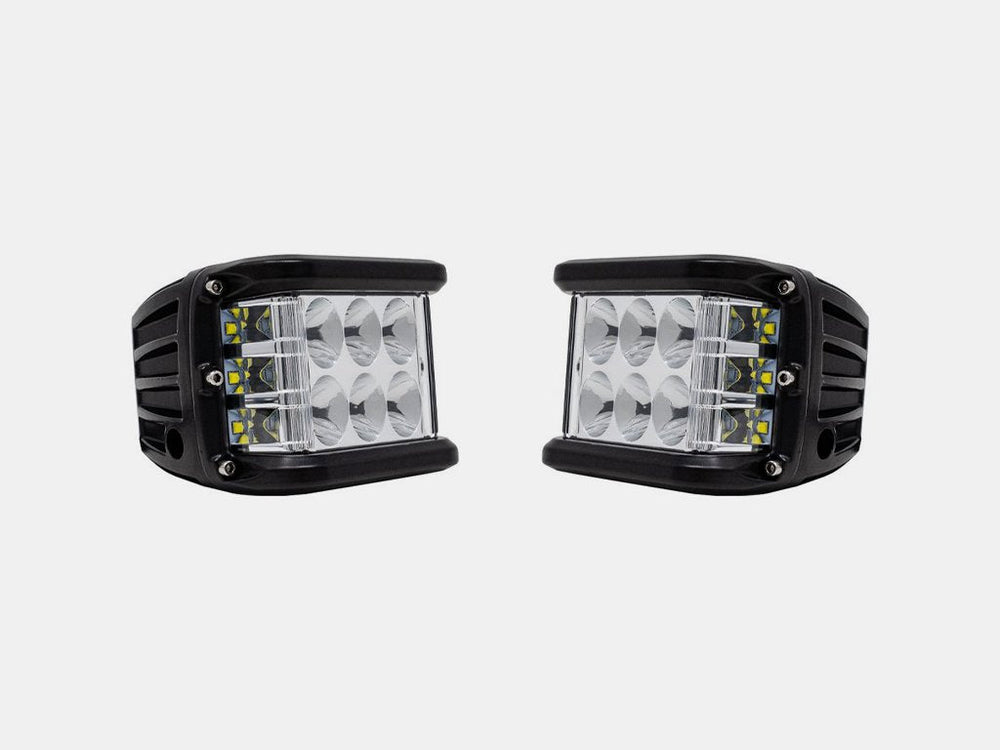

Each pod runs 9 CREE LEDs at 27W for 2,500 lumens, with a beam engineered to cast light out to the sides rather than forward. Amp draw is just 2 amps per pod, so you can run them without worrying about the electrical system. They are IP68 rated with polycarbonate lenses and a GORE anti-moisture vent system that keeps condensation from forming inside the housing over years of heat cycles. Universal fit for any year, make, and model, with a 50,000+ hour LED lifespan and a 2 year warranty. Sold as a pair. You receive a left and a right.
Side Projecting, Not Forward Throwing
This is what separates these from a standard pod. Most LED pods concentrate their output forward in a spot or flood pattern. These are engineered to direct light out to the sides, filling in the peripheral area your headlights and forward-facing bars completely miss. That means the edge of the trail, the ditch beside you, the obstacle at your front corner, and your camp area when you are parked. Run them as ditch lights and you get genuine side visibility on tight trail sections rather than a slightly wider version of what you already had.
See It in Action
Built to Survive the Trail
IP68 Sealed: Rated against dust, dirt, and sand, and sealed for submersion. River crossings and pressure washing are not a concern.
GORE Anti-Moisture Vent System: This is the detail cheap pods skip. As the housing heats up and cools down, air inside expands and contracts. Without a vent, that pressure cycle pulls moisture past the seals and you end up with condensation fogging the lens from the inside. The GORE vent equalizes pressure while blocking water, so the interior stays dry through years of heat cycles.
CREE LEDs and Polycarbonate Lens: CREE emitters rated for 50,000+ hours behind a polycarbonate lens that takes rock strikes and trail debris without cracking the way glass would.
Mounting

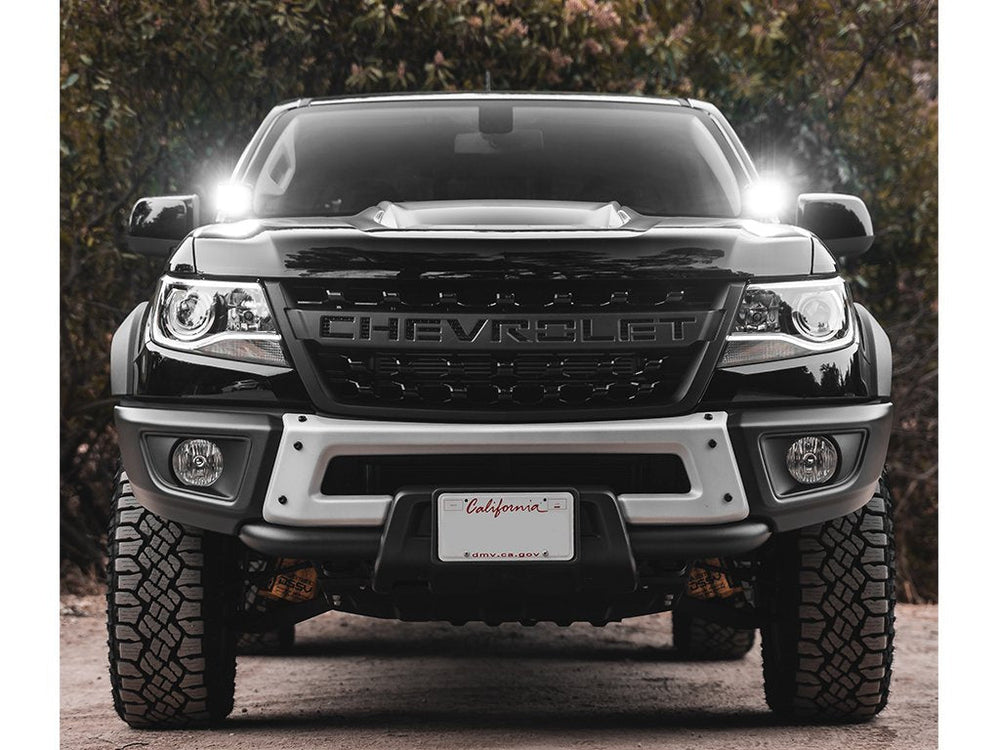

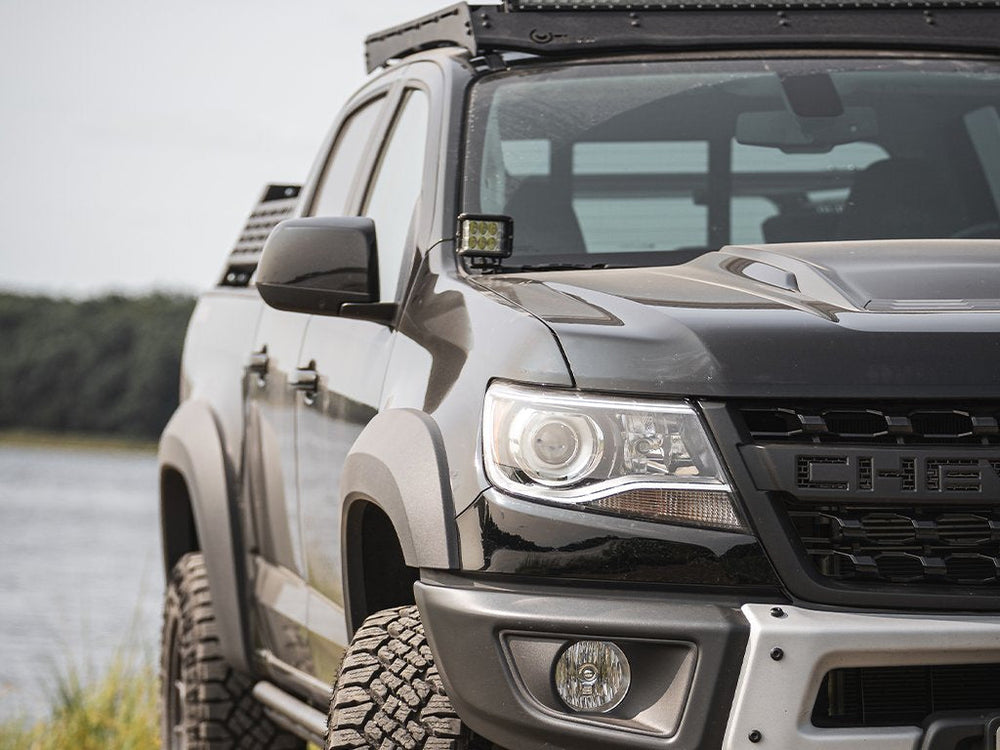

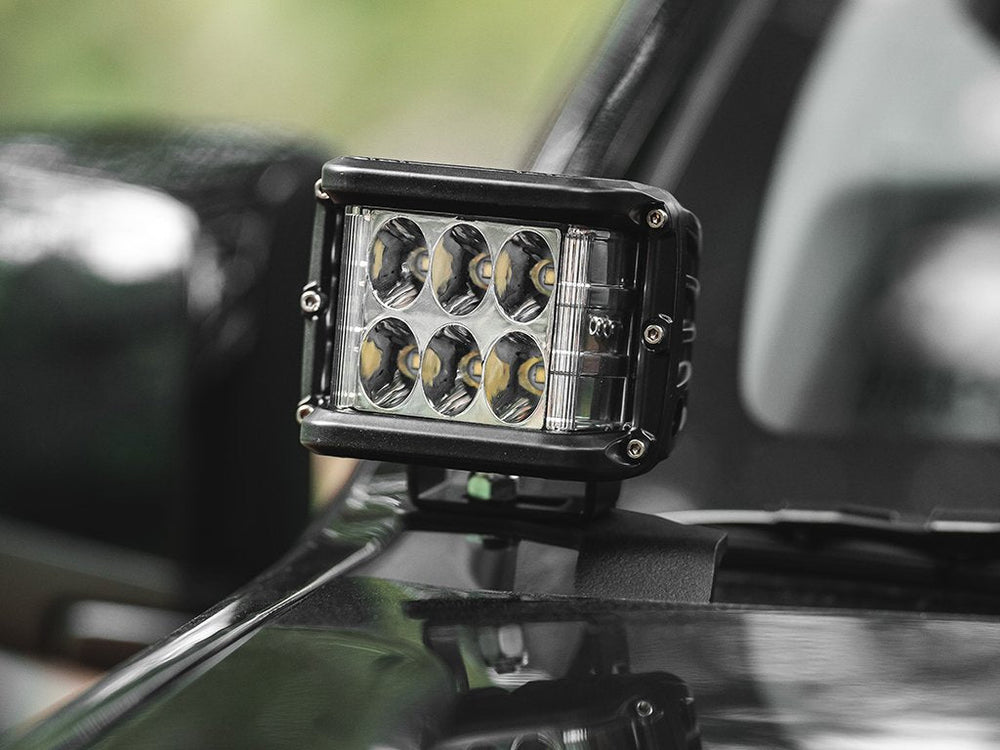

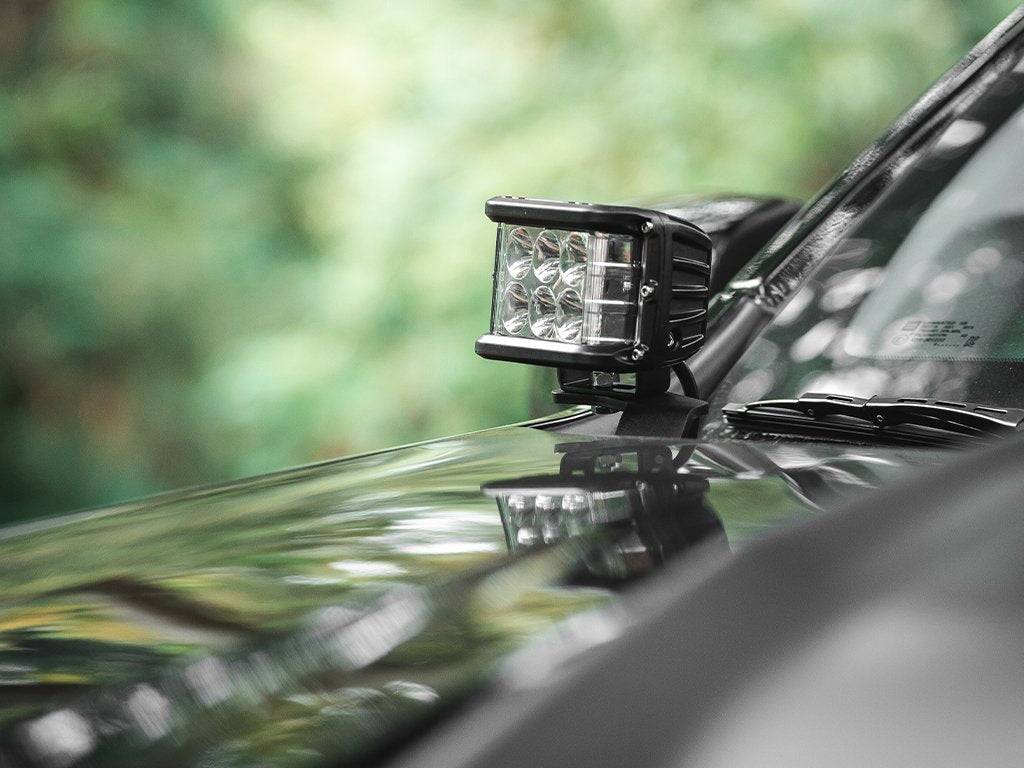

These pods are universal and work with all years, makes, and models. Most builds run them in the ditch light position, mounted at the base of the A-pillar where the hood meets the cowl, which is the natural spot for side-directed light.
Ditch brackets are not included. You will need vehicle-specific mounting brackets to put these in the ditch position, or your own custom mounting solution. Call us at 844-200-3979 with your vehicle and we will confirm which brackets you need before you order.
Specifications
| Sold As | Pair (one left, one right) |
| Wattage | 27W per pod |
| LEDs | 9 CREE per pod |
| Lumens | 2,500 per pod |
| Beam Direction | Side projecting, directed up to 120 degrees to the sides |
| Amp Draw | 2 amps |
| IP Rating | IP68 |
| Lens | Polycarbonate |
| Venting | GORE anti-moisture vent system |
| LED Lifespan | Up to 50,000+ hours |
| Fitment | Universal. All years, makes, and models |
| Ditch Brackets | Not included |
| Wiring Harness | A compatible relay wiring harness is recommended |
| MPN | CR2332 |
| Warranty | 2 years |
Pros
- Side-directed beam fills in the peripheral area headlights and forward bars completely miss
- 2,500 lumens per pod from 9 CREE LEDs at just 2 amps of draw
- Sold as a matched pair, so you get a left and a right in one purchase
- IP68 rated with a GORE vent system that prevents internal lens fogging
- Polycarbonate lens handles rock strikes without cracking
- Universal fitment across all years, makes, and models
- 50,000+ hour LED lifespan backed by a 2 year warranty
Cons
- Ditch brackets are not included. Most installs need vehicle-specific brackets purchased separately
- A relay wiring harness is recommended and not included, so budget for that too
- Side projecting is a specialist beam. These complement forward lighting rather than replacing a light bar or driving lights
Frequently Asked Questions
What are side projecting LED pods used for?
They cast light out to the sides rather than forward, which makes them ideal for lighting up the edges of the trail, illuminating camp, and covering blind spots on tight trail sections. Mounted in the ditch light position, they show you the rock ledge beside your tire or the drop-off on your passenger side, which is exactly what your headlights cannot do.
Are these sold as a pair?
Yes. You receive two pods, one left and one right, in a single purchase. They are designed as a matched set so the beam pattern works correctly on both sides of the vehicle.
Are these waterproof?
Yes. They are IP68 rated for waterproof and dustproof performance. The GORE anti-moisture vent system is the part that matters long term. It lets the housing breathe as it heats and cools without drawing moisture past the seals, which is what causes lens fogging on cheaper pods after a season or two.
What mounting brackets do I need?
Ditch brackets are not included with these pods. Most people mount them in the ditch light position using vehicle-specific brackets, though the universal design also works with custom mounting solutions. Call us at 844-200-3979 with your year, make, and model and we will confirm which brackets fit before you order.
Do these require a wiring harness?
Yes. A compatible relay wiring harness is recommended for these pods and is not included in this purchase. The harness handles switching and protects the circuit. At 2 amps of draw per pod the electrical load is light, so most standard relay harnesses will handle a pair without issue.
